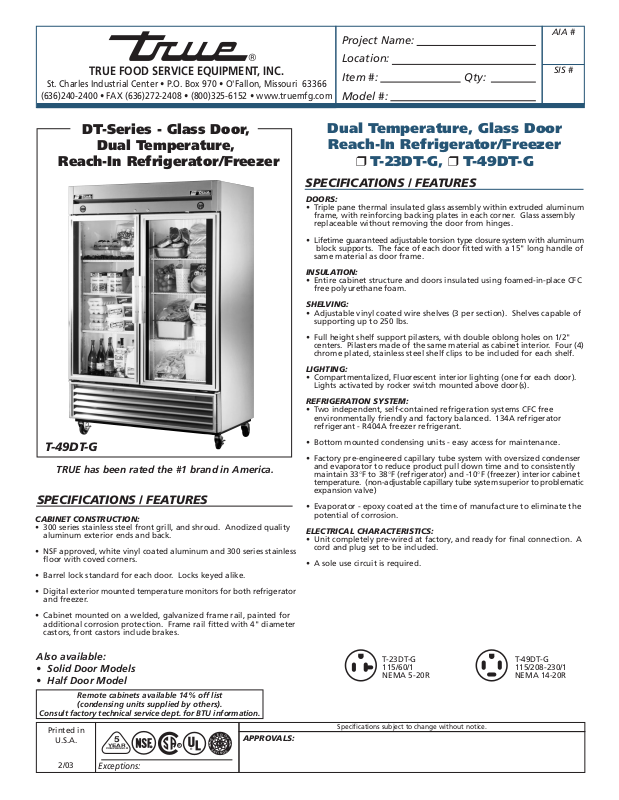

True T-49DT-G User Manual

TRUE FOOD SERVICE EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366

(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

DT-Series - Glass Door,

Dual Temperature,

Reach-In Refrigerator/Freezer

T-49DT-G

TRUE has been rated the #1 brand in America.

SPECIFICATIONS / FEATURES

CABINET CONSTRUCTION:

• 300 series stainless steel front grill, and shroud. Anodized quality aluminum exterior ends and back.

• NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners.

• Barrel lock standard for each door. Locks keyed alike.

• Digital exterior mounted temperature monitors for both refrigerator and freezer.

• Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors, front castors include brakes.

Dual Temperature, Glass Door

Reach-In Refrigerator/Freezer

❒ T-23DT-G, ❒ T-49DT-G

SPECIFICATIONS / FEATURES

DOORS:

• Triple pane thermal insulated glass assembly within extruded aluminum frame, with reinforcing backing plates in each corner. Glass assembly replaceable without removing the door from hinges.

• Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 15" long handle of same material as door frame.

INSULATION:

• Entire cabinet structure and doors insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs.

• Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

LIGHTING:

• Compartmentalized, Fluorescent interior lighting (one for each door). Lights activated by rocker switch mounted above door(s).

REFRIGERATION SYSTEM:

• Two independent, self-contained refrigeration systems CFC free environmentally friendly and factory balanced. 134A refrigerator refrigerant - R404A freezer refrigerant.

• Bottom mounted condensing units - easy access for maintenance.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33°F to 38°F (refrigerator) and -10°F (freezer) interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection. A cord and plug set to be included.

• A sole use circuit is required.

Also available:

• Solid Door Models

• Half Door Model

Remote cabinets available 14% off list

Consult factory technical service dept. for BTU information.

(condensing units supplied by others).

Printed in

U.S.A.

2/03

YEAR

COMPRESSOR

Exceptions:

APPROVALS:

T-23DT-G 115/60/1 NEMA 5-20R

Specifications subject to change without notice.

T-49DT-G 115/208-230/1 NEMA 14-20R

27"

DT-Series: Dual Temperature, Glass Door Reach-In Refrigerator/Freezer

54"

L - 69 cm D - 75 cm H - 199 cm Door Swing - 65 cm

TRUE

T-23DT-G

27"

L - 138 cm D - 75 cm H - 199 cm

Door Swing - 66 cm

TRUE

T-49DT-G

Rough-In Data

Capacity Dimensions Cord

Swing (Cu. Ft) # of (inches) HP NEMA Length Crated

Model Doors Ref. - Freezer Shelves L D

‡ H* Ref. - Freezer Volts PH Amps Config. (feet) Weight

T-23DT-G 2 11 8 3 27 29 1/2 78 1/4 1/5 1/2 115/60 1 15.6 5-20 9 348 T-49DT-G † 2 23 23 6 54 29 1/2 78 1/4 1/3 3/4 115/208-230 1 14.2 14-20 9 480

* Height does not include 5” for castors or 6” for optional legs.

† Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire. ‡ Depth does not include 1 3/8” for door handle.

Specifications subject to change without notice.

Standard Features ____________________________________________________________________________________________

• Environmentally friendly refrigerants (refrigerator 134A; freezer R404A).

• Two, independent, self-contained, oversized and balanced, environmentally friendly refrigeration systems (refrigerator holds 33°F to 38°F; freezer holds -10°F).

• T-23DT-G features the refrigerator on top and the freezer on bottom.

• T-49DT-G features the refrigerator on the left and the freezer on the right. Freezer section includes backguard for improved airflow.

• 300 series stainless steel front.

• Anodized quality aluminum top, sides

and back.

• Interior - NSF approved, white vinyl coated aluminum sides and top, 300 series stainless steel floor with coved corners.

• Triple pane thermal insulated glass doors. Double insulation for greater energy savings. Exterior pane is tempered for safety.

• Dual, exterior mounted, digital thermometers.

• Door locks standard.

• Magnetic door gaskets.

• Foamed-inplace polyurethane high

density cell insulation (CFC free)

• Adjustable vinyl coated wire shelves.

• Epoxy coated evaporator.

• Compartmentalized, Fluorescent interior

lighting (one for each door).

KCL

Model Front Right Plan 3D T-23DT-G TFEY65E TFGY08S TFEY06P TFEY653 T-49DT-G TFEY67E TFEY07S TFEY07P TFEY673

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

• 4" diameter swivel castors standard equipment - locking castors provided for front set.

• Slide out compressors can be serviced easily and accessed by a single repairman.

• 1 year parts & labor warranty (USA).

• 5 year compressor warranty.

Optional Accessories ______________

❒ Available with 6" stainless steel or optional

seismic legs.

❒ Additional shelves available. ❒ Novelty baskets available.

Clearance Required For Coolers (USA)

Sides Top Rear

Inches/mm Inches/mm Inches/mm

0 / 0 0 / 0 3 / 77

YEAR

COMPRESSOR
