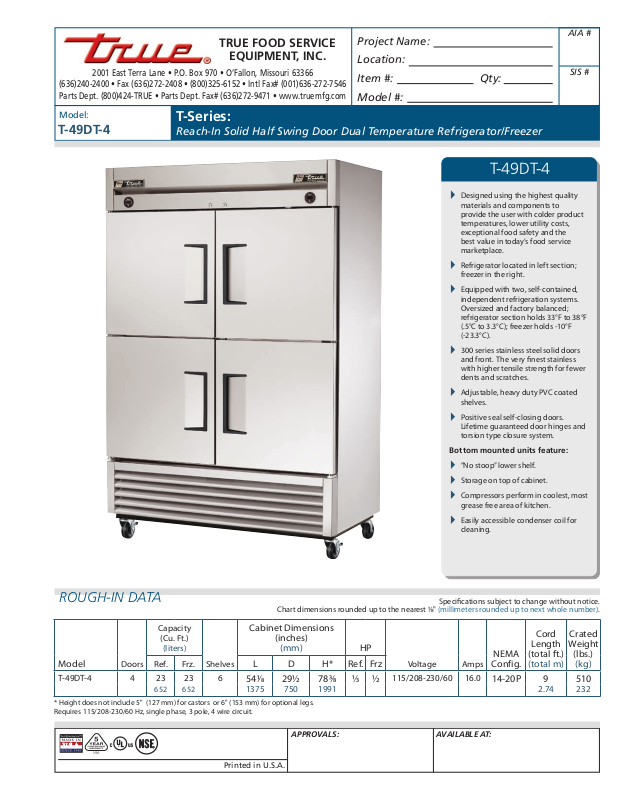

True T-49DT-4 Specifications

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-49DT-4

T-Series:

Reach-In Solid Half Swing Door Dual Temperature Refrigerator/Freezer

T-49DT-4

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.

Refrigerator located in left section;



freezer in the right.

Equipped with two, self-contained,



independent refrigeration systems.
Oversized and factory balanced;
refrigerator section holds 33°F to 38°F
(.5°C to 3.3°C); freezer holds -10°F
(-23.3°C).

300 series stainless steel solid doors



and front. The very nest stainless
with higher tensile strength for fewer
dents and scratches.

Adjustable, heavy duty PVC coated



shelves.

Positive seal self-closing doors.



Lifetime guaranteed door hinges and
torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.



Storage on top of cabinet.



Compressors perform in coolest, most



grease free area of kitchen.

Easily accessible condenser coil for



cleaning.

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Capacity

(Cu. Ft.)

(liters)

Model Doors

T-49DT-4 4 23 23 6

652 652

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.
Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire circuit.

Shelves

Cabinet Dimensions

(inches)

(mm) HP

54⁄ 29½ 78⁄ ⁄ ½

1375 750 1991 2.74 232

ApprovAls: AvAilAble At:

Printed in U.S.A.

Specications subject to change without notice.

Voltage Amps

115/208-230/60 16.0

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)Ref. Frz. L D H* Ref. Frz

14-20P 9 510

Model:

T-49DT-4

T-Series:

Reach-In Solid Half Swing Door Dual
Temperature Refrigerator/Freezer

StanDaRD FeatuReS

DESIGN

True’s solid door reach-in’s are designed with enduring

•

quality that protects your long term investment.
True’s commitment to using the highest quality materials

•

and oversized refrigeration systems provides the user
with colder product temperatures, lower utility costs,
exceptional food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Equipped with two, independent, factory engineered,

•

self-contained, capillary tube refrigeration systems
using environmentally friendly (CFC free) refrigerant.
Refrigerator uses 134A and freezer uses R404A.
Refrigerator located in left section; freezer in the right.

•

Extra large evaporator coils balanced with higher

•

horsepower compressors and large condensers; maintain
colder standard temperatures for the best in food
preservation. Refrigerator holds 33°F to 38°F (.5°C to

3.3°C); freezers holds -10°F (-23.3°C).
Sealed, cast iron, self-lubricating evaporator fan motors

•

and larger fan blades give True reach-in’s a more ecient,
low velocity, high volume airow design. This unique
design ensures faster temperature recovery and shorter
run times in the busiest of food service environments.
Bottom mounted condensing units positioned for easy

•

cleaning. Compressors run in coolest and most grease
free area of the kitchen. Allows for storage area on top
of unit.
Automatic freezer defrost system time-initiated,

•

temperature-terminated. Saves energy consumption and
provides shortest possible defrost cycle.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel front. Anodized quality

•

aluminum ends, back and top.
Interior - attractive, NSF approved, white aluminum liner.

•

300 series stainless oor with coved corners.
Insulation - entire cabinet structure and solid doors are

•

foamed-in-place using Ecomate. A new, innovative, high
density, polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global warming
potential (GWP).

Welded, heavy duty steel frame rail, black powder coated

•

for corrosion protection.
Frame rail tted with 4" (102 mm) diameter stem castors -

•

locks provided on front set.

DOORS

300 series stainless steel exterior with white aluminum

•

liners to match cabinet interior. Doors extend full width
of cabinet shell. Door lock(s) standard.
Lifetime guaranteed recessed door handles. Each door

•

tted with 12" (305 mm) long recessed handle that is
foamed-in-place with a sheet metal interlock to ensure
permanent attachment.
Positive seal self-closing doors. Lifetime guaranteed door

•

hinges and torsion type closure system.
Magnetic door gaskets of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

Six (6) adjustable, heavy duty PVC coated wire shelves

•

22 ⁄"L x 23 ¼"D (582 mm x 591 mm). Four (4) chrome
plated shelf clips included per shelf.
Shelf support pilasters made of same material as cabinet

•

interior; shelves are adjustable on ½" (13 mm) increments.

LIGHTING

Compartmentalized, incandescent interior lighting

•

- safety shielded. Lights activated by rocker switch
mounted above top door(s).

MODEL FEATURES

Two (2) exterior digital temperature displays, one for

•

refrigerator section and one for freezer.
Evaporator is epoxy coated to eliminate the potential of

•

corrosion.
Freezer rear airow guards prevent product from blocking

•

optimal airow.
Minimum wattage heater in cabinet frame and freezer

•

door.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready for nal

•

connection to a 115/208-230/60 hz, single phase, 3 pole,
4 wire, 20 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" ( 153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
Additional shelves. ❑
Novelty baskets. ❑
Half door bun tray racks. Each holds up to eleven 18"L ❑
x 26"D (458 mm x 661 mm) sheet pans (sold separately)
(airow guard needs to be removed from freezer).
Remote cabinets (condensing unit supplied by others; ❑
system comes standard with 404A expansion valve and
requires R404A refrigerant). Consult factory technical
service department for BTU information. All remote units
must be hard wired during installation.

Plan VIew

One year warranty on all parts

WARRANTY

and laborand an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

T-49DT-4 TFEY66E TFGY07S TFEY02P TFEY663
