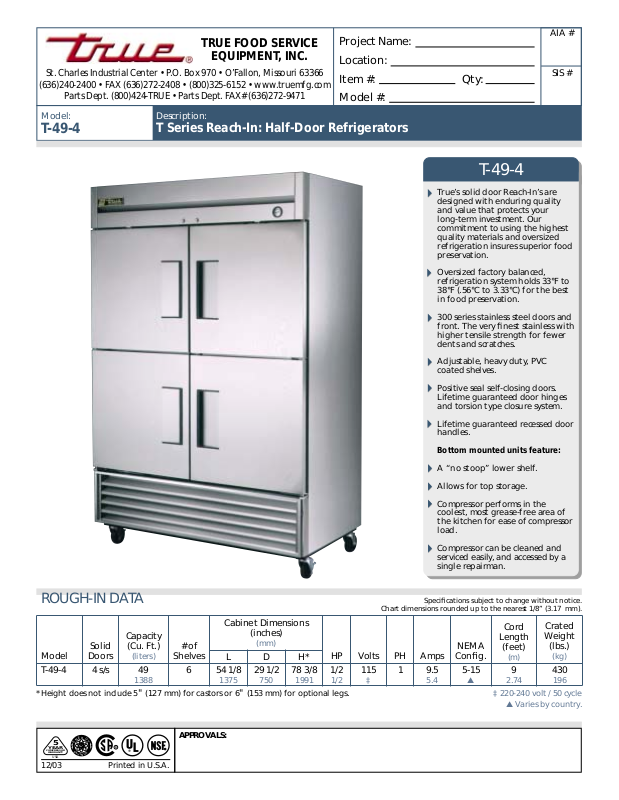

True T-49-4 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Model: Description:

T-49-4

T Series Reach-In: Half-Door Refrigerators

Project Name:
Location:
Item #: Qty:
Model #:

True’s solid door Reach-In’s are
designed with enduring quality
and value that protects your
long-term investment. Our
commitment to using the highest
quality materials and oversized
refrigeration insures superior food
preservation.

Oversized factory balanced,
refrigeration system holds 33°F to
38°F (.56°C to 3.33°C) for the best
in food preservation.

300 series stainless steel doors and
front. The very fi nest stainless with
higher tensile strength for fewer
dents and scratches.

AIA #

SIS #

T-49-4

Adjustable, heavy duty, PVC
coated shelves.

Positive seal self-closing doors.
Lifetime guaranteed door hinges
and torsion type closure system.

Lifetime guaranteed recessed door
handles.

Bottom mounted units feature:

A “no stoop” lower shelf.
Allows for top storage.
Compressor performs in the

coolest, most grease-free area of
the kitchen for ease of compressor
load.

Compressor can be cleaned and
serviced easily, and accessed by a
single repairman.

ROUGH-IN DATA

Model

Doors

T-49-4 4 s/s 49

*Height does not include 5

Solid

Capacity

(Cu. Ft.)

Chart dimensions rounded up to the nearest 1/8” (3.17 mm).

Cabinet Dimensions

(inches)

(mm)

LDH*

29 1/2

750

78 3/8

1991

HP Volts PH Amps
1/2

1/2

115

‡

(liters)

1388

# of

Shelves

6 54 1/8

1375

" (127 mm) for castors or 6" (153 mm) for optional legs. ‡ 220-240 volt / 50 cycle

Specifi cations subject to change without notice.

Cord

Length

1 9.5

5.4

NEMA

Confi g.

5-15

▲

(feet)

(m)

9

2.74

Crated

Weight

(lbs.)

(kg)

430

196

▲ Varies by country.

5

YEAR

COMPRESSOR

WARRANTY

USA

12/03

R

E

G

N

Y

E

S

S

A

S

V

I

G

N

APPROVALS:

R

Printed in U.S.A.

Model: Description:

T-49-4

T Series Reach-In: Half-Door Refrigerators

STANDARD FEATURES

DESIGN

• True’s solid door Reach-In’s are
designed with enduring quality and
value that protects your long-term
investment. Our commitment to using
the highest quality materials and
oversized refrigeration insures superior
food preservation.

REFRIGERATION SYSTEM:

• Factory balanced refrigeration system
using environmentally friendly, CFC
free 134A refrigerant.

• Factory pre-engineered capillary tube
system, oversized and balanced with
larger condensing unit and evaporator
to recover faster and consistently
maintain 33°F to 38°F (.56°C to 3.33°C)
product temperature.

• Bottom mounted condensing
unit - compressor runs in coolest and
most grease free area of the kitchen.
Allows for storage area on top of
reach-in and positioned to save service
time.

• Evaporator - epoxy coated at the
time of manufacture to eliminate the
potential of corrosion.

CABINET CONSTRUCTION:

• Exterior ­grill, shroud and doors. Andonized
quality aluminum exterior ends and
back.

•

Interior - attractive, NSF approved,
white aluminum interior liner. 300
Series stainless fl oor with coved
corners.

300 series stainless steel front

• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.

• Cabinet mounted on a welded,
galvanized frame rail, coated for
additional corrosion protection. Frame
rail fi tted with 4

" (102 mm) diameter

castors standard - locking castors
provided for front set. Legs available.

DOORS:

• 300 series stainless steel exterior with
white aluminum door liner to match
cabinet interior. Doors extend full
width of cabinet shell. Door locks are
standard.

• Lifetime guaranteed recessed door
handles standard. Each door fi tted
with 12

" (305 mm) long recessed

handle that is foamed-in-place with
a sheetmetal interlock to insure
permanent attachment.

• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion
type closure system.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

SHELVING:

• 6 Adjustable, heavy duty PVC coated
wire shelves. Each shelf capable of
supporting up to 250 lbs (114 kg). Four
(4) chrome plated shelf clips to be
included for each shelf.

• Shelving dimensions are 24 9/16

"D (624 mm x 569 mm).

22 3/8

"L x

• Full height shelf support pilasters, with
double oblong holes on “1/2

"” (13

mm) centers. Pilasters made of the
same material as cabinet interior.

LIGHTING:

• Incandescent interior lighting - Lights
activated by rocker switch mounted
above doors, safety shielded.

MODEL FEATURES:

• Exterior mounted temperature
monitor.

• Evaporator and condenser fan motors
are completely sealed, cast-iron, oil
fi lled, low velocity motors.

• Remote cabinets available. Contact
factory technical service department
for BTU information.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory,
for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet.
Cord and plug set included.

115/60/1
NEMA-5-15R

• A sole use circuit is required.

• 220-240/50 cycle available.

OPTIONAL ACCESSORIES:

❒ Dual left or right hinges (no charge).

" (153 mm) stainless steel or

❒ 6

seismic legs.

❒ Additional shelves.
❒ Bun tray racks.
❒ Pass-thru model (T-49PT).
❒ Novelty baskets.

PLAN VIEW

783/8

(1991 mm)

833/8

"

(2118 mm)

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

"

5

"

(127 mm)

Front View

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

95/16”

(237 mm)

KCL

541/8

"

(1375 mm)

291/2

"

(750 mm)

551/8

"

(1401 mm)

255/8

"

(651 mm)

Top View

Model Front Side Plan 3D
T-49-4 TFGY20E TFGY20S TFEY02P TFGY023
