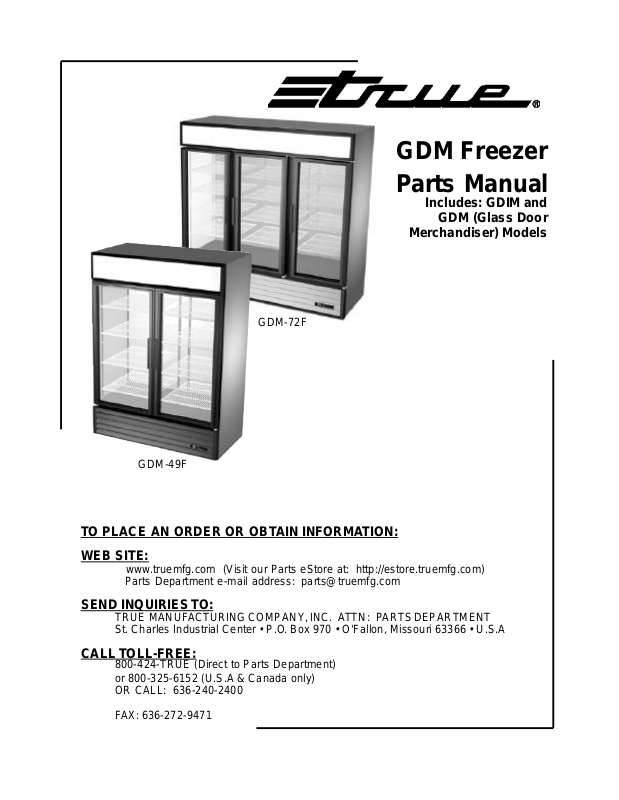

GDM-72F
GDM Freezer
Parts Manual
Includes: GDIM and
GDM (Glass Door
Merchandiser) Models
GDM-49F
TO PLACE AN ORDER OR OBTAIN INFORMATION:
WEB SITE:
www.truemfg.com (Visit our Parts eStore at: http://estore.truemfg.com)
Parts Department e-mail address: parts@truemfg.com
SEND INQUIRIES TO:
TRUE MANUFACTURING COMPANY, INC . ATTN: PARTS DEPARTMENT
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • U.S.A
CALL TOLL-FREE:
800-424-TRUE (Direct to Parts Department)
or 800-325-6152 (U.S.A & Canada only)
OR CALL: 636-240-2400
FAX: 636-272-9471
Cabinet End
(For Refurbishing)
Bumpers
A.
Castors, Legs & Levelers
Castors
Castors
(2 1/2 wheels)
Legs
Screw, Leveling
Nylon Foot
Screw, Leveling
Legs
Legs
Seismec legs
Castors
B.
Compressors
GDM Freezer 1/2 HP or less.
Motor, Condenser Fan
Cord, Power
(Compressor)
Accumulator
Accumulator &
Shorter Suction Line
for Top Mount Units
Cord,
Power
Compressor
Valve-CRO
Condensing Unit
Top Mount Condensing Unit
Outlet, Compressor
Overload
Relay
Bracket,
Fan Motor
Block, Terminal
Blade, Fan
Motor
Condenser
Accumulator &
Suction Line
Capillary
Tube
Block
Capacitor,
start
Bolt,
Compressor
Compressor Pull
out
Compressor
Drier,
Compressor
Shroud,
Condenser
Coil
Coil, Condenser
C.
Base, Compressor
Condensing
Unit
Compressors
GDM Freezer 3/4 HP and up.
Cord, Power
Outlet,
Compressor
Accumulator
Compressor
Valve-CRO
Accumulator/
Capillary/ Suction
Line
Power Packs
Pull-out
Overload
Capillary Tube
Drier,
Compressor
Cord, Power
(Compressor)
Motor, Condenser
Fan
Shroud,
Condenser Coil
Coil,
Condenser
Valve
Discharge
Blade, Fan
Motor,
Condenser
Bracket, Fan
Motor,
Condenser
Capillary
Tube
Valve Suction
Compressor
Capacitor, Run
Relay
Capacitor,
Start
D.
Door Parts
GDM Freezer Swing Door with Integrated Door Light (IDL) VHO Lamp
Base, Lampholder
Lampholder Top
#540 with 53 3/4” lead
Tape, Light Filler
Channel Aluminum
Channel, Light
Filler
Lampholder Bottom
#541 with 5 3/4” lead
Door
Cord, Power,
Door “Y”
Base, Lampholder
Lamp Shield
Receptacle
Back Plate
Door Gasket
Lamp
E.
Tape, Light
Aluminum
Heater Door Frame
802235
Frame,
Door
Bushing,
Strain
Relief
Insert, Glass
Cord, Power
Door Parts
GDM Freezer Swing Door with Integrated Door Light (IDL) 24K
Base, Lampholder
Lampholder Top
#542 with 53 3/4” lead
801230 24K
Tape, Light Filler
Channel Aluminum
Channel, Light
Filler
Lampholder Bottom
#541 with 5 3/4” lead
801254 24K
Door
Cord, Power,
Door “Y”
Base, Lampholder
Lamp Shield
Lamp Shield
Receptacle
Lamp
Back Plate
Door Gasket
F.
Tape, Light
Aluminum
Heater Door Frame
802235
Frame,
Door
Bushing,
Strain
Relief
Insert, Glass
Cord, Power
Door Parts
GDM Swing Door Non IDL
Gasket
Back Plate, Door Gasket
Insert, Glass
Frame,
Door
Back
Plate,
Door
Mullion
Base
Door
Mullion
Plastic
Mullion
Assembly
Heater
Mullion
Handle
Door
Heater, Door
Frame
G.
Door Parts
GDM Freezer Door Hinges
GDM-7F
Kit, Door Hinge Top
Bracket
Bushing
Block
GDM-6F, GDM-10F
Kit, Door Hinge Top
Bracket
Bushing
Block
Spring
Before Serial NO. 1-1775723
GDM-12F
Kit, Door Hinge Top
Door Hinge
Cover
Bracket
Shaft
Pin, Stop
Washer
Bushing
Block
All Others
Kit, Door Hinge Top
Bracket
Shaft
Pin stop
Washer
Bushing
Block
Spring
Block
Bushing
Bearing
Shaft
Pin, Stop
Bracket
Kit, Door Hinge
Bottom
Block
Bushing
Bearing
Washer
Shaft
Pin, Stop
Bracket
Kit, Door Hinge
Bottom
Spring
Block
Bushing
Bearing
Washer
Kit, Door Hinge
H.
Bottom
Bracket
Spring
Block
Bushing
Bearing
Washer
Bracket
Kit, Door Hinge
Bottom
Door with
Recessed Handle
Door
Mullion
Back
Plate
Door
Mullion
Plastic
Base
Door Parts
Door Base
(Plastic)
Door Gasket
Base
(Stainless)
Door with
Standard Handle
GDM Freezer Models
Lamp
Gasket
Handle
Light Assembly
Aluminum Tape
Frame
Door
Mullion
Assembly
See Lighting
Section for
this part
Door
Mullion
Stainless
Insert
Heater
Mullion
Mullion
Assembly
for Glass
Doors
Lamp
Shield
Integrated Door Light (IDL)
Gasket
Door
Glass
Insert
Strain Relief
Bushing
Power cord
Back Plate,
Door Gasket
Glass
Insert
Handle
Door
Frame
Heater
Mullion
I.
Thermometer
(Dial & Digital)
Pan, Evaporator
Grommet,
Evaporator
Drain Elbow
Heater-Evaporator Coil
Coil,
Evaporator
Drain
Elbow, Evaporator
Evaporator Parts
Bracket,
Evaporator Fan
Motor
Motor,
Evaporator Fan
Heater, Drain
Drain
Tube
Blade,
Evaporator
Fan Motor
Switch
Defrost
Termination
Hose,
Evaporator
Drain
Heater,
Evaporator
Drain Tube
Pan, Condensate
Drain
Cover,
Evaporator
Guard, Evaporator
Fan Motor
Heater -
Evaporator
Drain Pan
Pad, Evaporator
Wicking
Switch
(rocker)
J.
Timer
Defrost
Transformer
Plate
Knob
Control,
Temperature
Heater
Condensate
Drain Pan
(One Piece)
Kit, Evaporator
Wicking
Grill Parts
Grill
Assembly
GDM, Swing Doors
Kit, Grill
Mounting
Grill
Extrusion
Bracket, Grill
Corner
Grill Assembly (GDIM)
Grill - Lower (GDM - 12F)
Sign
K.
Light Assembly
SIGN AREA 220V CE
Lighting Parts
GDM Freezer Models
Switch, Light
(Push Button)
801908
Switch, Light
(Toggle Style)
801901
Switch, Light
(Rocker Style)
842040
Lamp
Lamp
225-C-13
842063
SIGN AREA IDL AND NON-IDL
& CENTER MULLION FOR 24K
LAMPS
Springloaded
13570
801223
842056
225-S/13
842062
Stationary
801224
842054
Lampholders
13571
842111
Interior Lampholders
Non-IDL Top or Bottom
501.5 Kulka
801250
LR-110
801222
DOOR LAMPHOLDERS
For VHO Lamps
Top of IDL Door
#540 (w/53” Lead)
801359
Bottom of IDL Door
#540 (5 3/4” Lead)
801358
Starter
Base, Light
Ballast
For 24K Lamps
Top of IDL Door
#542 (52 3/4” Lead)
801230
Bottom of IDL Door
#542 (4 1/2” Lead)
801254
Lampholder Sleeve
Starter
Base, Light
Starter 800510
Ballast, Sign
LC-14-20C
Lampshield End
Cap
Lampshield
L.
Backguard
Shelf Standard
Bracket
Shelf Parts
GDM Freezer Models
Shelf Standard
Baffle, Air
Back
Clip, Shelf
Bracket, Shelf
Standard
Shelf Standard
(Center)
Wire Shelf
Pricing Strip
Air Baffle
Back
Baffle, Air
Front
Baffle, Air
For GDIM-
26 & 49
Baffle, Air
Front
Basket, Novelty
M.
Floor Rack
Floor Rack For
GDIM-60 & 26
Sign & Sign Frame Parts
Frame, Sign End
Piece
Frame, Sign
Assembly
Sign
Nameplate
Sign Decal
N.
