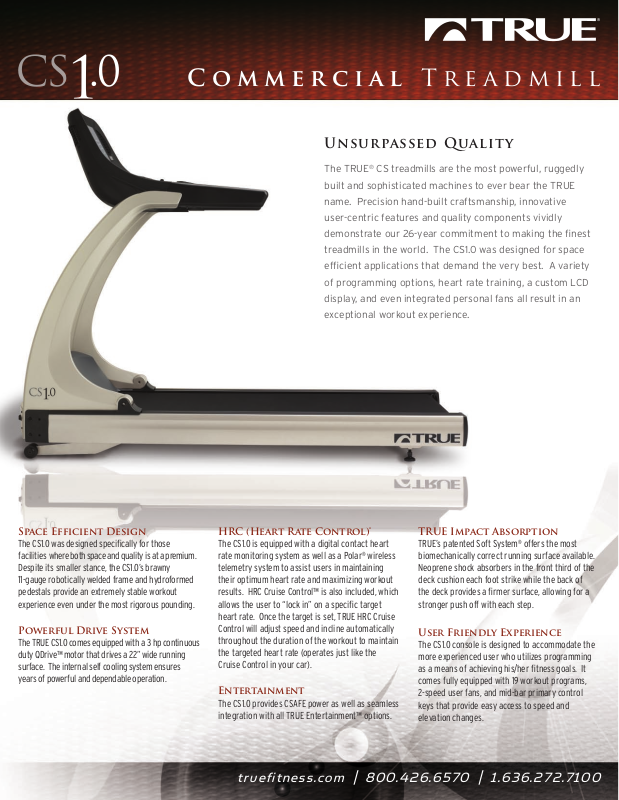

True CS1.0 User Manual

Commercial Treadmill

Unsurpassed Quality

The TRUE® CS treadmills are the most powerful, ruggedly

built and sophisticated machines to ever bear the TRUE

name. Precision hand-built craftsmanship, innovative

user-centric features and quality components vividly

demonstrate our 26-year commitment to making the nest

treadmills in the world. The CS1.0 was designed for space

efcient applications that demand the very best. A variety

of programming options, heart rate training, a custom LCD

display, and even integrated personal fans all result in an

exceptional workout experience.

Space Efficient Design

The CS1.0 was designed specically for those facilities where both space and quality is at a premium. Despite its smaller stance, the CS1.0’s brawny 11-gauge robotically welded frame and hydroformed pedestals provide an extremely stable workout experience even under the most rigorous pounding.

Powerful Drive System

The TRUE CS1.0 comes equipped with a 3 hp continuous duty QDrive™ motor that drives a 22” wide running surface. The internal self cooling system ensures years of powerful and dependable operation.

HRC (Heart Rate Control)®

The CS1.0 is equipped with a digital contact heart rate monitoring system as well as a Polar® wireless telemetry system to assist users in maintaining their optimum heart rate and maximizing workout results. HRC Cruise Control™ is also included, which allows the user to “lock in” on a specic target heart rate. Once the target is set, TRUE HRC Cruise Control will adjust speed and incline automatically throughout the duration of the workout to maintain the targeted heart rate (operates just like the Cruise Control in your car).

Entertainment

The CS1.0 provides CSAFE power as well as seamless integration with all TRUE Entertainment™ options.

TRUE Impact Absorption

TRUE’s patented Soft System® offers the most biomechanically correct running surface available. Neoprene shock absorbers in the front third of the deck cushion each foot strike while the back of the deck provides a rmer surface, allowing for a stronger push off with each step.

User Friendly Experience

The CS1.0 console is designed to accommodate the more experienced user who utilizes programming as a means of achieving his/her tness goals. It comes fully equipped with 19 workout programs, 2-speed user fans, and mid-bar primary control keys that provide easy access to speed and elevation changes.

truefitness.com | 800.426.6570 | 1.636.272.7100

Commercial Treadmill

DRIVE SYSTEM Motor 3 hp Self Cooling, Continuous Duty QDrive Motor

Speed Sensor Magnetic Hall-Effect Sensor

Power Source 120 Volt/15 Amp Dedicated (NEMA 5-15 Receptacle)

RUNNING SURFACE Deck Double Sided Thermally Fused Laminated 1" Medium Density Fiberboard

Impact System TRUE Soft System (4 neoprene shock absorbers)

Lubrication Silax™ (Proprietary Lubricant)

FRAME AND LIFT Frame 11-Gauge Heavy-Duty Welded Steel

Pedestals Hydroformed Steel

Incline Motor Compression Elevation Motor with 1000 lbs of Thrust

Handrails Molded Urethane, Moisture Resistant Flared Handrails

Portability Front Mounted Wheels

CONSOLE Display Type Single Window Custom LCD

Express Command Keys 11 – Calorie Burner, Hill Intervals, Speed Intervals, Speed Ramp-Up,

Data Readouts Speed, Incline, Elapsed Time, Distance, Pace, Heart Rate, Time

Message Center 17 Character Alphanumeric

HEART RATE Contact Heart Rate Digital – 4 Sensing Pads

Telemetry Heart Rate Wireless – Polar® Equipped

HRC

Programs 1 – Target HRC

WORKOUT PROGRAMS Preset 10 – Manual, Quick Start, Calorie Burner, Hill Intervals, Speed

User Dened 3 – Custom Programs

Fitness Tests 5 – Gerkin Protocol, Military Fitness Tests (Army, Navy, Airforce, Marines)

OTHER FEATURES Entertainment Seamless Integration with TRUE Entertainment Options

Communications Full CSAFE Compatibility

Diagnostics Software Version, Hours, Miles, Starts, Display, Heart Rate,

Accessories Reading Rack, 2 Cooling Fans, 2 Water Bottle Holders,

PHYSICAL SPECIFICATIONS

Weight / Shipping Weight 340 lbs (154 kg) / 408 lbs (185 kg)

Maximum User Weight 400 lbs (181 kg)

Regulatory Approvals UL, CSA, FCC, CE

WARRANTY Warranty COMMERCIAL: Frame Lifetime, Motor 3 Yrs, Parts 3 Yrs, Labor 1 Yr

Footprint 80"L x 30"W (203 cm x 76 cm)

Running Surface 22" x 60" (56 cm x 152 cm)

Step-Up Height 7.5" (19.1 cm)

Cord Length: 12' (3.7 m)

Belt Mole™ Multi-Ply Belt with PVC Coating

Rollers 2.5" Diameter Rollers with Sealed Bearings

Finish Powder Coat

Keys Membrane Switches

Glute Buster, Leg Shaper, Cardio Challenge, Sports Training, Quick Speed, Cool Down, HRC Cruise Control

Remaining, METs, Calories, Target Heart Rate

Intervals, Speed Ramp-Up, Glute Buster, Leg Shaper, Cardio Challenge, Sports Training

Backlight, Contrast, Lower Control Board, RS232, Auxiliary Boards, Remote Keys, Current, Safety Switch, Program Usage, Watch Dog

2 Accessory Trays

Safety Safety Clip Equipped

Incline 0 to 15%

Speed 0 - 12 mph (0 - 20 kph)

LT COMMERCIAL: Frame Lifetime, Motor 5 Yrs, Parts 5 Yrs, Labor 1 Yr

*Specications subject to change without notice
