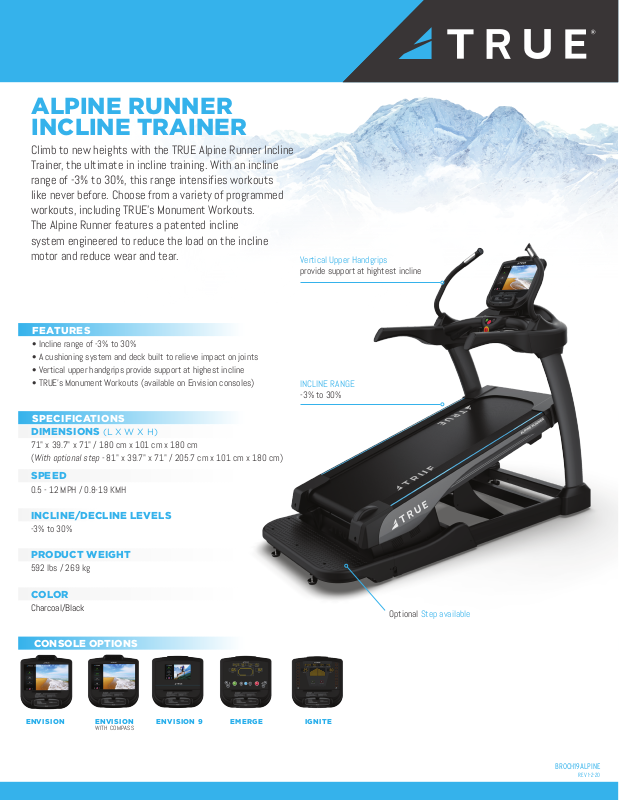

TRUE ALPINE RUNNER Specification Sheet
ALPINE RUNNER
INCLINE TRAINER
Climb to new heights with the TRUE Alpine Runner Incline
Trainer, the ultimate in incline training. With an incline
range of -3% to 30%, this range intensifies workouts
like never before. Choose from a variety of programmed
workouts, including TRUE’s Monument Workouts.
The Alpine Runner features a patented incline
system engineered to reduce the load on the incline
motor and reduce wear and tear.
FEATURES
• Incline range of -3% to 30%
• A cushioning system and deck built to relieve impact on joints
• Vertical upper handgrips provide support at highest incline
• TRUE's Monument Workouts (available on Envision consoles)
Vertical Upper Handgrips
provide support at hightest incline
INCLINE RANGE
-3% to 30%
SPECIFICATIONS
DIMENSIONS
71" x 39.7" x 71" / 180 cm x 101 cm x 180 cm
(
With optional step
SPEED
0.5 - 12 MPH / 0.8-19 KMH
INCLINE/DECLINE LEVELS
-3% to 30%
PRODUCT WEIGHT
592 lbs / 269 kg
COLOR
Charcoal/Black
CONSOLE OPTIONS
(L X W X H)
- 81" x 39.7" x 71" / 205.7 cm x 101 cm x 180 cm)
Optional Step available
ENVISION EMERGEENVISION 9 IGNITEENVISION
WITH COMPASS
BROCH19ALPINE
REV 1-2-20
Warranties outside the U.S. and Canada may vary - Please contact your dealer for details. Specications subject to change without notice.
ALPINE RUNNER INCLINE TRAINER
TECHNICAL
SPECIFICATIONS
Power Source 120V/20A (NEMA 5-20R receptacle) 230V/15A (NEMA 6-15R receptacle)
Cord Length 12' / 3.7M
Drive Motor 5 HP AC Max Drive
Incline Motor Compression Elevation Motor with 1200 lbs. of Thrust
Speed Sensor Optical
Deck Double Sided Thermally Fused Laminated 1" Medium Density Fiberboard
Reversible Deck Standard
Belt Siegling Multi-Ply Belt with PVC Coating
Rollers 3" / 8 cm Diameter Rollers with Sealed Bearings
Impact System TRUE Soft System™
(neoprene shock absorbers, where neoprene is a synthetic material resembling rubber, but slower to deteriorate and more resistant to oil)
Frame Construction Robotically Welded Heavy-Gauge Steel
Lubrication TRUE Proprietary Lubricant "Silex"
Speed Range 0.5 - 12 MPH / 0.8-19 KMH
Incline Range -3% to 30%
Decline Range Yes (-3%)
Bluetooth Heartrate Monitoring Available on Envision and Envision 9 Consoles
CSAFE Yes
Contact Heart Rate Monitoring Yes
®
Compatible
Envision, Envision
AVAILABLE
CONSOLES
Wireless Heart Rate Monitoring Polar
TM
®
with Compass, Envision 9 , Emerge, Ignite
ASSET TRACKING
EcoFit Compatible
SAFETY Safety Clip Standard
Extended Handrails Standard
High Incline Handrails Standard
Straddle Covers Standard
User Detection User Present Detection™
REGULATORY APPROVALS UL, CSA, CE, EN957, FCC
EXTRAS Accessories Water Bottle Holder, Accessory Tray, Reading Rack/Tablet Holder
OPTIONAL STEP Robotically welded and reinforced steel frame, molded step with TRUE logo surface
PHYSICAL
SPECIFICATIONS
WARRANTY
Maximum User Weight 400 lbs / 181 kg
Deck Step-Up Height 5”/ 12.7 cm with step. 13.2” / 33.5 cm without step
Warranty Classification Commercial (all dues paying facilities, regardless of usage)
Footprint
Running Surface 60" L x 22" W / 152 cm x 56 cm
Machine Weight 592 lbs / 269 kg
Shipping Weight 645 lbs / 293 kg
Portability 2 Rear Transport Wheels with Built in Rear Handholds
71" L x 39.7" W x 71" H / 180 cm x 101 cm x 180 cm (With optional step 81" L x 39.7" W x 71" H / 205.7 cm x 101 cm x 180 cm)
Frame Lifetime
Motor 5 Years
Parts 3 Years
Labor 3 Years
truefitness.com | 800.426.6570 | 636.272.7100
©2020 TRUE Fitness Technology, Inc
BROCH19ALPINE
REV 1-2-20
