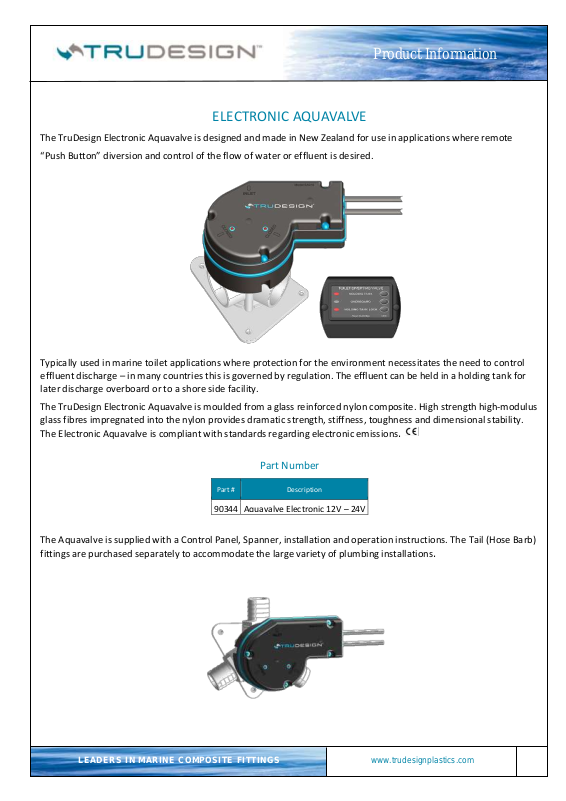

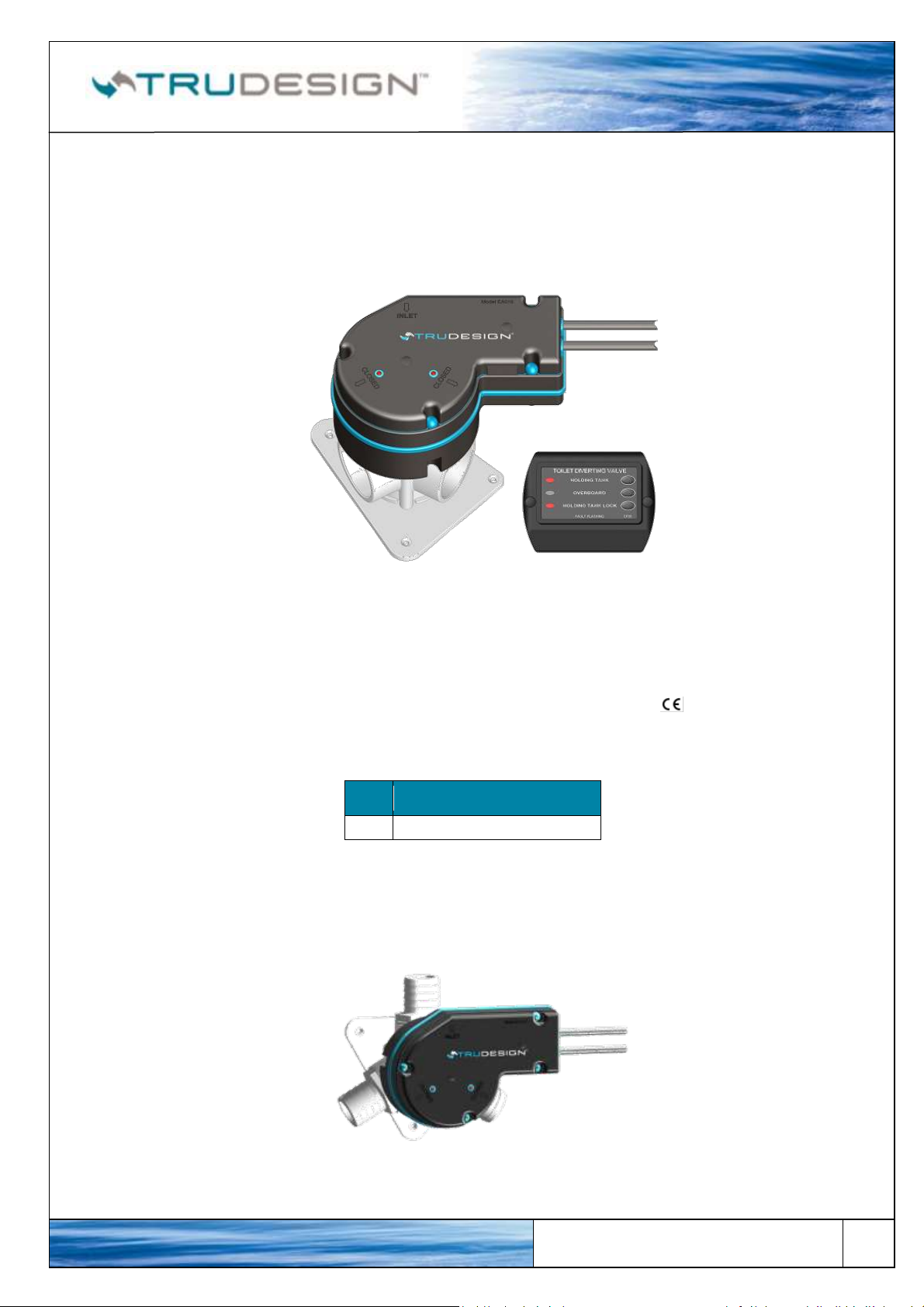

ELECTRONIC AQUAVALVE
The TruDesign Electronic Aquavalve is designed and made in New Zealand for use in applications where remote
“Push Button” diversion and control of the flow of water or effluent is desired.
Typically used in marine toilet applications where protection for the environment necessitates the need to control
effluent discharge – in many countries this is governed by regulation. The effluent can be held in a holding tank for
later discharge overboard or to a shore side facility.
The TruDesign Electronic Aquavalve is moulded from a glass reinforced nylon composite. High strength high-modulus
glass fibres impregnated into the nylon provides dramatic strength, stiffness, toughness and dimensional stability.
The Electronic Aquavalve is compliant with standards regarding electronic emissions.
Part Number
Part #
Description
The Aquavalve is supplied with a Control Panel, Spanner, installation and operation instructions. The Tail (Hose Barb)
fittings are purchased separately to accommodate the large variety of plumbing installations.
Page 2
LEADERS I N MARINE COM POSITE FITTI NGS
www.trudesignplastics.com
Product Information
STANDARDS
The Tru-Design Electronic Aquavalve is certified to comply with:
EN 60945: 2002 Maritime navigation and radiocommunication equipment and systems. General
requirements. Methods of testing and required test results.
KEY FEATURES
Feature :
Benifit
Manufactured from a glass reinforced nylon
composite
High strength and light weight.
Takes 12- or 24-volt DC input voltage.
To suit existing installations.
Supplied complete with control panel with
indicating lights.
LED’s on the control panel clearly denote whether
the valve is in the “Holding Tank” or “Overboard”
position.
Indicating lights on valve
LED’s on the unit clearly show which valve port is
closed.
Error diagnostics
The control panel will indicate if the valve is jammed
by flashing the two LED’s.
IP55 housing rating
Both the Aquavalve and the control panel are dust
and spray proof.
Easy installation
With a range of straight, 90° and 120° tails, and two
seal options, plumbing in confined spaces is made
easy.
Manual override of valve
All valves supplied with a spanner for use in the
unlikely event the valve motor experiences a loss of
power and manual operation is needed.
Pressure tested
All valves are pressure tested to ensure quality and
safety in respect to sealing and operation.
Silicon seal
The Aquavalve is the only valve on the market today
with smooth movement and an excellent seal with
good wear resistance.
Serviceable while on the water
Ability to simply disassemble unit and clear any
foreign bodies as per instruction manual.
Auto rotate feature
The valve upon receiving vessel power up will
automatically rotate to the other port and back.
This helps to keep the seal moving and lubricated.
Composite spanner included
Avoids using pipe wrenches that gouge the fitting.
Facilitates access in tight places.
Can be wired into 3rd party control systems
Seamless integration as an OEM product.
Page 3
LEADERS I N MARINE COM POSITE FITTI NGS
www.trudesignplastics.com
Product Information
SPECIFICATIONS
Supply Voltage
12V DC INPUT
24V DC INPUT
Stand-by Current
0.04A
0.028A
Operating Current
3.3A
1.2A
Stall Current
20A
8.4A

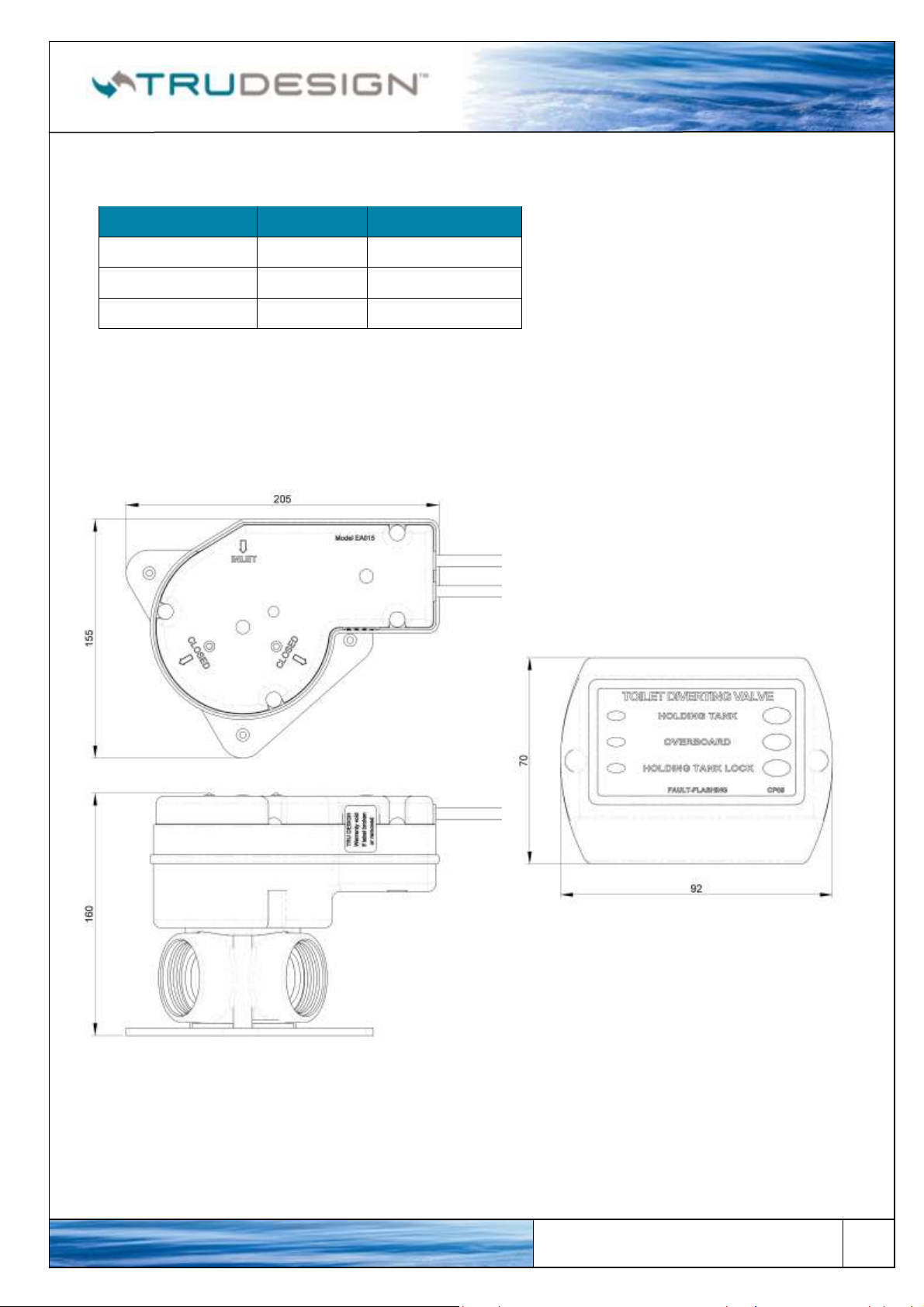

DIMENSIONS
All dimensions in mm.
All dimensions nominal.
Page 4
LEADERS I N MARINE COM POSITE FITTI NGS
www.trudesignplastics.com
Product Information

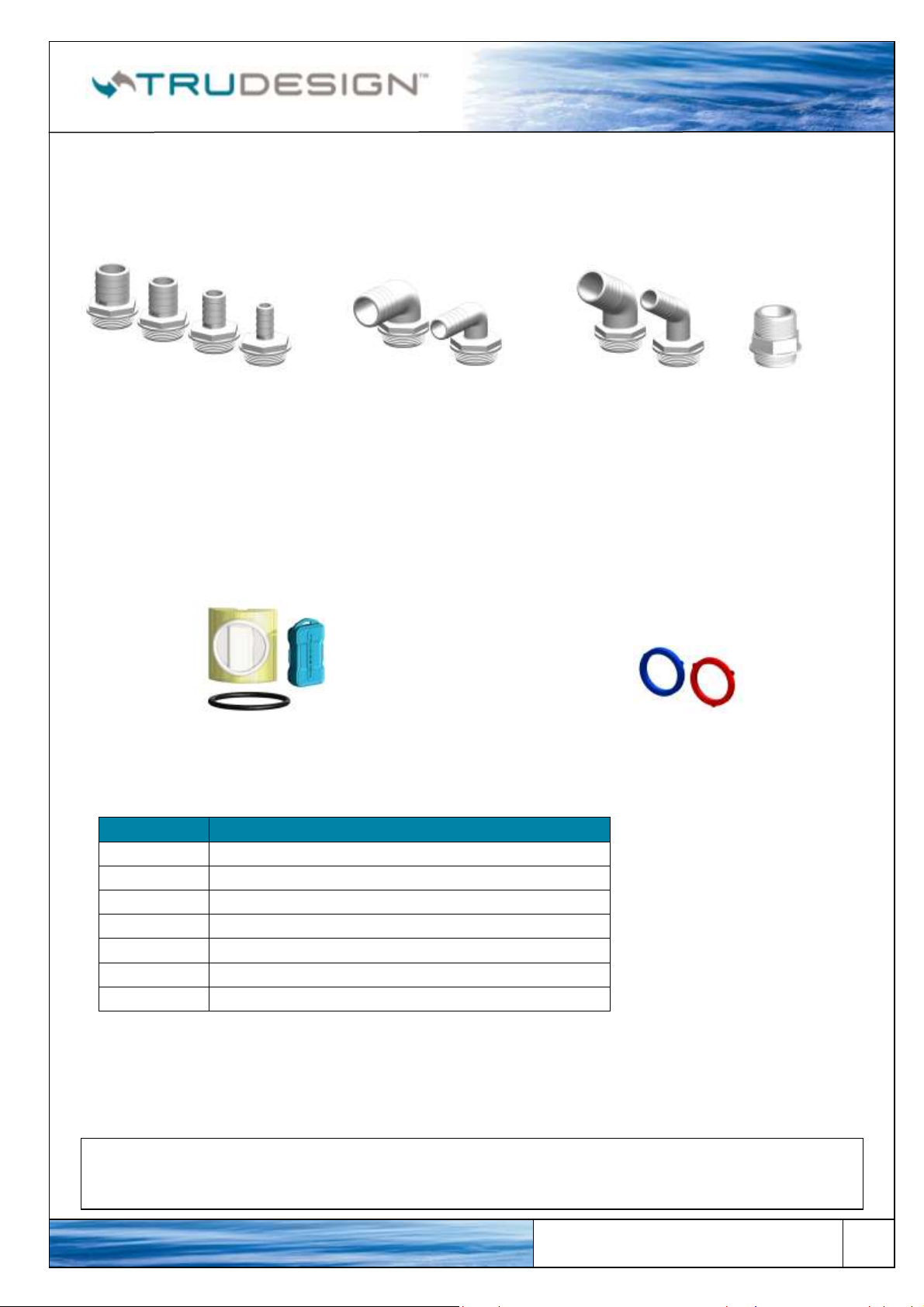

INSTALLATION
The Tru-Design Aquavalve is the most versatile valve on the market today. Full Installation instructions are supplied
with each Aquavalve.
A large range of Tails is available to suit individual plumbing layouts, and piping sizes. When combined with the seals
supplied, fittings can be oriented to suit the confined spaces encountered in marine plumbing.
For the full range of Accessories see PIS – Aquavalve Accessories
SERVICING
The Electronic Aquavalve is supplied with full servicing instructions. It is recommended that the seal is greased
regularly with Silicone grease. It is recommended the Aquavalve be “operated” once a month to ensure build up is
cleared in the valve.
A service kit is available. The service kit includes grease
and seals.
Red and Blue Seals are used to alter the orientation of
the fittings (Blue Seal is thicker). These are available if
plumbing layouts need to be changed in the future.
The spanner can often be misplaced, so when changing plumbing layouts etc, a new spanner can be supplied.
A spare motor sub assembly is available along with control panel.
Part #
Description
