TASTENFELD 16 TASTEN
METALL
Best.-Nr. 1565089
Merkmale:
» Maximale Belastbarkeit: ≥ 24 V/DC, 5 mA
» Kontaktwiderstand: ≤ 100 Ω
» Isolationswiderstand: ≥ 250 MΩ
» Prellzeit: max. 3 Sek.
» Auf der Taste „5“ ist ein kleiner konvexer Punkt angebracht, der Blinden die Identizierung
er-möglicht.
» Schließzeit: > 1 ms
» Betriebstemperatur: -40 bis +60 ºC
D
» Galvanisierungsstandard:
- Nickel 10 – 15 µ
- Messing 10 – 15 µ
- Chrom 0,2 – 0,5 µ
Salzsprühnebelprüfung: 48 – 96 Stunden»

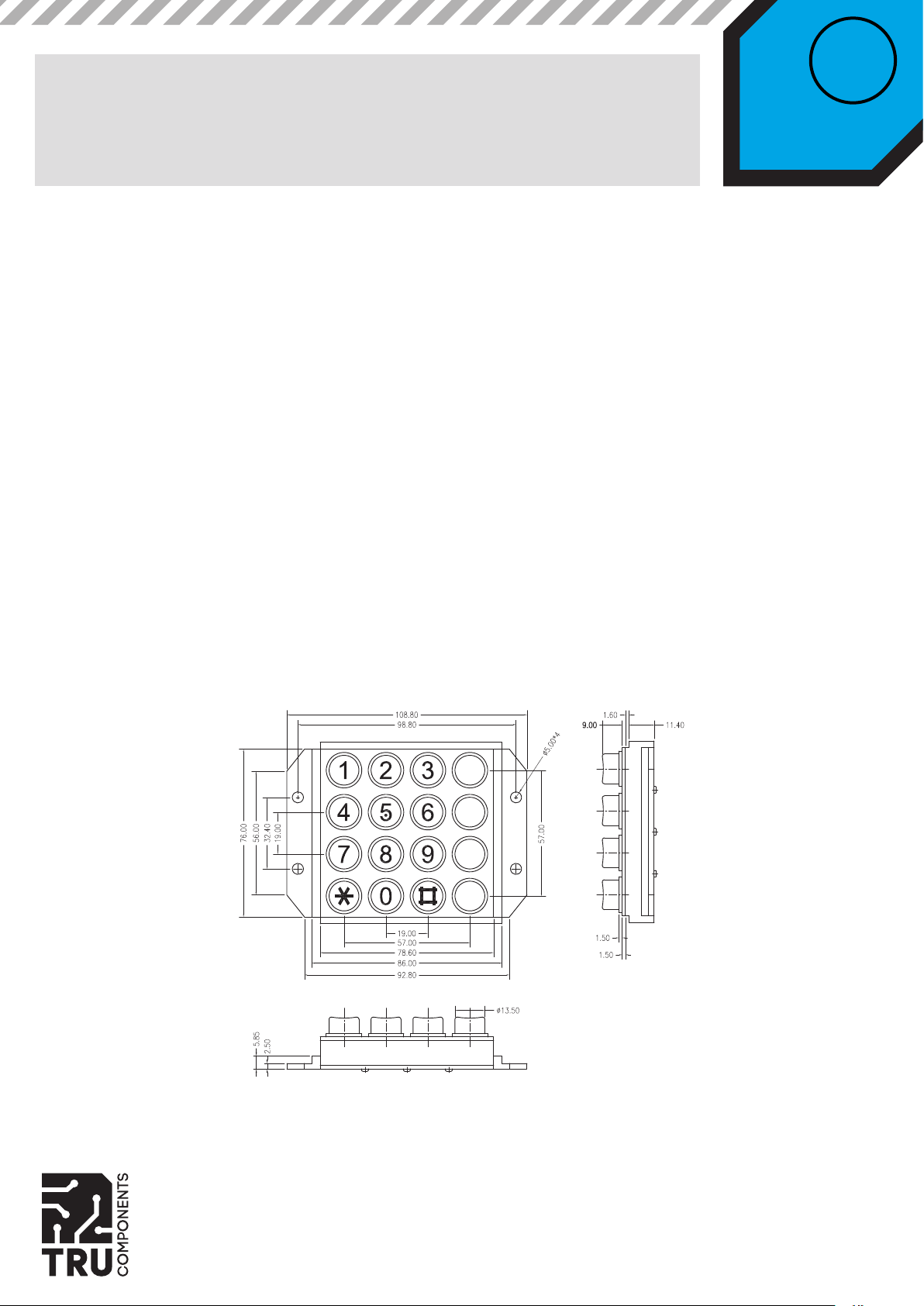

Abmessungen:

TASTENFELD 16 TASTEN
METALL
D
Best.-Nr.
1565089

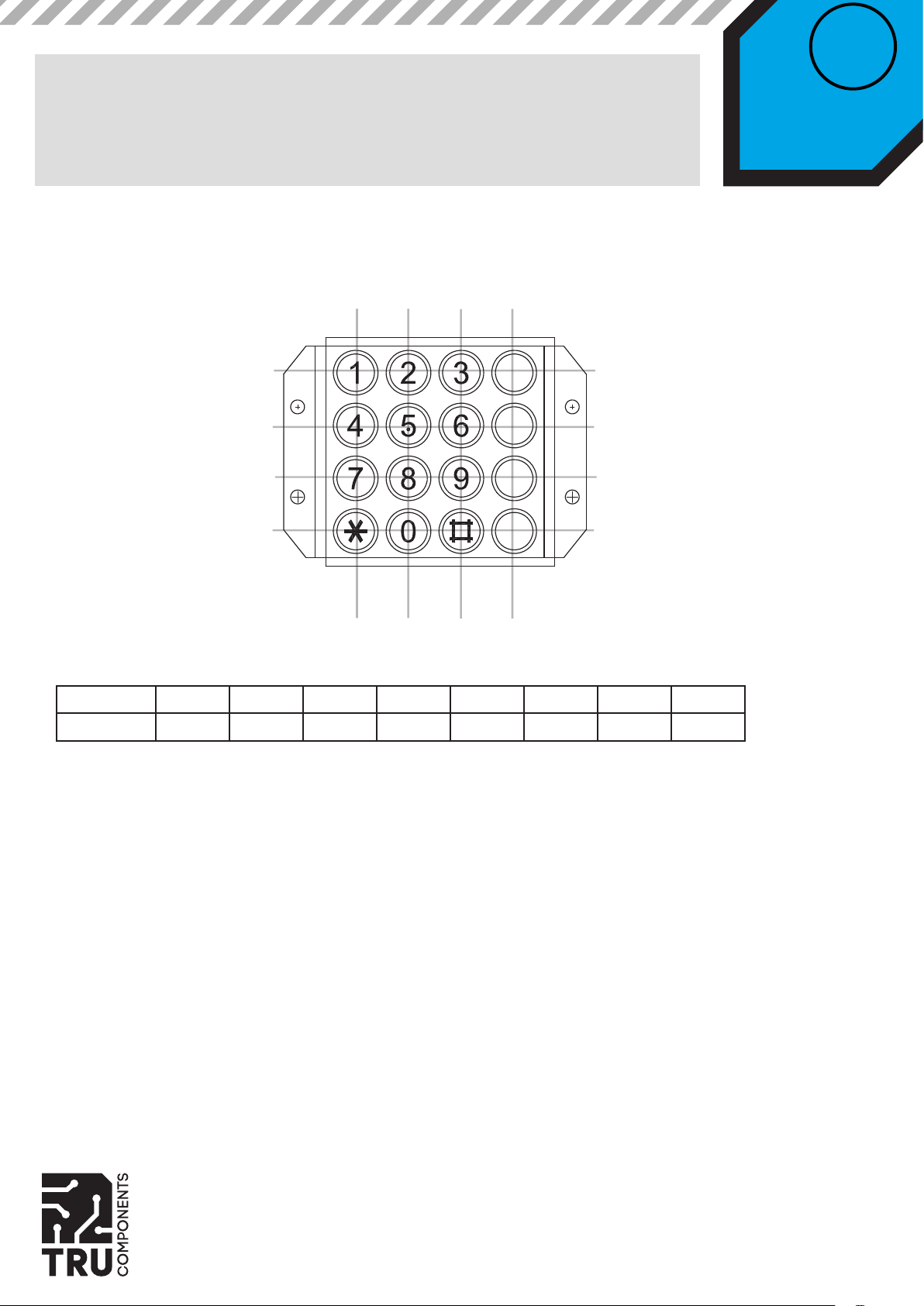

Anschluss Stiftleiste:
z.B. Die Taste „5“ wird gedrückt:
Stifte 1 2 3 4 5 6 7 8
Ausgabe 0 1 0 1 0 0 0 0

KEYPAD 16 KEYS METAL
Item no. 1565089

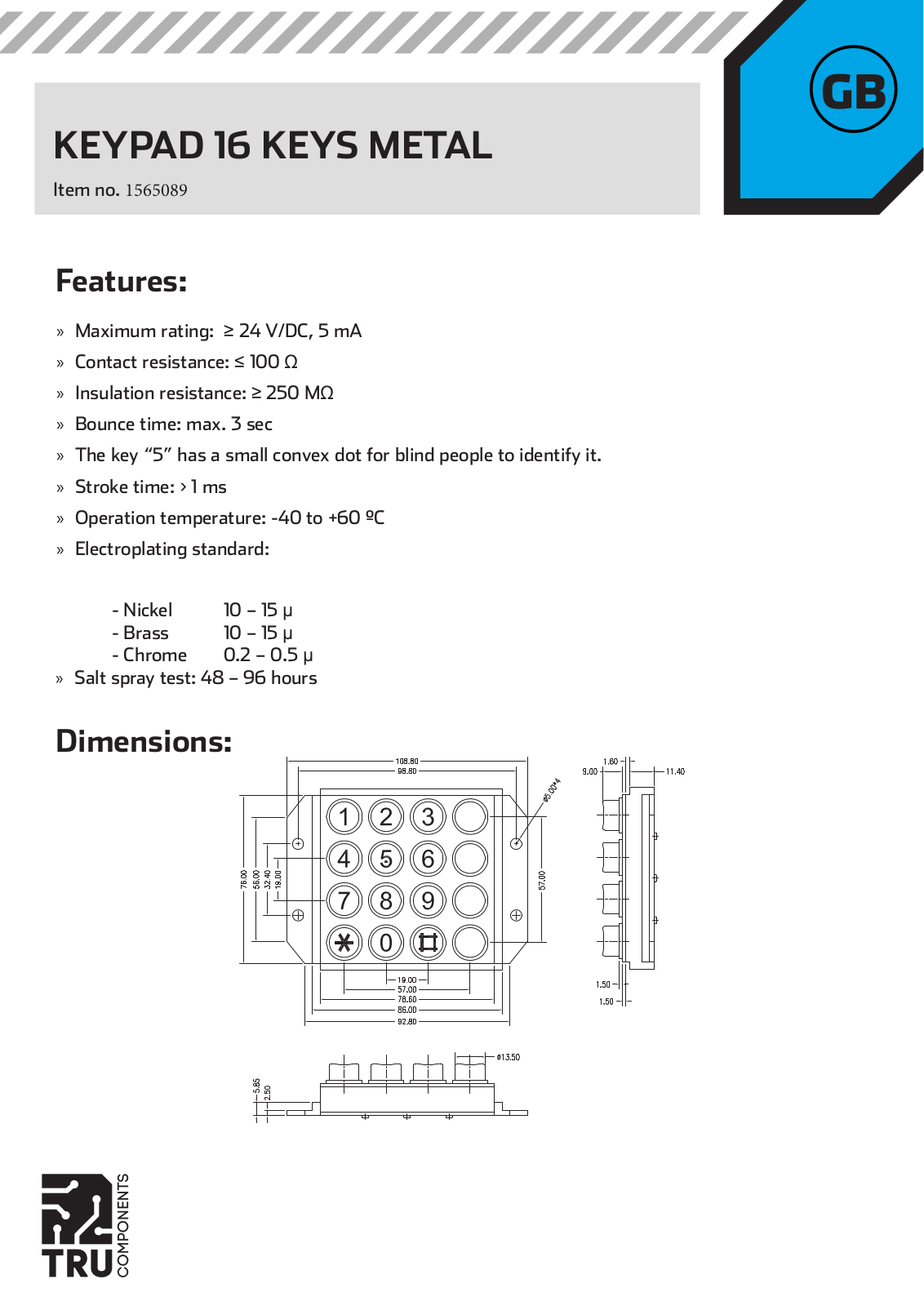

Features:
» Maximum rating: ≥ 24 V/DC, 5 mA
» Contact resistance: ≤ 100 Ω
» Insulation resistance: ≥ 250 MΩ
» Bounce time: max. 3 sec
» The key “5” has a small convex dot for blind people to identify it.
» Stroke time: > 1 ms
» Operation temperature: -40 to +60 ºC
» Electroplating standard:
GB
- Nickel 10 – 15 µ
- Brass 10 – 15 µ
- Chrome 0.2 – 0.5 µ
»
Salt spray test: 48 – 96 hours

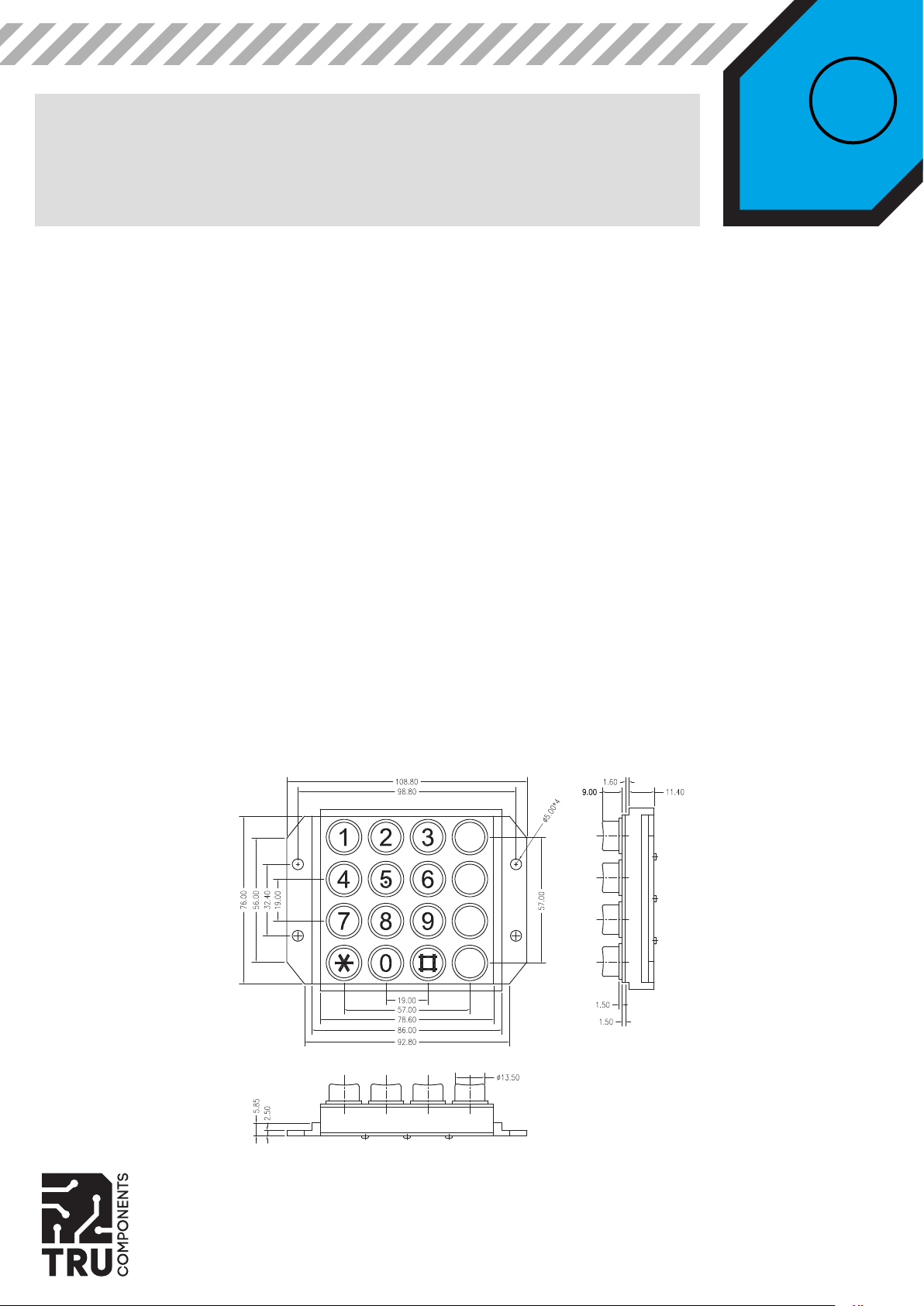

Dimensions:

KEYPAD 16 KEYS METAL
Item no. 1565089
Output pins:
GB
e.g. the button “5” is pressed:
Pins 1 2 3 4 5 6 7 8
Ouput 0 1 0 1 0 0 0 0

CLAVIER 16 TOUCHES EN
MÉTAL
Nº de commande 1565089
Caractéristiques :
» Puissance maximale : ≥ 24 V/DC, 5 mA
» Résistance de contact : ≤ 100 Ω
F
» Résistance d’isolement : ≥ 250 M
» Temps de rebondissement : 3 sec. max.
» La touche « 5 » est dotée d’un petit point en relief an que les personnes malvoyantes puissent
l’identier.
» Temps de course : > 1 ms
» Température de fonctionnement : de -40 à +60 ºC
» Norme de galvanisation :
- Nickel 10 – 15 µ
- Cuivre 10 – 15 µ
- Chrome 0,2 – 0,5 µ
Essai au brouillard : 48 – 96 heures»
Ω
Dimensions :

CLAVIER 16 TOUCHES EN
MÉTAL
Nº de commande 1565089

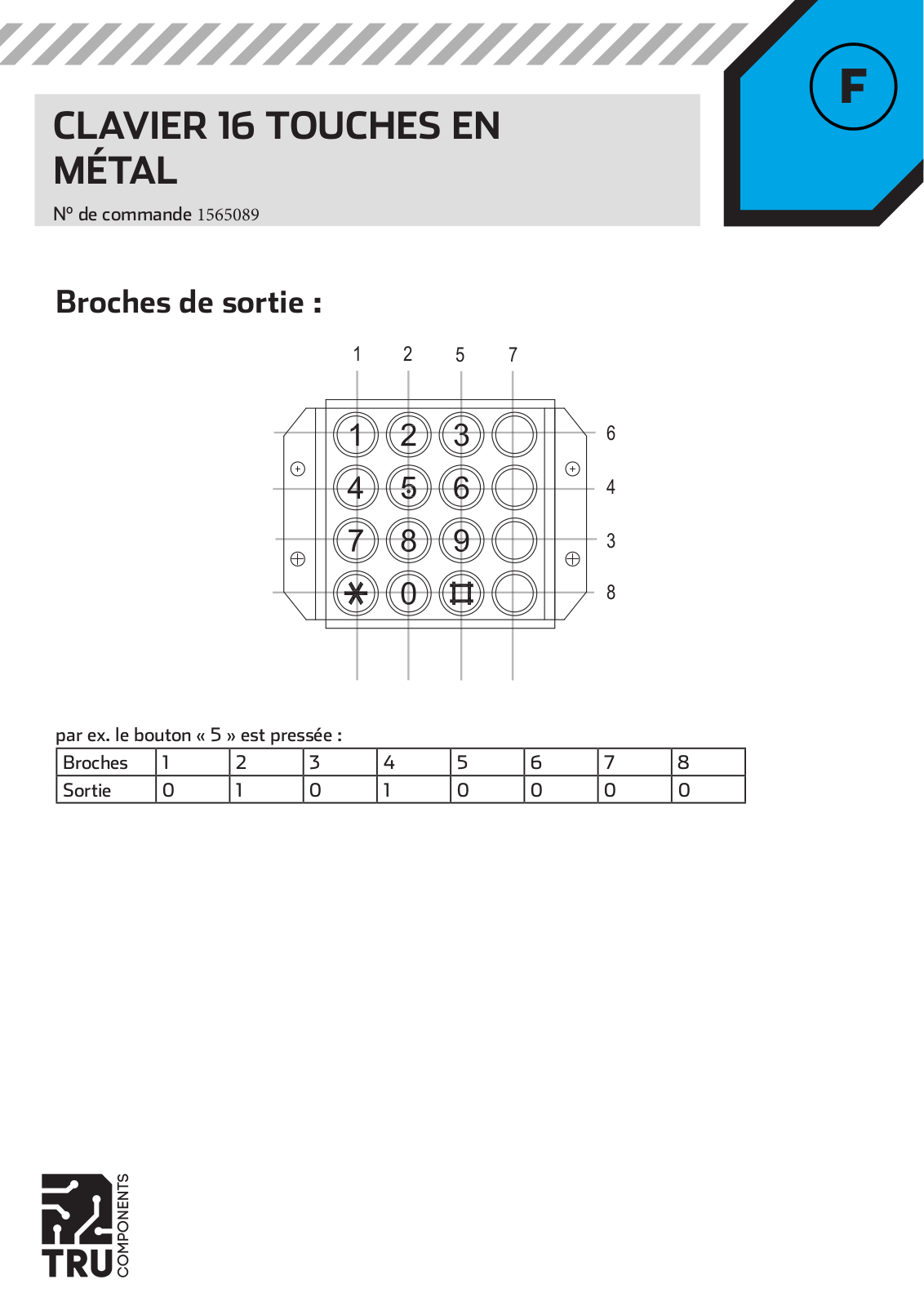

Broches de sortie :
F
par ex. le bouton « 5 » est pressée :
Broches 1 2 3 4 5 6 7 8
Sortie 0 1 0 1 0 0 0 0

TOETSENVELD 16 TOETSEN
METAAL
Bestnr. 1565089
Eigenschappen:
» Maximale belasting: ≥ 24 V/DC, 5 mA
» Contactweerstand: ≤ 100 Ω
» Isolatieweerstand: ≥ 250 MΩ
» Dendertijd: max. 3 s
» Toets 5 heeft een kleine convexe stip voor identicatie door
blinden.
» Aanslagtijd: > 1 ms
» Werktemperatuur: -40 tot +60 °C
NL
» Electroplating standaard:
- nikkel 10 - 15 µm
- koper 10 - 15 µm
- chroom 0,2 - 0,5 µm
Zoutsproeitest: 48 - 96 uur»
Afmetingen:

TOETSENVELD 16 TOETSEN
METAAL
Bestnr. 1565089

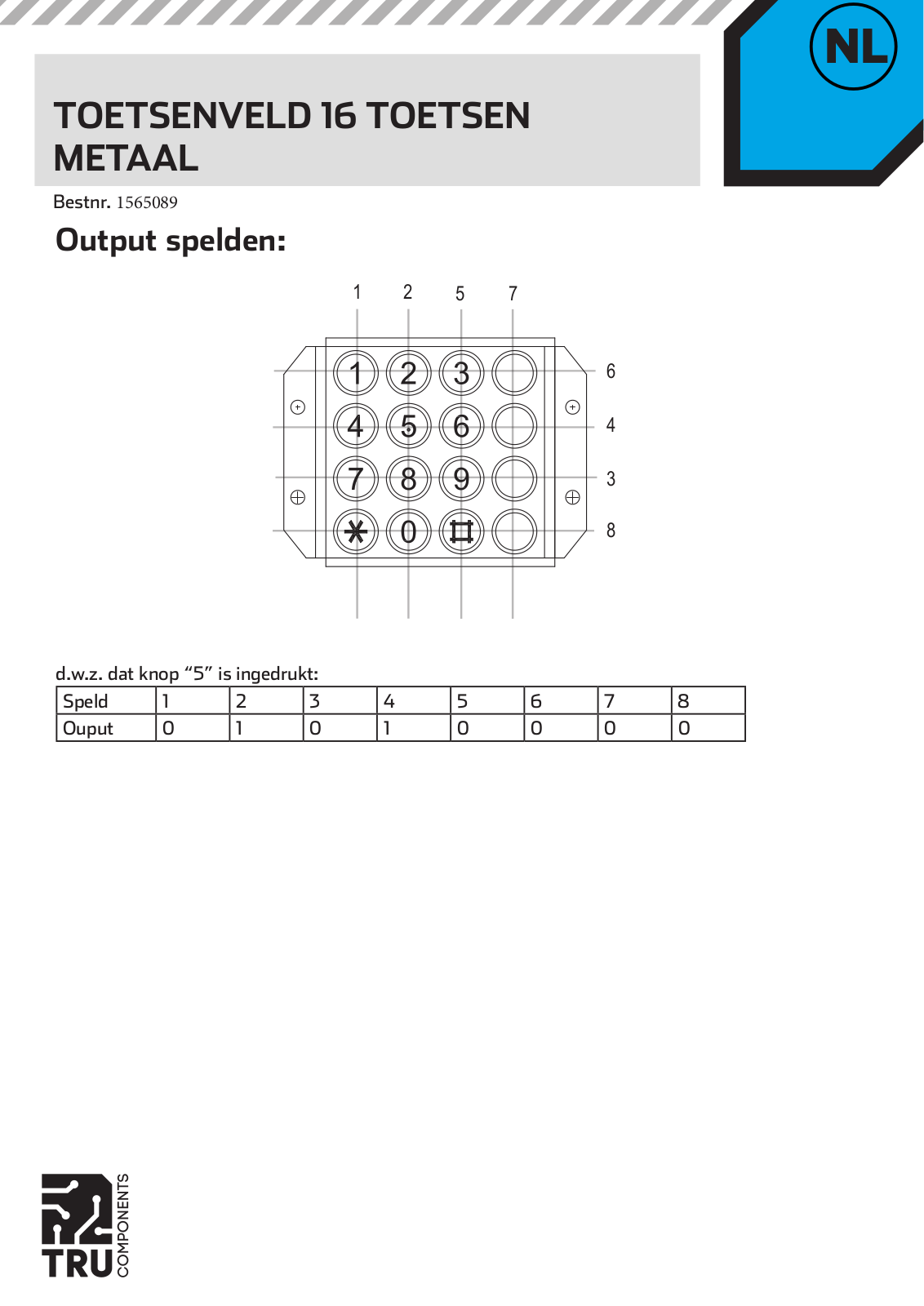

Output spelden:
NL
d.w.z. dat knop “5” is ingedrukt:
Speld 1 2 3 4 5 6 7 8
Ouput 0 1 0 1 0 0 0 0
