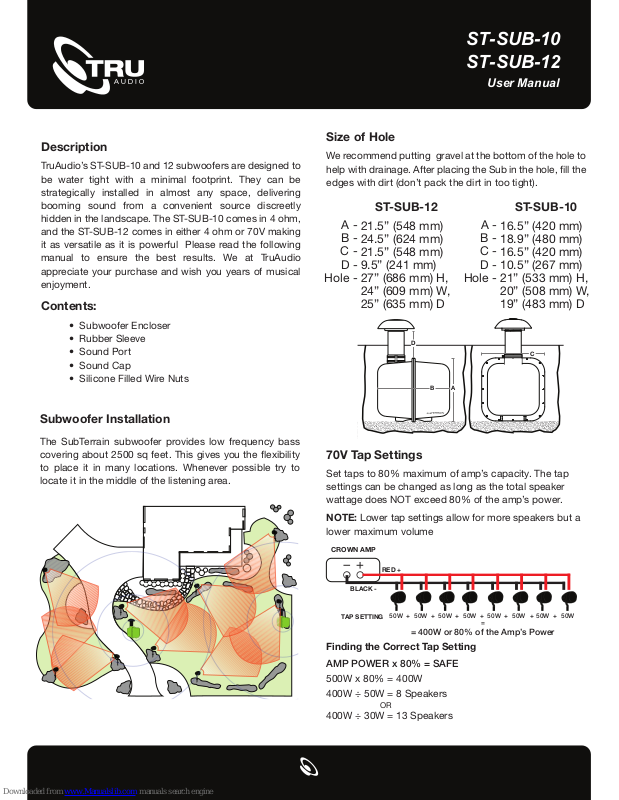

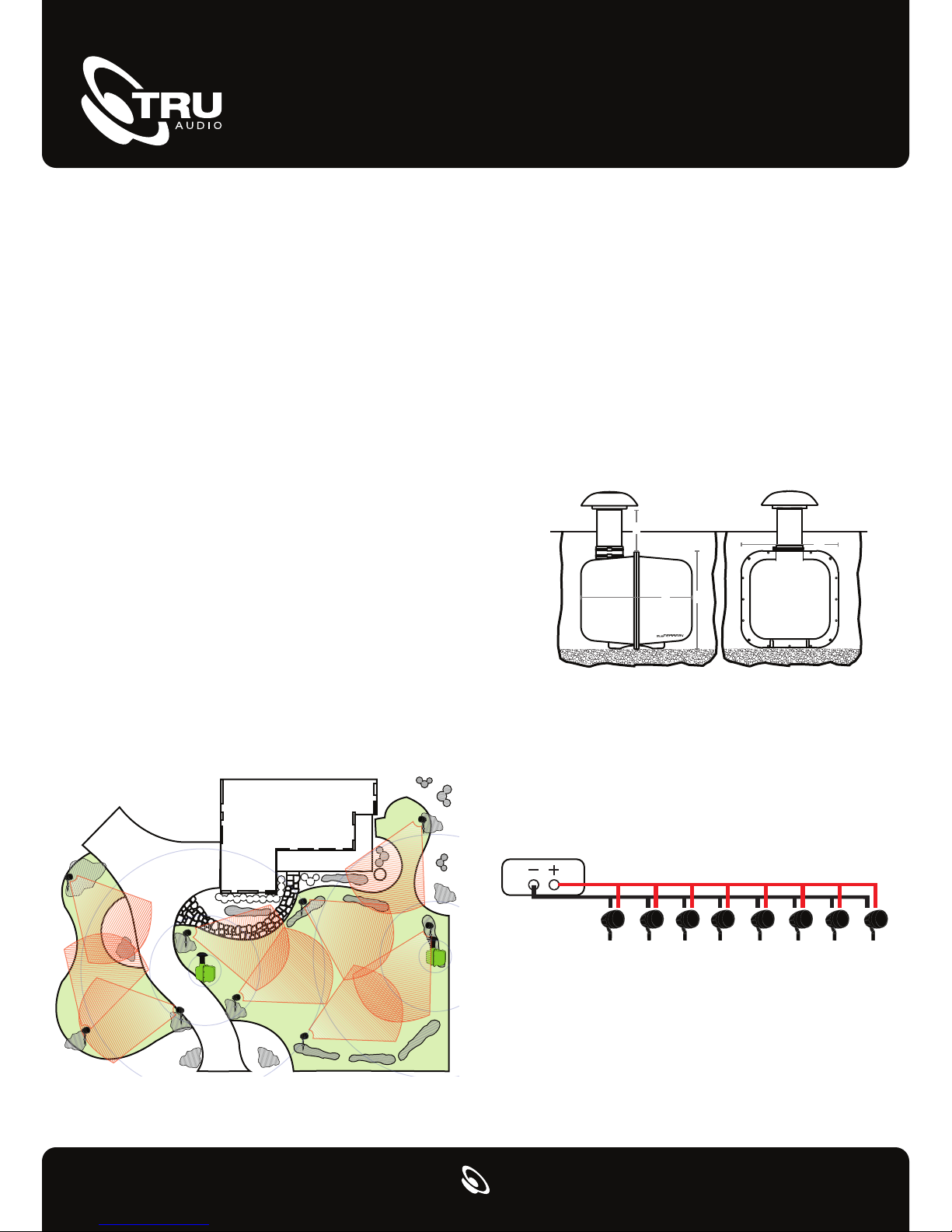

ST-SUB-10
ST-SUB-12
User Manual
Description
Size of Hole
TruAudio’s ST-SUB-10 and 12 subwoofers are designed to
be water tight with a minimal footprint. They can be
strategically installed in almost any space, delivering
booming sound from a convenient source discreetly
hidden in the landscape. The ST-SUB-10 comes in 4 ohm,
and the ST-SUB-12 comes in either 4 ohm or 70V making
it as versatile as it is powerful Please read the following
manual to ensure the best results. We at TruAudio
appreciate your purchase and wish you years of musical
enjoyment.
We recommend putting gravel at the bottom of the hole to
help with drainage. After placing the Sub in the hole, fill the
edges with dirt (don’t pack the dirt in too tight).
Hole -
Contents:
• Subwoofer Encloser
• Rubber Sleeve
• Sound Port
• Sound Cap
• Silicone Filled Wire Nuts
Subwoofer Installation
ST-SUB-12
A -
21.5” (548 mm)
B -
24.5” (624 mm)
C -
21.5” (548 mm)
D -
9.5” (241 mm)
27” (686 mm) H,
24” (609 mm) W,
25” (635 mm) D
ST-SUB-10
A -
16.5” (420 mm)
B -
18.9” (480 mm)
C -
16.5” (420 mm)
D -
10.5” (267 mm)
Hole -
21” (533 mm) H,
20” (508 mm) W,
19” (483 mm) D
D
C
A
B
The SubTerrain subwoofer provides low frequency bass
covering about 2500 sq feet. This gives you the flexibility
to place it in many locations. Whenever possible try to
locate it in the middle of the listening area.
70V Tap Settings
Set taps to 80% maximum of amp’s capacity. The tap
settings can be changed as long as the total speaker
wattage does NOT exceed 80% of the amp’s power.
NOTE: Lower tap settings allow for more speakers but a
lower maximum volume
CROWN AMP
RED +
BLACK -
+ + + + + + +
50W
TAP SETTING
Finding the Correct Tap Setting
AMP POWER x 80% = SAFE
500W x 80% = 400W
400W ÷ 50W = 8 Speakers
400W ÷ 30W = 13 Speakers
OR
50W 50W 50W 50W 50W 50W 50W
= 400W or 80% of the Amp’s Power
=
Page 2

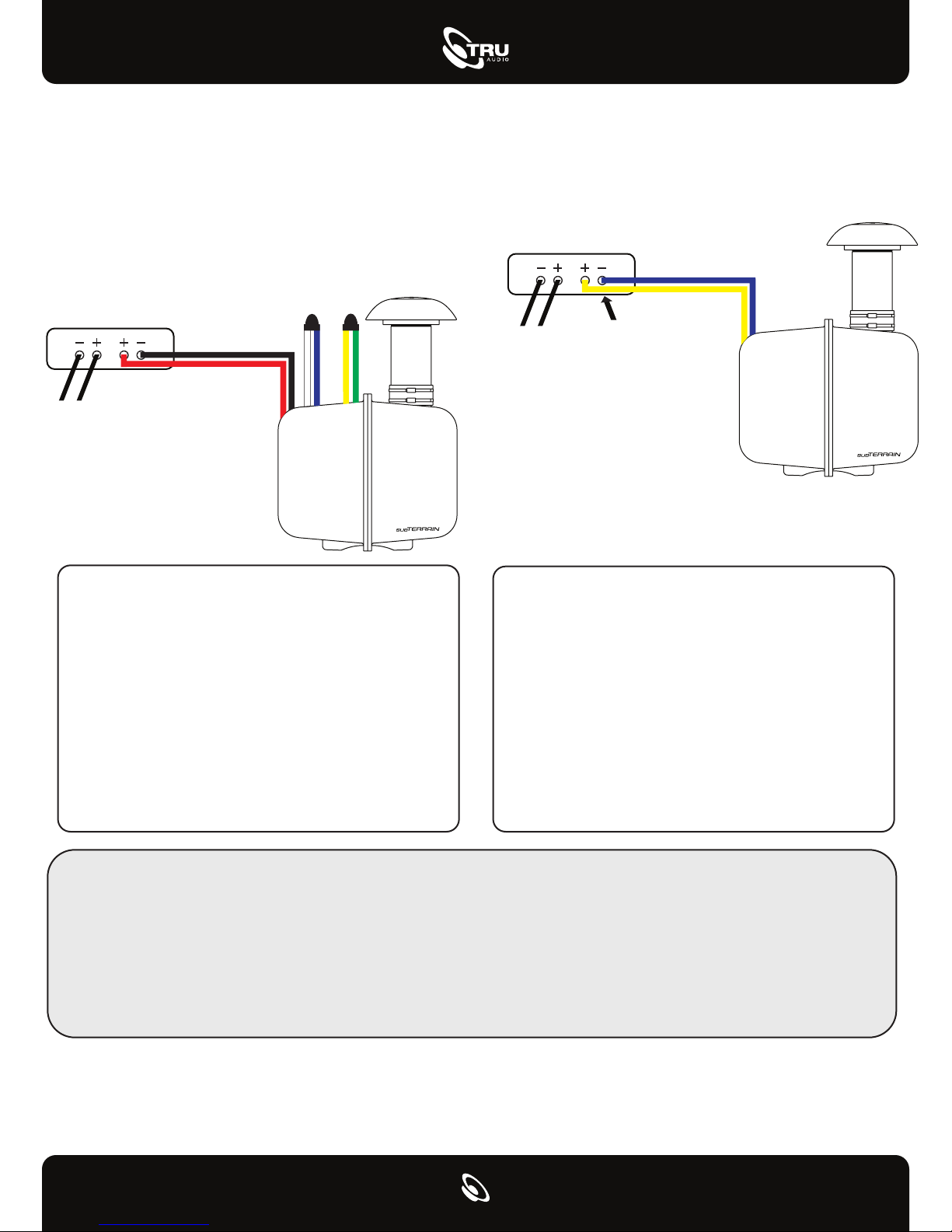

Wiring
70V:
Note: for ST-SUB-12 Only
Connect the red cable (70V+) and black cable (70V-) to the
amp. Make sure the white cable (70V- Output) is
connected to the blue cable (4 Ohm - input) and the green
cable (70V+ Output) is attached to the yellow cable (4
Ohm + input).
ST-SUB-12
CROWN AMP
To 70V Speakers
70V
BLACK -
RED +
WHITE -
BLUE -
YELLOW +
GREEN +
4 Ohm - ST-SUB-12:
Connect the yellow wire (4 ohm + input) & the blue wire (4
ohm - input) to the 4 ohm amp.
ST-SUB-12
4 Ohm
CROWN AMP
BLUE -
YELLOW +
To 70V Speakers
4 Ohm
4 Ohm - ST-SUB-10:
Connect the (red + 4 ohm) and the (black - 4 ohm) to the
4 ohm amp
ST-SUB-12
Specifications
Speaker Type:
Woofer:
Power:
Impedance:
70V Taps:
Freq Response:
Sensitivity:
Cabinet Dimensions:
Underground subwoofer
12” injected polypropylene
400W
4Ω or 70V
200W
28 - 90k Hx (+/- 3dB)
89dB
24.7” (624mm) L,
21.6” (548mm) W,
33.7” (175mm) H w/port
SoundVision Technologies dba
ST-SUB-10
Specifications
Speaker Type:
Woofer:
Power:
Impedance:
70V Taps:
Freq Response:
Sensitivity:
Cabinet Dimensions:
Underground subwoofer
10” injected polypropylene
250W
4Ω
--40 - 85k Hx (+/- 3dB)
88dB
18.9” (480mm) L,
16.5” (420mm) W,
28.7” (730mm) H w/port
OUTDOOR SPEAKERS and SUBWOOFERS PRODUCT WARRANTY
All outdoor speakers and subwoofers have a limited 5 year warranty. This warranty includes lifetime parts and repair labor on all
components. The warranty extends only to the original purchaser of the product and not to any subsequent owner. TRUAUDIO’s
obligation under these warranties is limited to repairing or replacing any component found defective in material or workmanship
under normal conditions of use with an equal and/or current product. These warranties shall not apply to products which have
been abused, modified, or disassembled. Products to be repaired or returned under this warranty must be returned to the factory
through an authorized TruAudio dealer with all transportation and insurance charges prepaid.
It is the policy of TRUAUDIO to continuously incorporate improvements into our products. All specifications are subject to
change without notice. If you have any questions regarding this or any other TRUAUDIO products, please visit
www.TruAudio.com or contact us:
Office: 1-888-858-1555, Monday-Friday 7 am - 6 pm MST.
Email: [email protected]
TruAudio
198 N Old Highway 91
Hurricane, UT 84737 USA
