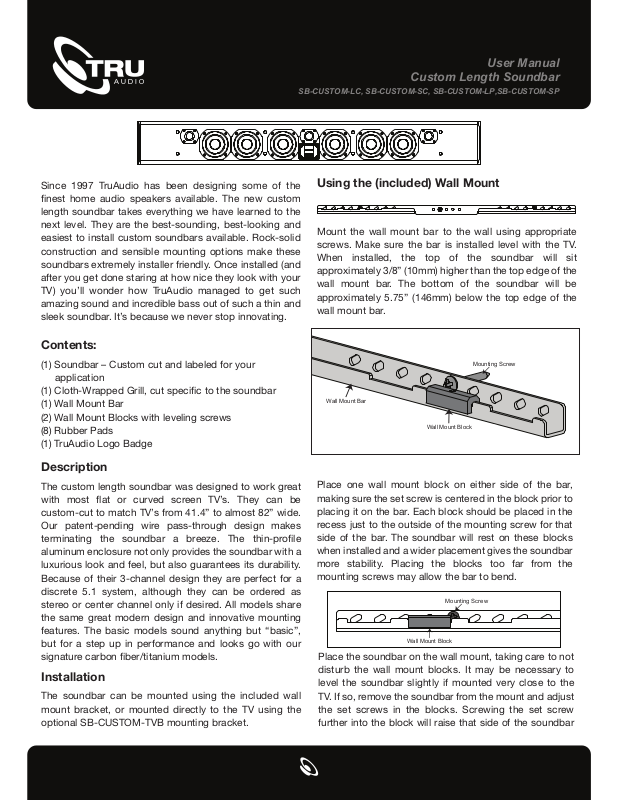

User Manual
Custom Length Soundbar
SB-CUSTOM-LC, SB-CUSTOM-SC, SB-CUSTOM-LP,SB-CUSTOM-SP
Since 1997 TruAudio has been designing some of the
finest home audio speakers available. The new custom
length soundbar takes everything we have learned to the
next level. They are the best-sounding, best-looking and
easiest to install custom soundbars available. Rock-solid
construction and sensible mounting options make these
soundbars extremely installer friendly. Once installed (and
after you get done staring at how nice they look with your
TV) you’ll wonder how TruAudio managed to get such
amazing sound and incredible bass out of such a thin and
sleek soundbar. It’s because we never stop innovating.
Contents:
(1) Soundbar – Custom cut and labeled for your
application
(1) Cloth-Wrapped Grill, cut specific to the soundbar
(1) Wall Mount Bar
(2) Wall Mount Blocks with leveling screws
(8) Rubber Pads
(1) TruAudio Logo Badge
Description
The custom length soundbar was designed to work great
with most flat or curved screen TV’s. They can be
custom-cut to match TV’s from 41.4” to almost 82” wide.
Our patent-pending wire pass-through design makes
terminating the soundbar a breeze. The thin-profile
aluminum enclosure not only provides the soundbar with a
luxurious look and feel, but also guarantees its durability.
Because of their 3-channel design they are perfect for a
discrete 5.1 system, although they can be ordered as
stereo or center channel only if desired. All models share
the same great modern design and innovative mounting
features. The basic models sound anything but “basic”,
but for a step up in performance and looks go with our
signature carbon fiber/titanium models.
Installation
The soundbar can be mounted using the included wall
mount bracket, or mounted directly to the TV using the
optional SB-CUSTOM-TVB mounting bracket.
Using the (included) Wall Mount
Mount the wall mount bar to the wall using appropriate
screws. Make sure the bar is installed level with the TV.
When installed, the top of the soundbar will sit
approximately 3/8” (10mm) higher than the top edge of the
wall mount bar. The bottom of the soundbar will be
approximately 5.75” (146mm) below the top edge of the
wall mount bar.

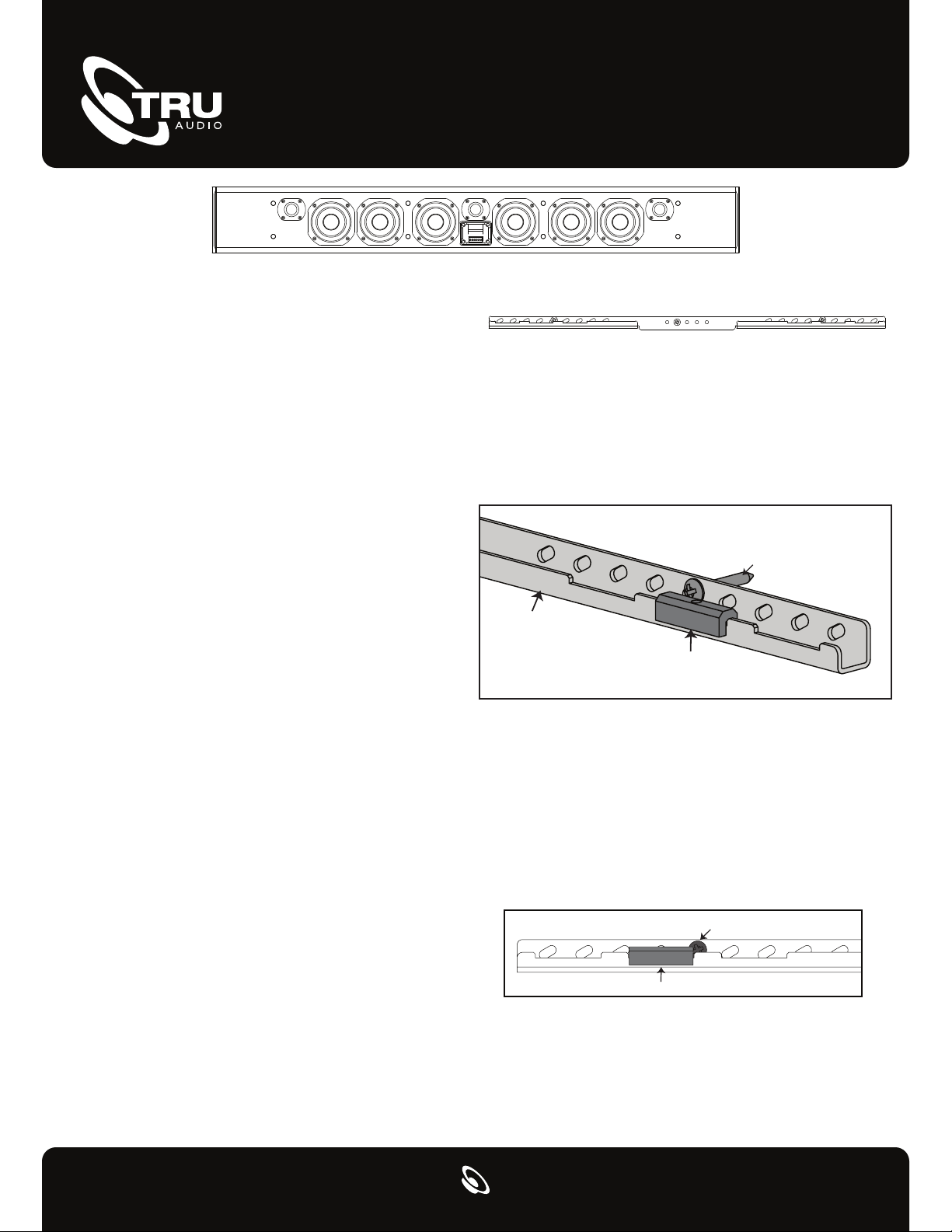

Mounting Screw
Wall Mount Bar
Wall Mount Block
Place one wall mount block on either side of the bar,
making sure the set screw is centered in the block prior to
placing it on the bar. Each block should be placed in the
recess just to the outside of the mounting screw for that
side of the bar. The soundbar will rest on these blocks
when installed and a wider placement gives the soundbar
more stability. Placing the blocks too far from the
mounting screws may allow the bar to bend.
Mounting Screw
Wall Mount Block
Place the soundbar on the wall mount, taking care to not
disturb the wall mount blocks. It may be necessary to
level the soundbar slightly if mounted very close to the
TV. If so, remove the soundbar from the mount and adjust
the set screws in the blocks. Screwing the set screw
further into the block will raise that side of the soundbar
Page 2
slightly. You should only
Set Screw
adjust the set screw a
maximum of 1/16” (1.5mm),
and should never unscrew
the set screw, as that could
make the soundbar unstable
Wall Mount Block
Specifications
on the mount.
Using the (optional) TV Mount
Refer to the instructions included with the
SB-CUSTOM-TVB when mounting the custom length
soundbar to a TV directly.
Speaker Type:
Passive Radiator:
Wiring the Soundbar

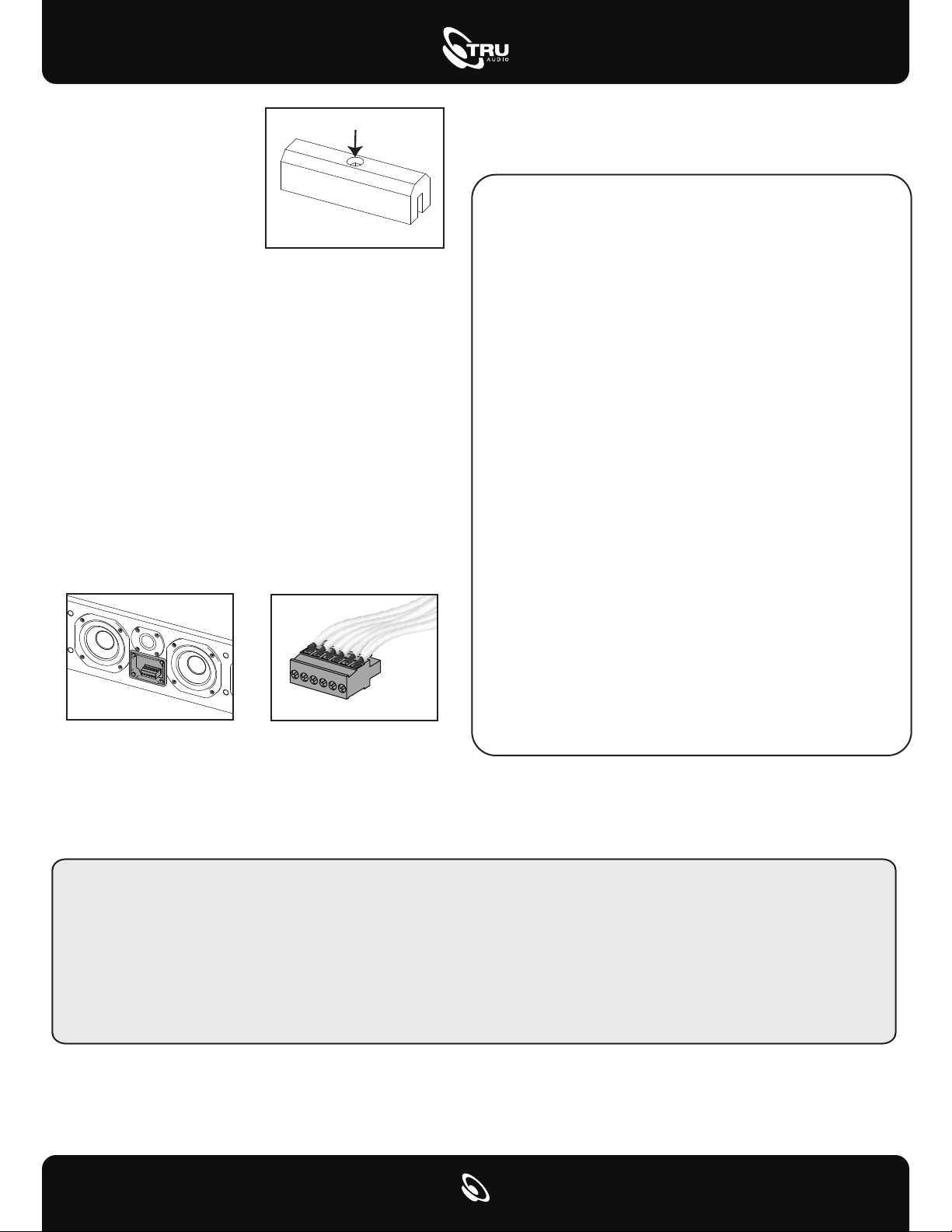

The magnetized cover panel on the front of the soundbar
hides a 6-conductor Phoenix connector. To wire the
soundbar, remove the cover panel and pass the speaker
wires through to the front of the soundbar. Remove the
unterminated Phoenix connector and terminate the
speaker wires according to the markings on the Phoenix
connector, making sure to keep the polarity and position
correct for each channel. Be careful to avoid any loose
strands that could cause a short between conductors.
Freq Response:
Speaker Type:
Passive Radiator:
Freq Response:
Color:
Tweeter:
Woofer:
Grill Type:
Power:
Sensitivity:
Impedance:
Finish Dims:
Color:
Tweeter:
Woofer:
Grill Type:
Power:
Sensitivity:
Impedance:
Finish Dims:
SB-CUSTOM-LC
Black
Low Profile Custom Length
LCR Soundbar
(3) 1” Titanium
(3) 4.5” Carbon Fiber
(3) 4.5” Carbon Fiber
Cloth/Aluminum
100W per channel RMS
89 dB
60Hz to 22kHz
8 ohm
6.14” (156mm) H,
2.44” (62mm) D,
81.88” (2080mm) to 62.00”
(1575mm) L Customizable
SB-CUSTOM-LP
Black
Low Profile Custom Length
LCR Soundbar
(3) 1” Silk Soft Dome
(3) 4.5” Injected Polypropylene
(3) 4.5” Injected Polypropylene
Cloth/Aluminum
100W per channel RMS
88 dB
80Hz to 20kHz
8 ohm
6.14” (156mm) H,
2.44” (62mm) D,
81.88” (2080mm) to 62.00”
(1575mm) L Customizable
SB-CUSTOM-SC
Black
Low Profile Custom Length
LCR Soundbar
(3) 1” Titanium
(3) 4.5” Carbon Fiber
(3) 4.5” Carbon Fiber
Cloth/Aluminum
100W per channel RMS
89 dB
60Hz to 22kHz
8 ohm
6.14” (156mm) H,
2.44” (62mm) D,
61.97” (1574mm) to 41.42”
(1052mm) L Customizable
SB-CUSTOM-SP
Black
Low Profile Custom Length
LCR Soundbar
(3) 1” Silk Soft Dome
(3) 4.5” Injected Polypropylene
(3) 4.5” Injected Polypropylene
Cloth/Aluminum
100W per channel RMS
88 dB
80Hz to 20kHz
8 ohm
6.14” (156mm) H,
2.44” (62mm) D,
61.97” (1574mm) to 41.42”
(1052mm) L Customizable
In order for these soundbars to perform to their full
potential, we recommend pairing them with a quality
home theater receiver or amplifier. For more information
on installing or wiring the soundbar please see the
installation videos posted online at truaudio.com.
