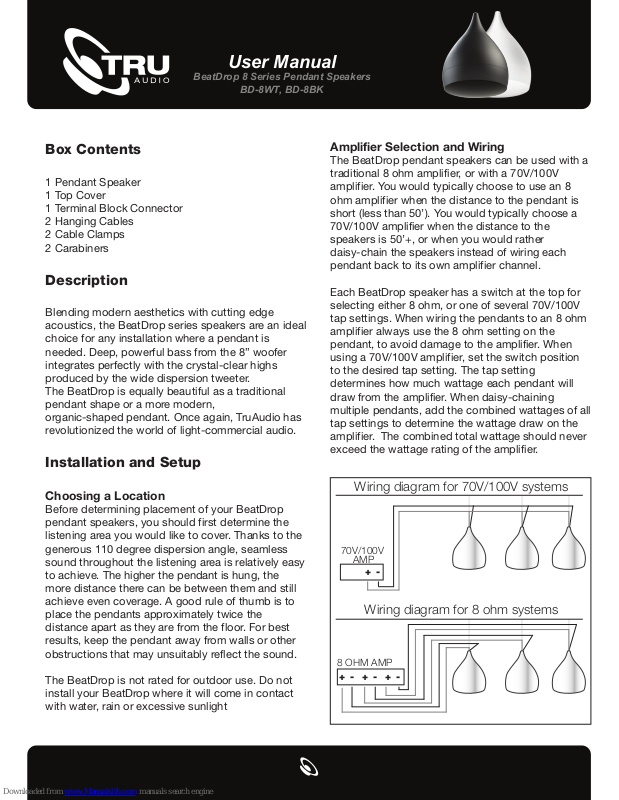

User Manual
BeatDrop 8 Series Pendant Speakers
BD-8WT, BD-8BK
Box Contents
1 Pendant Speaker
1 Top Cover
1 Terminal Block Connector
2 Hanging Cables
2 Cable Clamps
2 Carabiners
Description
Blending modern aesthetics with cutting edge
acoustics, the BeatDrop series speakers are an ideal
choice for any installation where a pendant is
needed. Deep, powerful bass from the 8” woofer
integrates perfectly with the crystal-clear highs
produced by the wide dispersion tweeter.
The BeatDrop is equally beautiful as a traditional
pendant shape or a more modern,
organic-shaped pendant. Once again, TruAudio has
revolutionized the world of light-commercial audio.
Installation and Setup
Amplifier Selection and Wiring
The BeatDrop pendant speakers can be used with a
traditional 8 ohm amplifier, or with a 70V/100V
amplifier. You would typically choose to use an 8
ohm amplifier when the distance to the pendant is
short (less than 50’). You would typically choose a
70V/100V amplifier when the distance to the
speakers is 50’+, or when you would rather
daisy-chain the speakers instead of wiring each
pendant back to its own amplifier channel.
Each BeatDrop speaker has a switch at the top for
selecting either 8 ohm, or one of several 70V/100V
tap settings. When wiring the pendants to an 8 ohm
amplifier always use the 8 ohm setting on the
pendant, to avoid damage to the amplifier. When
using a 70V/100V amplifier, set the switch position
to the desired tap setting. The tap setting
determines how much wattage each pendant will
draw from the amplifier. When daisy-chaining
multiple pendants, add the combined wattages of all
tap settings to determine the wattage draw on the
amplifier. The combined total wattage should never
exceed the wattage rating of the amplifier.
Choosing a Location
Before determining placement of your BeatDrop
pendant speakers, you should first determine the
listening area you would like to cover. Thanks to the
generous 110 degree dispersion angle, seamless
sound throughout the listening area is relatively easy
to achieve. The higher the pendant is hung, the
more distance there can be between them and still
achieve even coverage. A good rule of thumb is to
place the pendants approximately twice the
distance apart as they are from the floor. For best
results, keep the pendant away from walls or other
obstructions that may unsuitably reflect the sound.
The BeatDrop is not rated for outdoor use. Do not
install your BeatDrop where it will come in contact
with water, rain or excessive sunlight

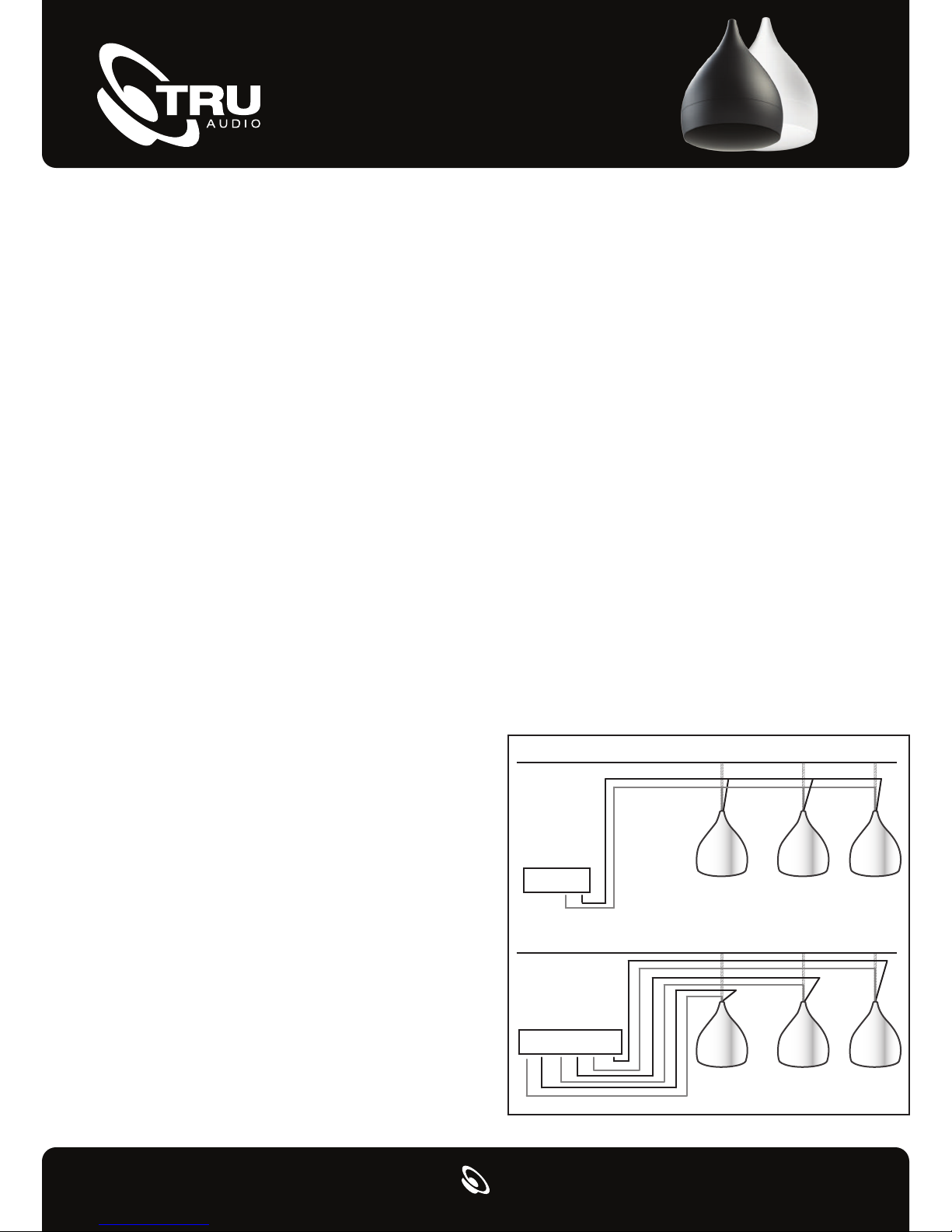

Wiring diagram for 70V/100V systems
70V/100V
AMP
+ -
Wiring diagram for 8 ohm systems
8 OHM AMP
+ - + - + -
Page 2

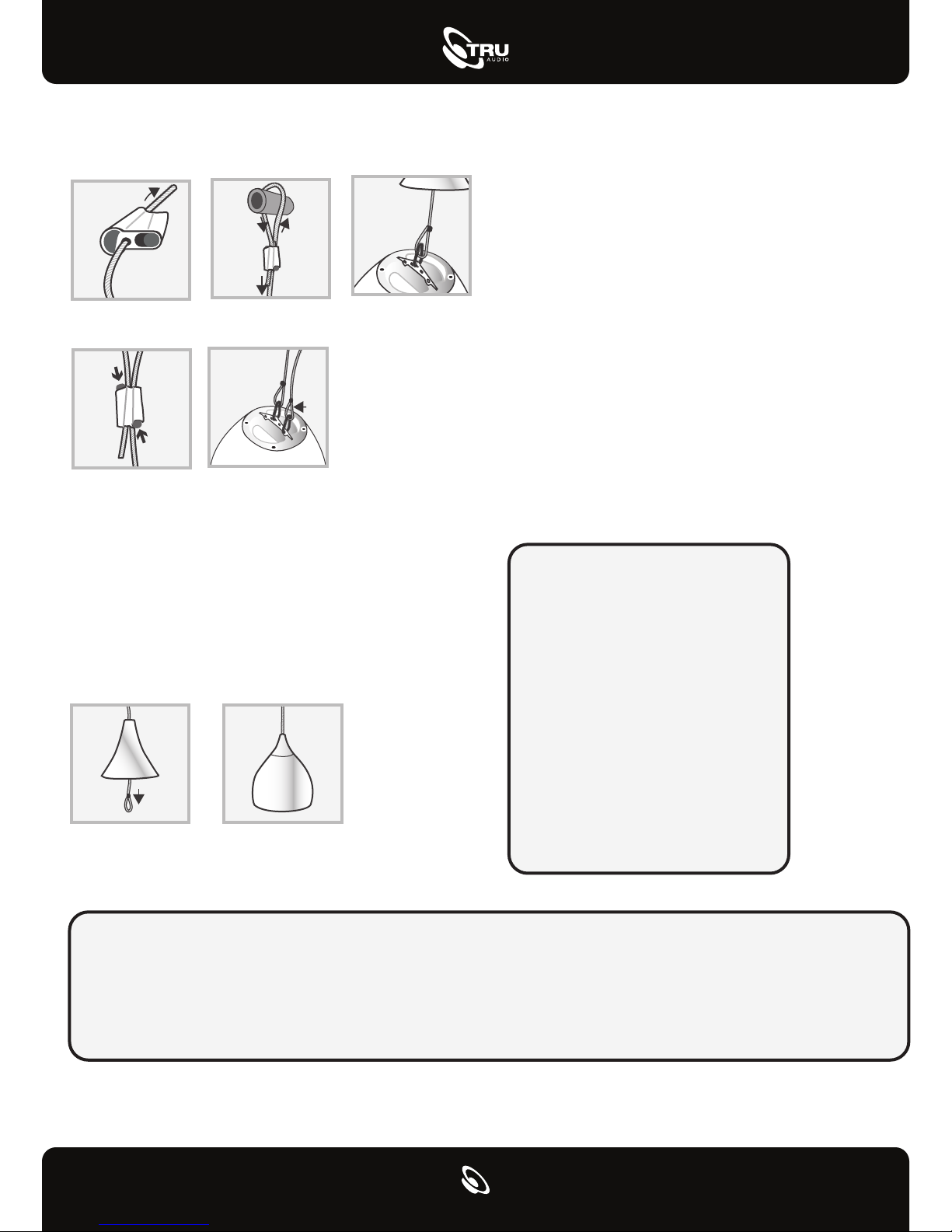

Hanging the Pendant
1
Insert the cable into the
cable clamp as shown
4 5
Adjust the height of the
pendant at the cable clamp
2
Pass the cable over the
support, and back
through the cable clamp
Safety
Add a second (safety) cable,
leaving it slightly loose
3
Attach the carabiner to
the cable loop, and then
to the center mounting
hole of the pendant.
Top Cover
Use of the top cover is optional, and its only
purpose is aesthetic. If you prefer a more traditional
pendant look, you may choose not to install the top
cap. However, if a more modern look is what you
are after then installing the top cover gives a
beautiful, organic shape to the pendant.
Thread the looped end of
the cable through the top
cap before attaching
the carabiner
The top cap presses into
place after all the cables
and wires are installed
The decision to install the top cover should be made
before hanging the pendant, since installing the top
cover requires any speaker wire or hanging cables
to be threaded through the hole in the cover.
Painting
If you decide to paint your BeatDrop pendant, it is
best to temporarily hang it at a height that all
surfaces to be painted can be accessed. Depending
on the thickness of the paint, you may want to thin it
slightly. Care needs to be taken when painting to not
clog the holes of the grill with paint. The grill is not
removable. Always paint the grill at an angle, to
minimize the amount of paint that might pass
through the grill onto the speaker diaphragms.
Care and Maintenance
Your BeatDrop pendant was designed to give you
years of trouble-free enjoyment, with minimal care.
BD-8
Specifications
Woofer: 8” molded polypropylene
Tweeter: 1” silk, soft dome
Impedance: 8 ohm or 70V / 100V
Power Handling: 5 – 125 Watts RMS (8 ohm)
70V Tap Settings: 4W, 8W, 15W, 30W, 60W
100V Tap Settings: 8W, 15W, 30W, 60W
Frequency Response: 42Hz to 20kHz
Sensitivity: 90 dB/W @ 1m
Dispersion Angle: 110 degrees
Grill Type: Steel
Diameter: 12.6” (321mm)
Height: 12.4” (316mm)
Height w/ Top Cap: 16.9” (430mm)
SoundVision Technologies dba TRUAUDIO
PRODUCT WARRANTY
All in-wall, in-ceiling, outdoor speakers, volume controls and freestanding loudspeakers have a limited lifetime warranty. This warranty includes lifetime parts
and repair labor on all components. Powered subwoofers and active electronics have a one (1) year limited warranty. This warranty includes one (1) year
parts and repair labor on all components. TRUAUDIO’s obligation under these warrantees is limited to repairing or replacing any component found defective
in material or workmanship under normal conditions of use. These warrantees shall not apply to products which have been abused, modified, disassembled,
or repaired by anyone other than TRUAUDIO or one of its appointed service centers. Products to be repaired under this warranty must be returned to the
It is the policy of TRUAUDIO to continuously incorporate improvements into our products. All specifications are subject to change without notice.
If you have any questions regarding this or any other TRUAUDIO products, please call 1-888-858-1555, Monday – Friday, 7:00 am – 6:00 pm MST.
factory or designated service center with all transportation and insurance charges pre-paid.
TRUAUDIO Speaker Systems, Hurricane, Utah, 84737
Office: 435.986.1574 Fax: 435.251.9815
