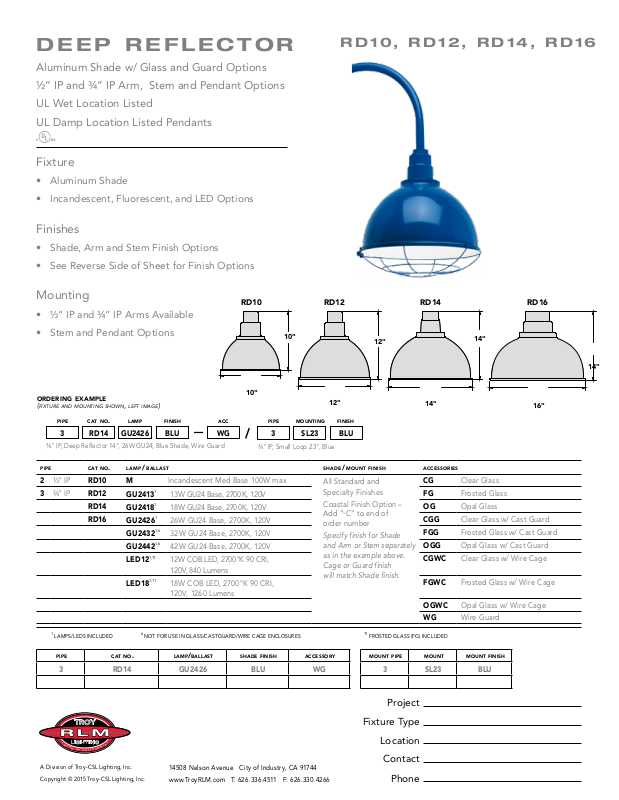

d E E p R E f l E c T o R
Aluminum Shade w/ Glass and Guard Options
½” IP and ¾” IP Arm, Stem and Pendant Options
UL Wet Location Listed
UL Damp Location Listed Pendants
Fixture
• Aluminum Shade
• Incandescent, Fluorescent, and LED Options
Finishes
• Shade, Arm and Stem Finish Options
• See Reverse Side of Sheet for Finish Options
R d1 0, R d 12 , R d 1 4, R d 1 6
Mounting
RD10
• ½” IP and ¾” IP Arms Available
• Stem and Pendant Options
Acc
10"
pipE mounTing finish
/
¾" IP, Small Loop 23", Blue
oRDERing ExAm pLE
(fixture an d mounting show n, left image)
pipE cAT no . LAmp f inish
3 RD14 gu2426 BLu wg
¾" IP, Deep Ref lector 14", 26W GU24, Blue Shade, Wire Guard
pipE cAT no. LAmp / BALLAs T
—
2 ½" IP RD10 M Incandescent Med Base 100W max
3 ¾" IP R D12
RD14
RD16
GU2 413113W GU24 Base, 2700K, 120V
GU2 418118W GU24 Base, 2700K, 120V
GU2426126W GU24 Base, 2700K, 120V
1,6
GU2432
GU2442
LED12
32W GU24 Base, 2700K, 120V
1,6
42W GU24 Base, 2700K, 120V
1,11
12W COB LED, 2700°K 90 CRI,
120V, 840 Lumens
1,11
LED18
18W COB LED, 2700°K 90 CRI,
120V, 126 0 L umens
1
LAMPS/LEDS INCLUDED 6 NOT FOR USE I N GLAS S/CASTGUA RD/WI RE CAGE ENCLO SURES
RD12
10"
12"
3 sL23 BLu
/ mou nT fini sh
shADE
All Standard and
Specialty Finishes
Coastal Finish Option –
Add “-C” to end of
order number
Specify finish for Shade
and Arm or Stem separately
as in the example above.
Cage or Guard finish
will match Shade finish.
RD14
12"
14"
AccEssoRi Es
CG Clear Glass
FG Frosted Glass
OG Opal Glass
CGG Clear Glass w/ Cast Guard
FGG Frosted Glass w/ Cast Guard
OGG Opal Glass w/ Cast Guard
CGWC Clear Glass w/ Wire Cage
FGWC Frosted Glass w/ Wire Cage
OGWC Opal Glass w/ Wire Cage
WG Wire Guard
11
FROSTED GLASS ( FG) INCLUD ED
RD16
14"
14"
16"
pipE cAT no. LAmp/BALL AsT shADE finis h AccEssoRy
3 RD14 GU2426 BLU WG
TRO YTRO Y
•
LIGHTINGLIGHTING
M
A
D
E
I
A Divis ion of Troy- CSL Lig hting, I nc.
Copyr ight © 2015 Troy-CSL Lighting, Inc.
•
A
I
N
R
O
N
F
I
L
C
A
14508 Nelson Avenue City of Industry, CA 91744
www.TroyRLM.com T: 626.336.4511 F: 626.330.4266
mounT pipE mounT mounT finish
3 SL23 BLU
Project
Fixture Type
Location
Contact
Phone
Page 2
d E E p R E f l E c T o R
Aluminum Shade w/ Glass and Guard Options
½” IP and ¾” IP Arm, Stem and Pendant Options
UL Wet Location Listed
UL Damp Location Listed Pendants
l A m p s/b A l l A s T s
i n c A n d Es cE nT l A m p s
wATTs LumEns voLTs AppLicATio n BAs E
100W max 140 0 120V w/o Glass Med (E26)
100W max 140 0 120V w/ Glass Med (E26)
M Medium
l E d s
(included)
cAT. no. wATTs LumEns voLTs
LED12 12W 840 120V 2700°K 90 Incandescent
LED18 18W 1260 120V 270 0°K 90 Incandescent
70% lume n maintena nce @ 50,0 00 hours
100W max 140 0 120V Pendant Med (E26)
TEmp
coLoR
±100°
cRi
R d 10, R d 1 2 , R d 1 4, R d 16
Dimming
c o m p A c T f l u o R E sc En T l A m p s
wATTs Lum Ens
120v
(
g u 2 4 c f l
coLoR TE mp BAsE LAmp T ypE
13 900 GU2413 2700°K GU24 bi-pin twist & lock spiral lamp (included)
18 12 00 GU2 418 2700°K GU24 bi-pin twist & lock spiral lamp (included)
GU24
Self Ballasted
26 1450 GU2426 2700°K GU24 bi-pin twist & lock spiral lamp (included)
32 2200 GU2432 2700°K GU24 bi-pin twist & lock spiral lamp (included)
42 2800 GU2442 2700°K GU24 bi-pin twist & lock spiral lamp (included)
f i n i s h E s
COASTAL FINISH OPTION
• The Coastal Finish is a coating available to protect finishes on
fixtures installed in coastal environments.
• To specify, add “-C” to end of order number
FIXTURES/SHADES
• Specialty Finishes can be specified for all Fixtures/Shades,
unless otherwise noted.
• The insides of all Shades are painted Gloss White (WT) unless
otherwise specified.
• Fixtures/Shades in Galvanized (GA) finish are not painted white
inside. Shades will be Galvanized (GA) finish inside.
• Mounting Canopy finish to match Shade finish
MOUNTS
• Arms, Stems and Wall Mounts can be specified in all Standard
and Specialty Finishes.
• Post Mounts can be specified only in Standard Finishes.
)
s T A n d A R d f i n i s h E s
ABL Aegean Blue
BB Burnished Bronze
BK Gloss Black
BLU Blue
BZP Bronze Patina
DVG Dove Gray
FLG Flannel Gray
HG Hunter Green
LG Lime Green
MB Matte Black
PNA Painted Natural Aluminum
s p E c i A l i T y
GA Galvanized SA Satin Aluminum
f i n i s h E s
PNC Painted Natural Copper
RD Red
SGW Semi Gloss White
SS Satin Silver
TBZ Textured Bronze
TGP Textured Graphite
TNG Tangerine
TTL Tahi t ian Teal
WT Gloss White
