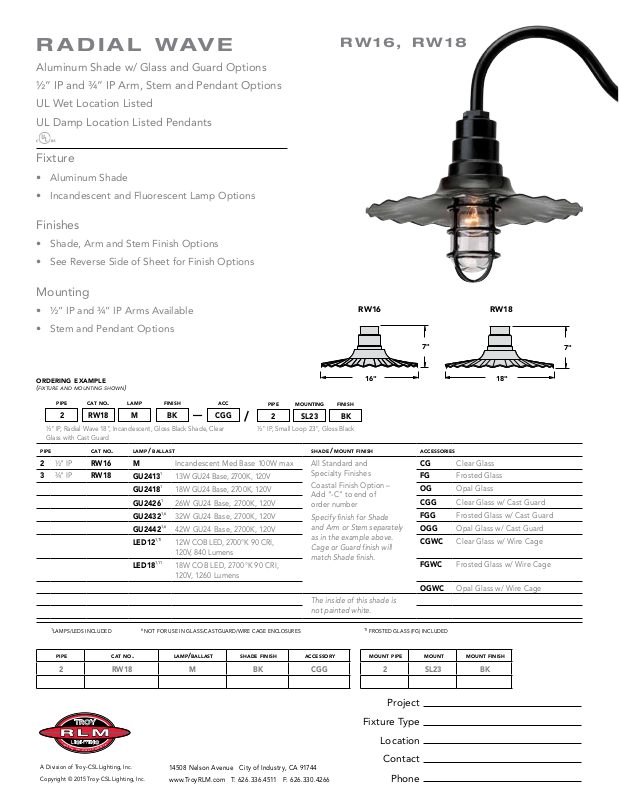

R A d i A l WAV E
Aluminum Shade w/ Glass and Guard Options
½” IP and ¾” IP Arm, Stem and Pendant Options
UL Wet Location Listed
UL Damp Location Listed Pendants
Fixture
• Aluminum Shade
• Incandescent and Fluorescent Lamp Options
Finishes
• Shade, Arm and Stem Finish Options
• See Reverse Side of Sheet for Finish Options
Mounting
• ½” IP and ¾” IP Arms Available
• Stem and Pendant Options
R W 16 , R W1 8
RW16
RW18
7"
oRDERing ExAm pLE
(fixture an d mounting show n)
pipE cAT no. LAmp f inish
2 Rw18 m BK cgg
½" IP, Radial Wave 18", Incandescent, Gloss Black Shade, Clear
Glass with Cast Guard
pipE cAT no. LAmp / BALLAs T shADE / mounT fin ish AccEssoRi Es
—
Acc
pipE mounTing finish
2 sL23 BK
/
½" IP, Small Loop 23", Gloss Black
2 ½" I P RW16 M Incandescent Med Base 100W max All Standard and
3 ¾" I P RW18
1
GU2 413
13W GU24 Base, 2700K, 120V
GU2 418118W GU24 Base, 2700K, 120V
GU2426126W GU24 Base, 2700K, 120V
1,6
GU2432
GU2442
LED12
32W GU24 Base, 2700K, 120V
1,6
42W GU24 Base, 2700K, 120V
1,11
12W COB LED, 2700°K 90 CRI,
120V, 840 Lumens
1,11
LED18
18W COB LED, 2700°K 90 CRI,
Specialty Finishes
Coastal Finish Option –
Add “-C” to end of
order number
Specify finish for Shade
and Arm or Stem separately
as in the example above.
Cage or Guard finish will
match Shade finish.
16"
CG Clear Glass
FG Frosted Glass
OG Opal Glass
CGG Clear Glass w/ Cast Guard
FGG Frosted Glass w/ Cast Guard
OGG Opal Glass w/ Cast Guard
CGWC Clear Glass w/ Wire Cage
FGWC Frosted Glass w/ Wire Cage
120V, 126 0 L umens
OGWC Opal Glass w/ Wire Cage
The inside of this shade is
not painted white.
1
LAMPS/LEDS INCLUDED 6 NOT FOR USE I N GLAS S/CASTGUA RD/WI RE CAGE ENCLO SURES
11
FROSTED GLASS ( FG) INCLUD ED
7"
18"
pipE cAT no. LAmp/BALL AsT shADE f inish AccEssoRy
2 RW18 M BK CGG
TRO YTRO Y
•
LIGHTINGLIGHTING
M
A
D
E
I
A Divis ion of Troy- CSL Lig hting, I nc.
Copyr ight © 2015 Troy-CSL Lighting, Inc.
•
A
I
N
R
O
N
F
I
L
C
A
14508 Nelson Avenue City of Industry, CA 91744
www.TroyRLM.com T: 626.336.4511 F: 626.330.4266
mounT pipE mounT mounT finish
2 SL23 BK
Project
Fixture Type
Location
Contact
Phone
Page 2
R A d i A l WAV E
Aluminum Shade w/ Glass and Guard Options
½” IP and ¾” IP Arm, Stem and Pendant Options
UL Wet Location Listed
UL Damp Location Listed Pendants
l A m p s/b A l l A s T s
i n c A n d Es c En T l A m p s
wATTs LumEns voLTs AppLic ATion BAsE
100W max 1400 120V w/o Glass Med (E26)
100W max 1400 120V w/ Glass Med (E26)
M Medium
l E d s
(included)
cAT. no. wATTs L umEns voLTs
LED12 12W 840 120V 2700°K 90 Incandescent
LED18 18W 1260 120V 2700°K 90 Incandescent
70% lume n maintena nce @ 50,0 00 hours
100W max 1400 120V Pendant Med (E26)
TEmp
coLoR
±100°
cRi
R W 16 , R W1 8
Dimming
c o m p A c T f l u o R E sc E nT l A m p s
wATTs Lum Ens
120v
(
g u 2 4 c f l
coLoR TE mp BAsE LAmp TypE
13 900 GU 2413 2700°K GU24 bi-pin twist & lock spiral lamp (included)
18 120 0 GU2418 2700°K GU24 bi-pin twist & lock spiral lamp (included)
GU24
Self Ballasted
26 1450 GU2426 2700°K GU24 bi-pin twist & lock spiral lamp (included)
32 2200 GU2432 2700°K GU24 bi-pin twist & lock spiral lamp (included)
42 2800 GU2442 2700°K GU24 bi-pin twist & lock spiral lamp (included)
f i n i s h E s
COASTAL FINISH OPTION
• The Coastal Finish is a coating available to protect finishes on
fixtures installed in coastal environments.
• To specify, add “-C” to end of order number
FIXTURES/SHADES
• Specialty Finishes can be specified for all Fixtures/Shades,
unless otherwise noted.
• The insides of all Shades are painted Gloss White (WT) unless
otherwise specified.
• Fixtures/Shades in Galvanized (GA) finish are not painted white
inside. Shades will be Galvanized (GA) finish inside.
• Mounting Canopy finish to match Shade finish
MOUNTS
• Arms, Stems and Wall Mounts can be specified in all Standard
and Specialty Finishes.
• Post Mounts can be specified only in Standard Finishes.
)
s TA n dA R d f i n i s h E s
ABL Aegean Blue
BB Burnished Bronze
BK Gloss Black
BLU Blue
BZP Bronze Patina
DVG Dove Gray
FLG Flannel Gray
HG Hunter Green
LG Lime Green
MB Matte Black
PNA Painted Natural Aluminum
s p E c i A l i T y
GA Galvanized SA Satin Aluminum
f i n i s h E s
PNC Painted Natural Copper
RD Red
SGW Semi Gloss White
SS Satin Silver
TBZ Textured Bronze
TGP Textured Graphite
TNG Tangerine
TTL Tahi t ian Teal
WT Gloss White
