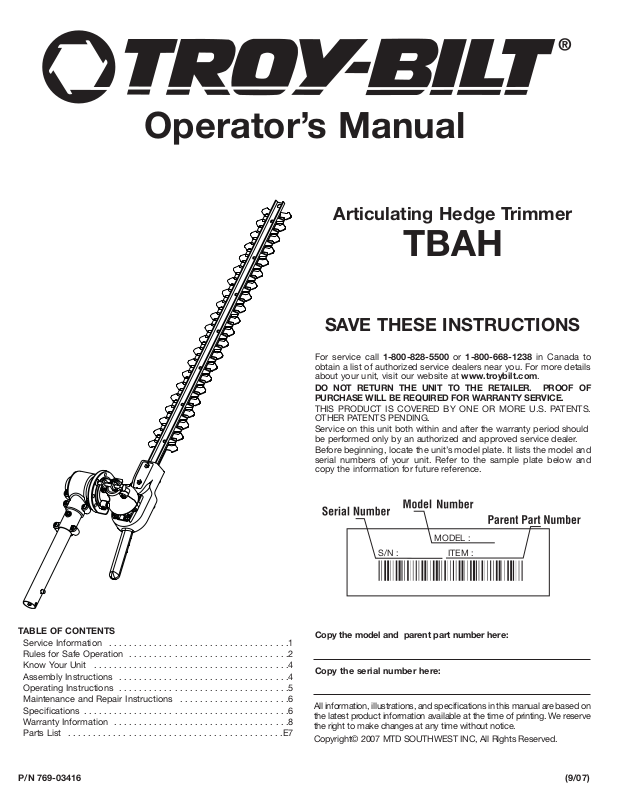

Troy-Bilt TBAH User Manual
Operator’s Manual
Articulating Hedge Trimmer
TBAH
P/N 769-03416 (9/07)
For service call 1-800-828-5500 or 1-800-668-1238 in Canada to
obtain a list of authorized service dealers near you. For more details
about your unit, visit our website at www.troybilt.com.
DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
THIS PRODUCT IS COVERED BY ONE OR MORE U.S. PATENTS.
OTHER PATENTS PENDING.
Service on this unit both within and after the warranty period should
be performed only by an authorized and approved service dealer.
Before beginning, locate the unit’s model plate. It lists the model and
serial numbers of your unit. Refer to the sample plate below and
copy the information for future reference.
Copy the serial number here:
Copy the model and parent part number here:
All information, illustrations, and specifications in this manual are based on
the latest product information available at the time of printing. We reserve
the right to make changes at any time without notice.
Copyright© 2007 MTD SOUTHWEST INC, All Rights Reserved.
TABLE OF CONTENTS
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance and Repair Instructions . . . . . . . . . . . . . . . . . . . . . .6
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E7
SAVE THESE INSTRUCTIONS
MODEL :
S/N :
ITEM :
2
READ ALL INSTRUCTIONS BEFORE OPERATING
• Carefully read and understand the operator's manual of the unit
that powers this attachment.
• Read this operating instruction manual carefully. Be thoroughly
familiar with the controls and the proper use of the equipment.
Know how to stop the unit and disengage the controls quickly.
• Do not operate this unit when tired, ill, or under the influence of
alcohol, drugs, or medication.
• Never allow children to operate the equipment. Never allow
adults unfamiliar with the instructions to use the unit. Never
allow adults to operate the equipment without proper instruction.
• All guards and safety attachments must be installed properly
before operating the unit.
• Inspect the unit before use. Ensure the blade is installed
correctly and secure.
• Clear the area to be hedged before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which can be
thrown or become entangled in the hedge trimmer attachment.
SAFETY WARNINGS FOR GAS POWERHEADS AND HEDGE
TRIMMERS
• Store fuel only in containers specifically designed and approved
for the storage of such materials.
• Always stop the engine and allow it to cool before filling the fuel tank.
Never remove the cap of the fuel tank, or add fuel, when the engine
is hot. Never operate the unit without the fuel cap securely in place.
Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• Mix and add fuel in a clean, well-ventilated area outdoors where
there are no sparks or flames. Slowly remove the fuel cap only
after stopping engine. Do not smoke while fueling or mixing fuel.
Wipe up any spilled fuel from the unit immediately.
• Avoid creating a source of ignition for spilled fuel. Do not start
the engine until fuel vapors dissipate.
• Move the unit at least 30 feet (9.1 m) from the fueling source and site
before starting the engine. Do not smoke. Keep sparks and open
flames away from the area while adding fuel or operating the unit.
• Never start or run the unit inside a closed room or building.
Breathing exhaust fumes can kill. Operate this unit only in a well
ventilated area outdoors.
• IMPORTANT SAFETY INSTRUCTIONS •
Read the Operator’s Manual and follow all warnings and safety
instructions. Failure to do so can result in serious injury to the
operator and/or bystanders.
FOR QUESTIONS, CALL 1-800-828-5500 IN U.S. OR 1-800-668-
1238 in CANADA
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your
careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they
give are not substitutes for proper accident prevention measures.
NOTE: Advises you of information or instructions vital to the
operation or maintenance of the equipment.
SYMBOL MEANING
SAFETY ALERT:
Indicates danger, warning or
caution. Attention is required in order to avoid serious
personal injury. May be used in conjunction with other
symbols or pictographs.
DANGER:
Failure to obey a safety warning will result
in serious injury to yourself or to others. Always follow
the safety precautions to reduce the risk of fire, electric
shock and personal injury.
WARNING:
Failure to obey a safety warning can
result in injury to yourself and others. Always follow the
safety precautions to reduce the risk of fire, electric
shock and personal injury.
CAUTION:
Failure to obey a safety warning may
result in property damage or personal injury to yourself
or to others. Always follow the safety precautions to
reduce the risk of fire, electric shock and personal injury.
RULES FOR SAFE OPERATION
WARNING:
When using the unit, you must follow the
safety rules. Please read these instructions before operating
the unit in order to ensure the safety of the operator and any
bystanders. Please keep these instructions for later use.
SAFETY WARNINGS FOR ELECTRIC POWERHEADS AND
HEDGE TRIMMERS
• CORD SETS: Make sure your cord set is in good condition.
When using a cord set, be sure to use a cord that is heavy
enough to carry the current that your unit will draw. An
undersized cord set will cause a drop in line voltage resulting in
loss of power and overheating. See the operator’s manual for the
unit that will power this add-on for the recommended cord size.
• Inspect all extension cords and the unit power connection
periodically. Look closely for deterioration, cuts or cracks in the
insulation. Also inspect the connections for damage. Replace the
cords if any defects or damage appear.
• Prevent disconnection of the hedge trimmer powerhead from
extension cord during operation by using a plug-receptacle
retaining strap, connector, or by making a knot as shown below:
• Avoid dangerous environments. Never operate your unit in damp
or wet conditions. Moisture is a shock hazard.
• Do not use the unit in the rain. Do not use in or around water. Do
not use on wet hedges or shrubbery.
• Do not handle the plug or unit with wet hands or standing on any
wet surfaces.
• Do not leave the unit plugged in when not in use, changing
attachments or add-ons, or while being serviced.
WARNING:
Gasoline is highly flammable, and its
vapors can explode if ignited. Take the following
precautions:
SYMBOL MEANING
WARNING:
To reduce the risk of electrical shock,
use only extension cords approved for outdoor use,
such as an extension cord of cord type SW-A, SOW-A,
STW-A, STOW-A, SJW-A, SJOW-A, SJTW-W or
SJTOW-A. Extension cords are available from your local
retailer. Use only round-jacketed extension cords
approved for outdoor use.
DANGER:
RISK OF CUT OR SHOCK — Keep hands
away from blades. Keep one hand on assist handle on the
powerhead and on the loop handle of attachment when
power is on. Do not attempt to remove cut material or hold
material to be cut when blades are moving. Make sure the
switch on the power unit is off when clearing jammed material
from blades. Do not grasp the exposed cutting blades or
cutting edges of the hedge trimmer. Wear gloves when
handling the blade. Do not operate unit with one hand.
Extension
Cord
Hedge
Trimmer Cord
Hedge
Trimmer Cord
Extension
Cord
3
RULES FOR SAFE OPERATION
WHILE OPERATING
• Keep all bystanders, especially children and pets, at least 50 ft (15
m) away.
• Wear safety glasses or goggles that are marked as meeting ANSI
Z87.1 standards, and ear/hearing protection when operating this
unit. Wear a face or dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves, and a long sleeve shirt. Do
not wear loose clothing, jewelry, short pants, sandals, or go
barefoot. Secure hair above shoulder level.
• Use the unit only in daylight or good artificial light.
• Use hedge trimmer properly. Only use this tool for the purpose
intended. Use only for trimming the type of shrub, growth, etc.,
described in the operating instructions.
• Do not force unit. It will do the job better and with less likelihood
of injury at a rate for which it was designed.
• Use extreme caution when reversing or pulling the unit towards you.
• Do not overreach, take extra care when working on steep slopes
or inclines. Always keep proper footing and balance.
• DO NOT stand on an unstable support. Do not use on a ladder.
• Always hold the unit with both hands when operating. Keep a
firm grip on both the front and rear handle or grips.
• Keep hands, face, and feet at a distance from all moving parts.
Do not touch or try to stop the blades when they are moving.
• Do not operate the engine faster than the speed needed to do
the job. Do not run the engine at high speed when not in use.
• Always stop the engine/motor when operation is delayed or when
walking from one location to another.
• Stop the engine/motor for maintenance, repair, to install or
remove the blades. The unit must be stopped and the blades no
longer moving to avoid injury.
• Always wear heavy gloves when handling, removing, installing or
cleaning the blades.
• If you strike or become entangled with a foreign object, stop the
engine/motor immediately and check for damage. Have any
damage repaired before attempting further operations.
• Stop the unit IMMEDIATELY if you feel excessive vibration.
Vibration is a sign of trouble. Inspect thoroughly for loose nuts,
bolts or damage before continuing. Repair or replace affected
parts as necessary.
• Stop and switch the unit to off for maintenance, repair, or for
changing add-ons or other attachments.
• Maintain hedge trimmer with care. Keep blades sharp at all
times, and clean for best and safest performance. Follow
maintenance instructions. Always use a clean cloth when
cleaning. Never use brake fluid, gasoline, petroleum-based
products, or any strong solvents to clean your unit.
• Use only genuine MTD replacement parts and accessories for
this unit. These are available from your authorized service dealer.
Use of any non-MTD parts or accessories could lead to serious
injury to the user or damage to the unit, and void your warranty.
OTHER SAFETY WARNINGS
• Allow the unit to cool before storing or transporting. Be sure to
secure the unit while transporting.
• Store the unit in a locked up and dry or high and dry place to
prevent unauthorized use or damage, out of the reach of
children.
• Never douse or squirt the unit with water or any other liquid. Keep
handles dry, clean and free from debris. Clean after each use.
• Keep these instructions. Refer to them often and use them to
instruct other users. If you loan someone this unit, also loan them
these instructions.
• Only qualified personnel should perform any repairs or
maintenance procedures that are not described in this manual.
• Check engine mounting bolts and other bolts at frequent intervals for
proper tightness to be sure the equipment is in safe working condition.
• Inside a building store the machine away from ignition sources.
Allow the engine to cool before storing in any enclosure.
• Always refer to the Operator’s Manual instructions for important
details if the unit is to be stored for an extended period.
• Do not attempt to repair the machine unless you have the proper
tools, and instructions for disassembly and repair of the machine.
SAVE THESE INSTRUCTIONS
CAUTION:
Blades will coast after the powerhead is
in the “OFF” position.
• SAFETY AND INTERNATIONAL SYMBOLS •
This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's
manual for complete safety, assembly, operating and maintenance and repair information.
• WARNING - READ OPERATOR'S MANUAL
R
ead the operator’s manual(s) and follow all warnings
and safety instructions. Failure to do so can result in
serious injury to the operator and/or bystanders.
SYMBOL MEANING
• WEAR EYE AND HEARING PROTECTION
WARNING:
Thrown objects and loud noise can
cause severe eye injury and hearing loss. Wear eye
protection meeting ANSI Z87.1 standards and ear
protection when operating this unit. Use a full face
shield when needed.
• HOT SURFACE WARNING
Do not touch a hot muffler, gear housing or cylinder.
You may get burned. These parts get extremely hot
from operation. They remain hot for a short time after
the unit is turned off.
• KEEP HANDS AWAY FROM BLADES
MOVING BLADES CAN CAUSE SEVERE
INJURY.
Do not put hands on blades when starting the engine
or while operating hedge trimmer attachment.
• SAFETY ALERT SYMBOL
Indicates danger, warning or caution. May be used in
conjunction with other symbols or pictographs.
SYMBOL MEANING
• KEEP BYSTANDERS AWAY
WARNING:
Keep all bystanders, especially
children and pets, at least 50 feet (15 m) from the
operating area.
• USE BOTH HANDS
Always use both hands while operating the chain
saw. Never use only one hand to operate the saw.
4
KNOW YOUR UNIT
ASSEMBLING THE COUPLER
Installing the add-on:
NOTE: To make installing or removing the add-on easier, place the
unit on the ground or on a work bench.
1. Remove the hanger from the top of the shaft housing.
2. Turn knob counterclockwise to loosen (Fig. 1).
3. While firmly holding the add-on, push it straight into the
coupler (Fig. 2).
NOTE: Aligning the release button with the guide recess will help
installation (Fig. 3).
WARNING:
Read and understand operator’s manual
for unit to be used with this add-on prior to operation.
WARNING:
To avoid serious personal injury and
damage to the unit, shut unit off before removing or
installing add-ons.
Primary Hole
Upper Shaft
Housing
Coupler
Fig. 2
Lower Shaft
Housing
Release Button
Knob
4. Turn the knob clockwise to tighten (Fig. 1).
The hedge trimmer add-on should be installed with the release
button in the primary hole.
CAUTION:
Lock the release button in the primary
hole (Fig. 2) and securely tighten the knob before
operating this unit.
CAUTION:
The add-ons with the coupler system are
to be used in the primary hole only. Using the wrong
hole could lead to personal injury or damage to the unit.
Fig. 1
Knob
90˚ Edge
Trimming Hole
Adjustment Bolt
Drive Shaft
Assembly
Angle
Adjustment
Handle
Blade
Indexing Ring
Tighten
Loosen
ASSEMBLY INSTRUCTIONS
Coupler
Release Button
Guide Recess
Knob
Fig. 3
WARNING:
DO NOT USE an extension boom with
this product. It is not designed to be used with an
extension and using one may cause serious injury.
5
ASSEMBLY INSTRUCTIONS
Removing the add-on:
1. Turn the knob counterclockwise to loosen (Fig. 1).
2. Press and hold the release button (Fig. 2).
3. While firmly holding the upper shaft housing, pull the hedge
trimmer attachment out of the coupler (Fig. 2).
OPERATING INSTRUCTIONS
BEFORE OPERATING
Adjust the angle of the trimmer to suit the area you are trimming;
adjust the blade angle based on the situation. Adjust the blade as
follows:
1. Grasp the adjustment bolt (Fig. 4) and turn counterclockwise to
unscrew the bolt from the hole in the indexing ring.
OPERATING TIPS
• To trim new growth, use a wide sweeping motion, feeding the
blade teeth through the hedge or twigs. The most effective
cutting is achieved with a slight downward tilt of the blade.
.• Wear gloves when trimming thorny or prickly growth. When
trimming new growth, use a wide sweeping action, so that the
stems are fed directly into the cutting blade. Older growth will
have thicker stems and will be trimmed easiest by using a
sawing movement.
• Do not try to cut stems that are larger than 7/16 inches (11 mm)
thick. Use a non-powered hand saw or pruning saw to trim large
stems.
• If desired, you can use a string to help cut your hedge level.
Decide how high you want the hedge. Then, stretch a piece of
string along the hedge at this height. Trim the hedge just above
this guide line of string. Trim the side of a hedge so that it will be
slightly narrower at the top. More of the hedge will be exposed
when shaped this way, and be more uniform.
• To trim the sides of hedges, hold the hedge trimmer at the
bottom and sweep upwards.
Fig. 4
Fig. 5
2. Rotate the blade to the desired position using the angle
adjustment holder.
3. Align the adjustment bolt with the appropriate hole in the
indexing ring.
4. Screw the bolt into the indexing hole clockwise until hand-tight
to secure the blade. DO NOT OVERTIGHTEN.
Angle
Adjustment
Holder
WARNING:
Dress properly to reduce the risk of injury
when operating this unit. Do not wear loose clothing or
jewelry. Wear eye and ear/hearing protection. Wear
heavy long pants, boots and gloves. Use a full face
shield when needed. Secure hair above shoulder level.
DANGER:
If the blade jams on any electrical cord or
line, DO NOT TOUCH THE BLADE. It can become
ELECTRICALLY LIVE and VERY DANGEROUS. Release
the unit in the safest manner possible, and turn off the
power source.
WARNING:
Keep hands and fingers away from
moving parts. Any part of body coming in contact with
moving parts could result in serious injury.
WARNING:
If any parts are missing, damaged, or
broken, do not operate your hedge trimmer until they
have been replaced. Failure to do so could result in
possible serious personal injury.
WARNING:
Make sure the unit is powered off before
adjusting the trimming angle.
WARNING:
If operating the unit on a slope, stand
below the cutting attachment. DO NOT operate on a
slope or hilly incline if there is the slightest chance of
slipping or losing your footing.
Indexing Holes
Indexing
Ring
Check Flex Shaft Engagement Prior to Using
1. Start the unit.
2. Briefly engage and release the trigger.
3. Check that add-on is operating.
4. If the add-on is not operating, remove add-on and repeat steps
for installing the add-on.
5. Recheck operation of add-on attachment.
Adjustment
Bolt
WARNING:
Before each use, and periodically during
use, check to make sure that the adjustment bolt is
properly tightened.
6
MAINTENANCE AND REPAIR INSTRUCTIONS
SPECIFICATIONS
LUBRICATING BLADE
1. For easier operation and longer blade life, lubricate the hedge
trimmer attachment blade before and after each use. Before
lubricating, be sure the powerhead is turned OFF. Apply light
machine oil along the edge of the top blade strap (Fig. 6).
2. Occasionally, you should oil your hedge trimmer attachment
during use. Before oiling, stop hedge trimmer, then oil. You
then can resume trimming. Do not oil while hedge trimmer
attachment is running.
OTHER MAINTENANCE
1. The cutting blades are made from high quality, hardened steel
and with normal usage, they will not require resharpening.
However, if you accidentally hit a wire fence, stones, glass or
other hard objects, you may put a nick in the blade. There is
no need to remove this nick as long as it does not interfere
with the movement of the blade. If it does interfere, turn the
powerhead off and use a fine toothed file or sharpening stone
to remove the nick.
2. If you drop the trimmer, carefully inspect it for damage. If the
blade is bent, housing cracked, or handles broken or if you
see any other condition that may affect the trimmer’s
operation contact a professional service center for repairs
before putting it back into use.
3. Fertilizers and other garden chemicals contain agents which
greatly accelerate the corrosion of metals. Do not store the
tool on or adjacent to fertilizers or chemicals.
4. With the unit powered off (and the spark plug disconnected),
use only mild soap and a damp cloth to clean the tool. Never
let any liquid get inside the tool; never immerse any part of the
tool into a liquid.
NOTE: To assure product SAFETY and RELIABILITY, repairs,
maintenance and adjustments should be performed by an
professional service center using identical replacement
parts.
Approximate Operating Weight of Attachment ........................................................................................................................... 5.11 lbs. (2.3 kg)
Blade Length ...................................................................................................................................................................................22” (558.8 mm)
Fig. 6
WARNING:
Before maintenance, be sure your hedge
trimmer is disconnected from the power supply. Failure
to do so can result in accidental starting, causing
serious personal injury.
7
NOTES
8
MANUFACTURER’S LIMITED WARRANTY FOR:
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose, applies
after the applicable period of express written warranty above
as to the parts as identified. No other express warranty or
guaranty, whether written or oral, except as mentioned above,
given by any person or entity, including a dealer or retailer,
with respect to any product shall bind Troy-Bilt. During the
period of the Warranty, the exclusive remedy is repair or
replacement of the product as set forth above. (Some states do
not allow limitations on how long an implied warranty lasts, so the
above limitation may not apply to you.)
The provisions as set forth in this Warranty provide the sole and
exclusive remedy arising from the sales. Troy-Bilt shall not be
liable for incidental or consequential loss or damages including,
without limitation, expenses incurred for substitute or
replacement lawn care services, for transportation or for
related expenses, or for rental expenses to temporarily replace
a warranted product. (Some states do not allow limitations on
how long an implied warranty lasts, so the above limitation may
not apply to you.)
In no event shall recovery of any kind be greater than the amount
of the purchase price of the product sold. Alteration of the safety
features of the product shall void this Warranty. You assume the
risk and liability for loss, damage, or injury to you and your
property and/or to others and their property arising out of the use
or misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser, original lessee or the person for whom it was
purchased as a gift.
How State Law Relates to this Warranty: This warranty gives you
specific legal rights, and you may also have other rights which vary
from state to state.
To locate your nearest service dealer dial 1-800-828-5500 or 1-
800-668-1238 in Canada.
Troy-Bilt LLC
P.O. Box 361131
Cleveland, OH 44136-0019
The limited warranty set forth below is given by Troy-Bilt LLC
(“Troy-Bilt”} with respect to new merchandise purchased and used
in the United States, its possessions and territories.
Troy-Bilt warrants this product against defects in material and
workmanship for a period of two (2) years commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in material or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s
Manual furnished with the product, and has not been subject to
misuse, abuse, commercial use, neglect, accident, improper
maintenance, alteration, vandalism, theft, fire, water or damage
because of other peril or natural disaster. Damage resulting from
the installation or use of any accessory or attachment not
approved by Troy-Bilt for use with the product(s) covered by this
manual will void your warranty as to any resulting damage. This
warranty is limited to ninety (90) days from the date of original retail
purchase for any Troy-Bilt product that is used for rental or
commercial purposes, or any other income-producing purpose.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED
SERVICE DEALER. To locate the dealer in your area, visit our
website at www.troybilt.com, check for a listing in the Yellow
Pages, call 1-800-828-5500 or 1-800-668-1238 in Canada, or write
to
P.O. Box 361131, Cleveland, OH 44136-0019
.
This limited warranty does not provide coverage in the following
cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner
Reels, Starter Pulley, Starter Ropes, Drive Belts
C. Troy-Bilt does not extend any warranty for products sold or
exported outside of the United States of America, its
possessions and territories, except those sold through TroyBilt’s authorized channels of export distribution.
Troy-Bilt reserves the right to change or improve the design of any
Troy-Bilt Product without assuming any obligation to modify any
product previously manufactured.
Loading...
