Troy-Bilt Polar Blast 10530 Operator's Manual

Operator’s Manual
SNOW THROWER
Model 10530
Polar Blast
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
WARNING: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO
769-00293B.fm
.
(6/2004)
TABLE OF CONTENTS
Content Page
Important Safe Operation Practices 3 Assembling Your Snow Thrower 5 Know Your Snow Thrower 7 Operating Your Snow Thrower 9 Making Adjustments 11
Content Page
Servicing Your Snow Thrower 15 Trouble Shooting 19 Illustrated Parts 20 Commercial Warranty 31 Residential Warranty 32
Maintaining Your Snow Thrower 14
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. A sample model plate is also given below. You can locate the model plate by standing at the operating position and looking down at the rear of the snow thrower. This information will be necessary to use the manufacturer’s web site and/or help from the Customer Support Department or an authorized service dealer.
Copy the model number here:
Copy the serial number here:
www.troybilt.com
TROY-BILT LLC P. O. BOX
361131 CLEVELAND, OH 44136 330-558-7220 1-800-520-5520
CUSTOMER SUPPORT
Please do NOT return the unit to the retailer from where it was purchased, without first contacting Customer Support.
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, you can seek help from the experts. Choose from the options below:
Visit troybilt.com for many useful suggestions. Click on Customer Support button and you will get the four options reproduced here. Click on the appropriate button and help is immediately available.
The answer you are looking for could be just a mouse click away!
If you prefer to reach a Customer Support Representative, please call 1-800-520-5520.
Engine
Manual
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for more information.
2
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in th is manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury . When you see this symbol—heed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer, birth defects or other reproductive harm
DANGER: This machine was built to be operated accor ding to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the p art of the operator can result in serious injury. This machine is capa ble of amputating hands and feet and thro wing objects. Failure to observe the following safety instructions could result in serious injury or death.
.
TRAINING
1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
3. Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.
4. Never allow adults to operate this machine without proper instruction.
5. Thrown objects can cause serious personal injury. Plan your snow-throwing pattern to avoid discharge of material toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially when operating in reverse.
PREPARATION
1. Thoroughly inspect the area where the equipment is to be used. Remove all doormats, newspapers, sleds, boards, wires and other foreign objects, which could be tripped over or thrown by the auger/impeller.
2. Always wear safety glasses or eye shields during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.
3. Do not operate without wearing adequate winter outer garments. Do not wear jewelry, long scarves or other loose clothing, which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.
4. Use a grounded three-wire extension cord and receptacle for all units with electric start engines.
5. Adjust collector housing height to clear gravel or crushed rock surfaces.
6. Disengage all controls before starting the engine.
7. Never attempt to make any adjustments while engine is running, except where specifically recommended in the operator’s manual.
8. Let engine and machine adjust to outdoor temperature before starting to clear snow.
9. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately.
a. Use only an approved gasoline container. b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition. c. Never fuel machine indoors. d. Never remove gas cap or add fuel while the
engine is hot or running. e. Allow engine to cool at least two minutes before
refueling. f. Never over fill fuel tank. Fill tank to no more than ½
inch below bottom of filler neck to provide space
for fuel expansion. g. Replace gasoline cap and tighten securely. h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine. i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.). j. Allow machine to cool at least 5 minutes before
storing.
OPERATION
1. Do not put hands or feet near rotating parts, in the auger/ impeller housing or chute assembly. Contact with the rotating parts can amputate hands and feet.
2. The auger/impeller control is a safety device. Never bypass its operation. Doing so makes the machine unsafe and may cause personal injury.
3. The controls must operate easily in both directions and automatically return to the disengaged position when released.
3
4. Never operate with a missing or damaged chute assembly. Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
6. Do not operate machine while under the influence of alcohol or drugs.
7. Muffler and engine become hot and can cause a burn. Do not touch.
8. Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while operating on slopes.
10. Plan your snow-throwing pattern to avoid discharge towards windows, walls, cars etc. Thus, avoiding possible property damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets or allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear snow at too fast of a rate.
13. Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.
14. Disengage power to the auger/impeller when transporting or not in use.
15. Never operate machine at high transport speeds on slippery surfaces. Look down and behind and use care when in reverse.
16. If the machine should start to vibrate abnormally, stop the engine, disconnect the spark plug wire and ground it against the engine. Inspect thoroughly for damage. Repair any damage before starting and operating.
17. Disengage all controls and stop engine before you leave the operating position (behind the handles). Wait until the auger/impeller comes to a complete stop before unclogging the chute assembly, making any adjustments, or inspections.
18. Never put your hand in the discharge or collector openings. Always use the clean-out tool provided to unclog the discharge opening. Do not unclog chute assembly while engine is running. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.
19. Use only attachments and accessories approved by the manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. If situations occur which are not covered in this manual, use care and good judgment.
Contact your dealer or telephone 1-800-520-5520 for assistance and the name of your nearest servicing dealer.
MAINTENANCE AND STORAGE
1. Never tamper with safety devices. Check their proper operation regularly. Refer to the maintenance and adjustment sections of this manual.
2. Before cleaning, repairing or inspecting machine disengage all clutch levers and stop engine. Wait until the auger/impeller come to a complete stop. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.
3. Check bolts and screws for proper tightness at frequent intervals to keep the machine in safe working condition. Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to wear and damage. For your safety protection, frequently check all components and replace with original equipment manufacturer’s (OEM) parts only. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”
6. Check clutch controls periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator’s manual for instructions.
7. Maintain or replace safety and instruction labels, as necessary.
8. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace, clothes dryer etc.
11. Always refer to the operator’s manual for proper instructions on off-season storage.
WARNING — YOUR RESPONSIBILITY:
Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine. The safety labels are shown below for your reference.
4
SECTION 2: ASSEMBLING YOUR SNOW THROWER
NOTE: All references to right or left side of the snow
thrower are determined from behind the unit in the operating position. The “operator’s position” is defined as standing directly behind the snow thrower, facing the handle panel.
Hardware Pack
ATTACHING THE CHUTE ASSEMBLY
A
Flange Lock Nuts
Hex Screws
1/4-20 x 1.00”
(710-0597)
B
REPLACEMENT SHEAR BOLTS
Shear Bolts
Figure 1
The augers are secured to the auger shaft with two shear bolts and flange lock nuts. If you hit a foreign object or ice jam, the snow thrower is designed so that the bolts may shear. Two replacement shear bolts and nuts are provided for your convenience. Store in a safe place until needed. See Figure 1.
IMPORTANT:
standard hex bolts. Any damage to the auger gearbox or other components from standard hex bolts will not be covered by your snow thrower’s warranty.
NEVER replace the auger shear bolts with
1/4-20 Thread
(712-04064)
Chute Flange Keepers 731-0851 (3) Not Shown
Flange Lock Nuts
Assembling Handle
Remove the lower plastic wing nut, cupped washer, and carriage bolt from each side of the lower handle. See Figure 2.
Wing Nut
Carriage Bolt
Bell Washer
Figure 2
NOTE: Before proceeding, look at the lower rear of the
snow thrower frame to be sure the spring (found at the end of each cable) is attached to its actuator bracket See Figure 3.
Pivot the upper handle assembly forward until it locks over the lower handle. See Figure 2.
Secure the upper handle and lower handle with the two plastic wing nuts, bell washers and carriage bolts previously removed from the lower hole.
Firmly tighten all four wing nuts to secure the upper handle to the lower handle.
Slide the shift rod connector down over the end of the lower shift rod. Tap the connector until it locks over the lower shift rod. See Figure 3.
NOTE: If the connector is not properly assembled, the shift rod will pivot and you will not be able to change speeds or change directions.
WARNING: Disconnect the spark plug
wire and ground it against the engine to prevent unintended starting.
IMPORTANT:
Page 11, before operating your snow thrower. Failure to follow these instructions may cause damage to the snow thrower.
Make any adjustments, as instructed on
5
A
Chute Assembly
Hex Screw
Shift Rod
Connector
Carriage Bolt
Bell Washer
Wing Nut
Springs
Actuator Brackets and Springs
Figure 3
Attaching Chute Assembly (Hardware Group A)
Place chute assembly over chute opening, with the opening in the chute assembly facing the front of the unit.
Place chute flange keepers beneath lip of chute assembly, with the flat side of chute flange keeper facing downward.
Insert hex screw up through chute flange keeper and chute assembly and secure with hex lock nut. After assembling all three chute flange keepers, tighten all nuts and screws securely with two 7/16” wrenches. Do not overtighten. See Figure 4A.
With the lock nuts loosened on the lower chute rod bracket (See Figure 4B) adjust the bracket so that the spiral fully engages the teeth on the chute assembly. Tighten the lock nuts on the lower chute rod bracket securely.
Hex Lock Nut
Chute Flange Keeper
B
Chute
Assembly
Lower Chute
Rod
Bracket
Chute Directional Control
Spiral
Lock Nuts
Figure 4
Attaching Chute Directional Control
Remove the hairpin clip from the upper chute rod and slide the upper chute rod through the upper chute rod bracket and into the lower chute rod. See Figure 5.
Align the two holes on both chute rods and insert the hairpin clip removed earlier, through these holes. See Figure 5.
Upper Chute Rod
Upper Chute
Rod Bracket
Hairpin Clip
Lower Chute Rod
Figure 5
6
Routing Chute Tilt Cables
If not already routed, slip the cables that run from beneath the handle panel to the chute assembly through the cable guide located on top of the engine housing. See Figure 6.
Discharge Chute
Cable Guide
Figure 6
Connecting Alternator Lead
If not already routed, unwrap the headlight wire which is attached to the headlights, beneath the handle panel. Wind the wire around the lower right handle until excess slack is removed.
Plug the wire from the headlight into the alternator lead located on the right side of the engine, beneath the fuel tank. See Figure 7.
Alternator Lead
Lamp Wire
Figure 7
SECTION 3: KNOW YOUR SNOW THROWER
WARNING: Read, understand, and follow
all instructions and warnings on the machine and in this manual before operating.
Throttle Control
The throttle control is located on the engine. It regulates the speed of the engine and also stops the engine. See Figure 8.
Fuel Shut-Off Valve (Optional Equipment)
On models so equipped, the fuel shut-off valve, located under fuel tank, controls fuel-flow from the fuel tank to the engine. See Figure 8.
Safety Ignition Key
The ignition key must be inserted and snapped in place in order for the engine to start. Remove the ignition key to prevent unauthorized use of equipment.Do NOT “turn” the ignition key in an attempt to start the engine.
Skid Shoes
The space between the shave plate and the ground can be adjusted by positioning the skid shoes. Refer to Skid
Shoe Adjustment on page 13.
Shift Lever
The shift lever is located in the center of the handle panel and is used to determine ground speed and direction of travel. It can be moved into any of eight positions. See Figure 8.
IMPORTANT:
changing speeds.
Forward
Your snow thrower has six forward (F) speeds, with position number one (1) being the slowest speed.
Reverse
Your snow thrower has two reverse (R) speeds, with position number one (1) being the slower speed.
Drive Control / Auger Control Lock
The drive control is located on the right handle. Squeeze the drive control to engage the wheel drive. Release to stop. See Figure 8.
The drive control also locks the auger control, so you can operate the chute directional control without interrupting the snow throwing process. If the auger control is engaged simultaneously with the drive control, the operator can release the auger control (on the left handle) and the augers will remain engaged. Release both controls to stop the augers and wheel drive.
IMPORTANT:
moving the shift lever. Failure to do so will result in premature wear to the drive system’s friction wheel.
Always release drive control before
ALWAYS release the drive control before
7
Drive Control /
Auger Control Lock
Headlights
Discharge
Chute
Chute
Clean-out Tool
Auger
Fuel Tank
Skid Shoe
Right Wheel Steering Control
Shift Lever
Chute Tilt Control
Auger Control
Chute Directional Control
Left Wheel Steering Control
Primer
Choke
Safety Ignition
Key
Throttle Control
Figure 8
Recoil Starter Handle
Electric Starter Button
Switch
Box
Fuel Shut-Off Valve
*If Equipped
Closed
Open
Auger Control
The auger control is located on the left handle. Squeeze the auger control to engage the augers. Release to stop the snow throwing action. The drive control must also be released in order to stop the auger.
IMPORTANT:
Refer to Auger Control Test on page 10 prior
to operating your snow thrower. Read and follow all instructions carefully and perform all adjustments to verify your snow thrower is operating safely and properly.
Chute Tilt Control
The distance snow is thrown can be changed by adjusting the angle of the upper chute. Move the chute tilt control forward to decrease the distance, and backwards to increase distance. See Figure 8.
Chute Directional Control
The chute directional control is located on left hand side of the snow thrower.To change the direction which snow is thrown, rotate chute directional control as follows:
Clockwise to discharge to the left.
Counterclockwise to discharge to the right.
Headlights
When properly connected, both headlights illuminate whenever the engine is running.
Clean-out Tool
WARNING: Never use your hand to clear a
clogged chute. Shut off engine and remain behind handles until all moving parts have stopped before unclogging. Use the clean-out tool or a stick to unclog.
This item, along with the electric cord, is fastened with a cable tie to the rear of the auger housing at the factory. Cut the cable tie and remove the electric cord before operating the snow thrower.
The clean-out tool (see Figure 8) is designed to clear a clogged chute. Refer to page 11 for detailed instructions on how to properly use the clean-out tool.
Wheel Steering Controls
The left and right wheel steering controls are located on the underside of the handles and are used to assist in steering the snow thrower.
Squeeze the right wheel steering control when turning right; squeeze the left control when turning left.
Operate the snow thrower in open areas until becoming familiar with these controls.
8
SECTION 4: OPERATING YOUR SNOW THROWER
Before Starting
WARNING: Read, understand, and follow
all instructions and warnings on the machine and in this manual before operating.
Gas And Oil Fill-up
Service the engine with gasoline and oil as instructed in the separate engine manual packed with your snow thrower. Read instructions carefully.
WARNING: Use extreme care when
handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other sources of ignition.
A plastic cap is provided inside the fuel fill opening to protect the tank during manufacturing. Remove and discard. Use the separate threaded fuel tank cap to close after fill-up.
To Start Engine
NOTE: If unit shows any sign of motion (drive or
augers) with the controls disengaged, shut engine off immediately. Readjust as instructed on page 10—Auger Control Test) and page 11—Drive Control and Shift Lever.
Attach spark plug wire to spark plug. Make certain the metal loop on end of the spark plug wire (inside the boot) is fastened securely over the metal tip on the spark plug.
Make certain the fuel shut-off valve, if so equipped, is in the OPEN (vertical) position.
Make certain the auger and drive controls are in the disengaged (up) position.
Move throttle control up to FAST position. Insert ignition key into slot and snap in place. See Figure
8. Do not turn key.
NOTE: Engine will not start unless ignition key is
inserted into ignition slot in carburetor cover.
Electric Starter
Determine that your house wiring is a three-wire grounded system. Ask a licensed electrician if you are not certain.
WARNING: The electric starter is
equipped with a grounded three-wire power cord and plug and is designed to operate on 120 volt AC household current. It must be used with a properly grounded three-prong receptacle at all times to avoid the possibility of electric shock. Follow all instructions carefully prior to operating the electric starter.
If your house wiring system is not a three-wire grounded system, do not use this electric starter under any conditions.
If your home electrical system is grounded, but a three-hole receptacle is not available, one should be installed by a licensed electrician before using the electric starter.
If you have a grounded three-prong receptacle, proceed as follows:
Connect power cord to switch box on engine. Plug the other end of power cord into a three-prong, 120­volt, grounded, AC receptacle.
Rotate choke knob to FULL choke position (cold engine start). If engine is warm, place choke in OFF position instead of FULL.
Push primer button two or three times for cold engine start, making sure to cover vent hole in primer button when pushing. DO NOT use primer to restart a warm engine after a short shutdown.
Push starter button to start engine.
When engine starts, release starter button, and move choke gradually to OFF. If engine falters, move choke immediately to FULL and then gradually to OFF.
When disconnecting the power cord, always unplug from the three-prong receptacle first and then from the snow thrower.
Recoil Starter
Rotate choke knob to FULL choke position (cold engine start). If engine is warm, place choke in OFF position instead of FULL.
Push primer button three or four times for cold engine start. DO NOT use primer to restart a warm engine after a short shutdown.
NOTE: Always cover vent hole in primer button when
pushing. Additional priming may be necessary for first start if temperature is below 15°F.
Grasp starter handle and pull rope out slowly, until it pulls slightly harder. Let rope rewind slowly.
Pull starter handle rapidly. Do not allow handle to snap back. Allow it to rewind slowly while keeping a firm hold on the starter handle.
Repeat the previous steps until engine starts.
9
As engine warms up, rotate choke knob slowly to OFF position. If engine falters, return to FULL choke, then slowly move to OFF position.
To Stop Engine
Run engine for a few minutes before stopping to help dry off any moisture on the engine.
To help prevent possible freeze-up of starter, proceed as follows:
Electric Starter:
Connect power cord to switch box on engine, then to 120 volt AC receptacle. With the engine running, push starter button and spin the starter for several seconds. The unusual sound made by spinning the starter will not harm engine or starter. Disconnect the power cord from receptacle first, and then from switch box.
In a well-ventilated area, start the snow thrower engine as instructed earlier in this section under the heading Starting Engine. Make sure the throttle is set in the FAST position.
While standing in the operator’s position (behind the snow thrower) engage the auger.
Allow the auger to remain engaged for approximately ten (10) seconds before releasing the auger control. Repeat this several times.
With the engine running in the FAST position and the auger control in the disengaged “up” position, walk to the front of the machine.
Confirm that the auger has completely stopped rotating and shows NO signs of motion.
IMPORTANT:
If the auger shows ANY signs of rotating, immediately return to the operator’s position and shut off the engine. Wait for all moving parts to stop before readjusting the auger control cable.
Recoil Starter
With engine running, pull starter rope with a rapid, continuous full arm stroke three or four times. Pulling the starter rope will produce a loud clattering sound, which is not harmful to the engine or starter.
Move throttle control to “stop” or “off” position.
Remove ignition key to prevent unauthorized use of equipment. Do not turn key.
NOTE: Keep key in a safe place. Engine will not start without ignition key.
Wipe all snow and moisture from the carburetor cover in the area of the control levers. Also, move control levers back and forth several times.
To Engage Augers
To engage augers and start throwing snow, squeeze the auger control against the left handle.
To disengage power to the augers, release both the auger control and the drive control, if engaged.
The auger control can be locked so you can turn the chute directional control without interrupting the snow throwing process.
Auger Control Test
IMPORTANT:
operating the snow thrower for the first time and at the start of each winter season.
Check the adjustment of the auger control as follows:
When the auger control is released and in the disengaged “up” position, the cable should have very little slack, but should NOT be tight.
Perform the following test before
WARNING: Do not over-tighten the cable.
Over-tightening may prevent the auger from disengaging and compromise the safety of the snow thrower.
To readjust the control cable, unhook the spring (found on the end of the auger cable) from the auger actuator bracket. See Figure 9.
Drive
Spring
Drive
Actuator
Bracket
Auger
Spring
Auger
Actuator Bracket
Figure 9
Push the cable coupler through the end of the spring to expose the lock nut. See Figure 10.
Coupler
Cable
Spring
k
c
a
l
S
s
s
e
L
S
e
r
o
M
Lock Nut
a
l
Figure 10
Thread the lock nut outward (down the coupler) three full turns to provide more slack in the cable and reattach the spring to the bracket.
k
c
10
Repeat Auger Control Test to verify proper adjustment has been achieved. Repeat the previous steps to provide more slack in the cable, if necessary.
To Engage Wheel Drive
With the engine running near top speed, move the shift lever into one of the six FORWARD positions or two REVERSE positions. Select a speed appropriate for the snow conditions.
NOTE: Use slower speeds in heavy conditions and
until you are familiar and comfortable with the operation of the snow thrower.
Squeeze the drive control against the right handle and the snow thrower will move. Release it and the drive motion will stop.
IMPORTANT:
releasing the drive control. Doing so will cause premature wear to the drive system’s friction wheel.
Wheel Steering Controls
The left and right wheel steering controls are located on the underside of the handles.
With the traction control engaged, squeeze the right wheel steering control to assist in turning right; squeeze the left control to assist in turning left.
NEVER move the shift lever without first
Clean-Out Tool
The clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip (Refer to Figure 8 ). If the chute assembly becomes clogged during operation, proceed as follows to safely clean the chute and chute opening:
1. Release both the Auger Control and the Auger Control Lock.
2. Stop the engine by moving the throttle to the stop position.
Drive/
3. Remove the clean-out tool from the mounting clip.
4. Use the shovel-shaped end of the clean-out tool to remove any snow and ice in the chute assembly.
WARNING: Never use your hand to clear a
clogged chute. Shut off engine and remain behind handles until all moving parts have stopped before unclogging. Use the clean-out tool or a stick to unclog.
5. Refasten the clean-out tool to the mounting clip on the rear of the auger housing, re-start the engine.
6. While standing in the operator’s position (behind the snow thrower), engage the auger control for a few seconds to clear any remaining snow or ice from the chute assembly before continuing to clear snow.
Operating Tips
WARNING: The temperature of the muffler
and the surrounding areas may exceed 150°F. Avoid these areas.
Allow the engine to warm up for a few minutes. The engine will not develop full power until it reaches operating temperature.
For the most efficient snow removal, remove snow immediately after it falls.
Discharge the snow downwind whenever possible.
Slightly overlap each previous path.
Set the skid shoes 1/4" below the shave plate for normal usage. The skid shoes may be adjusted upward (to lower the shave plate) for hard-packed snow. Adjust downward (to raise the shave plate) when using on gravel or crushed rock.
SECTION 5: MAKING ADJUSTMENTS
WARNING: NEVER attempt to clean
chute or make any adjustments while engine is running. Always wear safety glasses during operation or while performing any adjustments or repairs.
Drive Control and Shift Lever
To check the adjustment of the drive control and shift lever, proceed as follows:
Move the shift lever into sixth (6) position.
With the drive control released, push the snow thrower forward, then pull it back. The machine should move freely.
Engage the drive control and attempt to move the machine both forward and back, resistance should be felt.
Move the shift lever into the fast reverse (R2) position and repeat the previous two steps.
If you experienced resistance rolling the unit, either when repositioning the shift lever from 6 to R2 or when attempting to move the machine with the drive control released, adjust the drive control immediately. To adjust, proceed as follows:
To readjust the drive control cable, unhook the drive spring (found on the end of the drive control
11
cable) from the drive actuator bracket. See Figure
9.
Push the cable coupler through the end of the spring to expose the lock nut. See Figure 10.
Thread the lock nut outward (down the coupler) three full turns to provide more slack in the cable and reattach the spring to the bracket.
Check the adjustment of the drive control as instructed earlier. Repeat the previous steps to provide more slack in the cable, if necessary.
If you are uncertain that you have reached the correct adjustment, proceed as follows:
WARNING: Drain the gasoline out of your
snow thrower’s engine, or place a piece of plastic film under the gas cap to avoid spillage before beginning the job.
Hairpin Clip &
Flat Washer
Shift Arm
Shift Lever
Ferrule
Clutch Rod Connector
Lower Shift Rod

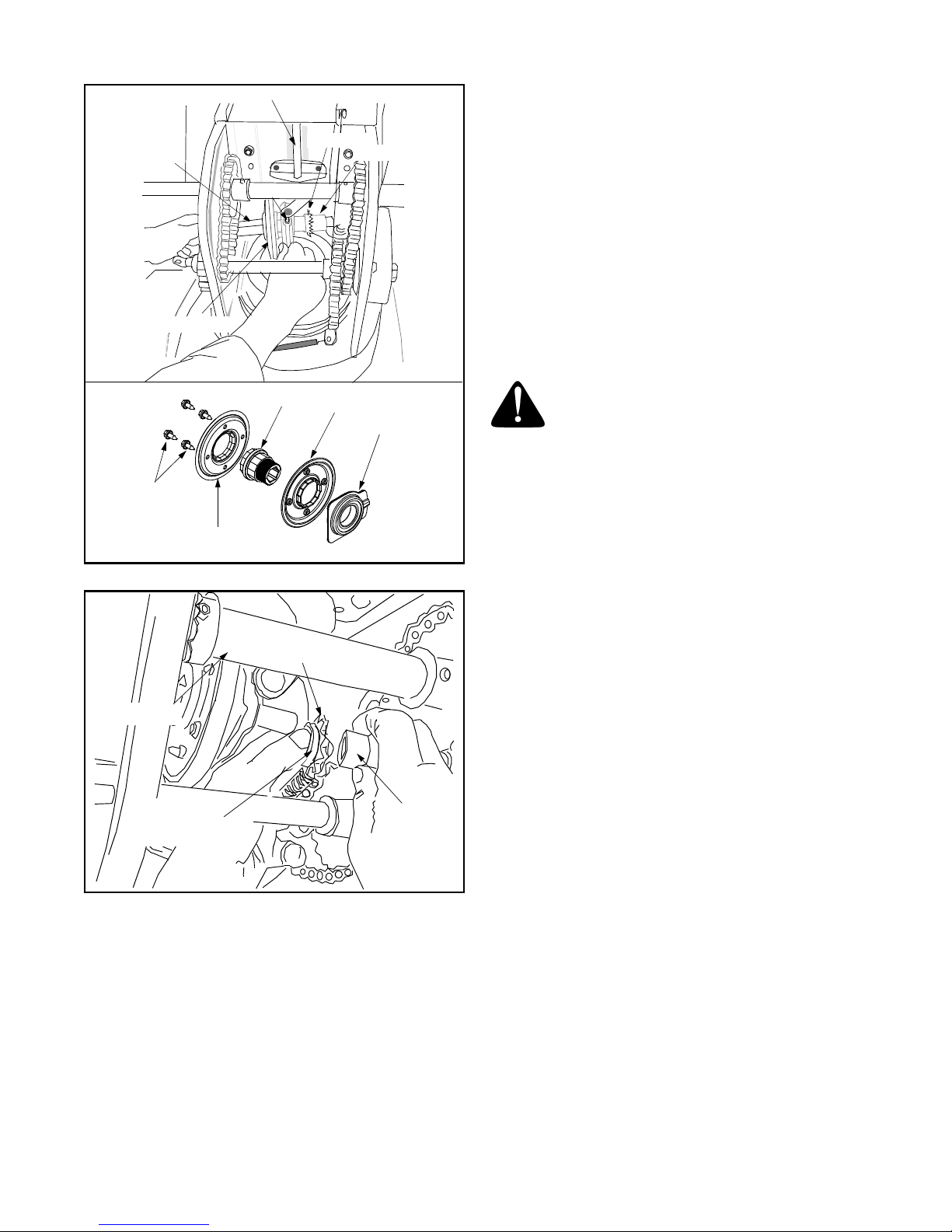

Tip the snow thrower forward, allowing it to rest on the auger housing.

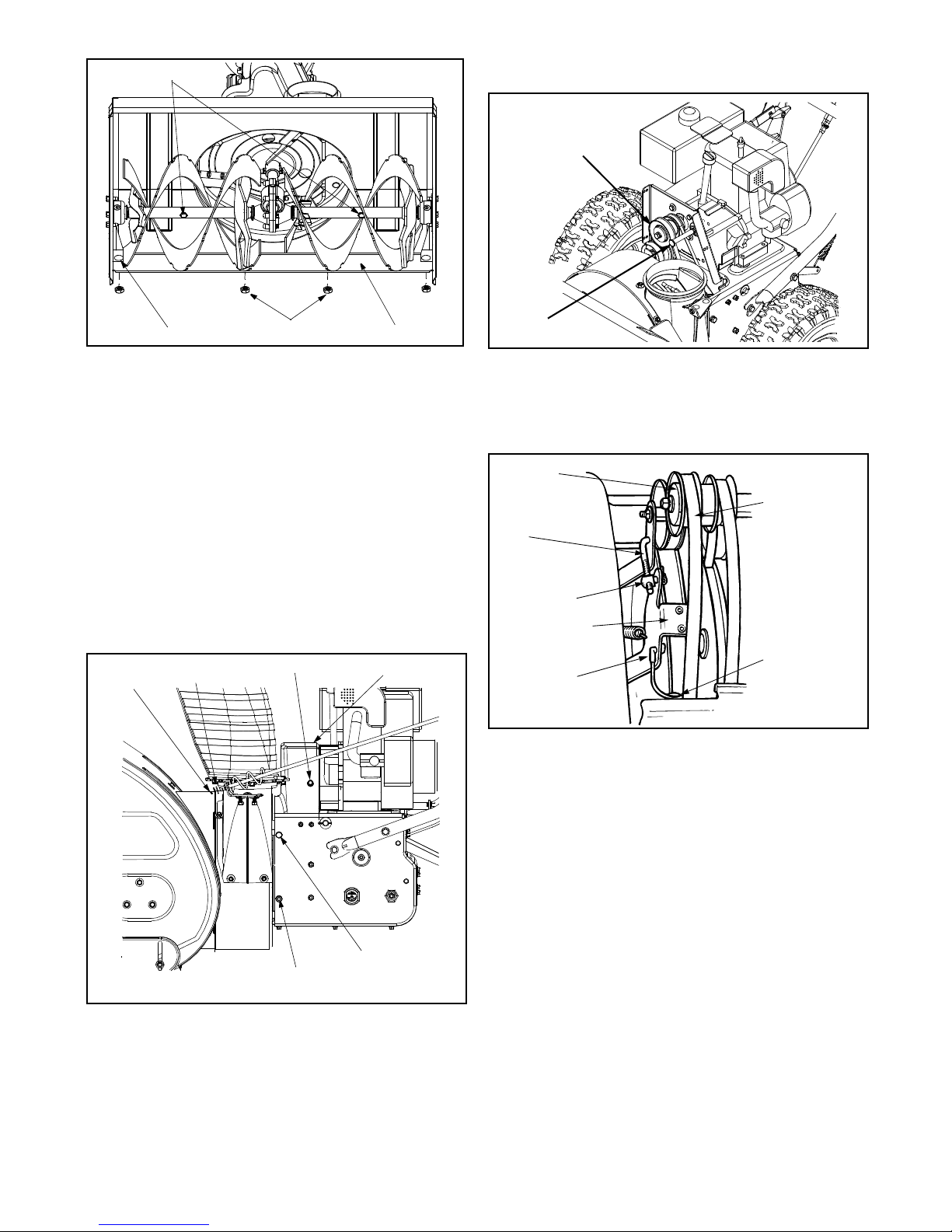

Remove the frame cover underneath the snow thrower by removing six self-tapping screws.
With the drive control released, make sure there is clearance between the friction wheel and the drive plate in all positions of the shift lever.
With the drive control lever engaged, make sure the friction wheel solidly contacts the drive plate. See Figure 11.
Trigger Cables
Shift Arm
Auger Actuator Bracket
Hex Nut And Cupped Washer
Drive Actuator Bracket
Hex Gear Shaft
Friction Wheel
Drive Plate
Figure 11
If adjustment is necessary, adjust drive control as instructed below:
Thread the lock nut outward (down the coupler) to provide more slack in the cable or thread the lock nut inward (up the coupler) to provide less slack in the cable. Refer to Figure 10.
Reattach the spring to the bracket.
Figure 12
Reassemble the frame cover.
NOTE: If you placed plastic film under the gas cap, be certain to remove it before operating the snow thrower.
Shift Rod
If your snow thrower is not achieving its full range of speeds, the shift rod is in need of adjustment. To adjust the shift rod, proceed as follows:
Remove the hairpin clip and flat washer from the shift handle under the handle panel.
Place shift lever in sixth (6) position (fastest forward speed).
Push shift arm assembly down as far as it will go.
Rotate the ferrule up or down on the shift rod as necessary until the ferrule lines up with the upper hole in the shift lever. See Figure 12.
Insert ferrule from the left side of the snow thrower into the upper hole.
Reinstall the hairpin clip and the washer.
NOTE: Make certain to check for correct adjustment
of the shift rod as instructed on page 11—Drive Control and Shift Lever before operating the snow thrower.
Auger Control
Refer to Auger Control Test on page 10 to adjust the auger control. Check for correct adjustment as instructed before operating the snow thrower.
Tire Pressure (Pneumatic Tires)
The tires are overinflated for shipping purposes.
Check the tire pressure before operating the snow thrower. Refer to the tire side wall for tire manufacturer’s recommended psi and deflate (or inflate) the tires as necessary.
12
NOTE: If the tire pressure is not equal on both sides, the unit may pull to one side or the other.
WARNING: Under any circumstance do not
exceed manufacturer’s recommended psi. Equal tire pressure should be maintained at all times. Excessive pressure when seating beads may cause tire/rim assembly to burst with force sufficient to cause serious injury. Refer to sidewall of tire for recommended pressure.
Skid Shoe Adjustment
The space between the shave plate and the ground can be adjusted by raising or lowering the skid shoes.
For close snow removal, as when using on a smooth concrete or asphalt driveway, place the skid shoes in the low position. Use the middle or high position when the area to be cleared is uneven. When operating on gravel, always put skid shoes in the high position. See .
Adjust skid shoes as follows:
Loosen, but do not remove, the three hex nuts which fasten the skid shoe to the auger housing.
Raise or lower the skid shoe to desired position.
Retighten the hex nuts loosened earlier.
Repeat on the other side of the snow thrower.
NOTE: Make certain the bottom surface of skid shoe is flat against the ground to avoid uneven wear.
Chute Assembly
The distance snow is thrown can be adjusted by adjusting the angle of the upper chute. Refer to Chute Tilt Control on page 8.
The remote chute control cables have been pre­adjusted at the factory. Move the remote chute lever on the control panel back and forward to adjust angle of the upper chute.
Shave Plate
Carriage Bolts
Skid
Shoes
High
Low
Hex Nuts
Figure 13
13
SECTION 6: MAINTAINING YOUR SNOW THROWER
WARNING: Before lubricating, repairing, or
inspecting, disengage all controls and stop engine. Wait until all moving parts have come to a complete stop. Disconnect the spark plug wire and ground it against the engine to prevent unintended starting. Always wear safety glasses during operation or while performing any adjustments or repairs.
General Recommendations
Always observe safety rules when performing any maintenance.
The warranty on this snow thrower does not cover items that have been subjected to operator abuse or negligence.
Some adjustments will have to be made periodically to maintain your unit properly.
All adjustments in the service and adjustments sections of this manual should be checked at least once each season.
Follow the maintenance schedule given below.
Periodically check all fasteners and hardware to make sure these are tight.
Check V-Belts
Follow the instructions below to check the condition of the drive belts every 50 hours of operation.

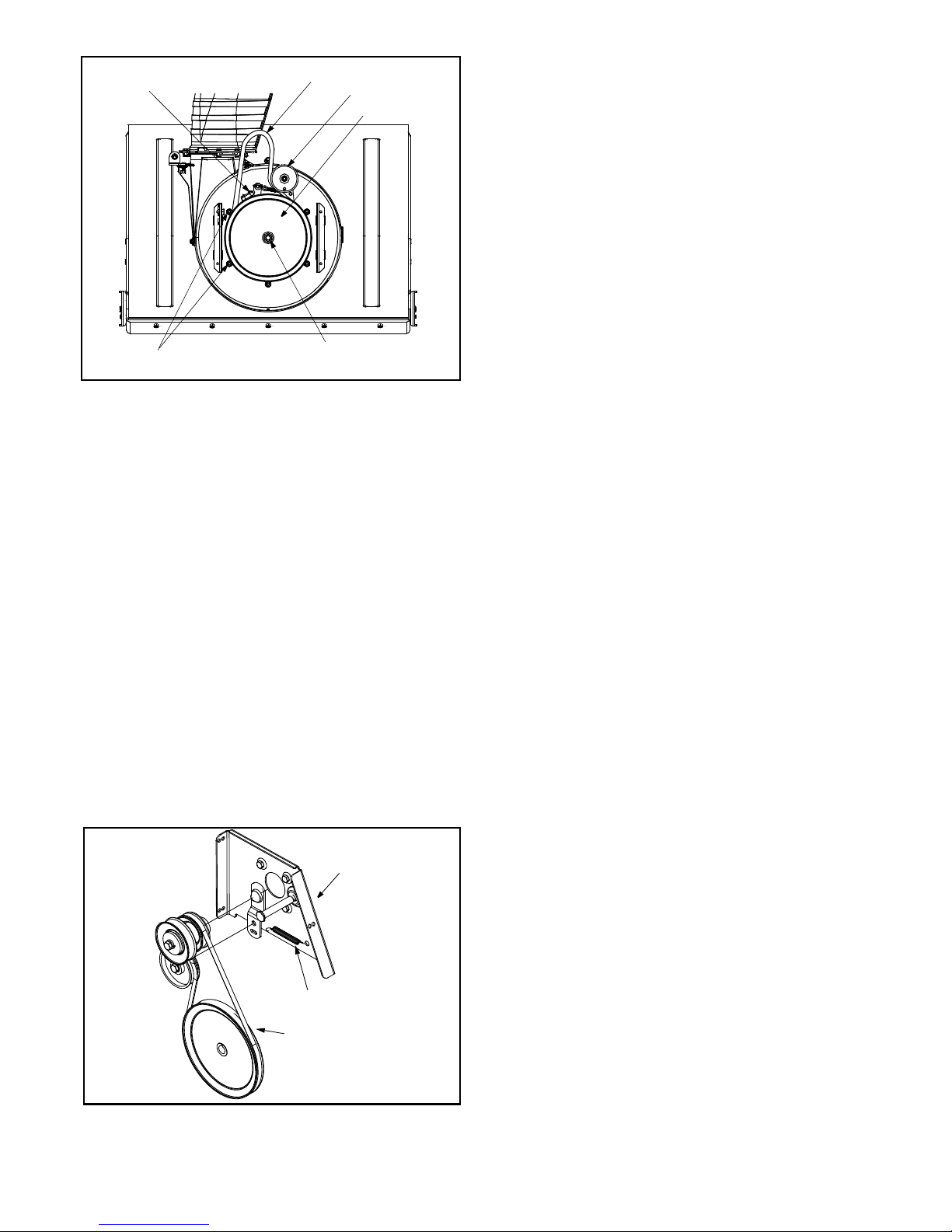

Remove the plastic belt cover on the front of the engine by removing the three self-tapping screws.
Visually inspect for frayed, cracked, or excessively worn out belts.
Replace belts as necessary as outlined in SERVICING YOUR SNOW THROWER.
to do so could result in damage to the gear case seals.
Vent Plug
Grease
Fitting
Shear Bolt
Bearings
Figure 14
Grease Fitting
Shear Bolt
Grease
Fitting
Chute Assembly
The base of the chute assembly and the spiral on the chute directional control should be lubricated at least every 25 hours of use. Apply the lubricant under the base of the chute assembly and where the spiral contacts the chute assembly. See Figure 15.
Chute Directional
Control Spiral
Lubrication
Auger Shaft
At least once a season, remove the shear bolts from the auger shaft and spray lubricant inside the shaft. See Figure 14.
Grease fittings can be found at either end of the auger shaft. Lubricate with a grease gun once a season. See Figure 14.
Gear Case
The auger gear case is equipped with a grease fitting. Lubricate with Shell Alvania lead-free grease once a season (order part number 737-0168). See Figure 14.
IMPORTANT:
before lubricating the gear case. See Figure 14. Failure
To relieve pressure, remove the vent plug
Lube Under Chute
Assembly Base
Figure 15
Drive and Shifting Mechanism
At least once a season or after every 25 hours of operation, remove rear cover. Lubricate any chains, sprockets, gears, bearings, shafts, and the shifting mechanism at least once a season. Use engine oil or a spray lubricant. Avoid getting oil on friction wheel and aluminum drive plate. Refer to Figure 11.
Gear Shaft
Lubricate the gear shaft with 6-in-1 grease (part number 737-0170) at least once a season, or after every 25 hours of operation. Refer to Figure 11.
14
Handle Panel
Control Rods
Figure 16
IMPORTANT:
drive plate or friction wheel.
Be careful not to allow grease to get on the
Lube Cams Here
Drive Control / Auger Control Lock
The cams on the ends of the control rods which interlock the drive and auger controls must be lubricated at least once a season or every 25 hours of operation using a multi-purpose automotive grease. The cams can be accessed beneath the handle panel. See Figure 16.
Engine
Refer to the separate engine manual packed with your unit for all engine lubrication instructions.
Bonded Friction Wheel
Follow the instructions below to check the condition of the bonded friction wheel every 25 hours of operation.
Remove the six self-tapping screws from the frame cover underneath the snow thrower.
Visually inspect the bonded friction wheel for excessive wear, cracks, or loose fit on the friction wheel drive hub.
Also engage the drive control and check if the friction wheel is making contact with the friction plate. Refer to Figure 11.
If it does not make contact, adjust the drive cable and recheck the friction wheel.
Replace bonded friction wheel if necessary. Refer to instructions in Service Section on Page 17.
SECTION 7: SERVICING YOUR SNOW THROWER
WARNING: Before servicing, repairing, or
inspecting, disengage all controls and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. Always wear safety glasses during operation or while performing any adjustments or repairs.
Augers
The augers are secured to the spiral shaft with two shear bolts and flange lock nuts. If you hit a foreign object or ice jam, the snow thrower is designed so that the bolts may shear. See Figure 17.
If the augers do not turn, check if the bolts have sheared. Two replacement shear bolts and flange lock nuts have been provided with the snow thrower. Refer to Hardware Pack on page 5.
IMPORTANT:
standard hex bolts. Any damage to the auger gearbox or other components, as a result of doing so, will NOT be covered by your snow thrower’s warranty.
NEVER replace the auger shear bolts with
Shave Plate and Skid Shoes
The shave plate and skid shoes on the bottom of the snow thrower are subject to wear. They should be checked periodically and replaced when necessary.
NOTE: The skid shoes on this machine have two wear edges. When one side wears out, they can be rotated 180° to use the other edge.
Remove the six carriage bolts (three per side), and flange lock nuts which secure the skid shoes to the snow thrower on either side. See .
Reassemble new skid shoes with the hardware removed earlier. Make certain the skid shoes are adjusted to be level. Refer to .
To remove the shave plate, remove the carriage bolts, and flange lock nuts which secure the shave plate to the snow thrower housing. See Figure 17.
15
Shear Bolts
Remove the large shoulder bolt and washer on the left hand side of the engine pulley. See Figure 19.
Engine Pulley
Carriage Bolt
Flange Lock Nut
Shave Plate
Figure 17
Reassemble the new shave plate, making sure heads of carriage bolts are to the inside of the housing. Tighten securely.
Replacing Belts
To remove and replace either the auger belt or the drive belt, follow the steps below and then proceed to the specific steps listed under respective sub-headings.
Disconnect the chute directional control at the chute assembly base by removing the hairpin clip and the flat washer. See Figure 18.
Remove the plastic belt cover, located near the engine, by removing the three self-tapping screws and flat washers that secure it. See Figure 18.
Hairpin
Clip
Flat
Washer
Belt Cover Screws(3)
Shoulder Bolt
(do not remove)
Figure 18
Belt Cover
Upper Bolt
(remove)
Shoulder Bolt
Figure 19
Auger Belt
Remove the cotter pin and washer from the ferrule in order to disconnect the auger idler rod from the brake bracket assembly. See Figure 20.
Engine Pulley
Auger Idler Rod
Ferrule
Brake Bracket Assembly
Z Fitting
Figure 20
Slip the auger control belt (the front belt) off the engine pulley.
Pull the brake bracket assembly towards the cable guide roller and unhook the auger cable “Z” fitting.
Remove the upper bolts and lock washers which secure the auger housing assembly to the frame assembly using a 9/16” wrench. See Figure 18.
Separate the auger housing from the frame assembly by tilting the housing forward and pulling up the handles.
Using a 1/2” wrench, remove the hex bolt and bell washer from the center of the pulley on the auger housing. Lift the brake bracket assembly out of the pulley groove and remove the pulley. Be careful not to lose the key. See Figure 21.
Auger Control Belt
Cable Roller Guide
16
Brake Bracket Assembly
Belt Keepers
Auger Belt
Idler Pulley
Auger Pulley
Hex Bolt & Bell Washer
Figure 21
Remove and replace auger belt inside belt keepers.
Reassemble pulley to auger housing with hex bolt and bell washer (cupped side toward the pulley). Make sure key is in place on shaft and brake puck is seated in the pulley groove.
Reassemble the belt cover and chute directional control.
Proper Adjustment: With the auger control in the disengaged position the top surface of the new belt should be even with the outside diameter of the pulley.
To adjust, disconnect ferrule from brake bracket assembly and thread ferrule in (towards idler) to increase tension on belt, and out to decrease tension.
NOTE: The brake puck must always be firmly seated in the pulley groove when the auger control is in the disengaged position.
Drive Belt
Unhook the extension spring from the belt cover plate. See Figure 22.
Remove drive belt from the engine pulley and bottom drive pulley. Refer to Figure 22.
Belt Cover
Extension Spring
Drive Belt
Replace belt and reassemble in reverse order.
Reassemble the two halves of the unit hooking the lower portion of the auger housing over the stationary shoulder bolts in the frame assembly.
Secure the two halves with the two bolts and lock washers removed earlier. Refer to Figure 18.
Attach the “Z” fitting of the cable into the brake bracket assembly. Refer to Figure 20.
Slip the auger control belt over engine pulley.
Insert ferrule on auger idler rod into bracket assembly and secure with flat washer and cotter pin. Reassemble the large shoulder bolt and lock washer as shown in Figure 19.
Reassemble belt cover and chute directional control.
Changing Bonded Friction Wheel
The bonded friction wheel is subject to wear and should be checked after the first 25 hours of operation, and periodically thereafter. Replace the bonded friction wheel if any signs of wear or cracking are found.
Drain the gasoline from the snow thrower, or place a piece of plastic under the gas cap.
Tip the snow thrower up and forward, so that it rests on the housing.
Remove six screws from the frame cover underneath the snow thrower.
Remove the left wheel from the axle.
Using a 7/8” wrench, hold the hex shaft and remove the hex bolt, bell washer and bearing from left side of the frame.
Holding the friction wheel assembly, slide the hex shaft out of the left side of the unit. The spacer on the right side of the hex shaft will fall and the sprocket should remain hanging lose in the chain. See Figure 23A.
Lift the friction wheel assembly out between the axle shaft and the drive shaft assemblies.
Remove four screws securing the friction wheel assembly together. See Figure 23B.
Discard old bonded friction wheel.
Reassemble the new bonded friction wheel to the friction wheel assembly, tightening the four screws in rotation and with equal force.
Insert the pin from the shift arm assembly into the friction wheel assembly and hold assembly in position. See Figure 23A.
Slide the hex shaft through the left side of the housing and through the friction wheel assembly.
Insert the hex shaft through the sprocket and the spacer. Make certain that the chain engages both the large and the small sprocket. See Figure 24.
Figure 22
17
A
Hex Shaft
Friction Wheel
Shift Arm Assembly
Shift Arm
Assembly
Pin
Pin
Friction Wheel
Sprocket
Spacer
Sprocket
Spacer
NOTE: If the sprocket fell from the snow thrower while removing the hex shaft, place the sprocket on the hex shaft. Position the hex hub of the sprocket toward the friction wheel when sliding the sprocket on to the hex shaft. See Figure 24.
Secure with the bell washer and hex bolt removed earlier.
Secure the frame cover with six self-tapping screws. Put the snow thrower down to its normal operating position.
NOTE: If you placed plastic film under the gas cap, be certain to remove it.
Off-Season Storage
B
Hex Shaft
Screws
Bonded Friction Wheel
Shift Arm
Assembly
Hex Hub Of Sprocket
Friction
Wheel
Hub
Figure 23
Sprocket
Pin
Plate
Sprocket
Spacer
Bearing
Spacer
WARNING: Never store engine with fuel in
tank indoors or in poorly ventilated areas, where fuel fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliance.
If unit is to be stored over 30 days, prepare engine for storage as instructed in the engine manual.
Remove all debris from the exterior of equipment.
Follow lubrication recommendations on page 14.
Always store the snow thrower in a clean, dry area.
NOTE: When storing any type of power equipment in an unventilated or metal storage shed, care should be taken to rust proof the equipment. Using a light oil or silicone, coat the equipment, especially any chains, springs, bearings, and cables.
Figure 24
18
SECTION 8: TROUBLESHOOTING
Problem Cause Remedy
Engine fails to start. 1. Fuel tank empty, or stale fuel.
2. Blocked fuel line.
3. Choke not in ON position
4. Faulty spark plug.
5. Safety key not in ignition switch on engine.
6. Spark plug wire disconnected.
7. Primer button not being used properly.
8. Fuel shut-off valve closed. (If Equipped)
Engine runs erratic. 1. Unit running on CHOKE.
2. Blocked fuel line or stale fuel.
3. Water or dirt in fuel system.
4. Carburetor out of adjustment.
Loss of power. 1. Spark plug wire loose.
2. Gas cap vent hole plugged.
3. Exhaust port plugged.
Engine overheats. 1. Carburetor not adjusted properly. 1. Refer to the engine manual or have the
Excessive vibration. 1. Loose parts or damaged auger. 1. Stop engine immediately and disconnect
Unit fails to propel itself.
Unit fails to discharge snow.
1. Drive control cable in need of adjustment.
2. Drive belt loose or damaged.
1. Chute assembly clogged.
2. Foreign object lodged in auger.
3. Auger control cable in need of adjustment.
4. Auger belt loose or damaged.
5. Shear bolt(s) sheared.
1. Fill tank with fresh gasoline.
2. Clean the fuel line.
3. Move switch to ON position
4. Clean, adjust gap or replace.
5. Insert the key fully into the switch.
6. Connect spark plug wire.
7. Refer to the engine manual.
8. Open fuel shut-off valve. (If Equipped)
1. Move choke lever to OFF position.
2. Clean fuel line and fill tank with clean, fresh gasoline.
3. Drain fuel tank and carburetor. Refill with fresh fuel.
4. Refer to the engine manual.
1. Connect and tighten spark plug wire.
2. Remove ice and snow from gas cap. Be certain vent hole is clear.
3. Refer to the engine manual.
carburetor adjusted by an authorized engine service dealer.
spark plug wire. Tighten all bolts and nuts. If vibration continues, have unit serviced by an authorized service dealer.
1. Adjust drive control cable. Refer to Adjustments.
2. Replace drive belt.
1. Stop engine immediately and disconnect spark plug wire. Clean chute and inside of auger housing with clean-out tool or stick.
2. Stop engine immediately and disconnect spark plug wire. Remove object from auger with clean-out tool or stick.
3. Refer to Auger Control Test on Page 10.
4. Refer to Adjustments.
5. Replace shear bolt(s).
NOTE: For repairs beyond the minor adjustments listed above, contact an authorized Troy-Bilt service dealer.
19

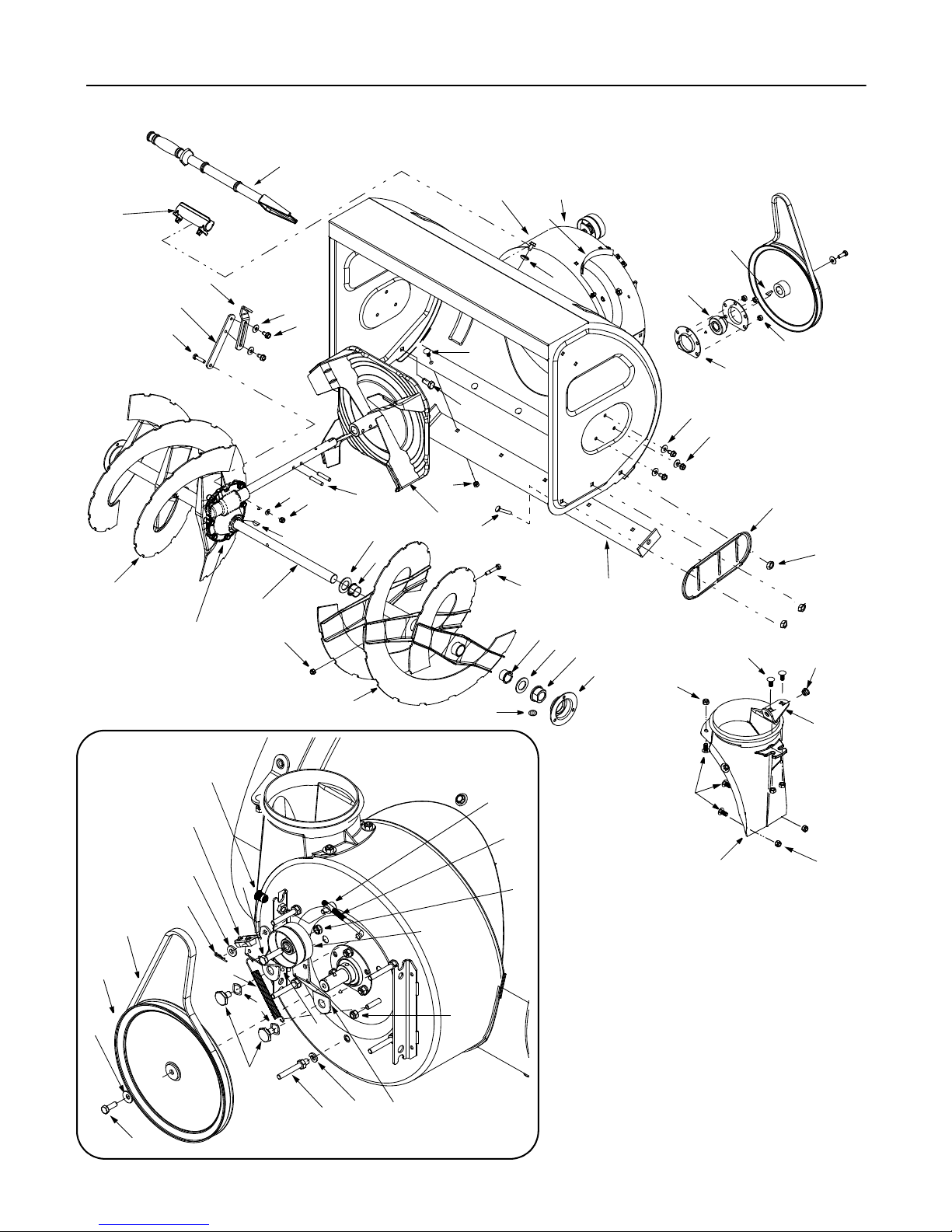

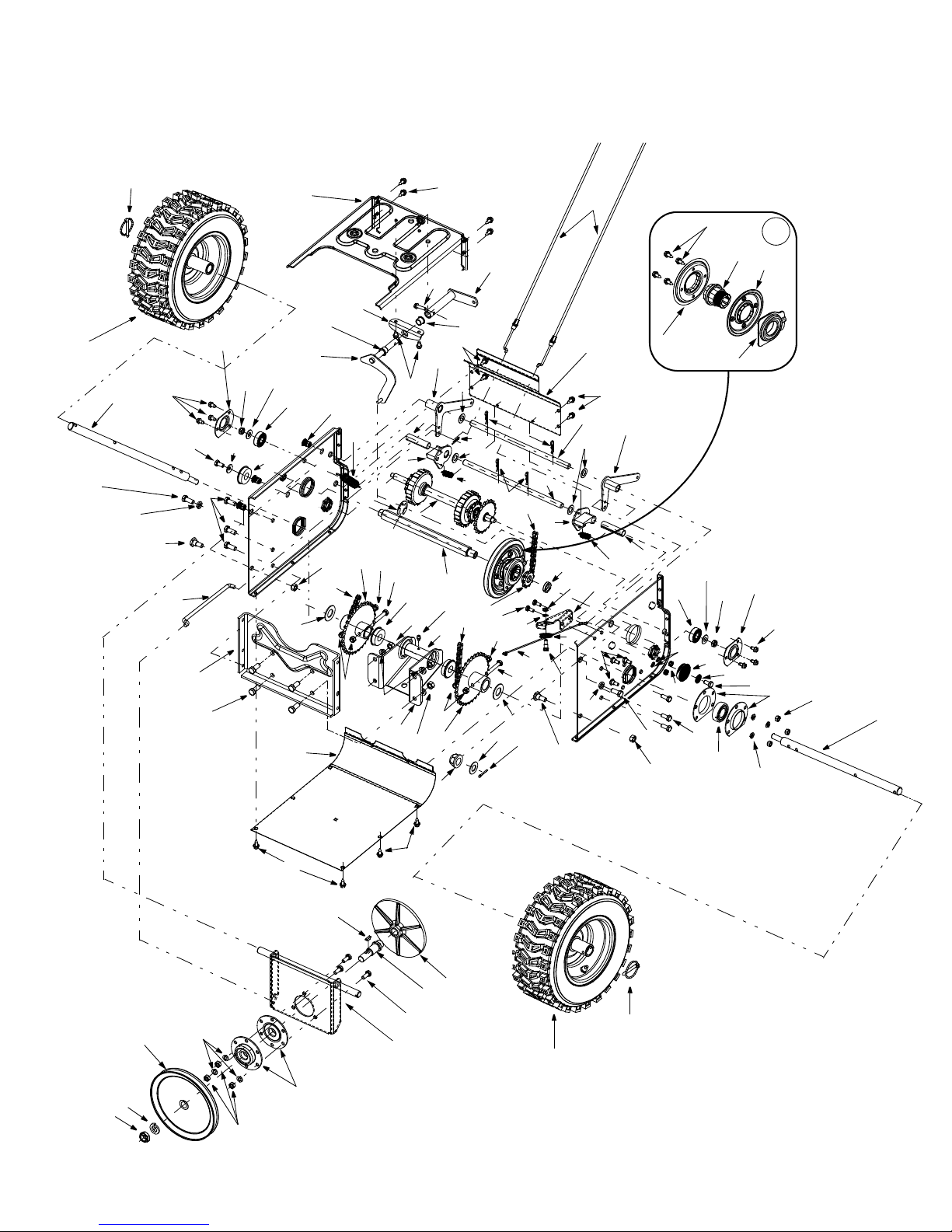

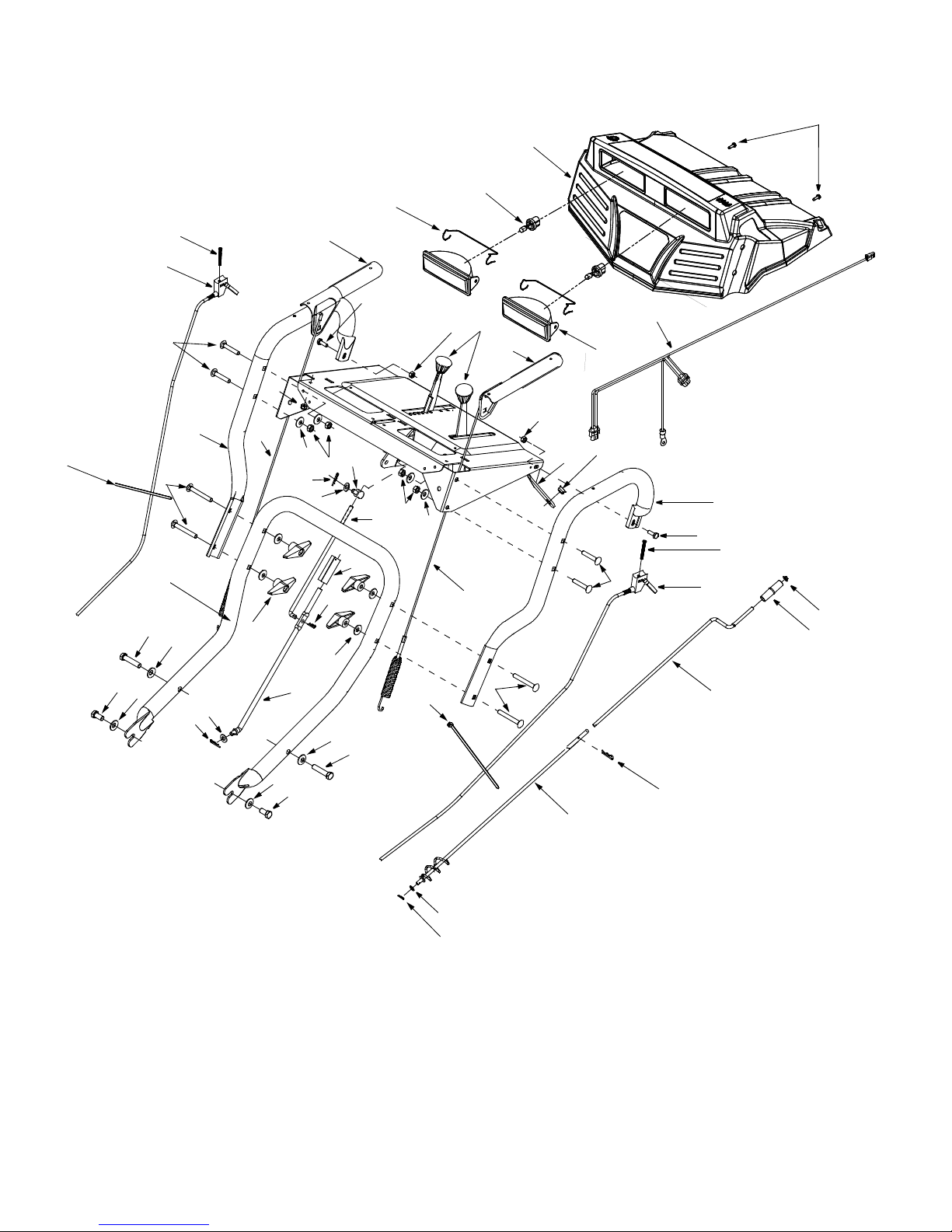

SECTION 9: PARTS LIST FOR MODEL 10530
59
60
45
42
7
44
40
61
13
17
25
27
57
13
46
18
26
34
13
3
55
54
57
5
49
47
43
16
25
9
34
26
53
32
52
13
31
25
13
1
8
48
56
5
33
41
REAR VIEW
36
38
25
4
15
2
28
58
20
11
35
6
37
30
24
29
10
23
39
13
20
12
5
19
14
13
Model 10530

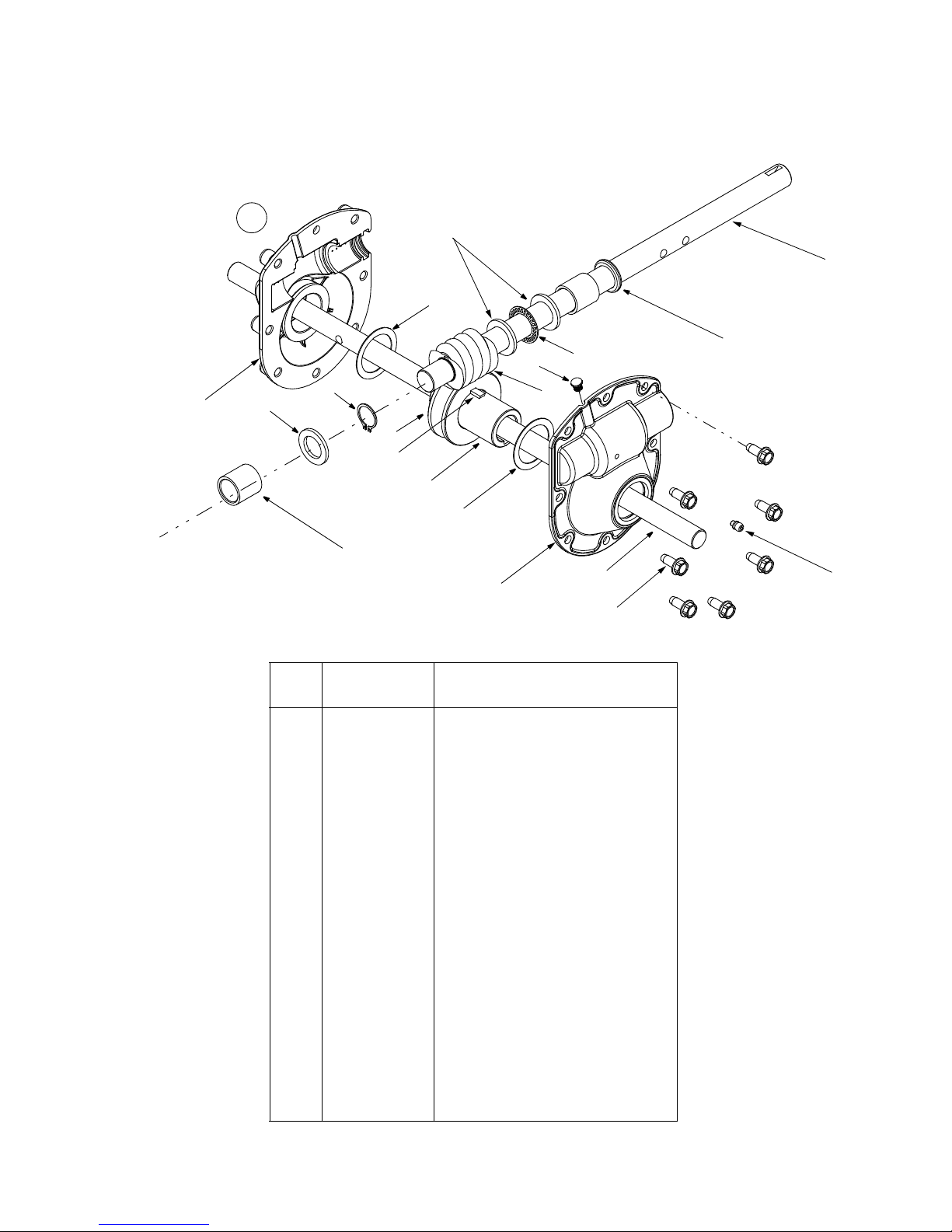

Ref.
No.
1. 05244A Bearing Housing
2. 618-0281A Auger Brake Bracket Assembly
3. 684-0090A 16” Impeller Assembly
4. 710-0371 Hex Lock Bolt 5/16-18 x.875”
5. 710-0451 Carriage Bolt 5/16-18 x .750”
6. 710-0459A Hex Screw, Special 3/8-24 x 1.5”
7. 710-0528 Hex Screw 5/16-18 x 1.25”
8. 710-0726 Self-Tapp. Screw 5/16-12 x.750”
9. 710-0891 Shear Bolt 5/16-18 x 1.75”
10. 711-0640 Stud
11. 711-0677 Ferrule
12. 712-0116 Jam Nut 3/8-24
13. 712-04063 Flange Lock Nut, 5/16-18
15. 714-0104 Hairpin Clip
16. 714-0126 Key
17. 714-0135 Key
18. 715-0118 Spiral Pin
19. 731-1696A Chute Adapter
20. 732-0858 Extension Spring
23. 736-0169 Lock Washer
24. 736-0174 Wave Washer
25. 736-0242 Belleville Washer
26. 736-0250 Flat Washer
27. 736-0271 Spring Washer
28. 736-3008 Flat Washer
30. 738-0281 Shoulder Screw
31. 741-04024 Self-Aligning Bearing
32. 741-0192 Flange Bearing w/ Flats
33. 741-0475 Plastic Bushing
Part No. Part Description
Ref.
No.
34. 741-0494 Flange Bushing
35. 747-0980 Auger Idler Rod
36. 754-0222A V-Belt
37. 756-0178 Flat Idler
38. 756-0243 Pulley
39. 784-0385A Auger Idler Bracket
40. 784-5076 Support Bracket
41. 784-5123 Chute Directional Control Bracket
42. 784-5710 Support Plate
43. 784-5711 Chute Bracket
44. 618-0436 Gear Assembly
45. 705-5206A Spiral Assembly 30” RH
46. 705-5207A Spiral Assembly 30” LH
47. 684-04006 30' Auger Housing Assembly
48. 784-5697 Skid Shoe
49. 737-3000 Lube Fitting
50. 710-3008 Screw, 5/16-18 x.75”
52. 784-0315 Bearing Housing
53. 784-5715A 30” Shave Plate
54. 710-0389 Carriage Screw
55. 710-3168 Carriage Bolt
56. 712-04065 Flange Lock Nut, 3/8-16
57. 710-1260A Screw, 5/16-18 x.75
58. 712-0717 Insert Nut, 3/8-16
59. 731-2643 Clean-out Tool
60. 731-2635 Clean-out Tool Mount
61. 738-0733B Spiral Axle
Part No. Part Description
21
Model 10530
84
77
82
60
47
56
16
65
15
72
49
19
54
48
26
61
50
62
46
74
12
18
18
45
33
68
45
42
36
34
14
8
22
35
52
35
25
32
51
64
21
46
37
17
76
68
9
53
41
39
87
13
21
33
29
47
22
55
11
16
66
4
5
23
61
69
30
2
29
13
30
1
63
18
80
42
10
66
77
87
78
62
27
51
49
50
61
26
48
86
73
18
24
45
3
67
27
75
71
15
58
47
56
81
54
15
43
79
6
16
85
31
82
18
70
44
28
43
59
31
38
18
40
57
20
7
83
22
60
Model 10530
Ref.
No.
1. 741-0225 Hex Flange Bearing
2. 750-1302A Spacer,.6725 x 1.125 x 2.485
3. 618-0279 Dogg Assembly LH
4. 618-0280 Dogg Assembly RH
5. 618-0282D Drive Shaft Assembly
6. 618-04178 Friction Wheel Assembly
7. 684-0162 Support Bracket Assembly
8. 684-0161 Shift Arm Assembly
9. 684-04103 Shift Rod Assembly
10. 684-0118 Auger Actuator Bracket Assy.
11. 684-0119 Drive Actuator Bracket Assy.
12. 790-00016 Frame Assembly
13. 684-0122 Sprocket Assembly
14. 710-0195 Hex Screw, 1/4-28 x.625”
15. 710-0538 Hex Screw, 5/16-18 x.625”
16. 710-0599 Self-tapping Screw, 1/4-20 x.5
17. 710-0788 Self-tapping Screw, 1/4-20 x 1”
18. 710-0896 Self-tapping Screw, 1/4-14 x.625”
19. 710-3001 Hex Screw 3/8-16 x .880”
20. 710-3008 Hex Screw 5/16-18 x .75”
21. 710-3103 Hex Screw 5/16-18 x 2”
22. 710-3180 Hex Screw 5/16-18 x 1.75”
23. 711-04279 Hex Drive Shaft
24. 711-1193 Actuator Shaft
25. 711-1194 Actuator Drive Shaft
26. 712-0116 Lock Nut
27. 712-0138 Hex Nut 1/4-28
28. 712-0221 Jam Lock Nut
29. 712-04063 Flange Lock Nut, 5/16-18
30. 712-0798 Hex Nut 3/8-16
31. 712-3010 Hex Nut 5/16-18
32. 713-0284 Chain
33. 713-0286 Chain
34. 713-04015 Sprocket, 10T
35. 714-0101 Hairpin Clip
36. 714-0104 Hairpin Clip
37. 714-0115 Cotter Pin
38. 714-0388 Key
39. 716-0136 Retainer Ring
40. 717-0302 Drive Plate
41. 732-0121 Extension Spring
42. 732-0209 Extension Spring
43. 736-0119 Lock Washer 5/16
44. 736-0158 Lock Washer 5/8
45. 736-0160 Flat Washer
46. 736-0163 Flat Washer
47. 736-0217 Lock Washer
48. 736-0242 Bell Washer
Part No. Part Description
Ref.
No.
49. 710-0726 Self-tapping Screw, 5/16-12 x.750
50. 736-0300 Flat Washer
51. 736-0329 Lock Washer
52. 736-0623 Flat Washer
53. 712-0717 Nut Insert, 3/8-16
54. 784-0404 Bearing Retainer Bracket
55. 784-0407 Axle Bearing Support Bracket
56. 738-0143 Shoulder Screw
57. 738-0279 Drive Plate Spindle
58. 738-0924 Shoulder Screw 1/4-28 x .375”
59. 741-0163A Bearing Housing Assembly
60. 714-0151A Click Pin
61. 741-0563 Ball Bearing
62. 741-0747 Ball Bearing
63. 746-0949A Steer Cable
64. 746-0951 Auger Idler Cable
65. 747-0973 Drive Clutch Rod
66. 750-0903 Split Spacer
67. 750-0997 Spacer
68. 741-0748 Flange Bearing
69. 737-3000 Lube Fitting, 3/16
70. 756-0344 Drive Pulley
71. 756-0625 Roller Cable
72. 784-0406 Frame Support Bracket
73. 784-0379 Upper Frame Cover
74. 784-0380 Lower Frame Cover
75. 784-0384 Auger Cable Bracket
76. 784-0403 Shift Bracket
77. 710-1879 Hex Screw 3/8-16 x.880
78. 718-04034 Bonded Friction Wheel
79. 790-00011 Friction Wheel Plate
80. 718-04070 Friction Wheel Hub
81. 618-04169 Friction Wheel Bearing Assembly
82. 738-1166A Wheel Axle
83. 634-0225 Wheel Assembly, LH — 734-2031 X-Trac Tire Only — 734-1124 Rim Only — 734-0255 Air Valve Only — 741-0246A Bearing
84. 634-0226 Wheel Assembly, RH — 734-2031 X-Trac Tire Only — 734-1124 Rim Only — 734-0255 Air Valve Only — 741-0246A Bearing
85. 05244A Bearing Housing
86. 741-04025 Self Aligning Bearing
87. 712-04065 Flange Lock Nut, 3/8-16
Part No. Part Description
23
Model 10530
39
43
34
11
36
42
38
11
1
44
24
3
A
12
28
9
A
6
32
35
18
16
8
32
35
7
30
5
A
6
40
29
19
1
17
37
13
15
21
10
31
9
13
27
21
A
21
15
23
4
19
23
15
19
26
19
5
4
34
20
15
7
14
2
25
24
Model 10530
Ref.
No.
1. 646-0012 Auger/Drive Cable Assembly
2. 684-0053B Lower Chute Directional Control
3. 705-5266 Split Chute Directional Control Brkt.
4. 710-1879 Hex Screw, 3/8-16 x.88”
5. 710-1878 Hex Screw, 3/8-16 x 1.75”
6. 710-0458 Carriage Bolt 5/16-18 x 1.75”
7. 710-0572 Carriage Bolt 5/16-18 x 2.5”
8. 747-1136 Lamp Retainer
9. 710-0597 Hex Screw 1/4-20 x 1.00”
10. 711-0677 Ferrule
11. 712-04064 Flange Lock Nut, 1/4-20
12. 629-04010 Lamp Wire Harness
13. 712-3010 Hex Nut
14. 714-0101 Hairpin Clip
15. 714-0104 Hairpin Clip
16. 720-0201A Chute Directional Control Knob
17. 720-0284 Knob
18. 726-0100 Push Cap
19. 736-0105 Bell Washer
20. 736-0185 Flat Washer
21. 736-0242 Belleville Washer
23. 736-0275 Flat Washer
24. 741-0475 Plastic Bushing
25. 747-0624 Chute Directional Control
26. 747-0983A Lower Shift Rod
27. 747-0997 Upper Shift Rod
28. 749-0989A Upper Handle LH
29. 749-0990A Upper Handle RH
30. 749-0991 Lower Handle
31. 750-0963 Shift Rod Connector
32. 710-1625 Oval C-Sunk Screw
34. 725-0157 Cable Tie
35. 746-0950A Trigger Control
36. 725-1658 Halogen Lamp
37. 705-5218 Handle Engagement RH
38. 705-5219 Handle Engagement LH
39. 710-1003 Special B Screw
40. 712-0271 Hex Sems Nut
42. 720-0232 Shift Knob
43. 731-04069 Handle Panel
44. 725-1672 Lens Assembly
Part No. Part Description
25
Model 10530
30
15
6
24
18
14
7
21
1
13
3
22
10
15
6
14
8
9
4
13
17
23
19
11
2
27
26
28
29
20
3
Ref.
No.
1. 07386 Washer
2. 684-0123A Belt Cover Bracket Assembly
3. 710-0191 Hex Screw 3/8-24 x 1.25”
4. 710-0237 Hex Screw 5/16-24 x .625”
5. 710-1008 Self-tapping Sems Screw
6. 710-0607 TT Screw 5/16-18 x 0.5”
7. 710-0672 Hex Lock Screw 5/16-24 x 1.25”
8. 712-0116 Jam Nut
9. 714-0118 Key
10. 731-2531 Belt Cover
11. 732-0303 Extension Spring
13. 736-0217 Lock Washer
14. 736-0242 Beleville Washer
15. 736-0264 Flat Washer
17. 738-0982 Shoulder Screw
Part No. Description
25
5
Ref.
No.
18. 748-0234 Shoulder Spacer
19. 754-0131 V-Belt
20. 756-0240 Flat Idler
21. 756-0241B Double Pulley
22. 784-5726 Idler Bracket
23. 750-1148A Spacer
24. 748-0418 Spacer, .33 x 1.0 x .36
25. 717-0882A Spacer
26. 629-0071 Extension Cord: 110V, 3-prong
27. 684-04011 Spark Plug Cap
28. 684-04014A Engine Shroud (Incl. Ref. 27)
29. 710-04082 Screw, #10-16 x .75
30. 712-3004A Flange Lock Nut, 5/16-18
Part No. Description
26
Model 10530
19
8
1
14
10
7
18
16
13
14
13
5
12
2
17
9
4
3
11
15
Ref.
No.
1. 618-0246 Housing Assembly, RH
2. 618-0435 Housing Assembly, LH
3. 710-1260A Screw, 5/16-18 x 0.75
4. 738-0492 Spiral Axle
5. 711-1133 Auger Drive Shaft
6. 714-0126 Hi Pro Key, 3/16 x 3/4 (Not Shown)
7. 714-0135 #91 Woodruff Key 1/4 x 3/4
8. 716-0111 Snap Ring.875 Dia.
9. 717-0299 Double Thread Worm Gear LH
10. 717-1425 Worm Gear, LH
11. 721-0145 Oil Seal.875 ID
12. 721-0325 Plug, 1/4 x.437
13. 736-0266 Flat Washer, 1.52 x 2.0
14. 736-0291 Flat Washer,.88 x 1.38
15. 737-3000 Lube Fitting, 3/16 Drive
16. 738-0275 Worm Gear Shaft
17. 741-0184 Thrust Bearing.877 ID
18. 741-0217 Sleeve Bearing,.877 x.125 x 1.11
19. 618-0436 Auger Gearbox Assembly Complete
Part No. Description
NOTE: When rebuilding a gearbox assembly, include 3 oz. of Shell Alvania EP Lead-Free Grease (Part No. 737-0168).
27
Model 10530
39
33
29
6
30
20
24
28
31
4
15
10
14
22
23
25
6
19
10
16
17
18
2
4
1
34
12
36
27
37
21
6
8
30
32
22
35
38
39
34
22
26
6
33
3
6
11
7
Ref.
No.
1. 710-0276 Carriage Screw
2. 710-0458 Carriage Bolt 5/16-18 x 1.75”
3. 710-0805 Hex Bolt 5/16-18 x 1.5”
4. 710-0895 Hex Screw 1/4-15 x.750”
5. 710-0597 Hex Screw 1/4-20 x 1.00”
6. 712-04063 Flange Lock Nut, 5/16-18
7. 712-04064 Flange Lock Nut, 1/4-20
8. 731-0846C Upper Chute
9. 731-0851A Chute Flange Keeper
10. 731-1313C Chute Tilt Cable Guide
11. 731-0903D Lower Chute
12. 784-5680 Handle Suppt. Bracket 5/8 RH
14. 736-0231 Flat Washer
15. 736-0506A Special Washer
16. 746-0902 Chute Control Cable
17. 746-0903 Chute Cable w/Clip
18. 784-5594 Cable Bracket
19. 784-5604 Chute Tilt Handle
20. 684-0102 Handle Panel Assembly w/ Tilt
21. 710-0459A Hex Bolt 3/8-24 x 1.5”
22. 710-0599 TT Screw 1/4-20 x 0.5”
23. 711-0653 Clevis Pin
24. 712-0116 Jam Nut
25. 784-5682 Handle Suppt. Bracket 3/8 RH
26. 714-0104 Cotter Pin
27. 732-0145 Spring
28. 732-0193 Spring
29. 732-0746 Torsion Spring
30. 735-0199A Rubber Bumper
31. 736-0105 Bell Washer
32. 784-5681 Handle Suppt. Bracket 3/8 LH
33. 736-0509 Special Washer
34. 747-0877 Cam Rod
35. 748-0362 Cam Handle Lock
36. 748-0363 Handle Lock Pawl
37. 784-5619A Shift Handle
38. 784-5679 Handle Suppt. Bracket 5/8 LH
39. 714-0507 Cotter Pin
Part No. Description
9
5
28
NOTES
29
NOTES
30
MANUFACTURER’S LIMITED COMMERCIAL WARRANTY
FOR:
The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise used for commercial purposes and purchased and used in the United States and/ or its territories and possessions, and by MTD Products Limited with respect to new merchandise purchased and used in Canada and/or its territories and possessions (either entity respectively, “Troy-Bilt”).
“Troy-Bilt” warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period of ninety (90) days commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by Troy-Bilt for use with the product(s) covered by this manual will void your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-866-840­6483 or 1-330-558-7220, or log on to our Web site at www.troybilt.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items
may carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a
separate one- year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an
authorized service dealer.
e. Troy-Bilt does not extend any warranty for products
sold or exported outside of the United States and/or Canada, and their respective possessions and territories, except those sold through Troy-Bilt’s
authorized channels of export distribution. f. Replacement parts that are not genuine Troy-Bilt parts. g. Transportation charges and service calls.
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind Troy-Bilt. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. Troy-Bilt shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that vary in different jurisdictions.
IMPORTANT:
Owner must present Original Proof of
Purchase to obtain warranty coverage.
Troy-Bilt LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-866-840-6483, 1-330-558-7220
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
31
MANUFACTURER’S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States and/or its territories and possessions, and by MTD Products Limited with respect to new merchandise purchased and used in Canada and/or its territories and possessions (either entity respectively, “Troy-Bilt”).
“Troy-Bilt” warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by Troy-Bilt for use with the product(s) covered by this manual will void your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-866-840­6483 or 1-330-558-7220, or log on to our Web site at www.troybilt.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items
may carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a
separate one- year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
exposure. d. Service completed by someone other than an
authorized service dealer. e. Troy-Bilt does not extend any warranty for products
sold or exported outside of the United States and/or
Canada, and their respective possessions and
territories, except those sold through Troy-Bilt’s
authorized channels of export distribution. f. Replacement parts that are not genuine Troy-Bilt parts. g. Transportation charges and service calls. h. If Products are used commercially. (Troy-Bilt may
separately offer Limited Commercial Warranties on
certain select products. Ask your dealer or retailer for
details or contact Troy-Bilt Service for more
information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind Troy-Bilt. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. Troy-Bilt shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that vary in different jurisdictions.
IMPORTANT:
Owner must present Original Proof of
Purchase to obtain warranty coverage.
Troy-Bilt LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-866-840-6483, 1-330-558-7220
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
32
Loading...
