Page 1
Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
OPERATOR’S MANUAL
21” Hi-Wheel Mower — Model Series 540
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
PRINTED IN U.S.A
Troy-Bilt LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO. 769-02339A
10/24/2006
Page 2
This Operator’s Manual is an important part of your new lawn mower. It will help you assemble,
www.troybilt.com
TROY-BILT LLC
P. O. BOX
36 1 13 1
CLEVELAND, OH 44136
866-840-6483
330-558-7220
prepare and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Slope Gauge........................................................ 3
Safe Operation Practices ................................... 4

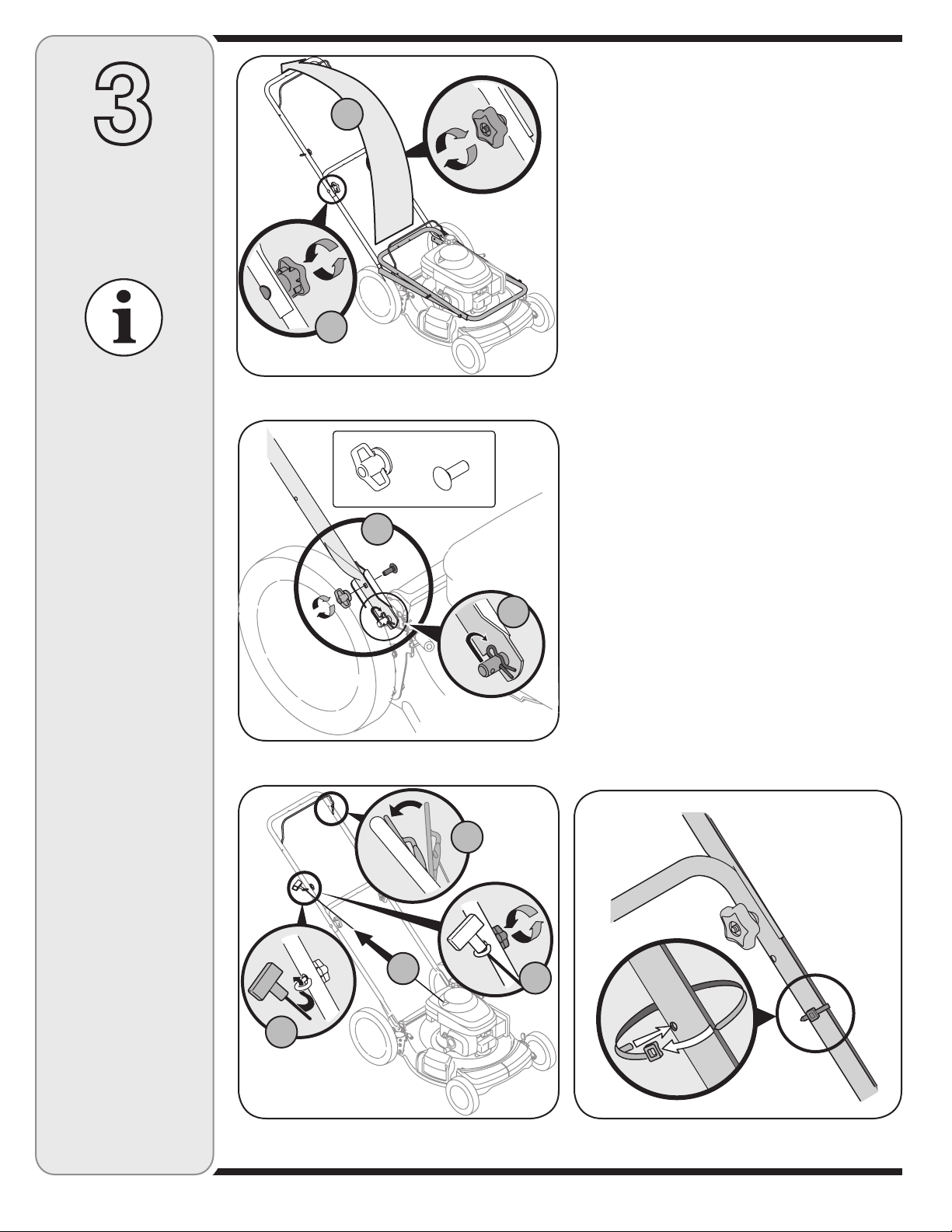

Setup and Adjustment ....................................... 6
Operating Your Lawn Mower .............................. 8
Maintaining Your Lawn Mower ......................... 10
Troy-Bilt LLC reserves the right to change product specifications, designs, and equipment without notice and without incurring obligation.
Troubleshooting ................................................ 12
Safety Labels .................................................... 13

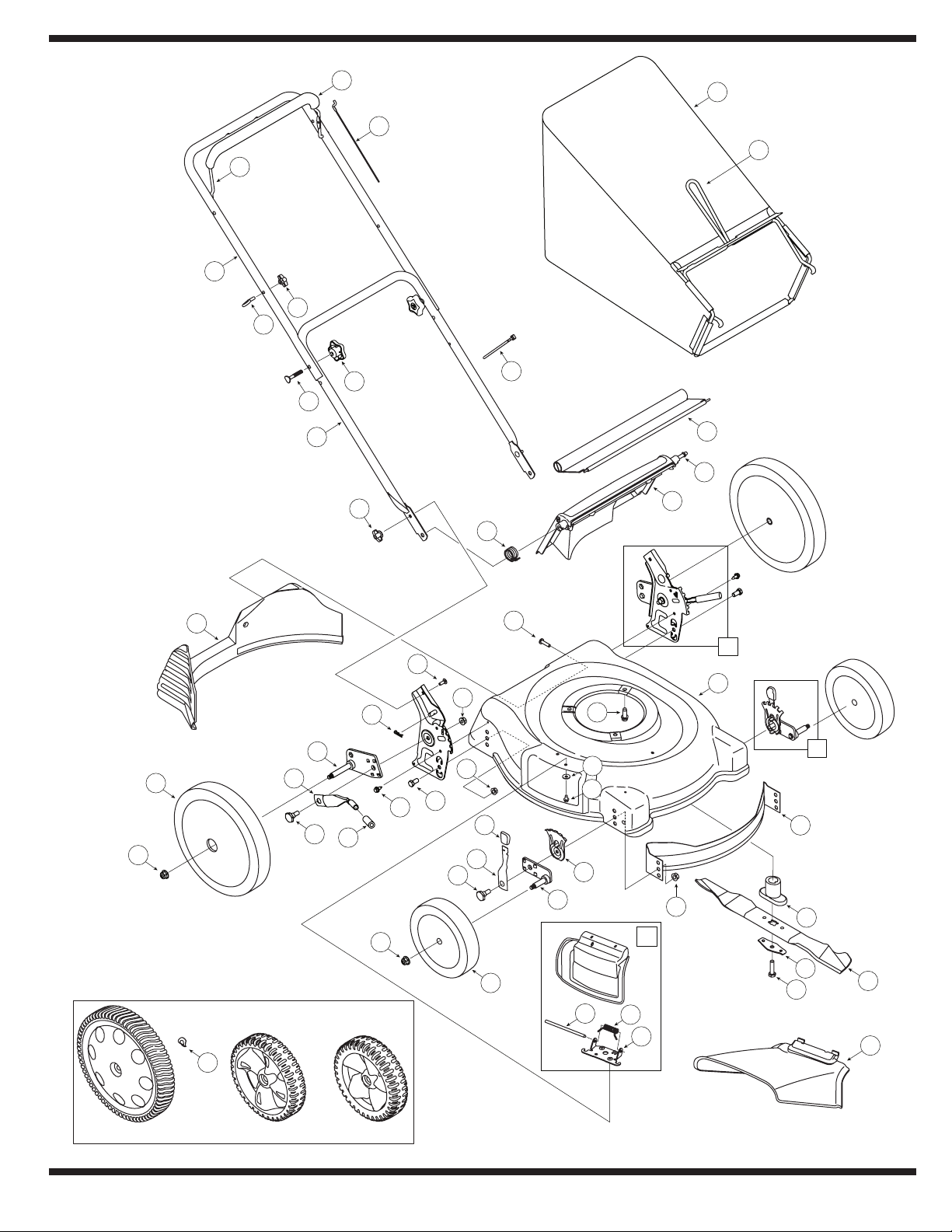

Parts List ........................................................... 14
Warranty .............................................Back Cover
Finding and Recording Model Number
BEFORE YOU BEGIN TO ASSEMBLE YOUR NEW
EQUIPMENT, please locate the model plate on the
equipment and copy the information to the sample
model plate provided to the right. You can locate the
model plate by standing at the operating position and
looking down at the rear of the deck. This information
will be necessary to use the manufacturer’s web
site, to obtain assistance from the Customer Sup-
port Department, or when contacting an authorized
service dealer.
Customer Support
Please do
purchased, without first contacting Customer Support.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or
maintenance of this unit, you can seek help from the experts. Choose from the options below:
• Visit
• Phone a Customer Support Representative at 1-866-840-6483.
• The engine manufacturer is responsible for all engine-related issues with regard to performance, power-rating, specifications,
www.troybilt.com
warranty, and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your
unit, for more information.
NOT
return the unit to the retailer from which it was
2
Page 3
3IGHTANDHOLDTHISLEVELWITHAVERTICALTREE
ORACORNEROFABUILDING
ORAFENCEPOST
&OLDALONGDOTTEDLINEREPRESENTSASLOPE
Use this page as a guide to determine slopes where you may not operate safely.
Do not operate your lawn mower on such slopes.
1
Slope
Gauge
WARNING
Do not mow on inclines
with a slope in excess
of 15 degrees (a rise
of approximately
2-1/2 feet every 10
feet). A riding mower
could overturn and
cause serious injury.
If operating a walkbehind mower on such
a slope, it is extremely
difficult to maintain your
footing and you could
slip, resulting in serious
injury.
Operate RIDING
mowers up and down
slopes, never across
the face of slopes.
3
Operate
WALK-BEHIND
mowers across the
face of slopes, never
up and down slopes.
Page 4
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and
birth defects or other reproductive harm.
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this
manual before attempting to operate
this machine. Failure
to comply with these
instructions may result
in personal injury. When
you see this symbol.
HEED ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator
can result in serious injury. This machine is capable of amputating hands and feet and throwing
objects. Failure to observe the following safety instructions could result in serious injury or death.
Children
Tragic accidents can occur if operator is not alert to presence
of children. Children are often attracted to mower and mowing
activity. They do not understand the dangers. Never assume
that children will remain where you last saw them.
1. Keep children out of the mowing area and under watchful
care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down
for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
5. Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
6. Never allow children under 14 years old to operate a power
mower. Children 14 years old and over should read and
understand operation instructions and safety rules in this
manual and should be trained and supervised by a parent.
General Operation
1. Read this operator’s manual carefully in its entiret y before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Be completely familiar with
the controls and the proper use of this machine before
operating it. Keep this manual in a safe place for future
and regular reference and for ordering replacement parts.
2. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. Your unit has been designed to perform one job: to
mow grass. Do not use it for any other purpose.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions in this manual and should
be trained and supervised by a parent. Only responsible
individuals who are familiar with these rules of safe
operation should be allowed to use this machine.
4. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, bones, toys
and other foreign objects, which could be tripped over or
picked up and thrown by the blade. Thrown objects can
cause serious personal injury. Plan your mowing pattern
to avoid discharge of material toward roads, sidewalks,
bystanders and the like. Also, avoid discharging material
against a wall or obstruction, which may cause discharged
material to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object injury,
stay in operator zone behind handles and keep children,
bystanders, helpers and pets at least 75 feet from mower
while it is in operation. Stop machine if anyone enters
area.
6. Always wear safety glasses or safety goggles during opera
tion and while performing an adjustment or repair to protect
your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
7. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shir ts and pants that cover the arms and
legs and steel-toed shoes are recommended. Never operate
this machine in bare feet, sandals, slippery or light-weight
(e.g. canvas) shoes.
8. Do not put hands or feet near rotating parts or under cutting
deck. Contact with blade can amputate hands and feet.
9. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
10. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
11. Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping and
then follow these steps:
a. Step back from mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
12. Do not operate the mower while under the influence of
alcohol or drugs.
13. Do not engage the self-propelled mechanism on units so
equipped while starting engine.
14. The blade control handle is a safety device. Never attempt
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating blade. The blade control handle
must operate easily in both directions and automatically
return to the disengaged position when released.
15. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.
16. Mow only in daylight or good artificial light. Walk, never run.
17. Stop the blade when crossing gravel drives, walks or roads.
18. If the equipment should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is
generally a warning of trouble.
-
4
Page 5
19. Shut the engine off and wait until the blade comes to a
complete stop before removing the grass catcher or unclog-
ging the chute.
The cutting blade continues to rotate for a few seconds after
the engine is shut off. Never place any part of the body in
the blade area until you are sure the blade has stopped
rotating.
20. Never operate mower without proper trail shield, discharge
cover, grass catcher, blade control handle or other safety
protective devices in place and working. Never operate
mower with damaged safety devices. Failure to do so can
result in personal injury.
21. Muffler and engine become hot and can cause a burn. Do
not touch.
22. Only use parts and accessories made for this machine by
manufacturer. Failure to do so can result in personal injury.
23. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer for
assistance.
Slope Operation
Slopes are a major factor related to slip and fall accidents, which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it. For your
safety, use the slope gauge included as part of this manual to
measure slopes before operating this unit on a sloped or hilly
area. If the slope is greater than 15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
3. Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately, and
the blade will stop rotating within 3 seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes,
which can ignite. Wash your skin and change clothes
immediately.
2. Use only an approved gasoline container.
3. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
4. Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable container, rather
than from a gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
6. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
7. Never fuel machine indoor because flammable vapors will
accumulate in the area.
8. Never remove gas cap or add fuel while engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
9. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide for fuel expansion.
10. Replace gasoline cap and tighten securely.
11. If gasoline is spilled, wipe it off the engine and equipment.
Move unit to another area. Wait 5 minutes before starting
engine.
12. Never store the machine or fuel container near an open
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.
13. To reduce fire hazard, keep mower free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
14. Allow a mower to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3. Check the blade and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, worn) Replace blade with
the original equipment manufacture’s (O.E.M.) blade only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
4. Mower blades are sharp and can cut. Wrap the blade or
wear gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the equip
ment is in safe working condition.
6. Never tamper with safety devices. Check their proper
operation regularly.
7. After striking a foreign object, stop the engine, discon
nect the spark plug wire and ground against the engine.
Thoroughly inspect the mower for any damage. Repair the
damage before starting and operating the mower.
8. Never attempt to make a wheel or cutting height adjust
ment while the engine is running.
9. Grass catcher components, discharge cover, and trail
shield are subject to wear and damage which could
expose moving par ts or allow objects to be thrown. For
safety protection, frequently check components and re-
place immediately with original equipment manufacturer’s
(O.E.M.) par ts only, listed in this manual. “Use of parts
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”
10. Do not change the engine gover nor setting or over-rev the
engine. The governor controls the maximum safe operating
speed of the engine.
11. Maintain or replace safety labels, as necessar y.
12. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
-
-
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions, which if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
-
instructions in this manual before attempting to
operate this machine.
Failure to comply with
these instructions may
result in personal injury.
When you see this
symbol.
HEED IT’S WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
5
Page 6
3
Setup and
Adjustment
Stand behind the mower
as if you were going to
operate it. Your right
hand corresponds to the
right side of the mower;
your left hand corresponds to the left side of
the mower.
Make sure to route cable
outside the lower handle.
Do not crimp cable while
lifting the handle up.
IMPORTANT
This unit is shipped without gasoline or oil in the
engine. Fill up gasoline
and oil as instructed in
the accompanying engine
manual BEFORE operating your mower.
A
B
Figure 3-1: Unfold handle, tighten hardware.
Hardware Pack
Wing Nuts (2)
Carriage Bolts (2)
B
Figure 3-2: Secure lower handle to mounting brackets.
1. Remove any packing material which may be between
upper and lower handles.
a. Pull up and back on upper handle as shown in
Figure 3-1. Make certain the lower handle is seated
securely into the handle mounting brackets. Do not
crimp cable while lifting the handle up.
b. Tighten star knobs to secure upper handle to
lower handle. Make sure that each carriage bolt is
seated properly in the handle.
2. Locate the hairpin clip on the weld pin on each side of
lower handle.
a. Remove hairpin clip from this hole. Using a pair
of pliers, insert hairpin clip into the hole on pin
closest to the bracket. See Figure 3-2. Repeat on
other side.
b. Insert a carriage bolt from the hardware pack into
the upper hole on the handle mounting bracket.
Secure with one plastic wing nut, also included
in the hardware pack. Repeat on other side with
remaining items from hardware pack.
3. The rope guide is attached to the right side of the
upper handle. See Figure 3-3. Loosen the wing nut
which secures the rope guide.
a. Hold blade control against upper handle.
b. Pull starter rope out of the engine. Release blade
control.
A
c. Slip starter rope into rope guide.
d. Tighten wing nut.
4. Insert post on cable tie into hole provided on the lower
handle. Pull cable tie tight and trim excess. See Figure
3-4.
This Operator’s Manual
may cover a range of
product specifications
for various models.
Characteristics, features,
and engines discussed
and/or illustrated in
this manual may not be
applicable to all models.
MTD LLC reserves the
right to change product
specifications, designs,
and equipment without
notice and without incurring obligation.
A
B
D
C
Figure 3-3: Pull recoil starter through rope guide and tighten. Figure 3-4: Secure cables to handle using cable tie.
6
Page 7
5. Follow steps below to assemble the grass catcher.
A
B
Make certain bag is turned right side out before
assembling (warning label will be on the outside)
a. Place bag over frame so that its black plastic side
is at the bottom.
b. Slip plastic channel of grass bag over hooks on
the frame. See Figure 3-5. All the plastic channels
except center top of bag attach from outside of
bag.
c. Attach center top of bag from inside of bag.
A
7. Your mower is shipped as a mulcher. To convert to
side discharge, make sure grass catcher is off of the
unit and rear discharge door is closed.
a. On the side of the mower, lift the mulching plug.
See Figure 3-7.
b. Slide two hooks of side discharge chute under
hinge pin on mulching plug assembly. Lower the
mulching plug. Do not remove side mulching plug
at any time, even when you are not mulching.
3
Setup and
Adjustment
WARNING
C
B

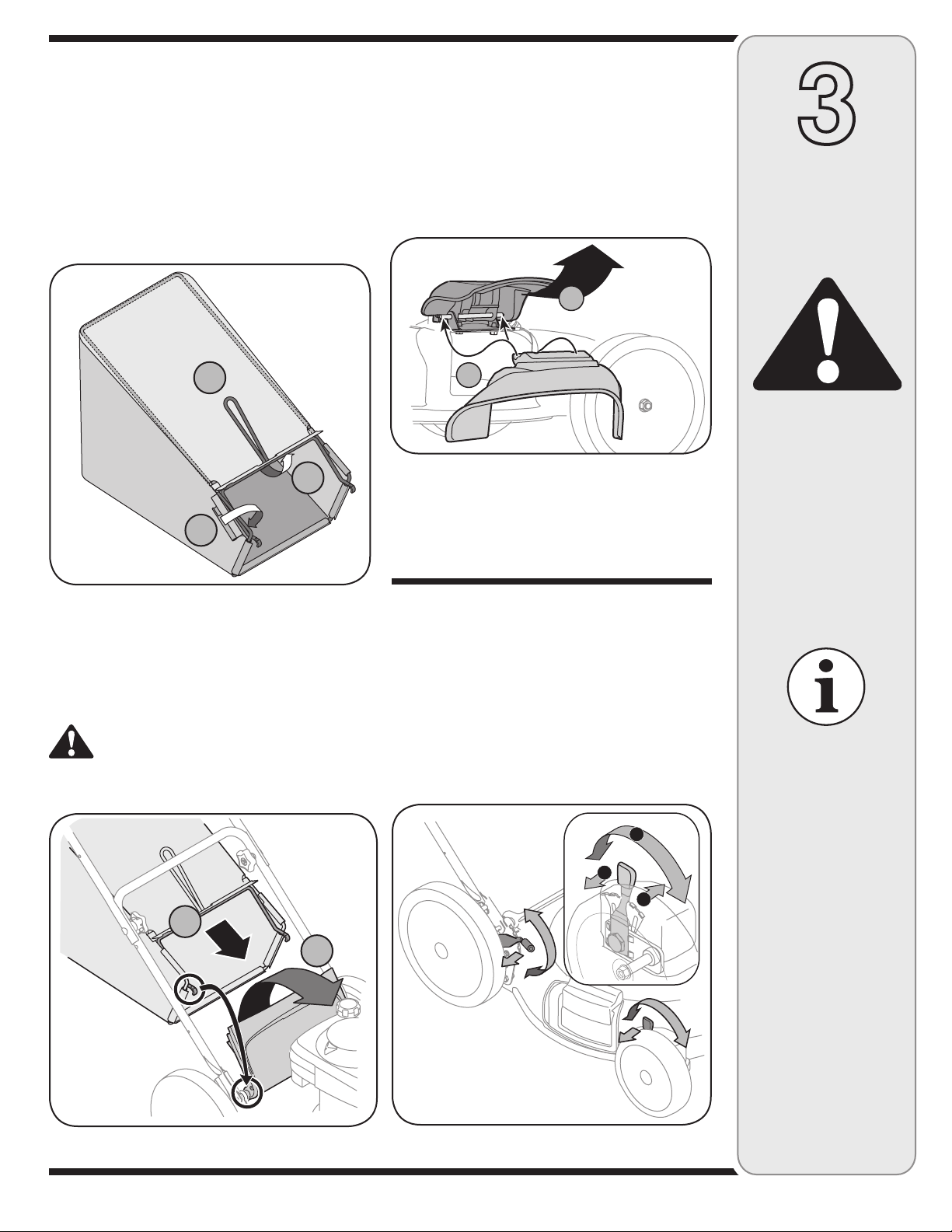

Figure 3-5: Assemble the grass catcher.
6. Follow the steps below to attach the grass catcher:
a. Lift rear discharge door. See Figure 3-6.
b. Place grass catcher on the pivot rod. Let go
of discharge door so that it rests on the grass
catcher.
WARNING: Never operate mower unless the
hooks on the grass catcher are firmly seated
on the pivot rod and the rear discharge door rests
firmly against top of the grass catcher.
B
Figure 3-7: Lift mulch plug and install side discharge chute.
Adjustments
An adjusting plate and thumb lever at each wheel
provides cutting height adjustment.
1. Depress lever towards wheel.
2. Move it to any one of the positions for desired cutting
height. See Figure 3-8. Make sure that each wheel is
positioned at the same height.
3. Release lever towards mower deck.
2
1
3
Never operate mower
without the mulching
plug, the grass catcher,
or the discharge chute
properly installed.
NOTE: When adjusting
the cutting height,
all wheels must be
positioned at the same
height.
Figure 3-6: Attach the grass catcher.
A
Figure 3-8: Use levers to adjust cutting height.
7
Page 8
4
Operating
Your Lawn
Mower
WARNING
The blade control is a
safety device. Never
attempt to bypass its
operations.
Use extreme care when
handling gasoline.
Gasoline is extremely
flammable and the
vapors are explosive.
Never fuel the machine
indoors or while the
engine is hot or running.
Extinguish cigarettes,
cigars, pipes, and other
sources of ignition.
Keep hands and feet
away from the cutting
deck. Refer to warning
label on the unit.
Know Your Lawn Mower
Blade Control
Recoil Starter
Mulch Plug
Side Discharge Chute

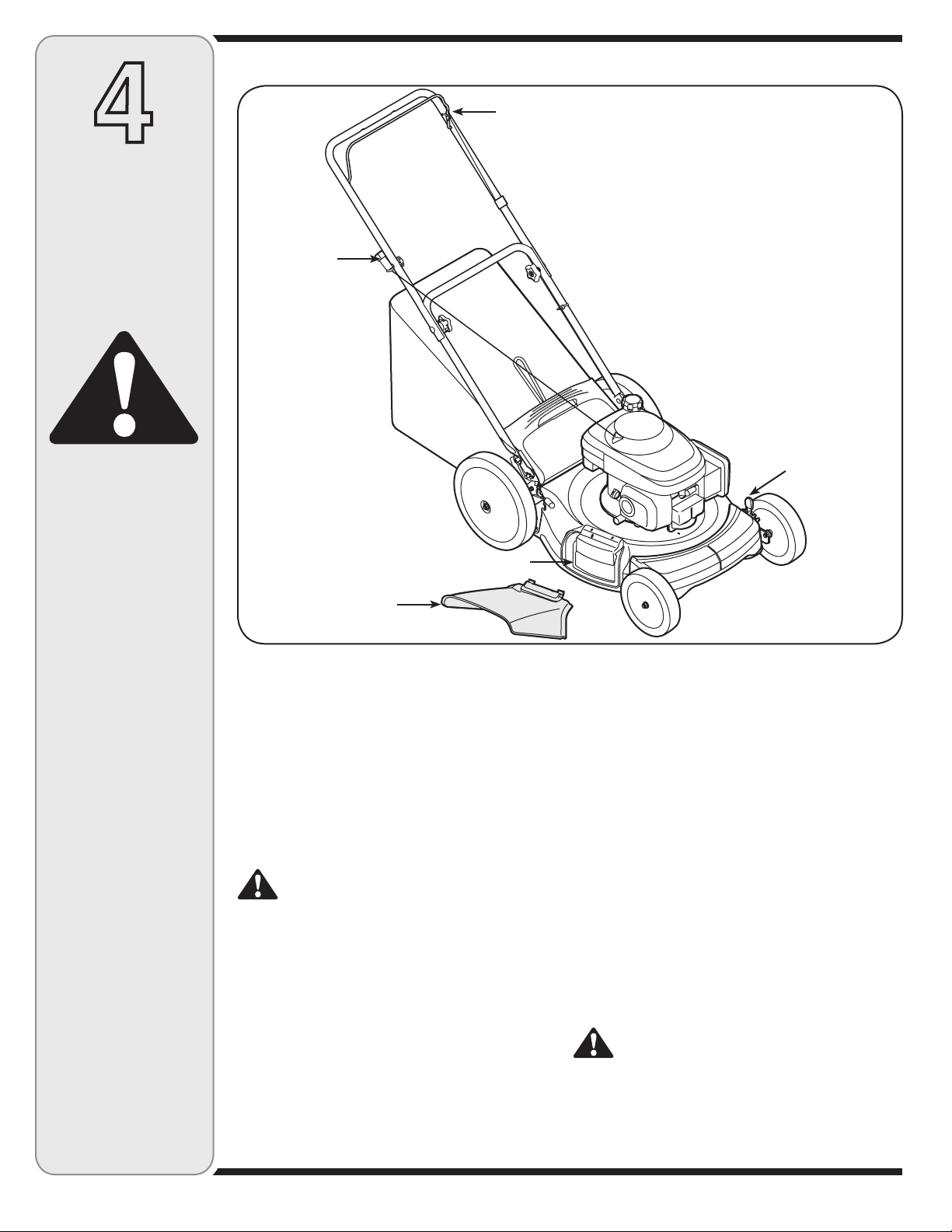

Figure 4-1: The major parts on the lawn mower.
Now that you have set up your lawn mower for operation, read this section to become acquainted with its
controls and features. This knowledge will allow you to
use your new equipment to its fullest potential.
Blade Control
The blade control is attached to the upper handle.
Depress and squeeze it against the upper handle to
operate the unit. Release it to stop engine and blade.
WARNING: This blade control is a safety
device. Do not bypass its operations.
Cutting Height Adjustment Levers
One adjustment lever is located on each wheel and is
used to adjust the cutting height. All four wheels must
be at the same position to ensure a uniform cut.
Recoil Starter
The recoil starter is attached to the right upper handle.
Stand behind the unit and pull the recoil starter rope to
start the unit.
Cutting Height
Adjustment
Levers (front
and rear)
Mulch Plug
The mulch plug is used for mulching purposes. Instead of
collecting the grass clippings in a grass catcher or using
the side discharge chute, some mower models have the
option of recirculating the clippings back to the lawn. This
is called mulching.
Grass Catcher
The grass catcher, located at the rear of the mower, is
used to bag the grass clippings for disposal at another
site. Once the bag is full, it has to be removed from the
mower and emptied before any further mowing.
Gas and Oil Fill-Up
1. Check oil level and add oil if necessary. Follow engine
owner’s manual for this.
2. Service the engine with gasoline as instructed in the
engine owner’s manual.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable
and the vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes, and other sources of
ignition.
8
Page 9
Starting Engine
WARNING: Be sure no one other than the op erator is standing near the lawn mower while
starting engine or operating mower. Never
run engine indoors or in enclosed, poorly ventilated
areas. Engine exhaust contains carbon monoxide, an
odorless and deadly gas. Keep hands, feet, hair and
loose clothing away from any moving parts on engine
and lawn mower.
Follow the set of instructions pertaining to your unit.
Refer to engine manual for help with the engine.
Briggs & Stratton/ Tecumseh Engine:
1. If equipped, push primer three times. Wait about
two seconds between each push. See Figure 4-2. In
temperature around 55° F or below, prime five times.
Do not prime to restart a warm engine.
2. Standing behind the mower, squeeze the blade control
against upper handle. See Figure 4-2.
3. Holding these two handles together firmly, grasp recoil
starter handle and pull rope out with a rapid, continuous, full arm stroke. See Figure 4-2. Keeping a firm
grip on the starter handle, let the rope rewind slowly.
Repeat until engine cranks. Let the rope rewind each
time slowly.
Honda Engine:
1. Place the fuel valve lever found on the left side of the
engine into the ON (OPEN) position. See Figure 4-3.
2. Move the choke lever (if equipped) all the way
backward into the choke position.
3. Standing behind the mower, squeeze the blade control
against upper handle. See Figure 4-3. The choke will
now begin to slowly return to the off choke position
after activating the blade control. Therefore, quickly
move onto step four below.
4. Holding these two handles together firmly, grasp recoil
starter handle and pull rope out with a rapid, continuous, full arm stroke. See Figure 4-3. Keeping a firm
grip on the starter handle let the rope rewind slowly.
Repeat until engine cranks. Let the rope rewind each
time slowly.
WARNING: Wait for the blade to stop com-
pletely before performing any work on the
mower or to remove the grass catcher.
Stopping Engine
1. Release blade control to stop the engine and blade.
2. Disconnect spark plug wire from spark plug and
ground against the engine.
Using Your Lawn Mower
Be sure lawn is clear of stones, sticks, wire, or other
objects which could damage lawn mower or engine.
Such objects could be accidently thrown by the mower
in any direction and cause serious personal injury to the
operator and others.
2
3
1
3

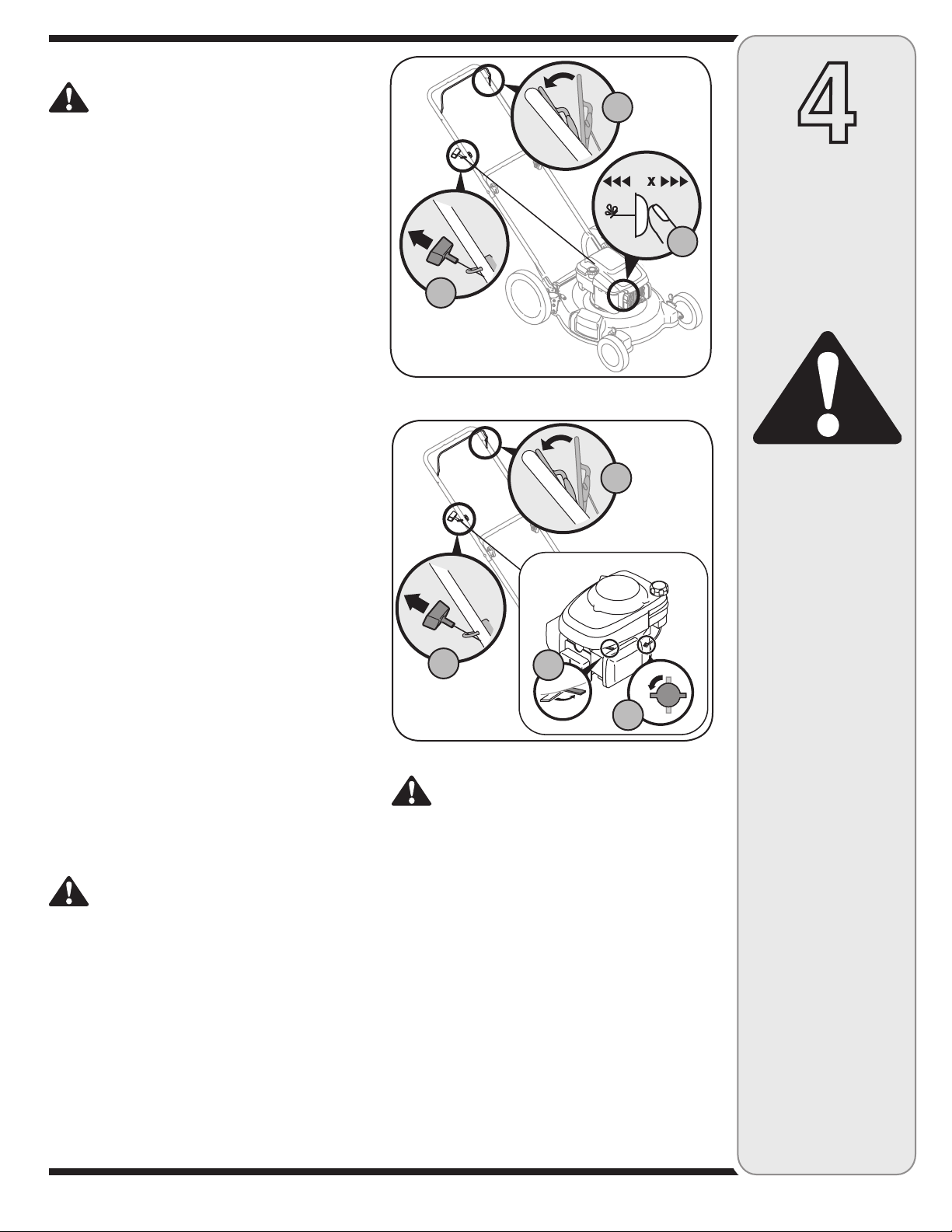

Figure 4-2: Starting the Briggs & Stratton engine.
3
4
2
OFF
ON
1
Figure 4-3: Starting the Honda engine.
WARNING: If you strike a foreign object,
stop the engine. Remove wire from the spark
plug, thoroughly inspect mower for any damage,
and repair damage before restarting and operating.
Extensive vibration of mower during operation is an
indication of damage. The unit should be promptly
inspected and repaired.
Using as Mulcher
For mulching grass, remove the grass catcher and side
discharge chute from the mower. For effective mulching,
do not cut wet grass. If the grass has been allowed to
grow in excess of four inches, mulching is not recommended. Use the grass catcher to bag clippings instead.
Using Grass Catcher
You can use the grass catcher to collect clippings while
you are operating the mower. Refer to setup section for
instructions on attaching the grass catcher.
4
Operating
Your Lawn
Mower
WARNING
The operation of any
lawn mower can result
in foreign objects being
thrown into the eyes,
which can damage your
eyes severely. Always
wear safety glasses
while operating the
mower or while perform-
ing any adjustments or
repairs on it.
Be sure no one other
than the operator is
standing near the
lawn mower while
starting engine or
operating mower. Never
run engine indoors or
in enclosed, poorly
ventilated areas. Engine
exhaust contains carbon
monoxide, an odorless
and deadly gas. Keep
hands, feet, hair and
loose clothing away
from any moving parts
on engine and lawn
mower.
9
Page 10
5
Maintaining
Your Lawn
Mower
WARNING
Always stop engine,
disconnect spark
plug, and ground
against engine before
performing any type
of maintenance on
your machine.
Do not use a pressure
washer or garden
hose to clean your
unit. These may cause
damage to electric
components, spindles,
pulleys, bearings, or
the engine. The use
of water will result in
shortened life and
reduce serviceability.
This Operator’s Manual
covers several models.
Lawn Mower features
vary by model. Not
all features discussed
(or engines pictured)
in this manual are
applicable to all Lawn
Mower models.

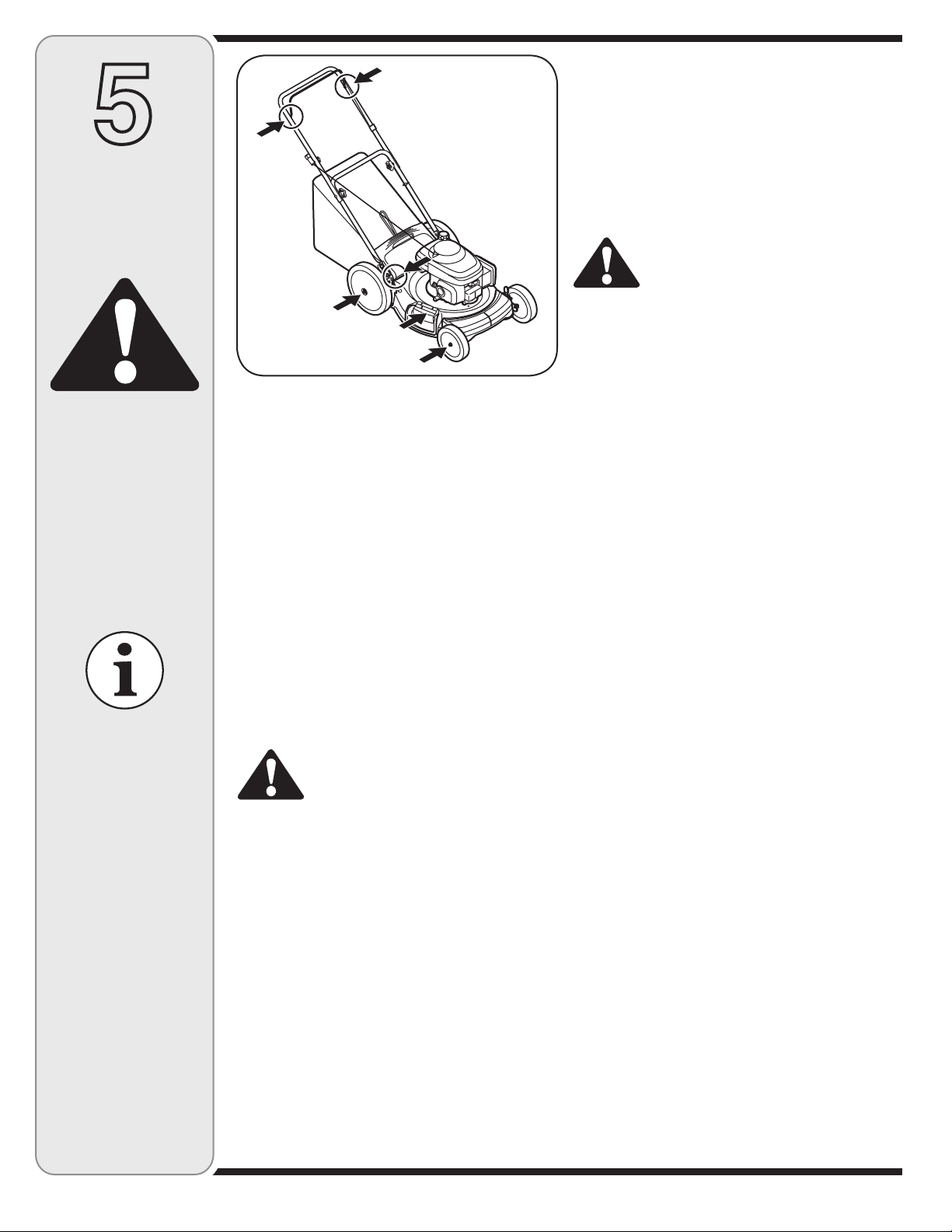

Figure 5-1: Areas to lubricate on mower.
General Recommendations
• Always observe safety rules when performing
any maintenance.
• The warranty on this lawn mower does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from warranty,
operator must maintain the lawn mower as
instructed here.
• Changing of engine-governed speed will void
engine warranty.
• All adjustments should be checked at least once
each season.
• Periodically check all fasteners and make sure these
are tight.
WARNING: Always stop engine, disconnect spark plug, and ground against
engine before performing any type of
maintenance on your machine.
Lubrication
1. Lubricate pivot points on the blade control at least
once a season with light oil. The blade control must
operate freely in both directions. See Figure 5-1.
2. Lubricate the wheels at least once a season with
light oil (or motor oil). If wheels are removed for any
reason, lubricate surface of the pivot arm and inner
surface of the wheel with light oil. See Figure 5-1.
3. Lubricate the torsion spring and pivot point on the
rear discharge door and side mulch plug periodically
with light oil to prevent rust. See Figure 5-1.
4. Follow the accompanying engine manual for lubrication schedule and instruction for engine lubrication.
Deck Care
Clean underside of the mower deck after each use to
prevent build-up of grass clippings or other debris. Follow
steps below for this job.
1. Disconnect spark plug wire. Drain gasoline from lawn
mower or place a piece of plastic under the gas cap.
2. Tip mower so that it rests on the housing. Keep the
side with the air cleaner facing up. Hold mower firmly.
WARNING: Never tip the mower more
than 90º in any direction and do not
leave the mower tipped for any length of
time. Oil can drain into the upper part of the engine
causing a starting problem.
3. Scrape and clean the underside of the deck with a
suitable tool. Do not spray with water.
4. Put the mower back on its wheels on the ground. If
you had put plastic under the gas cap earlier, make
sure to remove it now.
Engine Care
A list of key engine maintenance jobs required for good
performance by the mower is given below. Follow the
accompanying engine manual for a detailed list and
instructions.
• Maintain oil level as instructed in engine manual.
• Service air cleaner every 25 hours under normal
conditions. Clean every few hours under extremely
dusty conditions. Poor engine performance and
flooding usually indicates that the air cleaner should
be serviced. To service the air cleaner, refer to the
engine manual.
• Clean spark plug and reset the gap once a season.
Spark plug replacement is recommended at the start
of each mowing season. Check engine manual for
correct plug type and gap specifications.
• Clean engine regularly with a cloth or brush. Keep the
cooling system (blower housing area) clean to permit
proper air circulation. Remove all grass, dirt, and
combustible debris from muffler area.
10
Page 11
Blade Care
WARNING: When removing the cutting
blade for sharpening or replacement,
protect your hands with a pair of heavy
gloves or use a heavy rag to hold the
blade.
5
Periodically inspect the blade adapter for cracks,
especially if you strike a foreign object. Replace when
necessary. Follow the steps below for blade service.
1. Disconnect spark plug wire from spark plug. Turn
mower on its side making sure that the air filter and
the carburetor are facing up.
2. Remove the bolt and the blade bell support which
hold the blade and the blade adapter to the engine
crankshaft, Figure 5-2.
3. Remove blade and adapter from the crankshaft,
Figure 5-2.
4. The blade can be sharpened with a file or on a grinding wheel. Do not attempt to sharpen the blade while it
is still on the mower.
When sharpening the blade, follow the original angle
of grind. Grind each cutting edge equally to keep the
blade balanced.
5. To test for balance, remove blade and balance on
a round shaft screwdriver. Remove metal from the
heavy side until it balances evenly.
WARNING: An unbalanced blade will
cause excessive vibration when rotating
at high speeds. It may cause damage to
mower and could break causing personal
injury.
6. Lubricate the engine crankshaft and the inner surface
of the blade adapter with light oil. Slide the blade
adapter onto the engine crankshaft.
7. Place the blade on the adapter such that the side
of the blade marked “Bottom” (or with part number)
faces the ground when the mower is in the operating
position. Make sure that the blade is aligned and
seated on the blade adapter flanges.
8. Place blade bell support on the blade. Align notches
on the blade bell support with small holes in blade.
9. Replace hex bolt and tighten hex bolt to torque: 450
in. lbs. min., 600 in. lbs. max.
To ensure safe operation of your mower, periodically
check the blade bolt for correct torque.
Replacing Rear Flap
1. To remove rear flap, lift rear door, and press flap in on
either side to remove from hole. See Figure 5-3.
2. Remove flap from opposite hole and replace with new
flap in the opposite order and manner of removal.

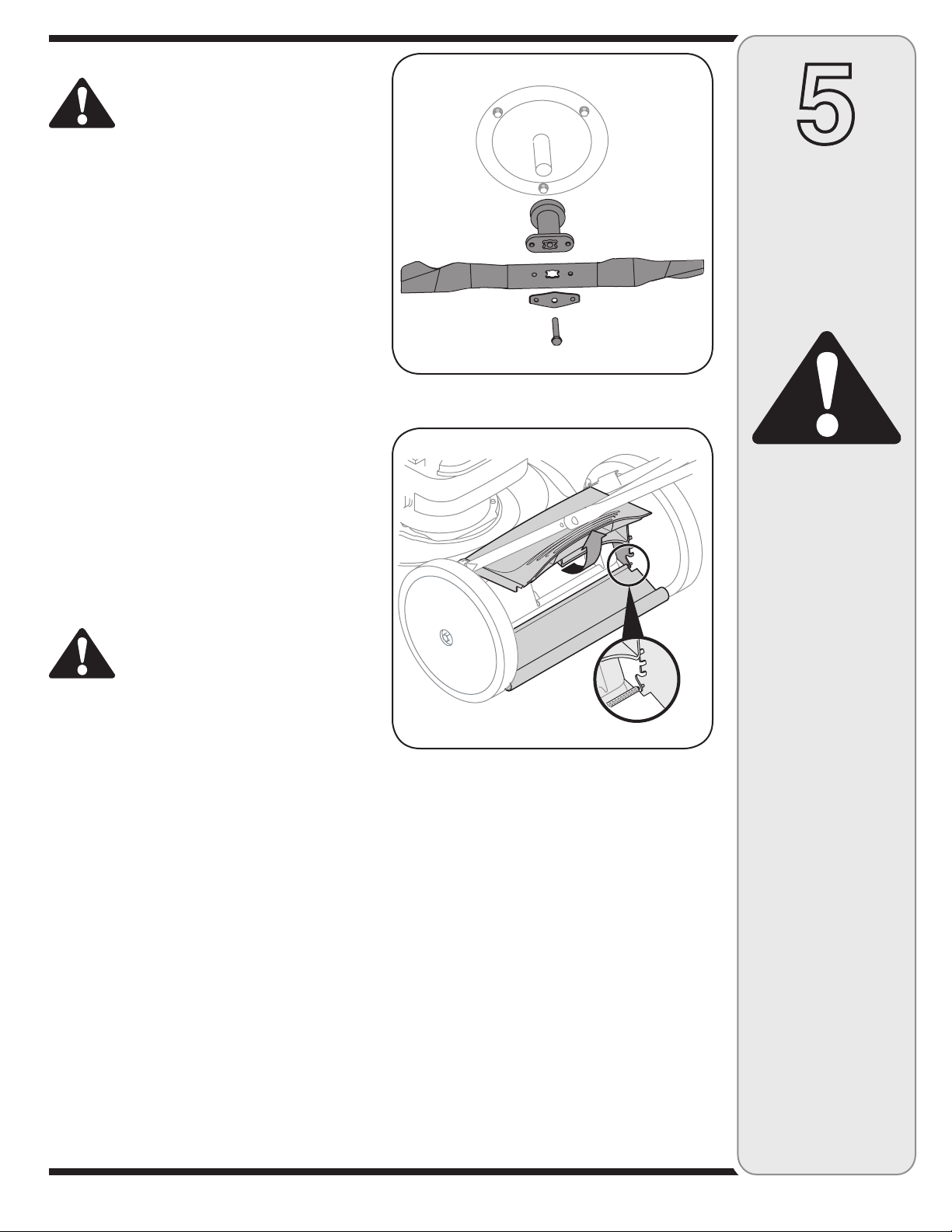

Figure 5-2: Remove the bolt, suppor t, and adapter to access
the blade.
Figure 5-3: Remove rear flap.
Off-Season Storage
The following steps should be taken to prepare your
lawn mower for storage.
• Clean and lubricate mower thoroughly as described
in the lubrication instructions.
• Do not use a pressure washer or garden hose to
clean your unit.
• Refer to engine manual for correct engine
storage instructions.
• Coat mower’s cutting blade with chassis grease to
prevent rusting.
• Store mower in a dry, clean area. Do not store next
to corrosive materials, such as fertilizer.
When storing any type of power equipment in a poorly
ventilated or metal storage shed, care should be taken
to rust-proof the equipment. Using a light oil or silicone,
coat the equipment, especially cables and all moving
parts of your lawn mower before storage.
Maintaining
Your Lawn
Mower
WARNING
When removing
the cutting blade
for sharpening or
replacement, protect
your hands with a pair
of heavy gloves or use
a heavy rag to hold
the blade.
An unbalanced blade
will cause excessive
vibration when rotat-
ing at high speeds. It
may cause damage
to mower and could
break causing per-
sonal injury.
11
Page 12
Problem
Cause
Remedy
6
Trouble
Shooting
For repairs beyond
the minor adjustments
listed here, contact
an authorized service
dealer.
Engine fails to start
Engine runs erratic
Engine overheats
Occasional skips
(hesitates) at high speed
Idles poorly
Excessive Vibration
1. Blade control disengaged.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not choked.
5. Faulty spark plug.
6. Blocked fuel line.
7. Engine flooded.
1. Spark plug wire loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
1. Engine oil level low.
2. Air flow restricted.
3. Carburetor not adjusted properly.
1. Spark plug gap too close.
2. Carburetor idle mixture adjustment
improperly set.
1. Spark plug fouled, faulty or gap too wide.
2. Carburetor improperly adjusted.
3. Dirty air cleaner.
1. Cutting blade loose or unbalanced.
2. Bent cutting blade.
1. Engage blade control.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Choke engine as instructed in the
“Operating Your Lawn Mower” section.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Wait a few minutes to restart, but do
not prime.
1. Connect and tighten spark plug wire.
2. Clean fuel line; fill tank with clean,
fresh gasoline.
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Refer to engine manual.
6. Refer to engine manual.
1. Fill crankcase with proper oil.
2. Remove blower housing and clean.
3. Refer to engine manual.
1. Adjust gap to .030-inch.
2. Refer to engine manual.
1. Reset gap to .030-inch or replace
spark plug.
2. Refer to engine manual.
3. Refer to engine manual.
1. Tighten blade and adapter. Balance
blade.
2. See an authorized service dealer.
NOTE: Specifications are
subject to change without
notification or obligation.
Images my not reflect your
exact model and are for
reference purposes only.
Mower will not mulch grass
Uneven cut
1. Wet grass.
2. Excessively high grass.
3. Dull blade.
1. Wheels not positioned correctly.
2. Dull blade.
1. Do not mow when grass is wet; wait
until later to cut.
2. Mow once at a high cutting height,
then mow again at desired height or
make a narrower cutting path.
3. Sharpen or replace blade.
1. Place all four wheels in same
height position.
2. Sharpen or replace blade.
12
Page 13
Safety Labels Found On Your Lawn Mower
TO
N OD
,YR
U
J
N
I
F
O
KSIR EHT ECUDER O
T
S
S
ELNU ETARE
P
O
RO
REVOC EGRAH
CSI
D
AC
SSARG
.
EC
A
L
P R
EPOR
P STI N
I SI RE
HC
T
.YL
ETAIDEMMI EC
ALPER
,
D
E
GA
MAD F
I
YA
W
A TEE
F
dna SDN
A
H
PEE
K
PEEK • MORF YAWA TEEF DNA SDNAH
.STRAP GNITATOR
NWORHT EB NAC TAHT STCEJBO EVOMER •
.NOITCERID YNA NI EDALB EHT YB
.S
E
S
SALG YT
EFAS
RA
EW
S
R
EHTO RO
NERDL
I
H
C
NEHW
W
O
M TON OD
•
.DN
U
ORA ERA
TON
OD .SEPOLS
N
O NOITUAC ARTXE ES
U
•
5
1
NAH
T RETAER
G S
EPOLS WOM
˚
WO
M
REVEN
.NW
OD
D
NA
PU REVEN ,SSO
R
C
A
KO
OL .TE
E
F RUOY OT ESOLC REWOM LLUP
ELI
HW
DNA
EROF
EB DNI
HE
B
DNA NWOD
.SDRAWKCAB GN
I
VOM
HTAE
D
RO YRUJN
I SUO
IRE
S D
I
O
VA
,DLEIHS GNIL
I
ART
,LORTNOC
E
D
A
L
B
( SECIVE
D
YTEFAS PEEK LAUNAM S'ROTA
RE
P
O DAER
.YLETAIDEMMI ECALPER ,DEGAMAD FI .GNIKROW DNA ECALP NI )CTE ,REVOC EGRAHCSID
5
1 XA
M
˚
DC
20
123S
TO REDUCE THE RISK OF INJURY, DO NOT
OPERATE UNLESS DISCHARGE COVER OR
GRASS CATCHER IS IN ITS PROPE R PLA CE.
IF DAMAGED, REPLACE IMMEDIATELY.
7
Safety
Labels
WARNING
DO NOT remove safety
(or any) labels from
mower for any reason.
13
Page 14
Model Series 540
2
51
3
1
7
38
5
6
24
37
44
Wheel Treads
50
39
47
28
49
40
36
42
48
41
24
35
43
34
28
24
24
29
30
46
27
4
45
26
25
22
32
31
33
21
20
23
10
24
8
9
11
12
13
14
15
17
18
16
19
S-Wave
K2 Bar Bar
14
Page 15
Ref. Part No. Description
1 747-1161A Blade Control
2 749-1092A Upper Handle
3 746-1130 Control Cable, 40”
4 726-0240 Cable Tie
5 664-04011 Grass Bag Assembly
6 747-04080 Grass Bag Frame
7 720-0279 Handle Knob
8 731-05642 Trail shield
9 747-04588 Pivot Rod
10 631-04225 Rear Discharge Door
11 687-02280 Rear Handle Bracket Assy. - LH
687-02279 Rear Handle Bracket Assy. - RH
12 787-01279 Deck 21-inch
13 687-02075A Front Height Adj. Assy-LH
687-02074A Front Height Adj. Assy-RH
14 782-5002B Front Baffle
15 748-04082 Blade Adapter
16 742-0741 21-inch Mulching Blade
17 736-0524B Bell Blade Support
18 710-1257 Hex Screw, 3/8-24 x 2.5
19 731-04177 Side Discharge Chute
20 17032A Deflector Chute Adaptor
21 732-1014 Torsion Spring
22 747-0710 Hinge Pin
23 687-02055 Hinged Mulch Plug Assembly
24 712-04065 Flange Lock Nut 3/ 8-16
25 787-01290 Height Adjustment Plate
26 687-02077A Front Pivot Arm Assembly - RH
Ref. Part No. Description
687-02076A Front Pivot Arm Assembly - LH
27 734-04014B Front Wheel, 8 x 2.125, S-Wave
28 738-0507B Shoulder Screw, .5D x .434
29 732-0404 Front Spring Lever
30 720-0426 Height Adjust Knob
31 710-0599 TT Screw, 1/4-20 x .500
32 736-0270 Bell Washer
33 710-0654A TT Screw, 3/8-16 x 1.0
34 710-0216 Hex Screw, 3/8-16 x .75
35 710-1652 TT Screw, 1/4-20 x .625
36 720-0312 Foam Grip
37 734-04127 Rear Wheel, 12 x 2.125, S-Wave
38 710-1205 Eye Bolt
39 732-0866 Rear Hi-Wheel Spring Lever
40 687-02039A Rear Pivot Arm Assy - RH
687-02040A Rear Pivot Arm Assy - LH
41 714-0104 Hairpin Clip
42 720-04072 Star Knob
43 710-0703 Carriage Bolt ,1/4-20 x .75
44 731-04150C Rear Baffle
45 710-1241 Screw HL, 1/4-15 x 1.00
46 732-04090A Torsion Spring - RH
47 710-1174 Carriage Bolt, 5/16-18 x 2
48 712-0397 Wing Nut
49 749-0928A Lower Handle
50 736-0182 Spring Washer
51 731-04204† Deluxe Red Bail Cover
† If Equipped
8
Parts List
For parts and/or
accessories please
call 1-866-840-6483,
or 1-330-558-7220
www.troybilt.com
15
Page 16
MANUFACTURER’S LIMITED WARRANTY FOR
The limited warranty set forth below is given by Troy-Bilt LLC with respect
to new merchandise purchased and used in the United States, its possessions and territories.
“Troy-Bilt” warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original
purchase and will, at its option, repair or replace, free of charge, any part
found to be defective in materials or workmanship. This limited warranty
shall only apply if this product has been operated and maintained in
accordance with the Operator’s Manual furnished with the product, and
has not been subject to misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire, water, or damage
because of other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not approved by
Troy-Bilt for use with the product(s) covered by this manual will void your
warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of purchase.
Normal wear parts include, but are not limited to items such as: batteries,
belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow
thrower skid shoes, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE : Warranty service is available, WITH
PROOF OF PURCHASE, through yo ur local authorized service
dealer. To locate the dealer in your area, check your Yellow Pages,
or contact Troy- Bi lt LLC at P.O. Box 3 61131, Cl eveland, Ohio 441360019, or call 1-866-8 40- 648 3 or 1-330-558 -7220, or log on to our
Web site at w w w.troybilt.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may
carry a separate manufacturer’s warranty. Refer to applicable
manufacturer’s warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a separate one
year warranty.
c. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
d. Service completed by someone other than an authorized service
dealer.
e. Troy-Bilt does not extend any warranty for products sold or
exported outside of the United States, its possessions and
territories, except those sold through Troy-Bilt’s authorized
channels of export distribution.
f. Replacement parts that are not genuine Troy-Bilt parts.
g. Transportation charges and service calls.
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable
period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as
mentioned above, given by any person or entity, including a dealer or
retailer, with respect to any product, shall bind Troy-Bilt. During the
period of the warranty, the exclusive remedy is repair or replacement
of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. Troy-Bilt shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn care
services or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for
loss, damage, or injury to you and your property and/or to others and their
property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to obtain
warranty coverage.
TROYBILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1(866) 840-6483, 1-330-558-7220
Loading...
