Troy-Bilt 52057, 52058 User Manual
GARDEN WAY INCORPORATED
OWNER’S MANUAL
Trimmer/Mower
• Safety
• Assembly
• Features/Controls
• Operation
• Maintenance
• Parts List
Models
52057 – 5HP Recoil Start
52058 – 6HP Electric Start
(Electric Start Model Shown)
$4.
50
SECTION 1: SAFETY ...........................................1
General Operation ......................................................1
Slope Operation .........................................................2
Children......................................................................2
Service.......................................................................2
Safety Decals .............................................................3
SECTION 2: ASSEMBLY.......................................4
Inspection After Delivery............................................4
Step 1: Unpacking Unit ..............................................4
Step 2: Install Handlebars..........................................4
Step 3: Attach Throttle Control Lever.........................5
Step 4: Add Motor Oil.................................................5
Step 5: Check Trimmer Head Hardware .....................5
Step 6: Connect and Charge Battery...........................6
SECTION 3: FEATURES AND CONTROLS ...................7
SECTION 4: OPERATION ......................................8
Pre-Start Checklist.....................................................8
Fill Fuel Tank..............................................................8
Adjust Handlebar Height ............................................8
Adjust Line Cutting Height .........................................8
Use the Correct Diameter Trimmer Line.....................9
Using the Trimmer Head Control Bail.........................9
Operating the Trimmer/Mower...................................9
Additional Operating Tips and Techniques...............10
SECTION 5: MAINTENANCE.................................11
Required Maintenance Schedule..............................11
Adjusting Trimmer Head Engagement......................11
Removing and Replacing the Trimmer Head............12
Inspecting/Replacing the Drive Belt..........................12
Cleaning and Debris Removal ..................................14
Cleaning the Engine Debris Guard............................14
Lubrication...............................................................14
Compact Storage .....................................................14
General Engine Maintenance....................................14
Engine Oil Service....................................................14
Air Cleaner Service...................................................14
Spark Plug Service...................................................14
Spark Arrester Screen Service..................................14
Engine Cleaning .......................................................14
Carburetor/Governor Adjustments...........................14
Throttle Control Adjustment.....................................15
Off-Season Storage..................................................15
Battery Recharging/Replacement.............................15
Changing Trimming Lines........................................16
Troubleshooting.......................................................17
PARTS LIST ...................................................18
CUSTOMER SERVICE INFORMATION...........Back Cover
Table of Contents
Dear Owner:
You now own one of the finest trimmer/mowers available. It was designed to easily handle a wide variety of
trimming, mowing and clearing chores. You will find
the machine to be an invaluable tool in caring for your
property.
Please carefully read this Manual which tells you how
to safely and easily assemble, operate, and maintain
your machine. Be sure that you and any other operators
carefully follow the recommended safety practices at all
times. Failure to do so could result in personal injury or
property damage.
Of course, if you should ever have any problems or
questions, please contact your local authorized service
dealer or call the Factory.
We want to be sure that you are completely satisfied
at all times.
Note: Be sure to fill out and return the Owner
Registration Card that was supplied with this Manual.
See Back Cover for
Customer Service Information
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to
cause cancer, birth defects, or other reproductive harm.
Safety Alert Symbol
This is a safety alert symbol. It is used in this
manual and on the unit to alert you to potential
hazards. When you see this symbol, read and
obey the message that follows it. Failure to
obey safety messages could result in personal injury or
property damage.
1
Under California law, and under the laws of several other states, you are not permitted to operate an
internal combustion engine using hydrocarbon fuels on any forest covered, brush covered, or grass
covered land, or on land covered with grain, hay, or other flammable agricultural crop, without an engine spark arrestor in continuous effective working order.
The engine on your power equipment, like most outdoor power equipment, is an internal combustion engine that burns
gasoline, a hydrocarbon fuel. Therefore, your power equipment must be equipped with a spark arrestor muffler in continuous effective working order. The spark arrester must be attached to the engine exhaust system in such a manner that flames
or heat from the system will not ignite flammable material. Failure of the owner/operator of the equipment to comply with
this regulation is a misdemeanor under California law, and may also be a violation of other state and/or federal regulations,
laws, ordinances, or codes. Contact your local fire marshal or forest service for specific information about what regulations
apply in your area.
SPARK ARRESTER WARNING TO RESIDENTS OF CALIFORNIA AND SEVERAL OTHER STATES
General Operation
IMPORTANT
Safe Operation Practices for Walk-Behind Mowers
This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury or death.
1. Read, understand, and follow all
instructions on the machine and in the
manuals. Be thoroughly familiar with
the controls and the proper use of the
equipment before starting.
2. Do not put
hands or feet near or
under rotating parts.
Keep clear of the rotating trimmer head
and line at all times.
3. Only allow responsible adults,
who are familiar with the instructions,
to operate the trimmer/mower. Never
let children or untrained adults operate this equipment.
4. Inspect the area where the machine is to be used. The machine can
propel small objects at high speed,
causing personal injury or property
damage. Clear the area of objects
such as rocks, toys, wire, bones,
sticks, etc., which could be picked up
and thrown by the trimmer line.
5. Be sure the area is clear of other
people (particularly small children and
pets) before mowing. Stop machine if
anyone enters the area. Keep bystanders at least 50 feet from the area
of operation.
6. Do not operate the machine when
barefoot or wearing open sandals.
Always wear substantial footwear.
7. Wear appropriate clothing such as
a long-sleeved shirt or jacket. Also
wear long trousers or slacks. Do not
wear shorts.
8. Do not wear loose clothing– it
could catch in the equipment.
9. Do not mow in reverse unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
10. Do not operate the trimmer/mower
without proper guards, plates, or other
protective safety devices in place.
11. Refer to provided instructions for
proper operation and installation of accessories. Only use factory-approved
accessories.
12. Stop trimmer head when crossing
gravel drives, walks, or roads. Wait for
trimmer lines to stop.
13. Stop engine and disconnect spark plug wire from
spark plug whenever you
leave the unit, clean
the equipment, or
replace trimmer line.
Remove key on electric start model.
14. Wait until the trimmer head comes
to a complete stop, shut the engine off,
and disconnect the spark plug wire
before installing or removing trimmer
line. Be sure trimmer head is securely
attached before operating equipment.
15. Mow only during daylight hours or
when good artificial light is available.
16. Do not operate the machine while
under the influence of alcohol or drugs,
or when tired or ill.
17. Never operate this equipment in
wet grass. Be sure of your footing; keep
a firm hold on the handlebar and walk;
never run.
18. Release the Trimmer Head Control
Bail before starting the engine.
19. If the unit starts to vibrate abnormally, stop the engine and disconnect
the spark plug wire. Check immediately for the cause. Vibration is generally a warning of trouble.
Safety
1
Section
2
Section 1: Safety
20. Always wear approved safety gog-
gles or safety glasses with side shields
when operating equipment. The use of
any powered machine can result in foreign objects being thrown by highspeed rotating parts which can cause
personal injury or property damage.
Stay away from glass and other easily
thrown or breakable objects.
21. Wear work gloves and sturdy
footwear when using this equipment.
Leather work shoes or short boots are
ideal. They protect ankles and shins
from rocks, pebbles, splinters, etc.
22. It is advisable to wear protective
headgear to prevent the possibility of
being hit by small flying particles, etc.
23. Before each use, inspect the Throttle Control Lever and cable. Make sure
the cable is free and the lever functions
properly.
24. Watch for traffic when near or
when crossing roadways.
25. Never attempt to carry children or
other passengers on the equipment.
They could fall off and be seriously injured, or they could interfere with safe
operation of the equipment.
26. The machine is equipped with a
plastic debris shield in front of the
engine and a rubber debris flap under
the frame. They must be in place and
working properly. Never remove or
cause the debris shield or debris flap to
cease working. If either of these parts
is missing or not working properly, do
not use the equipment until this situation is corrected.
27. Be aware of where the machine is
discharging materials and do not point
the discharge at anyone.
28. Never run the engine in an enclosed area. Engine exhaust contains
carbon monoxide, a deadly gas that is
odorless, colorless and tasteless.
Always run the engine outdoors where
there is adequate ventilation.
29. Slow down before turning.
30. Shut off engine when not trimming
or mowing.
31. Use extra care when loading or unloading machine into a trailer or truck.
32. Use this equipment for its intended
purpose only.
33. Always make sure the handlebars
are tight and comfortably positioned.
They should never be in an awkward
position for the operator.
Slope Operation
Slopes are a major factor related to
loss of control and tip-over accidents
which can result in severe injury or
death. All slopes require extra caution.
If you can not back up the slope or you
feel uneasy on a slope, do not mow it.
DO:
Mow across the face of slopes; never
up and down. Exercise extreme caution when changing direction on
slopes. Avoid slopes greater than
15o.
Remove objects such as rocks, tree
limbs, etc.
Uneven terrain could overturn the
machine. Watch for holes, ruts, or
bumps. Tall grass can hide obstacles.
Use slow speed.
Use extra care with grass catchers or
other attachments. These can
change the stability of the machine.
Keep all movement on the slopes
slow and gradual.
Avoid starting or stopping on a
slope.
DO NOT:
Do not mow near drop-offs, ditches,
or embankments. You could lose
footing or balance.
Do not mow on very steep slopes.
Do not mow on wet grass. Slippery
footing can be hazardous.
Children
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the
machine and the mowing activity.
Never assume that children will remain
where you last saw them.
1. Keep children out of the mowing
area and under the watchful care of a
responsible adult.
2. Be alert and turn machine off if children enter the area.
3. Before and while moving backwards, look behind and down for small
children.
4. Never allow children to operate the
machine.
5. Use extra care near blind corners,
shrubs, trees, or other objects that
may obscure vision.
6. Never carry children, even with the
trimmer head stopped. Children may
fall off and be seriously injured or interfere with safe machine operation.
7. Do not allow children nearby if you
are working.
Service
1. Use extra care in handling gasoline
and other fuels. They are flammable
and their vapors are explosive. To
help prevent a fire or explosion:
a) Use only an approved container.
b) Never remove gas cap or add
fuel when the engine is running.
Let engine cool before refueling.
Do not smoke.
c) Never refuel the machine in-
doors. Fill the fuel tank outdoors
and with extreme care.
d) Never store the machine or fuel
container inside where there is
an open flame, such as a water
heater, etc.
e) Replace caps on the fuel tank
and fuel container and clean up
spilled fuel before starting engine. Move machine away from
any gasoline fumes before starting the engine.
f) Keep matches, smoking materi-
als, open flames, and sparks
away from the fuel tank and fuel
container.
g) Leave 1/2" air space at the top of
the fuel tank to allow for fuel expansion.
3
Section 1: Safety
and debris shield. Make sure they are
not bent, damaged, or loose.
10. Only use eighteen-inch long .130"
or .155" diameter trimmer line. Never
use other lengths, diameters or material
as trimmer line.
11. Trimmer line moves
at high speed and can
cut. Always stop the
engine and let all moving parts stop before
replacing the trimmer lines. Let the
engine cool.
12. Do not change the engine governor setting or overspeed the engine.
The governor controls maximum safe
operating speed and protects the engine and all moving parts from damage caused by overspeed. Authorized
service shall be sought if a problem
exists.
13. Do not touch engine parts which
may be hot from operation. Allow
parts to cool completely before inspecting, cleaning or repairing the unit.
14. Maintain or replace safety and instructional decals. Refer to the Parts
List for replacement decal information.
15. Use only original-equipment
replacement parts. Parts manufactured by others could present safety
hazards and affect performance even
though they may fit on this machine.
2. Never run the engine inside a
closed area.
3. Never clean, or make adjustments
or repairs with the engine running.
Disconnect the spark plug wire and
keep the wire away from the plug to
prevent accidental starting. Remove
key on electric start models.
4. Keep all nuts and bolts tight, especially the trimmer head attachment
bolts, and keep equipment in good
condition. Check mounting hardware
on trimmer head every time you
change trimmer line and prior to each
use.
5. Never tamper with safety devices.
Check their proper operation regularly.
6. To reduce fire hazard, keep mower
free of grass, leaves or other debris
build-up. Clean up oil or fuel spills. Let
machine cool before storing.
7. After striking an object, stop the
engine and disconnect the spark plug
wire. Inspect the machine and repair, if
necessary, before restarting.
8. Never make adjustments or repairs
while engine is running.
9. Components subject to wear,
damage and deterioration could expose moving parts or allow objects to
be thrown. Frequently check components and replace with factory recommended parts, when necessary.
Regularly inspect the trimmer head
16. Remember – the end of the sea-
son is a good time to inspect equipment prior to storage.
17. To guard against engine overheating, always keep the engine debris
guard mounted and clean.
18. For units equipped with electric
start:
a) Batteries produce explosive
gases. Keep sparks, flame,
cigarettes, etc., away. Ventilate
area when charging battery. Do
not charge battery in an airtight
space.
b) Do not use a battery charger
other than the one provided with
the unit.
c) The battery contains toxic mate-
rials. Do not damage the battery
case. If the case is broken or
damaged, avoid contact with the
battery contents.
d) Properly dispose of a damaged
or worn out battery. Check with
local authorities for proper disposal methods.
e) Do not short circuit the battery.
Severe burns and fire can
result.
Safety Decals
Make certain that all safety decals on this equipment are
kept clean and in good condition. The decals are shown (at
reduced sizes) below. If you need a replacement decal,
refer to the Parts List in this Manual.
WARNING
THROWN OBJECT HAZARD
Objects will be thrown violently by the
cutting head, resulting in significant hazard!
Keep children, pets and bystanders 50 feet
away from machine while operating.
Be alert to hidden obstacles.
ROTATING CUTTING HEAD
Do not service or adjust cutting head or other
moving parts unless engine is stopped and
spark plug wire is disconnected.
•
•
•
READ OWNERS MANUAL
If you need a replacement manual, write to the
address listed on the serial number decal on
this unit.
1918115 (12/99)
At front of deck
On engine, above muffler
On left
handlebar
4
Introduction
Carefully follow these assembly steps
to correctly prepare your machine for
use. It is recommended that you read
this Section in its entirety before beginning assembly.
NOTE: If an assembly step applies only
to certain models, those models are
noted at the beginning of that step.
Otherwise, a step applies to all models.
Inspection After Delivery
Inspect your machine immediately after
it has been delivered. Make sure that
neither the carton nor the contents
have been damaged.
If you find or suspect any damage,
contact the carrier (trucking company)
right away. Inform them of the specific
damage and that you wish to file a
claim. To protect your rights, be sure
to put this in writing to the carrier
within 15 days after your machine arrives. Please let us know if you need
assistance with this matter.
IMPORTANT: The engine is shipped
without motor oil in its crankcase.
Motor oil must be added to the engine
before starting.
NOTE: LEFT and RIGHT sides of unit
are as viewed from operator’s position
behind the handlebars.
Tools/Supplies Needed:
• (1) Utility Knife or Scissors
• (2) 1/2" (or adjustable) Wrenches
• (2) 7/16" Wrenches (one with a boxed
end)
• Motor Oil (see Engine Owner’s
Manual for oil specifications and
quantity required)
STEP 1: Unpacking Unit
1. Remove the protective packaging
material (plastic film and cardboard)
from the handlebars and the unit.
2. Remove the handlebars from the
insert and carefully (do not pinch or
kink the attached cables) put them
aside before removing the unit from
the shipping carton.
3. Compare the parts inside the carton
with the following list:
• Trimmer/Mower Assembly (A, Figure
2-1)
• Extra Trimmer Line (B, Figure 2-1):
six pieces of heavy-duty gauge .130"
dia. line and six pieces of extra-heavyduty gauge .155" dia. line.
• The following items are in a separate
package:
(1) Safety goggles
(3) Plastic cable ties
(1) Hex Hd. Screw, 1/4-20 x 2
(1) Hex Locknut, 1/4-20
(2) Hex Hd. Screw, 5/16-18 x 2
(2) Hex Locknut, 5/16-18
• Electric Start Model Only:
(1) Battery (installed on unit – see
C, Figure 2-1)
(2) Ignition Keys and (1) Battery
Recharger (in separate electric
start package)

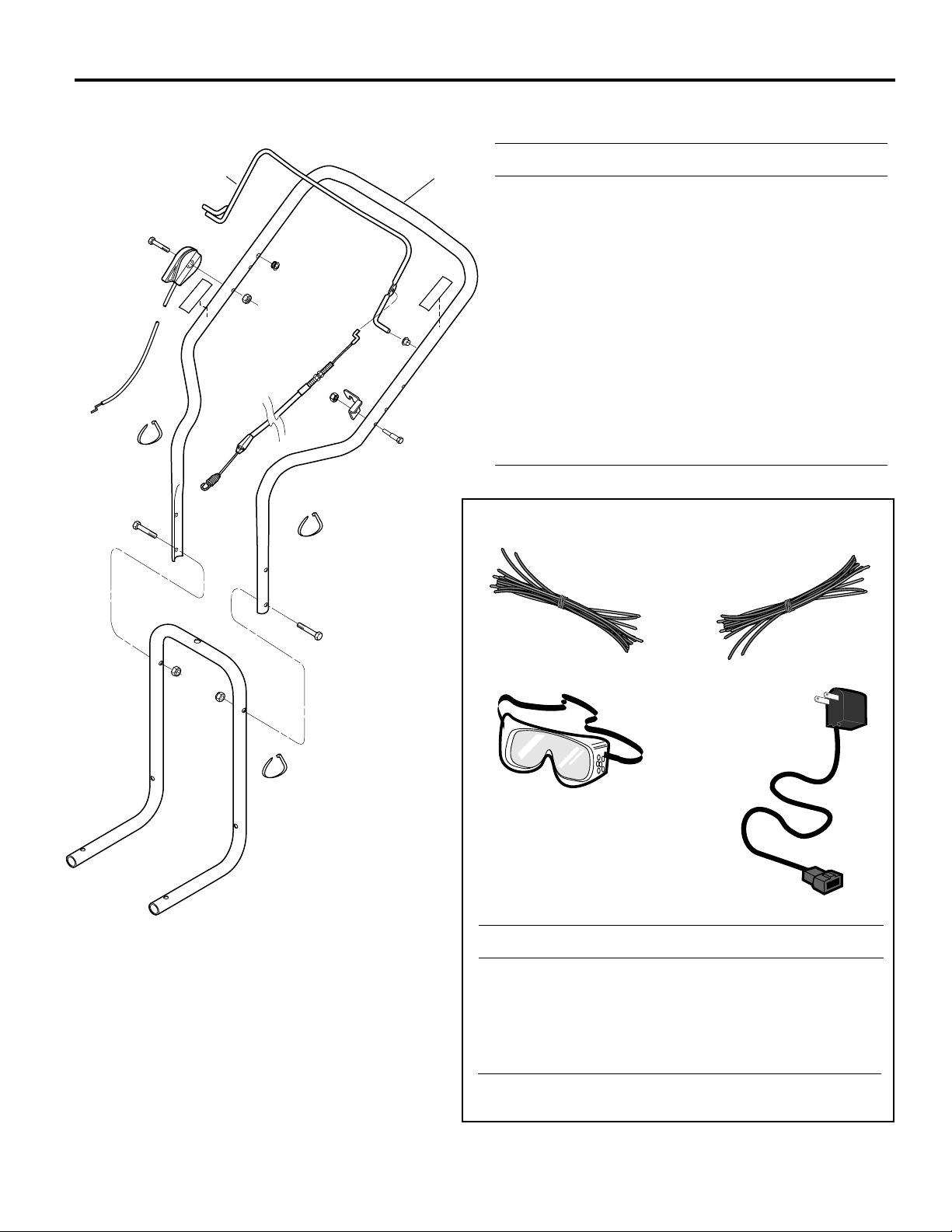

STEP 2: Install Handlebars
1. Cut the plastic tie and remove the
tape that secures the control bail (G,
Figure 2-2) to the handlebar (A).
NOTE: Do not pinch or kink the attached cable(s) while unfolding and
securing the handlebars.
2. Carefully lift the handlebars (A,
Figure 2-2) to rear of the unit and align
the handlebar legs with the handlebar
support bracket (B).
3. Route the trimmer head control
cable (C, Figure 2-2) to the outside of
the handlebar. On electric start models,
also route the electrical wire harness
(O) to the outside of the handlebar.
4. Select the low or high height setting
holes in the handlebar legs and attach
the legs with the two 5/16-18 x 2 hex
hd. screws (D) and 5/16-18 locknuts
(E) from the hardware bag.
IMPORTANT: Adjust the handlebars as
close as possible to waist level so that
your arms are at a comfortable height.
This position will result in less pressure on the mower wear cup, making
the unit easier to roll and reducing wear
to the wear cup.
A
Figure 2-1: Unit as shipped (recoil start model shown). Battery for electric start
model is shown in inset.
B
Assembly
2
Section
To prevent personal injury or property
damage, do not attempt to start the
engine until all assembly steps are
complete and you have read and understand all of the safety and
the operating instructions in this
Manual.
WARNING
C
5
Section 2: Assembly
Figure 2-2: Handlebar installation (electric start model shown).
A
C
D
F
E
B
G
F
O
M
M
Figure 2-4: Check trimmer head hardware for tightness.
5. Use two cable ties (F, Figure 2-2)
to secure the trimmer head control
cable (C) and the electrical wiring harness (O) to the handlebar at the locations shown.
STEP 3: Attach Throttle
Control Lever
1. One end of the Throttle Control
Cable (H, Figure 2-3) is attached to
the engine. Gently unwind the cable
from its shipping position and position the Throttle Control Lever (I) on
the outside of the right handlebar,
next to the throttle control decal.
2. Secure the Throttle Control Lever
to the handlebar with a 1/4-20 x 2 hex
hd. screw (J, Figure 2-3) and 1/4-20
hex locknut (K).
3. Use a cable tie (L, Figure 2-3) to
secure the throttle cable (H) to the
handlebar at the location shown.
STEP 4: Add Motor Oil
1. The engine is shipped without
motor oil which MUST BE ADDED
before the engine is started.
2. See the separate Engine Owner’s
Manual for filling instructions and for
the correct oil specifications. Engine
must be level when checking oil level.
In ambient temperatures above 320 F,
use a high-quality, SAE 30 weight
detergent oil classified for Service SF SJ. Use no special additives. Do not
mix oil with fuel.
STEP 5: Check Trimmer
Head Hardware
Check that the two bolts (M, Figure
2-4) on the trimmer head are tightened securely. The trimmer head can
be rotated to make access to the hardware easier.
IMPORTANT: The trimmer head hardware is designed to be permanently
installed and is not removable. Do not
attempt to replace it with non-factory
specified hardware.
NOTE: The two holes (one is covered
with a plastic plug) on the top, front
end of the mower deck are access
holes that allow certain parts to be
serviced.
Figure 2-3: Attach throttle lever to right-side
handlebar.
I
J
K
L
I
H
6
Section 2: Assembly
STEP 6: Connect and Charge
Battery (Electric Start Models)

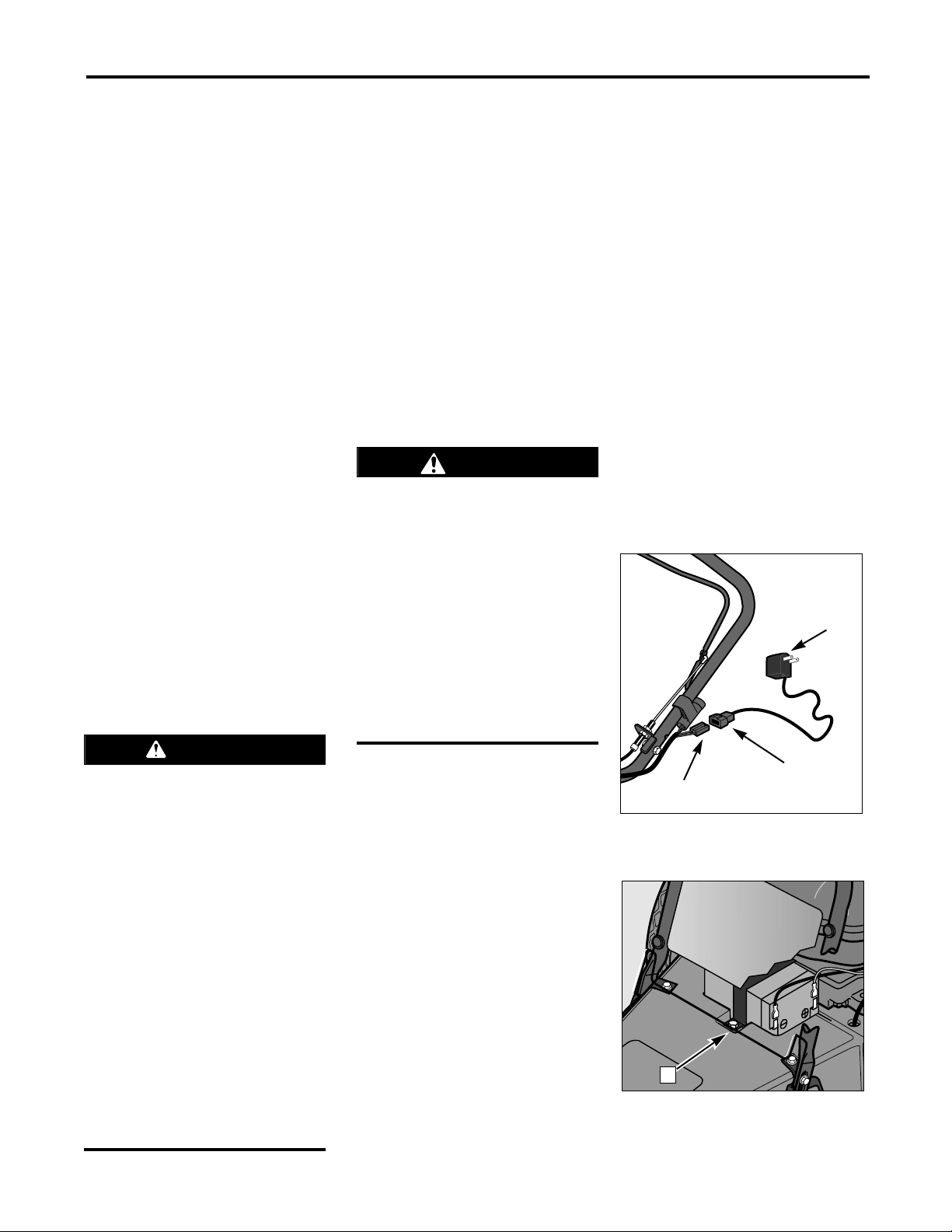

1. Lift and tilt debris shield (X, Figure
2-5) forward to view battery (P).
Connect the red wire (R, Figure 2-6) to
the positive (+) red-coded terminal on
the battery. Then, connect the black
wire (S) to the negative (–) blackcoded terminal on the battery. Close
the debris shield (X, Figure 2-5).
2. Connect the small plug (U, Figure
2-7) on the battery recharger cord to
the wire harness plug (V) located near
the keyswitch. Then, plug the charger
box (W) into a grounded, 120V wall
outlet.
3. Charge the battery for 24 hours.
After charging, first unplug the charger
box (W) from the wall outlet, then disconnect the recharging line plugs (U
and V).
• Wet conditions can cause an electric shock hazard during battery
recharging. Avoid wet conditions
when charging battery.
• Recharging the battery with improper equipment could cause a
battery explosion. Use only the battery charger shipped with the unit.
The engine must be shut off and the
spark plug wire disconnected and
moved away from the spark plug.
Failure to comply could result in
personal injury or property damage.
DANGER
S
R
Figure 2-6
V
W
U
Figure 2-7
X
P
Figure 2-5: Lift and tilt debris shield
forward to access battery.
Loading...
