Troy-Bilt 42052, 42051 User Manual

Models

42051 - 9.5HP / 26" Auger
42052 - 11HP / 30" Auger

OWNER’S MANUAL
Snow Thrower

• Safety

• Assembly

• Features and Controls

• Operation

• Maintenance

• Parts List

®

GARDEN WAY INCORPORATED

(11HP Model shown)

SAFETY FIRST!

Before operating this equipment, read this

Owner’s Manual and the separate manual

supplied by the engine manufacturer.

Table of Contents

SECTION 1: SAFETY ........................................... 3

Safety Decals ......................................................................... 5

SECTION 2: ASSEMBLY ....................................... 6

Inspect Unit............................................................................. 6

Unpack Unit ............................................................................ 6

Hardware Bag Contents........................................................... 6

Remove (optional) Drift Slicers............................................... 6

Install Handlebars ................................................................... 7

Install Discharge Chute........................................................... 7

Attach Chute Control Rod........................................................ 8

Attach Auger Drive Control Rod.............................................. 8

Attach Wheel Control Rod....................................................... 8

Attach Gear Shift Control Rod................................................. 8

Connect Wiring for Handlebar Warmers and Light.................. 10

Add Motor Oil to Crankcase .................................................... 10

Check Auger Gear Case Oil Level............................................. 10

Check Tire Pressure................................................................10

Install Drift Slicers................................................................... 10

SECTION 3: FEATURES AND CONTROLS...................... 11

SECTION 4: OPERATION ....................................... 12

Pre-Operation Checklist........................................................... 12

Starting the Engine.................................................................. 13

Stopping ................................................................................. 13

Auger Drive Engagement......................................................... 14

Wheel Drive Engagement........................................................14

Auger Drive/Wheel Drive Interlock Feature.............................. 14

Shifting Gears ......................................................................... 14

Transporting the Unit..............................................................14

Snow Throwing Tips...............................................................14

Snow Throwing Patterns......................................................... 15

SECTION 5: MAINTENANCE ................................... 16

Engine Maintenance................................................................ 16

Lubrication.............................................................................. 16

Wheel Drive Disc Adjustment.................................................. 16

Auger Drive Belt and Wheel Drive Belt Replacement

............. 18

Shear Bolts.............................................................................. 18

Auger Drive Belt(s) Adjustment............................................... 18

Gear Shift Rod Adjustment

................................................ 19

Drive Disc Clearance Adjustment............................................ 19

Brake Arm Adjustment............................................................19

Skid Shoes/Scraper Blade....................................................... 20

Slip Differential Adjustment..................................................... 20

Off-Season Storage................................................................. 20

Troubleshooting Chart ............................................................ 21

Required Maintenance Schedule............................................. 23

SPECIFICATIONS/KITS & ACCESSORIES ..................... 24

PARTS LIST ...................................................... 25

CUSTOMER SERVICE INFORMATION .............. BACK COVER

2

Dear Owner:
Thank you for purchasing this product. The unit was care-

fully designed and manufactured to provide excellent
performance if properly operated and maintained.

Review this manual frequently to familiarize yourself with
the unit, its features and its safe operation. Be sure that

you and any other operators carefully follow the recom­mended safety practices at all times. Failure to do so
could result in personal injury or property damage. This

Manual is considered a permanent part of the unit and it
must stay with the unit if the unit is resold.

The warranty statement is included in the literature pack­age. Read it carefully. Also, please complete and return
the postpaid owner registration card included with this
Manual. The purpose of the card is to register each unit
and owner at the factory to provide product updates.

If you have any problems or questions concerning the unit,
contact your local authorized dealer or the Factory (see
back page of this Manual).

We want to ensure your complete satisfaction at all times.

See Back Cover for

Customer Service Information

Safety Alert Symbol

This is a safety alert symbol. It is used in this manual
and on the unit to alert you to potential hazards. When
you see this symbol, read and obey the message that
follows it. Failure to obey safety messages could

result in personal injury or property damage.

This machine meets voluntary safety standard B71.3 – 1995,
which is sponsored by the Outdoor Power Equipment
Institute, Inc., and is published by the American National
Standards Institute.

The engine exhaust from this product contains chemi­cals known to the State of California to cause cancer,
birth defects or other reproductive harm.

WARNING

SPARK ARRESTER WARNING TO RESIDENTS

OF CALIFORNIA AND SEVERAL OTHER STATES

Under California law, and under the laws of several other states,
you are not permitted to operate an internal combustion engine
using hydrocarbon fuels on any forest, brush, hay, grain, or
grass covered land; or land covered by any flammable agricul­tural crop without an engine spark arrester in continuous effec­tive working order.

The engine on the unit is an internal combustion engine which
burns gasoline, a hydrocarbon fuel, and must be equipped with a
spark arrester muffler in continuous effective working order. The
spark arrester must be attached to the engine exhaust system in
such a manner that flames or heat from the system will not ignite
flammable material. Failure of the owner/operator of the unit to
comply with this regulation is a misdemeanor under California
law (and other states) and may also be a violation of other state
and/or federal regulations, laws, ordinances or codes. Contact
your local fire marshal or forest service for specific information
about which regulations apply in your area.

Safety

1

Section

Training

1. Read this Owner’s
Manual and the sepa­rate Engine Owner’s
Manual carefully before operating the
unit. Be completely familiar with the
controls and the proper use of the
unit. Know how to stop the unit and
disengage the controls quickly. A re­placement manual is available by con­tacting the factory.

2. Never allow children to operate the
unit. Never allow adults to operate
the unit without proper instruction.

3. Keep the area of operation clear of
all persons, particularly small children
and pets. Keep bystanders at least 25
feet away from the area of operation.

4. Exercise caution to avoid slipping or
falling, especially when operating in
reverse.

5. Familiarize yourself with all of the
safety and operating decals on the
unit and on any attachments or
accessories.

6. Do not run the engine in an enclosed
area. Engine exhaust contains carbon
monoxide gas, a deadly poison that is
odorless, colorless, and tasteless. Do
not operate the unit near buildings,
windows, or air conditioners.

7. Keep hands or any other part of the
body or clothing away from the inside
of the collector (auger/impeller) hous­ing, the discharge chute opening, or
moving parts.

8. Do not operate the unit if you are
under the influence of alcohol, medi­cation, or when tired or ill.

Preparation

1. Wear approved safety glasses or eye
shields during operation or while per­forming an adjustment or repair to
protect eyes from foreign objects that
may be thrown from the unit.

2. Do not wear loose-fitting clothing,
such as scarves, which could be
caught by moving parts. Tie up or re­strain long hair.

3. Before starting the engine, check the
tightness of all screws, nuts, bolts,
and other fasteners. Replace or clean
any damaged or unreadable safety
and operating labels.

4. Wear adequate winter outer garments
when operating the unit. Wear
footwear that will improve footing on
slippery surfaces.

5. Use extra care when handling gasoline
or other fuels. Gasoline and its vapors
are highly flammable and explosive.
To help prevent a fire or explosion:

a. Store gasoline only in an approved

gasoline storage container, safely
out of the reach of children.

b. Never remove the fuel fill cap on

the fuel tank, or add fuel while the
engine is running or hot.

c. Keep matches, smoking materials,

open flames, and sparks away from
the fuel tank and gasoline storage
container.

d. Fill the fuel tank outdoors and with

extreme care. Never fill the fuel
tank indoors.

e. Replace the fuel fill cap on the fuel

tank, the cap on the gasoline stor­age container, and clean up fuel
spills before starting the engine.

f. Leave 1-1/2 inch (3.81 cm) of air

space at the top of the fuel tank to
allow for fuel expansion.

g. Do not store unit or gasoline stor-

age container where there is a dan­ger of an open flame or spark, or
where ignition sources are present
such as hot water and space
heaters, furnaces, clothes dryers,
stoves, electric motors, etc.

6. For units equipped with electric-start:
a. Only use a 3-pronged, UL rated and

approved, outdoor use power cord.
Do not use any adapters on the
cord.

3

Discharge Chute

Chute Deflector Cap

Auger Drive Control Lever

Chute Directional Control

Wheel Drive
Control Lever

Auger Assembly

Skid Shoe

Collector
(auger/impeller)
Housing

Gear Shift Lever

Section 1: Safety

4

b.The 120V A.C. starter is equipped

with a three-wire power cord and
plug and is designed to operate on
120V A.C. household current. The
starter must be properly grounded
at all times to avoid the possibility
of injury or death from electrical
shock. Determine that your house
wiring is a Ground Fault Interrupted
(G.F.I.) three-wire grounded sys­tem, or ask a licensed electrician if
you are not sure. If your house
wiring system is not a G.F.I. three­wire grounded system, DO NOT use
the electric starter under any condi­tion. If your house wiring system is
grounded but a G.F.I. three-prong
wall receptacle is not available at
the location your starter will be
used, one should be installed by a
licensed electrician.

c. Inspect the power cord for damage

before use. If it is damaged, do not
use it.

d.Stand on dry ground when handling

the power cord. Do not handle the
power cord with wet hands or wet
gloves. Do not use the electric
starter if it is raining.

e. Connect the cord to the electric

starter first, and then plug the cord
into a properly grounded outlet
(this lessens the chances of sparks
from occurring near the engine).

f. Do not abuse the power cord. Do

not pull the unit by the cord. Do not
pull the cord to disconnect it from
the outlet. Keep the cord away
from sharp edges, oil, and exces­sive heat.

g.Store the power cord in a secure

place, safely out of the reach of
children.

7. Adjust the skid shoes and scraper
blade so the collector (auger/impeller)
housing clears gravel or crushed rock
surfaces.

8. Never attempt to make any adjust­ments while the engine is running
(except when specifically recom­mended by the the manufacturer).

Operation

1. The operator of the unit is responsible
for the safety of all persons in the op­erating zone of the unit.

2. Before starting the unit, disconnect
the spark plug wire and check the col­lector (auger/impeller) housing and
discharge chute to make sure they are
free of ice.

3. Disengage all clutches before starting
the engine.

4. Let the unit adjust to outdoor temper­ature before use.

5. Check the operation of the controls
before using the unit. Do not operate
the unit unless all controls are operat­ing properly.

6. Never carry passengers on the unit.
They could fall off and be seriously in­jured, or they could interfere with safe
operation.

7. Keep hands, other body parts, and
clothing away from any moving or ro­tating parts. Keep clear of the intake
and discharge openings at all times.

8. Before starting the engine, inspect the
area where the unit is to be used and
remove all sleds, boards, doormats,
wire, bottles, cans, or other debris.

9. Keep children out of the area of opera­tion and under the watchful eye of an
adult not operating the unit. Never as­sume that children will remain where
you last saw them.

10. If the unit makes an unusual noise or
vibration, immediately shut the engine
off, wait for all moving parts to stop,
disconnect the spark plug wire from
the spark plug and perform the fol­lowing steps:

a. Inspect for damage.
b. Replace or repair any damaged

parts.

c. Check for and tighten any loose

parts.

11. Stop the engine and disconnect the
spark plug wire whenever you leave
the operating position, before unclog­ging the collector (auger/impeller)
housing or discharge chute, and when
making any repairs, adjustments, or
inspections. Use only a wooden stick
(at least 3 feet long) to clear away any
blockage.

12. When cleaning, repairing, or inspect­ing, make certain the auger, impeller
and all moving parts have stopped.
Disconnect the spark plug wire from
the spark plug and secure the wire
away from the spark plug.

13. Keep all guards, covers, shields and
safety devices in place and in good
working condition. Do not attempt to
defeat the purpose of any safety
device.

14. Exercise extreme caution on slopes.

15. Do not attempt to clear steep slopes.

16. Do not clear snow across the face of
slopes. Exercise extreme caution
when changing direction on slopes.

17. Always observe the terrain. Watch for
and avoid obstacles. Stay away from
holes, ditches, soft or steep embank­ments and other potentially danger­ous terrain. Deep snow can hide ob­stacles and drop-offs.

18. Do not use the unit near drop-offs,
ditches, or embankments. If a wheel
goes over an edge, or if an edge
caves in, the unit could overturn.

19. Never operate the unit at high trans­port speeds on slippery surfaces.
Wet surfaces reduce traction and
stability.

20. Look behind and use care when oper­ating the unit in reverse. If you have
to pull the unit backward, disengage
the auger and wheel drives. Always
check behind for hazards.

21. Be extremely careful when using the
unit near blind corners, shrubs, trees,
and other objects that may obscure
vision.

5

Section 1: Safety

22. Be extremely careful when operating
on or crossing gravel drives, walks or
roads. Stay alert for hidden hazards
or traffic. Remove any hearing
protection.

23. Do not overload the machine capacity
by attempting to clear snow at too
fast a rate.

24. After striking a foreign object, stop
the engine, remove the wire from the
spark plug, thoroughly inspect the
unit for any damage, and repair the
damage before restarting and operat­ing the unit.

25. Use only attachments and accessories
that are approved for use with the unit
(such as wheel weights, counter­weights, cabs, and the like). Contact
an authorized dealer or the factory if
you are not sure about the use of any
attachment or accessory.

26. Operate the unit only in daylight or in
good artificial light. Always be sure of
your footing, and keep a firm hold on
the handlebars. Walk; never run.

27. Do not tamper with the engine gover­nor settings. The governor controls
the maximum safe engine operating
speed and protects the engine and
moving parts from damage. Contact
your local engine dealer for service if
a problem exists.

28. Disengage the auger drive when the
unit is being transported or is not in
use. Disconnect the spark plug wire
from the spark plug to prevent acci­dental starting.

29. Do not touch the muffler or other en­gine parts which may be hot from op­eration. Wait for parts to cool com­pletely before inspecting, cleaning or
repairing the unit.

30. Never operate the unit near buildings,
glass enclosures, automobiles, win­dow wells, drop-offs, etc., without
first properly adjusting the discharge
angle and direction. Keep children and
pets away.

31. Never direct discharge at persons, an­imals, vehicles or buildings. Never
allow anyone in front of the unit when
the engine is running.

32. Disengage the auger and wheel drives
if you are approached by any child,
inattentive person or pet.

33. Run the unit for a few minutes after
use to prevent freeze-up. Remove any
snow from the unit (snow can melt,
re-freeze and jam the unit).

Maintenance and Storage

1. When the unit is stopped for servicing,

inspection, storage, or to change an
attachment or an accessory,
disconnect the spark plug wire from
the spark plug and secure the wire
away from the plug. Allow the engine
to cool before making inspections, ad­justments or performing any
maintenance.

2. Maintain the unit and all attachments

and accessories in safe working
condition.

3. Never perform any maintenance while

the engine is running, or when the
spark plug wire is connected to the
spark plug.

4. Do not store the unit or fuel container

inside an enclosure where there is an
open flame or spark, or where ignition
sources are present, such as: hot
water and space heaters, furnaces,
clothes dryers, stoves, electric motors,
etc.

5. Allow the engine to cool before storing

in any enclosure.

6. Store gasoline in a cool, well-venti-

lated area, safely away from any spark­or flame-producing equipment.

7. Store gasoline only in an approved

gasoline storage container, safely out
of the reach of children.

8. Use only original equipment replace-

ment parts. Parts manufactured by
others could present a safety hazard
even though they may fit on the unit.

9. Store the unit where children will not
have access to it. Always disconnect
the spark plug wire from the spark
plug to prevent accidental starting. On
units equipped with the electric start­ing, store the power cord in a secure
place, safely out of the reach of
children.

10. Check the tightness of the auger shear
bolts and other fasteners at frequent
intervals to be sure the unit is in safe
working condition. Torque shear bolts
to 11 ft. lbs. (15 Nm).

11. Maintain or replace safety and instruc­tion decals as needed if they are dam­aged or illegible.

12. Refer to the separate Engine Owner’s
Manual for complete engine operating
and maintenance information.

13. Refer to the “storage” instructions in
this Manual and in the Engine Owner’s
Manual if the unit is to be stored for an
extended period.

Safety Decals

For your personal safety and the safety of
others, a number of safety message decals
have been affixed to your unit. Keep them
clean and legible at all times. Contact your
local service dealer or the factory for re­placements if any decals are damaged or
missing.

Refer to the parts listing for decal
locations, part numbers, and ordering
instructions.

NOTE: Left and right sides of the unit are
determined from the operator position,
facing the direction of forward travel.

A. Inspect Unit

Inspect the unit and shipping crate for
damage immediately after delivery. Contact
the carrier (trucking company) if you find
or suspect damage. Inform them of the
damage and request instructions for filing
a claim. To protect your rights, put your
claim in writing and mail a copy to the car­rier within 15 days after the unit has been
delivered. Contact the Factory if you need
assistance.

Tools/Materials Required for Assembly

(1) Scissors or knife (to cut plastic ties)
(1) *5/16" wrench
(1) *3/8" wrench
(2) *7/16" wrenches
(2) *1/2" wrenches
(1) *9/16" wrench
(1) Phillips head screwdriver (medium)
(1) Needle-nosed pliers (medium)
(1) Automotive-type tire pressure gauge
(1) Funnel
(1) Clean, high-quality motor oil. Refer to

the separate Engine Owner’s Manual
for the exact oil specifications and
amount needed for your engine.

* Adjustable wrenches may be used.
IMPORTANT: Motor oil must be added to

the engine crankcase before the engine is
started. Follow the instructions in this
Section.

B. Unpack Unit

Follow these steps to unpack your unit.

1. After removing cardboard carton, re­move discharge chute (O, Figure 2-4)
assembly (with attached hardware
bag) from inside cardboard sleeve.

2. Cut plastic ties securing handlebar
ends to chassis and remove handle­bars. Remove any protective wrapping
on handlebars.

3. Cut the four plastic ties (two on auger
shaft and two on wheel axle) that se­cure the unit to the shipping pallet.

4. Move unit onto a clean, level surface.

The unit is heavy. To move the unit
off the shipping pallet, use caution
and obtain the help of at least one
assistant.

5. The hardware bag should contain the
following items:

* These are replacement parts (Figure 2-1)
that should be kept with this manual (if the
auger jams, the shear bolts are designed
to break to prevent damage to the auger
drive). See Section 5 for replacement
information.

C. Remove Drift Slicers

(if equipped)

1. Remove the four screws (B, Figure
2-2) and locknuts (two on each side)
that secure the drift slicers (A) and re­move them from both sides of the col­lector (auger/impeller) housing.

NOTE: For shipping purposes, the drift
slicers are mounted backwards.

2. Place the drift slicers and hardware

aside. The drift slicers can be attached
after the unit is assembled (see last
step of these assembly instructions).

Description Qty.

Engine Stop Switch Key .................... 1

Plastic Cable Tie ................................ 3

Hex Hd. Flange Screw, 3/8-16 x 3/4 .. 4

Hex Hd. Screw, 1/4-20 x 3/4.............. 2

Locknut, 1/4-20 ................................ 2

Phillips Hd. Screw, #10-24 x 3/8 ...... 2

Locknut, #10-24................................ 2

Cotter Pin .......................................... 1

Electric Start Power Cord .................. 1

*Shear Bolt, 5/16-18 x 1-3/4 ............ 2

*Locknut, 5/16-18 ............................ 2

To prevent personal injury or property
damage, do not start the engine until all
assembly steps are complete and you
have read and understand the safety and
operating instructions in this
manual.

WARNING

6

Assembly

2

Section

Figure 2-1

Figure 2-2

B

A

Drift Slicers
(Optional)

Discharge Chute

Chute
Deflector Cap

Auger Drive Control Lever

Light

Chute Directional Control

Wheel Drive
Control Lever

Auger Assembly

Skid Shoe

Collector
(auger/impeller)
Housing

Gear Shift Lever

FULLY ASSEMBLED UNIT

Section 2: Assembly

D. Install Handlebars

1. Use the four 3/8-16 x 3/4" hex flange
screws to attach the handlebars to the
sides of the chassis.

a. Install a screw in the upper mount-

ing hole (C, Figure 2-3) on each
side. Leave screws loose enough to
allow handlebar to pivot.

b. Install a screw (D) in the lower

mounting hole on each side.

c. Using light pressure, press down on

the left side handlebar and tighten
the two screws. Repeat on the right
side.

2. There are four pre-installed screws
(E, Figure 2-3) on the inside of the
handlebars that secure the control
panel. Tighten each screw securely.

E. Install Discharge Chute

1. Remove the cardboard shield from the
discharge chute mount opening.

2. Loosen (do not remove) the left and
right-side sets of plastic shims (G,
Figure 2-4) and plastic hold-down clips
(H) on the toothed flange (J) of the dis­charge chute assembly. Remove and
save the remaining (front) hold-down
clip, shim and mounting hardware.

3. From either side of the unit, slide the
discharge chute onto the chute mount­ing flange (K, Figure 2-4), making sure
that the plastic shims (G) are above
the flange and the plastic hold-down
clips (H) are below the flange. Tighten
the clip mounting hardware securely
(if necessary, rotate the discharge
chute to the right to tighten the left­side clip).

4. Hook the front hold-down clip (H,
Figure 2-4) under the mounting flange
(K) and place the front plastic shim (G)
on top of the hold-down clip, between
the top of the flange and the toothed
chute flange. Secure with the mount­ing hardware previously removed.

5. Remove the plastic tie that secures the
worm gear assembly (L, Figure 2-4) to
the mounting bracket.

C

D

E

E

Figure 2-3

Figure 2-4

N

P

O

H

K

L

M

(Front shim) G

(Front hold­down clip) H

J

K

J

G

7

8

Section 2: Assembly

6. Remove the washer and locknut from
the screw (M, Figure 2-4) in the worm
gear assembly (L). Position the worm
gear assembly on the mounting
bracket as follows:

a. Engage the worm gear threads 1/2-

way with the teeth on the flange of
the discharge chute base (rotate
chute as needed).

b. The length of the worm gear should

be centered with the teeth on the
flange of the discharge chute base.

c. Reinstall the washer and locknut on

the screw (M) and tighten securely.

7. Insert the flexible fins on the plastic
snow deflector (N, Figure 2-4) inside
the chute deflector cap (O). Close the
deflector cap by pulling the lever (P)
outward and moving the deflector cap
down. Release the lever to secure the
deflector cap in one of the discharge
angle selector holes.

F. Attach Chute Control Rod

1. Remove the plastic tie that secures the
auger drive control rod (AA, Figure 2-

5) to the right handlebar. Next, re­move the plastic tie that secures the
chute crank rod (short rod with plastic
swivel blocks) to the auger drive con­trol rod.

2. Pull the chute crank rod (Z, Figure 2-5)
up through the top of the control
panel.

3. Attach the chute control rod sections
(S and U, Figure 2-5) as follows:

a. Insert the angled end of the chute

control rod, (U, Figure 2-5 inset)
into the hole in the swivel block (V)
that is attached to the end of the
chute crank rod (S).

b. Insert a cotter pin (W) through the

hole in the chute control rod (U) and
spread the ends of the cotter pin.

4. Position the chute control rod support
bracket (Y, Figure 2-6) against the un­derside of the handlebar console as
shown. Secure the bracket with the
two #10–24 x 3/8" Phillips pan head
screws and #10–24 locknuts supplied.

5. Rotate the chute control crank (Z,
Figure 2-5). The discharge chute
should turn freely, but with enough re­sistance to prevent free rotation of the
discharge chute during snow removal
operation. Adjust the worm gear as­sembly bracket (L, Figure 2-4) as nec­essary to prevent binding.

G. Attach Auger Drive Control Rod

1. Remove the plastic tie that secures the
auger drive control arm (AD, Figure
2-7) to the transmission shift arm
(AB).

2. The auger drive control rod (AA, Figure
2-7) has been pre-adjusted at the fac­tory. To avoid misadjustment, do not
rotate the jam nut (AT, Figure 2-7)
while completing the following steps.

3. Hold jam nut (AT) in place with a 7/16"
wrench and use another 7/16" wrench
to thread the adjusting thimble (AS)
downward a total of 12 turns.

4. Raise Auger Drive Control Lever (X,
Figure 2-5) all the way up. Then hook
the spring (AC, Figure 2-7) at the lower
end of the auger drive control rod (AA)
into the hole in the auger drive control
arm (AD).

5. Thread the adjusting thimble (AS,
Figure 2-7) upward until it contacts the
jam nut (AT). Using two wrenches,
tighten the jam nut against the adjust­ing thimble.

6. Check that the spring (AC) is under the
correct amount of tension by perform­ing Steps 2 through 5 of Auger Drive
Belt(s) Adjustment in Section 5 of this

manual.

H. Attach Wheel Drive Control Rod

1. Remove the plastic tie that secures the
wheel drive control rod (AE, Figure 2-

7) and the gear shift control rod (AF)
to the left handlebar.

2. Hook the spring (AG, Figure 2-7) at the
lower end of the wheel drive control
rod (AE) into the hole in the wheel
drive control arm (AH). If necessary,
raise the wheel drive control arm (AH)
while attaching the spring.

3. Check that the spring (AG) is under the
correct amount of tension by perform­ing Steps 1 through 4 of Wheel Drive
Disc Adjustment in Section 5.

4. The wheel drive control rod has been
pre-adjusted at the factory. When the
engine is started, as described in the
Operation section, you will be given a
functional check to make sure the
wheel drive control rod is properly
adjusted.

I. Attach Gear Shift Control Rod

1. Place the Gear Shift Select Lever
(T, Figure 2-5) in the No. 5 position.

2. Gently push the transmission shift arm
(AB, Figure 2-8) fully downward.

3. Align the holes in the transmission
shift arm (AB) and the lower end of the
gear shift control rod (AF). If the holes
do not align, follow the Gear Shift Rod
Adjustment procedure in Section 5.

4. Use two 1/4-20 x 3/4 hex head screws
and 1/4-20 locknuts (Figure 2-8) to
attach gear shift control rod (AF) to
transmission shift arm (AB).

9

Section 2: Assembly

Figure 2-6

Y

Figure 2-7

AH

AC

AD

AB

AA

AT

AS

AG

R

AF

AE

Figure 2-5

Z

T

U

S

V

W

U

S

AA

X

Figure 2-8

AF

AB

Section 2: Assembly

J. Connect Wiring for Handlebar

Warmers and Light

1. Gently unwind the electrical wiring har­ness (A, Figure 2-9) from its shipping
position and route it back toward the
right-side handlebar.

2. Without over-stretching the wiring har­ness, loop it up and around the handle­bar as shown in Figure 2-9.

3. Connect the double-stranded black and
red wires leading from each handlebar
to the matching wires leading from the
wiring harness. The plastic connectors
can only be plugged in one way.

4. Connect the single black wire leading
from the light to the single black wire
leading from the wiring harness.

5. Remove excess slack from the wiring
harness and insert the wires into the
two wire clips shown in Figure 2-9. On
the right-side of the engine, tuck the
wire harness in between the starter box
and the side of the engine (see inset,
Figure 2-9).

6. Using the plastic wire ties (B, Figure
2-9) provided, loosely secure the
wiring harness to the handlebar.

K. Add Motor Oil to Crankcase

1. Be sure that the engine is level before

checking or adding oil.

2. Unscrew dipstick. Fill oil at the dip­stick opening with fresh oil. See the
Engine Owner’s Manual for correct oil
specifications and quantity required.
Do not use SAE 10W40.

3. Wait a few minutes after filling, allow-

ing oil to settle. Insert dipstick and
tighten securely. Remove dipstick and
check oil level. Oil level on dipstick
should always be at the “FULL” mark.
Adjust oil level as necessary. Reinsert
and tighten dipstick.

L. Check Auger Gear Case Oil Level

The auger gear case was filled at the fac­tory with the correct amount of SAE 90
gear oil. This level should be checked be­fore using the unit. Refer to Lubrication
in the Maintenance section of this manual
for complete information.

M. Check Tire Pressure

Check the air pressure in both tires using
an automotive-type tire pressure gauge.
Inflate tires evenly to 8-12 psi
(55-82 kPa).

N. Install Drift Slicers (if equipped)

The drift slicers (C, Figure 2-10) are de­signed for use in deep snow. Their use is
optional for normal snow conditions.

NOTE: For shipping purposes, the drift
slicers are installed backward.

To install the drift slicers:

1. Position the drift slicers as shown, (C,
Figure 2-10) to the outside of the col­lector (auger/impeller) housing.

2. Attach the drift slicers with the four
5/16–18 x 3/4 screws and locknuts (D)
provided with the drift slicers.

Connect Double
Stranded (Black

and Red) Wires

Connect

Single (Black)

Wires

Wire Clips

A

B

CAUTION

Do not start engine until engine
crankcase has been filled with motor oil.
Failure to follow this instruction will re­sult in serious engine damage.

C

D

D

Figure 2-10

Figure 2-9

B

B

10

Tuck Wire Harness

between Starter Box

and Engine

IMPORTANT: Refer to the separate Engine

Owner’s Manual for detailed information
about the controls on the engine.

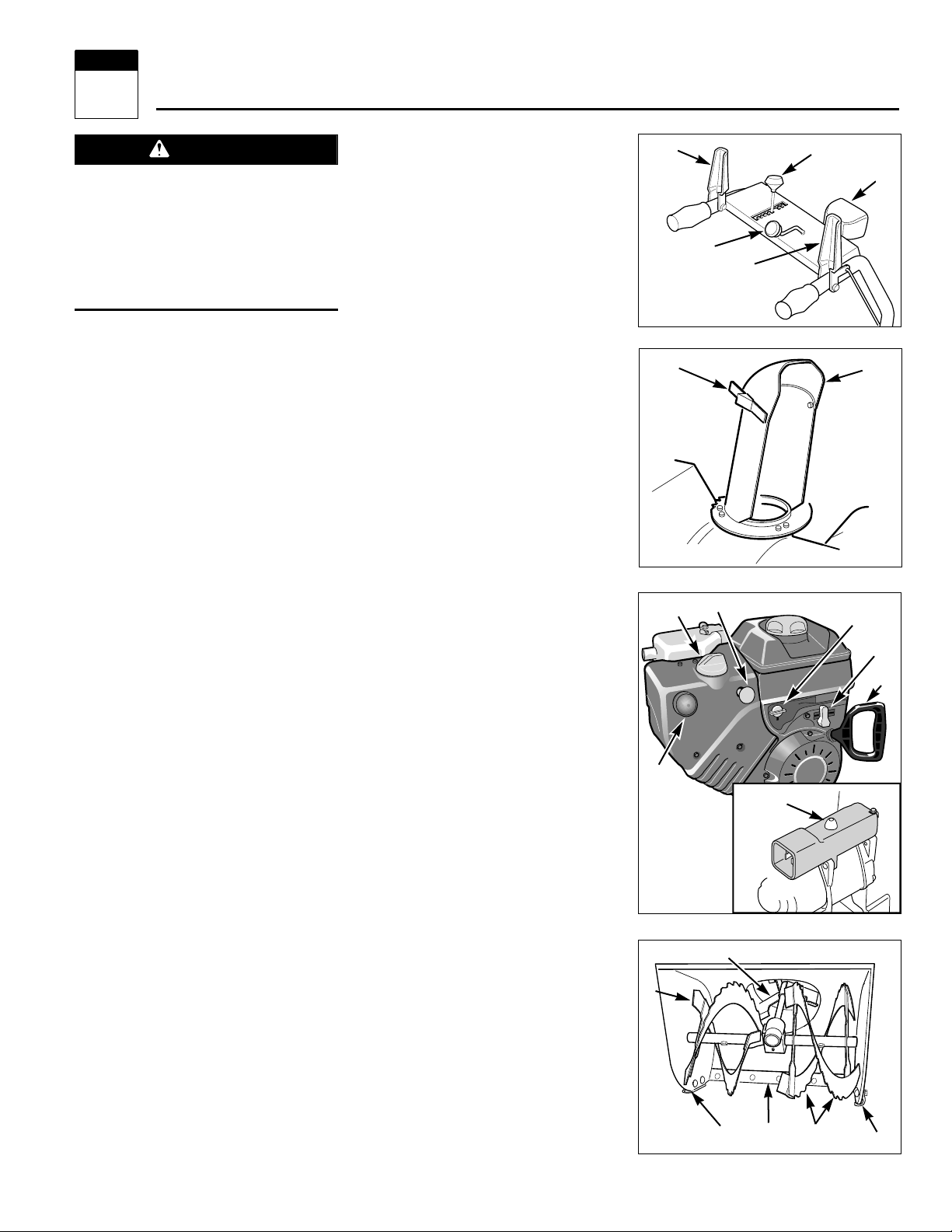

Wheel Drive Control Lever (A, Fig. 3-1)

This lever controls the engagement of the
wheel drive. When the lever is down
against the handlebar and the engine is run­ning, the wheels will rotate. See Section 5
of this manual for adjustment information.

Auger Drive Control Lever (B, Fig. 3-1)

This lever controls the engagement of the
auger drive. When the lever is down
against the handlebar and the engine is
running, the auger (R, Figure 3-4) and
impeller (S) will rotate. See Section 5 of
this manual for adjustment information.

Gear Shift Lever (C, Fig. 3-1)

This lever controls the selection of travel
speeds: five forward and two reverse. See
Section 5 of this manual for adjustment
information.

Discharge Chute Control Rod (D, Fig. 3-1)

This lever controls the direction of the dis­charge chute. Approximately ten turns of
this crank moves the discharge chute all
the way from one side to the other.

Discharge Chute Deflector Cap and Lever
(E & F, Fig. 3-2)

The discharge chute deflector cap (E) con­trols the vertical angle of the snow dis­charge. To adjust the discharge angle,
move the discharge cap by pulling lever (F)
outward and moving the discharge deflec­tor cap up or down. The discharge chute
deflector cap should usually be adjusted to
a low angle, especially in windy conditions.

Fuel Shut-Off Valve (G, Fig. 3-3)

The fuel shut-off valve controls fuel flow
from the fuel tank to the carburetor. Turn
valve 1/4 turn clockwise to OFF (closed)
position when storing or transporting unit.

Turn valve 1/4 turn counterclockwise to
ON (open) position before starting engine.

Throttle (H, Fig. 3-3)

The throttle controls the speed of the en­gine and is used to stop the engine.
NOTE: The engine lubrication and cooling
systems operate best at full throttle.

Primer Button (J, Fig. 3-3)

The primer button pumps small amounts
of gasoline into the engine to improve cold
weather starting.

Recoil Starter (K, Fig. 3-3)

Used for pull-starting the engine.

Stop Switch Key (L, Fig. 3-3)

This key-like device is used to stop the en­gine (the Throttle, as described above, can
also be used to stop the engine). Push the
key in before starting the engine. Pull it out
to stop the engine. Do not twist the key.

Electric Starter (M, Fig. 3-3)

The electric starter uses 120VAC house
current to start the engine. Use only the
electric cord provided with the unit to con­nect to house current.

Choke Knob (N, Fig. 3-3)

The choke knob controls the air/gasoline
mixture that is fed into the engine. Use
the CHOKE setting when starting the en­gine and the RUN setting during operation.
A warm engine may not require choking
when starting.

Skid Shoes (O, Fig. 3-4)

The skid shoes control the distance be­tween the collector (auger/impeller) hous­ing/scraper blade and the ground. This
distance should be adjusted to clear any
uneven or gravel surfaces. Refer to
Section 5 for adjustment information.

Scraper Blade (P, Fig. 3-4)

The scraper blade (P) clears snow close to
the pavement. Refer to Section 5 for ad­justment information.

Light (T, Fig. 3-2)

The light is powered by the engine and
stays on during engine operation.

Handlebar Warmers

The handlebar warmers are activated when
the engine is running. The handlebar grips
will warm gradually to the touch.

Figure 3-3

Figure 3-4

P

R

R

S

O

O

K

J

Figure 3-1

Figure 3-2

F

E

D

B

A

C

T

Before operating your machine, carefully
read and understand all safety, controls,
and operating instructions in this man­ual, the separate Engine Owner’s Manual
and on the decals on the machine.

Failure to follow these instructions can
result in serious personal injury.

WARNING

L

N

G

H

Features and Controls

3

Section

11

M

PRE-OPERATION CHECKLIST

Perform the following checks with the
engine stopped and the spark plug wire
disconnected from the spark plug.

1. Review Section 1: Safety and Section 3:
Features and Controls in this manual.

2. Check for loose or missing hardware.
Tighten or replace as needed.

3. Visually check inside the collector
(auger/impeller) housing and the dis­charge chute and remove any debris.

4. With the unit on level ground, check the
engine oil level according to the in­structions in the engine manual. The oil
level should be at the “FULL” mark on
the dipstick.

5. Turn off engine and let it cool for at
least 2 minutes before removing the
gasoline fill cap. Remove the fill cap
and check the level of gasoline in the
fuel tank according to the instructions
in the engine manual.

Use fresh, clean, unleaded gasoline
(refer to engine manual for additional
gasoline information). Do not overfill
fuel tank. Fill to approximately 1-1/2
inches below top of neck to allow for
fuel expansion. DO NOT MIX OIL
WITH GASOLINE! Tighten the gasoline
fill cap securely.

6. The unit should be adjusted so the col­lector (auger/impeller) housing and

the scraper blade (A, Figure 4-1) are
1/8" above the surface to be cleared. If
clearing gravel or uneven surfaces, in­crease the clearance so gravel or other
foreign objects are not scooped up
into the auger.

To adjust the collector housing

height/scraper blade height:
a. Move the unit onto a level surface.
b. Loosen the four screws securing the

two skid shoes (B, Figure 4-1).

c. Adjust the skid shoes (B) until they

are in the correct position to support
the collector (auger/impeller) hous­ing and the scraper blade (adjust
skid shoes equally to prevent uneven
snow removal).

d. Tighten the four screws.

e. The scraper blade (A, Figure 4-1)

can also be adjusted. Adjust the
scraper blade at the four carriage
bolts (C, Figure 4-1). Adjust the bot­tom edge of the scraper blade so it is
parallel to the bottom edge of the
auger.

7. Use the lever on the Discharge Chute
Deflector Cap (D, Figure 4-3) to adjust
the deflector cap to the desired angle
of discharge. Usually keep the angle
of the deflector cap low, especially in
windy conditions.

8. Rotate the Discharge Chute Control
Rod (E, Figure 4-3) and check for
binding. Leave the discharge chute
pointing straight ahead.

9. Check the Auger Drive and Wheel
Drive control levers (F and G, Figure 4-

3) for freedom of movement.

10. Check the tire pressure. Inflate both
tires evenly to 8 to 12 PSI (55 to 82
Kpa).

11. Apply silicone spray on the inside of
the discharge chute, the chute dis­charge deflector cap, the collector
(auger/impeller) housing, and on the
augers. This will help prevent snow
from sticking (do not allow silicone
spray on rubber or plastic: damage
can result).

12. Reconnect the spark plug wire (see
engine manual) to the spark plug.

STARTING THE ENGINE

1. Complete the Pre-Operation Checklist.
Read the engine manual before start­ing the engine.

2. Move the unit outside to a well-venti­lated, level area. Put the Gear Shift
Lever (H, Figure 4-3) into the desired
gear position. Use the slowest (1)
forward and reverse (R1) speed set­ting when first using the unit.

3. Rotate the Fuel Shut-Off Valve (J,
Figure 4-2) 1/4 turn counterclockwise
to the ON (open) position.

4. Move the Throttle Lever (L, Figure 4-2)
to the FAST position.

5. Insert the Stop Switch Key (K, Figure
4-2) all the way into the switch. (The
key was included in the hardware bag
with other loose parts.)

6. Turn Choke Knob (M, Figure 4-2) to
CHOKE setting (a warm engine may
not require choking when restarting).

CAUTION

Do not start engine until engine
crankcase has been filled with oil.
Failure to follow this instruction will re­sult in serious engine damage.

Operation

4

Section

GASOLINE IS HIGHLY FLAMMABLE AND
ITS VAPORS ARE EXPLOSIVE.

• Follow the gasoline safety rules in this
manual (Section 1) and in the separate
Engine Owner’s Manual.

• Failure to follow gasoline safety in­structions can result in serious per­sonal injury and property damage.

Figure 4-2

N

O

K

M

J

L

P

R

Figure 4-1

A

B

B

C

12

DANGER

Section 4: Operation

7. Push the Primer Button (O, Figure 4-2)
three times (cover hole in center of
bulb when pushing).

8. To start engine with recoil starter:
a. Before pulling recoil starter (N,

Figure 4-2), be sure there are no
obstacles behind you.

b. Pull recoil starter handle rapidly to

overcome engine compression, pre­vent kick-back and start engine.
Maintain control of rope so it slowly
returns into the starter mechanism.
Repeat pulling until engine starts. If
engine fails to start, repeat starting
instructions beginning with Step 3.

c. Let engine warm up. Rotate Choke

Knob (M, Figure 4-2) toward RUN
setting a little at a time over several
seconds in warm weather, or min­utes in cold weather. Let engine run
smoothly before each change.
Operate engine with choke in RUN.

d. Allow unit to adjust to outside tem-

perature before clearing snow.

8. To start engine with electric starter:

a. Plug power cord supplied with unit

into the electric start switch box (R,
Figure 4-2) on the engine.

b. Plug the other end of the power

cord into a properly grounded, 3­pronged 120VAC wall outlet.

IMPORTANT: To prolong starter life, use
short starting cycles (five seconds maxi­mum, then wait one minute).

c. Push the starter button (P, Figure

4-2) on the switch box. When the
engine starts, release the button.

Disconnect power cord from wall
outlet and then from engine. (Store
power cord in a secure place, safely
out of the reach of children.) If en­gine fails to start, repeat starting in­structions beginning with Step 3.

NOTE: The starter is thermally pro­tected. If overheated from continu­ous use, it will stop automatically
and can be restarted only when it
has cooled to a safe temperature (a
wait of approximately 5-10 minutes
is required).

d. Let engine warm up. Rotate Choke

Knob (M, Figure 4-2) toward RUN
setting a little at a time over several
seconds in warm weather, or min­utes in cold weather. Let engine run
smoothly before each change.
Operate engine with choke in RUN.

e. Allow unit to adjust to outside tem-

perature before clearing snow.

STOPPING

Emergency stopping

1. Release both control levers (F and G,
Figure 4-3).

2. Move the Throttle Lever (L, Figure 4-2)
to the STOP position or pull the engine
Stop Switch key (K, Figure 4-2) out.

Normal (non-emergency) stopping

1. Release both control levers (F and G,
Figure 4-3). Wait for the unit to come
to a complete stop.

2. Move the Throttle Lever (L, Figure 4-2)
into the SLOW “” position. Allow
the engine to idle for several minutes
to melt any snow on the engine. Then
move throttle to STOP position.

3. Pull engine Stop Switch key (K, Figure
4-2) out. To prevent unauthorized use
of unit, remove key and store it in a
safe place.

4. Rotate Fuel Shut-Off Valve (J, Figure
4-2) 1/4 turn clockwise to OFF
(closed) position.

5. Disconnect the spark plug wire from
the spark plug.

6. To help prevent possible freeze-up of
controls:
a. Wipe all snow and moisture from

vicinity of controls.

b. Move Throttle Lever back and forth

several times and leave in STOP
position.

c. Rotate Choke Knob several times

and leave in CHOKE position.

Figure 4-3

H

G

F

E

D

TO PREVENT ELECTRIC SHOCK:

• Do not use the 120VAC electric starter
in the rain.

• Do not stand in water or on damp sur­faces when using the electric starter or
when connecting power cord.

• Connect the power cord only to a prop­erly grounded, 120VAC wall outlet.

• Review electric start safety messages
in the Engine Owner’s Manual and in
Section 1 of this Manual.

WARNING

13

Do not attempt to stop engine by moving
Choke Control to CHOKE. Backfire, fire
or engine damage could occur.

WARNING

AUGER DRIVE ENGAGEMENT

1. Remove any debris from inside the
collector (auger/impeller) housing.

2. Adjust the discharge chute deflector
cap (D, Figure 4-3) angle with adjust­ment lever. The deflector cap should
usually be adjusted to a low angle, so
it is not pointing at any persons, ani­mals, buildings or vehicle, especially
in windy conditions.

NOTE: If the auger does not start or stop
rotating as described in Steps 3 and 4
below, an adjustment is required. Refer to
Auger Drive Belt Adjustment in the
Maintenance section.

3. Engage the auger drive by squeezing
the Auger Drive Control Lever (F, Figure
4-3) against the handlebar. The auger
should immediately begin to rotate.

4. Disengage the auger drive by releasing
the Auger Drive Control Lever (F). The
auger should stop within five (5)

seconds.

WHEEL DRIVE ENGAGEMENT

1. Clear all obstructions from in front of
the unit.

2. Stand behind the unit in the operating
position.

3. Move the Gear Shift Lever (H, Figure
4-3) into the first “1” gear position.

NOTE: If the wheels do not start or stop
rotating as described in Steps 4 and 5
below, an adjustment is required. Refer to
Wheel Drive Disc Adjustment in the
Section 5 of this manual.

4. Engage wheel drive by squeezing the
Wheel Drive Control Lever (G, Figure
4-3) against the handlebar. The unit
should immediately move forward.

5. Disengage the wheel drive by releasing
the Wheel Drive Control Lever. The
wheels should stop.

NOTE: To move the unit without throwing
snow, engage only the Wheel Drive
Control Lever.

AUGER DRIVE/WHEEL DRIVE
INTERLOCK FEATURE

The auger drive/wheel drive interlock fea­ture allows the auger and the wheels to be
operated with just one hand, thus freeing
the other hand to operate the Discharge
Chute Control Rod. To engage both func­tions, squeeze both the Auger Drive and
the Wheel Drive levers all the way down.
Holding just the Wheel Drive Control Lever
will keep both levers down in the drive po­sition. To disengage, release the Wheel

Drive Control Lever.
NOTE: If the Auger Drive Control Lever

does not disengage when you release the
Wheel Drive Control Lever, an adjustment
is required. Refer to Auger Drive Belt

Adjustment in the Section 5.

SHIFTING GEARS

1. Release both the auger and wheel
drive control levers (F and G, Figure 4-

3). Wait for the unit to come to a
complete stop.

2. Move the Gear Shift Lever (H, Figure
4-3) into the desired position.

3. Re-engage the control levers (F and G),
as required.

NOTE: There should be full forward travel
in gear position “5” and full reverse travel
in gear position Reverse “R2”. If not, refer

to Gear Shift Rod Adjustment in Section 5.

Reverse

The two reverse settings are used to ma­neuver the snow thrower. Observe the
“WARNING” statement before operating

the snow thrower in reverse.

TRANSPORTING THE UNIT

Release the Auger Drive Control Lever to
disengage the auger drive whenever the
unit is being moved to and from the work
site.

The unit is extremely heavy. Have at least
one other person help you when loading
or unloading the unit into a truck or trailer.
Use ramps when loading or unloading the
unit onto a trailer or truck. Securely tie

the unit to prevent shifting while in transit.

SNOW THROWING TIPS

• Remove snow as soon as possible
after a snowfall.

• Run the engine at full throttle (the “”
position).

• Apply silicone spray onto the inside of

the collector (auger/impeller) housing,
the discharge chute, the deflector cap,
and also on the augers to help prevent
snow from sticking. (Do not spray sili­cone on rubber or plastic: damage will
result).

• Direct discharge downwind.

• If a smooth area is being cleared, ad-

just the skid shoes so the scraper
blade is approximately 1/8" (3mm)
from the ground.

• If a rough or gravel area is being

cleared, adjust the skid shoes so the
scraper blade clears the rough or
gravel surface.

• Use slow travel speeds for safety and

to prevent overloading the unit.

Section 4: Operation

CAUTION

Transmission damage could occur if the
Gear Shift Lever is moved when the unit
is in motion. Carefully follow the shift­ing instructions.

Use extreme caution when operating the
unit in reverse. Clear all obstacles away
from the unit before operating in re­verse. Be prepared for the unit to move
toward you when the Gear Shift Lever is
in the reverse position.

WARNING

Thoroughly inspect the area where the
unit will be used before the first snow­fall. Remove all doormats, sleds,
boards, wires and other debris to pre­vent injury from thrown objects.

WARNING

Stop the engine and remove the spark
plug wire from the spark plug before re­moving any debris from the collector
(auger/impeller) housing.

WARNING

14

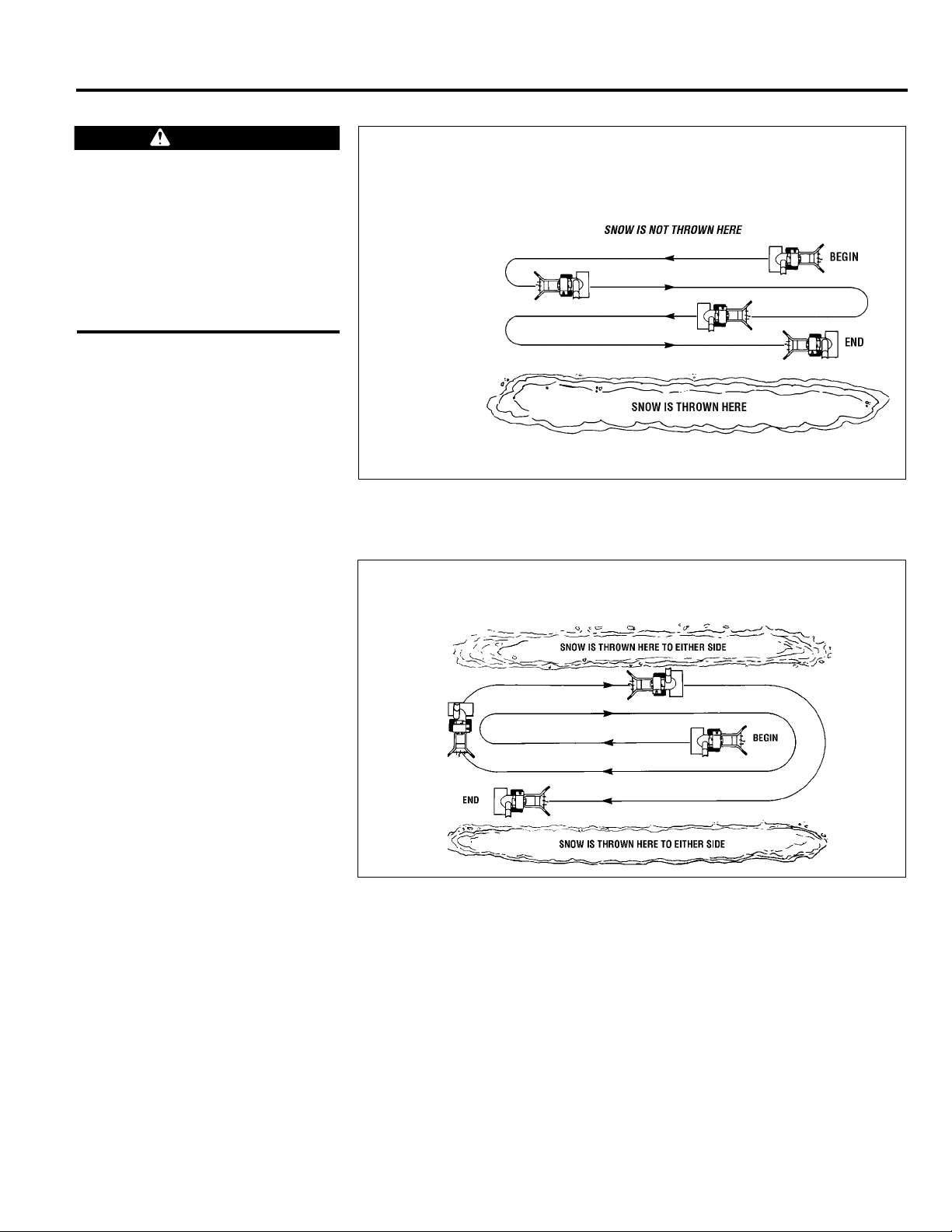

SNOW THROWING PATTERNS

Use the snow clearing pattern shown in
Figure 4-4 when snow can only be thrown
to one side. Begin throwing snow closest
to the side opposite where it can be
thrown and direct the discharge away
from that side. When turning the unit
around after each pass, rotate the dis­charge chute as you proceed so snow
continues to be thrown in the proper
direction.

Use the snow clearing pattern shown in
Figure 4-5 to throw snow to both sides.
When turning the unit, rotate the dis­charge chute as necessary to throw snow
in the proper direction.

Section 4: Operation

Do not use your hands or feet to dislodge
snow from inside the collector
(auger/impeller) housing or the dis­charge chute. Any contact with the
moving parts will cause serious injury.

Stop the engine and remove the spark
plug wire from the spark plug and use a
long (at least 3-feet [100CM] long)
wooden stick to unclog these areas.

WARNING

Figure 4-5

Figure 4-4

As you turn, rotate the
discharge chute so that
the snow is always
thrown in this direction.

The discharge chute stays the same direction

except when turning. Snow is thrown to each side.

➡

15

ENGINE MAINTENANCE

IMPORTANT: Refer to the Engine Owner’s
Manual for complete engine maintenance
information.

Engine Oil

• Check the engine oil level each time be­fore starting the unit and after each 5
hours of operation. With the engine on
level ground, the oil level should be at
the “FULL” mark on the dipstick. Refer to
the engine manual for oil specifications
and complete instructions.

• Change the engine oil according to the
maintenance intervals and instructions in
the engine manual.

TIP: When changing engine oil, fold a
piece of cardboard or aluminum foil into a
shallow “V”, and position it so the oil will
drain through it into the container.

To check the engine oil level:

1. Move the unit to a level surface. Stop

the engine, wait for all parts to stop
moving and disconnect the spark
plug wire from the spark plug.

2. Remove the oil dipstick and wipe the

dipstick with a clean cloth.

3. Screw the oil dipstick back into the oil

fill hole. Remove the dipstick and
check the oil level – it should be up to
the “FULL” mark on the dipstick. If
low, add oil by using the oil dipstick
as a guide. Refer to engine manual
for detailed instructions.

Ignition System

The engine has an electronic ignition sys­tem which does not use points or a con­denser. The spark plug is the only item re-

quiring maintenance in this system.

Spark Plug

Annually or every 100 hours of operation,
remove and inspect the spark plug.
Replace the spark plug if the electrode is
pitted or burned or if the porcelain is
cracked. Refer to the engine manual for
correct spark plug specifications and ser­vicing instructions.
NOTE: Use of an incorrect plug can dam-

age the engine.

Carburetor

The carburetor has been adjusted at the
factory and should not require additional
adjustment. Refer to the engine manual or
contact your dealer for additional carbure-

tor information.

LUBRICATION

At the beginning and end of each season
or after every 25 hours of operation, lubri-

cate the unit as recommended below. The
engine must be stopped and the spark
plug wire disconnected before performing
any lubrication.

1. Lightly oil both the discharge chute
cap pivot points (A, Figure 5-1).

2. Lightly oil the discharge chute control
rod pivot points where the control rod
enters the control panel bearing (B,
Figure 5-3), the support tab (C) and the
support on the left rear of unit housing
(D, Figure 5-4).

3. Remove the left wheel (E, Figure 5-1).
Clean the wheel shaft and apply multi­purpose grease to the wheel shaft.
Reinstall the wheel.

4. Apply oil to the bearings on the sides of
the auger shaft (F, Figure 5-1).

5. Clean dirt and old grease from the
flange at the bottom of the discharge
chute (G, Figure 5-1). Apply multi-pur­pose grease to the worm gear (H) and
to the toothed portion of flange and the
flange.

6. Lightly lubricate the handlebar control
levers at pivot points (J, Figure 5-3)
with oil or a non-silicone spray. Do
not get oil or lubricating spray on
levers.

7. Lightly oil the pivot points on the gear
shift control lever (K, Figure 5-3).

8. Remove the two shear bolts (L, Figure
5-5) from the auger shaft, then lubri­cate the four auger grease fittings (M,
Figure 5-5) using a grease gun. Rotate
auger three or four times. Reinstall
shear bolts, torque to 11 ft-lbs
(15Nm).

9. Check the auger gear case oil level :

a. Place the unit on a smooth, level

surface. Unscrew the plug
(N, Figure 5-5) from the front of
the gear case.

b. Inspect plug hole. Oil should just

begin to seep out of the hole. Add
SAE 90 gear oil if necessary until
oil just begins to flow out of hole.
Let the excess oil drain out of the
gear case.

c. Reinstall the plug (N).

10. Remove bolts (O, Figure 5-4) securing
bottom cover to unit. Remove bottom
cover. Put gear shift lever in highest
speed setting and apply a coating of
multi-purpose grease to the shafts (P
and R, Figure 5-2). Prevent grease
from contacting rubber drive wheel (S)
or drive disk (T). If grease should con­tact these parts, wipe clean to avoid
slippage and assure proper operation.
Move shift lever between high speed
and reverse settings to spread grease
along shafts. Replace bottom cover.

WHEEL DRIVE DISC
ADJUSTMENT

Due to wear, the wheel drive control disc
may begin to slip when wheel drive lever is

engaged. To adjust wheel drive disc:

1. With the engine stopped and the spark
plug wire disconnected, pull the wheel
drive control arm (V, Figure 5-4) down
completely.

2. Put the gear shift lever (AC, Figure 5-

1) in the No. 3 position.

3. Measure and note the distance be­tween the coiled ends of the spring
(W, Fig, 5-4).

Maintenance

5

Section

Moving parts on the unit can cause seri­ous personal injury.

Shut off the engine, let all moving parts
stop completely, disconnect the spark
plug wire and prevent it from touching
the spark plug before performing any
maintenance or service procedures.

WARNING

16

Section 5: Maintenance

4. Squeeze wheel drive control lever (X,
Figure 5-1) against handlebar.
Measure between the coiled ends of
the stretched spring (W, Figure 5-4),
making sure you measure between the
same coils used in step 3. The spring
length should now measure 1/2"
(13mm) longer than the measurement
taken in step 3. If it does not, loosen
jam nut (Y, Figure 5-4) and turn ad­juster (Z, Figure 5-4) to increase or
decrease the spring length. (1-1/4
turns of the adjuster equals 1/16"
[1.5mm] of spring extension.) Hold
the adjuster and tighten the jam nut
(Y) when the correct spring length is
obtained. Re-check measurements
and adjust if needed.

If after completing this adjustment the
wheels do not drive adequately, refer
to Drive Disc Clearance Adjustment in
this Section. Then repeat this
adjustment.

Figure 5-1

F

G

Figure 5-3

C

A

X

AC

J

K

B

J

AB

E

H

Figure 5-2

P

R

S

T

Figure 5-4

V

O

W

D

Y

Z

17

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

AUGER DRIVE BELT AND WHEEL
DRIVE BELT REPLACEMENT

NOTE: The auger drive belt (there is one
auger drive belt on the 9.5HP model and
two auger drive belts on the 11HP model)
must be removed before removing the
wheel drive belt. The illustration (Figure 5-

6) shows two auger drive belts (AD), ig­nore the second belt if the unit is not so
equipped.

Removal

1. With the engine stopped and the spark
plug wire disconnected, remove the
screws and washers (AB, Figure 5-1)
and remove the belt cover from the
unit.

2. Remove the two screws, flat washers
and lockwashers securing belt guide
(AC, Figure 5-6) to the engine.
Remove the belt guide.

3. Loosen jam nut (BA, Figure 5-6) and
remove bolt (BB).

4. Release tension on the idler (AF,
Figure 5-6). Remove the auger drive
belt(s) (AD) from the auger drive pul­ley (AE).

5. Remove the auger drive belt(s) from
the lower drive pulley (AO, Figure 5-9)
and remove belt(s) from unit. NOTE: If
you are not replacing the wheel drive
belt (AG), then proceed to Installation.

6. Remove wheel drive belt (AG, Figure
5-6) from lower drive pulley (AH).
Squeeze wheel drive control lever
against handlebar (X, Figure 5-1) to in­crease gap between lower pulleys as
needed.

7. Remove the wheel drive belt from unit.

Installation

1. Position wheel drive belt (AG, Figure
5-6) into lower drive pulley (AH) clos­est to the engine.

2. Place the belt into the groove closest
to the engine of the engine pulley (AE).

3. Position auger drive belt(s) (AD, Figure
5-6) down through gap. Position the
belt(s) into the lower drive pulley (AO).

4. Position the auger drive belt(s) (AD,
Figure 5-6) into engine pulley (AE).

5. Position belt guide (AC, Figure 5-6)
back on engine and secure with two
screws and washers removed earlier.

6. Reinstall bolt (BB, Figure 5-6), leaving
1/16" (1.5mm) clearance between un­derside of bolt head and front edge of
pulley (AE). Tighten jam nut (BA)
against engine crankcase.

7. If the wheel drive belt has been re­placed, then perform the wheel drive
disc adjustment (see Wheel Drive Disc
Adjustment ).

8. If the auger drive belt(s) have been re­placed, then perform the Auger Drive
Belt Adjustment as described in this
section.

9. Reinstall the belt cover.

SHEAR BOLTS

Special shear bolts (L, Figure 5-5) secure
the augers to the auger shaft and are de­signed to break (shear) if the auger jams.
This prevents damage to other, more vital
parts. Inspect shear bolts before each use
and replace them if they are worn or bro­ken. Torque shear bolts to 11 ft-lbs
(15 Nm).

AUGER DRIVE BELT(S)
ADJUSTMENT

Due to wear, the auger drive belt(s) may
begin to slip when the auger drive lever is
engaged. To adjust the auger drive belt(s):

1. Perform the brake arm adjustment as

described in this section. Leave the
spark plug wire disconnected while per­forming this adjustment.

2. If assembling a new unit, raise the

wheel drive control lever (AP, Figure
5-7) and the auger drive control lever
(AL).

3. Pull the auger drive control arm (AJ,

Figure 5-8) down completely.

4. Measure and note distance between

coiled ends of spring (AK, Figure 5-8).

5. Squeeze auger drive control lever (AL,

Figure 5-7) against handlebar. Measure
between the coiled ends of the
stretched spring (AK, Figure 5-8), mak­ing sure you measure between the
same coils used in step 4.

Section 5: Maintenance

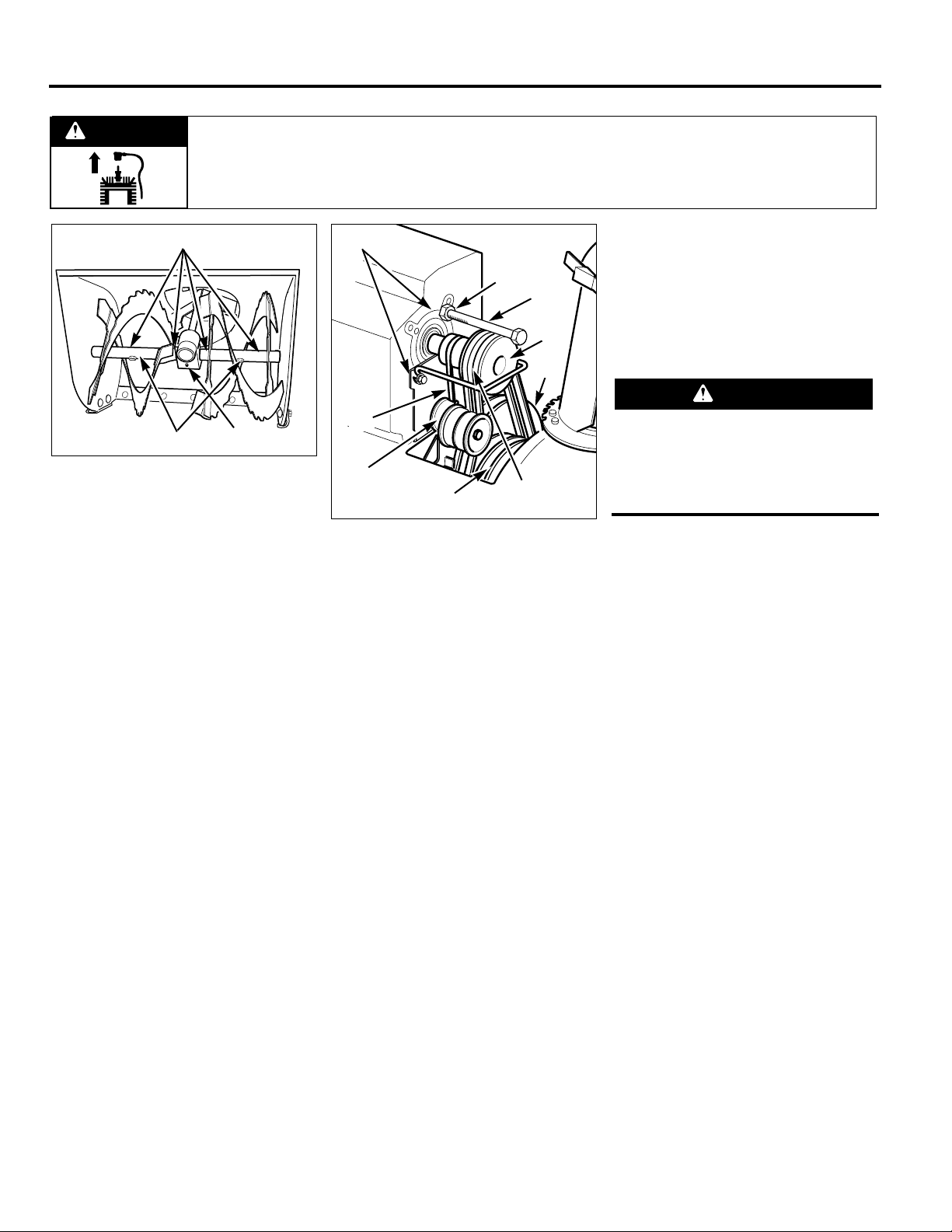

Figure 5-5

Figure 5-6

L

AC

AD

BB

BA

AE

AH

AG

AF

AO

N

M

CAUTION

Using anything but original equipment
shear bolts could result in damage to
the unit. Use factory-specified auger
shaft shear bolts when replacing shear
bolts.

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

18

WARNING

19

The spring length should now measure
9/16" – 11/16" (14–17mm) longer than the
measurement taken in Step 4. If it does
not, loosen the jam nut (AM, Figure 5-8)
and turn the adjuster (AN) to increase or
decrease the length of the spring. Hold
the adjuster and tighten the jam nut (AM)
when the correct spring length is ob­tained. Re-check the measurements and
adjust if needed.

NOTE: 1-1/4 turns of the adjuster equals
1/16" (1.5mm) of spring extension.

GEAR SHIFT ROD ADJUSTMENT

1. With the engine stopped and the spark
plug wire disconnected, move the gear
shift lever (AU, Figure 5-7) to position
No. 5. Remove the hairpin cotter and
the flat washer from the pivot block (N,
Figure 5-10). Disconnect the pivot
block (N) from the gear shift lever plate
(AV, Figure 5-10).

2. Pull the gear shift control rod (AA,
Figure 5-8) down completely.

3. While holding the gear shift control rod
(AA, Figure 5-8) down, loosen the jam
nut (ZZ, Figure 5-10) and thread the
pivot block (N) up or down as needed
so it fits into the hole in the gear shift
lever plate (AV, Figure 5-10).

4. Reinstall the pivot block (N, Figure 5-

10) into the gear shift control lever hole
and secure with the washer and hairpin
cotter. Secure the jam nut (ZZ, Figure
5-10) against the pivot block (N).

5. Move the gear shift control lever (AU,
Figure 5-7) through the full range of
travel. Check for binding. Refer to the

Drive Disc Clearance Adjustment

instructions, if needed.

DRIVE DISC CLEARANCE
ADJUSTMENT

If the gear shift rod lever does not move
freely through all the gear positions, ad­just clearance (AY, Figure 5-9) as follows:

1. With the engine stopped and the spark
plug wire disconnected, loosen jam nut
(AW, Figure 5-8). Rotate adjusting
screw (AX) until rubber drive wheel (T,
Figure 5-9) contacts metal drive disc
(U).

2. Turn the rubber drive wheel (T, Figure
5-9) and the metal drive disc (U) to
find the point of minimum clearance
(AY). (This is where both the drive
wheel [T] and metal disc [U] are
touching.)

3. Adjust the discs at the point of mini­mum clearance. Loosen adjusting
screw (AX, Figure 5-8) 1/2 turn.
Secure the adjusting screw (AX) in
place, while tightening the jam nut
(AW).

4. Check the clearance (AY, Figure 5-9)
by moving gear shift lever (AU, Figure
5-7) through all positions. Repeat
Step 3 as necessary.

BRAKE ARM ADJUSTMENT

The brake arm adjustment is set at the
factory to 1/16 - 1/8" for proper belt/brake
clearance. Due to wear, this may need
adjustment.

Section 5: Maintenance

Figure 5-7

AB

AL

Figure 5-8

Q

AK

AJ

AA

AN

AM

AX

AW

AU

AP

Figure 5-9

AY

T

U

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

Section 5: Maintenance

To adjust brake arm:

1. With engine stopped and spark plug
wire disconnected, remove screws and
washers (AB, Figure 5-1) and remove
belt cover from unit.

2. Squeeze the auger drive control lever
(AL, Figure 5-7) against handlebar.

3. Using a flashlight, look down through
the pulleys and belts (Figure 5-6).
Check gap between brake arm (A,
Figure 5-11) and belt (B). The gap
should measure between 1/16" and
1/8" (1.5–3 mm).

4. To adjust gap: Loosen nut (C, Figure
5-11). Hold bolt (D) in place and rotate
nut (E) until proper clearance is ob­tained. Secure nut (C).

5. Reinstall the belt cover.

SKID SHOES/SCRAPER BLADE

The unit should be adjusted so the collec­tor (auger/impeller) housing and the
scraper blade (N, Figure 5-12) are 1/8" (3
mm) above the surface to be cleared. If
the unit is used to clear gravel or uneven
surfaces, this adjustment should be in­creased so gravel or other foreign objects
are not scooped into the auger. To adjust
the collector housing/scraper blade height:

1. Move the unit onto a level surface.

2. With the engine stopped and the spark
plug wire disconnected, loosen the
hardware securing the skid shoes (M,
Figure 5-12).

3. Adjust skid shoes until they are in the
correct position to support collector
(auger/impeller) housing and scraper

blade (adjust both skid shoes equally
to prevent uneven snow removal).

4. Tighten the hardware to lock the
skid shoes (M, Figure 5-12) into the
proper position.

5. The scraper blade (N, Figure 5-12) can
also be adjusted. Adjust scraper blade
(N) at carriage bolts. Adjust bottom
edge of scraper blade so it is parallel
with bottom edge of auger.

SLIP DIFFERENTIAL
ADJUSTMENT

1. With the engine stopped and the spark
plug wire disconnected, remove hub
cap (AQ, Figure 5-13) at end of wheel
shaft on right side of unit.

2. Remove outer (AR, Figure 5-13) and
inner jam nuts (AS) and both pairs
(four single disc springs) of disc
springs (AT). Inspect springs and re­place them if they are worn.

3. Reinstall disc springs (AT, Figure 5-

13) and inner jam nut (AS). Tighten
jam nut (AS) by hand until it contacts
the disc spring, then tighten (AS) 1 to
1-1/4 turns more. DO NOT force nut
more than 1-1/4 turns or differential
will not work (unit will be difficult to
turn).

4. Secure the inner nut (AS, Figure 5-13)
in place, while tightening the outer nut
(AR).

5. Reinstall cover (AQ, Figure 5-13).

OFF-SEASON STORAGE

When storing the unit for more than 90
days, follow these procedures to help keep
the unit in good condition for future use:

• Clean dirt, grime and grease from the
unit and engine.

• Perform routine lubrication as in­structed earlier in this section.

• Service the engine according to the
Storage instructions in the engine
manual. Add a fuel stabilizer to the
fuel tank, according to the instructions
provided with the stabilizer. Change
the engine oil.

• On units so equipped, rotate the fuel
shut-off valve to the “OFF” position.

• Thoroughly inspect the unit for any
loose, damaged, or missing parts.
Repair or replace the parts as neces­sary. Check all nuts, bolts and other
fasteners for tightness and tighten as
necessary.

• Touch-up scratches and chipped paint
to prevent corrosion.

• Store the unit on a level surface, out of
the reach of children.

Figure 5-10

N

AV

ZZ

Figure 5-11

A

B

D

E

C

1/16" - 1/8"

1.5 - 3 mm

Figure 5-12

N

M

M

20

Figure 5-13

AQ

AT

AS

AR

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

21

Section 5: Maintenance

POSSIBLE PROBLEM

1. Choke knob in incorrect position

2. Engine throttle lever in incorrect start­ing position

3. Engine not primed enough (when cold)

4. Engine primed too much (when cold)

5. Spark plug wire disconnected

6. Fouled or faulty spark plug

7. Gasoline tank empty

8. Fuel shut-off valve is closed

9. Carburetor “varnished” from old gas

1. Incorrect choke knob setting

2. Throttle lever in incorrect position

3. Fuel shut-off valve closed

4. Engine not primed enough

5. Stale gasoline in tank

6. Fouled or faulty spark plug

1. Faulty or fouled spark plug

2. Incorrect choke setting

1. Dirty air screen

2. Low engine oil level

3. Dirty cooling fins

4. Loose spark plug

1. Tension too low on spring at lower
end of auger drive control rod

2. Broken auger shear bolts

3. Loose or broken spring

4. Auger frozen

SOLUTION

1. Move choke knob to CHOKE position

2. Move throttle lever to correct starting
position

3. Push primer button several more times

4. Put choke knob in RUN position, move

throttle lever to idle position, attempt to
start engine, then proceed with normal
starting procedure. DO NOT re-prime!

5. Connect spark plug wire

6. Remove, clean, inspect, re-gap or

replace spark plug

7. Fill gasoline tank

8. Open fuel shut-off valve

9. Contact authorized dealer

1. Put choke knob in correct setting

2. Move throttle lever into FAST position

3. Open fuel shut-off valve

4. Push primer button several more times

5. Drain gasoline from tank, refill with
fresh gasoline

6. Remove, clean, inspect, re-gap or

replace spark plug

1. Remove, clean, inspect, re-gap or

replace spark plug

2. After engine starts, gradually rotate
choke knob to RUN position

1. Remove all debris from air screen

2. Check oil, add as necessary

3. Clean cooling fins

4. Tighten plug

1. Increase tension on spring

2. Replace auger shear bolts

3. Replace spring

4. Allow auger to thaw

(continued)

TROUBLE

Engine won’t start

Engine difficult to start

Engine idles rough

Engine overheats

Auger drive lever does not actuate
auger

TROUBLESHOOTING

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

22

TROUBLE

Auger drive control lever does not
engage auger drive

Auger spins with drive lever
disengaged

Wheel drive control lever does not turn
wheels

Wheels turn with wheel drive control
lever disengaged

Snow thrower does not throw snow well

Snow thrower does not clear snow

Snow thrower makes sloping cut in snow

Electric start motor won’t crank engine

POSSIBLE PROBLEM

1. Broken square key on engine drive
pulley

2. Broken woodruff key on input shaft

1. Tension too high on spring at lower
end of auger drive control rod

1. Tension too low on spring at lower
end of wheel drive control rod

2. Broken wheel drive chain(s)

3. Drive disk out of adjustment

4. Broken or excessively worn wheel
drive belt

5. Broken square key on engine pulley

1. Tension too high on spring at lower
end of wheel drive control rod

2. Drive disk out of adjustment

1. Discharge chute, impeller or auger
clogged with snow, slush or ice

2. Snow sticks to auger or chute

3. Incorrect gear setting

4. Loose auger drive belt(s)

1. Skid shoes set too high

2. Scraper blade adjusted incorrectly

1. Skid shoes not set at equal height

2. Scraper blade adjusted incorrectly

1. Power cord unplugged from outlet

2. Faulty power cord or plug

3. Overheated starter

SOLUTION

1. Replace key

2. Replace key

1. Decrease spring tension

1. Increase spring tension

2. Replace chain(s)

3. Re-adjust drive disc

4. Replace wheel drive belt

5. Replace key

1. Decrease spring tension

2. Adjust drive disc

1. Stop engine, disconnect spark plug
wire, use a long stick to unclog
chute, auger and/or impeller

2. Spray auger and chute with silicone
lubricant

3. When snow throwing, generally use
faster speeds – use slower speeds
with heavier snow

4. Adjust auger drive belt(s)

1. Adjust skid shoes until scraper
blade is evenly adjusted 1/8" (3 mm)
above surface being cleared (or
higher on gravel or rough ground)

2. Adjust scraper blade until blade is
evenly adjusted above surface being
cleared

1. Adjust skid shoes to equal height

2. Adjust scraper blade ends equally

1. Plug power cord into outlet

2. Replace power cord

3. Allow starter motor to cool 5-10
minutes before trying to start
engine again

TROUBLESHOOTING (continued)

Section 5: Maintenance

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

23

Section 5: Maintenance

REQUIRED MAINTENANCE SCHEDULE

This table describes service guidelines only and does not provide complete service information. For complete service information,
contact your local authorized dealer.

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to come to
a complete stop, disconnect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

Before After

Every 25

Every 50 Annually Comments

Each Each Operating Hours

Operating Hours

Use Use or Annually or Annually

Check engine oil level

✓

(1)

See Engine Manual

Check all hardware for tightness ✓
Check Auger Drive Lever Operation ✓
Check Wheel Drive Lever Operation ✓
Lubricate handlebar control levers

and linkages

✓

Remove snow, slush and ice
from snow thrower

✓

Change engine oil ✓

(1) See Engine

Manual

Check tire pressure and condition ✓
Check auger gear box oil level ✓

Check belts for wear

✓

Cooling air screen ✓

See Engine

Manual

Check, clean, re-gap or replace
spark plug

✓

(2)

See Engine

Manual

Apply oil to drive chains–wipe excess ✓
Check belts for wear, damage,

and adjustment

✓

Adjust brake arm ✓
Grease auger ✓

Remove rust and touch-up ✓

Required Maintenance

Schedule

(1) Change oil after the first two hours of operation.
(2) Annually or after every 100 operating hours.

WARNING

24

Specifications, Optional Kits and Accessories

SPECIFICATIONS/OPTIONAL KITS AND ACCESSORIES

Specifications

Below is a list of specifications for your snow thrower. The information is the most current at the time this manual was printed.

Kit Description

Tire Chain Kit . . . . . . . . . . . . . Includes tire chains for added traction.

Drift Slicer Kit . . . . . . . . . . . . . Includes drift slicers and mounting hardware

Cab Kit . . . . . . . . . . . . . . . . . . Includes three-sided protective cab, framework and hardware.

Optional Kits and Accessories

The items listed below are available for your snow thrower. The information is the most current available at the time this literature was
printed. To order the kits, contact your dealer or call the Factory.

Engine Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5HP - Briggs & Stratton

11HP - Briggs & Stratton

Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-cycle, horizontal shaft

Engine Motor Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Refer to Engine Owner’s Manual

Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 speeds Forward, 2 Reverse

Clearing Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5HP Model - 26"

11HP Model - 30"

Gear Case Oil SAE 90-weight Gear Oil

Tire Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12 PSI (55-82 Kpa)

25

Parts List

Models 42051 & 42052

5

19

1

2

3

4

3

922

22

8

14

15

16

20

25

6

24

17

27

7

26

15

14

8

23

18

12

12

11

12

12

13

13

13

13

1 1185224 Oil Seal.........................................................1

2 1185374 Needle Bearing............................................1

3 1185841 Thrust Race ................................................ 2

4 1185431 Roller Thrust Bearing.................................. 1

5 1739790 Impeller Shaft ............................................. 1

6 1185842 Washer........................................................ 1

7 1118726 Internal Retaining Ring ............................... 1

8 1773207 Oil Seal........................................................ 2

9 1773170001 Flanged Cover............................................. 1

11 1735894001 Gear Case.................................................... 1

12 1741832 Hex Hd. Cap Screw, 1/4–20 x 5/8 ............... 4

13 1100241 Lock Washer, 1/4........................................4

14 1185728 Flange Bearing ............................................ 2

15 1185815 Thrust Race................................................. 2

16 1720933 Worm Gear, 20T.......................................... 1

17 1720763 Spacer......................................................... 1

18 1100276 Woodruff Key, 1/4 x 7/8..............................1

19 1741774 Spacer......................................................... 1

20 1105620 Square Head Plug, 1/4–18 NPT................... 1

22 † Sealant ..................................................... N/I

23 1720894 Auger Shaft (A) ........................................... 1

1916963 Auger Shaft (B) ........................................... 1

24 1185840 Thrust Race................................................. 1

25 1741775 Spacer......................................................... 1

26 1112634 Welch Plug.................................................. 1

27 1185568 Needle Bearing............................................1

101 1700182 Gear Lube, EP 90, 8 oz. ............................N/I

Ref. # Part # Description Qty.

Ref. # Part # Description Qty.

(A) For Model 42051
(B) For Model 42052

N/I Item not included with unit. Order separately.

† Use General Electric SILMATE #RTV 1473

or equivalent. Obtain locally.

DRAWING NO. 1

DRAWING NO. 2

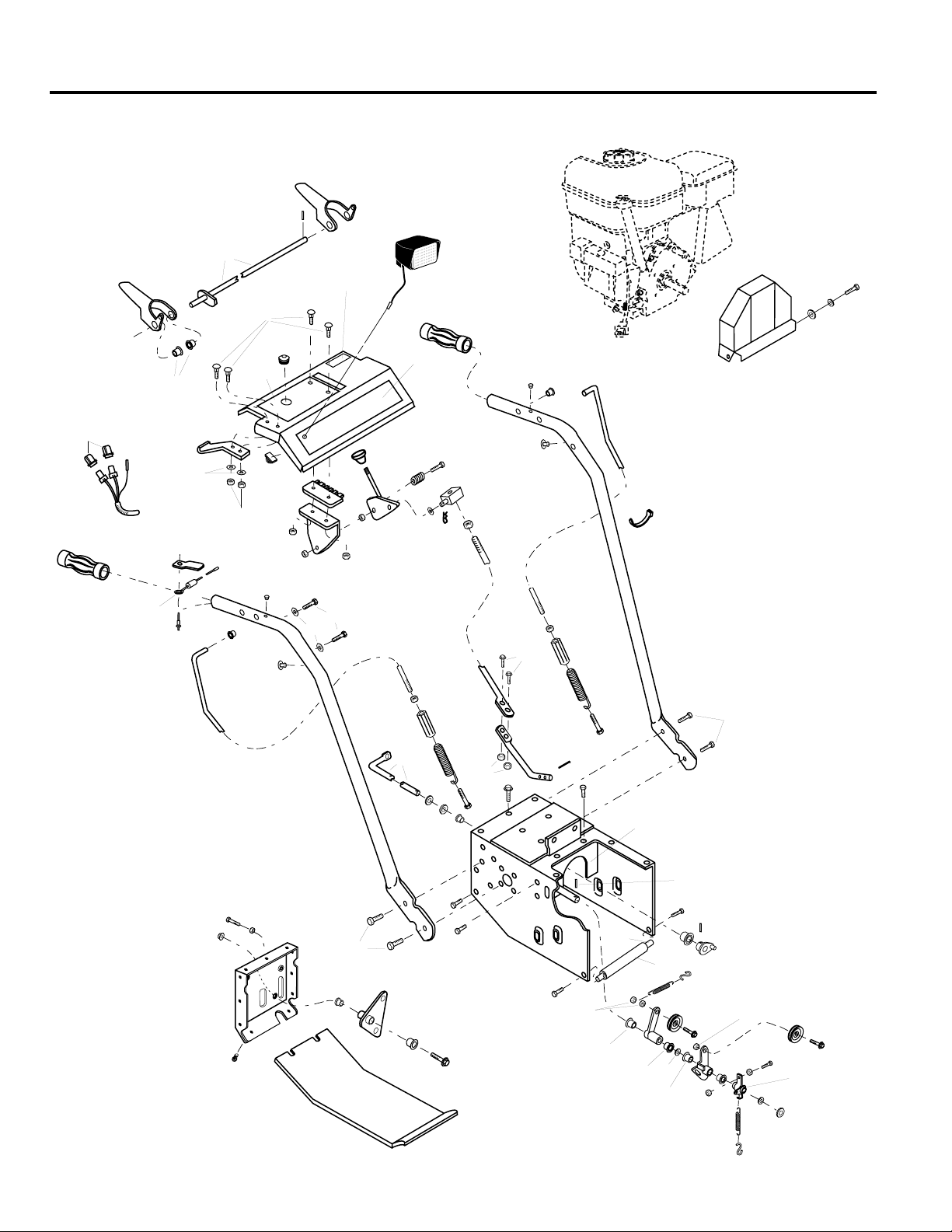

Parts List

Models 42051 & 42052

26

84

68

111

20

33

11

25

100

96

39

100

26

30

7

56

56

97

49

40

50

50

97

49

10

7

5

112

22

22

21

76

58

57

57

55

4

62

19

36

18

17

78

79

63

49

32

41

81

38

16

16

16

16

68

68

68

44

44

29

15

52

10

8

14

13

62

43

54

31

83

90

99

91

98

27

6

70

71

45

85

82

5

74

5

5

53

4

4

67

67

1

1

86

87

88

102

84

65

82

34

48

77

23

42

34

34

35

16

49

64

69

72

92

113

37

46

16

3

12

9

95

61

26

1 1745576 Handle Grip.................................................. 2

3 1739937 Idler Arm ..................................................... 1

4 1733398 Lock Nut, 3/8–16......................................... 3

5 1734398 Lock Nut, 1/4–20......................................... 6

6 1764738 Left Control Handle...................................... 1

7 1765534 Fillister-Head Bolt, 5/16–18 x 1.................... 2

8 1100242 Lock Washer, 5/16....................................... 2

9 1728072 Push Nut...................................................... 2

10 1764741 Wheel Drive Clutch Rod............................... 1

11 1760258010 Back Plate.................................................... 1

12 1757831010 Left Handlebar............................................. 1

13 1100044 Hex Hd. Screw, 5/16–18 x 3/4..................... 2

14 1100255 Flat Washer, 5/16......................................... 2

15 1740030 Belt Cover.................................................... 1

16 1715716 Bushing ....................................................... 6

17 1185506 Self-Locking Jam Nut, 3/8–16..................... 2

18 1740011 Extension Spring ......................................... 1

19 1729440 Idler Pulley .................................................. 1

20 1186334 Flange Screw, 5/16–18 x 1-3/4.................... 1

21 1739935 Idler Arm ..................................................... 1

22 1186329 Flange Screw, 5/16–18 x 3/4....................... 2

23 1757841 Control Arm................................................. 1

25 1739838010 Bottom Cover............................................... 1

26 1186345 Flange Screw, 3/8–16 x 3/4......................... 4

27 1764739 Right Control Handle ................................... 1

29 1186231 Hex Nut, 3/8–16........................................... 1

30 1757832010 Right Handlebar........................................... 1

31 1760196 Control Bracket............................................ 1

32 1739932 Control Arm................................................. 1

33 1186258 Jam Nut, 5/16–18........................................ 1

34 1890234 Flat Washer, 1/2........................................... 3

35 1706782 Bowed Washer............................................. 1

36 1740989 S-Hook ........................................................ 1

37 1100356 Cotter Pin, 3/32 x 1...................................... 1

38 1739756 Cross Member............................................. 1

39 1186393 Flange Nut, 3/8–16 ...................................... 1

40 1100805 Hex Hd. Cap Screw, 1/4–20 x 3/4................ 2

41 1743493 Drive Pin, 1/8 x 3/4...................................... 1

42 1760253 Lower Control Rod ...................................... 1

43 1713167 Compression Spring.................................... 1

44 1760254 Upper Control Rod....................................... 1

45 1918905 Wiring Harness............................................ 1

46 1754272 Support Assembly....................................... 1

48 1727053 Pivot Block................................................... 1

49 1186229 Hex Nut, 1/4–20........................................... 4

50 1764743 Auger Control Rod....................................... 1

52 1735531 Plastic tie..................................................... 5

53 1760255 Shift Control Arm......................................... 1

54 1757842 Knob............................................................ 1

55 1739941 Brake Arm.................................................... 1

56 1765535 Extension Spring ......................................... 2

57 1107385 Flat Washer, 1/2”......................................... 2

58 1740990 Extension Spring ......................................... 1

61 1186327 Flange Screw, 5/16-18 x 1/2........................ 2

62 1100086 Hex Hd. Cap Screw, 3/8–16 x 1-3/4............. 2

63 1772011 Hex Hd. Cap Screw, 1/4-20 x 1.................... 1

64 1918881 Logo Decal................................................... 1

65 1754128 Thread-Forming Screw, 1/4–20 x 5/8.......... 4

67 1750796 Wear Button................................................. 2

68 1724491 Thread-Forming Screw, 5/16–18 x 3/4........ 13

69 1918476 Console (Incl. Ref. 71)................................. 1

70 1185585 Flip Grommet............................................... 1

71 1917457 Instructions Decal........................................ 1

74 1764711 Shift Quadrant ............................................. 1

76 1742250 S-Hook ........................................................ 1

77 1703011 Cotter Spring............................................... 1

78 1982612 Hex Hd. Screw, 3/8–16 x 2 ......................... 1

79 1745499 Idler Pulley (A)............................................. 1

1916956 Idler Pulley (B)............................................. 1

81 1746607 Plastic Tubing.............................................. 1

82 1107381 Flat Washer, 1/4........................................... 6

83 1724879 Cord Clip...................................................... 2

84 1773905 Bushing ....................................................... 2

85 1748836 Connector Body........................................... 2

86 1186424 Pop Rivet, 1/8.............................................. 2

87 1773904 Resistor....................................................... 2

88 1746516 Clamp.......................................................... 2

90 1764733 Flat Spring................................................... 1

91 1755779 Flange Bearing............................................. 2

92 1115931 Round Head Screw, 1/4-20 x 5/8................. 4

95 1100346 Cotter Pin, 3/32 x 3/4................................... 2

96 1763219 Shoulder Bolt............................................... 1

97 1764740 Adjusting Nut............................................... 2

98 1764737 Control Rod................................................. 1

99 1737015 Roll Pin, 1/8 x 5/8........................................ 1

100 1715538 Nyliner Flange Bushing................................ 2

102 1714243 Flange Bearing............................................. 2

103 1900706 Troy-Bilt Red Spray Paint, 13 oz. .............. N/I

104 1735222 Troy-Bilt Black Spray Paint, 13 oz................ N/I

111 1760218 Speed Control Arm ..................................... 1

112 --- Frame (see pgs. 28-29) ............................... 1

113 1918428 Light Kit ...................................................... 1

Ref. # Part # Description Qty.

Ref. # Part # Description Qty.

Models 42051 & 42052

Parts List

(A) For Model 42051
(B) For Model 42052

N/I Item not included with unit. Order separately.

27

28

Parts List

Models 42051 & 42052

76

74

74

8

5

64

80

64

80

73

73

18
19
33

18
19
32

52

26

46

17

82

27

30

25

25

111

56

54

55

1

59

51

86

85

44

112

112

112

17

17

23

3

21

28

21

108

25

28

2

24

6

57

12

13

59

51

58

58

86

53

104

26

75

26

78

81

110

84

69

45

45

44

15

63

83

61

28

67

70

66

72

23

82

82

50

49

14

4

48

36

62

65

62

48

7

4

205

203

204

100

87
88
20

60

43

44

99

102

31

113

103

44

38

68

77

43

60

114

97

94

107

93

91

95

101

96

101

37

DRAWING NO. 3

29

1 1100045 Hex Hd. Screw, 5/16–18 x 1............................ 3

2 * Briggs & Stratton Engine................................. 1

3 1745485 Control Arm..................................................... 1

4 1100242 Lock Washer, 5/16........................................... 3

5 1903416 Shoulder Bolt, 3/8-16 x 1-1/2.......................... 1

6 1187474 Square Key, 1/4 x 2-1/4................................... 1

7 1749177 Belt Guide........................................................ 1

8 1917742 Bushing............................................................ 1

12 9677 Set Screw, 5/16–18 x 5/8................................. 2

13 1917406 Engine Sheave ................................................ 1

14 1751601 V-Belt .............................................................. 1

15 1760260 Drive Support (Incl. Ref. 110).......................... 1

17 1118808 Retaining Ring................................................. 5

18 0182087 Offset Link (Half Link)...................................... 2

19 1185013 Connecting Link, #41....................................... 2

20 1739454 Final Drive Chain #40 (Requires Refs. 87 & 88) 1

21 1745437 Control Link..................................................... 1

23 1714299 Flange Bushing................................................ 2

24 1186391 Flange Lock Nut, 5/16–18................................ 4

25 1186393 Flange Lock Nut, 3/8–16.................................. 3

26 1739458 Flange Bearing................................................. 4

27 1745498 Sprocket Assembly, 9T/17T............................. 1

28 1100346 Cotter Pin, 3/32 x 3/4....................................... 6

30 1739497 Support Plate................................................... 1

31 --- Sprocket, 30T (see Ref. 99) ............................ 1

32 1745880 Drive Chain (Requires Refs. 18 and 19) ............ 1

33 1745879 Drive Chain (Requires Refs. 18 and 19) ............ 1

36 1741647 Compression Spring........................................ 1

37 1746744 Axle Shaft ........................................................ 1

38 1755894 Hex Hd. Screw, 5/16–18 x 1-3/4...................... 1

43 1739471 Flange Bushing, 7/8......................................... 2

44 1732499 Lock Nut, 5/16–18........................................... 11

45 1916885 Hex Shaft......................................................... 1

46 1745860 Shaft Support................................................... 2

48 1100044 Hex Cap Screw, 5/16–18 x 3/4......................... 4

49 9929 Special Flat Washer.......................................... 2

50 1745488 Wheel Drive Sheave......................................... 1

51 1743433 Ball Bearing...................................................... 2

52 1110644 Cap Screw, 3/8–16 x 3-1/2.............................. 2

53 1754302 Drive Disc Support........................................... 1

54 1185885 Woodruff Key, 3/16 x 5/8................................. 1

55 1745535 Spindle............................................................. 1

56 1720918 Drive Plate ....................................................... 1

57 1100005 Hex Head Screw, 5/16–24 x 1.......................... 2

58 1718781 Shim................................................................A/R

59 1739488 Bearing Retainer.............................................. 2

60 1740002 Flat Washer, 7/8............................................... 4

61 1760252 Connecting Link............................................... 1

62 1739485 Bearing Retainer.............................................. 2

63 1736561 Snap Ring........................................................ 1

64 1720811 Bearing Flange................................................. 2

65 1741733 Ball Bearing...................................................... 1

66 1186327 Flange Screw, 5/16–18 x 1/2 ........................... 5

67 1739490 Friction Disc Hub............................................. 1

68 1185376 Drive Pin, 3/16 x 1-1/2..................................... 1

69 9361 Woodruff Key................................................... 1

70 1720859 Molded Friction Disc........................................ 1

72 1709224 Special Washer................................................ 1

73 1720810 Bearing Flange Assembly................................. 2

74 1772333 Lock Nut, #10–24............................................ 8

75 1745497 Sprocket Assembly, 9T/30T............................. 1

76 1185496 Jam Nut, 1/2–13.............................................. 1

77 1758305 Drive Pin ......................................................... 1

78 1739476 Spacer.............................................................. 2

80 1185808 Ball Bearing...................................................... 2

81 1745495 Sprocket, 9T .................................................... 1

82 1714233 Nylon Bushing ................................................. 4

83 1705093 Special Flat Washer.......................................... 1

84 1107386 Flat Washer, 5/8............................................... 1

85 1745489 Spacer.............................................................. 1

86 1745490 Bearing Retainer.............................................. 2

87 1185026 Connecting Link............................................... 1

88 1120213 Offset Link (Half Link)...................................... 1

91 1756230 D-Hole Drive Washer ...................................... 1

93 1746743 Disc Spring ..................................................... 4

94 1756231 Dust Cap ......................................................... 1

95 1746739 Friction Disc .................................................... 1

96 1758300 Flange & Axle Tube Assembly ......................... 1

97 1716223 Lug Bolt .......................................................... 3

99 1758898 Differential Assembly (Incl. one Ref. 31

and four ea. Refs. 44, 100, 102) ................ 1

100 --- Hex Hd. Bolt, 5/16-18 x 4-1/2 (see Ref. 99) ..... 4

101 1745883 Nylon Bushing ................................................ 2

102 --- Spacer (see Ref. 99) ...................................... 4

103 1758302 Axle Shaft ........................................................ 1

104 1754303 Hex Head Screw, 3/8–16 x 8-1/2..................... 1

107 1186233 Jam Nut, 1/2–13 ............................................. 2

108 1754301 Tubular Spacer................................................. 1

110 1739460 Flange Bearing................................................. 2

111 1760218 Speed Control Arm ......................................... 1

112 1918852010 Frame............................................................... 1

113 1757886 Wheel & Tire Assembly ................................... 1

114 1757880 Wheel & Tire Assembly ................................... 1

203 1186211 Hex Nut, 5/16-24 ............................................. 1

204 1916959 Hex Hd. Cap Screw, 5/16-24 x 4-1/2................ 1

205 1100255 Flat Washer, 5/16............................................. 2

Ref. # Part # Description Qty.

Ref. # Part # Description Qty.

Models 42051 & 42052

Parts List

*Purchase engine parts from the nearest authorized engine dealer. Refer to engine for type and code.
A/R – As Required

30

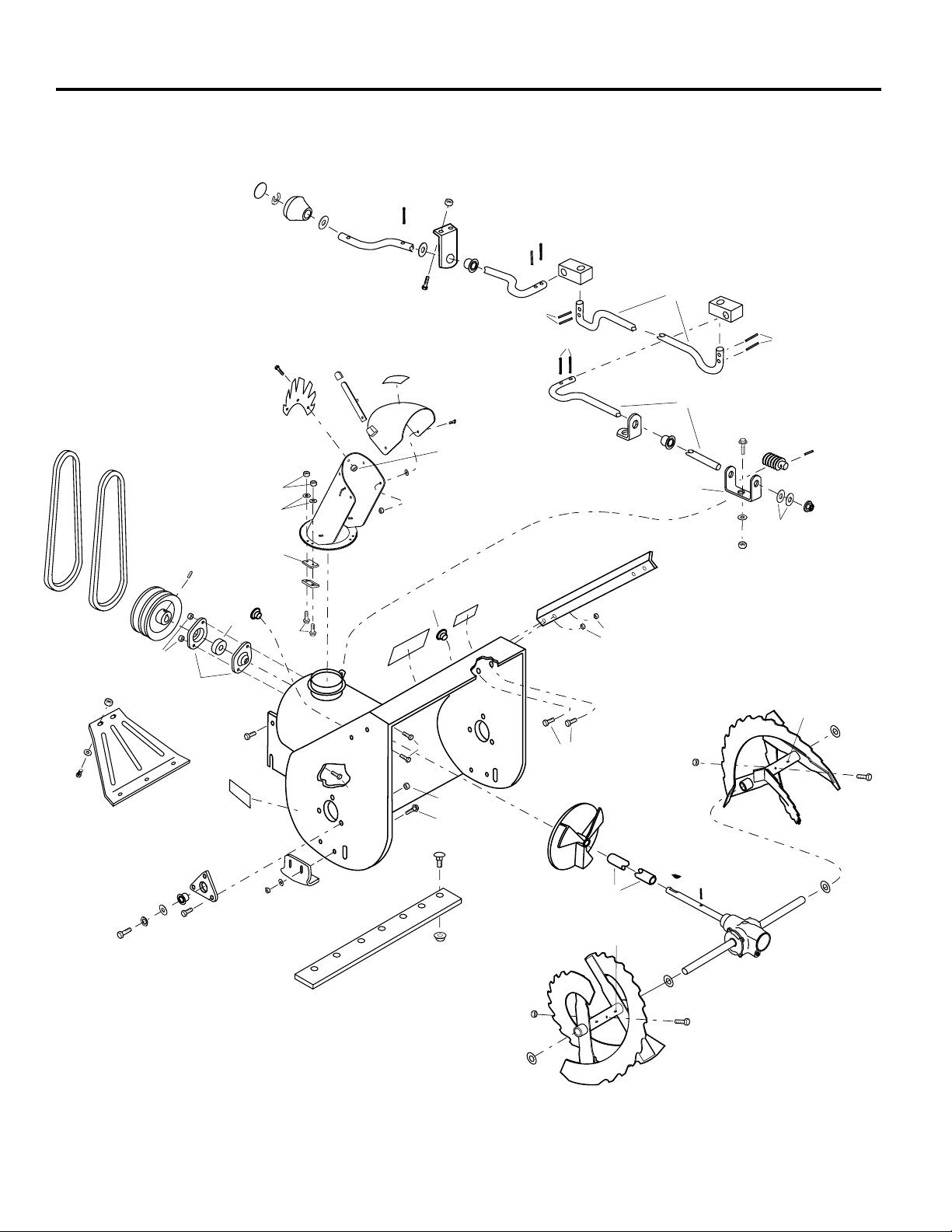

Parts List

Models 42051 & 42052

69

2

3

70

22

56

4

51

47

47

57

57

62

22

7

7

56

56

9

52

13

9

7

62

11

12

1

15

16

6

63

17
58

73

19

68

68

60

71

58

14 58

50

48

49

66

47

43

44

42

74

58

59

46

64

14

17

58

35

35

34

36

41

40

39

38

37

30

67

53

54

5

76

4

4

32

32

20

21

45

10

33

29

58

27

27

26

31

29

29

29

26

65

25

24

23

72

28

61

18

DRAWING NO. 4

31

1 1186329 Flange Bolt, 5/16–18 x 3/4........................... 1

2 1185403 Retainer, 3/8................................................ 1

3 1757843 Knob............................................................ 1

4 1107383 Flat Washer, 3/8........................................... 7

5 1737499 Grip.............................................................. 1

6 1185984 Flange Nut, 3/8–16 ...................................... 1

7 1177625 Roll Pin, 1/8 x 3/4........................................ 5

9 1714782 Swivel Block ................................................ 2

10 1186391 Flange Nut, 5/16–18 .................................... 7

11 1754424 Crank Support ............................................. 1

12 1756141 Chute Control Shaft ..................................... 1

13 1735869 Gear Support............................................... 1

14 1100044 Hex Head Cap Screw, 5/16–18 x 3/4 ........... 6

15 1724870 Worm Gear.................................................. 1

16 1724885 Drive Pin, 3/32 x 3/4.................................... 1

17 1100255 Flat Washer, 5/16......................................... 3

18 1774145 Collector Housing Assembly

(Incl. Ref. 19) (A)...................................... 1

1917463 Collector Housing Assembly

(Incl. Ref. 19) (B).................................... 1

19 1750691 Warning Decal............................................. 1

20 1734398 Lock Nut, 1/4–20......................................... 6

21 1186126 Carriage Bolt, 3/8–16 x 3/4.......................... 4

22 1757836 Chute Control Crank .................................... 1

23 1745799001 Impeller Fan................................................. 1

24 1200033 HyPro Key, 3/16 x 3/4.................................. 1

25 1185348 Roll Pin, 1/4 x 1-1/4..................................... 2

26 1185803 Grease Fitting............................................... 4

27 1735625 Shear Bolt Kit (Incl. one ea. shear bolt and

Ref. 58 lock nut)...................................... 1

28 1918439001 26" Auger, R.H. (A)...................................... 1

1918443001 30" Auger, R.H. (B)...................................... 1

29 1185816 Special Washer, 1-1/64 ............................... 6

30 1100068 Hex Head Cap Screw, 3/8–16 x 3/4 ............. 2

31 1918438001 26" Auger, L.H. (A)....................................... 1

1918442001 30" Auger, L.H. (B)....................................... 1

32 1186098 Carriage Bolt, 5/16–18 x 3/4........................ 2

33 1758136001 Scraper Blade (A) ........................................ 1

1916971001 Scraper Blade (B) ........................................ 1

34 1728567010 Skid Shoe .................................................... 2

35 1733398 Lock Nut, 3/8–16......................................... 6

36 1111599 Hex Head Cap Screw, 1/4–20 x 5/8 ............. 6

37 1100053 Hex Head Cap Screw, 1/2–13 x 3/4 ............. 2

38 1100245 Lock Washer, 1/2......................................... 2

39 1100257 Flat Washer, 1/2........................................... 2

40 1185846 Flange Bearing............................................. 2

41 1720922 Bearing Support........................................... 2

42 1185798 Flange Bolt, 3/8–16 x 1/2............................. 2

43 1772310 V-Belt (A)..................................................... 1

1772310 V-Belt (B)..................................................... 2

44 1725282 Auger Sheave (A) ........................................ 1

1917403 Auger Sheave (B)......................................... 1

45 1186097 Carriage Bolt, 5/16–18 x 5/8........................ 7

46 1741640 Ball Bearing ................................................. 1

47 1772333 Lock Nut, #10–24......................................... 11

48 1103959 Flat Washer, #10.......................................... 6

49 1724869 Hold-Down Clip ........................................... 3

50 1752461 Sems Screw, #10–24 x 7/8.......................... 6

51 1757840010 Chute Control Support................................. 1

52 1757824 Chute Crank Rod.......................................... 1

53 1750692 Warning Decal............................................. 1

54 1723643001 Adjusting Lever............................................ 1

56 1185147 Cotter Pin, 3/32 x 1/2................................... 4

57 1737940 Truss-Head Bolt, #10–24 x 3/8.................... 5

58 1732499 Lock Nut, 5/16–18.......................................... 11

59 1185838 Flange Bearing............................................. 2

60 1737419 Set Screw, 5/16–18 x 3/4 ............................ 2

61 1752460 Shim............................................................ 4

62 1714243 Nylon Bushing............................................. 2

63 1737957 Nylon Washer.............................................. 2

64 1754572001 Housing Support ......................................... 1

65 1753357 Sleeve.......................................................... 1

66 1771718010 Discharge Chute Assembly.......................... 1

67 1759140 Discharge Cap (Incl. Ref. 53)....................... 1

68 1750969 Button Plug.................................................. 2

69 1758058 Spun Silver Inlay.......................................... 1

70 1890945 Flat Washer, 3/8........................................... 1

71 1918881 Housing Logo Decal .................................... 1

72 1739793 Gear Case Assembly (A).............................. 1

1916969 Gear Case Assembly (B) .............................. 1

73 10771 *Drift Slicer (complete kit)........................... 1

74 1918899 Auger Width Decal (A)................................. 1

1918900 Auger Width Decal (B)................................. 1

76 1771274 Chute Deflector............................................ 1

106 97092 Loctite #242, .02 oz...................................... N/I

Ref. # Part # Description Qty.

Ref. # Part # Description Qty.

Models 42051 & 42052

Parts List

(A) For Model 42051
(B) For Model 42052

* Drift Slicers are an optional item for Model 42051.
N/I - Item not included with unit. Order separately.
A/R - As Required

1905666 Rev. A (6/01) Printed in U.S.A. © 2001 Garden Way Incorporated

CUSTOMER SERVICE INFORMATION

Owner Registration Card

Please fill out and mail the enclosed owner
registration card. The purpose of this card is
to register each unit at the factory so that we
can provide you with warranty benefits and in­formational bulletins.

Warranty Service

The warranty statement is included in the unit’s literature
package.

Model/Serial Numbers

A Model/Serial Numbers decal is located on the back of the
unit. For ready reference, record these numbers in the
spaces below.

Date of Purchase:
Model Number:
Serial Number:

Authorized Dealer Information

If you purchased your unit from an authorized dealer, record
the dealer’s address and phone number below for ready refer­ence:

Dealer Name:
Address:
Phone:

IMPORTANT:

Left and right sides of the unit are determined by standing

behind the unit, in the operator’s position, and facing in the

direction of forward travel.

NOTICE:

We reserve the right to change specifications, add im-

provements or discontinue the manufacture of any of our

equipment without notice or obligation to purchasers of our

equipment.

M

I

A

L

M

I

A

L

Customer Service and Technical Service

If you have questions or problems with the
unit, contact your local dealer or the Factory.
(When calling or writing, provide the
Model/Serial Numbers of the unit.)

Replacement Parts

Factory specified replacement parts are available
from your authorized dealer or directly from
the factory. When ordering parts, be sure to
provide the following:

• Model/Serial Numbers of the unit.

• Part number of the part needed.

• Part Description.

• Quantity needed.

NOTE: All replacement parts must conform to our rigid quality
specifications. Although some replacement parts we provide
may vary slightly in shape, color or texture from the original
parts, any variations will not affect the fit or performance of
these parts on your unit.

Engine Service and Repair

For engine service or repair, contact your
nearest authorized engine dealer (look in the
Yellow Pages under “Engines–Gasoline”).
The engine is warranted by the engine man­ufacturer. Any unauthorized work performed
on the engine during the warranty period may void this war­ranty. For complete details on the engine warranty, refer to
the Engine Owner’s Manual.

We urge using only genuine replacement parts, which
meet all the latest requirements. Replacement parts
manufactured by others could present safety hazards,
even though they may fit on the unit.

WARNING

For customer assistance, contact your nearest authorized dealer or:

GARDEN WAY INCORPORATED • 1 Garden Way • Troy, New York 12180

Customer Service: 1-800-437-8686 • Technical Service: 1-800-520-5520 • Parts Service: 1-800-648-6776

• FAX: [phone] • WEBSITE: www.troybilt.com
Outside the United States and Canada:

Customer Service: [phone] • Technical Service: [phone] • Parts Service: [phone] • FAX [phone]
