24A-060E766 Chipper Shredder Vac (2007) Page 1 of 6
General Assembly
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060E766 Chipper Shredder Vac (2007) Page 2 of 6
General Assembly
Ref # Part Number Qty DescriptionS/P/F
1 736-0314 Thrust Washer.375 ID x.70 OD1 S
2 749-04172 Upper Handle1 S
3 720-0279 Knob1 /P
4 710-0599 Screw, 1/4-20 x.5001 /P
5 710-1205 Eye Bolt1 /P
6 781-1056 Upper Handle Bracket1 S
7 710-0726 Hex Cap Screw 5/16-12 x.7501 /P
8 720-04072 Star Knob1 S
9 710-1174 Carriage Bolt1 /P
10 731-04911 Nozzle Handle Clip1
11 749-04165 Lower Handle1 S
12 711-1293 Studs1 /P
13 710-0703 Carriage Screw 1/4-20 x.751 /P
14 712-0397 Wing Nut 1/4-201 S
15 710-0751 Hex Cap Screw 1/4-20 x.6201 /P
16 681-0195 Hose Base Adapter Assembly (Incl. Ref.
1 /P
17-19)
17 716-0104 E Ring.500 Dia1 S
18 732-3035 Compression Spring1 S
19 711-1571 Clevis Pin1
20 736-3020 Flat Washer.271 ID x.630 OD1 S
21 781-04071 Upper Flail Housing1
22 681-0122 Chipper Chute Assembly1
23 781-1058 Hose Hanger Bracket1 S
24 712-04064 Flange Lock Nut, 1/4-201 /P
25 748-0457 Spacer1
26 731-2478 Hose Nozzle1
27 710-3288 Hex Cap Screw 1/4-20 x 2.6251
28 723-0295 Adjustment Clamp1 /P
29 749-1270 Nozzle Handle1 S
30 764-0648 Vacuum Hose1 S
31 07071 Handle Grip1 /P
32 731-2292 Hose Adapter1
33 712-0442 Cap Lock Nut, 1/4-201 S
34 710-1611B TT Screw, 5/16-18 x .7501 /P
35 781-04082 Front Wheel Support Brace1 S
36 781-04081 Rear Wheel Support Brace1 S
37 681-0156A Handle Bracket Ass’y RH1 S
37 681-0155A Handle Brkt Ass’y LH1 S
38 714-0104 Cotter Pin1 S
39 736-0105 Bell Washer.401 ID x.870 OD1 /P
40 736-0232 Wave Washer.531 ID x.781 OD1 S
41 738-1015 Shoulder Screw 3/8-161
42 741-0751 Height Adjustment Bearing1 /P
43 687-02094 Pivot Arm Assembly1 S
44 720-0426 Height Adjustment Knob1 /P
45 732-1026 Spring Lever1
46 687-02051 Height Lever Assembly (Incl. Ref. 44-45)1 S
47 736-0741 Bell Washer.760 ID x.25 OD1 /P
48 738-1172 Shoulder Screw,.750 x.5001 /P
49 734-04033 Wheel 8 x 21 /P
50 712-04065 Flange Lock Nut, 3/8-161 /P
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060E766 Chipper Shredder Vac (2007) Page 3 of 6

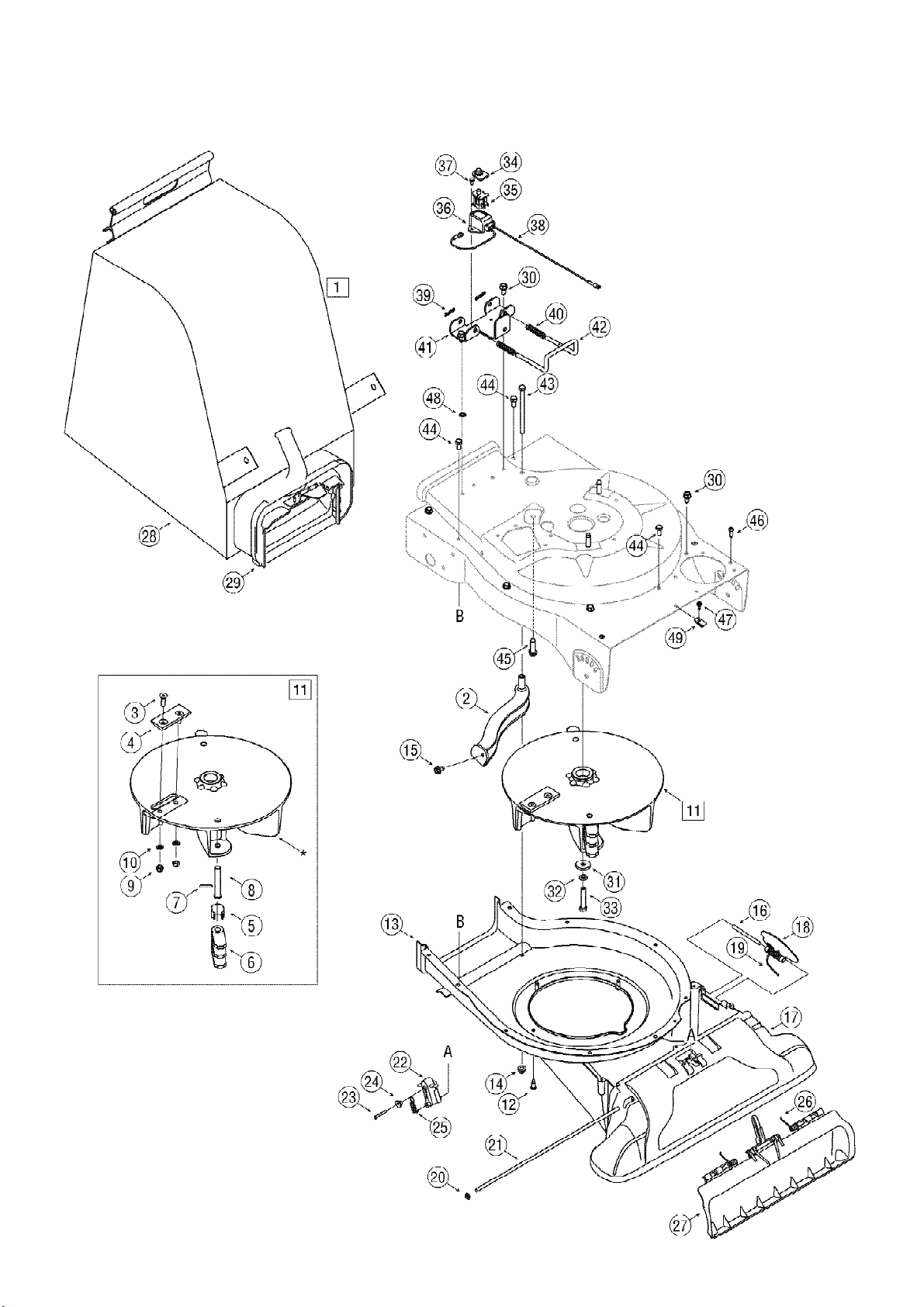

Impeller Assembly
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060E766 Chipper Shredder Vac (2007) Page 4 of 6
Impeller Assembly
Ref # Part Number Qty DescriptionS/P/F
1 664-04031 Bag Assembly1 S
2 681-0154 Screen Assembly1 S
3 710-1054 Hex Screw 5/16-24 x 1.01 /P
4 781-0490 Chipper Blade1 S
5 781-0735 Pin Clip1
6 719-0329 Flail1
7 715-0166 Spiral Pin1
8 711-1401 Clevis Pin1
9 712-0411 Lock Nut, 5/16-241 S
10 736-0119 Lock Washer, 5/161 S
11 681-0152 Impeller Assembly (Incl. Ref.# 3 - 10)1 S
12 710-1650 Shoulder Screw, #12-24 x.30 x.461 /P
13 781-0721B Lower Flail Housing1 /P
14 712-04063 Flange Lock Nut 5/16-181 /P
15 710-0607 Screw, 5/16-18 x.5001 /P
16 747-04297 Hinge Pin1
17 731-2293A Nozzle1 S
18 781-1064 Base Adapter Door1
19 732-1156 Torsion Spring1
20 726-0106 Cap Speed Nut 1/41 S
21 711-1551 Pivot Rod1
22 731-04967 Nozzle Door Lever1
23 710-1256 Hex Screw, #8-18 x 1.251 /P
24 750-1294 Shoulder Spacer1
25 732-3118 Extension Spring1
26 732-1151A Nozzle Door Torsion Spring1
27 731-2294A Nozzle Door1 /P
28 664-04029 Bag1
29 631-0083 Chute Assembly1
30 710-0726 Hex Index Screw, 5/16-12 x.7501 /P
31 736-0247 Flat Washer.375 ID x 1.25 OD1 /P
32 736-0217 Lock Washer 3/81 S
33 710-0818 Hex Cap Screw 3/8-24 x 2.01 /P
34 725-1700 Switch Cover1 S
35 725-3166 Safety Switch1 S
36 731-1613 Safety Switch Cover1 S
37 710-0224 Hex Washer Screw #10-16 x.501 S
38 629-0920A Wire Harness1 /P
39 714-0104 Cotter Pin1 S
40 732-0962 Compression Spring1
41 781-0778A Mounting Bracket1 S
42 747-1153 Lock Rod1
43 710-3195 Hex Cap Screw 5/16-18 x 4.51
44 710-3025 Hex Cap Screw 5/16-18 x.6251 /P
45 710-0502A Hex Washer Screw 3/8-16 x 1.251 /P
46 710-1220 Screw, #12-16 x.7501 /P
47 710-0351 Screw #10 - 16 x.5001 /P
48 736-0607 External L-Washer 5/161 /P
49 726-0139 Speed Nut1 /P
723-0400 Safety Glasses (Not Shown)1 /P
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060E766 Chipper Shredder Vac (2007) Page 5 of 6
Quick Reference
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060E766 Chipper Shredder Vac (2007) Page 6 of 6
Quick Reference
Ref # Part Number Qty DescriptionS/P/F
759-3338 Spark Plug1 /P
BS-493537S Pre Filter1 /P
BS-491588S Air Filter1 /P
BS-298090S Fuel Filter1 /P
981-0490 Chipper Blade1 /P
719-0329 Flail Blade1
NA Drive Belt1
NA Drive Control Cable1
NA Speed Control Cable1
925-3166 Safety Switch1 /P
720-04072 Handle Knob1 S
734-04033 Wheels (Front)1 /P
734-04033 Wheels (Rear)1 /P
NA Hubcap1
664-04029 Grassbag1
