24A-060B011 Chipper Shredder Vac (2010) Page 1 of 9

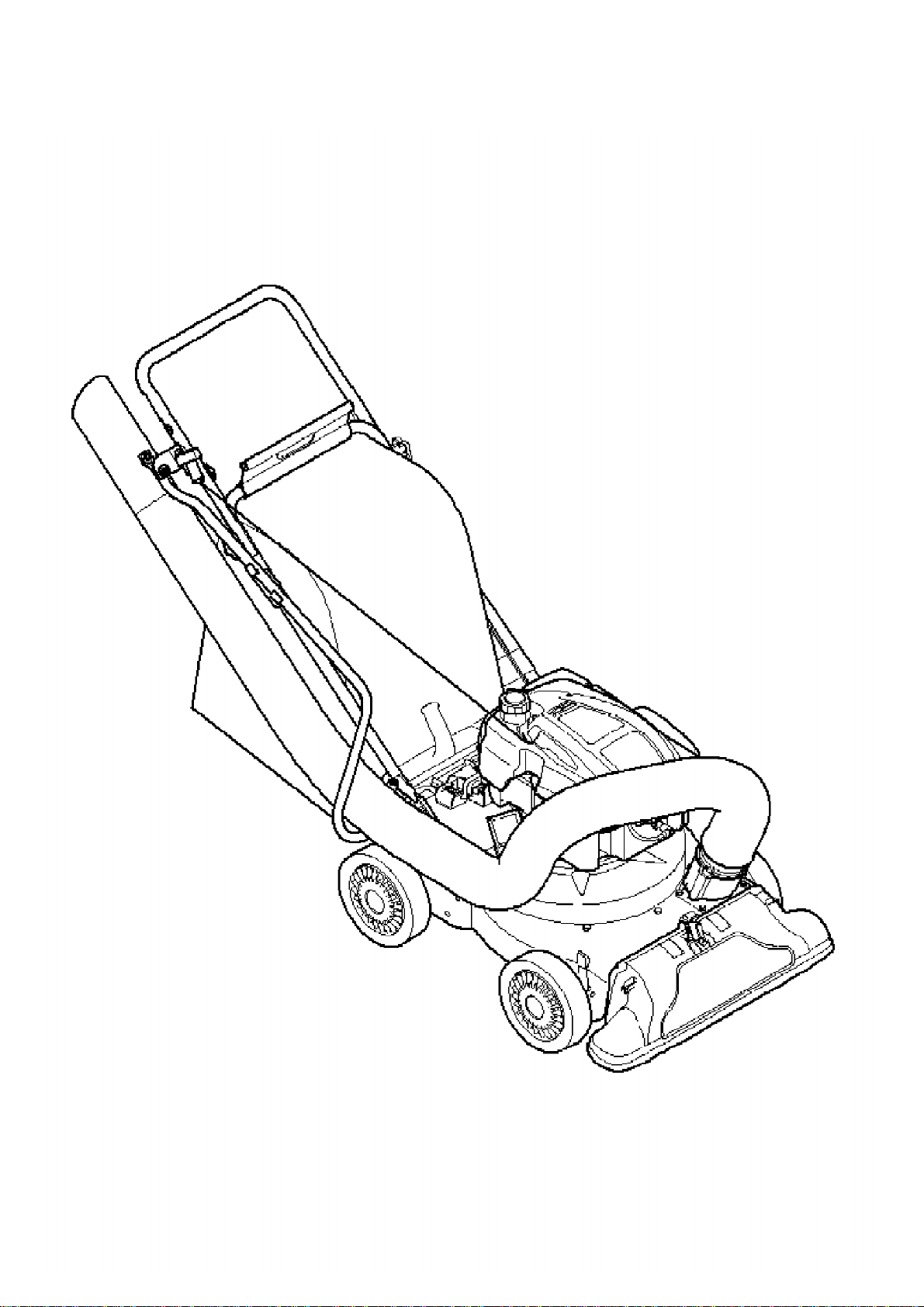

CSV 060 Drive & Frame
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 2 of 9
CSV 060 Drive & Frame
Ref # Part Number Qty DescriptionS/P/F
1 936-0314 Thrust Washer.375 ID x.70 OD1 /P
2 749-04172-0637 Upper Handle1 /P
3 720-0279 Knob1 /P
4 710-0599 Screw, 1/4-20 x.5001 /P
5 710-1205 Eye Bolt1 /P
6 781-1056-0637 Upper Handle Bracket1 /P
7 710-0726 Hex Cap Screw 5/16-12 x.7501 /P
8 720-04072A Star Knob1 /P
9 710-1174 Carriage Bolt1 /P
10 731-04911 Nozzle Handle Clip1
11 749-04165-0637 Lower Handle1 /P
12 711-1293 Studs1 /P
13 710-0703 Carriage Screw 1/4-20 x.751 /P
14 912-0397 Wing Nut 1/4-201 /P
15 912-0291 Hex Lock Nut, 1/4-201 /P
16 681-0195 Hose Base Adapter Assembly (Incl. Ref.#
1 /P
17-19)
17 916-0104 E Ring.500 Dia1 /P
18 932-3035 Compression Spring1 /P
19 711-1571 Clevis Pin1
20 936-3020 Flat Washer.271 ID x.630 OD1 /P
21 781-04223-0638 Upper Flail Housing1
22 681-04088-0638 Chipper Chute Assembly1
23 723-04008A Chute Strap1 /P
24 911-04069 Pin1 /P
25 748-0457 Spacer1
26 731-2478 Hose Nozzle1
27 710-3288 Hex Cap Screw 1/4-20 x 2.6251
28 723-0295 Adjustment Clamp1 /P
29 749-1270A Nozzle Handle1 /P
30 764-0648A Vacuum Hose1 /P
31 720-0369 Handle Plug1
32 731-2292 Hose Adapter1
32 731-06469 Hose Adapter (173 CC) use with Troy-Bilt
33 912-0442 Cap Lock Nut, 1/4-201 /P
34 710-1611B TT Screw, 5/16-18 x .7501 /P
35 781-04082-0637 Front Wheel Support Brace1 /P
36 781-04081-0637 Rear Wheel Support Brace1 /P
37 981-0156A-0638 Handle Bracket Ass’y RH1 /P
37 981-0155A-0638 Handle Brkt Ass’y LH1 /P
38 914-0104 Cotter Pin1 /P
39 736-0105 Bell Washer.401 ID x.870 OD1 /P
40 936-0232 Wave Washer.531 ID x.781 OD1 /P
41 738-1015 Shoulder Screw 3/8-161
42 741-04242 Height Adjustment Bearing1
43 687-02342 Pivot Arm Assembly1
44 720-0426 Height Adjustment Knob1 /P
45 732-1026 Spring Lever1
46 987-02051 Height Lever Assembly (Incl. Ref.# 44-45)1 /P
47 736-0741 Bell Washer.760 ID x.25 OD1 /P
48 738-1172 Shoulder Screw,.750 x.5001 /P
1
OHV engine
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 3 of 9
CSV 060 Drive & Frame
Ref # Part Number Qty DescriptionS/P/F
49 734-04033 Wheel 8 x 21 /P
50 712-04065 Flange Lock Nut, 3/8-161 /P
51 710-04666 Screw, 1/4-20 x .751
52 731-06445 Hose Extension1
53 747-04985 Tube Holder If Equipped1
54 931-04261 Engine Shroud If Equipped1 /P
55 710-04744 Screw, #12-16 x 1.00 If Equipped1
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 4 of 9
CSV 060 Impeller
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 5 of 9
CSV 060 Impeller
Ref # Part Number Qty DescriptionS/P/F
1 964-04031 Bag Assembly1 /P
2 681-0154-0637 Screen Assembly1 /P
3 710-1054 Hex Screw 5/16-24 x 1.01 /P
4 981-0490 Chipper Blade1 /P
5 781-0735 Pin Clip1
6 719-0329 Flail1
7 715-0166 Spiral Pin1
8 711-1401 Clevis Pin1
9 912-0411 Lock Nut, 5/16-241 /P
10 936-0119 Lock Washer, 5/161 /P
11 981-0152 Impeller Assembly (Incl. Ref.# 3 - 10)1 /P
12 710-1650 Shoulder Screw, #12-24 x.30 x.461 /P
13 781-0721B-0638 Lower Flail Housing1 /P
14 712-04063 Flange Lock Nut 5/16-181 /P
15 710-0607 Screw, 5/16-18 x.5001 /P
16 747-04297 Hinge Pin1
17 731-2293A Nozzle1 S
18 781-1064 Base Adapter Door1
19 732-1156 Torsion Spring1
20 926-0106 Cap Speed Nut 1/41 /P
21 711-1551 Pivot Rod1
22 731-04967 Nozzle Door Lever1
23 710-1256 Hex Screw, #8-18 x 1.251 /P
24 750-1294 Shoulder Spacer1
25 732-3118 Extension Spring1
26 732-1151A Nozzle Door Torsion Spring1
27 731-2294A Nozzle Door1 /P
28 664-04029 Bag1
29 631-0083 Chute Assembly1
30 710-0726 Hex Index Screw, 5/16-12 x.7501 /P
31 736-0247 Flat Washer.375 ID x 1.25 OD1 /P
32 936-0217 Lock Washer 3/81 /P
33 710-0818 Hex Cap Screw 3/8-24 x 2.01 /P
34 925-1700 Switch Cover1 /P
35 925-3166 Safety Switch1 /P
36 931-1613 Safety Switch Cover1 /P
37 910-0224 Hex Washer Screw #10-16 x.501 /P
38 629-0920A Wire Harness1 /P
39 914-0104 Cotter Pin1 /P
40 732-0962 Compression Spring1
41 781-0778A-0637 Mounting Bracket1 /P
42 747-1153 Lock Rod1
43 710-3195 Hex Cap Screw 5/16-18 x 4.51
44 710-3025 Hex Cap Screw 5/16-18 x.6251 /P
45 710-0654A Screw 3/8-16 x 1.001 /P
46 710-1220 Screw, #12-16 x.7501 /P
47 710-0351 Screw #10 - 16 x.5001 /P
48 736-0607 External L-Washer 5/161 /P
49 726-0139 Speed Nut1 /P
723-0400 Safety Glasses (Not Shown)1 /P
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 6 of 9
CSV 060 Label Map
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 7 of 9
CSV 060 Label Map
Ref # Part Number Qty DescriptionS/P/F
777S33694 777S33694 LABEL-DANGER/WARNING FLAIL HSG1
777S33695 777S33695 LABEL-DANGER/HGHT ADJUST1
777I22840 777I22840 LABEL-CSV NOZZLE TROY1
777D14916 777D14916 LABEL-M5 SHROUD 173CC T-BILT 060 CSV
1
24A-06MM066
777D15032 777D15032 LABEL-B&S SHRD 190CC T-BILT 060 CSV
777X43244 777X43244 LABEL-LOWE'S SERVICE ADVANTAGE1
1
24A-060B011/C211
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 8 of 9
CSV 060 Quick Reference
www.mymowerparts.com
For Discount Troy Bilt Parts Call 606-678-9623 or 606-561-4983
24A-060B011 Chipper Shredder Vac (2010) Page 9 of 9
CSV 060 Quick Reference
Ref # Part Number Qty DescriptionS/P/F
Not Available Spark Plug B&S Engines1
Not Available Pre Filter B&S Engines1
Not Available Air Filter B&S Engines1
Not Available Fuel Filter B&S Engines1
Not Available Fuel Cap B&S Engines1
951-10292 Spark Plug 1P70C0A1 /P
951-10794 Air Filter Assembly 1P70C0A1 /P
951-11933 Fuel Filter 1P70C0A1 /P
951-10917 Fuel Cap 1P70C0A1 /P
981-0152 Impeller Assembly1 /P
981-0490 Chipper Blade1 /P
719-0329 Flail Blade1
681-0154-0637 Screen Assembly1 /P
681-04088-0638 Chipper Chute1
N/A Drive Belt1
N/A Drive Control Cable1
N/A Speed Control Cable1
N/A Chain1
925-3166 Safety Switch1 /P
720-0279 Handle Knob1 /P
734-04033 Wheels - Front1 /P
734-04033 Wheels - Rear1 /P
N/A Hub Cap1
664-04029 Grass Bag1
964-04031 Bag Chute Assembly1 /P
