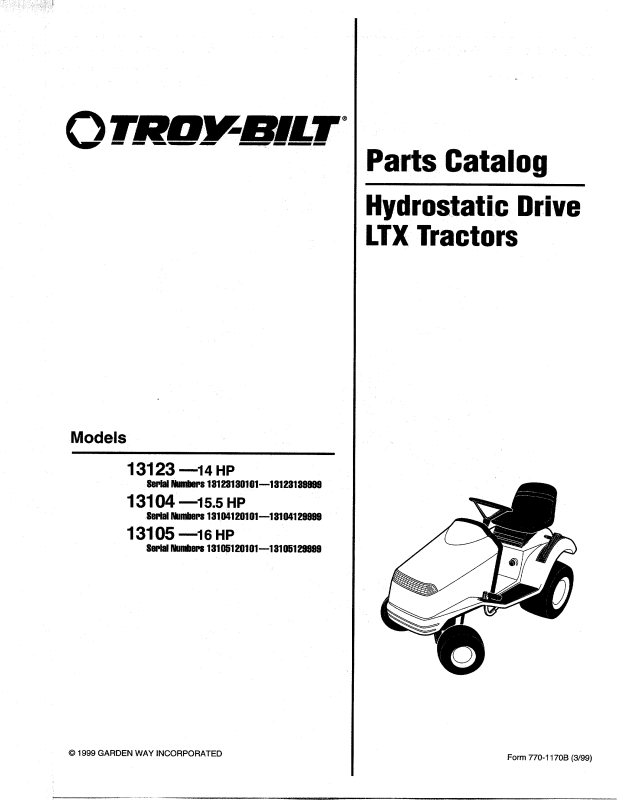

Troy-Bilt 13123, 13105, 13104 User Manual

Specifications and Main Features

  • Numbers of type: 13123, 13104, 13105
  • Engine horse power: 14HP (13123), 15.5HP (13104), 16HP (13105)
  • Serial numbers range
  • 13123 – 18128130101-13123139989
  • 13104 – 18104120101-13104129999
  • 13105 – 13105120101-13105129999
  • Hydrostatic Transmission: Eaton 751 Hydro Transmission for Models 13105 / Peerless VST 205 Hydro Transmission for Models 13123 & 13104
  • Parts:
  • Flange Nut (Different sizes)
  • Hex Heat Screw (Different sizes)
  • Carriage Bolt (Different sizes)
  • Self Retaining Nuts
  • Seat Bracket
  • Fuel Tank with Pad
  • Electric Clutch
  • Mower/Deck assembly
  • Steering wheel gear and support
  • Lift assembly
  • Spline Nut Lock

Frequently Asked Questions

Q1: What is the horsepower rating for each model?

A1: Each of the models has different horsepower ratings, 14 HP for the 13123, 15.5 HP for the 13104, and 16 HP for the model 13105.

Q2: Does the Troy-Bilt tractor have the same transmission as other tractors?

A2: The Troy-Bilt 13105 tractor has Eaton 751 Hydro Transmission assembly while the 13123 and 13104 models have Peerless VST 205 Hydro Transmission for the said models.

Q3: If I have a broken tractor, where do I get the spare parts for it?

A3: Spare parts can be acquired by the suggested dealers who are authorized by the local or the said dealers where the manufacturer or the supplier can obtain these parts.

To have the service done accurately, make sure to provide the model and serial number.

Q4: Are there some components that would have to be purchased separately?

A4: Yes, it is detailed in the parts catalog which articles constituting the unit are not part of the package and must be purchased additionally.

Q5: Where are the model and serial numbers of the device to be located?

A5: Model and serial numbers appear on a label placed on the unit, in most cases. The owner's manual contains the information needed to locate these numbers.

User Manual

Troy-Bilt 13123, 13105, 13104 User Manual
