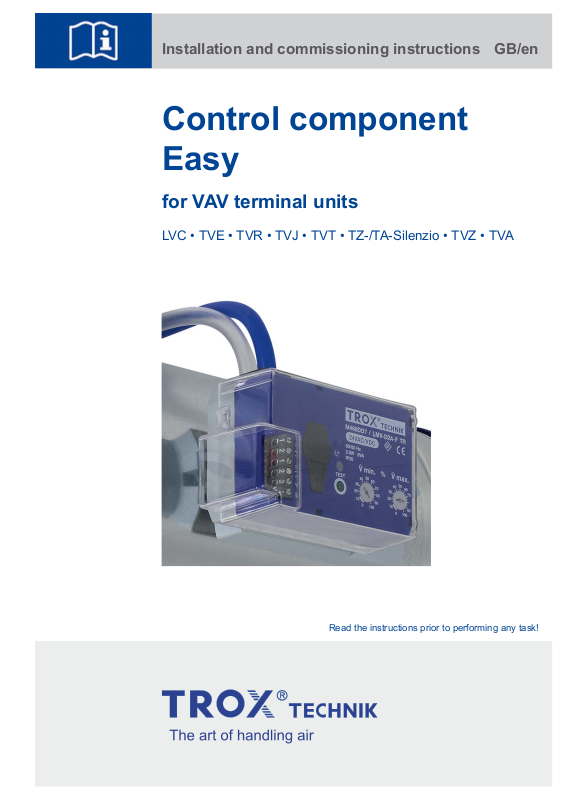

Installation and commissioning instructions

Control component Easy

for VAV terminal units

GB/en

LVC • TVE • TVR • TVJ • TVT • TZ-/T

A-Silenzio • TVZ • TVA

Read the instructions prior to performing any task!

TROX GmbH

Heinrich-T

47504 Neukirchen-Vluyn

Germany

Telephone: +49 (0) 2845 202-0

Fax: +49 (0) 2845 202-265

E-mail: trox@trox.de

Internet: www.trox.de

A00000073971, 1, GB/en

03/2019

rox-Platz

Control component Easy for VAV terminal units

General information

Information about installation and commissioning instructions

These installation and commissioning instructions enable the safe and ef control components and the associated VAV terminal unit.

The manual must be kept near the unit to be available for use at all times.

The personnel performing work on the device must read and understand this manual carefully before starting any work. The basic prerequisite for safe working is to comply with the safety notes and all instructions in this manual.

In addition, the local health and safety regulations and general safety regulations apply to the area of application of the device.

Illustrations in this manual are mainly for information and may differ from the actual design.

Residual risks

1 Safety

Correct use

1.1

The electronic control component type Easy is used in combination with a TROX volume flow controller for variable volume flow rate control in ventilation and room air conditioning systems (HV

The control components Easy (controllerEasy for short) is designed for use indoors to control clean room air.

 Supply air area of application:

The usual conditioning in air conditioning sys-

–

tems allows the use of the Easy controller in the supply air without additional dust protection measures.

 Extract air area of application:

– Extract air with a low content of dust or lint (e. g.

office) allows the use of the Easy controller without additional dust protection measures.

– For dry extract air with a higher proportion of

dust or lint, a suitable filter must be used in front of the VAV terminal unit.

– For extract air with a high content of dust, lint or

sticky components, or extract air with aggressive operating fluids, use a controller with a static differential pressure transducer, e. g. TROX Compact controller.

– In kitchen air extract systems, a VAV terminal

unit may only be used if it has been ensured that the extract air is cleaned as well as possible by highly effective aerosol separators, observe VDI 2052.

In unspecified applications, or when combined with polluted air (e. differential pressure transmitter should be used, e. g. TROX Compact controller or universal controller.

Incorrect use

Danger of injury or risk of damage to property due to incorrect use!

Misuse of the control component can lead to dangerous situations.

Never use the control component/device:

– – in aircraft – outdoors without sufficient protection against the

– in humid air (even temporarily, i. e. in wet areas,

– for areas of application that are not described in

g. dust) and moisture, a controller with static

WARNING!

in explosion-proof areas

effects of weather

such as bathrooms with showers)

this manual

AC systems).

1.2 Safety signs

The following symbols and signs are usually found in the work area. They apply to the very location where they are found.

WARNING!

Danger due to illegible signage!

Over time, stickers and signs may fade or become otherwise illegible, meaning that hazards cannot be identified and necessary operating instructions cannot be followed. There is then a risk of injury.

– Ensure that all of the safety, warning and oper-

ating information is clearly legible.

–

Replace illegible signs or stickers immediately.

Electrical voltage

Only skilled qualified electricians are allowed to work in areas marked as having electrical voltage.

Unauthorised persons must not enter areas, open cabinets or work on components where an electrical voltage is present and which are hence marked with this symbol.

1.3

Residual risks

The VAV terminal unit is state of the art, and designed in accordance with current safety requirements. Residual risks cannot be excluded, however, and you should proceed with caution. This section describes the residual risks that have been identified in a risk assessment.

Always observe the safety notes in this manual to reduce health hazards and prevent any hazardous situations.

Modifying the unit or using replacement parts that have not been approved by TROX is not permitted.

Control component Easy for VAV terminal units6

Safety

Staff

1.3.1 Electric shock hazards

Electric current

DANGER!

Danger of death due to electric current!

Danger of electric shock! Do not touch any live components! Damaged insulation or damaged parts are a life threatening hazard.

– Have work on the electrical system carried out

only by skilled qualified electricians.

–

If the insulation is damaged, disconnect the power supply immediately and have the insulation repaired.

– Before you start working on electric systems and

equipment, switch off the supply voltage and secure it against being switched on accidentally. Comply with the following safety rules:

– Switch off the power supply. – Secure it against being switched on acciden-

tally. – Ensure that no voltage is present. – Connect to the earth; short circuit connection.

– Do not bypass or disable any circuit breakers. Be

sure to maintain the correct current rating when you replace a circuit breaker.

– Ensure that live parts do not come into contact

with moisture. Moisture can cause a short circuit.

1.4 System owner's responsibility

System owner

The system owner is a natural or legal person who for commercial or business purposes owns or manages the ventilation system or component or allows third parties to use or operate it, but continues to bear legal responsibility for the safety of users, staf the product is in use.

System owner's obligations

The unit is intended for commercial use. The system owner is therefore subject to the legal obligations of occupational health and safety regulations.

In addition to the safety notes in this manual, the applicable regulations for safety, accident prevention and environmental protection must also be complied with.

f or third parties while

In particular:

 The system owner must be aware of the applicable

occupational health and safety regulations and carry out a risk assessment to determine any additional hazards that may exist or result from the specific working conditions at the installation location. The system owner has to create operating instructions for the unit that reflect the results of this risk assessment.

 The system owner has to ensure, throughout the

entire operating period of the unit, that these operating instructions conform to applicable standards and guidelines; in case of any deviation, the system owner has to adapt the instructions.

 The system owner must secure the unit to prevent

access by unauthorised individuals.

 The system owner must clearly define the responsi-

bilities for operation, maintenance, cleaning, troubleshooting and removal.

 The system owner has to ensure that all individuals

who handle or use the unit have read and understood this manual.

 The system owner must provide the employees with

the required personal protective equipment.

 The system owner must observe the local fire regu-

lations.

Hygiene requirements

The system owner has to comply with the local regulations and harmonised standards for hygiene requirements. These include, among other things, compliance with the corresponding maintenance and test intervals.

Staff

1.5

Qualification

The work described in this manual has to be carried out by individuals with the qualification, training, knowledge and experience described below:

HVAC technician

HVAC technicians are individuals who have sufficient professional or technical training in the field they are working in to enable them to carry out their assigned duties at the level of responsibility allocated to them and in compliance with the relevant guidelines, safety regulations and instructions. HVAC technicians are individuals who have in-depth knowledge and skills related to HVAC systems; they are also responsible for the professional completion of the work under consideration.

HVAC technicians are individuals who have sufficient professional or technical training, knowledge and actual experience to enable them to work on HVAC systems, understand any potential hazards related to the work under consideration, and recognise and avoid any risks involved.

Control component Easy for VAV terminal units 7

Safety

Repair and replacement parts

Skilled qualified electrician

Skilled qualified electricians are individuals who have suf

ficient professional or technical training, knowledge and actual experience to enable them to work on electrical systems, understand any potential hazards related to the work under consideration, and recognise and avoid any risks involved.

TROX Technical Service

Staff of TROX Technical Service or of service partner companies approved and assigned by TROX GmbH.

1.6 Personal protective equipment

Personal protective equipment is equipment that protects the user against health or safety risks at work.

Personal protective equipment must be worn for various types of work; the protective equipment required is listed in this manual together with the description of each type of work.

Description of personal protective equipment

Industrial safety helmet

Industrial safety helmets protect the head from falling objects, suspended loads, and the ef head against stationary objects.

fects of striking the

1.7 General safety measures

NOTICE!

Risk of damage to property due to large temperature differences

If any electronic components have been kept in an unheated area, condensation may form and damage the electronic components beyond repair

– Before you start commissioning, make sure that

all devices have warmed up to ambient temperature. Only after about 2 hours will the system have reached room temperature.

Foreign matter and liquids

NOTICE!

Risk of damage to property due to foreign matter and liquids!

Foreign matter and liquids that get into the unit may damage the electronic parts.

–

Do not use any liquids for cleaning. – Remove foreign matter, if any. – If the device emits a smell or smoke, have it

checked by the manufacturer. – If liquid gets into the module, let the module com-

pletely dry before commissioning.

Protective gloves

Protective gloves protect hands from friction, abrasions, punctures, deep cuts, and direct contact with hot surfaces.

Safety shoes

Safety shoes protect the feet from crushing, falling parts and prevent slipping on a slippery floor

1.8 Repair and replacement parts

Only qualified personnel are allowed to repair the devices, and only genuine replacement parts are allowed to be used. This applies in particular to work on the electrical equipment. Therefore, for safety reasons, have defective devices repaired by TROX T

Service,

‘TROX Technical Service’ on page 3.

echnical

Control component Easy for VAV terminal units8

Transport, storage and packaging

Packaging

2 Transport, storage and

packaging

Sharp edges and sheet metal parts

CAUTION!

Danger of injury from sharp edges and sheet metal parts.

– Always wear protective gloves when handling the

unit.

Damage to the VAV terminal unit

NOTICE!

Risk of damage to the V

– Handle the unit with care. –

Do not lift the VAV terminal unit by its control components, the damper blade or differential pressure sensor.

– Lift the unit only by lifting the entire casing.

AV terminal unit!

2.3 Storage

If the product has to be stored temporarily:

 Moisture and lack of ventilation can lead to oxida-

tion, even on galvanised components. Remove any plastic wrapping in order to avoid oxidation.

 Protect the product from dust and contamination.  Store the product in a dry place and away from

direct sunlight.

 Do not store the product below -10 °C or above

+50 °C.

2.4 Packaging

Properly dispose of packaging material.

2.1 Delivery check

Check delivered items immediately after arrival for transport damage and completeness. In case of any damage or an incomplete shipment, contact the shipping company and your supplier immediately

The delivery is typically completed mounted on a VAV terminal unit.

Check the following items on delivery:

 Easy-controller

– Transparent protective cap, or for TVE-type

rubber terminal covers.

– mounted on the VAV terminal unit and fixed with

anti-rotation lock

– Measuring hoses without kinks connected to the

VAV terminal unit (not with TVE type)

 VAV terminal unit:

– Scale sticker available for setting V – Adjustments sticker available

– Cable ties for wire clamping bracket available

(not for TVE type)

min/Vmax

2.2 Transport on site

 If possible, transport the V

installation location in the shipping container.

 Do not remove the protective wrapping until just

before installation.

AV terminal unit to the

Control component Easy for VAV terminal units 9

Structure and functional description

Product overview types LVC, TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA

3 Structure and functional description

Product overview types LVC, TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA

3.1

Fig. 1: Easy controller mounted on the control unit, i. e. TVR

1 Easy-controller 2 Test hoses 3 VAV terminal unit 4 Sensor tubes of the control unit 5 Wire clamping bracket 6 Scale sticker for setting V

7 Terminals 8 'Test' push button

Detection of operating states (LED)

LED Operating status

On Target volume flow rate reached

Off

Flashes (slowly 0.5 Hz)

min/Vmax

est push button pressed

 T  No supply voltage  Easy controller faults

 Actual value ≠ setpoint value, controller tries to control to the setpoint

value

est operation started

 T  Synchronisation process active

9 LED for displaying the operating states, see table 10 V

11 V 12 Axle mounting (positive connection or clamping

13 Travel stops 14 Protective cap 15 Tube connection transducer – Adjustments sticker on VAV terminal unit (not pic-

min

max

block)

tured)

potentiometer

Flashes (rapidly 2.5 Hz)

Direction of rotation change confirmation direction of rotation’ on page 25); Then slowly flashing until the synchronisation process is completed.

Control component Easy for VAV terminal units10

Chapter 6.3 ‘Switching the

3.2 Product overview TVE type

Structure and functional description

Product overview TVE type

Fig. 2: TVE basic unit with Easy controller

1 Easy-controller 2 Damper blade 3 VAV terminal unit 4 Lip seal 5 Scale sticker for setting V

6 Release button and damper blade position indicator 7 V

Detection of operating states (LED) TVE type

LED flashing frequency Meaning

potentiometer

min

min/Vmax

No supply voltage

Controller not parameterised

Actuator overload detected (block)

8 V 9 Test push button and LED to display the operating

10 Terminals 11 Service socket 12 Cover of the terminals – Adjustments sticker on VAV terminal unit (not pic-

LED flashing frequency Meaning

potentiometer

max

states, see table

tured)

Setpoint value or override control position not yet reached (0.5 Hz flashes)

Control mode setpoint value corrected

Positive pressure detected on ef

fective pressure

sensor

Synchronisation or test mode activated

Control component Easy for VAV terminal units 11

Structure and functional description

Function description

3.3 Position of the damper blade

The position of the damper blade corresponds to the mark on the axis and is thus recognisable from the outside.

Fig. 3: Actuators with positive locking

1 Shaft with marking for position indication 2 Damper blade

Fig. 4: Actuator with traction

1 Shaft with marking for position indication 2 Damper blade

3.4 Function description

Basic function

The Easy controller is an electronic control component for variable volume flow control for various TROX V terminal units. Its functional units consist of a dynamic differential pressure transducer, the controller electronics and the actuator.

Closed control circuit

The controller operates in closed loop, i.e. to measure – compare – control.

The determination of the current volume flow rate takes place by measuring a differential pressure (effective pressure). For this purpose, the volume flow controller has a differential pressure sensor. The effective pressure is forwarded through the measuring hoses or, in the case of TVE, through the damper blade shaft to the differential pressure transducer integrated in the control component and converted here into a voltage signal.

The volume flow rate actual value is thus the internal control loop as well as an external use, e. g. BMS or master-slave sequential circuit, available as analogue voltage signal 0‑10 V. Due to the factory adjustment, the maximum output value of 10 V DC always corresponds to the nominal volume flow rate (V nominal) which can be taken from the scale sticker and the adjustments sticker on the VAV terminal unit.

The nominal volume flow rate is either set as a constant value or specified by an analogue voltage signal at the setpoint value input. The definition of the constant volume flow rates or of the working range for variable operation is carried out by the customer at the setting potentiometers V

In regular operation, the integrated actuator is controlled by permanent evaluation of the offset (setpoint valueactual) that adjusts the damper blade of the air terminal unit via the axle mounting and thus regulates the volume flow rate to the setpoint value.

min

and V

max

Fig. 5: Actuator on TVE

1 Shaft with marking for position indication 2 Damper blade

Control component Easy for VAV terminal units12

Structure and functional description

Operating modes > Operation with constant volume flow rate setpoint value

Setpoint value adjustment independent of the duct pressure

Fig. 6: Pressure independent control characteristics

The controller detects and corrects changes of the duct pressure that may occur flow rate changes from other units. The Easy controller thus operates duct pressure independently and pressure fluctuations result in no permanent changes in volume flow rate.

In order to prevent the volume flow control from becoming unstable, the controller maintains a dead band (hysteresis) within which the damper blade is not moved. This dead band and the tolerances of the measurement location lead to a volume flow rate deviation ΔV in accordance with the product data sheets of the VAV terminal units. If the conditions specified in the product data sheets (e. g. minimum differential pressure, upstream conditions) are not met, greater deviations are to be expected.

Diagnostic options

A function test is possible by means of test push button (Fig. 1/8) and LED indicator light (Fig. 1/9). The LED makes it possible to distinguish between operating and fault states.

The diagnosis of setpoint value and actual value signals is possible via multimeter,

timeters to control setpoint values and feedback signals’ on page 29.

Adjustment devices cannot be used for Easy controllers,

Chapter 7.3.2 ‘Use of adjustment devices’

on page 29.

, for example, due to volume

Chapter 7.3.1 ‘Use of mul-

3.5 Operating modes

3.5.1

Operation with a fixed setpoint value

Fig. 7: Constant control

1 Volume flow rate setpoint value specification (V 2 Actual value volume flow rate as 0–10 V DC signal,

In the simplest case, the controller is operated with a constant volume flow rate setpoint value specification. During commissioning, the setpoint value is set directly on the rotary potentiometer (V

A control signal at terminal w is not required in this case.

Operation with constant volume flow rate setpoint value

e. g. to the central BMS

) on the Easy controller

min

= 0%).

max

min

)

Control component Easy for VAV terminal units 13

Structure and functional description

Operating modes > Operation with variable volume flow rate setpoint value

Operation with two setpoint values (min./max. switching)

Fig. 8: Min./max. switching

1 Volume flow rate setpoint value specification (V

and V

2 Switch or relay for switching between V

max

)

min

and V

min

max

3 Actual value volume flow rate as 0–10 V DC signal,

e. g. to the central BMS

The constant values (V

min

and V

) set on the rotary

max

potentiometer can be activated alternately by volt-free switch contacts. Switching is accomplished by switches or relays, e.

g. day/night switching.

3.5.2 Operation with variable volume flow rate setpoint value

Fig. 9: Variable volume flow control

1 Volume flow rate limit value specification (V

)

max

2 Control signal 0–10 V DC at terminal w as setpoint

value input, e. g. from room temperature controller or DCC substation or similar

3 Actual value volume flow rate as 0–10 V DC signal,

e. g. to the central BMS

For the use of more variable volume flow rate setpoint values, the specification of an electrical control signal must be made by a higher-level controller (i. e., room temperature controller, air quality controller, central building management system, etc.). If the input signal is changed, the controller adjusts the volume flow rate to the new setpoint. The variable volume flow rate is limited to a minimum and maximum volume flow rate

value,

Chapter 3.6 ‘Characteristics’ on page 16.

min

and

Override control

The constant or variable control can be disabled by override controls, e. g. when the window is open, a window switch stops ventilation of the room by closing the damper blade.

Further application examples:

 Circuits for quick ventilation (V

max

)

 Opening the damper blade

Control component Easy for VAV terminal units14

Structure and functional description

Operating modes > Operation with variable volume flow rate setpoint value

Supply/extract air tracking control

Fig. 10: Supply/extract air tracking control

1 Volume flow rate limit specification (V 2 Room temperature controller (control signal for

supply air controller)

In individual rooms and closed-off office areas, where the balance between supply and extract air flow rate has to be maintained. Otherwise, annoying whistling noises can occur at door gaps, and the doors can be dif this reason, the extract air should also have variable control in a VAV system.

The control signal from the room temperature controller is switched to the supply air controller in this example. The actual value signal of the Easy controller for the supply air is then applied as a setpoint signal for the Easy controller on the extract air (slave controller). As a consequence, the extract air always follows the supply air.

Setting for the slave controller in the simplest case (same VAV terminal units and dimensions):

min

and V

max

)

3 Actual value volume flow rate as 0–10 V DC signal

to the extract air controller

4 Actual value volume flow rate as 0–10 V DC signal,

e. g. to the central BMS

ficult to open. For

 V  V

min

max

100%

When using different volume flow controller types or dimensions for tracking control, special setting instructions for V

and V

min

of the slave controller must be observed due to the different nominal volume flow rates.

max

Alternatively, the control signal of the room temperature controller can also be connected in parallel to the supply air and the extract air controller. The limitation due to the technical data of the controller outputs (current) and the controller inputs (input resistances) must be observed.

Control component Easy for VAV terminal units 15

Structure and functional description

Characteristics

3.6 Characteristics

Actual value signal

Fig. 11: Characteristic of the actual value signal 0–10 V

The actual value volume flow rate can be tapped as a voltage signal at the terminal (U). The measuring range is factory-adjusted to the size of the V so that the respectively rated nominal volume flow rate (V

) always corresponds to an actual value signal of

Nom

10 V DC. The current actual value volume flow rate can be calculated from the measured voltage at the output (U) using the formula below.

AV terminal unit,

In order to specify a volume flow rate setpoint value to the Easy controller

, a DC voltage signal in the range of

0–10 V DC must be applied to terminal (w).

The relationship between the nominal volume flow rate and the associated voltage signal can be calculated from the formula below. The setting of the potentiometers V

The default settings of the working range V and V tomer

and V

min

= 80 % can be easily changed by the cus-

max

must be taken into account.

max

min

= 40 %

Calculation example:

of the V

nom

AV terminal

- 800 m³/h

unit:

min

max

- should be 200 m³/h

- should be 600 m³/h

Setpoint value signal

Fig. 12: Characteristic of the reference signal 0–10 V

At a setting of V

= 0 % and V

min

= 100 %, the control-

max

ling unit can specify the entire nominal volume flow rate range of the VAV terminal unit as a setpoint value.

If V

min

and V

are set to only a partial range of the

max

nominal volume flow rate range; a higher resolution for the control input signal is available for this work area. In the first case, the limitation of the setpoint signal to the work area must be taken into account by the superordi-

nate rule instance,

Chapter 6.1.1 ‘Control ranges of

VAV terminal units’ on page 22.

Control component Easy for VAV terminal units16

4 Installation

Personnel:



Protective equipment:



Only specialist personnel are allowed to perform the described work on the VAV terminal unit.

Only skilled qualified electricians are allowed to work on the electrical system.

AC technician

Protective gloves Safety shoes Industrial safety helmet

CAUTION!

Danger of injury from sharp edges and sheet metal parts.

– Always wear protective gloves when handling the

unit.

Installation

The Easy controller is delivered mounted on the VAV terminal unit, so that the work is limited to the electrical

wiring ting of the Easy controller troller’ on page 21.

When installing the VAV terminal unit, take particular note of the following points:

 Upstream section  Direction of airflow  Af  Accessibility for service work

Information on this can be found in the VAV terminal unit installation and commissioning instructions.

Installation orientation

The installation orientation of the VAV terminal unit is arbitrary due to the dynamic dif ducer in the Easy controller. The Easy controller may be located on, under or to the side of the ductwork.

Chapter 5 ‘Wiring’ on page 18 and to the set-

6.1 ‘Setting the Easy con-

fixing/Suspension

ferential pressure trans-

Control component Easy for VAV terminal units 17

Wiring

Connection diagrams

5 Wiring

Safety instructions

DANGER!

Danger of electric shock! Do not touch any live components! Electrical equipment carries a dangerous electrical voltage.

– Only skilled qualified electricians are allowed to

work on the electrical system.

–

Switch off the power supply before working on any electrical equipment.

5.1 Installation instructions

The V

AV terminal unit was manufactured and configured on a project-specific basis. The control components are factory-mounted and balanced. For installation, the supply voltage and, if necessary, signal lines, must be connected for electrical control components.

The connection is made according to the information given on the control components or connection diagrams in this manual. These must be observed for project-specific wiring diagrams. The voltage ranges and the terminal connections specified on the control components must be observed!

Personnel:

Skilled qualified electrician



Please note during installation:

 Legal and of

guidelines.

 Consideration of the technical connection rules

(TCR) of the local network operators.

 Wiring work for supply voltage and signal lines on

site.

 The dimensioning and manufacture of customer-

side connections and wiring must be carried out in accordance with the recognised rules of electrical engineering.

 Observe wiring guidelines and project-specific con-

nection diagrams of the control component.

 The electrical connection to the control unit may

only be made if the installation has been carried out correctly.

 The 24 V supply voltage may only be supplied with

a safety transformer.

 In order to protect against overload, the supply

voltage for a maximum of three Easy controllers may be through-wired.

 If several volume flow controllers are connected to a

24 V network, it must be ensured that a common neutral or ground line is defined and not interchanged.

ficial regulations, in particular VDE

 The control component contains no parts that can

be replaced or repaired by the user and may only be opened by the manufacturer

 Remove the transparent protective cap of the Easy

controller only temporarily for wiring and commissioning, not available for TVE.

 For TVE type only: to ensure IP protection, use the

rubber cover to insert the connection cables.

 Lay connecting cables in such a way that they

cannot be accidentally damaged by mechanical impact or by heat.

Electrical safety

The Easy controller fulfills all relevant standards and guidelines. (See appendix for manufacturer's declaration).

Open terminals

According to the electro-technical regulations, contact protection insulation is only required for active parts.

Because Easy controllers are operated with protective extra-low voltage (PEL considered active parts.

Wire clamping bracket

Devices that are permanently installed in buildings are stationary electrical equipment for which no wire clamping bracket on the connecting cables is prescribed.

Some VAV terminal units come with a wire clamping bracket (cable tie) that can be used to secure the connecting cable as part of electrical installation work.

V), the screw terminals are not

5.2 Connection diagrams

Terminals

Fig. 13: Terminals

1 Ground 2 24 V AC / DC supply voltage 3 Reference signal (w) 0–10 V DC 4 Actual signal (U) 0–10 V DC

The connection terminals for the supply voltage (1 and

2) are doubled for easy rewiring.

Caution: to protect against overload, the supply voltage for a maximum of three Easy controllers must be through-wired.

Control component Easy for VAV terminal units18

Wiring

Connection diagrams

Terminals for 0.5 to 2.5 mm² cables, rigid and flexible, A

WG 22–10

Control constant volume flow rate V

min

Fig. 14: Constant volume flow rate Vmin

After applying the supply voltage 24 V, the controller throttles the volume flow rate to the value set on the V

potentiometer

. A setpoint signal is not required. The current actual value volume flow rate can be tapped at the terminal (U).

Variable volume flow control V

min

... V

max

Switching the volume flow rate V

Fig. 16: Switching the volume flow rate V

min/Vmax

If the volume flow rate between two constant values can be switched (i.

e., day/night switching), it is possible to switch over between the volume flow rate setpoint values specified by the V

min

using an on-site volt-free switch contact.

Switch S1 open - V

Switch S1 closed - V

min

max

and V

min

potentiometers

max

Parallel connection

Fig. 15: Variable volume flow control

If the volume flow rate is to be specified by a higherlevel controller (e.

g. for room temperature, air quality or a DDC outstation), its 0–10 V DC output must be connected by at least 2 wires (terminals 1 and 3) to the terminals for the control signal (w) of the Easy controller in accordance with the connection diagram. With a common 24 V supply voltage, it should be noted that terminal 1 on the Easy controller is also the ground for the control signal.

Control component Easy for VAV terminal units 19

Fig. 17: Parallel connection

If several Easy controllers are to be switched simultaneously with a switch contact between V

min

and V

max

, the

switch S1 must be designed as a changeover switch, and the contact for V

operation must be connected to

min

the ground (terminal 1)

Wiring

Connection diagrams

Override control on/off

Fig. 18: Override control

When using a 24 V AC supply voltage, special operating states, so-called override controls, can alternatively be activated.

For this purpose, it is necessary to have a dif cuit with a diode circuit and volt-free switch contacts, provided by others.

Switch S2 closed - CLOSED (closed position)

Switch S3 closed - OPEN (open position)

ferent cir-

Note: this functionality is only available with AC supply voltage.

All override controls can be combined both with each other and with the different switching options. When combining several override controls the switches must be interlocked to prevent short-circuits.

With activation of the override control "damper blade CLOSED", the VAV terminal unit is put into the closed position. Depending on the design of the VAV terminal unit, residual leaks may remain, or an air-tight shut-off can be achieved. For more detailed information, see technical data of the VAV terminal unit.

Control V

min

... V

with 20 mA control signal

max

Fig. 19: Variable volume flow

The connection of a reference signal from 0 to 20 mA is also possible. For this purpose, a resistance of 500 placed between the ground and input (w). The actual value output (U) is always available as voltage signal 0–10 V DC.

Control component Easy for VAV terminal units20

Ω is

6 Commissioning and opera-

tion

Setting the Easy controller

6.1

Commissioning and operation

Setting the Easy controller

Fig. 20: Setting the volume flow rate setpoint values, for example LMV

1 V

min

2 V

max

The minimum or maximum volume flow rate is set via the potentiometer on the Easy controller depending on the control request, a constant volume flow rate corresponding to V

the variable volume flow control can be set between V

and V

min

Further explanations and examples on the following pages.

-D3A

potentiometer

max

. With these,

or the working range for

min

Control component Easy for VAV terminal units 21

Commissioning and operation

Setting the Easy controller > Volume flow rate scale

6.1.1 Control ranges of VAV terminal units

Each VAV terminal unit with Easy controller has a sticker with the volume flow rate scale. Note the individual volume flow rate and control ranges of the respective combination of the V

The usable volume flow rate and control range is shown in the following table or on the scale sticker of the VAV terminal units, Fig. 21.

AV terminal unit and the control component.

Type of VAV terminal units

LVC low airflow velocity and low duct pressure

TVE low airflow velocity and low duct pressure TROVE-024T-05I-DD15 4...100%

TVR various applications in the standard volume flow

TVJ normal to high volume flow rate ranges

TVT normal to high volume flow rate ranges with air-

TZ-SILENZIO high acoustic requirements at low airflow velocity

TA-SILENZIO high acoustic requirements at low airflow velocity

TVZ high acoustic requirements in the supply air area

TVA high acoustic requirements in the extract air area

Area of application Easy controller types Usable control

range

10...100%

20...100%

10...100%

rate range

tight shut-of

in the supply air area

in the extract air area

 LMV  227V-024T-05-013

 LMV  227V-024T-05-002

 227V

 227V  SMV-D3A

 LMV

-D3AL-F

-D3A-F

-024T-15-002

-D3A

6.1.2 Volume flow rate scale

Fig. 21: Scale sticker example TVR/200/Easy

1 Minimal adjustable volume flow rate 2 Type of controller, here e.g. TVR 3 Nominal size

The scale sticker serves as an aid for setting the volume flow control range. The scale is individual for the combination of control unit, nominal size and mounted control component.

The grey shaded percentages (1 and 5) document the usable control range of the respective V The right edge of the scale at 100% documents the respective nominal volume flow rate in [m³/h], [l/s] and [cfm].

The percentages thus represent the ratio of the respective volume flow rate to the nominal volume flow rate.

Control component Easy for VAV terminal units22

4 Arrow indicating the airflow direction 5 Maximum adjustable volume flow rate 6 Nominal volume flow rate in [m³/h], [l/s] and [cfm]

AV terminal unit type.

6.1.3 Settings examples

Example 1: TVR/200/Easy

Nominal volume flow rate, V

Desired volume flow rate control range - V

, of the control unit - 1459 m³/h

nom

: 400 m³/h to V

min

Commissioning and operation

Setting the Easy controller > Settings examples

: 1000 m³/h

max

Billing solution:

: 400 m³/h / 1459 m³/h × 100 ≈ 28%

min

: 1000 m³/h / 1459 m³/h × 100 ≈ 69%

max

Example 2: TVJ/400 x 200/Easy

Nominal volume flow rate, V

, of the control unit - 2592 m³/h

nom

Desired volume flow rate control range - V

: 650 m³/h to V

min

: 2250 m³/h

max

Billing solution:

: 650 m³/h / 2592 m³/h × 100 ≈ 25%

min

: 2250 m³/h / 2592 m³/h × 100 ≈ 87%

max

Control component Easy for VAV terminal units 23

Commissioning and operation

Setting the Easy controller > Setting variable volume flow control

6.1.4 Default settings V

min

and V

max

Default settings of the volume flow controllers with Easy controller:

 V  V

min

max

: 40%

: 80%

During commissioning, the settings can be adjusted according to the requirements.

6.1.5

Setting constant volume flow control

In the case of a variable volume flow control, the variable volume flow rate operating range is set via the potentiometers V

control signal at terminal w

min

and V

, which is controlled via the

max

The following points should be noted for the control input signal:

 Usable control range of the V

Chapter 6.1.1 ‘Control ranges of VAV terminal

AV terminal unit

units’ on page 22

 V

= nominal volume flow rate at control signal (w)

min

with 0 V DC (not less than 10 or 20%)

 V

= set volume flow rate at control signal (w) with

max

10 V DC

In order to achieve a higher resolution of the assignment of 0–10 V voltage signals to the volume flow rate setpoint values, the operating range can be restricted.

If the value for V

is interpreted as a fixed setpoint value. The setpoint

min

is set higher than V

min

, the setting of

max

signal (w) is ignored here.

6.1.6.1 Setting the entire control range for the control input signal of the central building management system

The setpoint value for a constant volume flow rate is set on the V

The position of the V

potentiometer

min

potentiometer should be set to

max

0%.

For the constant volume flow control, no control signal is required at terminal w.

6.1.6 Setting variable volume flow control

If the volume flow rate is to be specified by the central

T [BMS] over the entire control range, set the V

GL potentiometer to 0% and the V

potentiometer to

max

min

100%.

The following points should be noted for the control input signal:

 Usable control range of the V

Chapter 6.1.1 ‘Control ranges of VAV terminal

AV terminal unit

units’ on page 22

The usable control range is available from a 1 V DC or 2 V DC control signal, depending on the VAV terminal unit type.

 If the control signal drops below 0.5 V DC, the

damper blade moves to the shut-off position. Compliance with a control signal ≤ 0.5 V DC is not

always given due to interference voltages on the supply lines. Therefore, the positive circuit should

always be preferred for a safe shut-off

‘Override

control on/off’ on page 20.

Control component Easy for VAV terminal units24

6.2 Functional test

Personnel:

Skilled qualified electrician



AC technician



To perform a functional test, the Easy controller has a test push button, the operating states are displayed on

the LED screen,

description’ on page 10

To check the function of the VAV terminal unit, check the position of the damper blade on the damper blade shaft (marked),

on page 12.

Preparation:

 Switch on the power supply.  Switch on air conditioning system.

1. Press the test push button for approx. 1 second.

est function is started.

Chapter 3 ‘Structure and functional

Chapter 3.3 ‘Position of the damper blade’

Commissioning and operation

Switching the direction of rotation

The direction of rotation reversal is signalled

by the LED flashing briefly

The actuator then performs a synchronisation (slow flashing) and then returns to normal operation.

 Actuator moves the damper blade to the

CLOSED position.

 Actuator moves the damper blade to the

OPEN position.

 Actuator moves the damper blade back to

the control position.

 When the set volume flow rate is reached,

the LED lights up solidly

2. Override control V

Logging actual value signal U

3. Override control V

Logging actual value signal U

on the master controller

min

on the master controller

max

6.3 Switching the direction of rotation

Personnel:

TROX T



Attention: only for service personnel – release by untrained personnel endangers the control function!

With volume flow rate deviations, an incorrect effect of actuator action (direction of rotation) of the controller could be the cause.

Test:

1. T

Rotation direction reversal (not for TVE type):

echnical Service

o test, disconnect the setpoint signal at terminal

(w) and set the V

If the actuator then moves the damper blade

potentiometer to 0%.

min

to the OPEN position, the direction of rotation is set incorrectly.

2. Set V

min

and V

potentiometers to 100% each.

max

3. Press the test push button (at least 4 s).

Control component Easy for VAV terminal units 25

Troubleshooting

Common mistakes > Deviation between setpoint value and actual value signal

7 Troubleshooting

olume flow rate controllers with Easy controller are

V tested technically before delivery. Operating parameters must be set individually for each controller during commissioning to the required system conditions.

If faults occur after commissioning, they can usually be remedied yourself using the following descriptions.

If a fault cannot be remedied on its own, TROX Service will be happy to assist you with troubleshooting, simply contact

For this, the following information is needed:

 Type and nominal size of VAV terminal unit (see

 Vmin/Vmax settings  Control input signal

7.1 Common mistakes

7.1.1

If the desired volume flow rate value is not adhered to precisely enough, which is the most frequent cause of error, this creates an unfavourable installation situation of the VAV terminal unit.

If the straight inflow length upstream of the volume flow controller is too short, the airflow becomes turbulent and the measurement of the volume flow rate becomes inaccurate. This is especially true when installing behind sharp edged bridges, fittings or junctions. The necessary straight inflow lengths are specified in the installation and commissioning instructions of the VAV terminal unit.

7.1.2 Incorrect wiring

In many cases wiring errors are the cause of faults. For this reason, only the 24 V supply voltage should initially be connected when troubleshooting an volume flow controller.

1. If present, disconnect the connecting cables at the

2. Check if the 24 V supply voltage is switched on.

3. Check whether the controller has reached the set-

‘TROX Technical Service’ on page 3

adjustments sticker):

Volume flow rate deviation due to unfavourable installation situation

setpoint value input (terminal w) and the actual value output (terminal U). This switches of external circuit influences.

When the supply voltage is switched on, the

Easy controller attempts to set the volume flow rate to the setpoint value V

point value.

The green LED must light up solid within approx. 180 seconds. In addition, the signal voltage of the actual value output (terminal U) can be measured

with a multimeter

If the setpoint value is reached, the controller

will work properly.

min

f all

4. The test can be repeated for dif

values by adjusting the V

ferent setpoint

potentiometer.

min

7.1.3 System pressure too low

The aim of the volume flow control is to regulate the volume flow rate actual value to the specified setpoint value.

For this purpose, a larger volume flow rate is required in the duct, which can be controlled (throttled) with the controller to the desired setpoint value.

If the volume flow rate in front of the control unit is too low (required minimum differential pressure not available), the setpoint value cannot be reached.

This can be detected on the damper blade shaft of the VAV terminal unit.

If the damper blade is still in the OPEN position with the setpoint signal present, instead of in a control position (throttle position), the volume flow rate is not high enough to set the setpoint value. The controller will try to open the damper blade further to reach the desired volume flow rate setpoint value.

7.1.4 Use outside the control area

If the device-specific control range is left with the potentiometer setting V

signal, the setpoint values cannot be reached. The actual value reached by the controller is undefined.

Potentiometer adjustment and setpoint value control signal:

Depending on the control unit type, the voltage signal must be >1V or 2V, in particular, when setting V

and V range.

Additional Information:



= 100%, in order to control the valid control

max

Chapter 6.1.1 ‘Control ranges of VAV terminal

units’ on page 22

Chapter 3.6 ‘Characteristics’ on page 16

min/Vmax

, or with the specified setpoint

= 0%

min

7.1.5 Deviation between setpoint value

and actual value signal

Frequently the same signal voltage is expected at the setpoint value input and the actual value output. However, this only applies in the event that a V

100% are set on the potentiometers, since the same characteristic curve vertices are used for the setpoint value input and the actual value output.

Furthermore, in the controlled state, due to the permissible control tolerance, small deviations between the signal voltages of the setpoint value and actual value can always be expected.

, in the regulated state of the Easy controller,

of 0% and a V

min

max

Control component Easy for VAV terminal units26

Troubleshooting

Common mistakes > Deviation between setpoint value and actual value signal

If the potentiometer settings for V

and V

min

restrict the

max

usable control range, this will change the characteristic curve of the setpoint signal. Since the actual value signal is always assigned to a characteristic curve of 0 V

, a restriction of the usable control range results in a

nom

ferent characteristic curve for setpoint value and

dif actual value signal.

In this case, a direct inference due to different signal voltages at the setpoint value input or actual value output without (rollover) calculation is not possible.

Control component Easy for VAV terminal units 27

Start Störungsermittlung

VVS-Regelgerät mit Easy-Regler

Versorgungsspannung innerhalb

der Toleranzangaben ?

Funktionsprüfung auslösen (Test-Taste drücken)

Positionen Geschlossen, Offen, Regelposition

werden automatisch nacheinander angefahren

(dauert mehrere Minuten; Vorgang beobachten)

Regelklappe erreicht

zunächst

„Geschlossen“

Position ?

Regelklappe erreicht

anschließend

„Offen“

Position ?

Drehrichtung korrekt ?

(Schließen im UZS)

Mechanischer Block?

Nein

Automatischer Ablauf Testfunktion

Nein

Regler defekt

Mechanischen Block entfernen

Drehrichtung umprogrammieren

Nein

Regelklappe erreicht

Regelposition nach

ca. 180 s ?

Istwert-Signal U

folgerichtig ?

(LED leuchtet dauerhaft)

Klappenstellung?

Sensor/Messschläuche

am VVS-Regelgerät prüfen

(Schläuche knickfrei verlegt/Schläuche/Anschluss undicht)

Anlagendruck prüfen

Mindestdruckdifferenz eingehalten?

Kanalabschnitt abgesperrt/Brandschutzklappe geschlossen?

Offen

Nein

(LED blinkt dauerhaft)

Einstellung Vmin/Vmax prüfen/korrigieren

Einstellung 0...100% oder

nutzbaren Regelbereich der VVS-Regelgeräte Serie beachten

Geschlossen oder

keine Veränderung

Einstellung

Vmin/Vmax Potentiometer

zugelassen?

(nur bei Nutzung)

„Zwangsschaltung Vmax“

kann aktiviert werden?

(nur bei Nutzung)

„Zwangsschaltung Zu“

Zwangsschaltung „offen“

funktioniert?

Sollwertsignal w ok?

Regler i.O.

Verdrahtung und

übergeordnete Regelinstanz prüfen

(Raumtemperatruregler Luftqualitätsregler, DDC, GLT

z.B. Kennlinieneinstellung 0-10V)

- Spannungsversorgung Typ AC?

- Verdrahtung inkl. Diode prüfen

- Schaltkontakt prüfen

Verdrahtung und

Schaltkontakt prüfen

Sollwert Vmax

wird erreicht ?

Nein

Klappenstellung Offen?

Nein

Sensor/Messschläuche

am VVS-Regelgerät prüfen

(Schläuche knickfrei verlegt/Schläuche/Anschluss undicht)

Anlagendruck prüfen

Mindestdruckdifferenz eingehalten?

Kanalabschnitt abgesperrt/Brandschutzklappe geschlossen?

(nur bei Nutzung)

„Zwangsschaltung Vmax“

kann aktiviert werden?

Sollwert Vmin

wird erreicht ?

Nein

Verdrahtung und

Schaltkontakt prüfen

- Verdrahtung prüfen

- Toleranzbetrachtung Regler vs. Messtoleranz

- Überprüfung Einbausituation (Turbulenzen)

- Überprüfung auf Verschmutzung; ggf. Easy- Regler tauschen

Nein

Verdrahtung, Transformator prüfen

Nein

Sollwertsignal prüfen

Ansteuerung im nutzbaren Regelbereich?

Störungsbehebung an VVS-Regelgeräten mit Easy-Regler Stand 24.4.2018

Toleranzbetrachtung Regler vs. Messtoleranz

Überprüfung Einbausituation (Turbulenzen)

Automatischer Ablauf Testfunktion

Klappenausrichtung

auf Achse ok?

Klappenmontage auf Achse korrigieren

Nein

Troubleshooting

Systematic troubleshooting

7.2 Systematic troubleshooting

Fig. 22: Troubleshooting Easy Controller V24.4.18

Control component Easy for VAV terminal units28

Troubleshooting

Further diagnostic options > Ordering replacement controllers

7.3 Further diagnostic options

7.3.1

With a multimeter, both the setpoint signal (terminal w against terminal 1) and the actual value signal (terminal U against terminal 1) can be measured electrically. Using the following formulas, the associated setpoint value and actual value volume flow rates can be calculated and thus checked:

Note: depending on the selected setting on the V

Vmax

actual voltage may well be dif correctly regulated.

Example 1: TVR 400/Easy

Nominal volume flow rate V

Setting V

Voltage terminal w - 5.14 V

Voltage terminal U - 5.35 V

Billing solution:

V =

Deviation = 3226 - 3099 = 127 m³/h ≈ 4%

Example 2: TVR 400/Easy

Nominal volume flow rate V

Setting V

Voltage terminal w - 8.24 V

Voltage terminal U - 6.93 V

Billing solution:

V m³/h) + 0.4 × 6030 m³/h =

Deviation = 4179 - 4399 = -220 m³/h ≈ -5%

Use of multimeters to control setpoint values and feedback signals

potentiometers, the setpoint value voltage and

ferent, even if they are

- 6030 m³/h

nom

min

max

: 5.14 V / 10 V × (6030 m³/h - 0 m³/h) + 0 m³/h

ref

3099 m³/h

: 5.3 V / 10 V ×

actual

min

max

: 8.24 V / 10 V × (0.8 × 6030 m³/h - 0.4 × 6030

ref

: 6.93 V / 10 V × 6030 m³/h = 4179 m³/h

actual

6030 m³/h = 3226 m³/h

- 0%

- 100%

- 6030 m³/h

nom

- 40%

- 800%

4399 m³/h

min

and

7.3.2 Use of adjustment devices

The use of an adjustment device is not permitted for the Easy controllers. Depending on the delivery period and factory preparation, the values displayed on the control component cannot be clearly assigned as for the original equipment or for substitute controllers.

7.3.3

The adjustments sticker documents the factory testing, the settings and the most important order data of the VAV terminal unit and the control component.

Fig. 23: Adjustments sticker

The information is required as part of the technical support provided by the TROX service or for the ordering of replacement parts.

7.3.4

When ordering an Easy replacement controller, the device type and nominal size/dimensions are required when ordering. Customer-specific operating values for Easy controllers are not set at the factory. The information can be found, for example, in the adjustments sticker described in the previous chapter.

Example of order information: replacement controller type Easy for VAV terminal unit TZ-SILENZIO in dimension 200: TZ-SILENZIO 200/Easy

Note: for some VAV terminal unit types, Easy replacement controllers can be used regardless of the dimensions of the basic units.

This only applies to types TVR, TVJ, TVT and TVZ.

Examples: a replacement controller for the TVJ/Easy type can be used both on the nominal width of 300x100 and on all other dimensions of the TVJ. A TVR/Easy replacement controller can be used on the 250, as well as all other dimensions of the TVR.

Adjustments sticker

Ordering replacement controllers

Control component Easy for VAV terminal units 29

Disposal

8 Disposal

After final decommissioning, the volume flow controller with the control component type Easy must be disposed of properly by a competent authority tains electrical and electronic components and must not be disposed of as domestic waste. When disposed of, local up to date regulations must be complied with.

. The device con-

Control component Easy for VAV terminal units30

9 Technical data

General operating conditions of the control components

Ambient temperature 10–50 °C

Ambient humidity 5–90% rF

Easy controller LMV-D3AL-F

Technical data

Supply voltage

Power rating

Running time for 90° 120–150 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0–10 V DC, max. 0.5 mA

IEC protection class III (protective extra-low voltage)

Protection level IP 20

EC conformity EMC to 2014/30/EU

Easy controller 227V-024T-05-013

Supply voltage

Power rating

24 V AC ± 20%, 50/60 Hz

24 V DC -10/+20%

3.5 VA max.

Max. 2 W

24 V AC ± 20%, 50/60 Hz

24 V DC ± 20%

5 VA max.

Max. 3 W

Running time for 90° 100 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0 – 10 V DC, max. 0,5 mA

IEC protection class III (protective extra-low voltage)

Protection level IP 20

EC conformity EMC to 2014/30/EU

Control component Easy for VAV terminal units 31

Technical data

Easy controllers LMV-D3A and LMV-D3A-F

Supply voltage

Power rating

Running time for 90° 110 – 150 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0 – 10 V DC, max. 0,5 mA

IEC protection class III (protective extra-low voltage)

Protection level IP 20

EC conformity EMC to 2014/30/EU

Easy controller 227V-024T-05-002

Supply voltage

Power rating

24 V AC ± 20%, 50/60 Hz

24 V DC −10/+20%

5 VA max.

Max. 2.5 W

24 V AC ± 20%, 50/60 Hz

24 V DC ± 20%

5 VA max.

Max. 3 W

Running time for 90° 100 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0 – 10 V DC, max. 0,5 mA

IEC protection class III (protective extra-low voltage)

Protection level IP 20

EC conformity EMC to 2014/30/EU

Easy controller 227V-024T-15-002

Supply voltage

Power rating

Running time for 90° 150–270 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0 – 10 V DC, max. 0,5 mA

IEC protection class III (protective extra-low voltage)

24 V AC ± 20%, 50/60 Hz

24 V DC ± 20%

5 VA max.

Max. 3 W

Protection level IP 20

EC conformity EMC to 2014/30/EU

Control component Easy for VAV terminal units32

Easy controller SMV-D3A

Technical data

Supply voltage

Power rating

Running time for 90° 110 – 150 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0 – 10 V DC, max. 0,5 mA

IEC protection class III (protective extra-low voltage)

Protection level IP 20

EC conformity EMC to 2014/30/EU

Easy controller TROVE-024T-05I-DD15

Supply voltage

Power rating

24 V AC ± 20%, 50/60 Hz

24 V DC −10/+20%

6 VA max.

Max. 3 W

24 V AC ± 20%, 50/60 Hz

24 V DC −10/+20%

4 VA max.

Max. 2,5 W

Running time for 90° 100 s

Setpoint value signal input 0 – 10 V DC, Ra > 100 kΩ

Actual value signal output 0 – 10 V DC, max. 0,5 mA

IEC protection class III (protective extra-low voltage)

Protection level IP 42

EC conformity EMC to 2014/30/EU

Control component Easy for VAV terminal units 33

Declaration of conformity

10 Declaration of conformity

We hereby declare that the Easy controller complies with all relevant provisions of the following EC guidelines:

 Directive 2014/30/EU  Directive 2014/35/EU  Directive 201

The individual CE certificates can be found at www.trox.de.

1/65/EU

Control component Easy for VAV terminal units34

Control component Easy for VAV terminal units 35

TROX GmbH

Heinrich-T 47504 Neukirchen-Vluyn Germany

rox-Platz

+49 (0) 2845 202-0 +49 (0) 2845 202-265 E-mail: trox@trox.de www.trox.de

Trox Control component Easy Installation And Commissioning Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Residual risks

1 Safety

Correct use

1.2 Safety signs

Staff

1.3.1 Electric shock hazards

1.4 System owner's responsibility

1.6 Personal protective equipment

1.7 General safety measures

1.8 Repair and replacement parts

Transport, storage and packaging

2.3 Storage

2.4 Packaging

2.1 Delivery check

2.2 Transport on site

Product overview types LVC, TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA

3 Structure and functional description

3.2 Product overview TVE type

3.3 Position of the damper blade

3.4 Function description

3.5 Operating modes

Operation with constant volume flow rate setpoint value

3.5.2 Operation with variable volume flow rate setpoint value

3.6 Characteristics

4 Installation

5 Wiring

5.1 Installation instructions

5.2 Connection diagrams

Setting the Easy controller

Commissioning and operation

6.1.1 Control ranges of VAV terminal units

6.1.2 Volume flow rate scale

6.1.3 Settings examples

Setting constant volume flow control

6.1.6.1 Setting the entire control range for the control input signal of the central building management system

6.1.6 Setting variable volume flow control

6.2 Functional test

6.3 Switching the direction of rotation

7 Troubleshooting

7.1 Common mistakes

7.1.2 Incorrect wiring

Volume flow rate deviation due to unfavourable installation situation

7.1.3 System pressure too low

7.1.4 Use outside the control area

7.2 Systematic troubleshooting

7.3 Further diagnostic options

7.3.2 Use of adjustment devices

Adjustments sticker

Ordering replacement controllers

8 Disposal

9 Technical data

10 Declaration of conformity
