OPERATING MANUAL

DEHUMIDIFIER

TRT-BA-TTK65E-TC2015-33-003-EN

Notes regarding the operating manual................................. 2

Safety .....................................................................................2

You can download the current version of the operating manual and the EU declaration of conformity via the following link:

Information about the device................................................4

Transport and storage...........................................................5

Assembly and installation.....................................................5

Operation ...............................................................................7

Errors and faults....................................................................9

Maintenance ........................................................................11

Technical annex...................................................................15

Disposal ...............................................................................16

Notes regarding the operating manual

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.

Caution

This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.

Note

This signal word indicates important information (e.g. material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the operating manual must be observed.

TTK 65 E

https://hub.trotec.com/?id=42981

Safety

Read this manual carefully before starting or using the device. Always store the manual in the immediate vicinity of the device or its site of use!

Warning Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it when wet.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and animals. Do not leave the device unattended during operation.

• Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts.

2 EN

dehumidifier TTK 65 E

• Ensure that all electric cables outside of the device are protected from damage (e.g. caused by animals). Never use the device if electric cables or the power connection are damaged!

• The electrical connection must correspond to the specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains socket.

• Observe the device's power input, cable length and intended use when selecting extensions to the power cable. Completely unroll extension cables. Avoid electrical overload.

• Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from the mains socket when the device is not in use.

• Do not under any circumstances use the device if you detect damages on the mains plug or power cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Defective power cables pose a serious health risk!

• When positioning the device, observe the minimum distances from walls and other objects as well as the storage and operating conditions specified in the Technical data chapter.

• Make sure that the air inlet and outlet are not obstructed.

• Make sure that the suction side is kept free of dirt and loose objects.

• Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition.

• Only transport the device in an upright position with an emptied condensation tank or drain hose.

• Discharge the collected condensate before transport and storage. Do not drink it. Health hazard!

Intended use

Only use the device for drying and dehumidifying room air, while adhering to and following the technical data.

In addition, the device may also be used as a kind of clothes dryer to dry wet laundry.

Intended use comprises:

• dehumidifying and drying:

– living rooms, bedrooms, bathrooms and basements – laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

– storage spaces, archives, laboratories, garages – bathrooms, wash rooms, changing rooms etc.

Improper use

The device is not intended for industrial use.

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural changes to the device are forbidden.

• Any operation other than as described in this manual is prohibited. Non-observance renders all claims for liability and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with electric devices in damp areas.

• have read and understood the operating manual, especially the Safety chapter.

Maintenance tasks which require the housing to be opened must only be carried out by specialist companies for cooling and air-conditioning or by Trotec.

Residual risks

Warning of electrical voltage

Work on the electrical components must only be carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug from the mains socket! Hold onto the mains plug while pulling the power cable out of the mains socket.

Warning

Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the hands of children.

Warning

Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy.

Note

Do not operate the device without an inserted air filter! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device.

EN 3

dehumidifier TTK 65 E

Behaviour in the event of an emergency

1. Switch off the device.

2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The device uses the principle of condensation to automatically dehumidify rooms.

The fan sucks damp room air through the air inlet, the air filter, the evaporator and to the condenser located behind it. The air is cooled at the cold evaporator until it is below the dew point. Water vapour contained in the room air precipitates on the evaporator fins as condensation or rime. The dehumidified, cooled air is slightly warmed at the condenser and blown out again. The drier air thus conditioned mixes with the air in the room. The humidity in the room where the device is positioned is reduced as air constantly circulates through the device.

Depending on the air temperature and the relative humidity, the condensed water either drops continuously or only during the defrost phase through the integrated drain nozzle into the condensation tank below. It is fitted with a float to measure the filling level.

The device has a control panel for operating and controlling the functions.

Once the maximum filling level of the condensation tank is reached or in case the condensation tank is not installed correctly, the condensation tank indicator light (see chapter Operating elements) on the control panel is illuminated. The device switches off. The condensation tank indicator light only goes out again once the emptied condensation tank is reinserted.

Optionally, the condensed water can be drained by attaching a hose at the condensation connection.

The device can reduce the relative humidity of a room to approx. 30%.

In addition, the device may also be used as a kind of clothes dryer to dry wet laundry in living or working spaces.

Because of the heat radiation generated during operation, the room temperature may rise slightly.

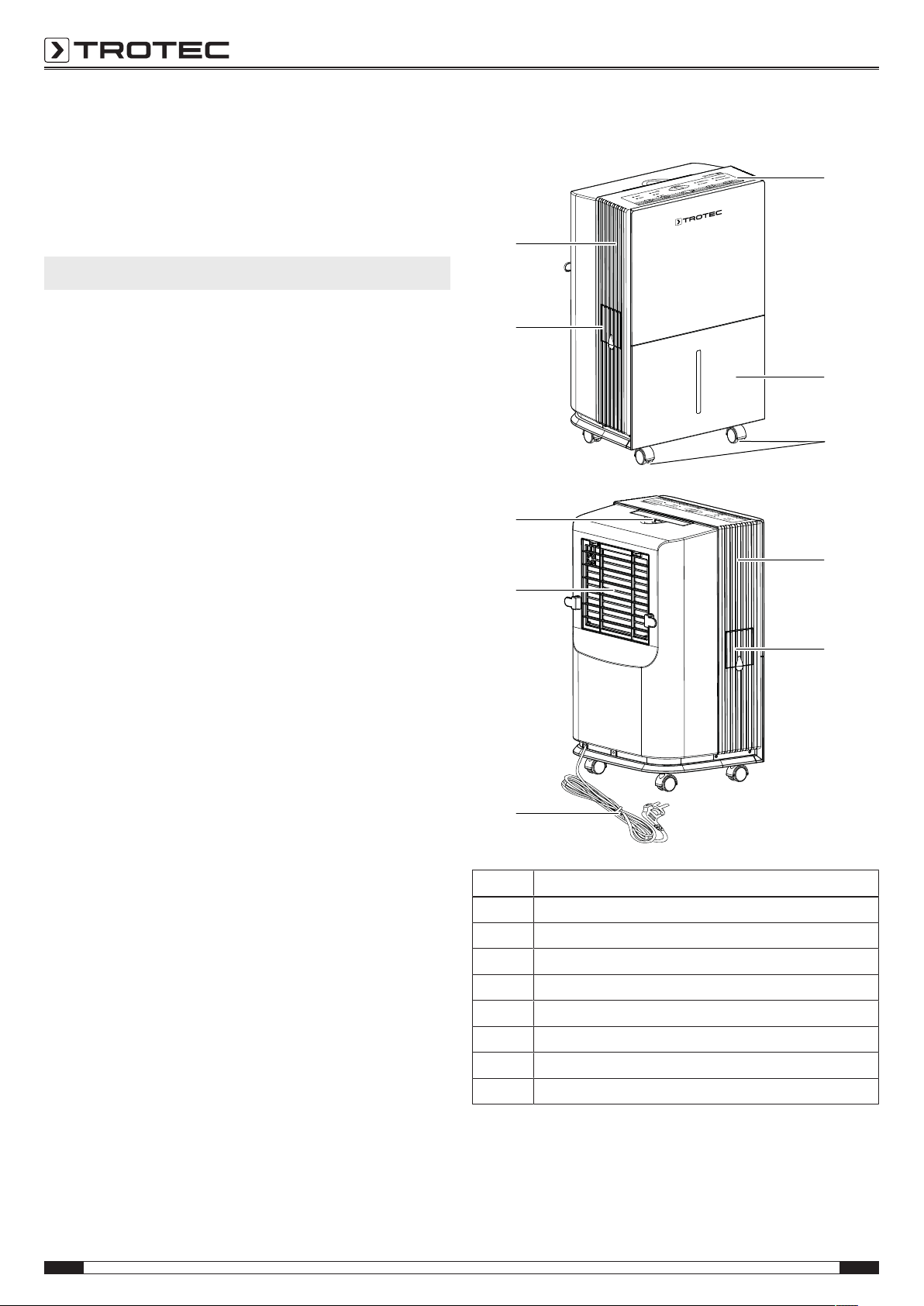

Device depiction

No. Designation

1 Control panel

2 Condensation tank with filling level indicator

3 Wheels

4 Air outlet

5 Cover of condensation drain hose connection

6 Power cable

7 Air inlet with air filter

8 Transport handle

4 EN

dehumidifier TTK 65 E

Transport and storage

Assembly and installation

Note

If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device.

Transport

To make the device easier to transport, it is fitted with a carry handle.

To make the device easier to transport, it is fitted with wheels.

Before transporting the device, observe the following:

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out of the mains socket.

• Do not use the power cable to drag the device.

• Drain the remaining condensate from the device and the condensation drain hose (see chapter Maintenance).

• Only wheel the device on a level and smooth surface.

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

• Leave the device to rest for 12to24hours, so the refrigerant can accumulate within the compressor. Wait 12to24hours before switching the device back on! Acting contrary might lead to compressor damage and a malfunctioning device. If so, any warranty claims will be voided.

Scope of delivery

• 1x Device

• 1x Air filter

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding.

Assembly

Mounting the wheels

1. Take the condensation tank out of the device.

Storage

Before storing the device, proceed as follows:

• Drain the remaining condensate from the device and the condensation drain hose (see chapter Maintenance).

• Empty and clean the condensation tank and the condensation drain hose prior to storage.

• Hold onto the mains plug while pulling the power cable out of the mains socket.

When the device is not being used, observe the following storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and direct sunlight

• with a cover to protect it from invasive dust, if necessary

• Place no further devices or objects on top of the device to prevent it from being damaged.

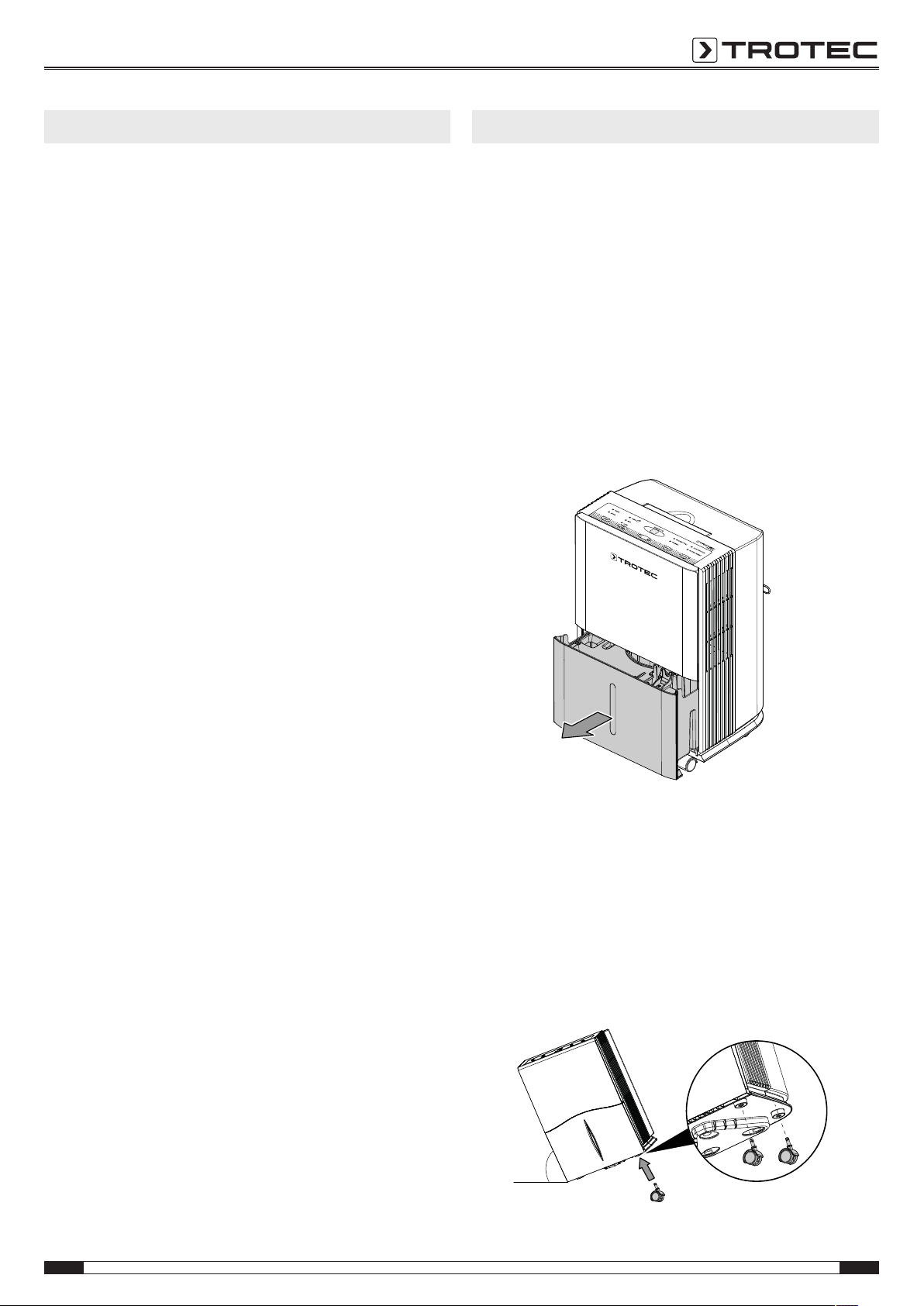

2. Press both locks at the sides of the condensation tank inward to open the cover.

3. Remove the container with the wheels from the condensation tank.

4. Reattach the cover to the condensation tank. Make sure that the cover is inserted correctly. Carefully let the cover engage.

5. Refit the condensation tank into the device.

6. Incline the housing by max. 45° and insert a wheel into one of the retainers on the bottom of the housing until it engages.

7. Repeat this step for the 3 remaining wheels.

EN 5

dehumidifier TTK 65 E

Start-up

When positioning the device, observe the minimum distance from walls or other objects as described in the Technical data chapter.

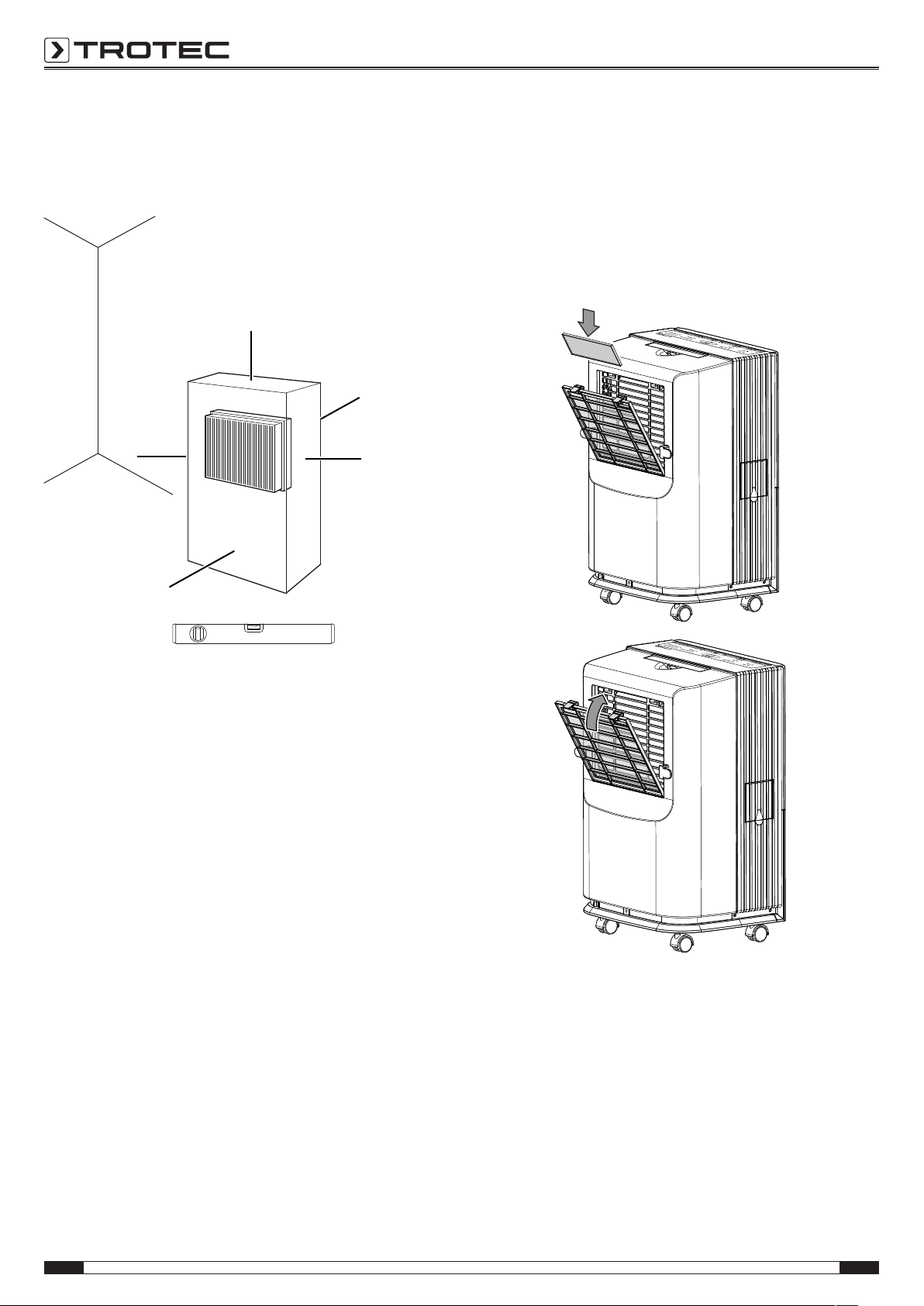

Inserting the air filter

Note

• Make sure that the air filter is installed before switching the device on.

• Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service.

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are completely unrolled.

• When positioning the device, keep a sufficient distance to heat sources.

• Make sure that no curtains or other objects interfere with the air flow.

• When positioning the device, particularly in wet areas, secure it locally with an RCD (residual current device) which complies with the respective regulations.

Inserting the condensation tank

• Ensure that the float inside the condensation tank is inserted correctly.

• Ensure that the condensation tank is empty and inserted correctly.

Connecting the power cable

• Insert the mains plug into a properly secured mains socket.

6 EN

dehumidifier TTK 65 E

Operation

10 11 12

14 15

20 19 18 17 16

Notes:

• Avoid open doors and windows.

• After being switched on, the device operates fully automatically.

• The fan runs permanently in dehumidification mode until the set nominal value is reached or the device switched off.

Operating elements

No. Designation Meaning

9 TIMER LEDs Illuminated when the TIMER is

activated. 2HRS = Device automatically switches on or off after 2hours. 4HRS = Device automatically switches on or off after 4hours.

10 Fan speed LEDs Indicate the fan speed:

LOW MID (medium) HIGH

11 Segment display Indicates the target humidity value.

12 POWER LED Illuminated when the device is running.

13 BUCKET FULL LED Illuminated when the condensation

tank is full.

14 FILTER RESET

LED

15 CONTINUOUS LED Illuminated during continuous

16 FILTER button For resetting the FILTER RESET

17 ON/OFF button For switching the device on or off

18 +/-button For setting the desired humidity value

19 FAN SPEED button For setting the fan speed

20 TIMER button Automatic switch-on timer function

Illuminated when the filter needs to be cleaned.

operation.

indication

after 2 or 4hours Automatic switch-off timer function after 2 or 4hours

Switching the device on

Once you have completely installed the device as described in the Start-up chapter, you can switch it on.

1. Press the ON/OFF button(17).

ð The fan switches on. ð The compressor switches on after a period of approx.

3minutes and the device starts the dehumidification process.

Setting the desired relative room humidity

The desired relative room humidity can be preselected at any time.

Press the +/-button(18) in order to set the desired value for relative room humidity (in increments of 5% ranging between 35% and 80%).

Setting the fan speed

Repeatedly press the FAN SPEED button(19) until the LED(10) for the desired fan speed LOW, MID or HIGH lights up.

Setting continuous operation

The device dehumidifies the air constantly and regardless of the relative room humidity.

The relative room humidity and the fan speed cannot be set in this operating mode.

1. Repeatedly press the -button(18) until CO is indicated on the display.

ð The CONTINUOUS LED(15) is illuminated. ð The device operates at the highest dehumidification

performance until the condensation tank is full or, when using a condensation drain hose, until the device is switched off.

Setting the timer

The timer has two modes of operation:

• automatic switch-on upon expiry of a preset number of hours

• automatic switch-off upon expiry of a preset number of hours

The number of hours can be set in increments of 2hours (2h or 4h).

Note

Do not leave the operating device unattended in a freely accessible room with an activated timer.

EN 7

dehumidifier TTK 65 E

Automatic switch-on

ü The device is switched off.

1. Press the TIMER button(20) if you want the device to switch on automatically after 2hours.

ð The 2HRSLED(9) is illuminated.

2. Press the TIMER button(20) again if you want the device to switch on automatically after 4hours.

ð The 4HRSLED(9) is illuminated. ð After the predefined time, the device switches itself on. ð The device keeps running until it is either switched off

manually or automatically.

Automatic switch-off

ü The device is switched on.

1. Press the TIMER button(20) if you want the device to

switch off automatically after 2hours.

ð The 2HRSLED(9) is illuminated.

2. Press the TIMER button(20) again if you want the device to

switch off automatically after 4hours.

ð The 4HRSLED(9) is illuminated. ð After the predefined time, the device switches itself off.

Automatic defrost

At low ambient temperatures, ice may form at the evaporator during dehumidification. The device will then carry out an automatic defrost. Dehumidification is briefly interrupted during defrosting. The fan keeps running.

The duration of the defrost process can vary. Do not switch off the device during automatic defrost. Do not remove the mains plug from the mains socket.

Operation with hose attached to the condensation connection

For continuous operation or unattended dehumidification please use the device with a connected condensation drain hose.

ü A suitable hose (diameter: 12mm) is ready for use. ü The device is switched off.

1. Open the cover for the connection of the condensation drain hose on the side of the device.

2. Pull the rubber stopper out of the connection opening.

Memory function

After a brief power failure the selected target value for the relative room humidity is still saved. Any activated timer will not be saved in the device.

Drying laundry

In addition, the device may also be used as a kind of clothes dryer to dry wet laundry in living or working spaces.

When positioning the device or a clothes horse, please observe the minimum distances specified in the technical data.

For drying laundry the following values should be selected:

• cupboard dry = 46 % relative humidity

• iron dry = 58 % relative humidity

• slightly dried = 65 % relative humidity

If necessary, use a measuring device to determine the humidity level.

8 EN

dehumidifier TTK 65 E

3. Connect one hose end to the connection and guide the other end to a suitable drain or into a sufficiently dimensioned container.

Remove the hose if you want to collect the condensate in the condensation tank again. Allow the hose to dry prior to storage. The hose can be connected in any operating mode for continuous operation.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out of the mains socket.

• If necessary, remove the condensation drain hose and any residual fluid from it.

• Empty the condensation tank, if need be.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

Errors and faults

The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damages.

• Check the on-site fusing.

• Check the filling level of the condensation tank, and empty it if necessary. The BUCKET FULL LED(13) must not light up.

• Check the condensation tank for correct seating.

• Check the room temperature. Observe the device's permissible operating range according to the technical data.

• Wait for 10minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company or by Trotec.

The device is running, but there is no formation of condensate:

• Check the float in the condensation tank for dirt. If necessary, clean the condensation tank. The float must be able to move freely.

• Check the room temperature. Observe the device's permissible operating range according to the technical data.

• Ensure that the relative room humidity complies with the technical data.

• Check the air filter for dirt. If necessary, clean or replace the air filter.

• From the outside, check the condenser for dirt (see chapter Maintenance). If the condenser is dirty, have it cleaned by a specialist company or by Trotec.

• The device might carry out an automatic defrost. During automatic defrost, the device does not dehumidify.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright position.

Condensate is leaking:

• Check the device for leaks.

EN 9

dehumidifier TTK 65 E

The compressor does not start:

• Check the room temperature. Observe the device's permissible operating range according to the technical data.

• Ensure that the relative room humidity complies with the technical data.

• Check whether the overheating protection of the compressor has tripped. Disconnect the device from the mains and let it cool down for approx. 10minutes before reconnecting it.

• The device might carry out an automatic defrost. During automatic defrost, the device does not dehumidify.

The device gets very warm, is loud or loses power:

• Check the air inlets and air filters for dirt. Remove external dirt.

• From the outside, check the device for dirt (see chapter Maintenance). If the inside of the device is dirty, have it cleaned by a specialist company for cooling and air-conditioning or by Trotec.

Note

Wait for at least 3 minutes after maintenance and repair work. Only then switch the device back on.

Your device still does not operate correctly after these checks?

Please contact the customer service. If necessary, bring the device to a specialist company for cooling and air-conditioning or to Trotec for repair.

10 EN

dehumidifier TTK 65 E

Maintenance

Maintenance intervals

Maintenance and care interval before every

start-up

Check the air inlets and outlets for

X X

dirt and foreign objects and clean if necessary

Clean the exterior

Visually check the inside of the device for dirt

Check the air filter for dirt and

X X

foreign objects and clean or replace if necessary

Replace the air filter

Check for damage

Check the attachment screws

Test run

Empty the condensation tank and/or drain hose

as needed at least every

2weeks

X X

at least every 4weeks

at least every 6months

at least annually

EN 11

dehumidifier TTK 65 E

Maintenance and care log

Device type: .............................................

Device number: ....................................

Maintenance and care interval

Check air inlets and outlets for dirt and foreign objects and clean if necessary

Clean the exterior

Visually check the inside of the device for dirt

Check the air filter for dirt and foreign objects and clean or replace if necessary

Replace the air filter

Check for damage

Check the attachment screws

Test run

Empty the condensation tank and/or drain hose

Comments

1. Date: ...................................

Signature: ................................

5. Date: ...................................

Signature: ................................

9. Date: ...................................

Signature: ................................

13. Date: .................................

Signature: ................................

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

2. Date: ....................................
