TGH 10 E / TGH 15 E / TGH 30 E
EN
OPERATING MANUAL
GAS HEATER FAN
TRT-BA-TGH10E-TGH15E-TGH30E-TC-002-EN
Table of contents
Notes regarding the operating manual................................. 1
Safety .....................................................................................2
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
Information about the device................................................5
Transport and storage...........................................................6
Assembly and installation.....................................................6
Operation ...............................................................................9
Errors and faults..................................................................11
Maintenance ........................................................................12
Technical annex...................................................................13
Disposal ...............................................................................14
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
TGH 10 E
http://hub.trotec.com/?id=40945
TGH 15 E
http://hub.trotec.com/?id=40946
TGH 30 E
http://hub.trotec.com/?id=40947
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Notice
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
1 EN
Operating manual – gas heater fan TGH 10 E / TGH 15 E / TGH 30 E
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.
• Insert the mains plug into a properly secured mains
socket.
• Observe the device's power input, cable length and
intended use when selecting extensions to the power
cable. Completely unroll extension cables. Avoid electrical
overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, his service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk.
• Observe the storage and operating conditions (see chapter
Technical data).
• Ensure a minimum distance of 3m to combustible
substances. Do not use the device in rooms where fuel,
solvents, varnishes or other easily inflammable vapours
are stored.
• Ensure that the air inlet and outlet are not obstructed.
• Do not place the device on combustible ground.
• Allow the device to cool down before transport and/ or
maintenance work.
• Protect the device from moisture, e.g. rain.
• Protect the gas cylinder from sub-zero temperatures also
known as frost.
• Carefully inspect all connection points for tightness.
Attention! Leak testing by way of naked flame is strictly
forbidden!
• The exchange of gas cylinders is only permitted in an
environment devoid of ignition sources.
• In case of gas leakage (smell) immediately close the gas
cylinder's main valve and keep the device at a distance to
any fire source.
• Never turn the gas cylinder over, even though it may seem
empty! This could cause an obstruction in the hose with
the remains from the gas cylinder and so lead to a fire
hazard and immediate damage of the device.
• Do not twist the gas hose.
• Do not dismantle the protective grid and/ or other device
components.
• Do not position the gas cylinder in front of the device. Risk
of fire and explosion!
• Only use the original gas hose and original spare parts.
• Keep fire extinguisher and first-aid kit on hand.
• Bear in mind, that you may have to meet different national
requirements. Observe the local regulations regarding
admissible deviations. In Germany consult the Technical
Rules for Liquid Gas (TRF2012) as well as the relevant
accident prevention regulations (VBG and ZH1/455).
EN 2
Operating manual – gas heater fan TGH 10 E / TGH 15 E / TGH 30 E
Intended use
Only use the device TGH 10 E / TGH 15 E / TGH 30 E for
generating hot air in well-ventilated interior spaces or in roofed
outdoor areas protected from weather effects.
Do not use the device in windowless rooms below ground level.
Only use the device in rooms corresponding to the minimum
dimensions specified in the technical data.
• The device is suited for heating large rooms such as tents,
warehouses, workshops, construction sites, greenhouses
or agricultural halls.
• The device may only be used in rooms with sufficient fresh
air supply and exhaust discharge. The ventilation shaft
must have a cross-section of at least 25cm2 per kW
nominal heat output. It is determined based on the calorific
value. The minimum ventilation cross-section amounts to
250cm2.
• It is intended to be used without frequent site changes.
• The device must only be fuelled by propane.
The device may only be used in certain countries of destination
whilst adhering to the technical data.
Improper use
• The device MUST NOT BE USED FOR HEATING
HABITABLE ROOMS IN RESIDENTIAL BUILDINGS; FOR
THE USE IN PUBLIC BUILDINGS: OBSERVE NATIONAL
REGULATIONS.
• The device must not be positioned or operated in areas
with a high risk of fires or in potentially explosive
atmospheres.
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use the device out of doors, unless under a roof.
• The device must not be operated in rooms with an
insufficient combustion air supply.
• The device must not be operated in rooms below ground
level (souterrain or the like).
• Any unauthorised modifications, alterations or structural
changes to the device are forbidden.
• Any operation other than as described in this manual is
prohibited. Non-observance renders all claims for liability
and guarantee null and void.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Symbols on the device
Symbols Meaning
This symbol located on the device indicates that it
is prohibited to place objects (such as towels,
clothes etc.) above or directly in front of the
device.
In order to avoid overheating and fire hazards, the
heater must not be covered.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of explosive substances
Explosion hazard in case of leaking gas connections.
If you smell gas, immediately close the valve at the gas
cylinder and exit the room/ area. Also notify the fire
brigade.
Warning of hot surface
Some parts of this product can become very hot and
cause burns. Particular attention has to be given where
children and vulnerable people are present!
Warning
Improper handling entails a risk of burning and electric
shock.
Only use the device as intended!
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
Improper installation entails a risk of fire.
Do not place the device on combustible ground.
Do not place the device on high-pile carpets.
3 EN
Operating manual – gas heater fan TGH 10 E / TGH 15 E / TGH 30 E
Warning
In order to avoid overheating and fire hazards, the
heater must not be covered.
Warning
Inhaling propane may cause damages to health. Ensure
the tightness of all connections. Only use the device in
well-ventilated spaces or out of doors.
Warning
Oxygen is consumed during the operation of the
device. In smaller rooms this would result in an oxygen
deficiency. Only use the device in well-ventilated
spaces or out of doors.
Warning
There is a danger of suffocation and poisoning due to
the carbon monoxide formed during unclean
combustion and the lack of fresh air supply/
ventilation.
Do not use the device in windowless basements or
other spaces below ground level.
Only use the device in well-ventilated spaces or out of
doors.
Do not leave the device running unattended.
Behaviour when having detected the smell of gas
If you suspect a gas leak, e.g. you smell gas, make sure to
observe the instructions below:
• Do not actuate any electrical switches! Do not switch on
the light!
• Do not use a phone – corded, wireless or mobile – in the
danger area.
• Do not use naked flames or other open sources of ignition,
e.g. a lighter or match. Do not smoke!
• Immediately close the gas cylinder's main valve by turning
the gas cock clockwise.
• Open all doors and windows to ensure a sufficient fresh air
supply.
Behaviour in the event of an emergency
1. Turn the gas off at the main valve.
2. Quickly leave the danger area. Remove other persons from
the danger area.
3. Notify the fire brigade.
Overheating protection
The device is provided with a safety thermostat which is
activated by overheating of the device (when exceeding the
operating temperature).
As a result, the gas supply will be interrupted. The fan keeps
running.
The safety thermostat resets automatically when cooled down
sufficiently, but the device will have to be restarted. Investigate
the cause of overheating before switching the device back on.
Flame failure protection
The device comes equipped with a temperature sensor which
ensures that the temperature stays above 430°C. As soon as
the device falls below this temperature the valve closes and
interrupts the gas flow. This prevents an involuntary emission of
unburnt gas. So long as the gas flame heats the sensor, the gas
outlet is open. As soon as the flame dies, the gas flow will be
interrupted.
EN 4
Operating manual – gas heater fan TGH 10 E / TGH 15 E / TGH 30 E
Information about the device
1
2
3
7
6
5
4
1
2
3
7
6
5
4
8
9
Device description
The device TGH 10 E / TGH 15 E / TGH 30 E was developed for
the purpose of generating hot air and may only be used in
roofed over outdoor areas or in well-ventilated interior spaces
whilst adhering to the technical data.
The device generates heat by burning propane. The fan sucks in
the ambient air and feeds it through the combustion area. In this
area the supplied gas is burnt under controlled conditions and
the warm air discharged through the air outlet.
The device comes equipped with a piezo igniter for lighting the
torch.

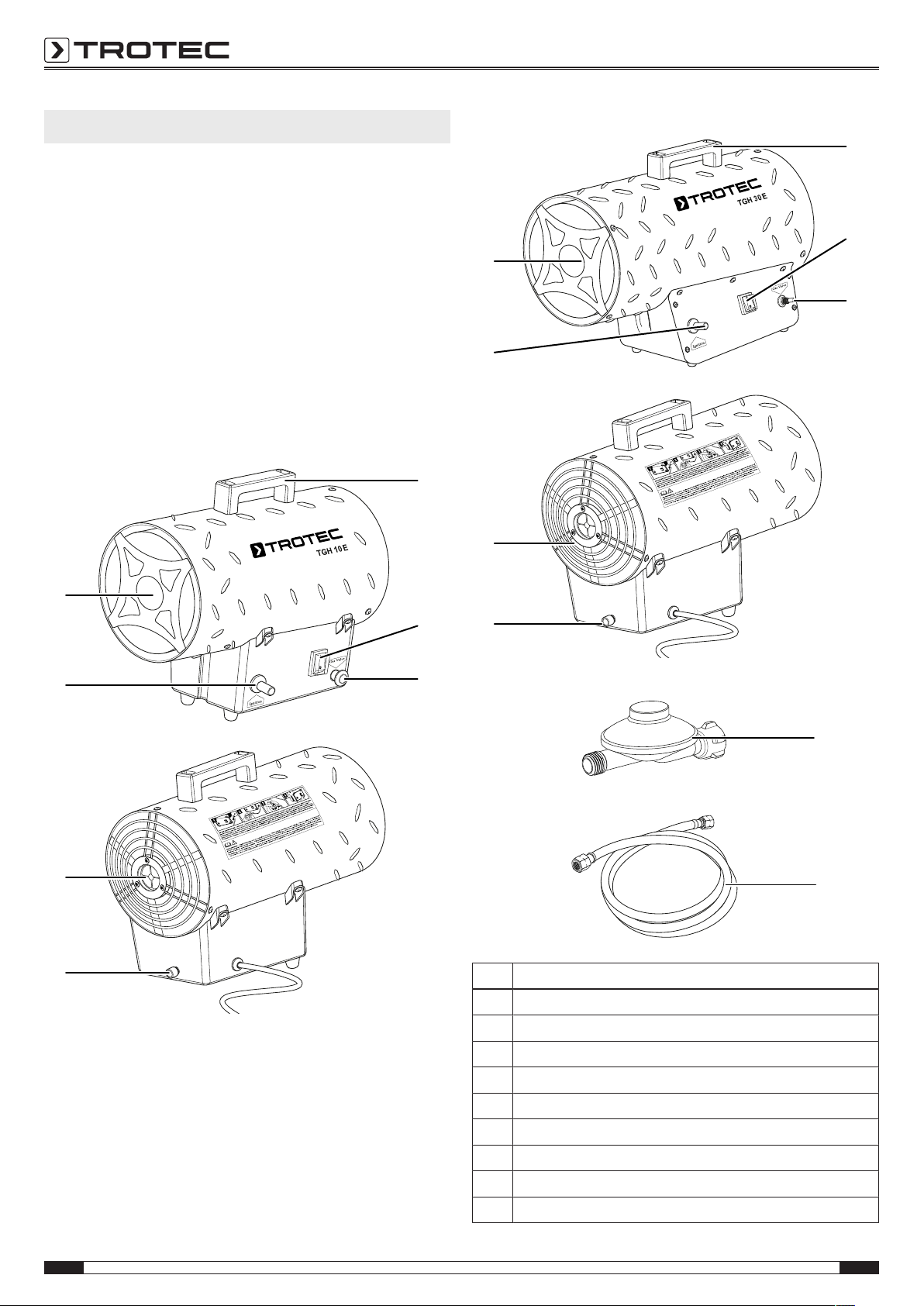

Device depiction
TGH 10 E / TGH 15 E
TGH 30 E
Accessories for TGH10E/ TGH15E/ TGH30E
No. Designation
1 Transport handle
2 ON/OFF switch
3 Gas valve push button
4 Gas hose connection
5 Air inlet
6 Ignition button (piezo igniter)
7 Air outlet
8 Pressure reducer
9 Gas hose
5 EN
Operating manual – gas heater fan TGH 10 E / TGH 15 E / TGH 30 E
Loading...
