Page 1
TEH 20 T / TEH 30 T
EN
OPERATING MANUAL
ELECTRIC HEATER
TRT-BA-TEH20T-30T-TC-001-EN
Page 2
Table of Contents
1. Notes on how to use the manual.................................................1
Legend
........................................1
Typographical conventions
..........................1
2. Scope of delivery ........................................................................1
3. Guarantee provisions ..................................................................1
4. General safety instructions .........................................................1
5. Function and product characteristics ..........................................2
6. Technical data ............................................................................2
7. Use .............................................................................................2
Proper use
......................................2
8. Installation conditions .................................................................3
9. Description of device ..................................................................3
Device overview
.................................3
10. Functions and operation .............................................................3
Switching on the electric heater
Switching off the electric heater
Setting the temperature
.....................3
......................3
............................3
11. Installation and commissioning ...................................................4
12. Transport and storage .................................................................4
Transport
Storage
.......................................4
........................................4
13. Maintenance and cleaning .......................................................... 4
Maintenance of the electric heater
Cleaning the electric heater
...................4
.........................5
14. Disposal .....................................................................................5
Electric heater
Packaging
...................................5
......................................5
15. Service and repair ......................................................................5
16. Troubleshooting ..........................................................................5
17. Appendix: Circuit diagram ...........................................................7
1. Notes on how to use the manual
This operating manual contains all the important information required for
the safe commissioning and use of your electric heater.
It provides you with support when operating the device and when remedying possible problems as well as containing information on disposal
and customer service.
Please read this manual thoroughly and completely before using the electric heater for the first time.
Please store this operating manual and keep it within reach in order to
consult it if necessary.
Please observe all safety instructions and information on use and maintenance contained in this manual.
This manual should be attached to the device if the latter is made available to other persons for use.
Legend
WARNING SYMBOL. This symbol is followed by hazard warning instructions whose non-compliance
may cause serious injuries and/or death and/or
property damage.
The note is always preceded by a signal word:
Risk of serious or fatal injury
Risk:
Warning: Risk of serious permanent injury
Caution: Risk of damage to property
Additional information which might be helpful when
using the device.
Typographical conventions
All text references to figures refer to the figures in the respective chapter.
Position numbers that are not available in the respective chapter may
refer to figures in the chapter "Description of device".
2. Scope of delivery
The scope of delivery of the electric heater includes:
• Electric heater TEH 20 T / TEH 30 T
• User manual
For operating the electric heater, additional accessory parts can be used.
Accessory parts can be ordered from the Trotec customer service.
3. Guarantee provisions
The warranty period granted for electric heaters TEH 20 T and TEH 30 T
shall be 12 months.
Any damage to the device resulting from non-compliance with the
instructions contained in this manual shall be excluded from the
guarantee.
The manufacturer shall assume no liability for damages to the device
and/or its accessories that are caused by unauthorised modifications.
For any further terms of guarantee, please refer to the General Terms
and Conditions (GTC), which are available on our website: www.trotec.de.
1 EN
Operating manual – Electric heater TEH 20 T / 30 T
Page 3
4. General safety instructions
5. Function and product characteristics
Please observe the following safety instructions!
Any non-compliance with these instructions may
have serious consequences for the health of
persons and could result in property damage and
damage to the environment.
Risk of explosion!
• Do not operate the device in potentially flammable or explosive
environments. Do not install it in such environments, either.
• Do not place the device on a flammable surface.
• Remove any inflammable materials and chemicals from the
immediate operating environment.
Functional impairment of and damage to the device!
• Install the device in a stable position.
• Keep the intake and exhaust openings free.
• Do not cover the device during operation.
• Only disconnect the device from the mains once it has cooled
down completely.
• Do not use any chemicals when cleaning the device.
• Never place items on the heater or step on it.
Risk of injury and damage to property due to defective devices!
• Before each use of the device, check its accessories and connection parts for possible damages. Do not use any defective devices
or device parts.
• Do not use the device if you detect any damage to its plug and
cables. Defective power cables represent a serious health threat.
Danger to life through electrical shock!
• Only connect the device to power sources that are in good technical order. Do not use damaged wall outlets!
• Pull the connection cable out of the wall outlet by pulling it at
its plug.
• Do not touch electrical connection cables when your hands are
wet!
• Protect the electrical connection cables against damage caused
by, for example, animals.
• Do not carry out any changes or repairs on the device!
• Do not expose the device to any liquids.
• Do not apply any liquids to the interior of the device. If this does
happen nevertheless, pull out the power cord and have the
device checked by a specialist workshop.
Risk of injury!
• The device must only be operated by authorised and appropriately trained personnel.
• Do not insert any objects into the intake and exhaust opening of
the device.
• Do not reach into the existing openings.
• Do not leave children or animals unattended near the operating
device!
TEH 20T and 30T devices are mobile, electrically operated air heaters.
They are used for air heating to heat rooms and speed up drying or deicing processes. The device can be used both inside and outside.
Thanks to the high fan power, large rooms can also be heated within
ashort period of time.
The integrated thermostat enables continuous temperature configuration
and ensures constant room temperatures.
The device is designed for operation under difficult conditions and can
also be operated at construction sites (heating and construction drying),
in greenhouses or other commercial fields e. g. for drying pottery.
The heater is designed for permanent operation.
Functional principle
Air to be heated is sucked in by the axial fan and fed through the interior
of the device. There, it passes a heating coil, is heated and released into
the room through the exhaust opening (refer to "Description of device")
6. Technical data
TEH 20 T TEH 30 T
Parameter Value Value
Article number 1.410.000.203 1.410.000.205
EAN code 4052138007419 4052138007068
Heating capacity 2.5 kW 3.3 kW
Heating capacity 2150 kcal 2837 kcal
Air volume 185 m
Temperature increase ΔT 56 °C 75 °C
Power consumption 10.9 A 13.4 A
Power connection 16 A (Schuko) 16 A (Schuko)
Connection voltage 230 V 230 V
Frequency 50 Hz 50 Hz
Thermostat yes yes
Mobility portable portable
Noise level 63 dB (A) 63 dB (A)
Depth 325 mm 325 mm
Width 260 mm 260 mm
Height 330 mm 330 mm
Weight 9.7 kg 9.7 kg
Tube connection 155 mm 155 mm
3/h
185 m3/h
EN 2
Operating manual – Electric heater TEH 20 T / 30 T
Page 4
7. Use
9. Description of device
Proper use
The electric heaters TEH 20 T and 30 T have been developed for hot air
generation and ventilation and can be used inside and outside (under dry
conditions). It can be applied for drying, de-icing, heating and ventilation.
The device can bee used for heating rooms such as cowsheds,
greenhouses or winter construction sites and for de-icing machines or
pipelines.
Any application deviating from the above-mentioned use is deemed
inadmissible!
8. Installation conditions
When choosing the installation location of the electric heater, a
number of spatial and technical conditions must be taken into account.
Any non-compliance may impair the functionality of the device and/or of
its accessories or result in hazardous situations for persons and property.
The following points are to be observed during installation:
• The device must be installed in a stable position and placed on
afireproof, horizontal, even and vibration-free surface.
• The installation location must be dry. It must be ensured that
no humidity (e. g. spray water, rain or snow) can penetrate the
device. If humidity gets inside the electric heater nevertheless,
disconnect the device from the power supply and have it checked
by a certified specialist workshop.
• The device must be connected to a properly protected socket
complying with all parameter requirements (refer to "Technical
data").
• The electric heater must not be operated in extremely dusty
environments.
• The minimum distance of the device to inflammable materials
must be at least 2 m.
• The minimum distance to walls must be at least 50 cm.
• Air humidity at the installation location must not condense on
the device.
• Intake and exhaust openings must not be covered.

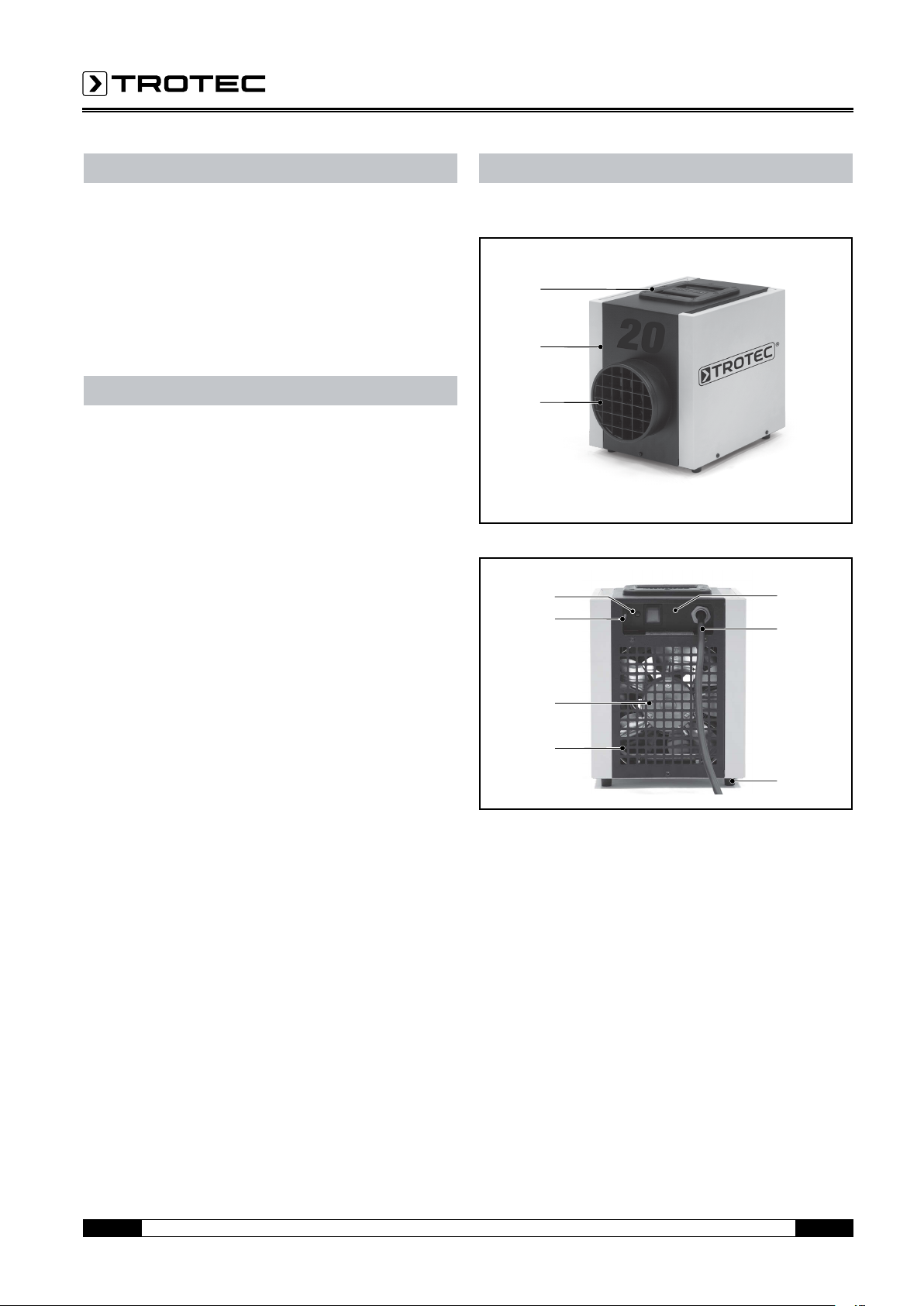

The electric heater TEH 20 T or 30 T includes the following components:
Device overview
3
2
1
7
6
8
9
5
4
10
1 Exhaust opening 6 Turn control
2 Housing 7 Indicator lamp
3 Handle 8 Power switch
4 Intake opening 9 Power connection
5 Fan 10 Feet
3 EN
Operating manual – Electric heater TEH 20 T / 30 T
Page 5
10. Functions and operation
• Check the device and its connection parts for possible damage.
Inspect the device prior to each commissioning and check that it
is in proper condition during operation.
Warning!
1
Risk of injury due to damaged devices.
Do not use any damaged devices or components!
In the case of damage to the electric heater, have it
2
repaired by a certified special workshop before use.
3
Switching on the electric heater
Switch the electric heater on by setting the power switch (1) to position
"1". The power switch will flash green and the fan is activated.
Switching off the electric heater
Switch the device off by setting the power switch (1) to position "0".
Caution!
Damage to the device due to overheating.
Do not switch off the device by pulling out the power
cord. This may cause the device to overheat.
Switch off the device properly. Do not disconnect the
power plug before the fan motor has come to a complete
standstill.
Setting the temperature
The temperature of the electric heater can be set by turning the turn
control (3) of the thermostat (on the back of the device) to the desired
position (refer to chapter "Description of device"). The red indicator
lamp (2) starts to flash when the heating process begins.
• Increasing the temperature: Turn the turn control upwards.
• Decreasing the temperature: Turn the turn control downwards.
Adjustments can be made during ongoing operation.
The device is deactivated automatically if the set room temperature is
reached. The indicator lamp (2) goes out.
If the room temperature falls below the set value, heating operation of the
device will be reactivated. The indicator lamp will flash red.
11. Installation and commissioning
Danger!
Risk of injury due to improper operation.
The device may only be used by persons who have been
trained how to operate the device.
For installation and commissioning, proceed as follows:
• Check that the scope of delivery of your electric heater is
complete. If an accessory part is missing, please contact the
Trotec customer service or the specialist dealer from whom you
purchased the device.
• Observe the requirements described in chapter "Installation
conditions".
• Ensure that the properties of the applied power connection
comply with the requirements stated on the name plate or in the
chapter "technical data".
• Ensure that the fan can move freely each time before turning on
the device. Small objects in the rotation range of the fan can be
removed with compressed air. In the event of major malfunctions,
always contact a certified specialist workshop. Please observe
the information stated in the chapter "Maintenance and
cleaning". The device must only be disassembled or repaired by
authorised technicians!
• Connect the power supply cable to a properly protected mains
socket (230 V / 50 Hz / 16 A). On construction sites, a residual
current circuit breaker (RCD) must be connected upstream of the
mains socket according to VDE 0100/0105.
The electric heater is now ready for operation. Use the device
according to the functions described in chapter "Functions and
operation".
12. Transport and storage
Transport
• Switch the device off as described in chapter "Functions and
operation".
• Wait until the device has cooled down.
• Transport the electric heater by carrying it with the provided
handle (3).
• During transport by means of a vehicle, protect the device from
vibrations and slipping .
Storage
If the electric heater is not used for a longer period of time, it must be
stored appropriately so that it cannot cause personal injury or property
damage and the device itself cannot become damaged. The following
points are particularly important:
• Always disconnect the device from the power supply.
• The storage location should be as free from dust as possible to
avoid excessive dirtying of the device. Cover the device.
• During storage, the TEH 20 T or 30 T and particularly its electrical
components must be protected from moisture (e. g. snow, rain).
• During storage, the device must be protected from general
climatic conditions (e. g. storm).
• In the case of an elevated storage place, the device must be secured against falling in order to avoid injuries to persons and
damage to the device.
EN 4
Operating manual – Electric heater TEH 20 T / 30 T
Page 6
13. Maintenance and cleaning
15. Service and repair
In order to ensure proper operation, the electric heater should be maintained and cleaned regularly.
Danger!
Risk of injury
Always disconnect the device from the power supply
before cleaning or carrying out any maintenance.
Danger!
Danger to life due to improper repair
Do no attempt to carry out modifications or repairs on
the device. Any unauthorised modification may result in
serious injuries or even death. Have repairs carried out
by a certified specialist workshop.
Maintenance of the electric heater
• Check all electrical connections for damage. Always have damaged components repaired before using the device once again!
• Check the housing, covers and all connections that they are in
proper condition.
• During operation, always listen for unusual noises. Noises might
be an indication of damage to the fan unit. In this case, have the
device checked by a certified specialist workshop.
• Ensure before each use of the device that no objects are in the
rotation range of the fan. Remove small objects with compressed
air. If the defect cannot be completely eliminated by this, please
contact a certified specialist workshop.
Cleaning the electric heater
• Wipe the exterior of the device using a damp cloth. The painted
and plastic surfaces may not be scoured. Do not take the
device into operation before it has completely dried! Do not use
any solvent-based cleaning agents. Make sure that no humidity
can penetrate the heating unit.
• The interior of the device can be cleaned with compressed air.
Cleaning can be carried out through the air inlet and exhaust
openings.
Before contacting our customer service in order to solve an existing
technical problem, please try removing the error by following the
instructions described in the chapter "Troubleshooting".
If you have any further questions regarding function and operation of the
electric heater or if you wish to receive further information in the event
of a claim or with regard to guarantee aspects, please do not hesitate to
contact us at any time.
Please contact:
Trotec GmbH Co KG
Grebbener Straße 7
D-52525 Heinsberg
Tel.: 49 (0) 2452 / 962 - 400
Fax.: 49 (0) 2452 / 962 - 200
Email: info@trotec.de
www.trotec.de.
16. Troubleshooting
Danger!
Danger to life due to improper repair
Do no attempt to carry out modifications or repairs on
the device. Any unauthorised modification may result
in serious injuries or even death. Have repairs carried
out by a certified specialist workshop.
14. Disposal
Electric heater
Electronic equipment may not be disposed of together with domestic
waste but must be correctly disposed of in accordance with EUROPEAN
PARLIAMENT Directive 2002/96/EC of 27th January 2003 regarding used
electrical and electronic equipment. Please dispose of this device
according to applicable legal regulations after its final decommissioning.
Packaging
The packaging of the electric heater consists of cardboard/paper and
plastic. The materials must be disposed of in the designated containers
according to local regulations or at a recycling depot.
5 EN
Operating manual – Electric heater TEH 20 T / 30 T
Page 7
Problem Cause Error correction
Fan does not start running Power supply is not connected. Connect electric heater to power supply.
Wrong connection parameters (power supply)
Fuse has tripped Replace defective fuse.
Defective switch
Motor of fan unit defective Have the device checked by a certified specialist workshop.
Motor or fan runs loudly or unevenly.
Dirt on the fan. Clean the fan as described in chapter "Cleaning and
Fan or fan unit is damaged Have defective components repaired or replaced.
Damaged motor bearing Have the motor checked by a qualified technician.
Frictional noises can be heard Dirt on the fan blades or objects in the
rotation range of the fan
Connect the device to a power supply with the required
parameters (refer to chapter "Technical Data").
Attention! Fuses may not be repaired but must always be
replaced. In most cases, fuses are triggered due to a serious
technical fault. Have each fuse replaced by an authorised
service electrician!
Have the device checked by a certified specialist workshop.
maintenance".
Attention! Repairs must only be performed by qualified
technicians.
Clean fan blades or fan unit (refer to "Cleaning and
maintenance").
Fan blades are damaged Have defective components repaired or replaced by a specialist
Vibrations occur The electric heater stands on an uneven,
unstable surface
Connections between components are
defective or not properly tightened.
Air intake and/or exhaust air openings are
blocked.
workshop.
Attention! Repairs must only be performed by qualified
technicians.
Check the surface on which the device is standing. Position the
heater on a even and stable surface.
Check the screw connections.
Remove all objects in front of intake or exhaust openings.
EN 6
Operating manual – Electric heater TEH 20 T / 30 T
Page 8
17. Appendix: Circuit diagram
Electric Diagram
TEH 20 T / 30 T
E
Ph
230 V/50 Hz
Shucko Plug
Schukostecker
N
S1
C
M
S3
E
- Earthing/Erdung
Ph
- Electric Phase / Electric Phase
N
- Common Line/Gemeinsame
-
S1
On-Oswitch/Geräteschalter 0/1
- Room Thermostat/Raumtemperaturregler
S2
- Bimetallic Thermostat / BimetallThermostat
S3
-
M
Fan motor/Lüftermotor
- Heating Element/Heizelementes
HE
-
L
Red lamp (Heating Element ON) /
Signalleuchte“rot “ (Heizelementes AUF)
S2
HE
=
P 3.3 kW
TEH 30 T
P = 2.5 kW
TEH 20 T
2
1
0/1
E
+°C
L
7 EN
Operating manual – Electric heater TEH 20 T / 30 T
Page 9
EN 8
Operating manual – Electric heater TEH 20 T / 30 T
Page 10
OUR REF.
CHSERV73
CHSERV74
CHSERV75
CHSERV76
CHSERV77
CHSERV78
)1
)1
ASSEMBLIES
TEH20T / TEH30T
POS.
ELECTRIC COMPONENTS METALLIC PARTS
PARTS QTY.
A1
A2
Baseplate 1
Air Flow Tunnel 1
A3 MP146 Yellow (RAL1021) Painted Side panel 2
A4 MP147 Black Painted Hood (Ø150mm Hose Connection) 1
A5 MP148 Black Painted Command baseplate + Control Panel 1
A6
A7
Room Thermostat Support 1
Air Outlet Protection Shield 1
A8 FM017 Ø230 Aluminium Fan Blade 1
A9
A10
Motor Fan Brackets 3
Bulb Thermostat Protection 1
B1 PL155 ABS Grip + Back Cover 1
B2 EL282 Cable Gland PG16 1
B3 PL147 Room Thermostat Knob 1
PLASTICS
B4 AC589 Rubber Feet 4
C1
EL295 3.3kW Heating Element (TEH30T) 1
EL299 2.5kW Heating Element (TEH20T) 1
C2 EL278 230V ~50Hz; 12W Motor Fan 1
C3 EL303 60°C Bi-Metallic Thermostat - 20A 1
C4 EL285 Terminal Block 1
C5 EL305 1.5µF Starting Capacitor 1
C6
CA54 2,75m. H07RNF3G2,5 Supply Cable With Injected Schuko Plug (TEH30T
CA57 2,75m. H07RNF3G1,5 Supply Cable + Fused UK Plug (TEH20T
C7 EL307 I/0 Switch (Green Fluor) 1
C8 EL302 Heating Element Lamp (Red) 1
C9 EL286 TY95 Room Thermostat 1
n/a Housing - M4 x 10 Screws; Black Passivated; ISO 7380 6
n/a PA343 Housing - M5 Safety Nuts; Zinc plated; DIN 982 8
n/a PA214 Housing - M5 Washers; Zinc plated; DIN 9021 8
n/a PA334 Handle - M4 x 16; Black Passivated; DIN 7500 8
n/a Feet - M4 Safety Nuts; Zinc plated; DIN 982 4
n/a AC222 General - Ø4 x 8 Aluminium Blind Rivet; 27
9 EN
Operating manual – Electric heater TEH 20 T / 30 T
Page 11
EC Declaration of Conformity (Translation of the original)
The manufacturer: TROTEC
®
GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
herewith declares, that due to their design and construction, and in the versions introduced by
us, the following electric heaters conform with the relevant fundamental requirements of the
listed EC directives.
Important note:
In case of improper use, installation, maintenance etc. or unauthorized changes of the
factory-supplied device version, this declaration loses its legal validity.
Device version:
Electric heaters
Series: TEH 20 T, TEH 30 T, TEH 70, TEH 100
Applicable regulations:
2006/95/EC Low Voltage Directive
2004/108 EC EMC Directive
Applied harmonised
standards:
EN 60335-1:2012
EN 60335-2-30:2009
EN 61000-3-2:2006/A1:2009 + A2:2009
EN 61000-3-3:2008
EN 55014-1:2006/A1:2009 +A2:2011
Heinsberg, 18 April 2012
Managing Director: Detlef von der Lieck
TROTEC
Grebbener Straße 7 • D-52525 Heinsberg • Tel.: +49 2452 962-400 • Fax: +49 2452 962-200
E-mail: info@trotec.de • www.trotec.de
Managing Director: Detlef von der Lieck • General Partner: von der Lieck Verwaltungs GmbH • Amtsgericht Aachen HRA 5232
(Commercial Register, Section A, no. 5232 at the Local Court Aachen)
®
GmbH & Co. KG
Page 12
Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
info@trotec.com
www.trotec.com
Loading...
