SL3000
EN
OPERATING MANUAL
ULTRASONIC DETECTOR
TRT-BA-SL3000-TC-001-EN
Table of contents
Notes regarding the operating manual................................. 1
Safety .....................................................................................1
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
Information about the device................................................2
Transport and storage...........................................................3
Operation ...............................................................................4
Maintenance and repair ........................................................8
Disposal .................................................................................8
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Notice
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
SL3000
https://hub.trotec.com/?id=40314
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Do not immerse the device in water. Do not allow liquids to
penetrate into the device.
• Do not expose the device to directly squirting water.
• The device may only be used in dry surroundings and must
not be used in the rain or at a relative humidity exceeding
the operating conditions.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device with a tool.
• Only use the device if sufficient safety precautions were
taken at the surveyed location (e.g. when performing
measurements along public roads, on building sites etc.).
Otherwise do not use the device.
• Observe the storage and operating conditions (see chapter
Technical data).
1 EN
Operating manual – ultrasonic detector SL3000
Intended use
1
2
4
3
5
678
9
10
11
Only use the device for the detection of irregularities in the
ultrasound spectrum within the measuring range specified in
the technical data.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Improper use
Do not use the device in potentially explosive atmospheres, for
measurements in liquids and at live parts. Trotec accepts no
liability for damages resulting from improper use. In such a
case, any warranty claims will be voided. Any unauthorised
modifications, alterations or structural changes to the device are
forbidden.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Warning
Ensure sufficient ear protection when there are sources
of loud sound. There is a danger of hearing damage.
Information about the device
Device description
The device SL3000 is used to locate faulty components in
various systems. It is based on ultrasonic signals generated e.g.
due to friction on faulty parts, inside electrical installations or
when gases escape under high pressure.
The ultrasonic signals are detected by the device, converted into
audible sound, and output with the corresponding intensity
through the headphones. At the same time, the ultrasound level
is indicated graphically on a display.
Device depiction
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Notice
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Notice
Do not use abrasive cleaners or solvents to clean the
device.
No. Designation
1 Power button
2 Socket for ultrasound probes
3 Arrow up button
4 OK button
5 MAX button
6 Headphone connection
7 Fixing ring for lanyard
8 Battery compartment with cover
9 Arrow down button
10 Light/brightness button
11 Display
EN 2
Operating manual – ultrasonic detector SL3000
Display
12
13
15
16
14
No. Designation
12 Volume indication
13 Battery status indication
14 Menu indication
15 Sound level scale
16 Indication of measured sound level in dBµV
Technical data
Parameter Value
Operating frequency approx. 40 kHz
Display LC display with background
illumination
Connections Ultrasound probes connector,
stereo jack socket
Power supply 2 x 1.5 V AA battery or 2 x min. 1.2 V
rechargeable battery
Operating time approx. 24 hours in battery mode
Operating temperature -10 °C to +60 °C
Storage temperature -20 °C to +60 °C
Protection type Device: IP54
Probe: IP20
Dimensions without probe
(length x width x height)
Weight (incl. battery, without probes) 300 g
130 x 85 x 30 mm
Transport and storage
Notice
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
Storage
When the device is not being used, observe the following
storage conditions:
• Dry and protected from frost and heat
• Protected from dust and direct sunlight
• With a cover to protect it from invasive dust if necessary
• The storage temperature is the same as the range given in
the Technical data chapter
• Remove the batteries from the device
Scope of delivery
• 1 x SL3000
• 1 x Headphones
• 1 x Airborne sound probe
• 1 x Acoustic horn (for airborne sound probe)
• 1 x Shotgun with tip (for airborne sound probe)
• 1 x Cable (for headphones)
• 2 x Battery AA 1.5 V
• 1 x Lanyard
• 1 x Transport case
• 1 x Quick guide
3 EN
Operating manual – ultrasonic detector SL3000
Operation
Inserting the batteries
Insert the supplied batteries into the device before first use.
Notice
Make sure that the surface of the device is dry and the
device is switched off.
1. Open the battery compartment at the rear of the device by
unscrewing the cover.
Inserting / exchanging the probe
The device can be equipped with various probes.
The scope of delivery includes an airborne sound probe.
The airborne sound probe serves the purpose of detecting
airborne ultrasonic frequencies even at a distance of up to
several metres.
In order to assemble or exchange a probe, please proceed as
follows:
1. Remove the probe, if any, by pressing the release button at
the probe and carefully pulling the probe out.
2. Insert the probe into the connector. The probe socket is
provided with a notch allowing for one plug position only.
The plug must noticeably click into place.
2. Insert the batteries with correct polarity.
3. Screw the cover back onto the battery compartment.
EN 4
Operating manual – ultrasonic detector SL3000
Connecting the headphones
It is recommended to connect the supplied headphones to the
device at all times. Human hearing already perceives very subtle
signal changes with regard to its volume and intensity, so in
addition to the indicative scale on the display you are provided
with a valuable acoustic component for a yet more precise
detection of ultrasound sources.
Warning
Risk of hearing damage due to unknown, intense
ultrasound sources.
The sound spectrum perceptible by human ears lies in
the frequency range between 16Hz and 20,000Hz.
Hence, ultrasound is clearly outside of this range. As a
result potential, more or less intense ultrasound
sources in the immediate measuring environment go
unnoticed without technical aids. Nonetheless, they
can inadvertently lead to hearing damage if the
auditory system is suddenly faced with the highintensity ultrasound rendered audible by use of these
aids.
For that reason always set the volume control at the
headphones to minimum before starting a
measurement (narrow end of the wedge at the volume
control).
Increase the volume only slowly.
If necessary, reduce the volume when approaching a
potential ultrasound source.
Info
Regularly check the headphone cable for damages.
Avoid kinking, crushing or pulling.
ü The device is switched off.
1. Plug the jack plug of the headphone cable into the
headphones.
2. Plug the other jack plug into the device's headphone
connection.
General information regarding the work with the ultrasonic
detector
Info
Note that moving from a cold area to a warm area can
lead to condensation forming on the device's circuit
board. This physical and unavoidable effect can falsify
the detection result. In this case, the device emits
either no signals or they are incorrect. Wait for a few
minutes until the device has become adjusted to the
changed conditions before using the device.
Info
Please note that the measurement of an ultrasound
source always has to be carried out directly. There
must be no objects or persons located between the
airborne sound probe and the ultrasound source, for
this would hamper the detection process.
Info
In case of very weak ultrasound sources the scale
might not indicate a change. If so, use headphones to
work with the acoustic component.
5 EN
Operating manual – ultrasonic detector SL3000

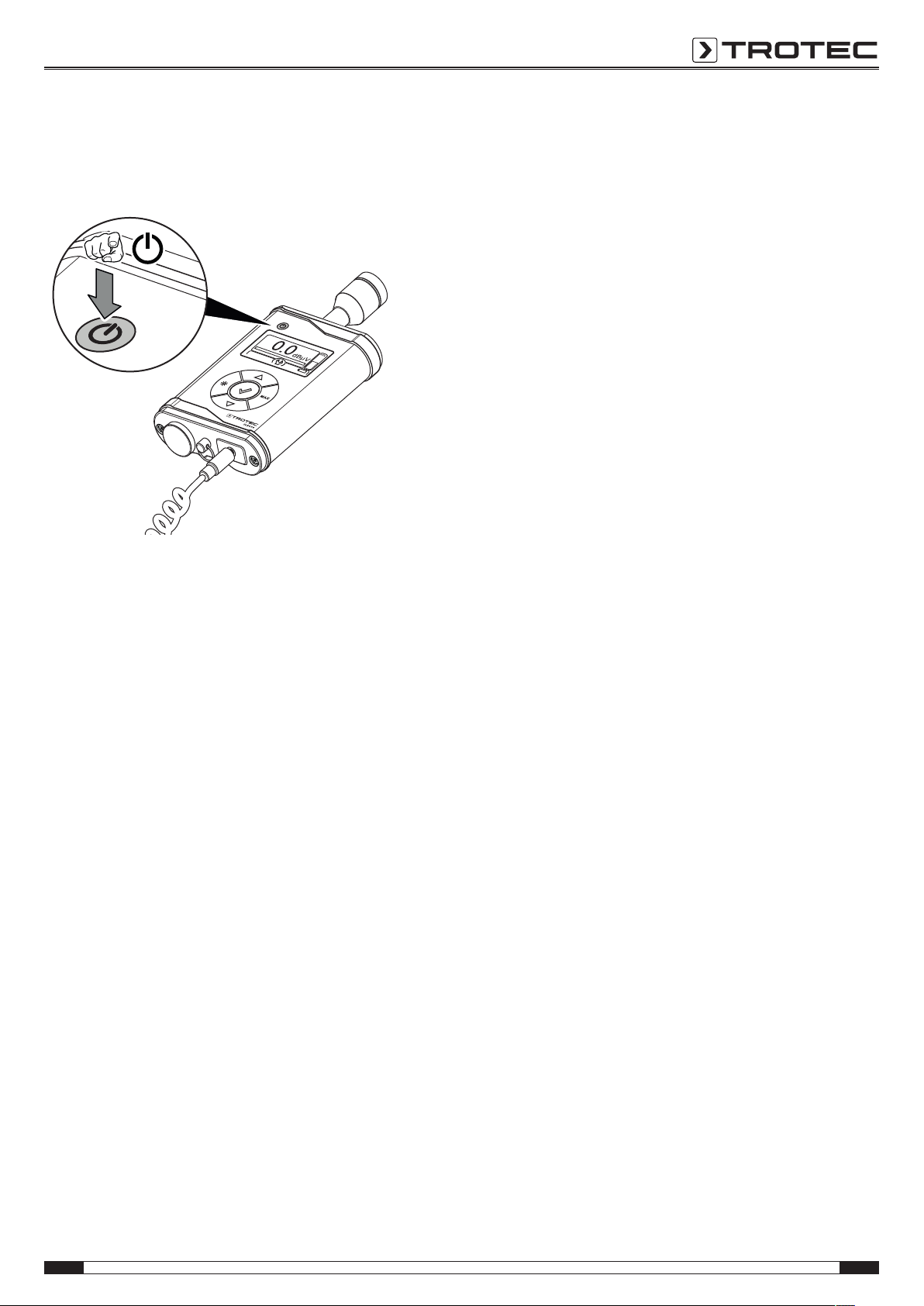

Switching the device on
ü A probe is assembled.
ü The headphones are possibly connected.
1. Press the power button(1).
ð The device is ready for operation.
ð The current sound level is shown on the display(11).
Adjusting the volume
The volume can be adjusted from -42dB to 0dB in increments
of 2dB. The default setting is -22dB.
1. Press the arrow buttons(3, 9) to increase or reduce the
volume.
ð The current volume will be indicated on the display.
Using the airborne sound probe
The airborne sound probe is suitable for the following fields of
application:
• Leak detection at exposed pressure lines and pipes
• Proving the leakage-related loss at exposed, gas-filled
supply networks also during operation
• Leak detection at high-pressure steam installations
• Localization of cracks, poor weld seams or worn flange
connections
• Leak detection at all accessible fittings and connecting
elements where processes take place in a vacuum or at
high pressure
• Detection of signs of wear at ball, roller or needle bearings
• Detection of cavitation e.g. in pumps or compressors
• Localization of electric arcs or corona discharge at
electrical components
ü The airborne sound probe is assembled.
ü The device is switched on.
ü The volume of the headphones is set to minimum.
1. Put on the headphones.
2. Test the volume by rubbing the fingertips of thumb and
index finger against one another at a distance of approx.
50cm from the airborne sound probe.
3. Carefully increase the volume at the headphonesuntil you
can hear a sound.
4. Now move the airborne sound probe towards the ultrasound
source.
5. Since the intensity of the ultrasound source to be detected
is initially unknown, down-regulate the volume at the
headphones as appropriate when approaching the source of
ultrasound.
6. Whilst approaching the source, the sound grows louder and
the scale indicates a higher sound level.
EN 6
Operating manual – ultrasonic detector SL3000
Using the attachments for the airborne sound probe
17
18
19
You can also use the probe included in the scope of delivery in
combination with the two attachments, which are also included
in the scope of delivery.
The attachments serve for an improved pinpoint location of the
ultrasonic signal:
• The acoustic horn(19) is suitable for detection even over
large distances of several metres.
• The shotgun(18) can be used for a more precise pinpoint
location over shorter distances.
The attached tip(17) can, for instance, be used for
checking weld seams or valve seals.
To use the attachments, please proceed as follows:
1. Carefully place the rubber grommet of the attachment onto
the airborne sound probe. Pay attention not to damage the
grid at the airborne sound probe.
Using structure-borne sound probes (optional)
A structure-borne sound probe utilizes structure-borne sound as
bearer of inner states and processes. The device combination
thus works like a stethoscope, but specifically for ultrasound.
Structure-borne sound probes are suitable for the following
fields of application:
• Early detection of wear at ball, roller or slide bearings
• Checking centrifugal pumps for cavitation
• Tightness tests of fittings
• Continuity testing or functional check of steam traps
ü The structure-borne sound probe is assembled.
ü The device is switched on.
ü The volume of the headphones is set to minimum.
1. Put on the headphones.
2. Hold the probe to the test object.
3. Carefully increase the volume at the headphonesuntil you
can hear a sound.
4. Move the probe towards the ultrasound source.
5. Down-regulate the volume at the headphones when
approaching the source of ultrasound.
6. Whilst approaching the source, the sound grows louder and
the scale indicates a higher sound level.
2. If you no longer need the adapter, carefully pull it off the
airborne sound probe.
Activating maximum value detection
1. Press the MAX button(5) to activate the function.
ð The maximum value of the current measuring cycle is
indicated in the bottom left corner of the display.
Switching on the display illumination
1. Press the light button(10) to switch the display illumination
on or off.
ð The illumination automatically switches off after approx.
20 s.
Adjusting the display contrast
The display contrast can be adjusted in order to adapt the
display to the individual ambient conditions.
The default setting is 50%.
1. Press the OK button(4) to open the contrast settings menu.
2. Press the arrow buttons(3, 9) to increase or reduce the
contrast.
3. Confirm the setting by pressing the OK button(4).
Switching the device off
1. Press the power button(1).
ð The display goes out.
ð The device is switched off.
7 EN
Operating manual – ultrasonic detector SL3000
Maintenance and repair
Cleaning
Clean the device with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Do not use any sprays,
solvents, alcohol-based cleaning agents or abrasive cleaners,
but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Battery change
A battery change is required when the device can no longer be
switched on (see chapter Inserting the battery).
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
You are responsible for deleting any personal data stored on the
waste equipment to be disposed of.
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
EN 8
Operating manual – ultrasonic detector SL3000
Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
info@trotec.com
www.trotec.com
Loading...
