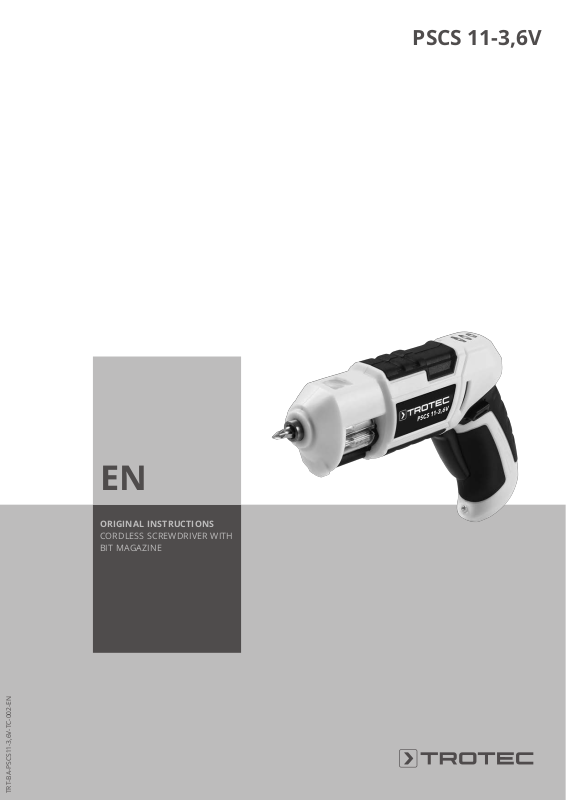

Trotec PSCS 11-3.6V operation manual
PSCS 11-3,6V
EN
ORIGINAL INSTRUCTIONS
CORDLESS SCREWDRIVER WITH
BIT MAGAZINE
TRT-BA-PSCS11-3,6V-TC-002-EN
Table of contents
Notes regarding the instructions .......................................... 1
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Safety .....................................................................................2
Information about the device................................................6
Transport and storage...........................................................7
Start-up..................................................................................8
Operation .............................................................................11
Available accessories..........................................................12
Errors and faults..................................................................12
Maintenance ........................................................................13
Disassembly.........................................................................13
Disposal ...............................................................................14
Declaration of conformity ...................................................14
Notes regarding the instructions
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
PSCS 11-3,6V
https://hub.trotec.com/?id=39470
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
1 EN
cordless screwdriver with bit magazine PSCS 11-3,6V
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Observe all the safety warnings, instructions,
illustrations and technical data provided with this
power tool.
Failure to follow the instructions below may result in
electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
The term power tool used in the safety warnings refers to both
mains-operated and battery-powered electric tools (with/
without power cable).
General Power Tool Safety Warnings – Work area
safety
• If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
• Hold power tool by insulated gripping surfaces when
performing an operation where the cutting accessory
may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give the
operator an electric shock.
General Power Tool Safety Warnings – Personal
safety
• Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
• Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
• Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
• Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings – Electrical
safety
• Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
• Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
• Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep the cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. The use of a dust
extraction system may reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.
EN 2
cordless screwdriver with bit magazine PSCS 11-3,6V
General Power Tool Safety Warnings – Power tool
use and care
General Power Tool Safety Warnings – Battery tool
use and care
• Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and / or
the battery pack, if detachable, from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
• Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories carefully. Check
for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
• Keep handles and gripping surfaces dry, clean and
free from oil and grease. Slippery handles and gripping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
• Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
• Use power tools only with specifically designated
battery packs. Use of any other battery packs may create
a risk of injury and fire.
• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from
the battery. Avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
• Do not use a damaged or modified battery. Damaged or
modified batteries can behave unexpectedly and lead to
fires, explosions or injuries.
• Do not expose a battery to fire or excessively high
temperatures. Exposure to fire or temperatures above
130°C (265°F) may cause an explosion.
• Follow all the instructions for charging and never
charge the battery or the cordless tool outside the
temperature range specified in the operating
instructions. Incorrect charging or charging outside of the
permissible temperature range can destroy the battery and
increase the risk of fire.
General Power Tool Safety Warnings – Service
• Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
3 EN
cordless screwdriver with bit magazine PSCS 11-3,6V
Device-specific safety warnings for cordless
screwdrivers
Wear eye and mouth protection when processing
materials that may contain harmful substances (e.g.
asbestos).
• Secure the workpiece with tensioning devices or a vice.
• Hold the power tool firmly. When tightening or loosening
screws, high reaction torques can occur temporarily.
• Immediately switch off the power tool if the insertion tool
blocks. Beware of high reaction torques causing a
kickback.
• Hold power tool by insulated gripping surfaces when
performing an operation where the cutting accessory
may contact hidden wiring. Cutting accessory contacting
a "live" wire may make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
• For any work on the device, as well as during transport or
storage, set the switch for the rotational direction to centre
position (locked). This prevents unintentional starting of the
power tool.
• Wait until the power tool has come to a standstill, before
putting it down.
Intended use
Only use the device PSCS 11-3,6V for screwing in and loosening
screws, while adhering to and following the technical data.
We recommend using the power tool with original Trotec
accessories.
Improper use
The device is not intended for drilling.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Personal protective equipment
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
EN 4
cordless screwdriver with bit magazine PSCS 11-3,6V
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning of electrical voltage
Before any work on the device, remove the mains plug
of the charger from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of explosive substances
Do not expose the battery to temperatures above 45
°C! Do not let the battery come into contact with water
or fire! Avoid direct sunlight and moisture. There is a
risk of explosion!
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
Caution
Keep a sufficient distance from heat sources.
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Note
Only change the rotational direction when the device is
at a standstill! Otherwise the device might be
damaged.
Note
Set the torque and rotational direction according to the
operating mode. A wrong selection may damage the
device.
Warning
Do not process materials containing asbestos.
Asbestos is considered carcinogenic.
Warning
Make sure not to hit power, gas or water lines when
working with a power tool.
If necessary, use a pipe detector to check the wall you
want to drill in or slit open.
Warning
Risk of injuries caused by flying parts or bursting tool
heads.
5 EN
cordless screwdriver with bit magazine PSCS 11-3,6V
Loading...
