PC220
EN
OPERATING MANUAL
PARTICLE COUNTER
TRT-BA-PC220-TC-003-EN
Table of contents
Notes regarding the operating manual................................. 1
Safety .....................................................................................2
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:

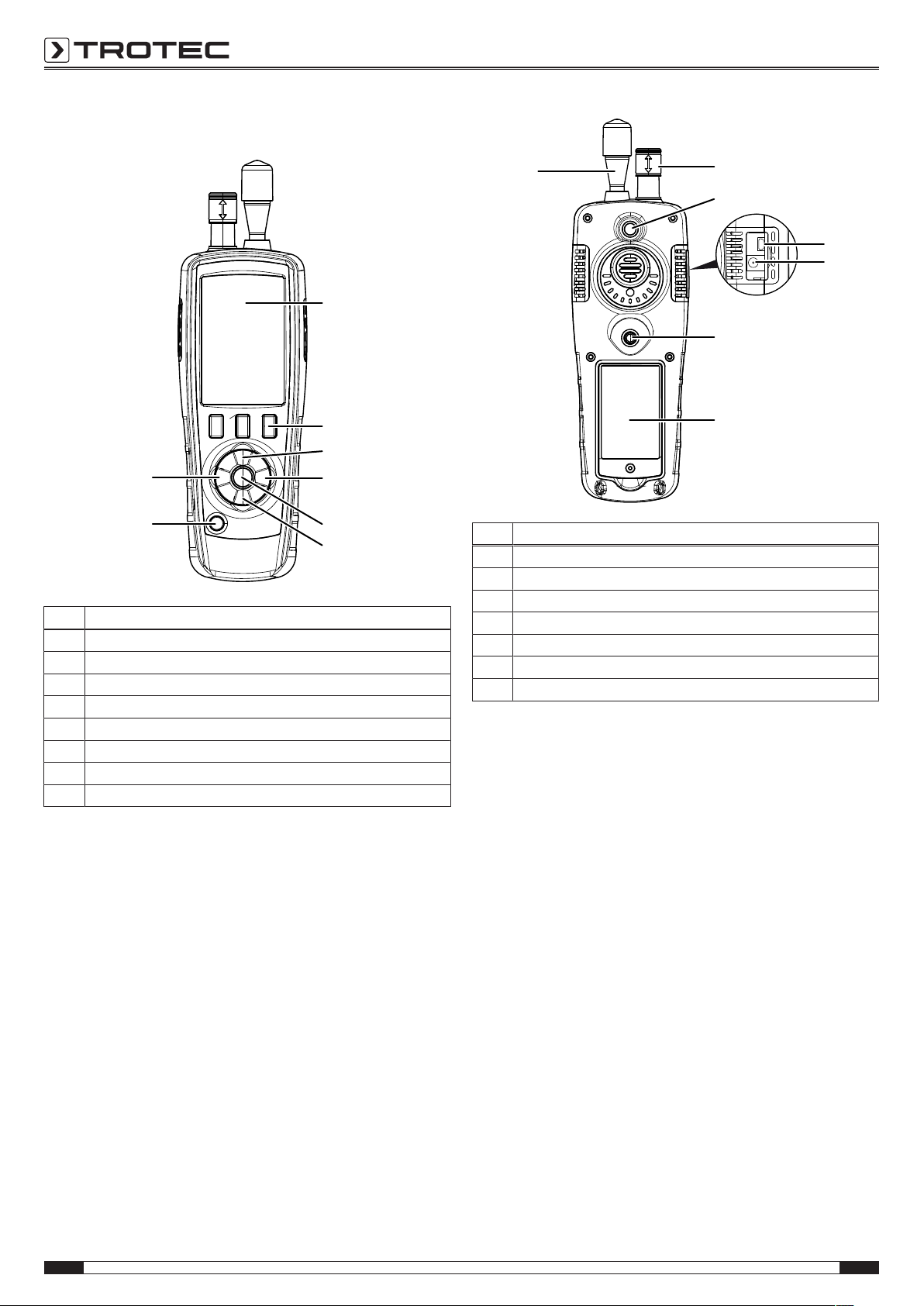

Information about the device................................................4
Technical data .......................................................................6
Transport and storage...........................................................7
Operation ...............................................................................7
Maintenance and repair ......................................................12
Disposal ...............................................................................13
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning of laser radiation
This symbol indicates dangers to the health of persons
due to laser radiation.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Notice
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
PC220
http://hub.trotec.com/?id=40529
Definitions
Concept Meaning
Differential
(Analysis)
Wet-bulb temperature The wet-bulb temperature is the lowest
Coincidence loss When measuring high concentrations of particles, it
Concentration
(Analysis)
Cumulative
(Analysis)
Counting efficiency The counting efficiency specifies the probability at
The device counts the effectively measured
particles per separate channel within the set
measuring period. There is no averaging as in
concentration mode. Measuring in differential mode
is therefore more precise.
Example:
The measuring device shows 100particles in the
0.3μm channel and 30 in the 0.5μm channel. The
differential data is 100 particles >0.3μm and
<0.5μm, and 30 particles >0.5μm.
temperature below the current surrounding
conditions which can be reached by the
evaporation of water.
may happen that two particles are so close to each
other that they are counted as one (mostly larger)
particle.
Adding up of the measured values per separate
channel directly from the first seconds of a
measurement.
Every second of the running measuring period the
device calculates the respective average per
channel from the determined values and the
resulting volume.
This is a summation of the individual particle sizes
in the channel of the next smaller particle size
respectively located beneath.
Exemplary display:
- 5μ = 26 - 10μ = 14 Then only 12 particles of the
size 5μ were measured. 12 + 14 = 26
which a particle of the smallest detectable size is
detected and counted during the measurement. For
particles larger than the smallest detectable size,
the counting efficiency is 100%.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
1 EN
Operating manual – particle counter PC220
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Do not immerse the device in water. Do not allow liquids to
penetrate into the device.
• The device may only be used in dry surroundings and must
not be used in the rain or at a relative humidity exceeding
the operating conditions.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device with a tool.
• Only use the device if sufficient safety precautions were
taken at the surveyed location (e.g. when performing
measurements along public roads, on building sites etc.).
Otherwise do not use the device.
• Observe the storage and operating conditions (see chapter
Technical data).
Intended use
The device is intended for measuring the size and number of
particles in the air.
The device is also intended for measuring the carbon monoxide
concentration of the air in closed rooms.
The device is also intended for measuring the formaldehyde
concentration of the air in closed rooms.
Improper use
The device may not be used for measurements in liquids.
The device may not be used in potentially explosive
atmospheres, when wet or very humid.
Any unauthorised changes, modifications or alterations to the
device are forbidden.
Residual risks
Warning of explosive substances
Do not expose the battery to temperatures above
45 °C! Do not let the battery come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Warning of laser radiation
Laser class 1
The laser is encapsulated.
Do not open the device to prevent direct contact with
the laser and the emitted radiation!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Keep a sufficient distance from heat sources.
Notice
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Notice
Do not use abrasive cleaners or solvents to clean the
device.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working in
environments contaminated with formaldehyde.
• be aware of the dangers that occur when working in
environments contaminated with carbon monoxide.
• have read and understood the operating manual, especially
the Safety chapter.
EN 2
Operating manual – particle counter PC220
Examples for carbon monoxide concentration in the air
Examples for carbon monoxide concentrations and their effects:
0 to 1 ppm Normal background levels
9 ppm Max. permissible concentration for interior spaces
35 ppm Max. average amount to which one may be exposed over a
period of 8 hours. *
100 ppm Exposure limit, persons ought to leave enclosed spaces. *
150 ppm Slight headache after 1.5 hours
200 ppm Mild headache, fatigue, nausea and dizziness
400 ppm Frontal headache, life-threatening after 3 hours
800 ppm Dizziness, nausea, convulsions, death within 2 to 3 hours
1600 ppm Nausea within 20 minutes, death within 1 hour
3200 ppm Headache, dizziness and nausea within 5 to 10 minutes.
Death within 25 to 30 minutes.
12800 ppm Death within 1 to 3 minutes
* according to OSHA = Occupational Safety & Health Association
Examples for formaldehyde concentration in the air
Formaldehyde is a colourless gas which is often contained in
the room air. Depending on the personal sensitivity, it is
perceived as a pungent odour above certain concentrations.
Formaldehyde, also referred to as HCHO or methanal, was
assigned to the hazard class Carcinogenic/category1B and
Germ cell mutagenic/category2 with effect from 1January
2016. Even small quantities of formaldehyde in the room air
may affect human health. The consequences include
concentration disorders, nervousness, headaches, dizziness, but
also nausea, swelling of mucosa, conjunctival irritations and
lacrimation. In extremely high concentrations, formaldehyde can
cause pneumonia or toxic pulmonary oedema and is therefore
fatal.
Moreover, the substance is suspected of having a sensitizing
effect on the body with respect to allergies, and of promoting an
aggravation of asthmatic symptoms. It is assumed that the
adverse health impact of formaldehyde is not caused by the
isolated substance but by mixtures of pollutants (VOC/TVOC)
containing formaldehyde.
The following specifications serve as guide values, which were
determined in international studies. They are not binding since
the listed symptoms strongly depend on personal sensitivity!
0.05 to 0.125 ppm Odour threshold
0.01 to 1.6 ppm Irritation of mucous membranes (nose, throat) and
eyes
2.0 to 3.0 ppm Stinging in the nose, eyes, throat
4.0 to 5.0 ppm Bearable for 30 minutes, increasing discomfort,
lacrimation
10.0 to 20.0 ppm Strong lacrimation already after a few minutes of
exposure (lasting for up to 1 hour after exposure),
immediate breathlessness, coughing, severe burning
in throat, nose and eyes
30 ppm Toxic pulmonary oedema, pneumonia, risk of death!
TVOC – Total Volatile Organic Compounds
Nowadays, interior spaces contain numerous possible sources
of volatile organic compounds, so-called VOCs. Such sources
include sealants, furniture, varnishes and solvents, insulation
material etc.
Every individual volatile organic compound can be associated
with specific as well as unspecific health problems. Therefore,
there is a maximum limit for the ambient concentration of each
of these substances in interior spaces.
Due to the different chemical compositions and the associated
different impact potential of each of these substances, an
assessment of the overall group of substances is a rather
complex issue. However, this is exactly what is tried to be done
by way of calculating the sum of the concentrations of these
individual compounds, i.e. by determining one collective value,
the so-called TVOC value (Total Volatile Organic Compounds).
Owing to the complexity of VOCs, both the individual health
effects on the human body and their intensity can be different
and vary greatly in certain cases. Therefore, the TVOC
concentration and its effects are purely indicative.
Even below the thresholds of an acute individual effect, TVOCs
can affect the human well-being and health through so-called
combination effects. A long-term exposure to even low TVOC
concentrations, particularly to mixtures, can lead to unspecific
symptoms and reactions including
• perception of unpleasant odours and tastes
• runny nose and watery eyes
• irritation of eyes, nose, throat
• dry mucous membranes and dry skin, itching
• increased sensitivity to infections of the respiratory tract as
well as
• neurotoxic symptoms (fatigue, headaches, reduced mental
performance)
and even result in permanent health damage.
TVOC concentration
(mg/m3)
< 0.20 No irritation or impairment of well-being
0.20 to 3.0 Irritation or impairment of well-being possible in case
3.0 to 25 Exposure results in an effect; headaches possible in
> 25 Headaches; other neurotoxic effects apart from
Effect
of interaction with other exposure parameters
case of interaction with other exposure parameters
headaches possible
(Source: German Federal Environmental Agency, Federal Health
Bulletin, B. Seifert, Guideline values for indoor air, Springer
1999)
3 EN
Operating manual – particle counter PC220
Information about the device
Functional description
The particle counter is designed to measure the size and
amount of particles in the air. The detected data can be used for
analysing cleanrooms or prove environmental burdens from
particulates.
To detect the data, the particle counter sucks in air for an
adjustable amount of time and determines the size and amount
of particles contained in it.
Particles of the sizes 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm
and 10.0μm are treated equally during this process.
There are three methods of analysis (see also Definitions):
Cumulative: Amount of all particles up to the selected particle sizes,
e.g.: 0.5μm = 417 means that 417ppm of the particles
have a size of >0.3μm to 0.5μm.
Differential: Absolute concentration of the different particle sizes per
channel and measured volume.
Concentration: Averaged concentration of the different particle sizes per
channel per measured volume.
Alarm limit values for particle burden
Channel Green Yellow
(signal beep)
0.3μm 0 ~ 100000 100001 ~ 250000 250001 ~ 500000
0.5μm 0 ~ 35200 35201 ~ 87500 87501 ~ 175000
1.0μm 0 ~ 8320 8321 ~ 20800 20801 ~ 41600
2.5μm 0 ~ 545 546 ~ 1362 1363 ~ 2724
5.0μm 0 ~ 193 194 ~ 483 484 ~ 966
10μm 0 ~ 68 69 ~ 170 170 ~ 340
1)
The limit value ranges listed for the respective channel were
1)
Red
(signal beep)
determined on the basis of ISO 14644-1 and in connection with
practical experience values. They are in no way legally binding
and have a merely orientating function.
The detected values for all active particle sizes are displayed on
the 2.8 inch colour display simultaneously. In addition, the air
burden in one particle size selected by the user is displayed on
a colour indication scale. As soon as the particle burden is no
longer in the green area of this scale, a beep is emitted (see
table Alarm limit values for particle burdens).
In addition to the counted particles, the temperature and relative
humidity as well as the dew point and wet-bulb temperature
calculated from that information are displayed. Measurements
as well as the associated photo and video documentation can
be saved in the internal memory of the device or on a microSD
card, and then transmitted onto a PC via USB cable.
The device is equipped with an integrated measuring cell with
laser (class3R laser, 780nm, 1.5-3mW). Owing to the tamperproof enclosure it is classified as laser class1 (DINEN60825-1)
according to the Technical Regulations of the Occupational
Health and Safety Ordinance on Artificial Optical
Radiation (TROS) devised by the German Federal Institute for
Occupational Health and Safety. Maintenance and repair work
may only be carried out by trained expert staff observing the
legal regulations.
EN 4
Operating manual – particle counter PC220
Device depiction
1
2
3
4
8
7
5
6
9
10
11
13
12
14
15
No. Designation
1 Colour display
2 Function keys "F1", "F2" and "F3"
3 Arrow key up
4 "ENTER" key
5 "RUN/STOP" key
6 Arrow key down
7 "On/Off" key
8 "ESC" key
No. Designation
9 Measuring funnel
10 Temperature and humidity sensor
11 Camera
12 USB port
13 Electrical connection
14 Tripod thread
15 Battery compartment
5 EN
Operating manual – particle counter PC220
Technical data
Parameter Value
Model PC220
Dimensions (H x W x D) 240 mm x 75 mm x 57 mm
Weight 570 g
Light source Laser class 1 (class 3R laser enclosed
in a way to prevent tampering,
780 nm, 1.5-3 mW, classified
according to DIN EN 60285-1 and the
Technical Regulations of the
Occupational Health and Safety
Ordinance on Artificial Optical
Radiation (TROS))
PC interfaces USB connection
Tripod thread 1/4 inch – 20 UNC
Storage conditions -10°C to +50°C at <95%RH
(non-condensing)
Display 2.8 inch colour LCD display with
background illumination,
320 x 240 pixels
Functions Maximum, minimum and average
value display, measured value hold
function, alarm function, language
selection, °C/°F switch, photo or
video recording
Image format, resolution JPEG, 640 x 480 pixels
Video format, resolution 3GP, 320 x 240 pixels
Data storage 5000 data records on the internal
flash memory (optional memory
expansion with a microSD card: up to
16GB)
Energy
Battery Polymer LI-ION battery
Operating time approx. 4 hours of continuous
operation
Charging time approx. 2 hours with an alternating
current adapter
Automatic switch-off 3 minutes, 15 minutes or 60 minutes
Automatic screen switch-off 90 seconds, 2 minutes or 4 minutes
Temperature measurement
Temperature range 0 °C to 50 °C (32 °F to 122 °F)
Temperature accuracy ±0.5 °C (0.9 °F) at 10 °C to 40 °C
(50 °F to 104 °F) ±1.0 °C (1.8 °F) in
other temperature ranges
Dew point temperature range 0 °C to 50 °C (32 °F to 122 °F)
Dew point temperature accuracy ±0.5 °C (0.9 °F) at 10 °C to 40 °C
(50 °F to 104 °F) ±1.0 °C (1.8 °F) at
other temperature ranges
Wet-bulb temperature range 0 °C to 80 °C (32 °F to 176 °F)
Wet-bulb temperature accuracy ±1.0 °C (1.8 °F)
Parameter Value
Humidity measurement
Humidity level measuring range 0%RH to 100%RH
Humidity level accuracy ±3%RH at 40% to 60%
±3.5%RH at 20% to 40% and 60%
to 80%
±5%RH at 0% to 20% and 80% to
100%
Parameter Value
Particle counter
Channels (detectable particle sizes) 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm,
5.0 μm, 10.0 μm
Flow rate 2.83 l/min. (0.1 ft³/min.)
(=> 0.99 l/21 s) controlled by internal
pump
Counter mode Cumulative, differential, concentration
Counting efficiency 50% at 0.3μm; 100% for particles
>0.45μm (according to ISO21501)
Coincidence loss 5 %, 2 million particles per 28.3 litres
Zero check 1 count/5 minutes
(according to JIS B9921)
Start delay 1 to 100 seconds
Sample inlet Isokinetic probe
Calibration Using monodisperse latex particles
(PSL particles; compliant with NIST)
Light source of the measuring cell Laser class1 (class 3R laser enclosed
in a way to prevent tampering,
780nm, 1.5-3mW, classified
according to DINEN60285-1 and the
Technical Regulations of the
Occupational Health and Safety
Ordinance on Artificial Optical
Radiation (TROS))
Mass concentration
Channels PM2.5 / PM10
Measuring range 0 to 2000 μg/m³
Resolution 1 μg/m³
Parameter Value
Formaldehyde (HCHO)
Measuring range 0.01 to 5.00 ppm
Accuracy ±5% FS
Resolution 0.01 ppm
Carbon monoxide (CO)
Measuring range 10 to 1000 ppm
Accuracy ±5% FS
Resolution 1 ppm
EN 6
Operating manual – particle counter PC220
Scope of delivery
• 1 x Particle counter PC220
• 1 x Mini tripod
• 1x USB connecting cable + software
• 1 x Getting started guide
• 1 x Transport case
• 1x Zero filter + connection hose
• 1 x Charger
Transport and storage
Notice
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Operation
Switch-on
1. Press and hold the "On/Off" key until the colour display
starts.
ð The device is ready for operation as soon as the
following start screen is shown:
Transport
For transporting the device use a suitable bag to protect it from
external influences.
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Mask open terminals with tape and pack the battery in
a way that it cannot move inside the packaging.
– Please also observe any other national regulations.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat.
• protected from dust and direct sunlight.
• with a cover to protect it from invasive dust, if necessary.
2. In the start screen, select the desired measuring option by
pressing Enter. Alternatively, you can use the F1, F2 or F3
keys to make various settings or call up the help.
Operating elements
The following operating elements are available:
Use the buttons to select the desired measuring option
or a menu item.
Press "ENTER" to confirm your selection.
Press "ESC" to return to the previous menu at any time.
Use the "F1", "F2" and "F3" buttons to select various functions
depending on the current screen.
Setting the language
1. Press "F2" in the start screen.
ð The SYSTEM SET menu opens.
2. Press 2 times and confirm by pressing "ENTER".
ð The Language menu opens.
3. Use the buttons to select the appropriate language.
4. Press "ESC" twice.

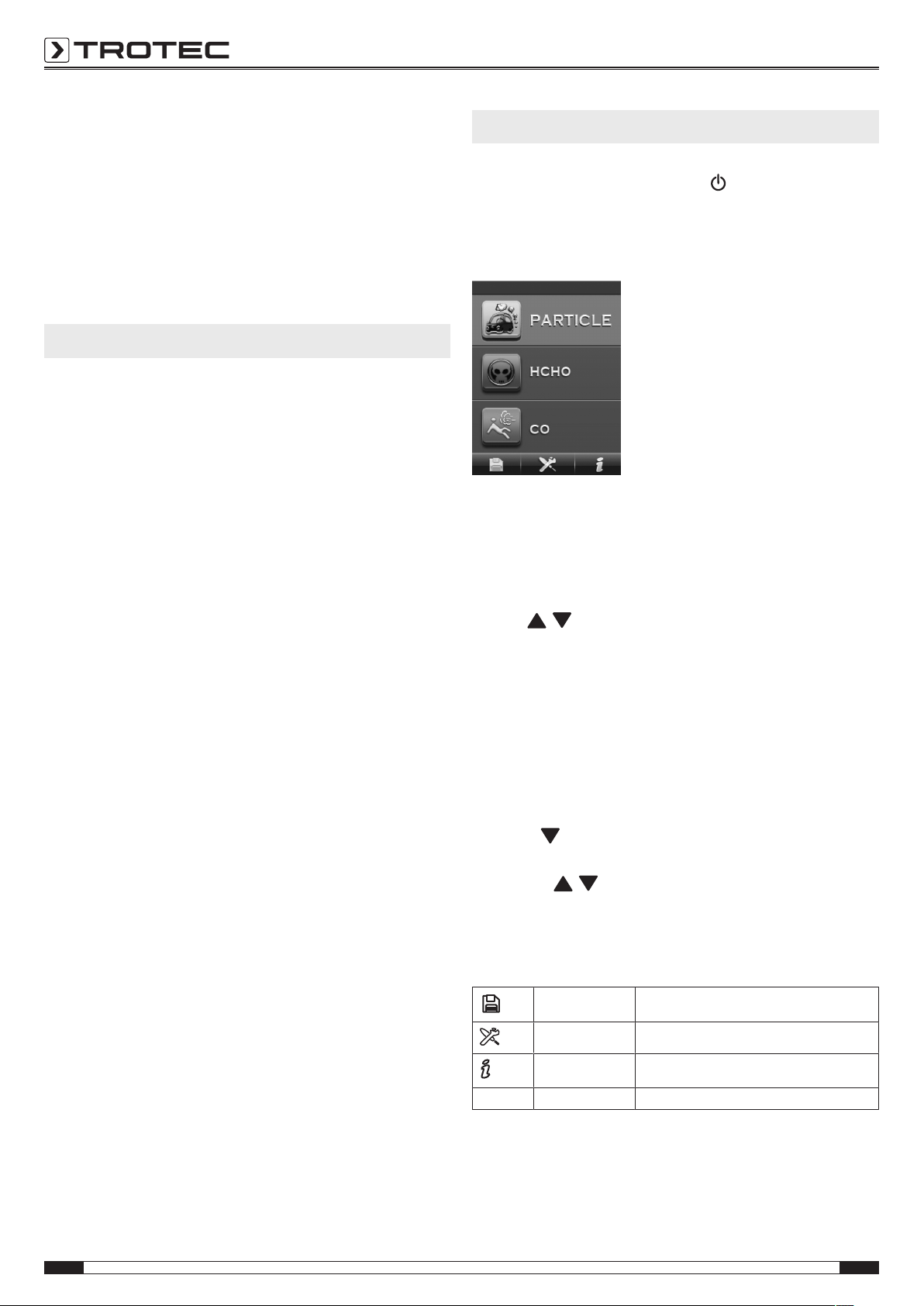

Start screen
You can open the following menus from the start screen:
"F1" button MEMORY SET – saved data
"F2" button SYSTEM SET – system settings
"F3" button Info – Information about the device
4 "ENTER" button "Measurement" screen
7 EN
Operating manual – particle counter PC220
MEMORY SET – saved data
16
17
18
19
20
21
26
25
24
23
22
16
17
20
21
26
25
24
23
22
30
29
27
28
31
The following submenus are available in the MEMORY SET
menu:
Video
Particle Logs
Show images
Show videos
Show measurement logs

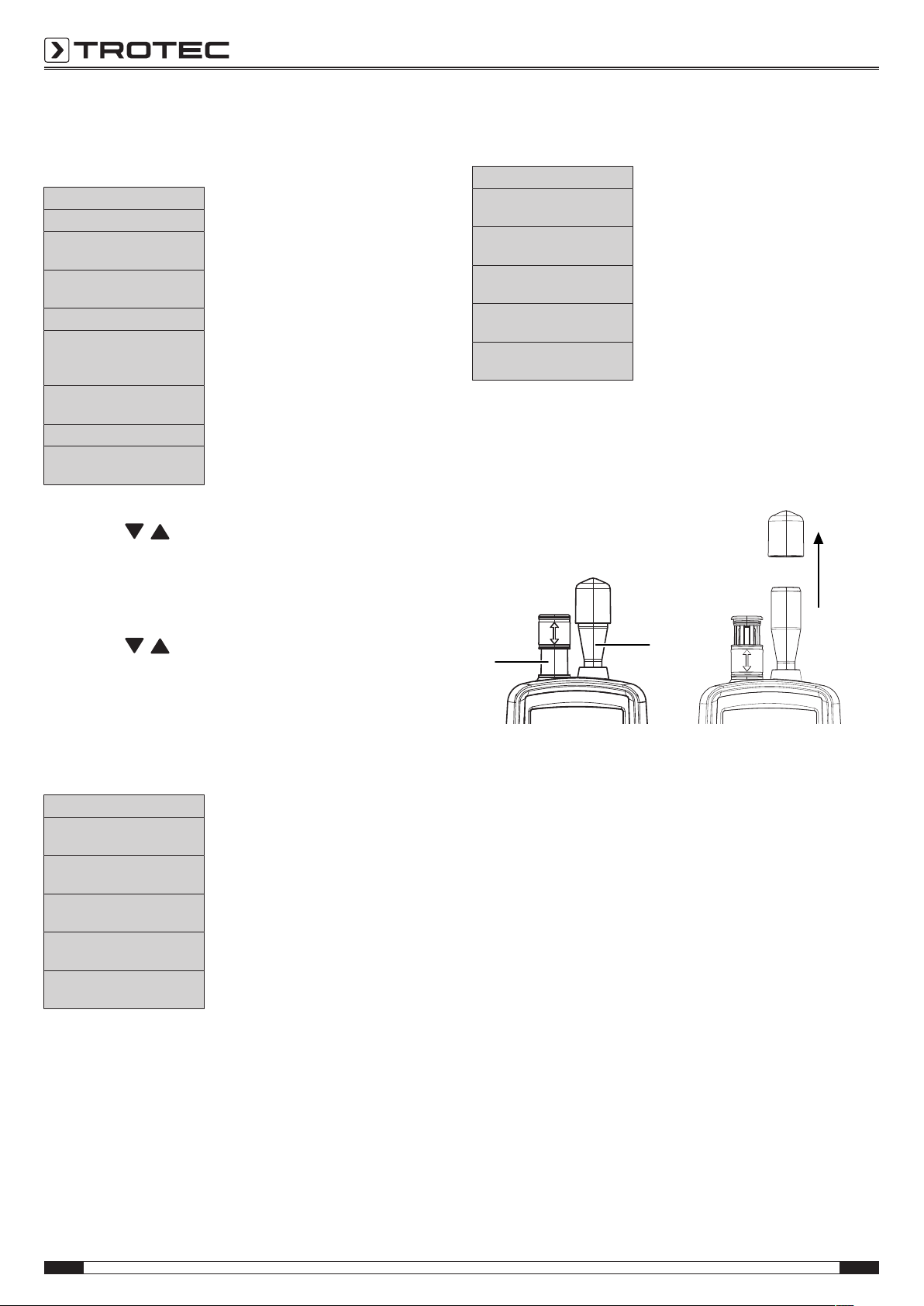

SYSTEM SET – system settings
The following submenus are available in the SYSTEM SET menu:
Data/Time
Font Colour
Language
Brightness
Auto Power Off
Display Timeout
Alarm Select
Memory Status
Factory Setting
Units
Set date and time
Set font colour
Setting the language
Set screen brightness
Set automatic switch-off
Set automatic display switch-off
Enable/disable alarm
Display memory use
Reset to factory settings
Switch unit for temperature
"Info" screen
This screen shows both information about the particle counter
and also general information about particle measurement. Use
the "F1" and "F3" buttons to scroll through the displays.

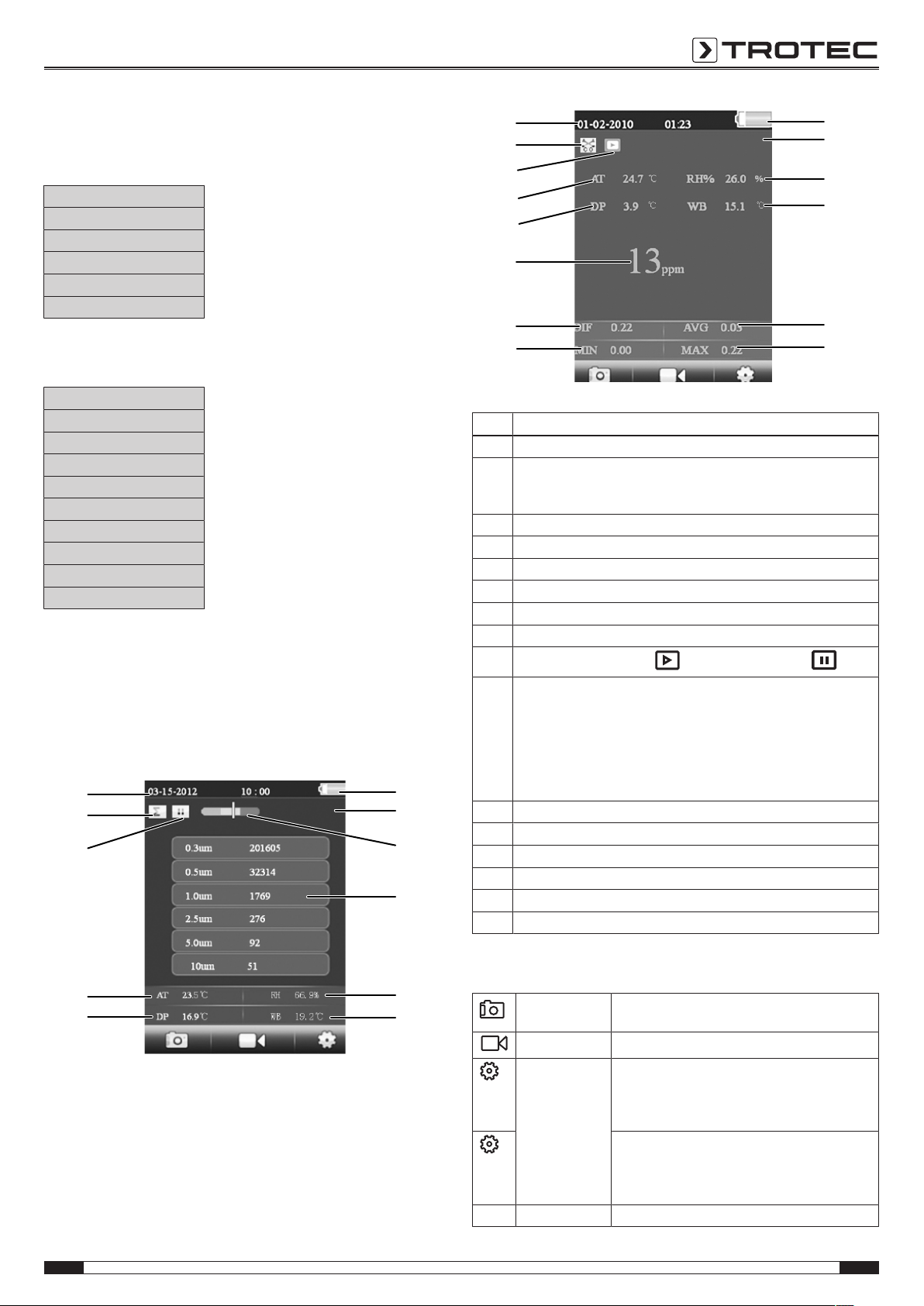

"Measurement" screen
The "Measurement" screen contains the following information:
No. Designation
16 Battery indicator
17 Start delay
Measurement duration
Measurement interval
18 Indicator scale for particle burden
19 Size and amount of particles
20 Relative humidity
21 Wet-bulb temperature
22 Dew point
23 Temperature
24
Measurement in progress / Measurement stopped
25 Method of analysis/measuring mode:
HCHO measurement
CO measurement
Particle measurement cumulative
Particle measurement differential
Particle measurement concentration
Particle measurement mass concentration
26 Date and time
27 Average
28 Maximum
29 Minimum
30 Difference
31 Measurement value indication
You can open the following menus from the "Measurement"
screen:
"F1" key Start photo function
EN 8
Operating manual – particle counter PC220
"F2" key Start video function
"F3" key Open measurement settings:
Particle Set – measurement settings for particles
CO SET – measurement settings for carbon
monoxide
/
CL
5 RUN/STOP key "Measurement" screen
HCHO SET – measurement settings for
formaldehyde
CL – Reset measured values after pressing "F3"
for approx. 3s. Is confirmed by an acoustic signal.
Particle Set – measurement settings
9
10
The following submenus are available in the "Particle Set"
menu:
Sample Time
Start Delay
Channel Display
Ambient Temp/%RH
Sample Cycle
MassCon/Particle
Sample Mode
Interval
Level Indication
Example: Set measurement duration
1. Use the keys to select the "Sample Time" menu
and then press "ENTER" to confirm.
ð The "Sample Time" menu opens.
2. Press the "ENTER" key.
ð The measurement duration glows blue.
3. Use the keys to set the measurement duration and
confirm by pressing "ENTER".
ð The measurement duration not longer glows blue. The
set value is saved.
Set measurement duration
Set start delay
Show/hide individual particle sizes by
pressing "ENTER"
Enable/disable temperature and
relative humidity
Set number of measurement repetitions
Select measuring mode
Particles (Particle) or mass concentration
(Mass concentration)
Set method of analysis
cumulative, differential, concentration
Set measurement interval
Select particle size for indicator scale for
particle burden
CO SET – measurement settings for carbon monoxide
The following submenus are available in the "CO SET" menu:
Start Delay
CO Alarm
Max/Min
Average/Dif
Ambient Temp/%RH
Dewpoint/Wetbulb
Set start delay
Switch CO alarm on/off
Specify alarm threshold
Enable/disable
max/min value
Enable disable
average value/difference
Enable/disable
temperature and relative humidity
Enable disable
dew point/wet-bulb
Carrying out a measurement
1. Slide the protective cap of the temperature sensor(10)
down.
2. Remove the protective cap from the measuring funnel (9).
HCHO SET – measurement settings for formaldehyde
The following submenus are available in the "HCHO SET" menu:
Start Delay
HCHO Alarm
Max/Min
Average/Dif
Ambient Temp/%RH
Dewpoint/Wetbulb
Set start delay
Switch HCHO alarm (acoustic) on/off
Specify alarm threshold
Enable/disable
max/min value
Enable disable
average value/difference
Enable/disable
temperature and relative humidity
Enable disable
dew point/wet-bulb
3. Press "ENTER" in the start screen.
ð The "Measurement" screen opens.
4. Press the "RUN/STOP" button.
ð Depending on the configuration, start delay,
measurement duration and measurement interval are
shown consecutively.
ð The number of measured particles and their size is
shown.
After each measurement, a measurement log is automatically
created. If you also want to take a photo or record a video,
proceed as described in the next sections.
9 EN
Operating manual – particle counter PC220
Recording a video
Videos can be recorded while a measurement is in progress.
ü The screen for the respective measurement (particles,
HCHO or CO) is active.
1. Press "F2" to start the video function.
2. Press "F2" again to start recording a video.
ð The duration of the video is shown at the top of the
screen.
3. Press "F2" to stop recording the video.
ð The message "Saving File" appears in the display. The
video is saved.
4. Press "ESC" to exit the video function.
Taking a photo
Photos can be taken while a measurement is in progress.
ü The screen for the respective measurement (particles,
HCHO or CO) is active.
1. Press "F1" to start the photo function.
2. Press "F2" again to take a photo of the current
display.
ð The photo is displayed.
ð The measurement continues in the background.

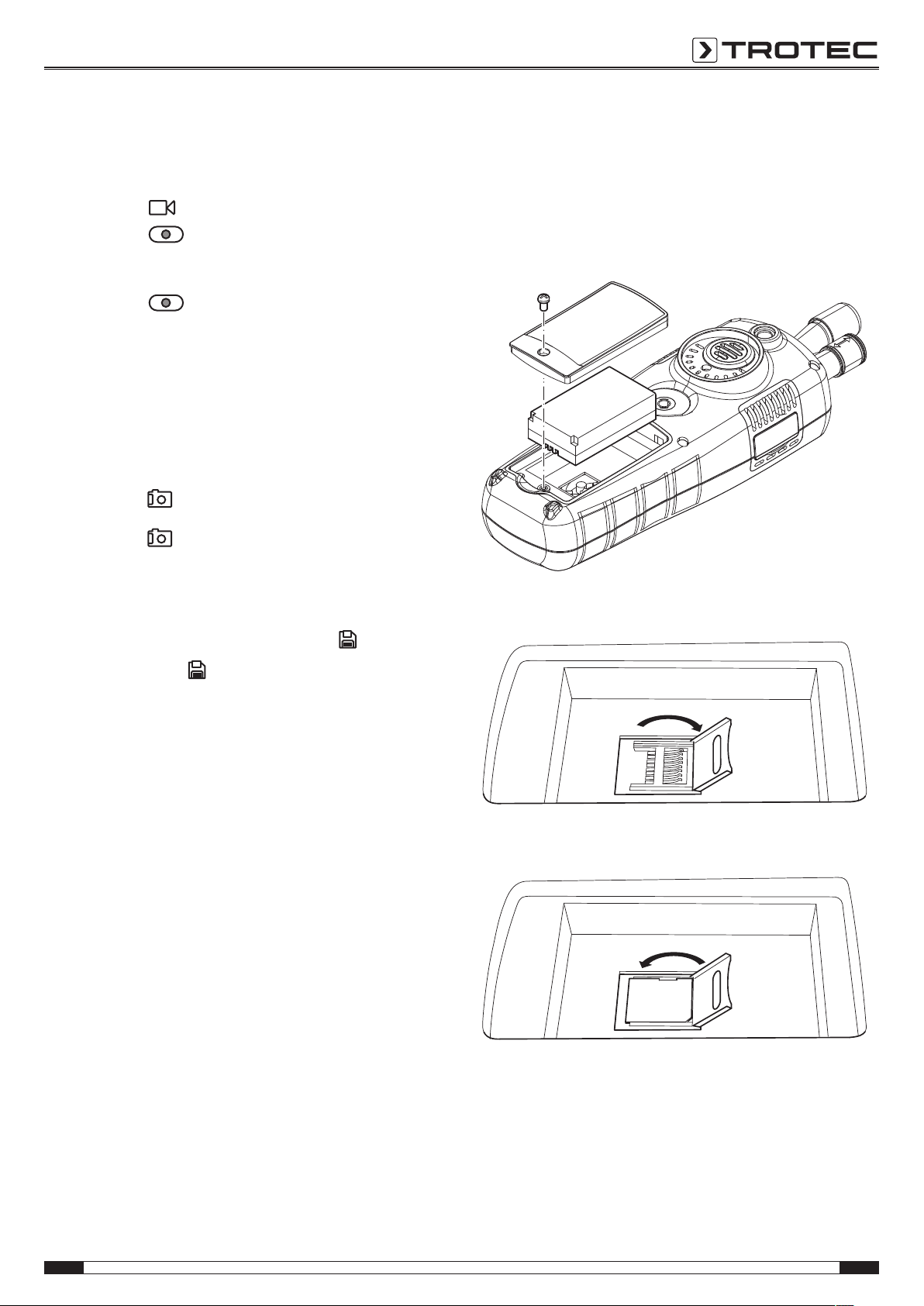

Inserting a microSD card
The storage capacity of the device can be expanded by using a
microSD card. To insert a microSD card, proceed as follows:
1. Switch off the device.
2. Loosen the screw and open the battery compartment.
3. Remove the battery.
4. Open the cover for the memory card.
3. You can save the photo by pressing "F1" , or delete it
by pressing "F3" .
4. Press "ESC" to exit the photo function.
5. Insert a memory card and close the cover.
6. Put the battery back in.
7. Close the battery compartment and screw it closed again.
EN 10
Operating manual – particle counter PC220

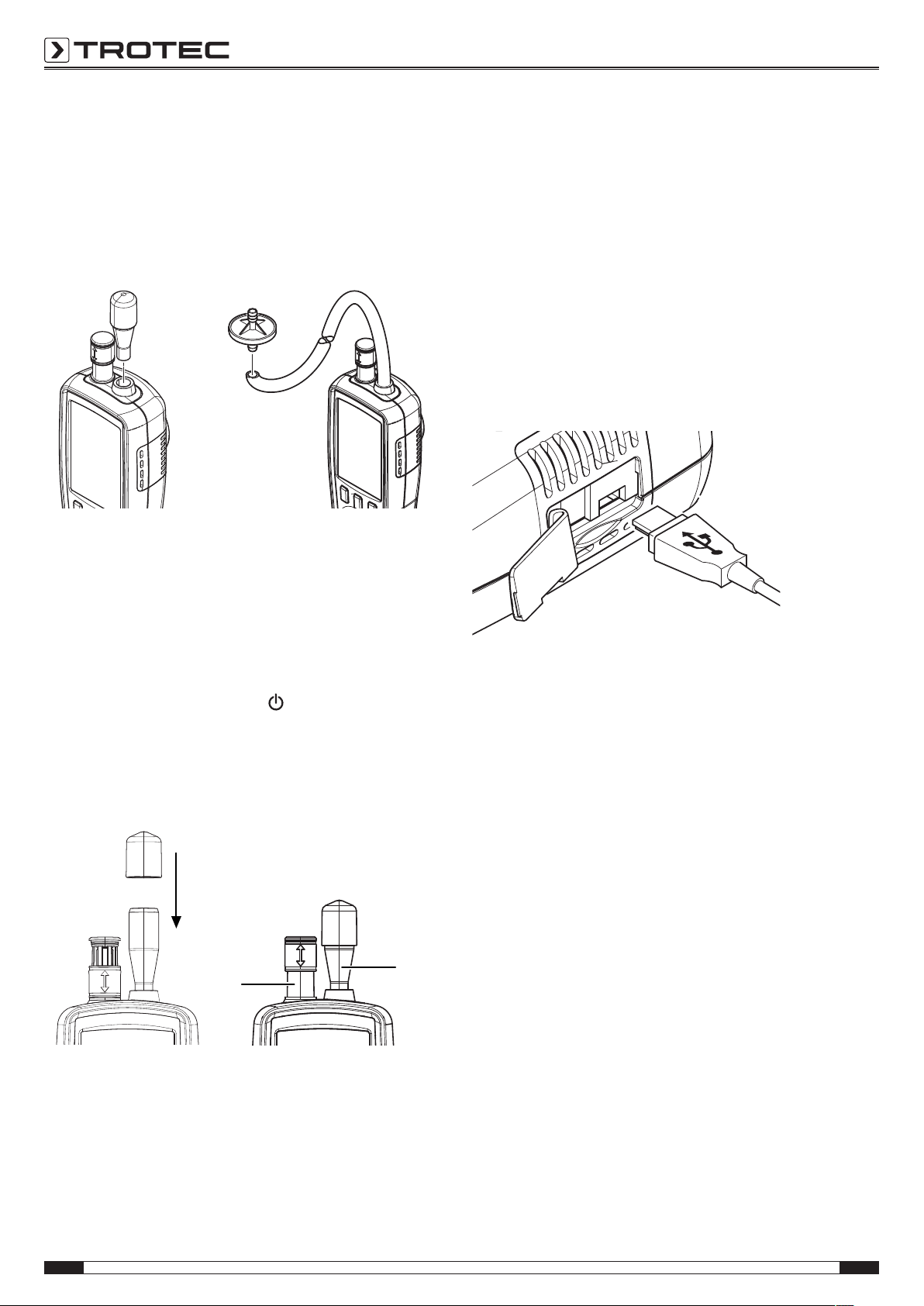

Cleaning the sensor (internal calibration)
9
10
If the device is used in heavily contaminated environments, the
sensor must be cleaned with the supplied zero filter.
To do so, please proceed as follows:
1. Unscrew the metallic measuring funnel from the device.
2. Screw the calibration hose onto the suction nozzle and
attach the zero filter.
3. Now, carry out a measurement in the "Cumulative" particle
measurement mode until "0" is shown in each channel.
4. The calibration process should not take more than
5 minutes. If the desired zero values are not reached in all
channels within that time, please contact the Trotec
customer service.
Software
The supplied free software is designed for useful basic
functionalities. Trotec assumes no liability with regard to this
free software and also provides no support on that score. Trotec
accepts no liability concerning the use of this free software and
is under no obligation to make adjustments or to further develop
updates or upgrades.
Connecting a USB cable
Saved measurement logs, photos and videos can be transferred
to a PC with the supplied USB cable.
To connect the USB cable to the device, proceed as follows:
1. Open the rubber side cover.
2. Connect the USB cable to the device.
Switch-off
1. Press and hold the On/Off key until the colour display
turns off.
ð The device has switched itself off.
2. Slide up the protective cap of the temperature sensor(10).
3. Put the protective cap on the measuring funnel(9).
11 EN
Operating manual – particle counter PC220

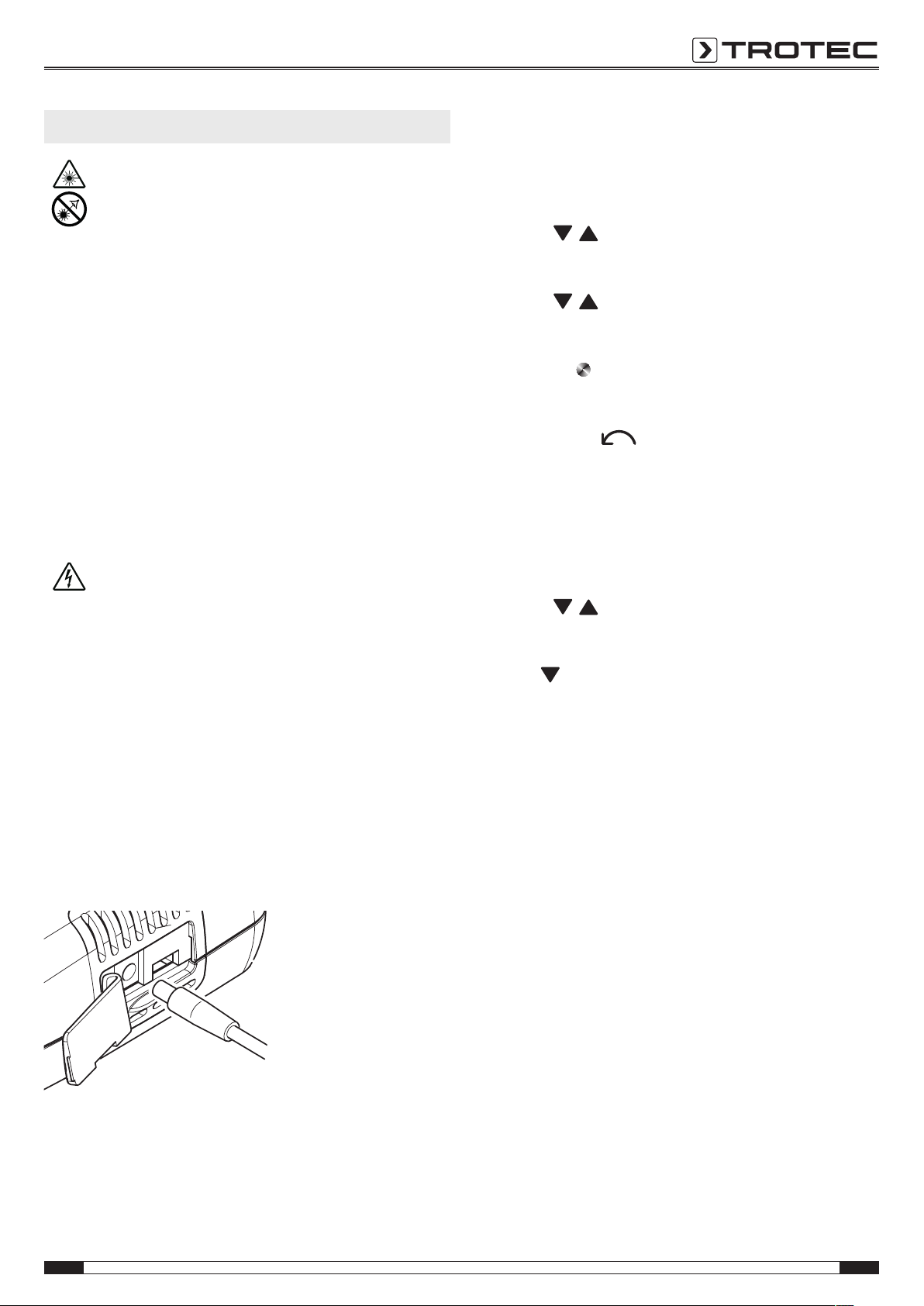

Maintenance and repair
Warning of laser radiation
Laser class 1
The laser is encapsulated.
Do not open the device to prevent direct contact with
the laser and the emitted radiation!
Cleaning
Clean the device with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Do not use any sprays,
solvents, alcohol-based cleaning agents or abrasive cleaners,
but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Deleting data
To remove saved data from the internal memory or the microSD
card, proceed as follows:
1. Press "F2" in the start screen.
ð The SYSTEM SET menu opens.
2. Use the keys to select the "Memory Status" menu
and then press "ENTER" to confirm.
ð The Memory Status menu opens.
3. Use the keys to select either the device memory or
the microSD card.
ð The memory usage is shown below the selection.
4. Press "F1" to start deleting all data from the selected
memory.
ð Press "F1" again to confirm the deletion.
ð Press "F3" to cancel the deletion.
5. Press ESC to exit the menu.
Charging the battery
The battery is partially charged upon delivery to avoid damage
to the battery caused by a deep discharge.
Warning of electrical voltage
Before each use of the charger or power cable, check
for damages. If you notice damages, stop using the
charger or power cable!
Notice
The battery can be damaged in case of improper
charging.
Remove the charger's mains plug before inserting or
removing the battery.
Never charge the battery at ambient temperatures
below 10°C or above 40°C.
The battery should be charged prior to initial start-up and when
the battery is low. To do so, please proceed as follows:
1. Open the rubber side cover.
2. Attach the charger.
Resetting factory settings
To return the device to the state it was in when it left the
factory, proceed as follows:
1. Press "F2" in the start screen.
ð The SYSTEM SET menu opens.
2. Use the keys to select the "Factory Setting" menu
and then press "ENTER" to confirm.
ð The Factory Setting menu opens.
3. Press once and confirm by pressing "ENTER".
ð The device is reset to factory settings.
ð Photos, videos and measurement logs on the internal
memory or on the microSD card remain unaffected.
3. The loading screen is shown on the display. When the
battery is fully loaded, the battery symbol is completely
green.
EN 12
Operating manual – particle counter PC220
Disposal
Li-Ion
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
You are responsible for deleting any personal data stored on the
waste equipment to be disposed of.
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
13 EN
Operating manual – particle counter PC220
Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
info@trotec.com
www.trotec.com
Loading...
