PAC 3500
EN
OPERATING MANUAL
LOCAL AIR CONDITIONER
TRT-BA-PAC3500-TC-003-EN
Table of contents
Notes regarding the operating manual .................................... 1
Information about the device................................................... 2
Technical data ........................................................................ 3
Safety ..................................................................................... 4
Transport and storage............................................................. 4
Operation................................................................................ 5
Maintenance........................................................................... 11
Disposal.................................................................................. 15
Declaration of conformity........................................................ 15
Notes regarding the operating manual
Symbols
Danger!
Warns of a hazard which can lead to injuries.
Hazardous electric voltage!
Warns of a hazard resulting from electric voltage which
can lead to injuries.
Legal notice
This release replaces all previous versions. No part of this
publication may be reproduced without written permission from
Trotec. The same applies for electronically processing,
duplicating or spreading the publication. Subject to technical
changes. All rights reserved. Trademarks are used without
guarantee that they may be used freely and primarily following
the spelling of the manufacturer. Product names are registered.
Changes to construction in the interests of constant
improvements to the product, as well as changes to the shape
and colour are reserved.
The scope of delivery may vary from product images. This
document was created with all due care. Trotec accepts no
liability whatsoever for possible mistakes or omissions. © Trotec
Caution!
Warns of a hazard which can lead to damage to property.
The current version of the operating manual can be found at:
www.trotec.de
EN Operating Manual – Local Air Conditioner PAC 3500 1
Information about the device
3
2
1
5
6
7
8
4
Description of the device
The primary purpose of the device is room cooling. It further filters
and dehumidifies the air thus creating an agreeable room climate.
In ventilation mode the device also provides the opportunity of air
circulation without cooling effect. In dehumidification mode
moisture is withdrawn from the air.
The device operates fully automatically and thanks to its
microprocessor control features a multitude of further options,
the device can, for instance, be switched on or off automatically
with time delay via the timer function.
Handling the device can be conveniently accomplished via the
control panel at the device or the supplied infrared remote
control.
The device was designed for universal, flexible and
uncomplicated application. Due to its compact dimensions it can
be easily transported and used in all interior spaces.
The air conditioner cools the room air by withdrawing warmth.
The absorbed warmth is emitted to the outside via the exhaust air
hose, cooled air is fed to the installation site by means of a fan.
Accumulating condensate trickles from the evaporator onto the
hot condenser, there it evaporates and then is transported to the
outside via the exhaust air hose.
Excess condensate is dripping from the condenser into a
condensate trap and is there re-fed to the condenser by use of a
paddle wheel, where it evaporates and is discharged along with
the exhaust air flow.
A cooling agent sees to the transport of the absorbed warmth
within the closed refrigerant circuit.
Device depiction
No. Operating element
1 Recessed handle
2 Air inlet with air filter
3 Hose connector for condensate
4 Condensation drain
5 Mains power cable
6 Exhaust air connection
7 Control panel
8Air flap
2 Operating Manual – Local Air Conditioner PAC 3500 EN
Technical data
Parameter Value
Model PAC 3500
Cooling capacity 3500 W
Dehumidifying capacity, max. 2.2 l/h
Operating temperature 16 to 35 °C
Air flow rate, max.
Electric connection 1/N/PE ~ 230 V, 50 Hz
Power consumption, max. 1.29 kW
Current consumption /fuse 5.76 A / 10 A
Refrigerant R-410a
Amount of refrigerant 610 g
Weight 31.5 kg
Dimensions (height x depth x width) 770 mm x 388 mm x 435 mm
Minimum distance to walls or other objects A: Top: 50 cm
Sound pressure level at a distance of 3 m max. 53 dB (A)
Wiring diagram
3
324 m
/h
B: Rear: 50 cm
C: Side: 50 cm
D: Front: 50 cm
EN Operating Manual – Local Air Conditioner PAC 3500 3
Safety
Carefully read the operating manual before using the device
and keep it within reach!
• Do not use the device in potentially explosive rooms.
• Do not use the device in atmospheres containing oil, sulphur,
chlorine or salt.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the side of the device where the air inlet is found
is kept free of dirt and loose objects.
• Never insert objects into the device.
• Do not cover or transport the device during operation.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. from animals).
• Only use extensions to the connecting cable which are
appropriate to the device power consumption, the length of
its cable and its use. Avoid electrical overload.
• Only transport the device in an upright position with an
emptied condensation tank or condensation drain hose.
• Dispose of the collected condensation. Do not drink it. Health
hazard!
• Observe the operating conditions (see chapter Technical
data).
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Hazardous electric voltage!
Work on the electrical components must only be
carried out by an authorised specialist company!
Hazardous electric voltage!
Before any work on the device, remove the mains plug
from the mains socket!
Danger!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way.
Observe the personnel qualifications.
Caution!
To avoid damages to the device, never operate the device
without an air filter inserted!
Transport and storage
Intended use
Only use the device for cooling, ventilating and dehumidifying
room air, while adhering to and following the technical data.
Improper use
Do not place the device on damp or flooded ground. Do not use
the device outdoors. Do not place any objects, e.g. wet clothing,
on the device for drying. Any unauthorised changes,
modifications or alterations of the device are forbidden.
Transport
• To make the device easier to transport, it is fitted with
wheels.
• The device must always be transported in an upright position.
Before transporting the device, proceed as follows:
1. Switch off the device.
2. Remove the mains plug from the mains socket. Do not use
the power cable to drag the device!
3. Drain the remaining condensate from the device and the
condensation drain hose (see chapter Maintenance).
Storage
Drain the remaining condensate from the device and the
condensation drain hose (see chapter Maintenance).
When the device is not being used, observe the following storage
conditions:
•dry,
• protected from dust and direct sunlight,
• with a plastic cover to protect it from invasive dust, if
necessary.
4 Operating Manual – Local Air Conditioner PAC 3500 EN
Operation
CC
A
B
D
11
10
9
10
11
6
• After being switched on, the device operates fully
automatically until the float indicates that the condensation
tank is full and the device switches itself off.
• Avoid open doors and windows.
Installation of the device
When positioning the device, observe the minimum distance from
walls or other objects as described in the chapter Technical data.
Connecting the exhaust air hose
1. Connect the flat nozzle (9) to one of the two joints (10). To do
so, carefully push the two notches of the connector into their
flat nozzle counterparts until they snap into place.
2. Connect the joint's (10) threaded opening to the hose (11). To
do so, screw the connection piece to the hose until it fits
tightly.
3. Connect the second connection piece to the other end of the
hose (11) as described in step 2.
4. Shove the free connector opening onto the exhaust air
connection (6) at the device.
– The exhaust air hose is assembled and connected to the
device.
• Set the device up in a level, upright and stable position.
• Do not create tripping hazards when laying the power cable
or other electric cables.
• Make sure that no curtains or other objects interfere with the
air flow.
• Ensure that extension cords are completely unrolled.
EN Operating Manual – Local Air Conditioner PAC 3500 5
Discharge of exhaust air
• The exhaust air coming from the device contains waste heat
from the room to be cooled. For this reason it is advisable to
discharge the exhaust air outside into the open air.
• The flat nozzle can be fed through the open window. If
required, secure the open window with the corresponding
means, so that the flat nozzle stays put.
• The flat nozzle can also be hooked into a tilted bottom-hung
window.
• Install the exhaust air hose inclined with the air direction.
Start-up
• Prior to initial start-up, the batteries (2 x type AAA) must be
inserted in the remote control:
1. To do so, open the cover of the battery compartment at the
back of the remote control.
2. Insert the batteries observing the correct polarity. Go by the
marking inside the battery compartment.
3. Then close the battery compartment.
• Check air inlets and outlets (2, 6, 8) for foreign objects and
remove these, if necessary.
• Check the air filter for dirt and clean it, if required. See
Maintenance on page 11.
• Another available option is the discharge of exhaust air
through a permanently installed exhaust air hose e.g. using a
wall bushing.
Switching the device on
1. Insert the mains plug into a properly secured mains power
socket.
2. Open the air flap (8).
3. Use the Power button (12) to switch the device on.
4. Check whether the full condensation tank indicator light (13)
is out.
– If necessary, drain the condensate. See Condensate
discharge on page 13.
5. Check whether the operating mode indicator Mode (14) and
a fan stage (15) are displayed.
6. Select the desired operating mode by pressing the Mode key
(18).
7. Select the desired fan speed by pressing the Fan Speed key
(19).
8. If required, adjust the target temperature by use of the keys
21 and 22.
Note
After every switch-off or any maintenance or repair work wait for
at least 3 minutes before switching the device on again.
6 Operating Manual – Local Air Conditioner PAC 3500 EN
Control panel
Air
conitioning
221918
12 13 14 15 16 17
2120
No. Designation Function
12 Power button To switch the device on or off.
13 Condensation tank full indicator Is illuminated when the internal condensation tank is full.
14 Operating mode indication Is illuminated when the respective operating mode is activated.
15 Fan speed indication Is illuminated when the fan speed is activated.
16 Display Indicates the ambient temperature.
17 Timer indication Is illuminated when automatic switch-on/-off has been activated.
18 Operating mode key To change the operating mode (cooling, dehumidification, ventilation).
19 Fan key To set the fan's rotational speed. Only enabled in cooling and ventilation mode.
20 Timer button To activate automatic switch-on/-off.
21 Arrow key To increase the target temperature or timer run-time.
22 Arrow key To decrease the target temperature or timer run-time.
The device will switch off until the condensate has been drained.
Air conditioning – cooling
Dehumidify – dehumidification
Fan – ventilation
High – high
Med – medium
Low – low
Indicates the target temperature when either key 21 or 22 is pressed.
The set number of hours (1 to 24) will be displayed when programming the timer function.
Is flashing when the timer can be set.
EN Operating Manual – Local Air Conditioner PAC 3500 7
Setting the operating mode
A.
B.
3
0.5‘‘
Ø
The following operating modes are available:
Cooling mode
1. Use the Power button (12) to switch the device on.
2. Use the Mode key (18) to select the operating mode Air
conditioning.
– The indicator light Air conditioning in the operating mode
indication (14) will be lit.
3. Select the desired fan stage by use of the Fan Speed key (19).
4. Select the desired target temperature by use of the arrow
keys (21 and 22).
– The target temperature is indicated in the display and
flashing.
Dehumidification mode
In dehumidification mode the condensate is drained separately.
For this purpose, both a suitable hose (0.5 in) and an appropriate
collection container are required.
The exhaust air hose does not need to be installed.
Note
If the exhaust air hose is installed, the air must be fed into the
room.
2. Connect a suitable hose (0.5 in) to the hose connector (3) and
introduce the hose into an appropriate condensate collection
container.
– Make sure that the container is located at a lower level than
the hose connector.
3. Use the Power button (12) to switch the device on.
4. Use the Mode key (18) to select the operating mode
Dehumidify.
– The indicator light Dehumidify in the operating mode
indication (14) will be lit.
– The temperature and the fan stage Low are preset in this
operating mode and cannot be changed.
5. During operation, make sure that the condensate collection
container does not overflow to avoid water damage.
6. Upon completing dehumidification detach the hose and recap
the hose connector (3) with stopper and protective cap.
– Ensure the firm seating of the stopper, for otherwise there
might be uncontrolled water leakage.
Operating mode Fan
The exhaust air hose is not required for fan mode. The device
circulates the room air, there will be no cooling.
1. Use the Power button (12) to switch the device on.
2. Use the Mode key (18) to select the operating mode Fan.
– The indicator light Fan in the operating mode
indication (14) will be lit.
3. Select the desired fan stage by use of Fan Speed key (19).
Setting the timer
The timer has two modes of operation:
– automatic switch-on upon expiry of a preset number of
hours.
– automatic switch-off upon expiry of a preset number of
hours.
The number of hours can be between 1 and 24.
1. Unscrew the protective cap at the hose connector (3) and
remove the stopper.
8 Operating Manual – Local Air Conditioner PAC 3500 EN
Automatic switch-on
ON/OFF Mode
Fan Speed Up
Timer Down
21
20
12
22
18
19
1. Use the Power button (12) to switch the device off.
2. Press the Timer key (20).
– The Timer indication (17) flashes.
– The operating mode indication (14) and the fan speed
indication (15) both indicate the respective current setting
which comes into effect upon automatic switch-on.
3. Adjust these settings as appropriate.
4. Select the desired number of hours by use of the arrow keys
(21 and 22).
– The display indicates the set number of hours.
5. Wait for approx. 15 seconds.
– The Timer indication (17) is continually lit.
– The display indicates the number of hours until automatic
switch-on.
Notes regarding automatic switch-on:
– If the device is disconnected from the power supply, all
settings for automatic switch-on are deleted.
– Pressing the Timer button (20) once more deactivates the
automatic switch-on function.
– Switching the device on by means of the Power button (12)
also deactivates the automatic switch-on function.
Automatic switch-off
1. Select the desired operation mode by means of the Mode key
(18).
2. Press the Timer key (20).
– The Timer indication (17) flashes.
3. Select the desired number of hours by use of the arrow keys
(21 and 22).
– The display indicates the set number of hours.
4. Wait for approx. 15 seconds.
– The Timer indication (17) is continually lit.
– The display changes back to the normal indication.
– Automatic switch-off is now set.
Remote control
All settings of the device can also be made using the remote
control included in the scope of delivery. Please gather the button
functions from the Control panel paragraph.
No. Operating element
18 Mode key
21 + key
22 - key
20 Timer key
19 Fan Speed key
12 ON/OFF key
Shutdown
1. Use the Power button (12) to switch the device off.
2. Remove the mains plug from the mains socket.
3. Clean the device, and especially the air filter, according to
chapter Maintenance.
4. Store the device according to chapter Storage.
EN Operating Manual – Local Air Conditioner PAC 3500 9
Errors and faults
The accurate functionality of the device was tested during
production a number of times. However, if functionality faults do
occur, then check the device according to the following list.
Note
After every switch-off, the compressor requires a waiting time of
3 minutes before it switches on again.
The device does not start:
• Check the power connection (230 V/1~/50 Hz).
• Check the mains plug for damages.
• Observe the operating temperature of 18 to 35 °C.
• Check whether the full condensation tank indicator light (13)
is illuminated. If required, discharge the condensate (see
chapter Maintenance).
• Have the electrics checked by a specialist company for
cooling and air-conditioning or by Trotec.
The device works with reduced or no cooling capacity:
• Check whether the cooling operating mode is selected.
• Check the proper fit of the exhaust air hose. In case of kinks,
bends or blockage in the hose, exhaust air cannot be
discharged. Clear the way for the exhaust air.
• Check the positioning of the air flap (8). It should be opened
to the maximum.
• Check the air filter for dirt. If required, clean the air filter (see
chapter Maintenance).
• Check the minimum distance to walls or other objects.
Position the device a little more in the room's centre, if
required.
• Check whether there are opened windows and/or doors of
the room. Close these, if any. The window for the exhaust air
hose has to remain open nonetheless.
• Check the temperature setting at the device. Reduce the set
temperature, if it is higher than the room temperature.
• Should your device be equipped with a wall connection, there
might be a slight underpressure in the room. Briefly open a
door or window to compensate this.
The device gets very warm, is loud or is losing performance:
• Check the air inlets and air filter are not dirty. Remove
external dirt.
• Check the inside of the device and especially the fan, the fan
housing, the evaporator and the compressor for external dirt
(see chapter Maintenance). If the inside of the device is dirty,
have it cleaned by a specialist company for cooling and
air-conditioning or by Trotec.
The device does not respond to the infrared remote control:
• Check whether the distance between remote control and
device is too big and minimize it, if necessary.
• Make sure there are no obstacles between device and remote
control. Ensure visual contact between device and remote
control.
• Check the charging status of the batteries and change them,
if required.
• If the batteries have only just been changed, check them for
correct polarity.
Your device still does not operate correctly after these
checks?
Bring the device to a specialist company for cooling and
air-conditioning or to Trotec for repair.
The device is loud or vibrates; condensate is leaking:
• Check whether the device is standing upright and on an even
surface.
• Check the stopper of the condensate drain for proper fit or
damage. Plug the stopper in correctly or replace it as
appropriate.
10 Operating Manual – Local Air Conditioner PAC 3500 EN
Maintenance
Maintenance intervals
Maintenance and care interval
Empty condensation tank x
Check air inlets and outlets for dirt and foreign
objects and clean if necessary
Clean the exterior xx
Visually check the inside of the device for dirt xx
Check air inlet grid and air filter for dirt
and foreign objects and clean or replace if necessary
Replace air filter x
Check for damage x
Check attachment screws xx
Tes t r u n x
before every
start-up
x
xx
as needed
at least every 2
weeks
at least every 4
weeks
at least every 6
months
at least annually
Maintenance and care log
Device type: ............................ Device number: .......................................
Maintenance and care interval 12345678910111213141516
Check air inlets and outlets for dirt and foreign
objects and clean if necessary
Clean the exterior
Visually check the inside of the device for dirt
Check the air inlet grid and air filter for dirt and for-
eign objects and clean or replace if necessary
Replace air filter
Check for damage
Check attachment screws
Tes t r u n
1. Date: ..........................................
Signature:.......................................
5. Date: ..........................................
Signature:.......................................
9. Date: ..........................................
Signature:.......................................
13. Date: ........................................
Signature:.......................................
2. Date:..........................................
Signature: ......................................
6. Date:..........................................
Signature: ......................................
10. Date:........................................
Signature: ......................................
14. Date:........................................
Signature: ......................................
3. Date: ..........................................
Signature:.......................................
7. Date: ..........................................
Signature:.......................................
11. Date: ........................................
Signature:.......................................
15. Date: ........................................
Signature:.......................................
4. Date: ..........................................
Signature: ......................................
8. Date: ..........................................
Signature: ......................................
12. Date: ........................................
Signature: ......................................
16. Date: ........................................
Signature: ......................................
EN Operating Manual – Local Air Conditioner PAC 3500 11
Activities required before starting maintenance
• Do not touch the mains plug with wet or damp hands.
• Before any work, detach the mains plug!
Maintenance tasks, which require the housing to be
opened, must only be carried out by specialist
companies for cooling and air-conditioning or by
Trotec.
Visual check for dirt in the inside of the device
1. Remove the air filter.
2. Use a torch to illuminate the openings of the device.
3. If you see a thick layer of dust, have the inside of the device
cleaned by a specialist company for cooling and
air-conditioning or by Trotec.
4. Put the air filter back in.
Cleaning the housing
Clean the device with a soft, damp and lint-free cloth. Ensure that
no moisture enters the housing. Do not use any sprays, solvents,
alcohol-based cleaning agents or abrasive cleaners. Only use
clean water to moisten the cloth.
Refrigerant circuit
• The entire refrigerant circuit is a maintenance-free,
hermetically sealed system and may only be maintained or
repaired by specialist companies for cooling and
air-conditioning or by Trotec.
12 Operating Manual – Local Air Conditioner PAC 3500 EN

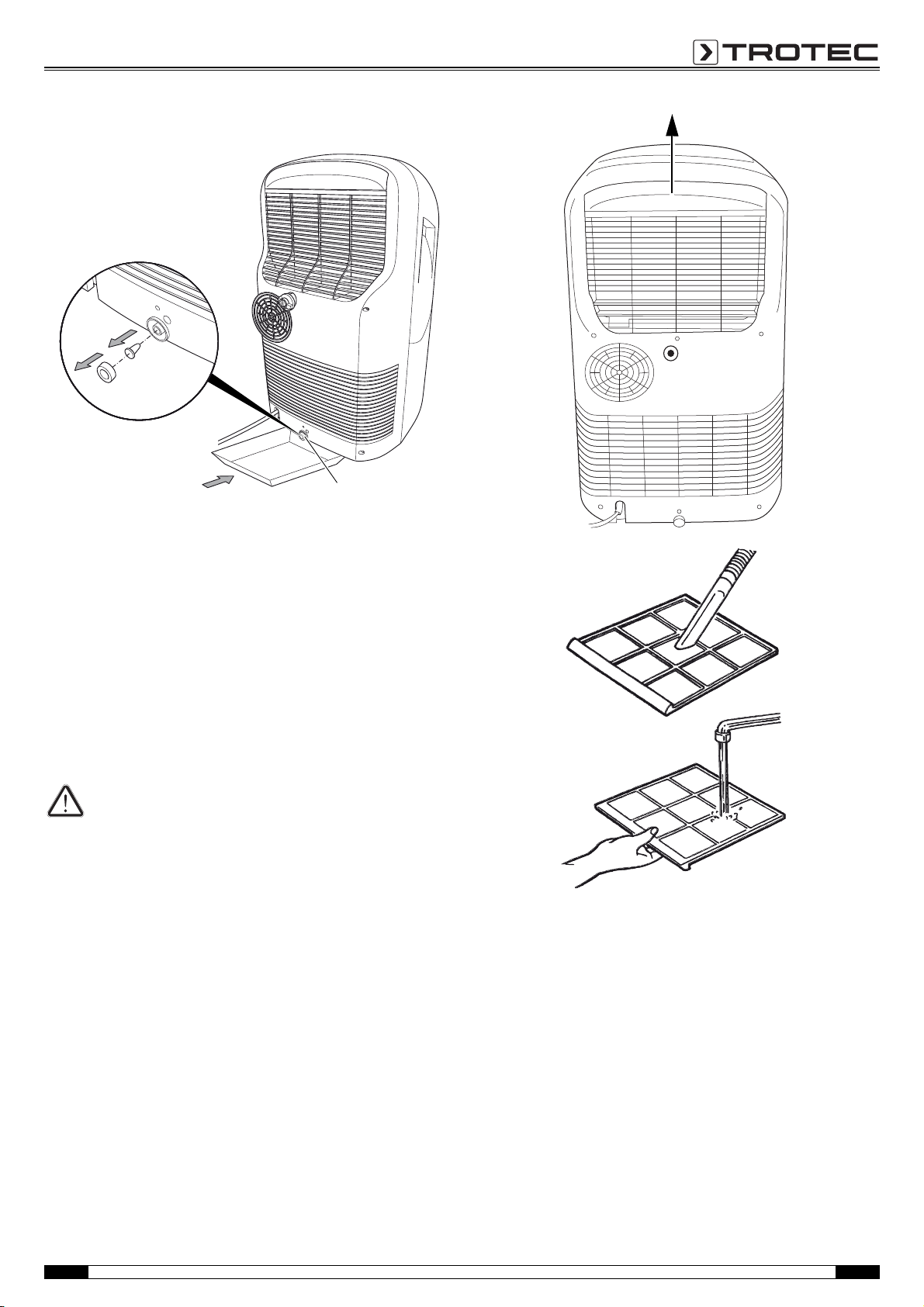

Condensate discharge
4
A.
B.
1. Provide for a suitable collection container.
2. Remove the screwing from the condensation drain (4).
3. Remove the rubber plug.
4. Drain the condensate into the collection container.
5. When the flow of condensate has come to an end, reattach
the rubber plug to the condensation drain (4).
– Ensure the firm seating of the stopper, for otherwise there
might be uncontrolled leakage of condensate.
6. Reattach the screwing to the condensation drain (4).
Cleaning the air inlets and the air filter
Caution!
Ensure that the air filter is not worn or damaged. The
corners and edges of the air filter must not be rounded or
misshaped. Before reinserting the air filter, ensure that it
is dry and is not damaged!
Read the chapter Maintenance intervals and replace the
air filter in due time!
EN Operating Manual – Local Air Conditioner PAC 3500 13
Overview and list of spare parts
34
28
24
26
25
21
20
4
35
6
5
45
22
2
1
7
11
27
12
8
9
10
14
13
16
18
19
31
15
23
29
3
42
43
40
41
33
36
37
39
38
48
44
46
47
32
ON/OFF
Fan Speed
Timer
Mode
Up
Down
49
50
51
59
60
61
62
63
64
30
52
54
53
55
56
57
58
17
Note!
The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.
No. Spare part No. Spare part No. Spare part
1 base pan 23 pc board 45 front panel
2 caster 24 control board 46 control plate
3 strike 25 capacitor (25 μF/450 V)(for compressor(10)) 47 control board
4 fan motor (WT-15D1-01) 26 strike 48 fixture
5 blade 27 fixture 49 rear panel
6 drain bucket cover 28 cover 50 air filter
7 float (a) 29 terminal block 51 soft cap (a)
8 float (b) 30 fixture 52 plug (a)
9 micro switch 31 plate 53 plug (b)
10 compressor ass'y (44N097-A1) 32 capacitor (2 μF/450 V)(for fan motor(36)) 54 soft cap (b)
11 rubber 33 cover 55 fixture
12 discharge pipe 34 fixture 56 sensor (for indoor)
13 suction pipe 35 evaporator ass'y 57 cover
14 condenser ass'y 36 fan motor (LS-16D3-06) 58 y tube
15 power supply cord complete 37 fan casing 59 heat exhaust hose
16 capillary tube 38 cross flow fan 60 heat exhaust hose connector
17 fan casing 39 fan casing 61 discharge grille
18 blower wheel 40 bearing 62 fixture
19 fan motor (LS-53D1-4P) 41 discharge grille 63 cover
20 fan casing 42 fan-air deflector (a) 64 remote control ass'y
21 fixture 43 fan-air deflector (b)
22 capacitor (2.5 μF/450 V)(for fan motor(19)) 44 bar
14 Operating Manual – Local Air Conditioner PAC 3500 EN
Disposal Declaration of conformity
In the European Union, electronic equipment must not
be treated as domestic waste, but must be disposed of
professionally in accordance with Directive
2002/96/EC of the European Parliament and Council of 27th
January 2003 concerning old electrical and electronic equipment.
At the end of its life, please dispose of this instrument in a manner
appropriate to the relevant legal requirements.
The device uses an environmentally and ozone-neutral cooling
agent (see Technical data). Dispose of the refrigerant
appropriately and according to the national regulations.
in accordance with the EC Low Voltage Directive 2006/95/EC and
the EC Directive 2004/108/EC about electromagnetic
compatibility.
Herewith, we declare that the local air conditioner PAC 3500 was
developed, constructed and produced in compliance with the
named EC directives.
Applied technical standards:
EN 55014-1/A2:2011
EN 55014-2/A2:2008
EN 61000-3-2/A2:2009
EN 61000-3-3:2008
EN 60335-2-40/A13:2012
EN 60335-1/2012
EN 62233:2008
ZEK 01.4-08
The marking is found on the rear of the device.
Manufacturer:
Trotec GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
Phone: +49 2452 962-400
Fax: +49 2452 962-200
E-mail: info@trotec.com
Heinsberg, 31/03/2014
Managing Director: Detlef von der Lieck
EN Operating Manual – Local Air Conditioner PAC 3500 15
Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
info@trotec.com
www.trotec.com
Loading...
