PAC 2000 SH
EN
OPERATING MANUAL
LOCAL AIR CONDITIONER
TRT-BA-PAC2000SH-TC-002-EN
Table of contents
Notes regarding the operating manual................................. 1
Safety .....................................................................................1
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
Information about the device................................................3
Transport and storage...........................................................4
Assembly and installation.....................................................5
Operation ...............................................................................8
Errors and faults..................................................................13
Maintenance ........................................................................14
Technical annex...................................................................18
Disposal ...............................................................................18
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
PAC 2000 SH
http://hub.trotec.com/?id=40264
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
1 EN
Operating manual – local air conditioner PAC 2000 SH
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.
• Insert the mains plug into a properly secured mains
socket.
• Observe the technical data when selecting extensions to
the power cable. Completely unroll the extension cable.
Avoid electrical overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk.
• When positioning the device, observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
data chapter.
• Ensure that the air inlet and outlet are not obstructed.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Ensure that the side of the device where the air inlet is
found is kept free of dirt and loose objects.
• Only transport the device in an upright position with an
emptied condensation tray or drain hose.
• Discharge the collected condensate before transport and
storage. Do not drink it. Health hazard!
Intended use
Only use the device for cooling, ventilating, dehumidifying and
heating indoor air whilst adhering to the technical data.
Improper use
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use the device outdoors.
• Any unauthorised modifications, such as alterations or
structural changes to the device, are forbidden.
• Any operation other than as described in this manual is
prohibited. Non-observance renders all claims for liability
and guarantee null and void.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Maintenance tasks which require the housing to be opened
must only be carried out by specialist companies for cooling and
air-conditioning or by Trotec.
EN 2
Operating manual – local air conditioner PAC 2000 SH
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Note

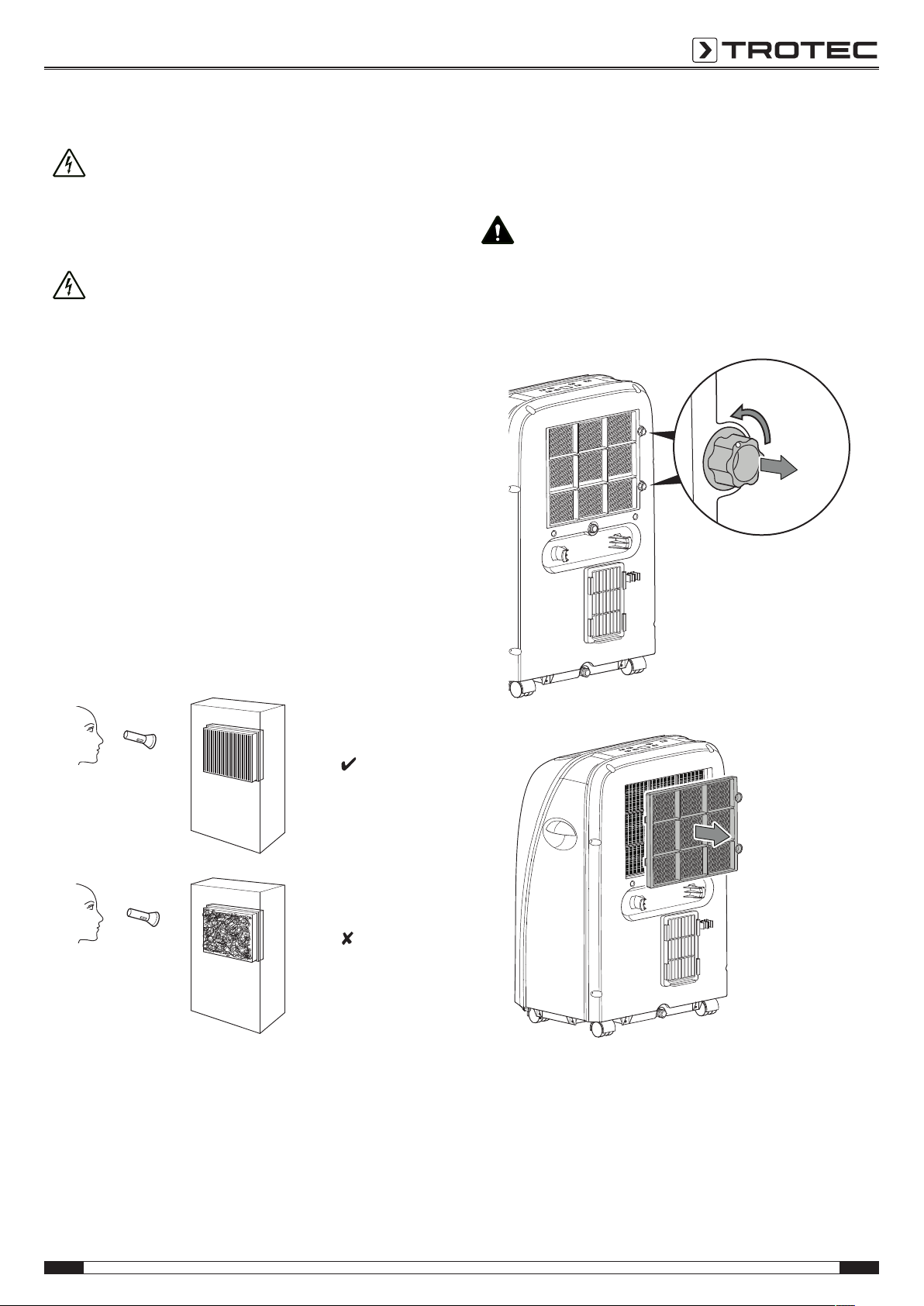

Do not operate the device without an inserted air filter!
Without an air filter the inside of the device will be
heavily contaminated, which could reduce the
dehumidification performance and result in damage to
the device.
Information about the device
Device description
The device serves the purpose of cooling the room air. It further
filters and dehumidifies the air thus creating an agreeable room
climate. Additionally, the device can be used as heater.
The unit cools the room air by withdrawing warmth. The
absorbed warmth is emitted to the outside via the exhaust air
hose; cooled air is fed to the installation site by means of a fan.
Accumulating condensate drips from the evaporator onto the hot
condenser, there it evaporates and then is transported to the
outside via the exhaust air hose.
In ventilation mode the device provides the opportunity of air
circulation without cooling effect.
In dehumidification mode moisture is withdrawn from the air.
In heating mode the room air is warmed up.
The device operates fully automatically and features a variety of
further options. The device can, for instance, be switched on or
off automatically with time delay via the timer function.
Operation of the device is possible either via the control panel at
the device or via the supplied infrared remote control.
The device was designed for universal and flexible application.
Due to its compact dimensions it can be easily transported and
used in all interior spaces.
Behaviour in the event of an emergency
1. Switch the device off.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.
3 EN
Operating manual – local air conditioner PAC 2000 SH
Device depiction
1
2
3
4
2
3
9
8
7
6
5
10
11
No. Designation
1 Control panel
2 Handle
3 Wheels
4 Air inlet with air filter
5 Hose connection with rubber stopper
6 Power cable holder
7 Exhaust air hose connection
8 Condensate outlet with rubber stopper
9 Remote control
10 Remote control receiver
11 Air outlet with ventilation flaps
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
To make the device easier to transport, it is fitted with wheels.
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Drain the remaining condensate from the device.
• Do not use the power cable to drag the device.
• Only wheel the device on a level and smooth surface.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.
• Leave the device to rest for 12to24hours, so the
refrigerant can accumulate within the compressor. Wait
12to24hours before switching the device back on! Acting
contrary might lead to compressor damage and a
malfunctioning device. If so, any warranty claims will be
voided.
EN 4
Operating manual – local air conditioner PAC 2000 SH
Storage
A
B
C
C
D
Before storing the device, observe the following:
• Drain the remaining condensate from the device.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.
• Remove batteries from the remote control.
Assembly and installation
Scope of delivery
• 1x Device
• 1 x Exhaust air hose
• 1x Hose adapter
• 1x Exhaust air hose adapter
• 1x Cover for exhaust air hose adapter
• 1x Condensation drain hose, length: 1m,
diameter: 11mm
• 1 x Remote control
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Start-up
When positioning the device, observe the minimum distance
from walls or other objects as described in the Technical data
chapter.
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Set the device up in an upright and stable position.
• Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning
the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are completely unrolled.
• Keep air inlets and outlets as well as the exhaust air hose
connection free.
• Make sure that no curtains or other objects interfere with
the air flow.
Prior to initial start-up, insert the batteries in the remote control.
5 EN
Operating manual – local air conditioner PAC 2000 SH
Inserting the air filter
90
Note
Do not operate the device without an inserted air filter!
Without an air filter the inside of the device will be
heavily contaminated, which could reduce the
dehumidification performance and result in damage to
the device.
• Make sure that the air filter is installed before switching
the device on.
Connecting the exhaust air hose
1. Connect the exhaust air hose adapter to one end of the
exhaust air hose.
2. Connect the hose adapter to the other end of the exhaust
air hose.
3. Shove the hose adapter with exhaust air hose into the air
conditioner's exhaust air hose connection from above.
EN 6
Operating manual – local air conditioner PAC 2000 SH
Discharging exhaust air
≥ 30 cm
≤ 120 cm
• The exhaust air coming from the device contains waste
heat from the room to be cooled. For this reason it is
recommended to discharge the exhaust air to the outside.
• The end of the exhaust air hose can be fed through the
open window. If required, secure the open window with
the corresponding means, so that the end of the exhaust
air hose cannot shift.
• The end of the exhaust air hose can also be hooked into a
tilted window.
For this purpose, we recommend using a window seal
(optional).
• Install the exhaust air hose inclined with the air direction.
Example with exhaust air hose:
For installing the exhaust air hose please observe the following:
• Avoid kinks and bends in the exhaust air hose, as they
would lead to an accumulation of emitted humid air
causing the device to overheat and shut down.
• The dimensions of the exhaust air hose were especially
made to fit the device. Do not replace or extend the hose,
for it could cause a malfunction.
7 EN
Operating manual – local air conditioner PAC 2000 SH
Opening the ventilation flaps
C
F
12
24
23
22
21
20
19
18
17
16
15
14
13
1. Prior to switching the device on, open the ventilation flaps
at the air outlet.
Connecting the power cable
• Insert the mains plug into a properly secured mains
socket.
Operation
• Avoid open doors and windows.
Operating elements
No. Designation Meaning
15 Segment
display
Indication of the target temperature in
cooling and heating mode
Display of current room temperature
Indication of the number of hours during
timer programming
Indication of the error code, see chapter
Errors and faults
°C / °F indication
16 Timer button Switching the timer function on and off
17 Timer LED Illuminated when the timer is activated
18 Operating light Indicates operation:
Device is switched on or off
19 Power button Switching the device on and off
20 Night mode
Illuminated when night mode is activated
LED
21 Night mode
Switching night mode on and off
button
22 Minus button Reducing the target temperature (15°C
to 31°C) for cooling and heating
Reducing the number of hours for the
timer (1h to 24h)
23 Operating
mode button
Selecting the operating mode:
heating
ventilation
dehumidification
cooling
automatic operation
24 Operating
mode LED
Indicates the selected operating mode:
= heating
= ventilation
= dehumidification
= cooling
= automatic operation
Info
An acoustic signal is emitted each time a setting is
No. Designation Meaning
activated.
12 Fan stage LED Indicates the current fan stage:
= stage1
= stage2
13 Fan stage
button
Setting the fan stage:
stage1 = low fan speed
stage2 = high fan speed
14 Plus button Increasing the target temperature (15°C
to 31°C) for cooling and heating
Increasing the number of hours for the
timer (1h to 24h)
EN 8
Operating manual – local air conditioner PAC 2000 SH
Switching the device on
1. Allow the device to rest for a time.
2. Once you have completely installed the device as
described in the Start-up chapter, you can switch it on.
3. Press the Power button(19).
ð The device starts in automatic operation mode.
ð The operating light(18) is illuminated.
ð The current room temperature is indicated on the
segment display(15).
4. Select the desired operating mode.
The device switches off automatically when the condensation
tank is full. E4 is displayed in the segment display(15).
Setting the operating mode
Heating
In heating mode the room will be heated up to the desired target
temperature.
1. Press the operating mode button(23) until the heating
LED(24) is illuminated.
ð Heating mode is selected.
ð The current room temperature is indicated on the
segment display(15).
2. Repeatedly press the plus(14) or minus(22) button to
select the desired target temperature. The temperature
can be adjusted in increments of 1°C in a range between
15°C and 31°C.
ð The desired target temperature flashes on the segment
display(15) for approx. 5s. Then the segment
display(15) changes back to the current room
temperature.
3. Press the fan stage button(13) to set the desired fan
stage.
ð The fan stage LED(12) for the desired fan stage will be
illuminated.
ð The heating LED(24) will be illuminated to indicate
heating mode.
Info
After switch-off, the fan keeps running for a brief
period during which no settings can be made.
Ventilation
Info
Remove the exhaust air hose during ventilation.
In ventilation mode the room air is circulated, it will neither be
cooled nor dehumidified. The temperature cannot be adjusted.
1. Press the operating mode button(23) until the ventilation
LED(24) is illuminated.
2. Press the fan stage button(13) to set the desired fan
stage.
ð The fan stage LED(12) for the desired fan stage will be
illuminated.
ð The ventilation LED(24) will be illuminated to indicate
ventilation mode.
ð The current room temperature is indicated on the
segment display(15).
Dehumidification
Info
Remove the exhaust air hose during dehumidification,
otherwise the performance will be insufficient.
In dehumidification mode the humidity level in the room is
reduced.
The temperature cannot be adjusted and the fan runs at speed
level1.
1. Press the operating mode button(23) until the
dehumidification LED(24) is illuminated.
ð The fan stage LED(12) for fan stage1 will be
illuminated.
ð The dehumidification LED(24) will be illuminated to
indicate dehumidification mode.
ð The current room temperature is indicated on the
segment display(15).
Info
If the device is operated in a very humid environment,
the accumulating condensate must be discharged at
regular intervals (see chapter Condensate discharge).
Cooling
In cooling mode the room will be cooled down to the desired
target temperature.
1. Press the operating mode button(23) until the cooling
LED(24) is illuminated.
ð The current room temperature is indicated on the
segment display(15).
2. Repeatedly press the plus(14) or minus(22) button to
select the desired target temperature. The temperature
can be adjusted in increments of 1°C in a range between
15°C and 31°C.
ð The desired target temperature flashes on the segment
display(15) for approx. 5s. Then the segment
display(15) changes back to the current room
temperature.
3. Press the fan stage button(13) to set the desired fan
stage.
ð The fan stage LED(12) for the desired fan stage will be
illuminated.
ð The cooling LED(24) will be illuminated to indicate
cooling mode.
9 EN
Operating manual – local air conditioner PAC 2000 SH
Info
If the device is operated in a very humid environment,
the accumulating condensate must be discharged at
regular intervals (see chapter Condensate discharge).
Automatic operation
In automatic operation mode the cooling or heating process will
be regulated depending on the ambient temperature and the
preset target temperature of 24°C.
• With an ambient temperature equal to or above 24°C the
device automatically runs in cooling mode until the target
temperature of 24°C is reached.
• At an ambient temperature between 22°C and 24°C, the
device will automatically be operated in ventilation mode.
• If the ambient temperature is less than or equal to 22°C,
the device will automatically be operated in heating mode.
• The target temperature is preset to a fixed value of 24°C
and cannot be changed manually.
1. Press the operating mode button(23) until the automatic
operation LED(24) is illuminated.
ð The current room temperature is indicated on the
segment display(15).
2. Press the fan stage button(13) to set the desired fan
stage.
ð The fan stage LED(12) for the desired fan stage will be
illuminated.
ð The automatic operation LED(24) will be illuminated to
indicate automatic operation.
3. Connect the condensation drain hose to the hose
connection(5).
4. Guide the other hose end to a suitable drain or sufficiently
dimensioned collection container. To ensure that the
condensate can run off, the condensation drain hose must
not be kinked, nor should it have to overcome an uphill
incline towards the drain.
Connecting the condensation drain hose
If you use the device for an extended period of time or you don't
want to empty the tank all the time, you can connect a
condensation drain hose to the hose connection.
ü The device is switched off.
ü The device is disconnected from the mains.
1. Carefully transport or wheel the device to a suitable
location for discharging the condensate (e.g. a drain) or
position a suitable collection container under the
condensate outlet.
2. Remove the rubber stopper from the hose connection(5).
EN 10
Operating manual – local air conditioner PAC 2000 SH
Setting the timer
The timer has two modes of operation:
• automatic switch-on upon expiry of a preset number of
hours
• automatic switch-off upon expiry of a preset number of
hours
The timer can be programmed in increments of 1hour (1h to
24h).
The function can be set in all operating modes. It can be
activated both during operation and in standby mode.
Note
Do not leave the operating device unattended in a
freely accessible room with an activated timer.
Automatic switch-on
ü The device is switched off.
1. Press the timer button(16) to activate the timer.
ð The timer LED(17) flashes.
2. Repeatedly press the plus or minus buttons(14, 22) to
choose the desired number of hours until automatic
switch-on.
3. Wait for 3seconds to confirm the setting.
ð The number of hours until automatic switch-on will be
indicated on the segment display(15) for approx. 3s.
ð The timer LED(17) is illuminated.
ð Then the segment display(15) switches back off.
ð After the predefined time, the device switches itself on.
4. In order to delete the setting, select 00 hours using the
plus/ minus buttons(14, 22).
ð The timer LED(17) goes out.
Notes regarding automatic switch-on:
• If the device is disconnected from the power supply, all
settings for automatic switch-on are deleted.
• Manually switching the device on disables the automatic
switch-on function.
• If you select 0hours, the timer will be off.
Automatic switch-off
ü The device is switched on.
1. Press the timer button(16) to activate the timer.
ð The timer LED(17) flashes.
2. Repeatedly press the plus or minus buttons(14, 22) to
choose the desired number of hours until automatic
switch-off.
3. Wait for 3seconds to confirm the setting.
ð The number of hours until automatic switch-off will be
indicated on the segment display(15) for approx. 3s.
ð The timer LED(17) is illuminated.
ð Then the segment display(15) changes back to the
current room temperature.
ð After the predefined time, the device switches itself off.
4. In order to delete the setting, select 00 hours using the
plus/ minus buttons(14, 22).
ð The timer LED(17) goes out.
Night mode
Night mode can be activated in cooling and heating mode.
Night mode comes with the following settings:
• In cooling mode the preset temperature is increased by
1°C after one hour.
After 2hours the preset temperature will again be
increased by 1°C. Then the temperature is kept constant
for 6hours.
Subsequently, the device will be switched off. The device
is in standby mode and can be switched back on via
control panel or remote control.
• In heating mode the preset temperature is reduced by 1°C
after one hour.
After 2hours the preset temperature will again be
decreased by 1°C. Then the temperature is kept constant
for 6hours.
Subsequently, the device will be switched off. The device
is in standby mode and can be switched back on via
control panel or remote control.
To activate night mode, please proceed as follows:
1. Select cooling or heating mode.
2. Press the night mode button(21).
ð Both the LED for the selected operating mode(23) and
the night mode LED(20) will be illuminated.
3. In order to switch off night mode, press the night mode
button(21) once again.
ð The night mode LED(20) goes out.
ð The fan speed returns to its previous setting.
Changing the unit °C / °F
The temperature in the segment display(15) can be indicated in
°C or °F.
Please proceed as follows to change the temperature unit:
1. Simultaneously press and hold the plus(14) and
minus(22) buttons for 3s.
ð The displayed temperature is converted to the other unit.
11 EN
Operating manual – local air conditioner PAC 2000 SH
Remote control
23
13
21
16
22
14
19
All settings of the device can also be made using the remote
control included in the scope of delivery.
No. Designation Meaning
13 Fan stage
button
Setting the fan stage:
stage1 = low fan speed
stage2 = high fan speed
14 Plus button Increasing the target temperature (15°C
to 31°C) for cooling and heating
Increasing the number of hours for the
timer (1h to 24h)
16 Timer button Switching the timer function on and off
19 Power button Switching the device on and off
21 Night mode
Switching night mode on and off
button
22 Minus button Reducing the target temperature (15°C
to 31°C) for cooling and heating
Reducing the number of hours for the
timer (1h to 24h)
23 Operating
mode button
Selecting the operating mode:
heating
ventilation
dehumidification
cooling
automatic operation
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Empty the condensation tray if necessary.
• If necessary, remove the condensation drain hose and any
residual fluid from it.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Automatic defrost
At low ambient temperatures, ice may form at the evaporator.
The device will then carry out an automatic defrost.
The compressor switches off and the fan keeps running until
defrosting is completed. The duration of the defrost process can
vary.
Do not switch the device off during automatic defrost. Do not
remove the mains plug from the mains socket.
EN 12
Operating manual – local air conditioner PAC 2000 SH
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
• Observe the operating temperature according to the
Technical data chapter.
• The condensation tank may be full. Empty the
condensation tank, if need be. The error codeE4 must not
be indicated on the segment display.
• Wait for 10minutes before restarting the device. If the
device is not starting, have the electrics checked by a
specialist company or by Trotec.
The device works with reduced or no cooling capacity:
• Check whether cooling mode is selected.
• Check the proper fit of the exhaust air hose. In case of
kinks, bends or blockage in the hose, exhaust air cannot
be discharged. Clear the way for the exhaust air.
• Check the position of the ventilation flaps. They should be
opened to the maximum.
• Check the air filter(s) for dirt. If necessary, clean or replace
the air filter(s).
• Check the minimum distance to walls or other objects.
Position the device a little more in the room's centre if
required.
• Check whether any windows and/or doors of the room are
open. If so, close them. The window for the exhaust air
hose has to remain open nonetheless.
• Check the temperature setting at the device. Reduce the
set temperature if it is higher than the room temperature.
The device is loud or vibrates:
• Check whether the device is set up in a stable and upright
position.
Condensate is leaking:
• Check the device for leaks.
The compressor does not start:
• Check whether the overheating protection of the
compressor has tripped. Disconnect the device from the
mains and let it cool down for approx. 10minutes before
reconnecting it.
• Check whether the ambient temperature equals the target
temperature (in cooling mode). The compressor will not
switch on unless the respective temperature is reached.
• The compressor may start up with a delay of 3min, as it is
provided with an internal protection against direct restart.
The device gets very warm, is loud or loses power:
• Check the air inlets and air filters for dirt. Remove external
dirt.
• From the outside, check the device for dirt (see chapter
Maintenance). If the inside of the device is dirty, have it
cleaned by a specialist company for cooling and airconditioning or by Trotec.
The device does not respond to the infrared remote control:
• Check whether the distance between remote control and
device is too large and reduce it if necessary.
• Make sure there are no obstacles, such as furniture or
walls, between the device and the remote control. Ensure
visual contact between device and remote control.
• Check the charging status of the batteries and change
them if required.
• If the batteries have only just been changed, check them
for correct polarity and change them if required.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to a specialist company for cooling and air-conditioning
or to Trotec for repair.
Error codes
The following error messages can be displayed on the segment
display(15):
Error
code
E2 Error at the room
E3 Error at the
E5 Error at the
E4 Condensation
Cause Remedy
Disconnect the device briefly
temperature
sensor
from the mains.
Should the error still be
displayed after the restart,
temperature
sensor of the
please contact the customer
service.
evaporator
temperature
sensor of the
condenser
Empty the condensation tank
tank full
(see chapter Maintenance,
Condensate discharge (manual
draining)). Should the error still
be displayed, please contact the
customer service.
13 EN
Operating manual – local air conditioner PAC 2000 SH
Maintenance
Maintenance intervals
Maintenance and care interval before every
start-up
Check air inlets and outlets for dirt
X X
and foreign objects and clean if
necessary
Clean the exterior
Visually check the inside of the
device for dirt
Check the air filter for dirt and
X X
foreign objects and clean or
replace if necessary
Replace the air filter
Check for damage
X
Check the attachment screws
Test run
Empty the condensation tray and
drain hose
as needed at least every
2 weeks
X X
X X
X X
X
at least every
4 weeks
at least every
6 months
X
at least
annually
X
EN 14
Operating manual – local air conditioner PAC 2000 SH
Maintenance and care log
Device type: .............................................
Device number: ....................................
Maintenance and care interval
Check air inlets and outlets for dirt
and foreign objects and clean if
necessary
Clean the exterior
Visually check the inside of the
device for dirt
Check the air filter for dirt and
foreign objects and clean or
replace if necessary
Replace the air filter
Check for damage
Check the attachment screws
Test run
Remarks:
Empty the condensation tray and
drain hose
1. Date: ................................
Signature: ............................
5. Date: ................................
Signature: ............................
9. Date: ................................
Signature: ............................
13. Date: ..............................
Signature: ............................
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
2. Date: ................................
Signature: ............................
6. Date: ................................
Signature: ............................
10. Date: ..............................
Signature: ............................
14. Date: ..............................
Signature: ............................
3. Date: ................................
Signature: ............................
7. Date: ................................
Signature: ............................
11. Date: ..............................
Signature: ............................
15. Date: ..............................
Signature: ............................
4. Date: ................................
Signature: ............................
8. Date: ................................
Signature: ............................
12. Date: ..............................
Signature: ............................
16. Date: ..............................
Signature: ............................
15 EN
Operating manual – local air conditioner PAC 2000 SH
Activities required before starting maintenance
90
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
Warning of electrical voltage
Tasks which require the housing to be opened
must only be carried out by authorised specialist
companies or by Trotec.
Cleaning the housing
Clean the housing with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Visual inspection of the inside of the device for dirt
1. Remove the air filter.
2. Use a torch to illuminate the openings of the device.
3. Check the inside of the device for dirt.
4. If you see a thick layer of dust, have the inside of the
device cleaned by a specialist company for cooling and airconditioning or by Trotec.
5. Put the air filter back in.
Cleaning the air filter
The air filter has to be cleaned as soon as it is dirty. This is
brought to light e.g. by a reduced capacity (see chapter Errors
and faults).
Warning
Ensure that the air filter is not worn or damaged. The
corners and edges of the air filter must not be
deformed or rounded. Before reinserting the air filter,
make sure that it is undamaged and dry!
1. Remove the air filter from the device.
Refrigerant circuit
• The entire refrigerant circuit is a maintenance-free,
hermetically sealed system and may only be maintained or
repaired by specialist companies for cooling and airconditioning or by Trotec.
EN 16
Operating manual – local air conditioner PAC 2000 SH
2. Clean the filter using a slightly damp, soft, lint-free cloth. If
the filter is heavily contaminated, clean it with warm water
mixed with a neutral cleaning agent.
3. Allow the filter to dry completely. Do not insert a wet filter
into the device!
4. Reinsert the air filter into the device.
90
1. Carefully transport or wheel the device to a suitable
location for discharging the condensate (e.g. a drain) or
position a suitable collection container under the
condensate outlet.
2. Remove the rubber stopper from the condensate outlet.
Condensate discharge (manual draining)
In cooling and dehumidification mode condensate is formed,
which is mostly discharged via the exhaust air.
The remaining condensate is collected in a container within the
housing. The condensate ought to be drained regularly.
If too much condensate accumulates, the device switches off
and indicates this via the E4 error code on the segment
display(15).
3. Drain the condensate.
4. Reattach the rubber stopper to the condensate outlet.
Ensure the tight fit of the rubber stopper, for otherwise
there might be uncontrolled water leakage.
ð The E4 error code on the segment display(15) will
disappear as soon as the condensate has been drained.
17 EN
Operating manual – local air conditioner PAC 2000 SH
Activities required after maintenance
If you want to continue using the device:
• Leave the device to rest for 12to24hours, so the
refrigerant can accumulate within the compressor. Wait
12to24hours before switching the device back on! Acting
contrary might lead to compressor damage and a
malfunctioning device. If so, any warranty claims will be
voided.
• Reconnect the device to the mains.
If you do not intend to use the device for a considerable time:
• Store the device according to the Storage chapter.
Technical annex
Technical data
Model PAC 2000 SH
Cooling capacity 2 kW
Dehumidification performance 0.8 l/h
Heating capacity 2 kW
Operating temperature 15 °C to 35°C
Temperature setting range 15 °C to 31°C
Max. air volume flow 320 m3/h
Mains supply 1/N/PE~ 220 V - 240 V /
50 Hz
Nominal current 3.4 A
Power input (cooling operation) 0.8 kW
Power input (heating operation) 0.7 kW
Sound pressure level 54 dB(A)
Refrigerant R-410A
Amount of refrigerant 380 g
GWP factor 2088
CO2 equivalent 0.79t
Dimensions
(length x width x height)
Minimum distance to walls and
other objects:
top (A):
rear (B):
sides (C):
front (D):
Weight 23 kg
305 x 420 x 636 (mm)
50 cm
50 cm
50 cm
50 cm
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
The device is operated with fluorinated greenhouse gas which
can be dangerous for the environment and contribute to global
warming when emitted to the atmosphere.
Further information is provided on the nameplate.
Dispose of the refrigerant appropriately and according to the
national regulations.
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
EN 18
Operating manual – local air conditioner PAC 2000 SH
Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
info@trotec.com
www.trotec.com
Loading...
