Trotec DS 30, DS 60 Original Instructions Manual

DS 30 / DS 60
EN
ORIGINAL INSTRUCTIONS
POOL DEHUMIDIFIER
TRT-BA-DS30-DS60-TC2016-24-003-EN

Table of contents

You can download the current version of the instructions and the EUdeclaration of conformity via the following link:

Notes regarding the instructions

Symbols

Warning of electrical voltage
This symbol indicates dangers to the life and health of persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.
Caution
This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.
Note
This signal word indicates important information (e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the instructions must be observed.
DS 30
https://hub.trotec.com/?id=39576
DS 60
https://hub.trotec.com/?id=39581

Safety

Read this manual carefully before starting or using the device. Always store the manual in the immediate vicinity of the device or its site of use!
Warning Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future reference.
This appliance can be used by children aged from 8years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Do not use the device in potentially explosive rooms.
Do not use the device in aggressive atmosphere.
Let the device dry out after a wet clean. Do not operate it when wet.
Do not use the device with wet or damp hands.
Do not expose the device to directly squirting water.
Never insert any objects or limbs into the device.
Do not cover or transport the device during operation.
Do not sit on the device.
This appliance is not a toy! Keep away from children and animals. Do not leave the device unattended during operation.
2 EN
pool dehumidifier DS 30 / DS 60
Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts.
Ensure that all electric cables outside of the device are protected from damage (e.g. caused by animals). Never use the device if electric cables or the power connection are damaged!
The electrical connection must correspond to the specifications in chapter Technical data.
Insert the mains plug into a properly secured mains socket.
Observe the device's power input, cable length and intended use when selecting extensions to the power cable. Completely unroll extension cables. Avoid electrical overload.
Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so.
Disconnect the power cable from the mains socket when the device is not in use.
Do not under any circumstances use the device if you detect damages on the mains plug or power cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Defective power cables pose a serious health risk!
Observe the storage and operating conditions as given in the Technical data chapter.
Only install the device in compliance with the national installation regulations.
Make sure that the air inlet and outlet are not obstructed.
Make sure that the suction side is kept free of dirt and loose objects.
Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition.
Only transport the device in an upright position with an emptied condensation tank or drain hose.
Discharge the collected condensate before transport and storage. Do not drink it. Health hazard!

Intended use

Only use the device as a stationary dehumidifier for drying and dehumidifying room air whilst adhering to the technical data and safety instructions.
Intended use comprises:
drying and dehumidifying: – indoor swimming pools
– whirlpool rooms – wellness areas – therapy pools – thermal baths
A sufficient fresh air supply must be ensured at the installation site of the device.

Improper use

Do not place the device on wet or flooded ground.
Do not place any objects, e.g. clothing, on the device.
Do not use the device outdoors.
Any unauthorised modifications, alterations or structural
changes to the device are forbidden.
Any operation other than as described in this manual is
prohibited. Non-observance renders all claims for liability and guarantee null and void.

Personnel qualifications

People who use this device must:
be aware of the dangers that occur when working with
electric devices in damp areas.
have read and understood the instructions, especially the
Safety chapter.
Maintenance tasks which require the housing to be opened must only be carried out by specialist companies for cooling and air-conditioning or by Trotec.
EN 3
pool dehumidifier DS 30 / DS 60

Residual risks

Warning of electrical voltage
Work on the electrical components must only be carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug from the mains socket! Hold onto the mains plug while pulling the power cable out of the mains socket.
Warning
Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!
Warning A falling device can cause injuries! Always transport
and assemble the device with the help of other persons. Never stand below the device when it is
suspended. Ensure adequate stability of the device's wall fixing.
Warning
The device is not a toy and does not belong in the hands of children.
Warning
Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy.

Behaviour in the event of an emergency

1. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket.
2. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The pool dehumidifiers of the DSseries maintain a constant humidity level around the clock.
The humidity is automatically regulated to an ideal level that reliably prevents corrosion, condensation and mould formation.
The pool dehumidifiers of the DSseries use the principle of condensation to automatically dehumidify rooms.
The fan sucks damp room air through the air inlet, the evaporator and the condenser located behind it. The air is cooled at the cold evaporator until it is below the dew point. Water vapour contained in the room air precipitates on the evaporator fins as condensation or rime. The dehumidified, cooled air is rewarmed at the condenser and blown out at a temperature of approx. 5°C above room temperature.
The drier air, thus conditioned, mixes with the air in the room via the air outlet. The humidity in the room where the device is positioned is reduced as air constantly circulates through the device. Depending on the air temperature and the relative humidity, the condensed water either drops continuously or only during the defrost phase through the pre-assembled condensation drain hose and is discharged from the device.
To set the desired humidity level, a hygrostat with control dial is provided in the device's interior.
The device can reduce the relative humidity of a room to approx. 30%.
At a room temperature of 15°C, the devices emit 1.6 to 3times of their power consumption to the room air in form of heat (see chapter Technical data, COP). Because of the heat dissipation, which develops during operation, the room temperature can therefore rise by approx. 1 to 3°C.
We recommend a humidity level of approx. 55%. At this level most people perceive the climate in pool and wellness areas as agreeable.
In public swimming pools a fresh air supply is officially required, please observe the respective legal standards and regulations.
Fresh air may be supplied from outside by discharging the room air to the outside using a fan. This generates a slight negative pressure in the room. The vacuum leads to dry air streaming out of the surrounding areas/ fresh air flowing into the room from outside. The dry air reduces the dehumidification demand and the fresh air increases the climate comfort in the room.
Note
If your swimming pool is filled with thermal water, a fresh air supply amounting to 10% of the air volume is absolutely imperative in order to avoid damage to the dehumidifier.
4 EN
pool dehumidifier DS 30 / DS 60

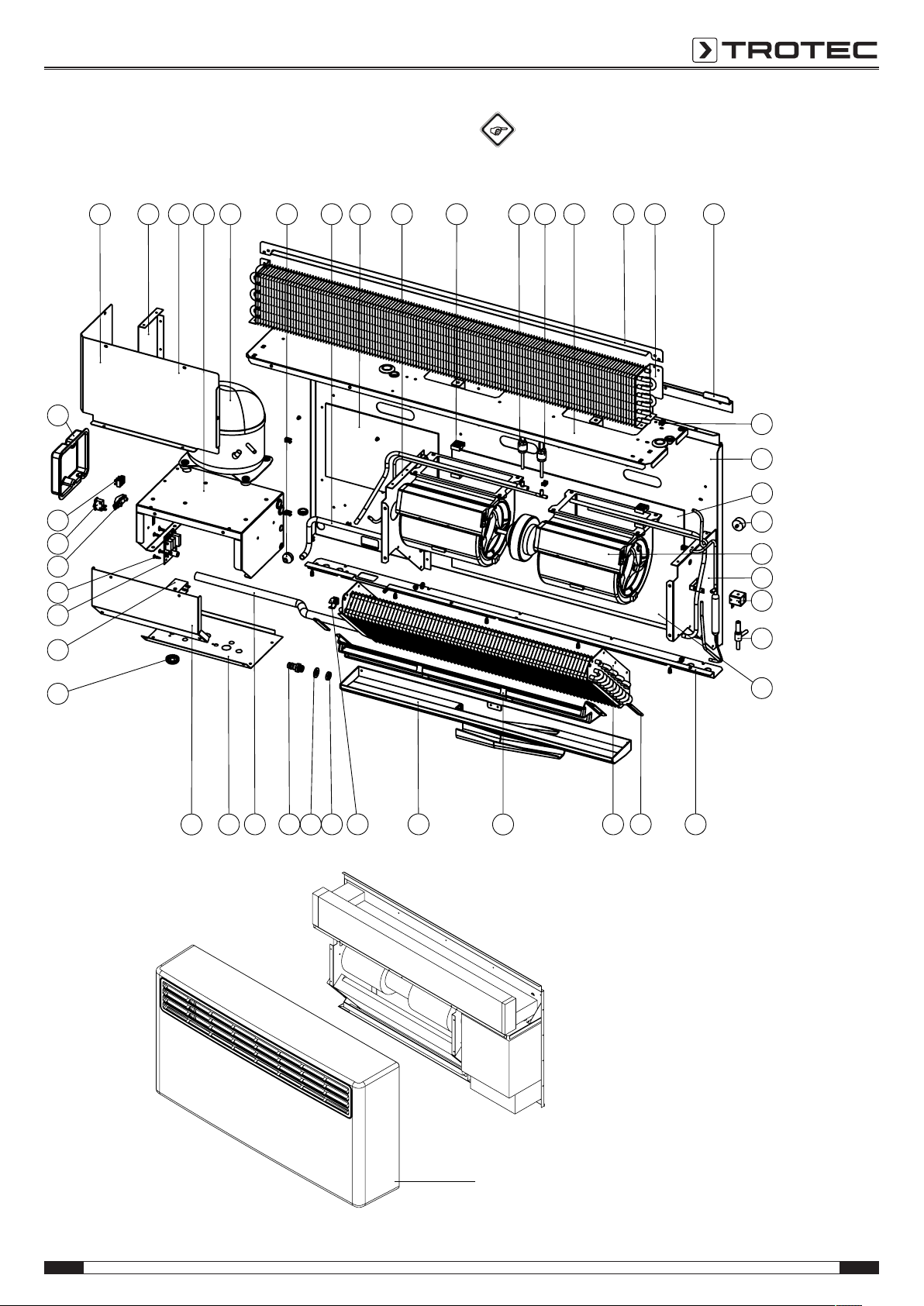

Device depiction

1
2
4
6
3
5, 7
6
1
2
6
3 75
6
6
4
DS30
DS60
No. Designation
1 Air outlet 2 Housing 3 Air inlet 4 Wall holder 5 Connection for condensation drain hose
(inside the device) 6 Suspension 7 Control dial (tamper-proof installation inside the device)
No. Designation
1 Air outlet 2 Housing 3 Air inlet 4 Wall holder 5 Connection for condensation drain hose
(inside the device) 6 Suspension 7 Control dial (tamper-proof installation inside the device)
EN 5
pool dehumidifier DS 30 / DS 60

Transport and storage

C
C
A
B
D

Assembly and installation

Note
If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device.

Transport

Always utilize the help of another person to transport and assemble the DS 30. Always utilize the help of two other persons to transport and assemble the DS 60. Do not try to transport or assemble the device without the help of another person. To lift the device, use a forklift or an elevating truck as appropriate.
Before transporting the device, observe the following:
Hold onto the mains plug while pulling the power cable out of the mains socket.
Do not use the power cable to drag the device.
Drain the remaining condensate from the device.
After transporting the device, observe the following:
Set up the device in an upright position after transport.
After having transported the device in horizontal position, leave the device to rest for 12to24hours, so the refrigerant can accumulate within the compressor. Wait 12to24hours before switching the device back on! Acting contrary might lead to compressor damage and a malfunctioning device. Any warranty claims will be voided in this case.

Storage

Before storing the device, proceed as follows:
Drain the remaining condensate from the device.
Empty and clean the condensation tank and the condensation drain hose prior to storage.
Hold onto the mains plug while pulling the power cable out of the mains socket.
When the device is not being used, observe the following storage conditions:
dry and protected from frost and heat
in an upright position where it is protected from dust and direct sunlight
with a cover to protect it from invasive dust, if necessary
Place no further devices or objects on top of the device to prevent it from being damaged.

Scope of delivery

1x Device
1x Wall holder
1x Condensation drain hose, outer diameter: 12mm, length: 400mm
1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding.

Assembly

Always utilize the help of another person to transport and assemble the DS 30. Always utilize the help of two other persons to transport and assemble the DS 60. Do not try to transport or assemble the device without the help of another person. To lift the device, use a forklift or an elevating truck as appropriate.
Observe the following instructions:
When assembling the device, keep a sufficient distance to heat sources.
When assembling the device, especially in wet areas, secure the device locally with an RCD (Residual Current protective Device) which complies with the relevant regulations.
Make sure that extension cables are unrolled completely.
Insert the mains plug into a properly secured mains socket.
When assembling the device, observe the minimum distance from adjacent walls or other objects as described in the Technical Data chapter.
6 EN
pool dehumidifier DS 30 / DS 60
Installation instructions
1,25 - 2 m
2 - 3,5 m
Pool
The device must be equipped with an RCD (residual current protective device) and installed at a height of at least 300mm above the ground(*2).
The device may be installed at a distance of 1.25m from
the pool. The installation
height must be 2.5m above
the pool surface(*1, *2).
The device must be equipped with an RCD (residual current protective device). The installation height may be chosen freely(*2).
*1: The use of a residual current protective device is not mandatory, but recommended for all devices. Nominal current= 30mA.
*2: The circuit breaker for the device must correspond to the IPXregulations.
2,5m
Pool
The device must be
accessible for maintenance.
If the device is installed at a distance of less than 1.25m from the pool, the installation height must be at least 2.5m above the pool surface.
EN 7
pool dehumidifier DS 30 / DS 60

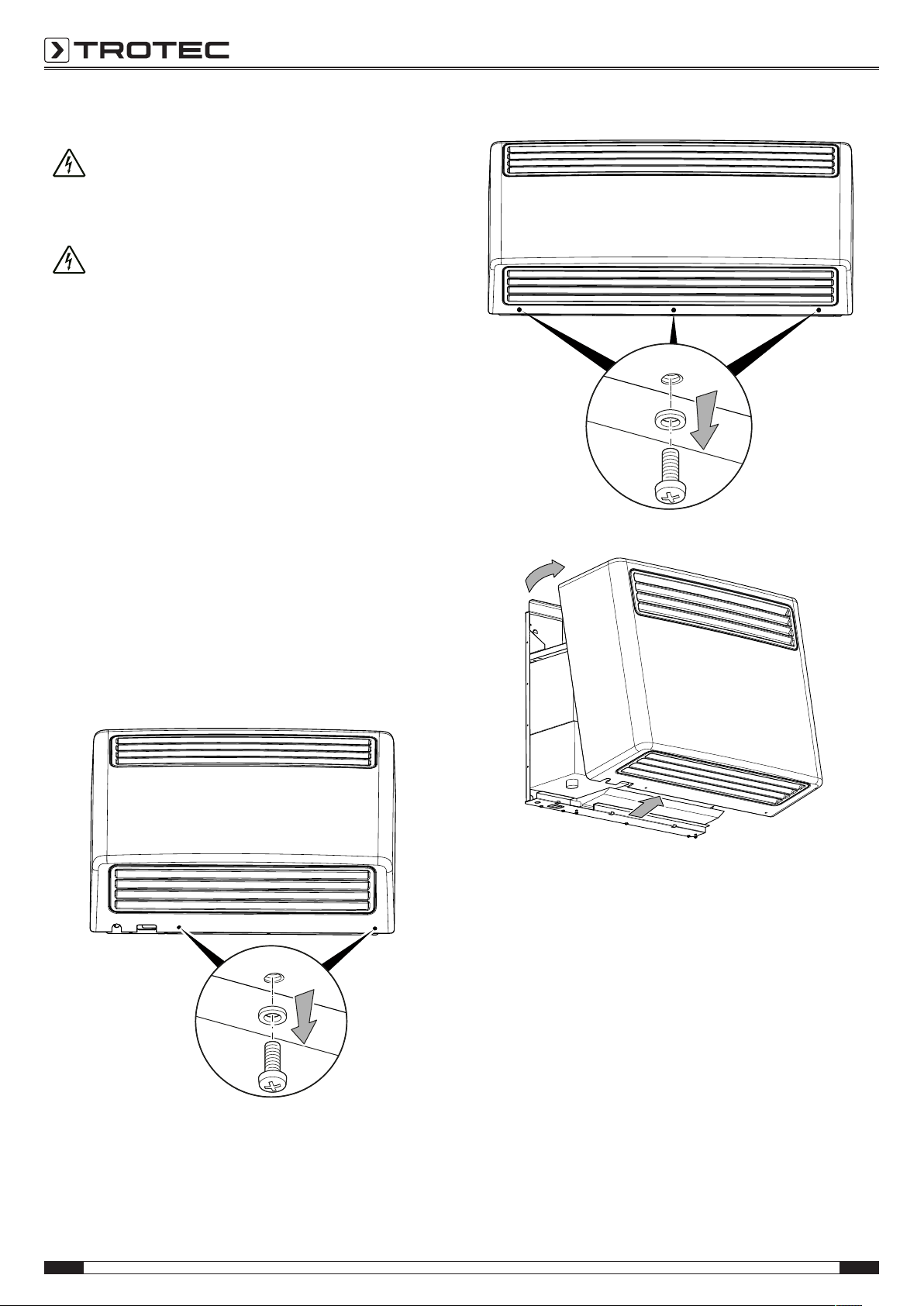

Assemble the device as follows:
DS 30
DS 60
Select screw and wall plug sizes suitable for the weight of the device (see technical data) and the structure of the wall.
1. The table or floor on which you should now unpack the device must be clean.
2. Open the screw connection at the housing.
3. Remove the housing.
4. Mark the position for the bore holes.
5. Drill the holes into the wall.
6. Insert suitable wall plugs into the drill holes.
Info
The principle of hanging up the DS60 is the same as for the DS30. But the DS60 comes with a longer suspension rail. The following steps will be illustrated by using the DS30 as example.
7. Fasten the wall holder in place.
8 EN
pool dehumidifier DS 30 / DS 60
8. Suspend the device from the wall holder by means of the
DS 30
7
DS 60
7
mounting brackets. Utilize the help of one or two other persons as well as suitable lifting gear to do so.
9. Check whether the condensation drain hose is positioned correctly. The condensation drain hose must not be kinked.
10. Use the MODEbutton(8) to select the desired operating mode (see chapter Setting the operating mode).
11. Set the control dial(7) to the desired humidity level (see chapter Regulating the room humidity level).
12. Put the housing back on the device.
13. Fasten the housing to the device.
Connecting the power cable
Insert the mains plug into a properly secured mains socket.
EN 9
pool dehumidifier DS 30 / DS 60

Operation

7
8
Once the device has been switched on, the drying function works fully automatically.
To make sure that the built-in sensor can determine the humidity correctly and that the room air is permanently filtered, the fan continues to operate until the device is switched off.
Avoid open doors and windows.
Notes regarding the dehumidification performance
The dehumidification performance depends on:
the layout of the room
the room temperature
the relative humidity
The higher the room temperature and relative humidity, the greater the dehumidification performance.

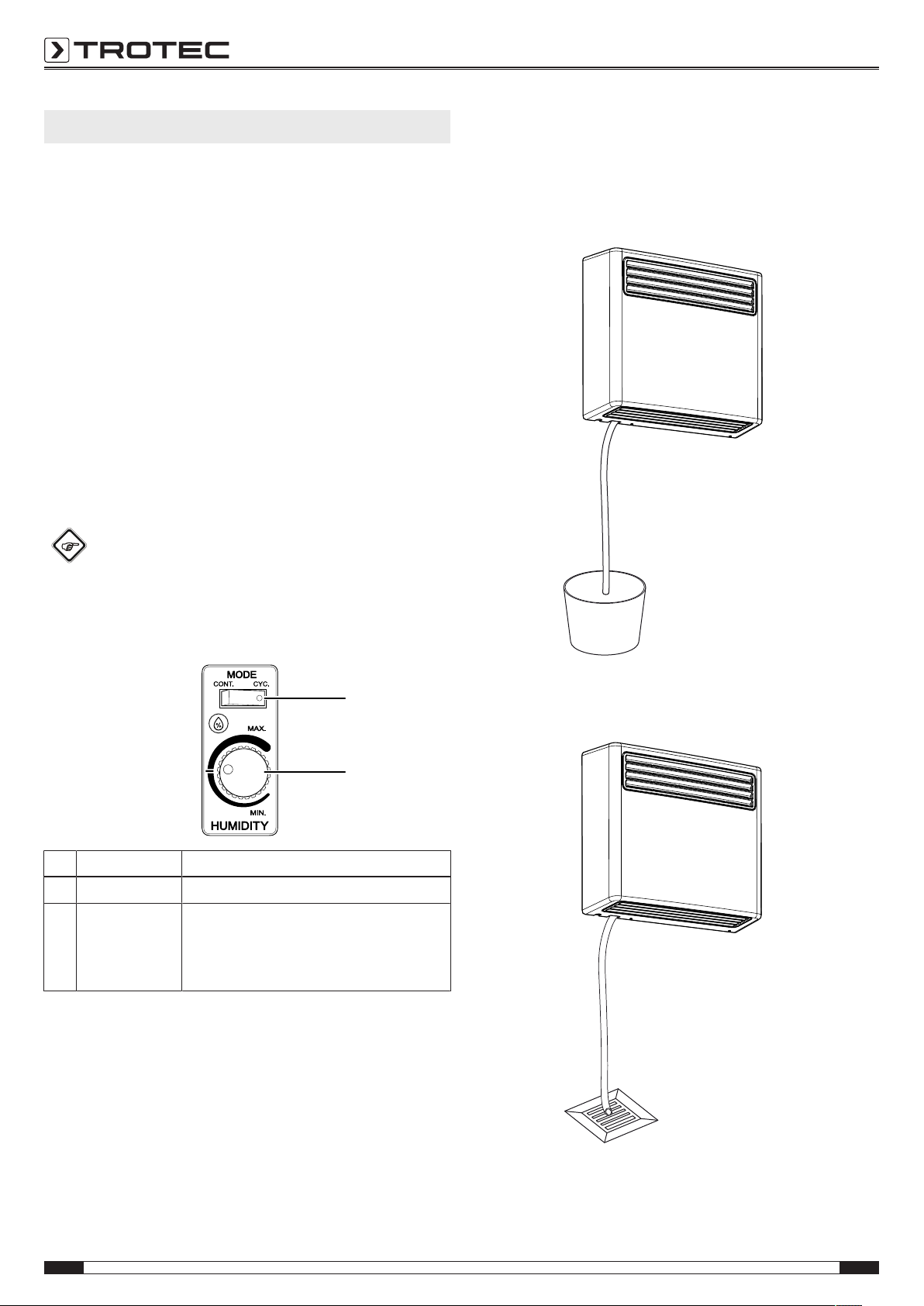

Operating elements
Info
You can access the operating elements by removing the housing, see chapter Assembly. The control panel of the DS30 is located on the left-hand side, in case of the DS60 it can be found on the right.
2. Depending on the application, position the end of the condensation drain hose as follows:
ð Place a sufficiently dimensioned container (DS30: at
least 50litres; DS60: at least 90litres) beside the device and insert the hose end. Check the filling level of the container regularly.
No. Designation Meaning
7 Control dial For setting the desired humidity level 8 MODEbutton For setting the desired operating mode:
CONT. = fan runs permanently. CYC. = fan switches on and off along
with the compressor.
Positioning the condensation drain hose
The condensation drain hose is already installed when the device is delivered.
1. Ensure that the condensation drain hose is properly connected to the device and is free of damage.
ð Position the end of the condensation drain hose near a
water drain. For larger distances, a longer hose of the same type can also be used.
3. Regularly check the condensation drain hose for obstructions or kinks.
You can connect an extension as needed.
10 EN
pool dehumidifier DS 30 / DS 60
External condensate pump (optional)
7
The device can optionally be operated with an external condensate pump.
It can be obtained from Trotec as article number
6.100.000.019.
Switching the device on
1. Ensure that the condensation drain hose has been laid and connected properly. Do not create tripping hazards.
2. Ensure that the condensation drain hose is not bent or jammed and that there are no objects on the condensation drain hose.
3. Ensure that the condensation can run off properly.
4. Insert the mains plug into a properly secured mains socket.
Setting the operating mode
In CYCLEmode (CYC.) the fan switches off along with the compressor when the desired humidity level is reached.
In CONTINUOUS operation (CONT.) the fan keeps running continuously and so permanently circulates the air. This makes the humidity measurement more accurate or faster.
Regulating the room humidity level
Info
You can access the operating elements by removing the housing, see chapter Assembly. The control panel of the DS30 is located on the left-hand side, in case of the DS60 it can be found on the right.
1. Set the desired humidity level via the control dial(7).
2. Turn the control dial to the line marking the 9o'clock position. After 2days a humidity level between 50 and 55% should be reached.
3. Then check the humidity level by means of a thermohygrometer. If the air is too dry (insufficient humidity level), turn the hygrostat control approx. 1cm to the left (counter-clockwise), if the air is too humid (excessive humidity), turn it approx. 1cm to the right (clockwise).
4. Every time you have changed the hygrostat setting wait for 2days, then repeat the procedure until the desired humidity level is reached.
ð Upon reaching the desired humidity value, the compressor
switches off automatically.
ð If the set humidity level is exceeded, the compressor will
switch back on to dehumidify the room air once again.
Automatic defrost
If the room temperature is lower than 15°C, the heat exchanger will freeze during dehumidification. The device will then carry out an automatic defrost. The duration of the defrost process can vary depending on the room temperature. The lower the temperatures, the longer the defrost period.
Dehumidification in the swimming pool
Indoor swimming pools and wellness areas offer a marvellous recreational and training environment, but the evaporation at the water surface poses a serious problem for the building structure. A prolonged influence of high humidity levels rapidly leads to the deterioration of both the building and the furniture.
Condensation in wellness area and indoor swimming pool
If this problem is ignored, condensed water can turn into a nightmare for an indoor swimming pool or wellness area. The evaporation at the water surface distinctly increases the moisture content of the air. Admittedly, the higher the humidity, the lower the evaporation at the water surface. But the high humidity level is also the basis for mould; and it can cause damage to the building stock – right up to its falling into ruins.
Consequences of uncontrolled humidity are:
corrosion
damage to the building stock
a disagreeable room climate
condensate formation
steam
mould and stains
misting
In the past, the air was discharged by use of a ventilation system spending an unreasonable amount of energy to reduce the condensation in the swimming pool. Modern drying technology sees to new and more energy-efficient options.
EN 11
pool dehumidifier DS 30 / DS 60

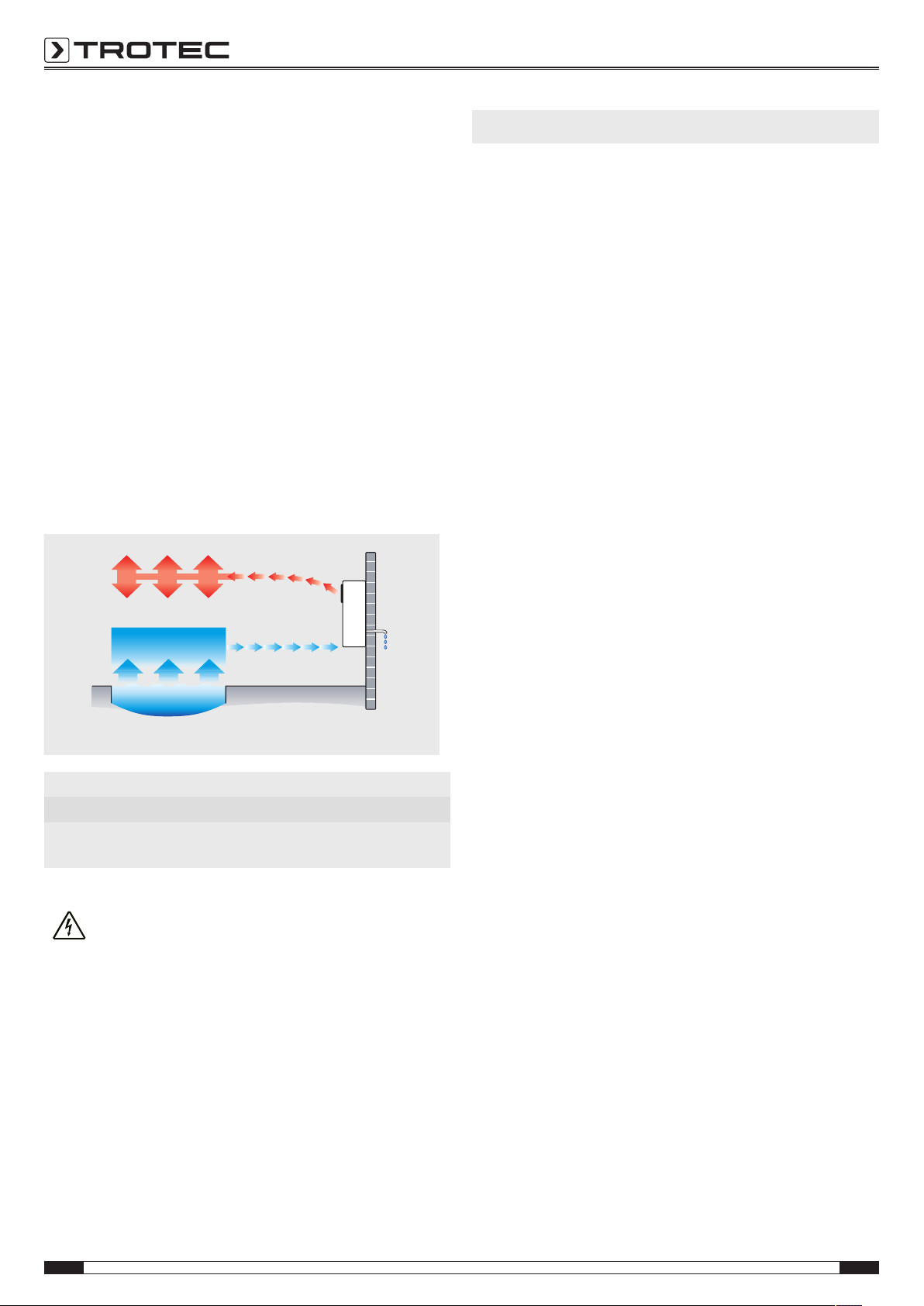

Fresh air supply
a
e
b
c
d
f
In public swimming pools a fresh air supply is officially required, please observe the respective legal standards and regulations.
Fresh air may be supplied from outside by discharging the room air to the outside using a fan. This generates a slight negative pressure in the room. The vacuum leads to dry air streaming out of the surrounding areas/ fresh air flowing into the room from outside. The dry air reduces the dehumidification demand and the fresh air increases the climate comfort in the room.
Note
If your swimming pool is filled with thermal water, a fresh air supply amounting to 10% of the air volume is absolutely imperative in order to avoid damage to the dehumidifier.
Cost effectiveness
As standard the dehumidifiers of the DS series come equipped with internal heat recovery, thus automatically utilizing the released process heat for low-cost heating of the room air.

Errors and faults

The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list.
The device does not start:
Check the power connection.
Check the power cable for damages.
Check the on-site fusing.
Have the electrics checked by a specialist company for cooling and air-conditioning or by Trotec.
The device is running, but there is no formation of condensate:
Check whether the condensation drain hose is positioned correctly.
Check the room temperature. Observe the device's permissible operating range according to the technical data.
Ensure that the relative humidity complies with the technical data.
Check the preselected humidity level at the hygrostat's control dial(7). The humidity in the room must be above the selected range. Reduce the desired humidity level by turning the control dial(7) to the right (clockwise).
a condensate discharge d warm, damp air b floor level e warm, dry air c pool water f pool dehumidifier
DSseries
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable out of the mains socket.
Clean the device according to the Maintenance chapter.
Store the device according to the Storage chapter.
The device is loud or vibrates:
Check whether the device is mounted horizontally.
Check the inside of the device for dirt. Clean the interior of the device if necessary.
The device gets very warm, is loud or loses power:
Check the air inlets for dirt. Remove external dirt.
Check the inside of the device for dirt. Clean the interior of the device if necessary.
Your device still does not operate correctly after these checks?
Please contact the customer service. If necessary, bring the device to a specialist company for cooling and air-conditioning or to Trotec for repair.
12 EN
pool dehumidifier DS 30 / DS 60

Maintenance

Maintenance intervals

Maintenance and care interval before every
start-up
Check air inlets and outlets for dirt
X X
and foreign objects and clean ifnecessary
Clean the exterior Visually check the inside of the
device for dirt Check for damage
X X
Check the attachment screws Test run Empty the optional condensate
pump, condensation tray and/or condenser dryer

Maintenance and care log

Device type: .............................................
Maintenance and care interval
Check air inlets and outlets for dirt and foreign objects and clean if necessary
Clean the exterior Visually check the inside of the
device for dirt Check for damage Check the attachment screws Check the optional condensate
pump and tank, and clean if necessary
Test run Comments
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
as needed at least every
2weeks
X X
X X
X X
X
at least every 4weeks
at least every 6months
Device number: ....................................
at least annually
X
1. Date: ...................................
Signature: ................................
5. Date: ...................................
Signature: ................................
9. Date: ...................................
Signature: ................................
13. Date: .................................
Signature: ................................
EN 13
2. Date: ....................................
Signature: .................................
6. Date: ....................................
Signature: .................................
10. Date: ..................................
Signature: .................................
14. Date: ..................................
Signature: .................................
pool dehumidifier DS 30 / DS 60
3. Date: ....................................
Signature: .................................
7. Date: ....................................
Signature: .................................
11. Date: ..................................
Signature: .................................
15. Date: ..................................
Signature: .................................
4. Date: ....................................
Signature: .................................
8. Date: ....................................
Signature: .................................
12. Date: ..................................
Signature: .................................
16. Date: ..................................
Signature: .................................

Activities required before starting maintenance

DS 30
DS 60
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable out of the mains socket.
Warning of electrical voltage
Maintenance tasks at the electrical equipment or the air-conditioning technology must only be carried out by specialist companies for cooling and air-conditioning or by Trotec.

Cleaning the housing

Clean the housing with a soft, damp and lint-free cloth. Ensure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.

Cleaning the inside of the device

Pool dehumidifiers of the DSseries are specifically designed for the surrounding conditions in indoor swimming pools. The used materials are resistant to air containing salt or chlorine. Nonetheless, inspect the condition of the device interior at regular intervals. Excessive concentrations of chlorine or salt can affect the internal components. For this reason, check the device interior at least once per year.
1. Open the screw connection at the housing.
2. Remove the housing.
3. Remove heavy soiling on the inside of the device. If necessary, clean the interior of the device using compressed air or lukewarm soapsuds.
14 EN
pool dehumidifier DS 30 / DS 60
4. Put the housing back on the device.
5. Fasten the housing to the device.
6. Plug the power cable back into the mains socket.

Refrigerant circuit

The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air-conditioning or by Trotec.
EN 15
pool dehumidifier DS 30 / DS 60

Technical annex

l / 24 h
35
30
25
20
15
10
°C
1) 2)
40 % 50 %
30 %
60 % 70 %
80 %
0 10 20 30 40 50 60
2,15
1,90
1,70
1,50
1,35
1,20
0,80
0,75
0,70
0,65
0,60
0,55
DH 30 VPR
DS 30
l / 24 h
35
30
25
20
15
10
°C
1) 2)
40 % 50%
30 %
60 % 70%
80 %
0 20 40 60 80 100 120
4,1
3,5
3,1
2,6
2,3
1,9
1,3
1,2
1,1
1,0
0,9
0,8
DH 60 VPR
DS 60

Technical data

Parameter Value
Model
DS30 DS60
Dehumidification performance see dehumidification diagrams Power supply 1/N/PE~ 230V/ 50Hz Power cable CEE7/7 / l= 3.5m Protection class IP23 Power input dehumidification 0.75kW 1.2kW Power input ventilation 88W 85W Nominal/peak current 4.4A/ 15.8A 7.5A/ 30A Heat emission at 15°C 1.35kW 2.3kW Coefficient of performance (COP *) 2.5 2.9 Refrigerant R-407C R-407C Amount of refrigerant 500g 800g GWP (Global Warming Potential) 1,774 1,774 CO2 equivalent 0.887t 1.419t Air volume (freely blowing) 700m³/h 1,280m³/h Sound pressure level at a distance of3m 52 dB(A) 54 dB(A) Operating range temperature 0to 40°C 0to 40°C Setting range relative humidity 30% to 60%RH Max. permissible relative humidity 90%RH Condensation drain hose ø12mm (inside), l= 40cm Weight 39kg 60kg Dimensions (widthx depthx height)
787x 280x 690mm 1,255x 280x 690mm
incl. wall holder Standard faceplate plastic Minimum distance to walls or other objects:
A: top:
B: bottom:
C: side:
D: front:
20 cm 20cm (see installation instructions) 20cm 20cm
20cm 20cm (see installation instructions) 20 cm 20cm
* The COP is the ratio of the generated cooling capacity or heat output to the electrical power input.
Dehumidification chart
16 EN
No. Designation
1) Heat emission in kW at 60%RH
2) Power input in kW at 60%RH
pool dehumidifier DS 30 / DS 60
Refrigerant circuit diagram DS30/ DS60
COMPRESSOR
SOLENOID VALVE
AIR CONDENSER
EVAPORATOR
DRIER
CAPILLARY
INSULATION
PROCESS PORT
EN 17
pool dehumidifier DS 30 / DS 60
Wiring diagram DS30/ DS60
L Linie / Außenleiter M1 Compressor / Kompressor N Common line / Gemeinsame M2 Fan motor / Lüftermotor E Earthing / Erdung Y Two way valve / Abtau-Magnetventil TS Terminal Strip / Euro-Klemmleisten S1 Fan mode switch / Gebläsemodusschalter
18 EN
pool dehumidifier DS 30 / DS 60
Exploded assembly drawing DS30 Info
2 1315 16 1042
36
1
33
26 31 832
14
5
34
9 12
27282930
18
6
22
19
20
7
4
3
35
37
38
39 11
25
23
24
17
40
21
41
P10006263
The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.
Replacement cover DS30
EN 19
pool dehumidifier DS 30 / DS 60
Spare parts list DS30
NO. SPARE PART QTY. NO. SPARE PART QTY.
1 Strucktural back 1 22 Terminal strip 1 2 Condensing coil base plate 1 23 Electronic controller 1 3 Right side panel 1 24 PCB spacer 4 4 Left side panel 1 25 Humidistat venting hose 1 5 Compressor base plate 1 26 Water pan 1 6 Control cover 1 27 Nut for hose fitting 1 7 Dashboard 1 28 Sealing washer 1 8 Bottom housing profile 1 29 Hose fitting 1 9 Compressor cover 1 30 Hosing 1 10 Condensing coil insulating profile 1 31 Evaporating coil 1 11 Wall bracket 1 32 Drops tray 1 12 Compressor 1 33 Edge profile 2 13 Condensing coil 1 34 Defrost valve coil 1 14 Fan 1 35 Defrost valve 1 15 Low pressure switch 1 36 Cable tie mount 8 16 High pressure switch 1 37 Adjustable wall spacer 2 17 Humidistat 1 38 Insulating foam 1 18 Humidistat knob 1 39 Acoustic insulating foam 1 19 Fan mode switch 1 40 Cable gland 1 20 Cable clamp 1 41 Power supply cover 1 21 Pipe clip 1 42 Copper tube bracket 2
20 EN
pool dehumidifier DS 30 / DS 60
Exploded assembly drawing DS60 Info
215 16 1042
36
1
3326 31
35
32
14
17
38
9 9
2729
18
22
20
19
4
3
34
37
38
39 11
7
21
28
43
41
5812 13
6
40
30
24
23
25
P10006147
The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.
Replacement cover DS60
EN 21
pool dehumidifier DS 30 / DS 60
Spare parts list DS60
NO. SPARE PART QTY. NO. SPARE PART QTY.
1 Strucktural back 1 23 Electronic controller 1 2 Condensing coil base plate 1 24 PCB spacer 4 3 Right side panel 1 25 Humidistat venting hose 1 4 Left side panel 1 26 Water pan 1 5 Compressor base plate 1 27 Nut for hose fitting 1 6 Control cover 1 28 Sealing washer 1 7 Dashboard 1 29 Hose fitting 1 8 Bottom housing profile 1 30 Hosing 1 9 Compressor cover 1 31 Evaporating coil 1 10 Condensing coil insulating profile 1 32 Drops tray 1 11 Wall bracket 1 33 Edge profile 2 12 Compressor 1 34 Defrost valve coil 1 13 Condensing coil 1 35 Defrost valve 1 14 Fan 1 36 Cable tie mount 12 15 Low pressure switch 1 37 Adjustable wall spacer 2 16 High pressure switch 1 38 Insulating foam 1 17 Humidistat 1 39 Acoustic insulating foam 1 18 Humidistat knob 1 40 Cable gland 1 19 Fan mode switch 1 41 Power supply cover 1 20 Cable clamp 1 42 Copper tube bracket 4 21 Pipe clip 1 43 Compressor strength support 1 22 Terminal strip 1
22 EN
pool dehumidifier DS 30 / DS 60

Disposal

The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment must not be disposed of with the household waste at the end of its life. You will find collection points for free return of waste electrical and electronic equipment in your vicinity. The addresses can be obtained from your municipality or local administration. For further return options provided by us please refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms of recovery of waste equipment as well as to prevent negative effects for the environment and human health caused by the disposal of hazardous substances potentially contained in the equipment.

Declaration of conformity

The text below sets out the contents of the declaration of conformity. The signed declaration of conformity can be found at https://hub.trotec.com/?id=39576.
Declaration of conformity
in accordance with the ECMachinery Directive 2006/42/EC,
AnnexII, Part1, SectionA
Herewith, we– Trotec GmbH– declare that the machinery designated below was developed, constructed and in compliance with the requirements of the ECMachinery Directive in the version 2006/42/EC.
Product model/ Product:
DS 30 DS 60
Product type:
Year of manufacture as of:
pool dehumidifier
2018
produced
The device is operated with fluorinated greenhouse gas which can be dangerous for the environment and contribute to global warming when emitted to the atmosphere.
Further information is provided on the nameplate. Dispose of the refrigerant appropriately and according to the
national regulations.
Relevant EU directives:
2002/44/EC
2014/30/EU: 29March 2014
92/58/EEC
Applied harmonised standards:
EN 1037:1995+A1:2008
ENISO 13849-1:2015
EN 60335-1:2012
EN 842:1996+A1:2008
ENISO 11200:2014
Applied national standards and technical specifications:
None
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH Grebbener Straße 7, D-52525 Heinsberg Phone: +49 2452 962-400 E-mail: info@trotec.de
Place and date of issue: Heinsberg, 27.07.2016
Detlef von der Lieck, Managing Director
EN 23
pool dehumidifier DS 30 / DS 60
Trotec GmbH
Grebbener Str. 7 D-52525 Heinsberg
+49 2452 962-400 +49 2452 962-200
info@trotec.com www.trotec.com
Loading...
