Page 1
BX09
EN
OPERATING MANUAL
ENERGY COST MEASURING
DEVICE
TRT-BA-BX09-TC-001-EN
Page 2
table of contents
Notes regarding the operating manual................................. 1
Safety .....................................................................................2
Information about the device................................................2
Technical data .......................................................................3
Transport and storage...........................................................3
Operation ...............................................................................4
Maintenance and repair ........................................................4
Disposal .................................................................................5
Declaration of conformity .....................................................5
Notes regarding the operating manual
Symbols
Legal notice
This release replaces all previous versions. No part of this
publication may be reproduced without written permission from
Trotec. The same applies for electronically processing,
duplicating or spreading the publication. Subject to technical
changes. All rights reserved. Trademarks are used without
guarantee that they may be used freely and primarily following
the spelling of the manufacturer. Product names are registered.
Changes to construction in the interests of constant
improvements to the product, as well as changes to the shape
and colour are reserved.
The scope of delivery may vary from product images. This
document was created with all due care. Trotec accepts no
liability whatsoever for possible mistakes or omissions.
The only party responsible for determining valid measured
results, drawing conclusions and deriving actions is the user!
Trotec accepts no claims of warranty for the correctness of the
determined measured values or measured results. Further,
Trotec accepts no liability whatsoever for possible mistakes or
damage which have been caused by utilising the determined
measured results.
© Trotec
Hazardous electric current!
Warns about hazards from electric current which can
lead to injuries or even death.
Danger!
Warns of a hazard which can lead to personal injury.
Caution!
Warns of a hazard which can lead to property damage.
The current version of the operating manual can be found at:
BX09
http://download.trotec.com/?sku=3510205918&id=1
Warranty and liability
The device complies with the fundamental health and safety
requirements of the applicable EU regulations and was tested at
the factory for perfect functionality multiple times.
When manufacturer's instructions or legal regulations have not
been followed, or after unauthorised changes to the device are
made, the manufacturer is not responsible for the resulting
damages. Changes to the device or unauthorised replacement
of individual parts can drastically impact the electrical safety of
this product and leads to the forfeit of the warranty. Liability
does not extend to damages to people or property caused by the
device being used other than as described in the instructions in
this operating manual. Subject to changes to technical design
and model changes as part of constant development and
product improvement without prior notice.
No liability is accepted for damages resulting from improper
use. In such a case, any warranty claims be voided also.
1 EN
Operating manual – Energy cost measuring device BX09
Page 3
Safety
1
2
3
4
5
6
COST / KWH
WPRICE KWH
7
891011
Information about the device
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device with a tool.
• Observe the storage and operating conditions (see chapter
Technical data).
Intended use
Use the device only for measuring the energy consumption of
terminal devices whilst adhering to the technical data.
Improper use
The device is not suitable for use with any type of extension
cables. The device may not be used in potentially explosive
atmospheres, when wet or very humid.
Device description
The device BX09 measures the energy demand of a connected
terminal device.
The consumption can be displayed in watts, kWh, the price or
costs per kWh.

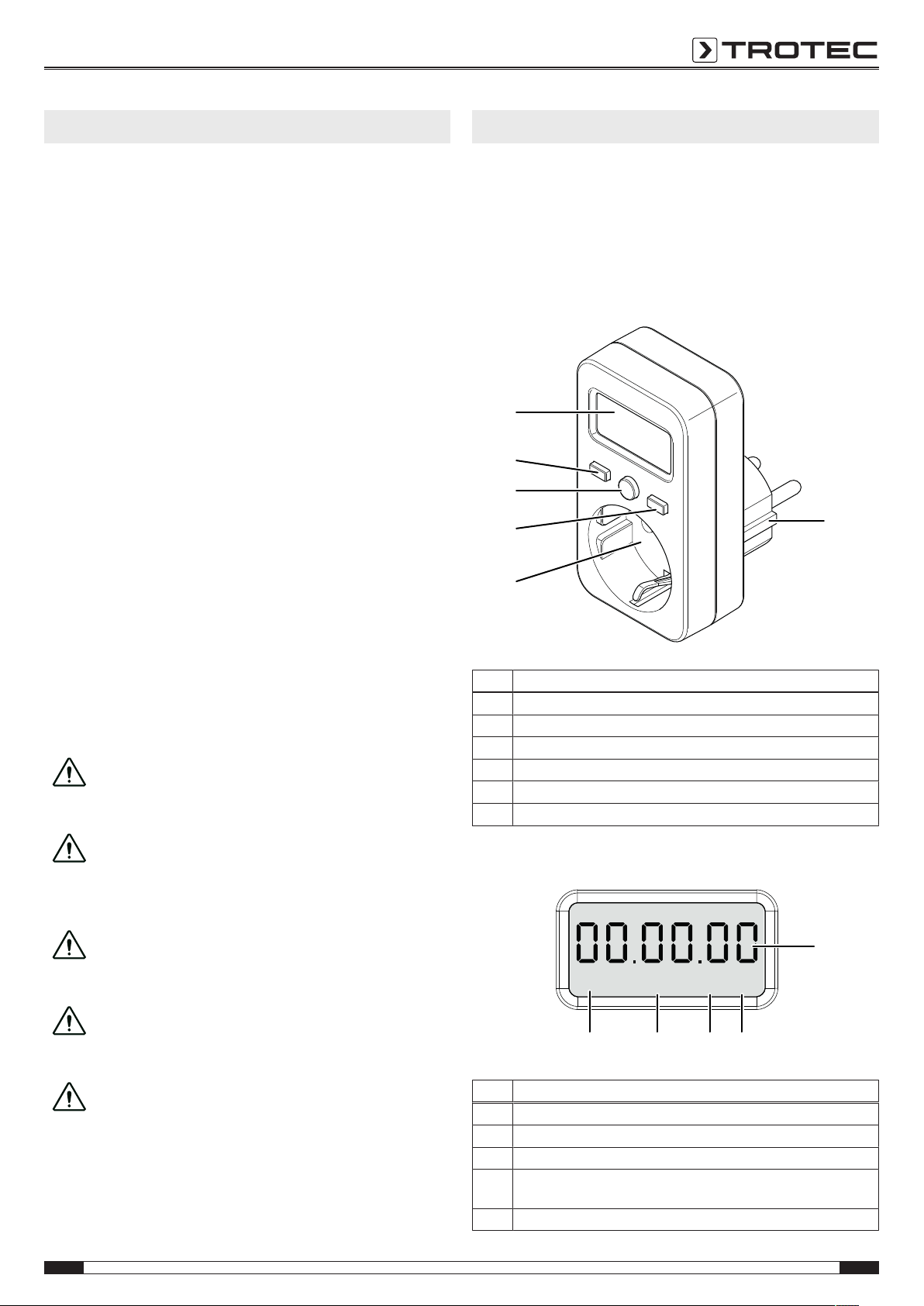

Device depiction
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Danger!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Danger!
The device is not a toy and does not belong in the
hands of children.
Caution!
Do not use abrasive cleaners or solvents to clean the
device.
Caution!
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
No. Designation
1 Connection to socket
2 Connection to terminal device (plug adapter)
3 UP button
4 MODE button
5 SET key
6 Display
Display
No. Designation
7 Measurement value display
8 KWH display – consumption indicated in kilowatt hours
9 W display – consumption indicated in watts
10 COST/KWH display – consumption indicated as costs per kilowatt
hours
11 PRICE display – consumption indicated as the overall costs
EN 2
Operating manual – Energy cost measuring device BX09
Page 4
Technical data
Transport and storage
Parameter Value
Model BX09
Weight 100 g
Dimensions (height x width x depth in
mm)
Power supply 230 V AC / 50 Hz
Load, max. 16 A, 3680 W
Measuring range resolution 0.1 W
Accuracy ±2% or ±2W (0-100W);
Display range 0.00 to 9999.9 kW/h
95 x 50 x 70
0.01 kW/h
±2% (100-3680W)
0.00 to 9999 overall cost
Scope of delivery
• 1 x Energy cost measuring device BX09
• 1 x Getting started guide
Transport
For transporting the device use a suitable bag to protect it from
external influences.
Storage
When the device is not being used, observe the following
storage conditions:
• Dry.
• Protected from dust and direct sunlight.
• With a cover to protect it from invasive dust, if necessary.
3 EN
Operating manual – Energy cost measuring device BX09
Page 5
Operation
Switching the device on
1. Plug the device into a properly fused socket.
2. Connect the terminal device to the plug adapter.
ð The device is switched on.
Maintenance and repair
Cleaning
Clean the device with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Do not use any sprays,
solvents, alcohol-based cleaning agents or abrasive cleaners,
but only clean water to moisten the cloth.
Setting the price per kilowatt hour
Note:
The default setting ex factory of the price per kilowatt hour is
0.0.
1. Press the MODE button(4) several times until COST/
KWH(10) appears on the display(6).
ð The currently set price per kilowatt hour is indicated on
the display(6).
2. Press the SET button(5).
ð The first digit in the measurement value display(7)
flashes.
3. Repeatedly press the UP button(3) to set the desired value.
4. Then press the SET button(5) again.
ð The second digit in the measurement value display(7)
flashes.
5. Repeatedly press the UP button(3) to set the desired value.
6. Continue until all four digits have been set.
7. Then press the SET button(5) again.
ð The decimal point in the measurement value display(7)
flashes.
ð If required, you can change the position of the decimal
point by use of the UP button(3).
8. Press the SET button(5).
ð The price per kilowatt hour is set and indicated on the
display(6).
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Changing the display mode
The device can display the following values:
• the overall costs (PRICE)
• the price per kilowatt hour (COST/KWH)
• the consumption in real time (W)
• the overall consumption since switch-on (KWH)
1. Press the MODE button(4) until the desired display mode is
set.
Internal memory
The device comes with an internal memory. Saved are the price
per kilowatt hour and the overall costs.
Shutdown
1. Disconnect the terminal device from the plug adapter.
2. Disconnect the device from the mains.
3. Store the device according to the chapter Storage.
EN 4
Operating manual – Energy cost measuring device BX09
Page 6
Disposal
In the European Union, electronic equipment must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2002/96/EC of the
European Parliament and of the Council of 27January 2003 on
waste electrical and electronic equipment (WEEE). At the end of
its life, please dispose of this device according to the valid legal
requirements.
Declaration of conformity
in accordance with the EC Low Voltage Directive 2006/95/EC
and the EC Directive 2004/108/EC about electromagnetic
compatibility.
Herewith, we declare that the device BX09 was developed,
constructed and produced in compliance with the named EC
directives.
The marking is found on the rear of the device.
Manufacturer:
Trotec GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
Phone: +49 2452 962-400
Fax: +49 2452 962-200
E-mail: info@trotec.com
Heinsberg, 01.11.2015
Detlef von der Lieck
Managing Director
5 EN
