Table of contents
Notes regarding the operating manual .................................... 01
Information about the device................................................... 02
Technical data ........................................................................ 03
Safety ..................................................................................... 04
Transport and storage............................................................. 05
Operation................................................................................ 05
Fault indications...................................................................... 10
Maintenance and repair .......................................................... 10
Disposal.................................................................................. 10
Declaration of conformity........................................................ 10
Notes regarding the operating manual
Symbols
Danger!
Warns of a hazard which can lead to injuries.
Risk from laser radiation!
Warns of injury risk from laser radiation.
Legal notice
This release replaces all previous versions. No part of this
publication may be reproduced without written permission from
TROTEC
duplicating or spreading the publication. Subject to technical
changes. All rights reserved. Trademarks are used without
guarantee that they may be used freely and primarily following
the spelling of the manufacturer. Product names are registered.
Changes to construction in the interests of constant
improvements to the product, as well as changes to the shape
and colour are reserved.
The scope of delivery may vary from product images. This
document was created with all due care. TROTEC
liability whatsoever for possible mistakes or omissions.
The only party responsible for determining measured results to be
valid, drawing conclusions and deriving actions is the user!
TROTEC
the determined measured values or measured results. Further,
TROTEC
damage which have been caused by utilising the determined
measured results. © TROTEC
®
. The same applies for electronically processing,
®
accepts no
®
accepts no claims of warranty for the correctness of
®
accepts no liability whatsoever for possible mistakes or
®
Caution!
Warns of a hazard which can lead to damage to property.
The current version of the operating manual can be found at:
www.trotec.de
EN Operating manual – Lase r distance measuring dev ice BD25 1
Page 4
Information about the device
1
4
5
6
2
3
17
7
8
9
16
15
10
11
12
14
13
Description of the device
The laser distance measuring device is used to determine
distances, areas and volumes in interior spaces. Indirect
measurements are carried out employing the Pythagoras
function.
The device is equipped with separate operating elements (2) for
the different measuring functions. The multi-line and optionally
also illuminated display (3) indicates the determined values.
Owing to the dust- and splash-proof housing (IP54), the device is
also suited for use on construction sites.
Operating elements
Measuring distance
The range of the device can be gathered from the Technical data
chapter.
Under certain conditions – e.g. at night, in twilight or when the
target is hidden in the shade – greater distances are possible
even without target plate. During the day use a target plate to
increase the distance for poorly reflecting targets.
Target surfaces
There might be measurement errors, when the laser encounters
colourless liquids (e.g. water), dust-free glass, styrofoam or other
semi-permeable materials. The measurement results could also
be falsified, if the laser encounters a high-gloss surface and is
deflected by it. Non-glossy, non-reflective or dark surfaces can
extend the measurement duration.

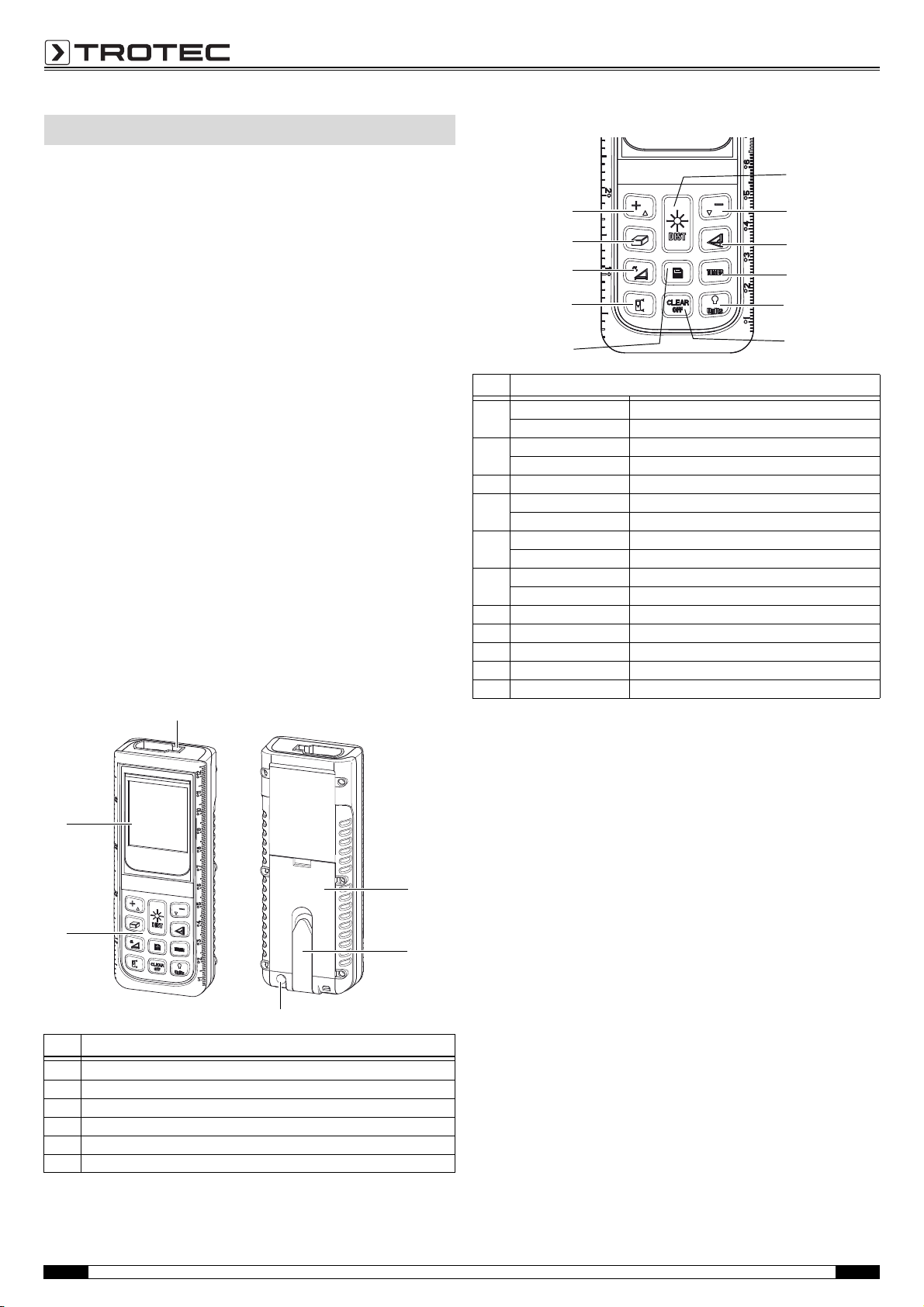

Device depiction
No. Operating element
7 Press briefly: Switch-on/measurement button
Press for a long time: Button for permanent distance measurements
8 Press briefly: Minus key
Press for a long time: Signal tone key (on/off)
9 Press briefly: Button for indirect measurements
10 Press briefly: Timer button
Press for a long time: Setting the timer
11 Press briefly: Illumination key (on/off)
Press for a long time: Unit key (ft, in, m)
12 Press briefly: Delete button
Press for a long time: Switch-off button
13 Press briefly: Save button (history)
14 Press briefly: Reference key
15 Press for a long time: Inclination key (on/off)
16 Press briefly: Area/room volume key
17 Press briefly: Plus key
No. Operating element
1 Battery compartment opening
2 Multifunctional end piece
3 Tripod thread
4 Operating elements
5 Display
6Laser
2 Operating manual – Laser dis tance measuring device BD 25 EN
Page 5

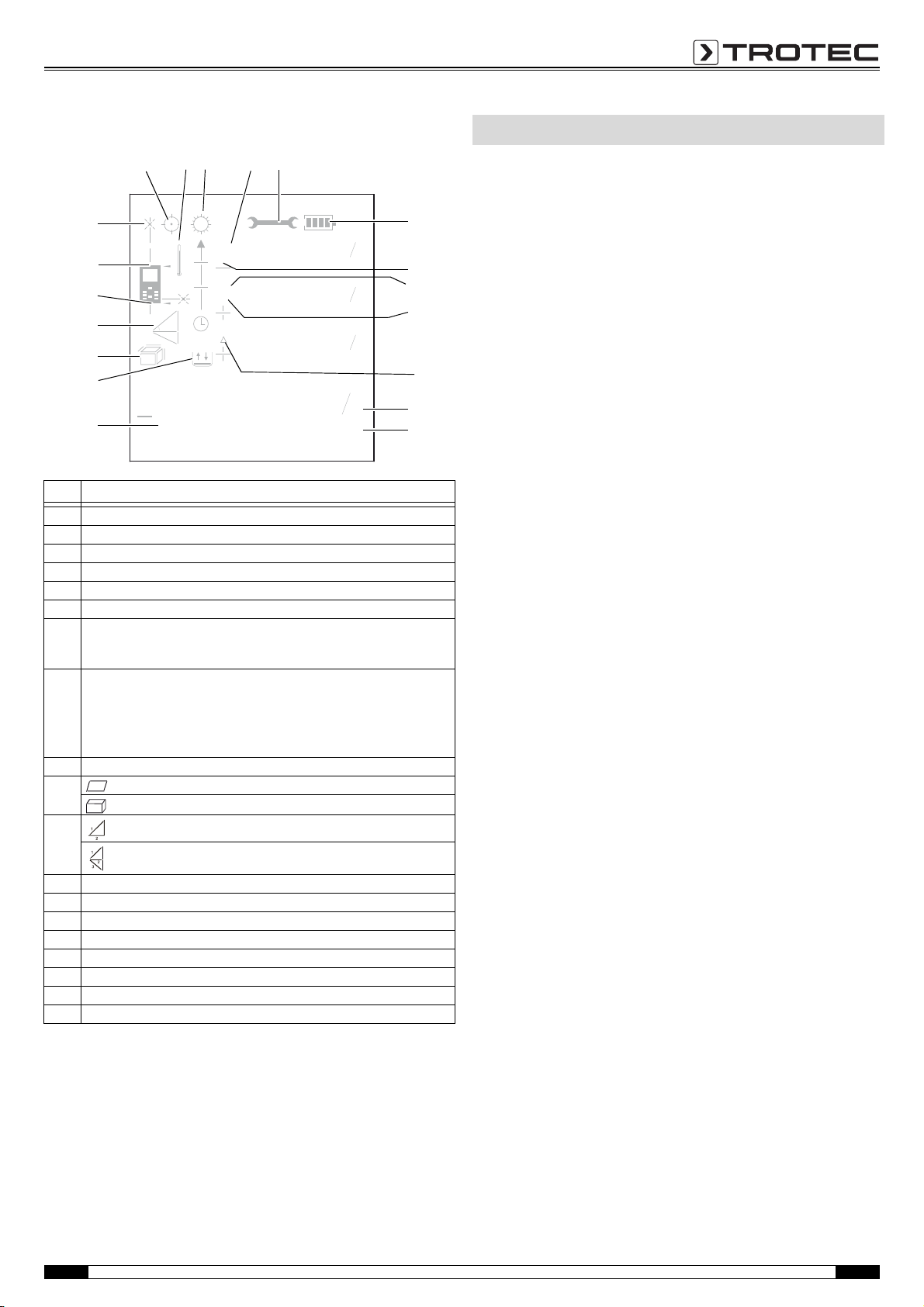

Display
00.000
00.000
00.000
00
00.000
00
00
max
h
a
v
min
m
m
fti
fti
a
b
b
b
3
3
2
2
1
1
1
2
0
3
00
00
m
fti
00
00
m
DEG
fti
00
00
24
23
25
27
28
30
31
18
363432 33 35
26
19
20
21
22
29
No. Display element
18 Battery status
19 Horizontal measuring distance
20 Measured minimum value
21 Vertical measuring distance
22 Delta = maximum minus minimum
23 Complementary display when using imperial units
24 Display of the selected unit. Possible units are:
ft, in., m – for the three measurement value displays above
3
ft, ft
, ft2, in, m, m3, m2 – for the lower measurement value display
25 Measurement value display:
The lower measurement value display indicates the last measured
value or the result of a calculation.
The three upper measurement value displays contain the past three
measured values, the minimum and maximum value or the measured
values to be added or subtracted.
26 Display inclination and history
27 Area measurement
Volume measurement
28 Indirect measurement (two auxiliary measurements)
Technical data
Model: BD25
Weight: 150 g
Dimensions (H x W x D): 118 x 49 x 27 mm
Measuring range: 0.05 to 100 m
Accuracy: ±2 mm*
Measuring range resolution: 1 mm
Horizontal measuring range: ±45°
Horizontal measuring range
accuracy: ±0.3°
Number of recordings logged in
the history: 10
Type of protection: IP54
Operating temperature: 0 °C to 40 °C
Storage temperature: -20 °C to 70 °C
Laser output: < 1 mW (620-690 nm)
Laser class: ll
Power supply: 2 x Alkaline LR6 AAA batteries, 1.5 V or
NiMH 1.2 V to 1.5 V (rechargeable batteries)
Battery life approx. 5000 to 8000
measurements
Automatic switch-off of the
device: After approx. 3 minutes of non-use
Automatic switch-off of the
laser: After approx. 30 seconds of non-use
*under favourable conditions (good target surface, room temperature) up to 10
m
Scope of delivery
• 1 x Laser distance measuring device BD25
• 2 x Alkaline LR6 AAA, 1.5 V batteries
• 1 x Device bag
•1 x Wrist strap
• 1 x Getting started guide
Indirect measurement (three auxiliary measurements)
29 Reference value rear
30 Reference value front
31 Laser active
32 Error: calculation error
33 Error: temperature too high/low
34 Error: ambient light too intense
35 Measured maximum value
36 Device error warning
EN Operating manual – Lase r distance measuring dev ice BD25 3
Page 6
Safety
Carefully read the operating manual before using the device and keep it within reach!
• Do not use the device in atmospheres containing oil, sulphur,
chlorine or salt.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device with a tool.
• Avoid looking directly into the laser beam.
• Never point the laser beam at people or animals.
• Only use the device, if sufficient safety precautions were
taken at the surveyed location (e.g. when performing
measurements along public roads, on building sites etc.).
Otherwise do not use the device.
• Observe the storage and operating conditions (see chapter
Technical data).
Residual risks
Risk from laser radiation!
Class 2 laser radiation.
Lasers of class 2 only radiate in the visible range and
during continuous wave operation (lasting beam) no more
than 1 milliwatt (mW) of output will be emitted. Looking
directly into the laser beam for a longer period of time
(more than 0.25 seconds) can cause damage to the
retina.
Avoid looking directly into the laser beam. Never look into
the laser beam using optical aides. Do not suppress the
winking reflex when looking into the laser beam
unintentionally. Never point the laser beam at people or
animals.
Danger!
Keep a sufficient distance away from sources of heat.
Danger!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Intended use
Only use the laser distance measuring device BD25 for
measuring distances, areas and volumes by means of the
integrated laser and within the measuring range specified in the
technical data. Here, read and observe the technical data.
To use the device for its intended use, only use accessories and
spare parts which have been approved by TROTEC
®
.
Improper use
Do not use the laser distance measuring device BD25 in
potentially explosive atmospheres, or for measurements in
liquids. Never point it at people or animals. TROTEC
®
accepts no
liability for damages resulting from improper use. In such a case,
entitlements to a warranty are forfeited. Any unauthorised
modifications, alterations or structural changes to the device are
forbidden.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with laser
measuring devices.
• have read and understood the operating manual, especially
the Safety chapter.
Danger!
The device is not a toy and does not belong in the hands
of children.
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way.
Observe the personnel qualifications.
Caution!
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Caution!
Do not use abrasive cleaners or solvents to clean the
device.
4 Operating manual – Laser dis tance measuring device BD 25 EN
Page 7
Transport and storage
37
Operation
Transport
Use the supplied device bag (37) to transport the device.
Storage
When the device is not being used, observe the following storage
conditions:
•dry,
• protected from dust and direct sunlight,
• with a plastic cover to protect it from invasive dust, if
necessary.
• The storage temperature is the same as the range given in
the chapter Technical data.
• When storing the device for a long time, remove the batteries.
• Preferably use the supplied device bag to store the device.

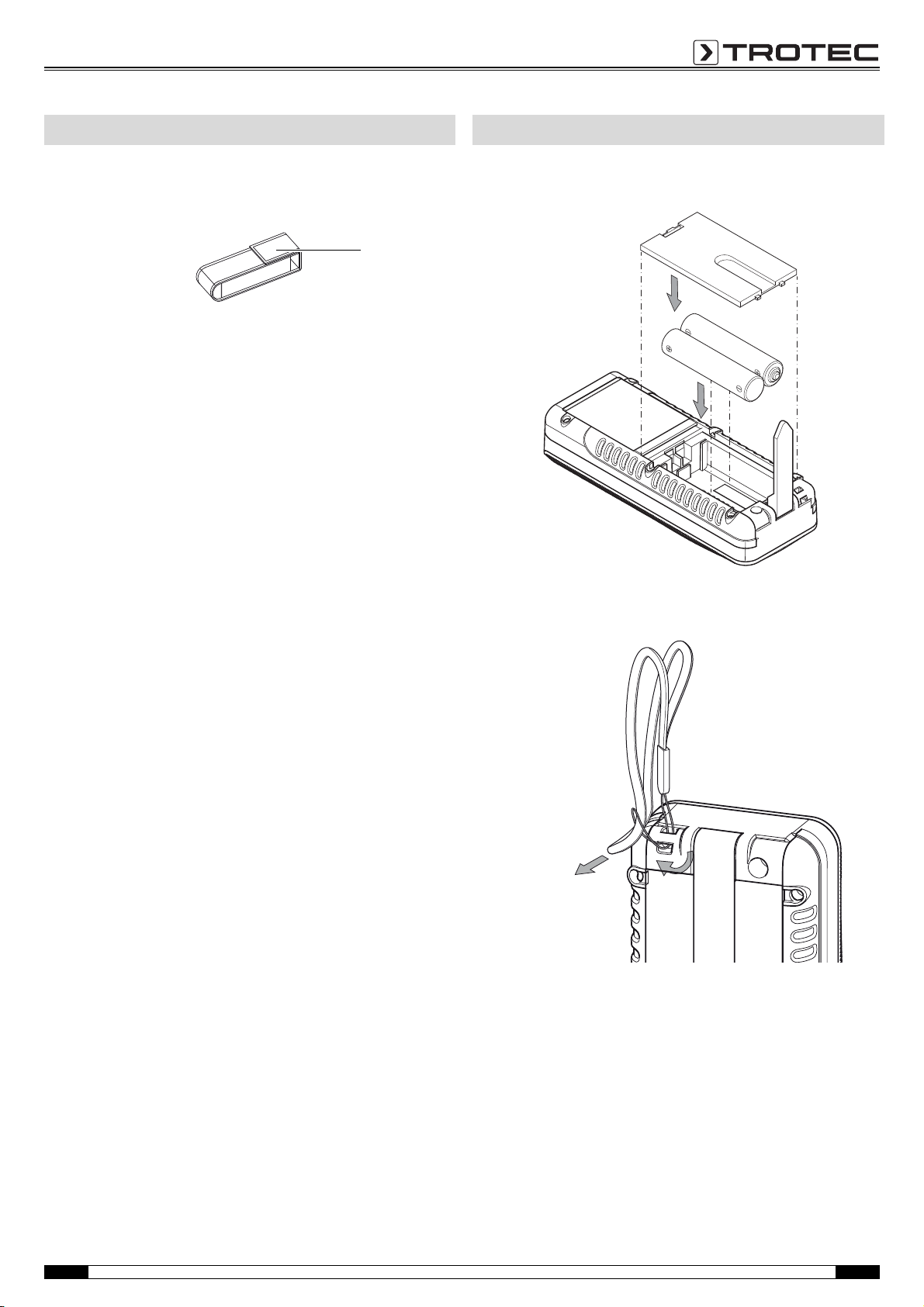

Inserting the batteries
Attaching the wrist strap
Switch-on
• Briefly press the Switch-on/measurement button (7).
– The display is switched on and the device is ready for
operation.
Switch-off
• Press the Switch-off button (12) for a long time.
– The display is switched off.
EN Operating manual – Lase r distance measuring dev ice BD25 5
Page 8

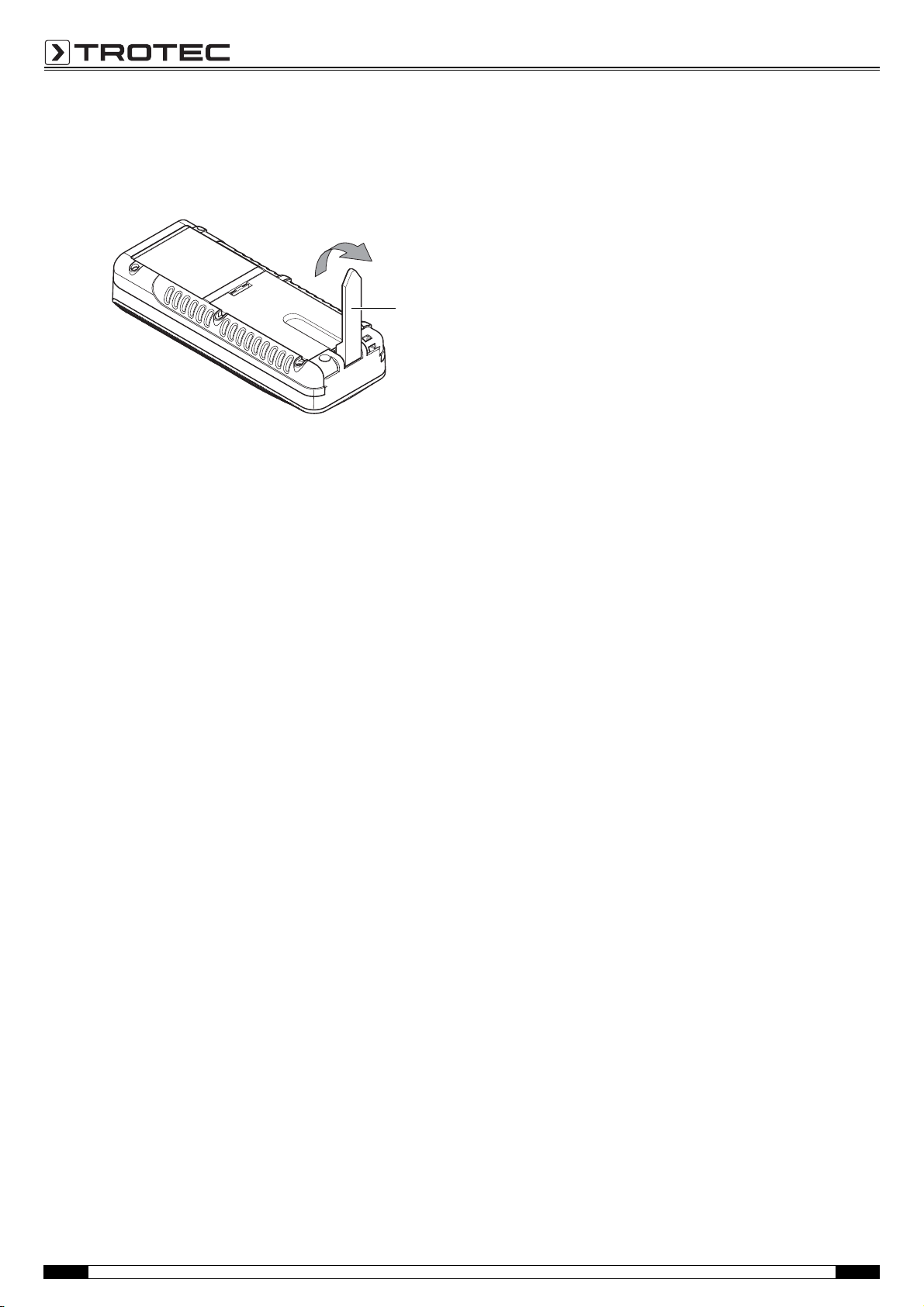

Using the multifunctional end piece
2
The device is equipped with a multifunctional end piece (2),
which you can f.i. use for the following measurements at corners.
It serves for device stabilization.
• Fold out the end piece.
– The reference point is automatically set to the end of the
end piece.
– An extended depiction of the reference value rear (29)
indication is displayed.
Changing the units
• Press the Unit key (11) for a long time to switch between the
units for the measured values. Available units are ft, in and
m.
Displaying the inclination
• Press the Inclination key (5) for a long time.
– The inclination of the device will be indicated in the
Inclination display (26).
Calling up a measured value in the device history
The device automatically saves the last 10 measured values. The
saved measured values can be called up as follows:
1. Press the Save button (13) to call up the history.
2. Briefly press the Minus key (8) or the Plus key (17) to navigate through the history and call up the saved measured values.
3. You can return to the normal measuring menu by briefly pressing the Delete button (12) or the Measurement button (7).
Basic settings
Switching the display illumination on/off
Briefly press the Illumination key (11) to switch the display
illumination on/off.
Switching the acoustic signal on/off
Press the Minus key (8) for a long time to switch the acoustic
signal on or off.
The switch-on/-off process is confirmed with a brief acoustic
signal.
Aborting the measurement and deleting the display
Briefly press the Delete button (12) to abort the current
measurement or to delete the displayed measured values one at
a time.
Setting the reference value
The device always measures the total distance beginning with the
reference point. This means that if the rear end of the device is
set as reference point, the length of the device will be part of the
measurement. By default the reference point is set to the rear of
the device. You can, however, also relocate the reference point to
the front part of the device. Proceed as follows:
• Press the Reference key (14) to relocate the reference point
to the front end of the device.
=> An acoustic signal can be perceived, whenever the
reference point is relocated. Additionally, the indication
Reference value front (30) appears.
When switching the device off and then on again, the reference
value will automatically be relocated to the rear end of the device.
Setting the timer
The device is provided with an internal timer, which can be used
to set a delay after which the measurement begins.
The timer can be used for all measuring operations.
• Press the Timer button (10) for a long time to activate a delay
of 5 seconds.
• Press and hold the Timer button (10) until the desired time is
displayed (30 seconds max.).
• Let go of the Timer button (10) to start the timer.
– A countdown of the remaining seconds appears in the
display.
– The last five seconds are each accompanied by an acoustic
signal.
– After the expiration of this time the measurement is
performed.
6 Operating manual – Laser dis tance measuring device BD 25 EN
Page 9
Carrying out measurements
Risk from laser radiation!
Class 2 laser radiation.
Lasers of class 2 only radiate in the visible range and
during continuous wave operation (lasting beam) no more
than 1 milliwatt (mW) of output will be emitted. Looking
directly into the laser beam for a longer period of time
(more than 0.25 seconds) can cause damage to the
retina.
Avoid looking directly into the laser beam. Never look into
the laser beam using optical aides. Do not suppress the
winking reflex when looking into the laser beam
unintentionally. Never point the laser beam at people or
animals.
Carrying out single distance measurement
1. Briefly press the Switch-on/measurement button (7) to activate the laser.
2. Point the laser at the target area.
3. Briefly press the Switch-on/measurement button (7) again to perform a distance measurement.
– The measured value is immediately indicated on the
display.
Adding / subtracting measured values
1. Carry out a single distance measurement.
2. Press the Plus key (17) to add the next measured value to the previous one. Press the Minus key (8) to subtract the next measured value from the previous one.
3. Press the Switch-on/measurement button (7) to determine the next measured value.
– The overall result will be indicated in the lower
measurement value display. The individual measured
values will be indicated in the upper measurement value
displays.
Performing a volume measurement
1. Briefly press the Area/room volume key (16) twice.
– The symbol for volume measurement appears on the
display.
– The side to be measured in each case is indicated on the
display by flashing.
2. Briefly press the Switch-on/measurement button (7) to carry out the first measurement (e.g. length).
3. Briefly press the Switch-on/measurement button (7) again to carry out the second measurement (e.g. width).
4. Briefly press the Switch-on/measurement button (7) again to carry out the third measurement (e.g. height).
– Upon pressing the Switch-on/measurement button (7) for
the third time the device independently calculates the
volume and displays this value in the lower measurement
value display.

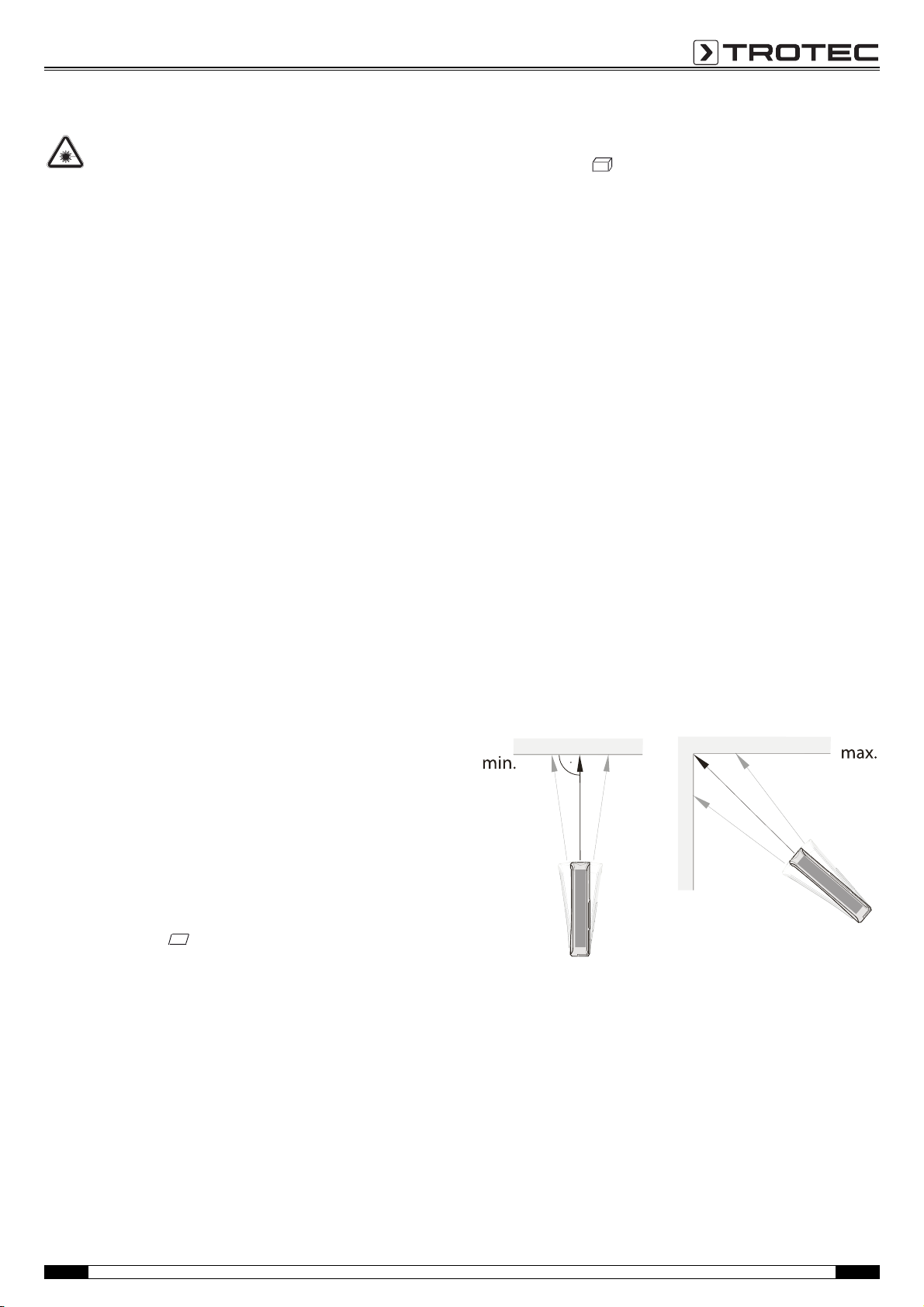

Performing a non-stop /min and max measurement
Use the non-stop measuring function to correlate measurements
e.g. with construction drawings. With this measurement method
the device can be moved closer toward the target with the
measured value being recalculated roughly every 0.5 seconds.
The corresponding maximum and minimum measurements are
displayed in the first and second line respectively.
For instance, you can direct the laser beam at a wall and then
retreat from it step by step. Keep reading the measured values
until the desired distance is achieved.
Performing an area measurement
1. Briefly press the Area/room volume key (16) one time.
– The symbol for area measurement appears on the
display.
2. Briefly press the Switch-on/measurement button (7) to carry out the first measurement (e.g. length).
3. Briefly press the Switch-on/measurement button (7) again to carry out the second measurement (e.g. width).
– Upon pressing the Switch-on/measurement button (7) for
the second time the device independently calculates the
area and displays this value in the lower measurement
value display. The most recently measured value will be
indicated in one of the upper measurement value displays.
1. Press the Switch-on/measurement button (7) for a long time until an acoustic signal can be heard.
2. With reference to the aim point, move the device slowly back and forth as well as up and down (e.g. in a corner).
3. Briefly press the Switch-on/measurement button (7) to terminate the non-stop measurement.
– The maximum and minimum measured values and the
difference (Δ) between these two are indicated on the
display. Additionally, the last measured value will be
displayed in the bottommost line.
EN Operating manual – Lase r distance measuring dev ice BD25 7
Page 10

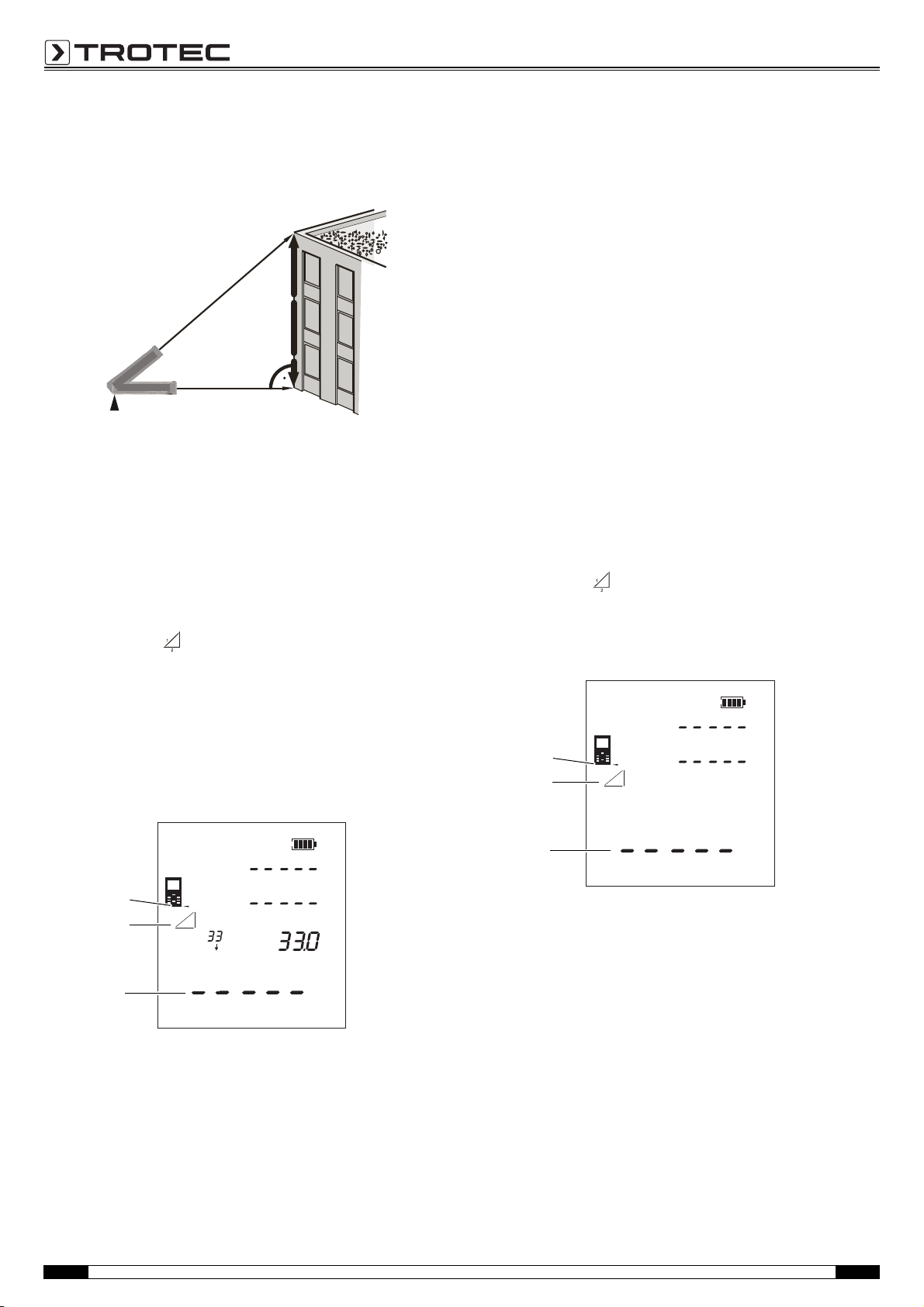

Indirect height measurement (Pythagoras)
A
B
00
00
max
h
a
v
min
m
m
fti
fti
a
b
b
b
3
3
2
2
1
1
1
2
0
3
00
00
m
fti
00
00
m
DEG
fti
00
00
25
28
29
26
00
00
max
h
a
v
min
m
m
fti
fti
a
b
b
b
3
3
2
2
1
1
1
2
0
3
00
00
m
fti
00
00
m
DEG
fti
00
00
25
28
29
Using this method the length of an unknown straight-line
segment can be determined via Pythagoras' theorem. This
method is suitable for e.g. height measurements.
Measurement requirements:
• The device is aligned horizontally to the lowest point (B) of the
line segment to be determined.
• The reference point is currently located at the rear of the
device. See Setting the reference value on page 6.
The following method applies to inclination angles of less than
45° in relation to the horizontal:
1. Briefly press the Button for indirect measurements (9) one time.
– The symbol for indirect measurements appears on the
display.
– The inclination angle is displayed in the third line of the
upper measurement value display on the right-hand side
(see example 33.0°).
– The reference point is indicated at the rear end of the
device (29).
– The bar with number 1 (hypotenuse) flashes.
2. Aim the device at the highest point (A) and briefly press the
Switch-on/measurement button (7) once to perform a
measurement. Make sure to hold the device as steady as
possible and place it level on the ground with the two rear
edges. The position at the two rear edges must not be
changed during the measurements!
– Both measurement and calculation are effected.
– The horizontal (1st line) and vertical (2nd line) distance
values are indicated in the upper measurement value
display.
– The line segment to be determined is displayed as result in
the lower measurement value display (25).
If the inclination angle in relation to the horizontal amounts to
more than 45°, three brief acoustic signals can be heard when
trying to measure the hypotenuse. Also the angle measure will no
longer be displayed on the upper measurement value display. In
such an event please proceed as follows:
1. Indirect height measurement is active and the inclination angle lies outside the measuring range, i.e. ----- will be indicated in the third line of the upper measurement value display instead of a number.
– The symbol for indirect measurements is displayed.
– The bar with number 1 (hypotenuse) flashes.
2. Press the Inclination key (15) for a long time.
– There will be no angle displayed.
3. First, aim the device at the highest point (A) and briefly press
the Switch-on/measurement button (7) once to perform a
measurement. Make sure to hold the device as steady as
possible and place it level on the ground with the two rear
edges. The position at the two rear edges must not be
changed during the measurements!
– The length of the line segment will be indicated in the 1st
line of the upper measurement value display.
4. Align the device horizontally (point B) and briefly press the Switch-on/measurement button (7) one time to measure the horizontal distance.
– The second measured value will be indicated in the second
line of the upper measurement value display.
– The line segment to be determined is displayed as result in
the lower measurement value display (25).
8 Operating manual – Laser dis tance measuring device BD 25 EN
Page 11

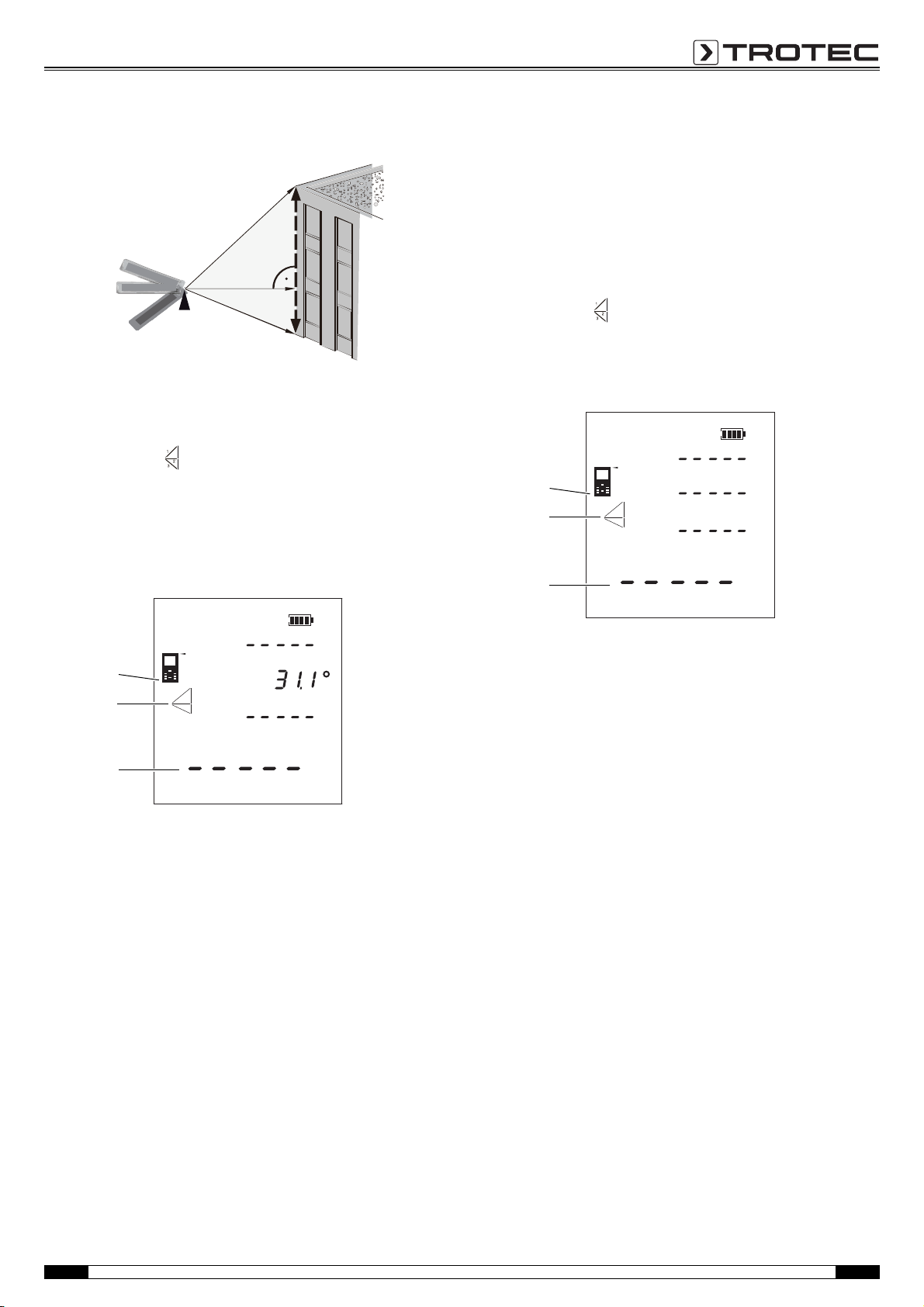

Twofold indirect height measurement
A
B
C
00
00
max
h
a
v
min
m
m
fti
fti
a
b
b
b
3
3
2
2
1
1
1
2
0
3
00
00
m
fti
00
00
m
DEG
fti
00
00
25
28
29
26
00
00
max
h
a
v
min
m
m
fti
fti
a
b
b
b
3
3
2
2
1
1
1
2
0
3
00
00
m
fti
00
00
m
DEG
fti
00
00
25
28
29
This method is suitable for e.g. height measurements.
The following method applies to inclination angles of less than
45° in relation to the horizontal:
1. Briefly press the Button for indirect measurements (9) twice.
– The symbol for indirect measurements appears on the
display.
– The inclination angle is displayed in the second line of the
upper measurement value display on the right-hand side
(see example 31.1°).
– The bar with number 1 (hypotenuse) flashes.
If the inclination angle in relation to the horizontal amounts to
more than 45°, three brief acoustic signals can be heard when
trying to measure the hypotenuse. Also the angle measure will no
longer be displayed on the upper measurement value display. In
such an event please proceed as follows:
1. Indirect height measurement is active and the inclination angle lies outside the measuring range, i.e. ----- will be indicated in the third line of the upper measurement value display instead of a number.
– The symbol for indirect measurements appears on the
display.
2. Press the Inclination key (15) for a long time.
– There will be no angle displayed.
2. First, aim the device at the highest point (C) and briefly press
the Switch-on/measurement button (7) once to perform a
measurement. In doing so, hold the device as steady as
possible. The alignment of the device in relation to the
reference point must not be changed during the
measurements!
– The first measured value will be displayed in the upper
measurement value display.
3. Aim the device at the lowest point (A) and briefly press the Switch-on/measurement button (7) once to perform a measurement.
– The second measured value will be indicated in the third
line of the upper measurement value display.
– The angle will be indicated in the second line of the upper
measurement value display.
– The line segment to be determined is displayed as result in
EN Operating manual – Lase r distance measuring dev ice BD25 9
the lower measurement value display (25).
3. First, aim the device at the highest point (C) and briefly press
the Switch-on/measurement button (7) once to perform a
measurement. In doing so, hold the device as steady as
possible. The alignment of the device in relation to the
reference point must not be changed during the
measurements!
– The first measured value will be displayed in the upper
measurement value display.
4. Align the device horizontally (point B) and briefly press the Switch-on/measurement button (7) one time to measure the horizontal distance.
– The second measured value will be indicated in the second
line of the upper measurement value display.
5. Aim the device at the lowest point (A) and briefly press the Switch-on/measurement button (7) once to perform a measurement.
– The third measured value will be indicated in the third line
of the upper measurement value display.
– The line segment to be determined is displayed as result in
the lower measurement value display (25).
Page 12

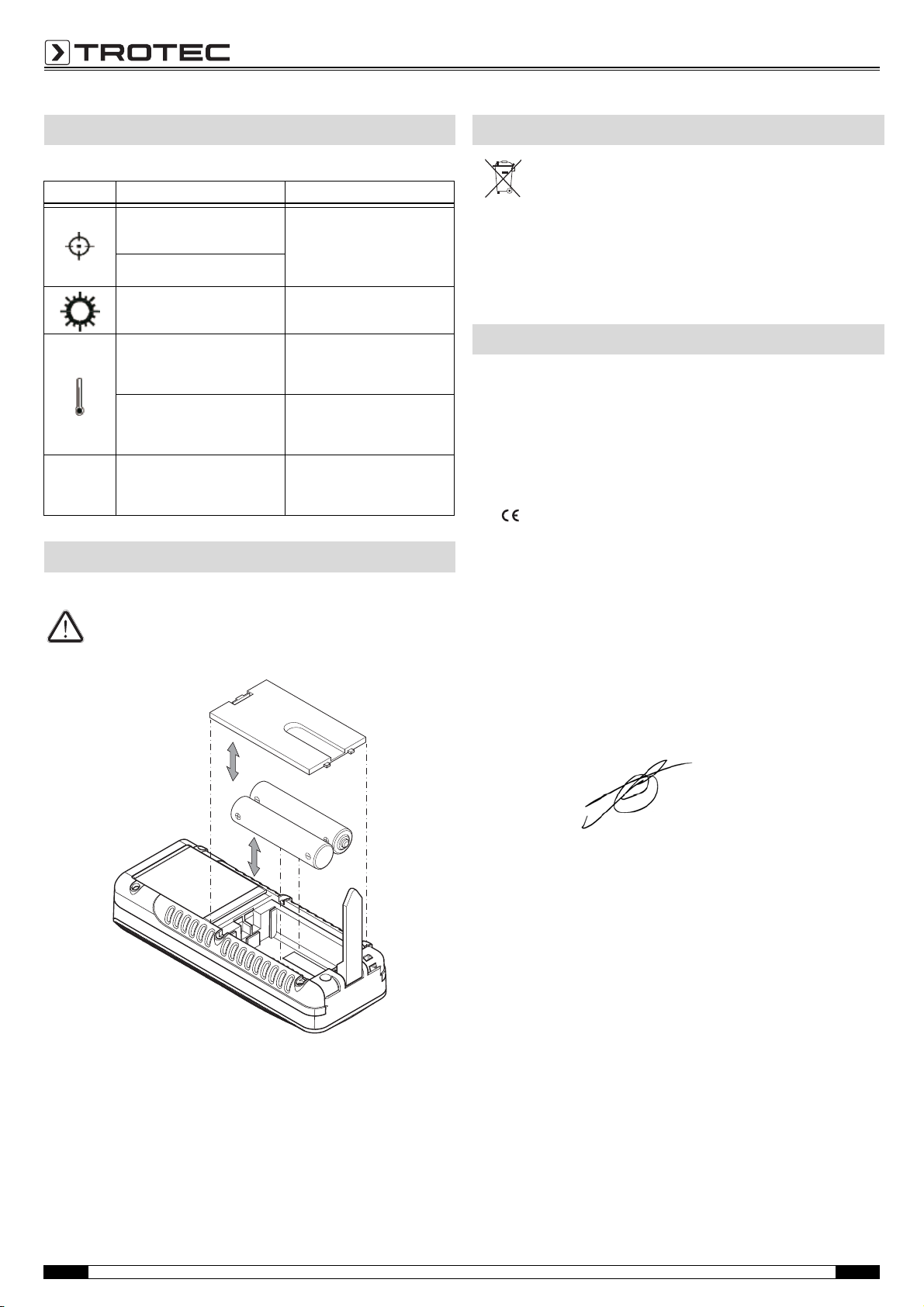

Fault indications
Disposal
The following fault indications could appear on the display:
Display Cause Remedy
Calculation error; reception of
the reflecting light is too poor or
too intense
The measurement time is too
long.
The ambient light is too
intense.
The temperature is too high.
The temperature is too low.
2800 Hardware fault
Repeat measurement on
another surface with better
reflective properties or use a
target plate.
Change the ambient light conditions for the measurement.
Allow the device to cool down.
Observe the permissible operating temperature according to
the Technical data chapter.
Allow the device to warm up.
Observe the permissible operating temperature according to
the Technical data chapter.
Repeatedly switch the device
on and off. If the symbol does
not disappear, please contact
your retailer.
Maintenance and repair
Battery change
Caution!
Make certain that the surface of the device is dry and the
device is switched off.
In the European Union, electronic equipment must not
be treated as domestic waste, but must be disposed of
professionally in accordance with Directive
2002/96/EC of the European Parliament and Council of 27th
January 2003 concerning old electrical and electronic equipment.
At the end of its life, please dispose of this instrument in a manner
appropriate to the relevant legal requirements.
Declaration of conformity
in accordance with the EC Low Voltage Directive 2006/95/EC and
the EC Directive 2004/108/EC about electromagnetic
compatibility.
Herewith, we declare that the laser distance measuring device
BD25 was developed, constructed and produced in compliance
with the named EC directives.
The marking is found on the rear of the device.
Manufacturer:
Trotec GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
Phone: +49 2452 962-400
Fax: +49 2452 962-200
E-mail: info@trotec.com
Cleaning
Clean the device with a soft, damp and lint-free cloth. Ensure that
no moisture enters the housing. Do not use any sprays, solvents,
alcohol-based cleaning agents or abrasive cleaners. Only use
clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs or
device testing, contact the manufacturer.
Heinsberg, 30/06/2014
Managing Director: Detlef von der Lieck
10 Operating manual – Lase r distance measuring dev ice BD25 EN
Page 13
Page 14
Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
info@trotec.com
www.trotec.com
Loading...
