Trotec B 1 E, B6E, B 5 E Operating Manual

Download
B 1 E
EN
OPERATING MANUAL
HUMIDIFIER
TRT-BA-B1E-TC-002-EN

Table of contents

You can download the current version of the operating manual and the EU declaration of conformity via the following link:

Notes regarding the operating manual

Symbols

Warning of electrical voltage
This symbol indicates dangers to the life and health of persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.
Caution
This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.
Notice
This signal word indicates important information (e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the operating manual must be observed.
B 1 E
https://hub.trotec.com/?id=41494

Safety

Read this manual carefully before starting or using the device. Always store the manual in the immediate vicinity of the device or its site of use!
Warning Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future reference.
This appliance can be used by children aged from 8years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Set the device up in an upright and stable position.
• Fill the device with fresh drinking water only.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• This appliance is not a toy! Keep away from children and animals. Do not leave the device unattended during operation.
• Ensure that all electric cables outside of the device are protected from damage (e.g. caused by animals). Never use the device if electric cables or the power connection are damaged!
• Insert the mains plug into a properly secured mains socket.
• Observe the device's power input, cable length and intended use when selecting extensions to the power cable. Completely unroll extension cables. Avoid electrical overload.
1 EN
Operating manual – humidifier B 1 E
• Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from the mains socket when the device is not in use.
• Do not under any circumstances use the device if you detect damages on the mains plug or power cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Defective power cables pose a serious health risk.
• When positioning the device, observe the minimum distances from walls and other objects as well as the storage and operating conditions specified in the Technical data chapter.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the side of the device where the air inlet is found is kept free of dirt and loose objects.
• Do not use the device when the water tank is empty.
• Before filling the water tank, switch the device off and disconnect the power cable from the mains socket. Hold onto the mains plug while doing so.

Residual risks

Warning of electrical voltage
Work on the electrical components must only be carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug from the mains socket! Hold onto the mains plug while pulling the power cable out of the mains socket.
Warning
Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the hands of children.
Warning
Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy.

Intended use

Only use the device as a mobile humidifier for the humidification and filtration of room air, while adhering to and following the technical data.
Intended use comprises humidifying the room air in:
• living spaces
• warehouses and archives
• libraries
• call centres and computer rooms

Improper use

The device is not intended for industrial use.
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use the device outdoors.
• Any unauthorised modifications, alterations or structural changes to the device are forbidden.
• Any operation other than as described in this manual is prohibited. Non-observance renders all claims for liability and guarantee null and void.
Caution
If the device is knocked over, water will leak from the lower part. Disconnect the device from the mains to prevent damage to the device caused by dry running.
Notice
Do not operate the device without an inserted air filter! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device.

Behaviour in the event of an emergency

1. Switch the device off.
2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket.
3. Do not reconnect a defective device to the mains.

Personnel qualifications

People who use this device must:
• be aware of the dangers that occur when working with electric devices in damp areas.
• have read and understood the operating manual, especially the Safety chapter.
EN 2
Operating manual – humidifier B 1 E

Information about the device

1
2
9a
3
10
9b
4
5
6
8
7

Description of the device

The device functions as a humidifier and aroma diffuser.
The ultrasound technology ensures a pleasant room climate and air quality improvement.
The device is equipped with an integrated scented oil tank and diffuser for optional room air aromatization.
The capacity of the water tank allows for a runtime of up to 15hours.
When the device is in operation, the water tank can be additionally illuminated by blue LEDs located in the lower part of the device.
The device switches off automatically when the water tank is empty.

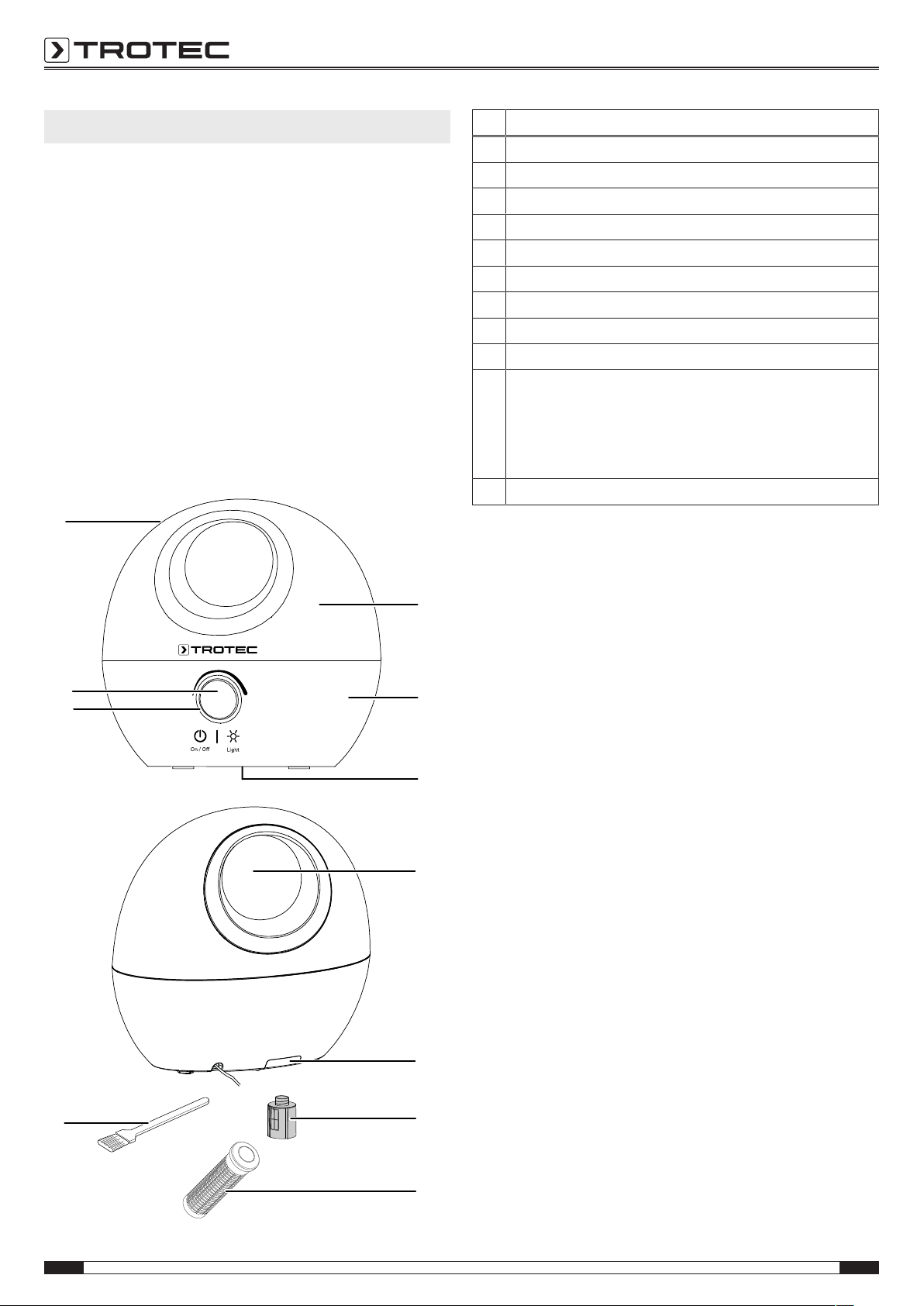

Device depiction

No. Designation
1 Top with water tank
2 Bottom section
3 Carbon filter
4 Filling level indication
5 Scented oil tank with sponge
6 Filter cartridge with water softener
7 SecoSan® Stick 10 (optional accessory)
8 Brush
9a On/off switch/ rotary switch nebulizer intensity
9b LED illumination:
red = standby (connected to the mains) white = device is switchedon/ inoperation flashes red = water tank is empty or not installed correctly
10 Mist nozzle
3 EN
Operating manual – humidifier B 1 E

Transport and storage

Assembly and installation

Notice
If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device.

Transport

Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out of the mains socket.
• Check whether the upper part is correctly positioned on the lower part.
• Lift the device at the lower part.
• Do not use the power cable to drag the device.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.

Storage

Before storing the device, observe the following:
• Empty the water tank.
• Empty the lower part.
• Use a cloth to wipe all parts of the device dry.
• Clean the device according to the Maintenance chapter.
When the device is not being used, observe the following storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and direct sunlight
• with a cover to protect it from invasive dust if necessary

Scope of delivery

• 1x Device
• 1x Water softener
• 1x Brush
• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding.

Start-up

• Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service.
• Set the device up in an upright and stable position.
• Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are unrolled completely.
• Make sure that there are no moisture-sensitive objects located in the immediate vicinity of the mist nozzle, since water may condense near the mist nozzle.
Filling the water tank
The water tank should be filled before first use or when the LED at the rotary switch(9b) flashes red.
Notice
Fill the device with fresh drinking water only. The water temperature must not exceed 40°C. Scented oil or other additives can damage the plastics and the nebulizer membrane.
Info
If possible, change the water on a daily basis to prevent bacterial growth.
EN 4
Operating manual – humidifier B 1 E
1. Remove the top section with the water tank(1).
1
11
6
6
Please note that there may still be residual water left in the bottom section if the device was used beforehand.
5. Insert the SecoSan® Stick (optional accessory) into the water tank.
6. Screw the lid(11) firmly back onto the water tank(1).
7. Place the top correctly onto the bottom section.
ð Please note that after inserting the water tank, the
water immediately starts to run into the bottom of the device.
2. Turn the water tank over.
3. Unscrew the lid(11) from the water tank(1).
4. Fill fresh drinking water (approx. 3l, maximally 40°C) into the water tank.
5 EN
Operating manual – humidifier B 1 E
Scent option
5
Additionally, the device offers the possibility to distribute a scent during operation.
Notice
Never put scented oil directly into the scented oil tank, the water tank or on the membrane. Direct contact with scented oil might cause damage to plastic components or other device parts.
Use standard scented oil. Proceed as follows to use the scent option:
ü The device is switched off and the power cable is
disconnected from the mains.
1. Remove the scented oil tank(5) from the device.
Inserting the air filter
Notice
Do not operate the device without an inserted air filter! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device.
• Make sure that the air filter is installed before switching the device on.
2. Put 2 to 3drops of scented oil onto the sponge in the scented oil tank(5)
3. Push the scented oil tank(5) back into the device.
Connecting the power cable
• Insert the mains plug into a properly secured mains socket.
• The LED(9b) at the rotary switch is illuminated in red.
EN 6
Operating manual – humidifier B 1 E

Operation

9a
9b
• Avoid open doors and windows.
Operating elements
No. Designation
9a On/off switch/ rotary switch nebulizer intensity
9b Two-coloured LED (red/white)
Switching the device on
1. Make sure that the tank has been filled with drinking water.
2. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry.
3. Press the on/off switch(9a) for approx. 2s.
ð The LED(9b) is illuminated in white. ð The device starts to humidify. Fine water mist leaves the
mist nozzle(10).
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off by pressing the on/off switch(9a) for approx. 2s.
• Hold onto the mains plug while pulling the power cable out of the mains socket.
• Empty the water tank.
• Empty the lower part.
• Use a cloth to wipe all parts of the device dry.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.

Available accessories

Warning
Only use accessories and additional equipment specified in the operating manual. Using insertion tools or accessories other than those specified in the operating manual may cause a risk of injury.
Designation Article number
SecoSan® Stick10 6.100.004.110
Setting the nebulizer intensity
The nebulizer intensity can be steplessly adjusted as desired.
1. Turn the rotary switch(9a) clockwise to increase the nebulizer intensity or counter-clockwise to reduce the nebulizer intensity.
Switching illumination on or off
When the device is in operation, the water tank can be additionally illuminated by two blue LEDs located in the device bottom.
1. Press the on/off switch(9a) to switch the illumination on or off.
7 EN
Operating manual – humidifier B 1 E

Errors and faults

The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
• Check whether the water tank indicator light is illuminated. The water tank might be empty and need refilling.
• Wait for 10minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company or by Trotec.
The device is running, but there is no formation of mist:
• Check whether the water tank indicator light is illuminated. The water tank might be empty and need refilling.
• Check the valve in the water tank lid. The valve must be able to move freely. If necessary, clean the water tank.
• Check the float in the lower part of the device. The float should be able to move freely.
• Check the air filter for dirt. If necessary, clean the air filter.
• Check the nebulizer membrane in the lower part of the device for dirt and clean it if required.
The water tank is full, but the device indicates an empty water tank:
• Heavy deposits on the filter cartridge may prevent the water from flowing from the water tank into the device. This can occur if the device has been out of use for a long time. Rinse the filter cartridge with clear water and, if required, carefully clean the filter at the filter cartridge.
• Check the valve in the water tank lid. The valve must be able to move freely. If necessary, clean the water tank.
Water is leaking:
• Check whether the device is set up in a stable and upright position.
• Check the water level in the lower part of the device. The water level might be too high and water is discharged via the overflow.
• Check the valve in the water tank lid. The valve must be able to move freely. If necessary, clean the water tank.
• Check the float in the lower part of the device. The float should be able to move freely. It may block and cause water to be discharged via the overflow.
• Check the device for leaks.
The water mist has a peculiar smell:
• The device is new. Remove and rinse the water tank. Let the open water tank air for some hours.
• Check the water tank. There may be stale or dirty water in the water tank. Rinse the water tank and fill it with fresh drinking water.
Condensate forms on the device:
• The air circulation in the room is insufficient. If necessary, reduce the nebulizer intensity and provide better air circulation (e.g. using a fan).
• The room's humidity level is quite high. This makes it difficult for the mist to distribute and leads to water condensing on the device. If necessary, reduce the nebulizer intensity or switch off the device.
The device is loud or vibrates heavily:
• Check whether the device is set up in a stable and upright position.
Notice
Wait for at least 3 minutes after maintenance and repair work. Only then switch the device back on.
Your device still does not operate correctly after these checks?
Please contact the customer service. If necessary, bring the device to an authorized specialist electrical company or to Trotec for repair.

Maintenance

Activities required before starting maintenance

Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out of the mains socket.

Cleaning the housing

Clean the housing with a soft, damp and lint-free cloth. Ensure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.
EN 8
Operating manual – humidifier B 1 E

Cleaning the water tank

1
11
6
6
The water tank should be cleaned once a week. Use a conventional descaling agent (e.g. household vinegar) for cleaning.
1. Remove the top section with the water tank(1). Please note that there may still be residual water left in the bottom section if the device was used beforehand.
8. Allow the water tank to dry.
9. Clean the inside of the bottom section and the mist nozzle with a conventional descaling agent (e.g.household vinegar) and then use a lint-free cloth to wipe the parts dry. For cleaning the nebulizer membrane, see chapter Cleaning the nebulizer membrane.
10. Insert the SecoSan® Stick into the water tank.
11. Fill the water tank with fresh drinking water.
12. If required, screw the filter cartridge with water softener(6) onto the lid.
13. Screw the lid(11) firmly back onto the water tank(1).
2. Turn the water tank over.
3. Unscrew the lid(11).
4. Drain the residual water from the water tank.
5. Take the SecoSan®Stick out of the water tank.
6. Thoroughly rinse the water tank with a conventional descaling agent (e.g. household vinegar).
7. Thoroughly rinse the water tank and the SecoSan®Stick with clear water.
14. Place the top correctly onto the bottom section.
9 EN
Operating manual – humidifier B 1 E

Cleaning the nebulizer membrane

12
8
11
6
6
Depending on the hardness of the drinking water used, deposits may form on the nebulizer membrane over time. These could affect the nebulizer performance. Therefore, the nebulizer membrane should be cleaned on a regular basis.
To do so, please proceed as follows:
1. Remove the water tank(1) as described in Cleaning the water tank.
2. Remove any residual water from the inside of the device.
3. Wet the nebulizer membrane(12) with a conventional descaling agent (e.g. household vinegar).
4. Let the descaling agent act for approx.2 to 5min.
5. Remove the deposits from the nebulizer membrane(12) using the brush(8).
3. Unscrew the filter cartridge(6) from the lid(11).
4. Provide a vessel containing saturated saline solution.
5. Place the filter cartridge into the vessel containing saline solution. Make sure that the filter cartridge is completely covered by the saline solution.
6. Leave the filter cartridge in the saline solution for 24h.
7. Take the filter cartridge out of the saline solution after 24h.
8. Rinse the filter cartridge with clear water.
9. Screw the filter cartridge(6) back onto the lid(11).
6. Rinse the inside of the device with clear water.
7. Refit the water tank(1) as described in Cleaning the water tank.

Regenerating the water softener

Depending on the hardness of the water, the water softener must be regenerated approx. once per month.
To do so, please proceed as follows:
1. Remove the water tank(1) as described in Cleaning the water tank.
2. Unscrew the lid(11) from the water tank(1).
10. Screw the lid(11) firmly back onto the water tank(1).
11. Refit the water tank(1) as described in Cleaning the water tank.
EN 10
Operating manual – humidifier B 1 E

Cleaning the scented oil tank

5
The scented oil tank should be cleaned on a regular basis.
1. Remove the scented oil tank(5) from the device.
2. Rinse the scented oil tank and the sponge with clear water. If required, you can use a mild cleaning agent for the scented oil tank.
3. Use a cloth to wipe the scented oil tank dry.
4. Allow the sponge to dry.
5. Push the scented oil tank(5) with the sponge back into the device.
1. Remove the air filter from the device.
2. Rinse the filter with warm water.
3. Allow the filter to dry completely. Do not insert a wet filter into the device!
4. Reinsert the air filter into the device.

Cleaning the air filter

Notice
Ensure that the air filter is not worn or damaged. The corners and edges of the air filter must not be deformed or rounded. Before reinserting the air filter, make sure that it is undamaged and dry!
The air filter has to be cleaned as soon as it is dirty. This is brought to light e.g. by a reduced capacity (see chapter Errors and faults).
11 EN
Operating manual – humidifier B 1 E

Activities required after maintenance

If you want to continue using the device:
• Reconnect the device to the mains.
If you do not intend to use the device for a considerable time:
• Store the device according to the Storage chapter.

Technical annex

Technical data

Disposal

Parameter Value
Model B 1 E
Nebulizer performance 200 ml/h
Runtime 15 h
Power consumption 24 W
Mains connection 220 V – 240 V / 50 Hz – 60 Hz
Nominal current consumption 0.1 A
Plug type CEE7/16
Cable length 1.5 m
Sound pressure level
38 dB (A)
(1 m distance)
Water tank capacity 3 l
Weight 1.5 kg
Dimensions
160 x 301 x 278 (mm)
(length x width x height)
The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment must not be disposed of with the household waste at the end of its life. You will find collection points for free return of waste electrical and electronic equipment in your vicinity. The addresses can be obtained from your municipality or local administration. For further return options provided by us please refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms of recovery of waste equipment as well as to prevent negative effects for the environment and human health caused by the disposal of hazardous substances potentially contained in the equipment.
EN 12
Operating manual – humidifier B 1 E
Trotec GmbH & Co. KG
Grebbener Str. 7 D-52525 Heinsberg
+49 2452 962-400 +49 2452 962-200
info@trotec.com www.trotec.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
