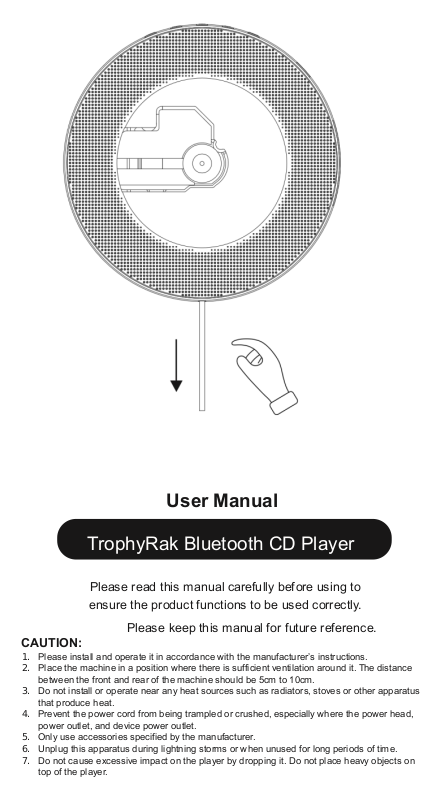

TrophyRak Bluetooth CD Player User Manual

User Manual

TrophyRak Bluetooth CD Player

Please read this manual carefully before using to

ensure the product functions to be used correctly.

CAUTION:

1. Please install and operate it in accordance with the manufacturer’s instructions.

2. Place the machine in a position where there is sufficient ventilation around it. The distance
between the front and rear of the machine should be 5cm to 10cm.

3. Do not install or operate near any heat sources such as radiators, stoves or other apparatus
that produce heat.

4. Prevent the power cord from being trampled or crushed, especially where the power head,
power outlet, and device power outlet.

5. Only use accessories specified by the manufacturer.

6. Unplug this apparatus during lightning storms or when unused for long periods of time.

7. Do not cause excessive impact on the player by dropping it. Do not place heavy objects on

top of the player.

Please keep this manual for future reference.

8. Do not place the player on damp, dusty or sooty environment, as it could result in fire or

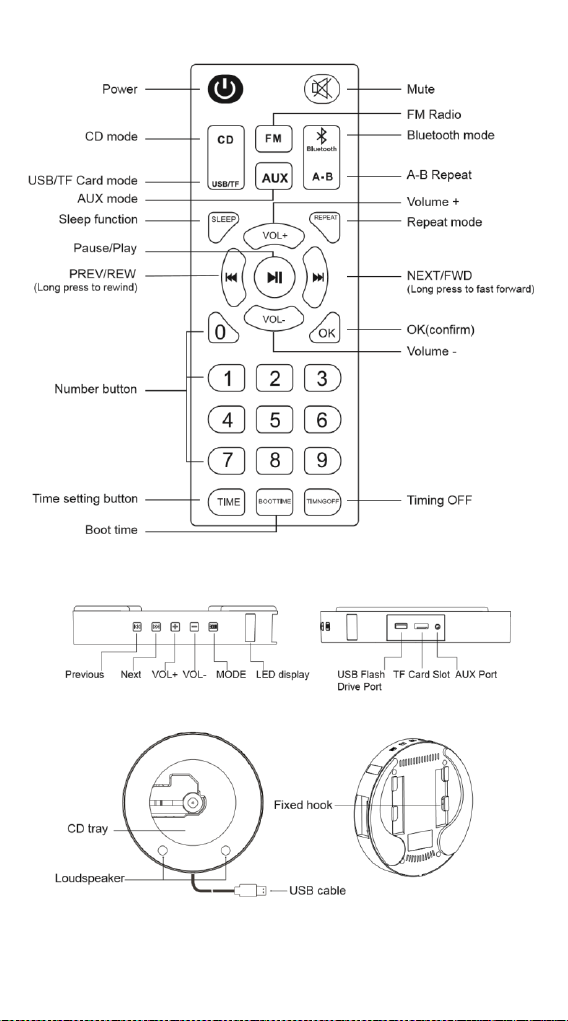

Remote Control

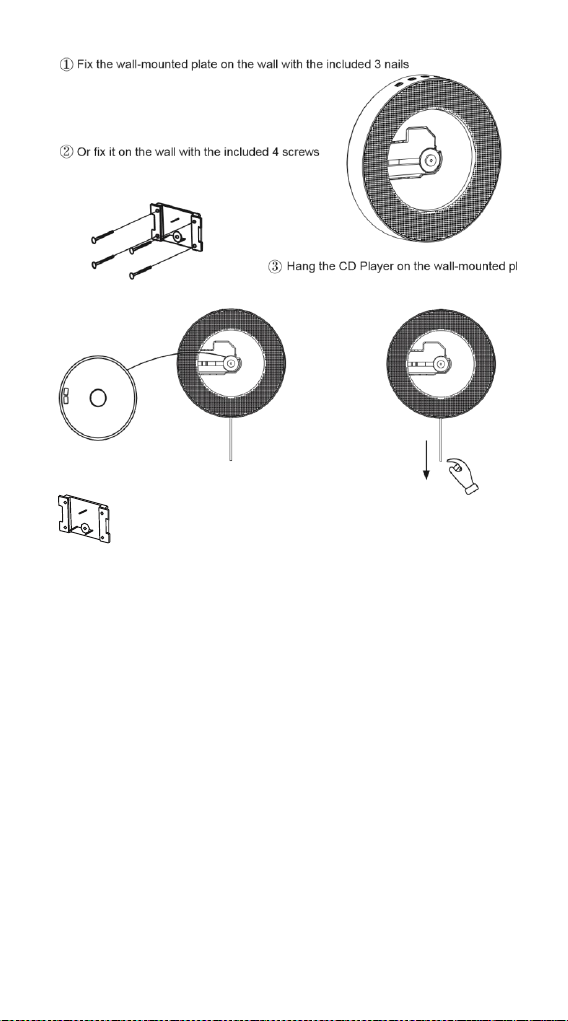

Wall-mounted plate

Pack of screws

Desk stand

USB adaptor

User Manual

electric shock.

9. Do not place the device in a high temperature environment, direct sunlight, etc...

10. Do not get the player wet or drop it in water (If the player gets wet, do not switch it on ).

WARNING:

1. Do not disassemble this player by your own.

2. Do not place the device on top of other electronic items.

3 .Do not look directly at the laser beam inside the machine.

4.Any operation or adjustment against the product manual may cause serious laser radiation or
other danger situation.
5 . Make sure the insulation sheet is removed from the battery slot of the remote.

Accessories:

Specifications

Model: YR-Q100
CD format support: CD, CD-R, CD-RM, MP3, WMA, WAV
Power: 8W
Rated Voltage: 5V-2A
Weight: 870g
Dimension: 215 X 42mm
Signal to Noise Ratio: >57dB
Total Harmonic Distortion: <1.5%
MP3 link input: 650v
Material: ABS engineering plastics
Tuning range: FM: 87.5-108MHz
Frequency response: 60Hz-16kHz, ±3dB

Main features

1. LED screen display

2. Support USB flash playing

3. Support TF card playing

4. Full-band FM radio

5. Bluetooth V 4.2

6. Standard 3.5mm audio input/output port

7. Loop Playback mode: Repeat All

8. Support A-B repeat, Repeat One, Repeat All

9. Support time and alarm clock

Remote control precautions

1. The sensitivity of remote control can be influenced by light and environment.

2. Please take out the battery inside remote control in case of unused for a long time, to avoid

the battery’s unexpected leakage and corroding the remote control.

01

3. Normally, the included battery can last one year’s usage, but it also depend on your using

frequency. In case of remote control not working within a short distance, please replace the
battery.
