Engine Serial Number: _____________________________________________
Hull Identification Number:__________________________________________

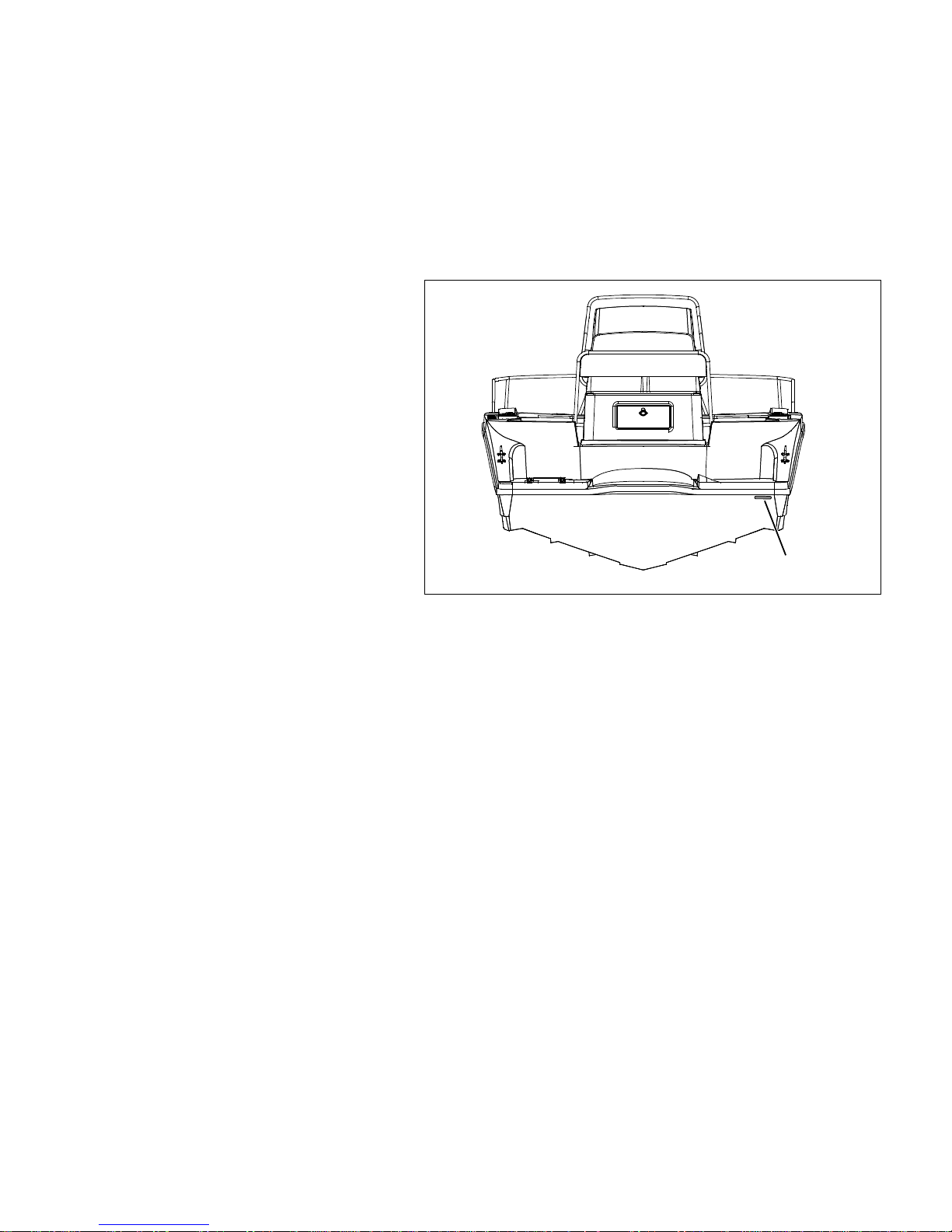

Hull Identi fication Number
The Hull Identificati on Number (HIN) is lo cated
on the starboard side of the transom. Be sure to
record the HIN (and the engine serial numbers)
in the space provided above. Please refer to the
HIN for any correspondence or orders.
TYPICAL
HIN LOCATION
© 2003 Trophy Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Trophy.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Trophy assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, T r ophy re serves the right to make changes in the product design, speci fications, and equipment at any time without notice or obligation. Illustrations and/or photos may show optional equipment.
All Trophy products meet or exceed USCG (Unites States Coast Guard) and/or NMMA (National Marine Manufacturer’s Assoc iation) construction standa rds.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Trophy has proprietary rights. The information and design disclosed herein were originated by and are the property of Trophy. Neither receipt n or possessi on the reof conf ers or trans fers a ny right to reproduce, copy, alter or discl ose the document or any part t hereof, any in formation contained therein, or to construct boats or any item fr om it, ex cept by wri tten permission from or written agreement with Trophy. This document is to be
returned upon request to Trophy.
Page 4
CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dealer Service
1 Warranty Information
1 Boating Experience
2 Safety Standards
2 Engine & Accessories Guidelines
3 Engine & Accessories Literature
3 Qualified Maintenance
3 Special Care For Moored Boats
4 Carbon Monoxide (CO)
4 Facts about CO
5 Where and How CO Can Accumulate
5 How to Protect Yourself and Others From CO
6 Trip Checklist
6 Monthly Checklist
6 Annual Checklist
6 More Information
7 Chapter 2: Product Specifications
7 1703
7 1903
8 2103
9 Chapter 3: Locations

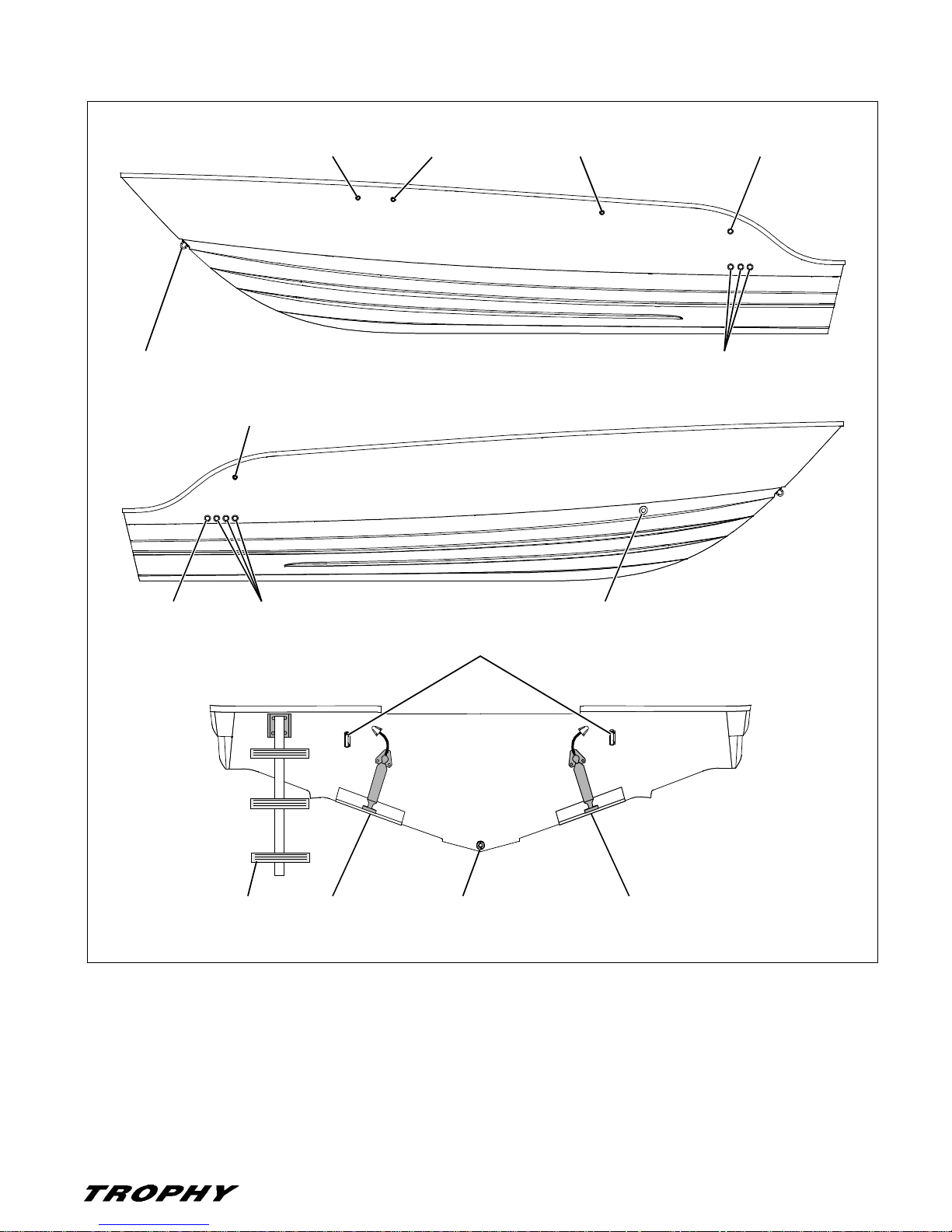

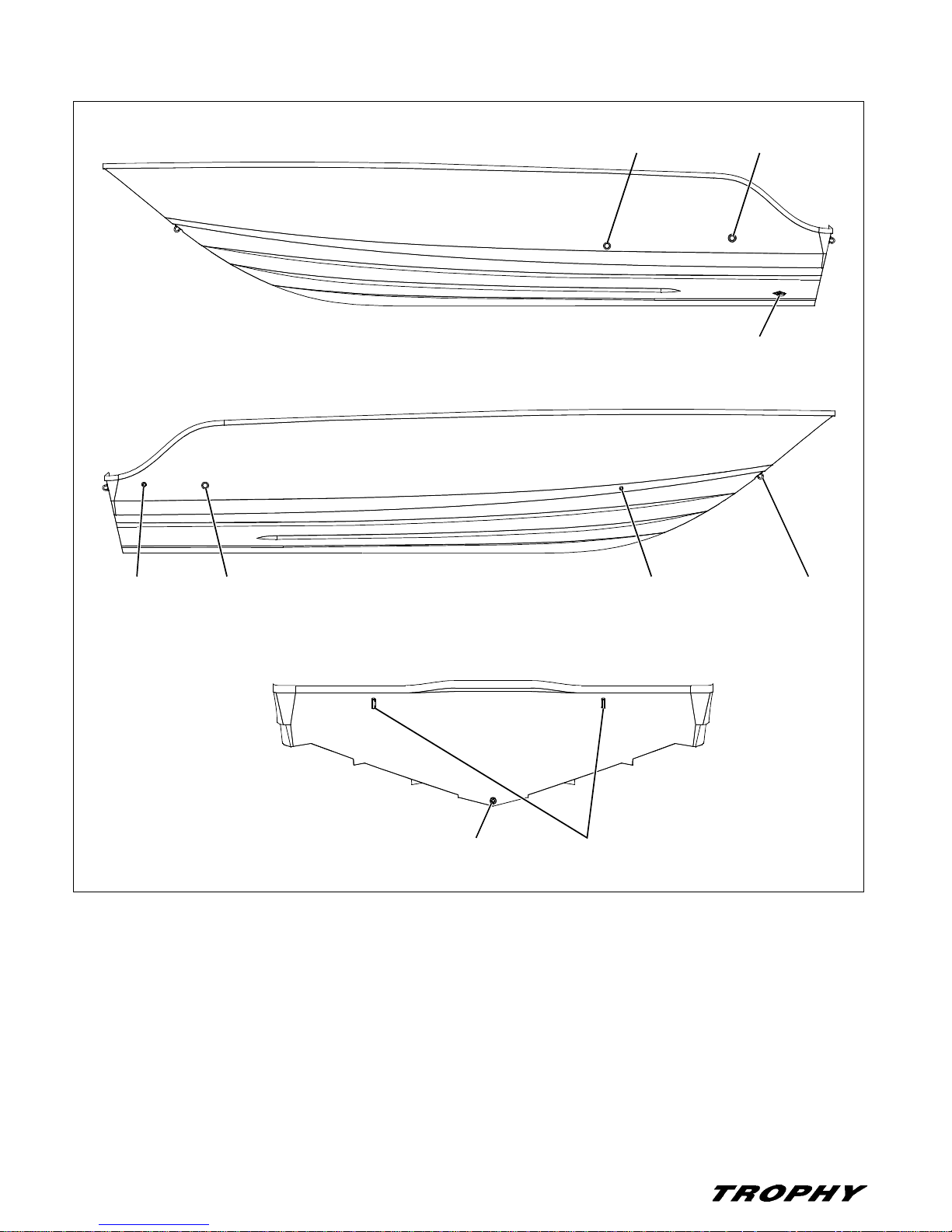

9 Exterior Views
9 1703 Exterior Hull Views
10 1903 Exterior Hull Views
11 2103 Exterior Hull Views
12 1703 Deck View
13 1903 Deck View
14 2103 Deck View

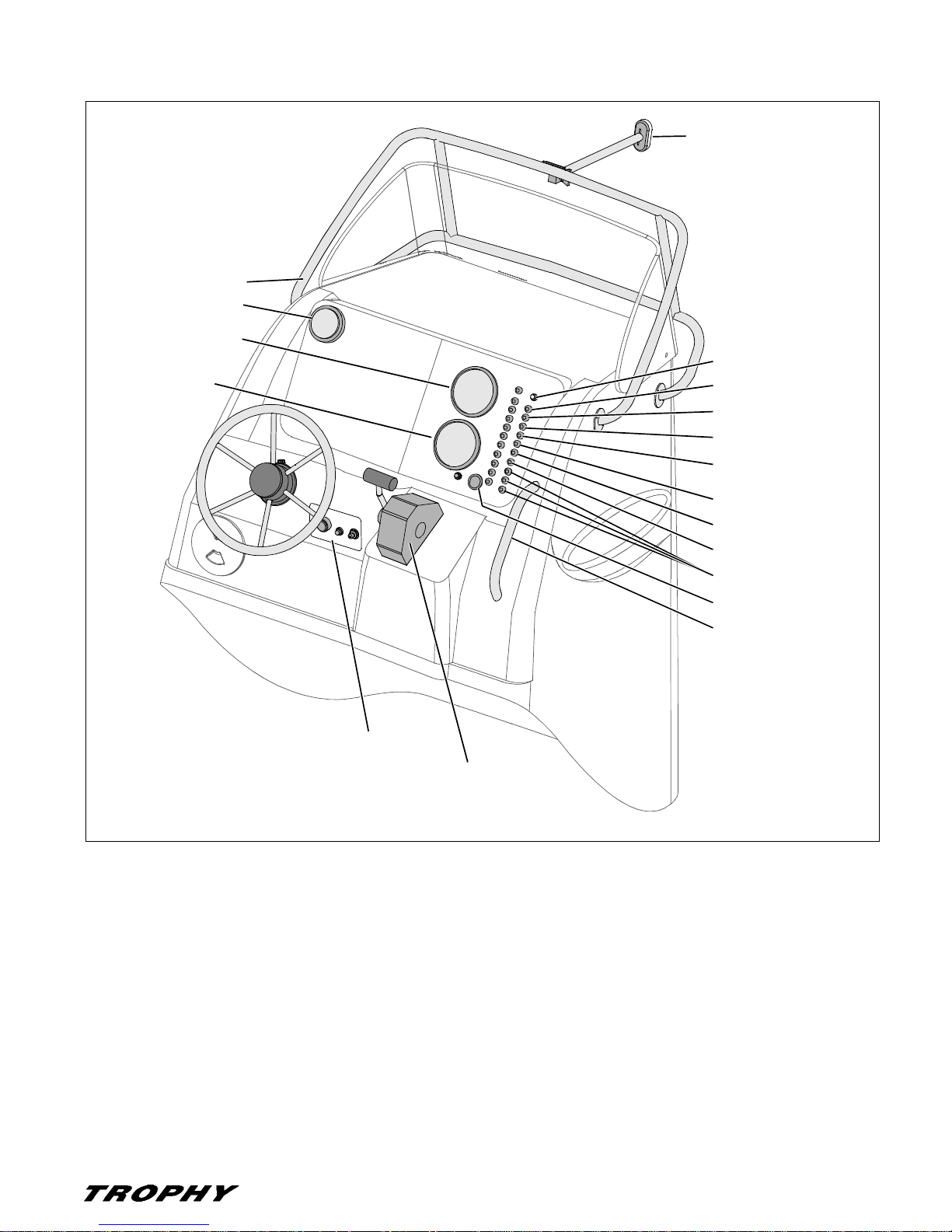

15 1703 Helm View
16 1903 Helm View
17 2103 Helm View
18 Component Locations
20 Chapter 4: Propulsion &
Related Systems
20 Engine
20 Fuel System
20 1703 Fuel System
21 1903 Fuel System
21 2103 Fuel System
22 Fuel Fill and Vent
22 Fuel Filters
23 Chapter 5: Controls
23 Steering Systems
23 Rotary Steering or Rack and Pinion Steering
23 Manual Hydraulic Steering
23 Shift/Throttle
23 Power Trim and Tilt
24 Trim Tabs (If Equipped)
25 Chapter 6: Plumbing
25 2103 Freshwater System (If Equipped)
26 Freshwater System Winterization
27 Bilge Pump Systems
27 1703 Bilge Pump System
28 1903 Bilge Pump System
28 2103 Bilge Pump System
30 Autofloat Switch
31 Portable Toilet (If Equipped)
32 Drain Systems
32 Deck Drains
32 Seawater System (If Equipped)
32 Seacock

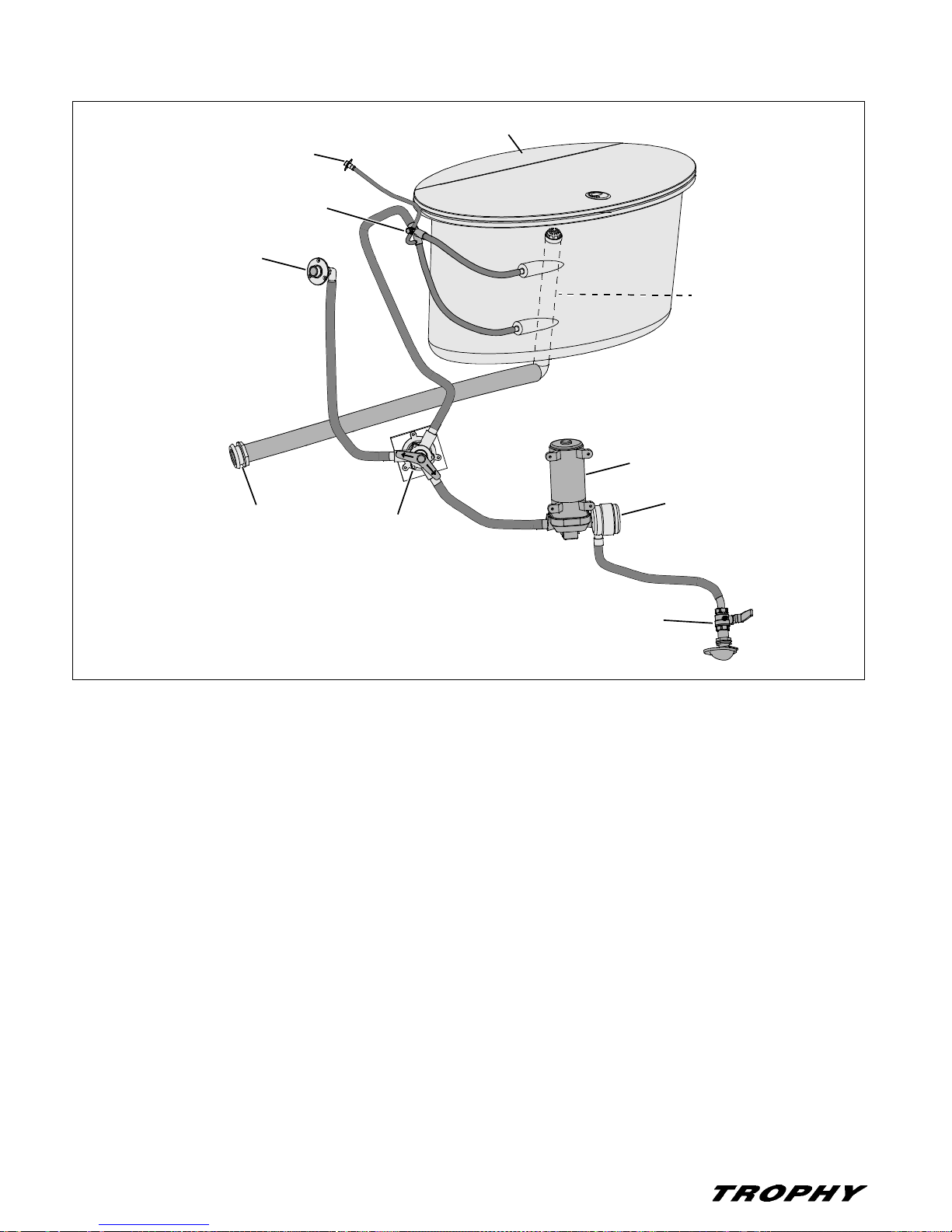

33 Baitwell & Seawater Washdown Systems
33 1703 Baitwell System
35 1903 Baitwell System
37 2103 Baitwell System
Page 5
39 Chapter 7: Deck Equipment
39 Cleats and Tow Eyes
40 Chapter 8: Entertainment Systems
40 Audio System (If Equipped)
41 Chapter 9: Lights
41 Care and Maintenance
41 Navigation Lights
41 Lights
42 Chapter 10: Electrical System
43 12-Volt DC System
43 Batteries
43 Fuses and Circuit Brea ke rs
43 Alternator
43 12-Volt Accessory Outl et

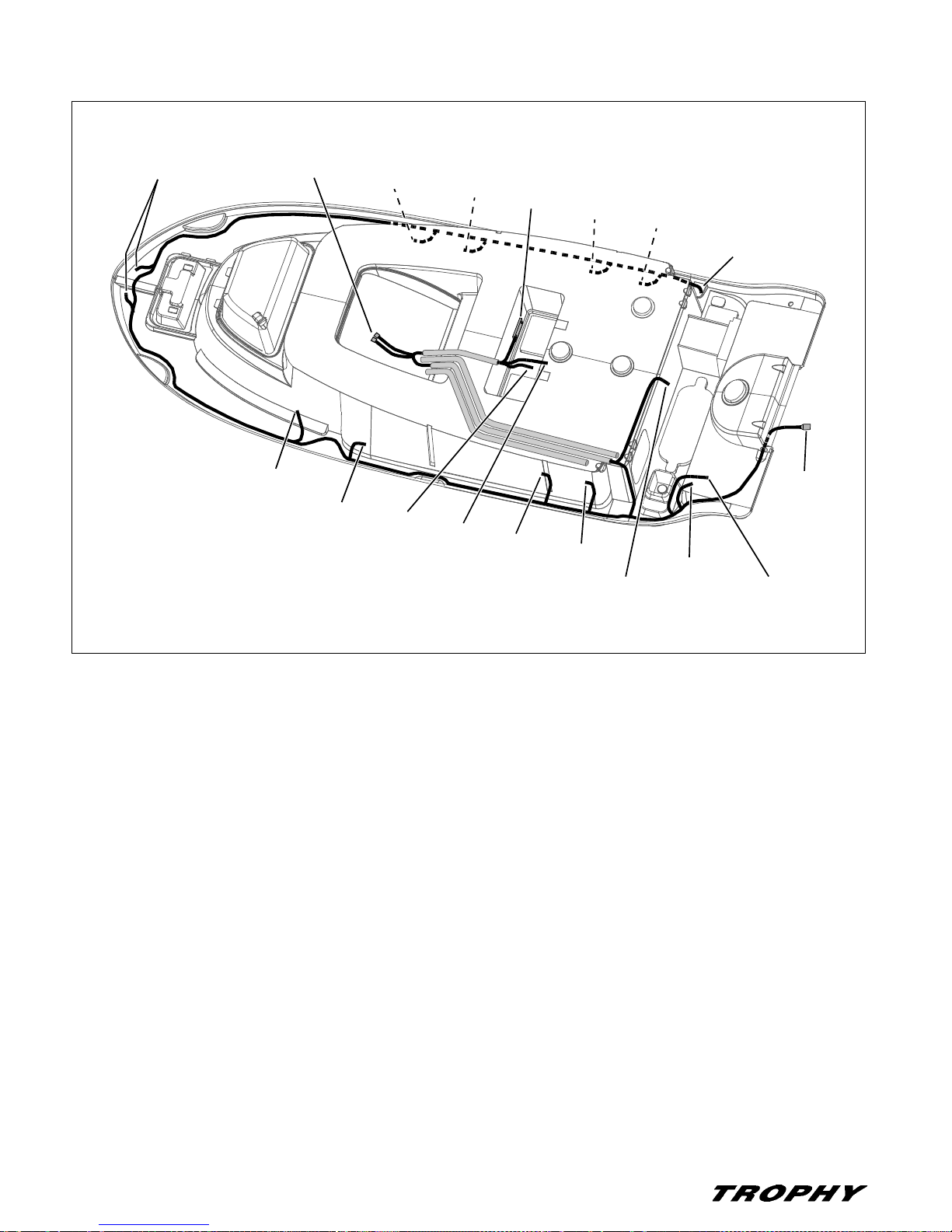

44 Electrical Routings
44 1703 Deck Electrical Harness
45 1903 Deck Electrical Harness
46 2103 Deck Electrical Harness

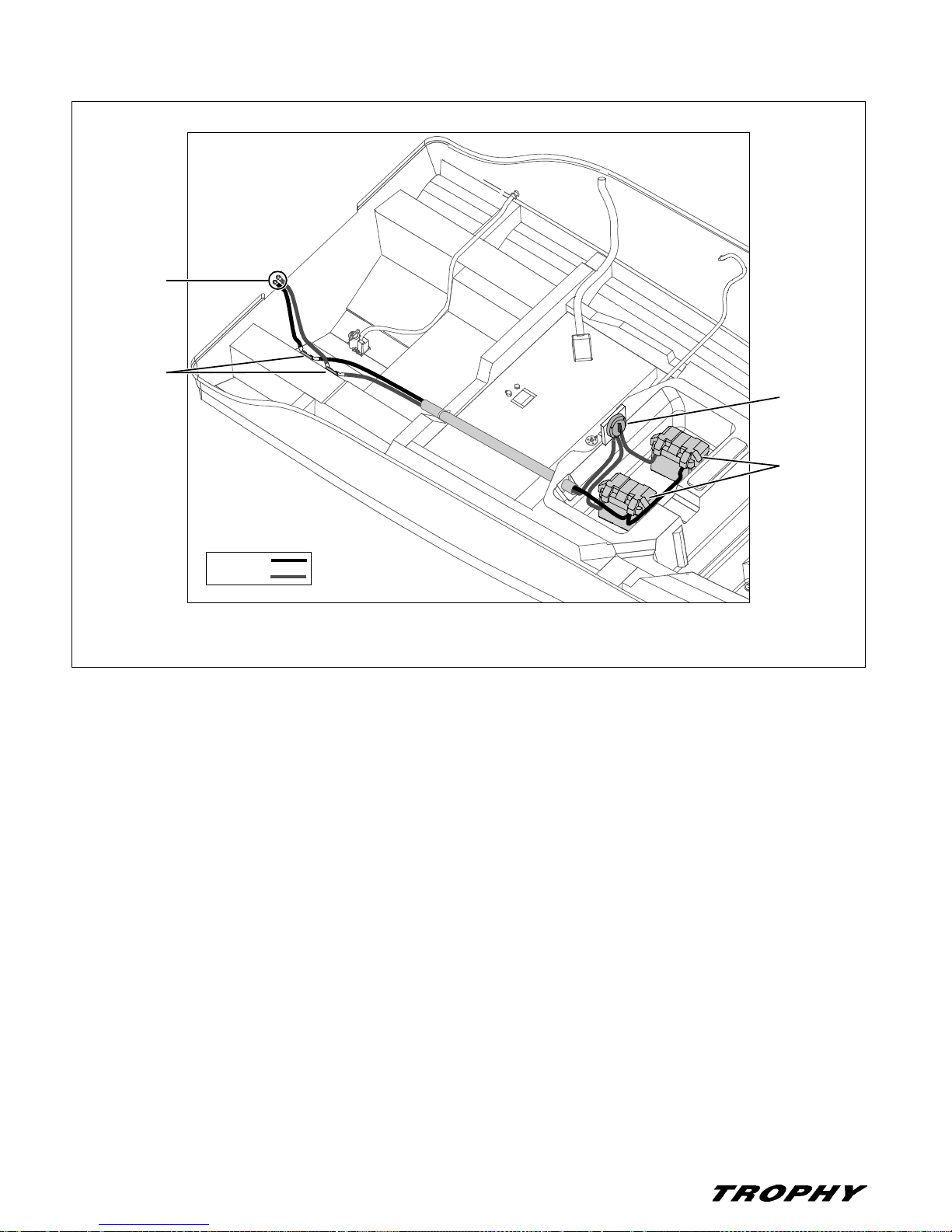

47 1703 Battery System
47 1903 Battery System
48 2103 Battery System

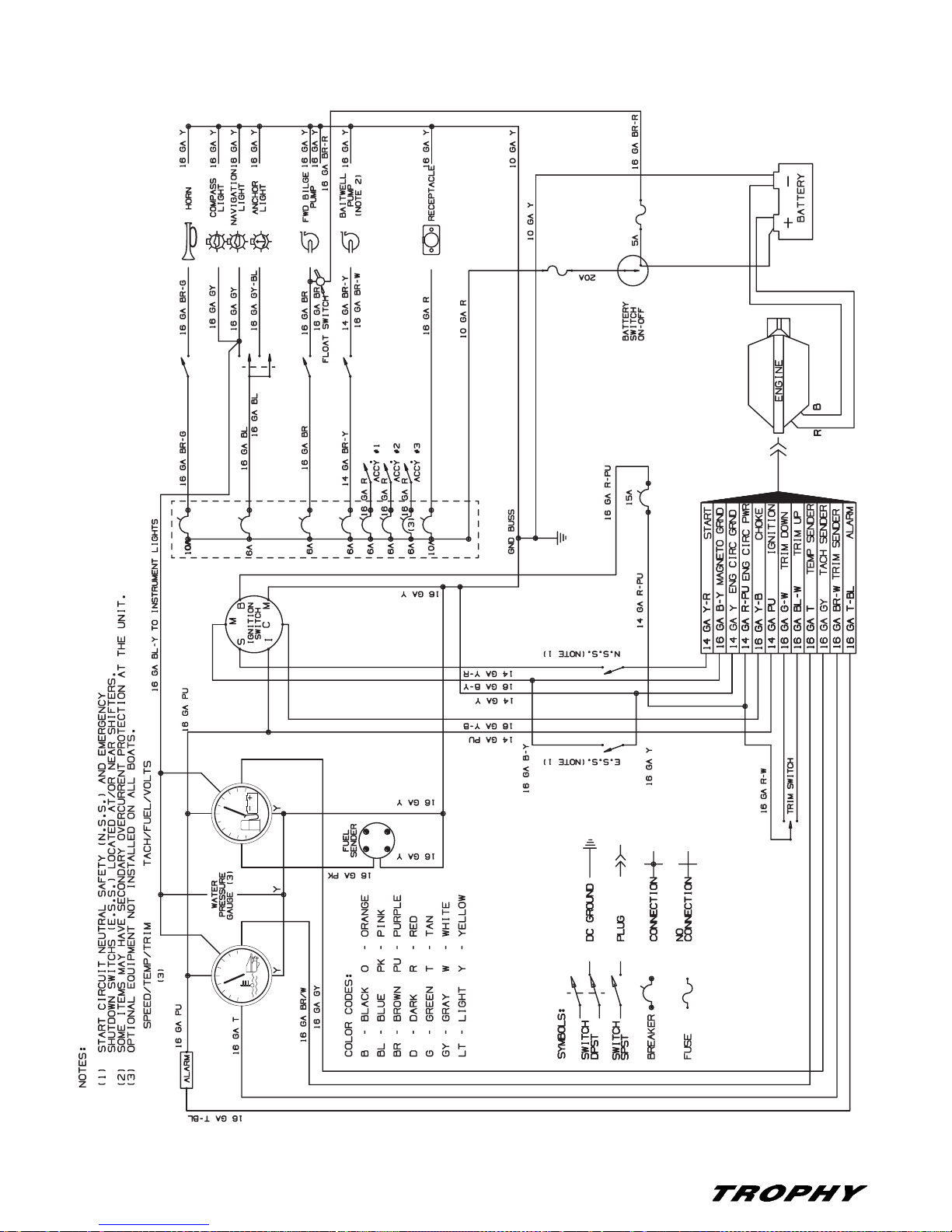

49 Wiring Diagrams
49 1703 Electrical System
50 1903 Electrical System
51 2103 Electrical System
52 Important Records
53 Float Plan
Page 6

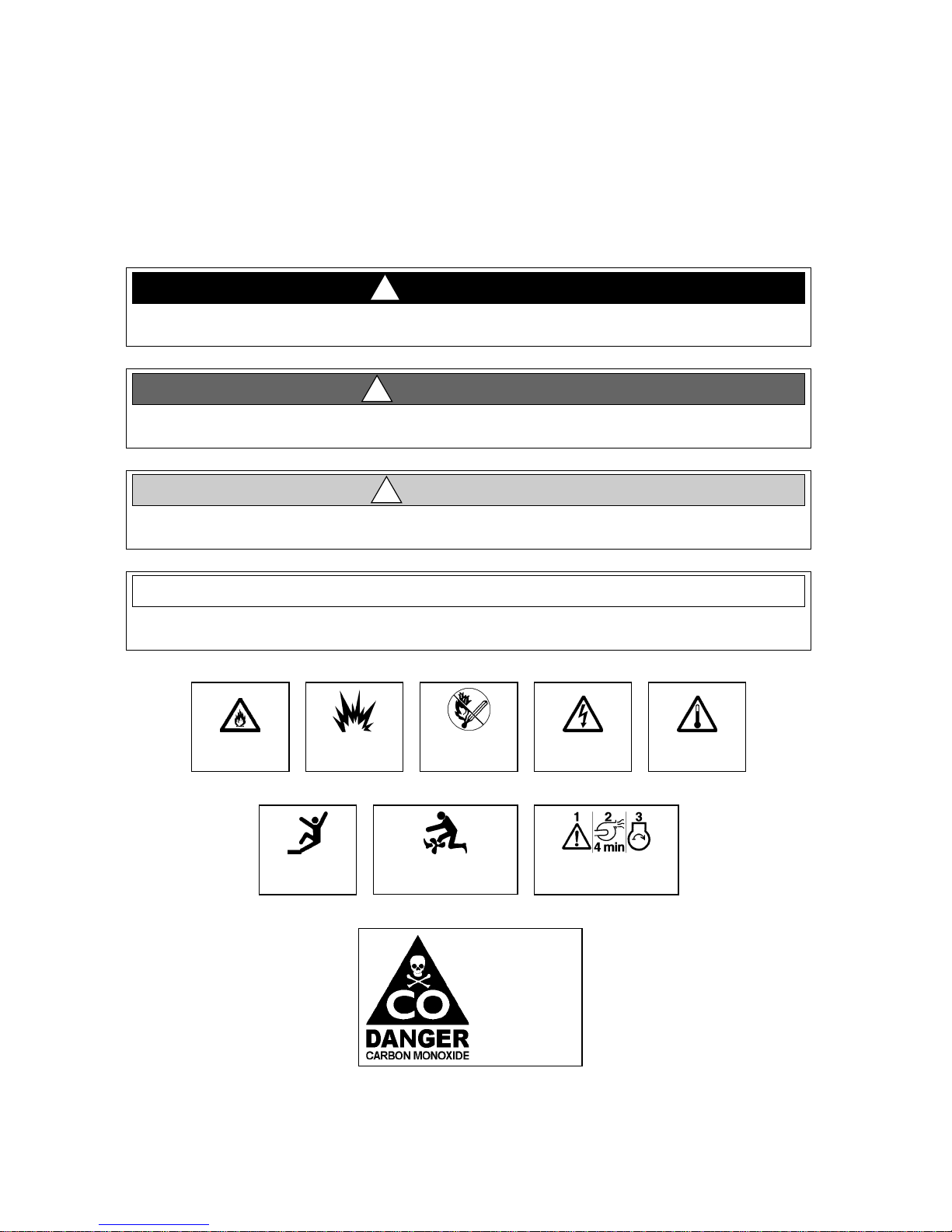

Hazard Boxes & Symb ols
The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dangerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully and
follow all safety instructions.
DANGER!
!
This box alerts you to immediate hazard s which WILL cause severe per sonal injur y or death if
the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD r es ult in severe perso nal
injury or death if the warning is ignored.
CAUTION
!
This box alerts you to hazards or unsafe practices which COULD r es ult in minor personal
injury or cause product or property damage if the war ning is i gnored.
NOTICE
This box calls attention to installation, operation or maintenance information, which is important to proper operation but is not hazard r ela ted.
FIRE
HAZARD!
EXPLOSION
FALLING
HAZARD!
HAZARD!
NO OPEN
FLAME!
ROTATING
PROPELLER HAZARD!
CO POISO N ING
HAZARD!
ELECTRICAL
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!
HOT
HAZARD!
Page 7
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 1: Welcome Aboard!
This Owner’s Manual Suppleme nt provi des speci fic infor mation about your boat t hat is not co vered in the Sport Boat
Owner’s Manual. Please study the Sport Boat Owner’s Manual and this Supplement carefully. Keep the Sport Boat
Owner’s Manual and this Supplement on your boat in a secure, yet readily available place.
Dealer Service
• Ask your dealer to explain all systems before taking delivery of your boat.
• Your dealer is your key to service.
• Contact your dealer if you have any problems with your new boat.
• If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235.
• Buy replacement parts from any authorized Trophy dealer.
Warranty Information
• Trophy offers a Limited Warranty on each new Trophy purchased through an authorized Trophy dealer.
• A copy of the Limited Warranty was included in your owner’s packet.
• If you did not receive a copy of the Limited Warranty, please contact your dealer or call 360-435-8957 for a copy.
Boating Experience
WARNI NG!
!
CONTROL HAZARD!
A qualified operator must be in control of the boat at all times. DO NOT opera43
If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and
safety, obtain handling and operating experience before assuming command of the boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For
more course information, including dates and locations of upcoming classes, contact the organizations directly:
• U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
• U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local
sea school s or competent instructors.
1
Page 8
Chapter 1: Welcome Aboard! 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement

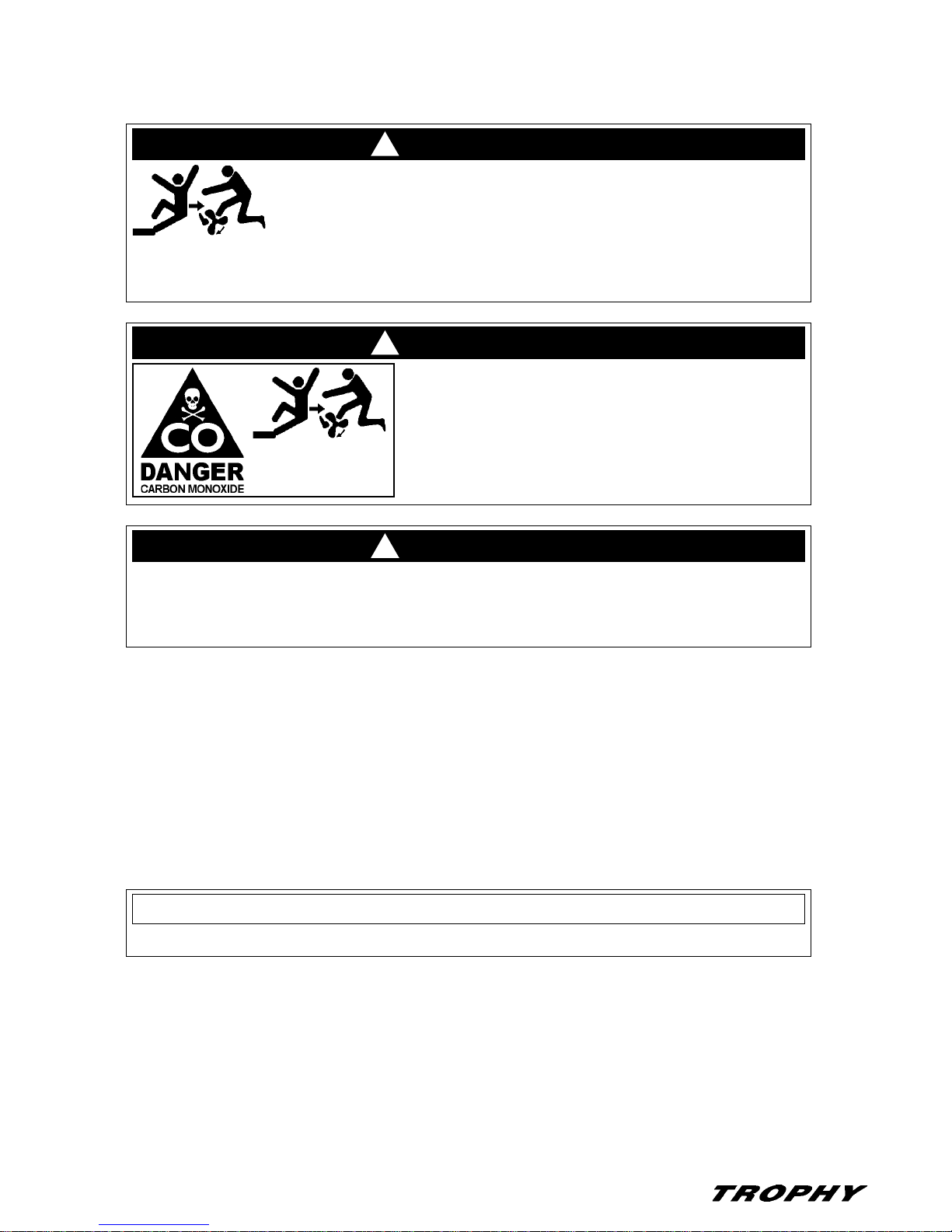

Safety Standards
DANGER!
!
FA LLING an d ROTA TING PROPE LLER HAZ ARD!
NEVER allow anyone to ride on part s of t he boa t not designed for
such use.
• Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupying the transom platform while underway is especially hazardous and will cause personal
injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
• NEVER allow anyone to occupy, or hang from, the
back deck or swim platf orm whil e t he engi ne(s )
are running.
• Teak surfing, dragging, or water skiing withi n 20 feet
of a moving waterc raft can be fat al.
DANGER!
!
PERSONAL SAF ETY HAZARD!
ALWAYS secure the anchor and other loose objects befor e ge tt ing unde rway. The anchor and
other items that are not properly secured can come loose when the boat is moving and cause
personal injury or death.
• Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
• Some of these standards were mandated by law, all of them were designed to insure your safet y, and the safety of
other people, vessels and property.
In addition to this Owner’s Manual Supplement, please read the Sport Boat Owner’s Manual and all accessory
instructio ns for important safety standards and hazard informat ion.
DANGER
Engine & Accessories Guidelines
NOTICE
When storing your boat ple ase refer to your engine’s operati on and mai ntenanc e manuals .
• Your boat’s engine and accessories were selected to provide optimum performance and service.
• Installing a different engine or other accessories may cause unwanted handling characteristics.
• Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your boat again.
Certain modifications to your boat can result in cancellation of your warranty protection. Always check with
your dealer before making any modifications to your boat.
2
Page 9
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 1: Welcome Aboard!
Engine & Accessories Literature
• The engine and accessories installed on your boat come with their own operation and maintenance manuals.
• Read and understand these manuals before using the engine and accessories.
• Unless noted otherwise, all engine and accessory literature referred to in this Supplement is included in your
owner’s packet.
Qualified Maintenance
WARNI NG!
!
To maintain the integrity and safety of your boat, al lo w onl y qual ified personnel to perform
maintenance on, or in any way modify: The steering system, propul sion system, engi ne contr ol
system, fuel system, environmental control system, electrical sys tem or navigational system.
• Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
• Follow the instructi ons pr ovide d in t he Sport Boat Owne r’s Manual, this Owner’s Manual Sup plement , the engine
owner’s manual and all accessory instruction sheets and manuals.
Special Care For Moored Boats
NOTICE
• T o help s eal the hul l bottom and reduc e the possi bility of gelcoat bl istering on moored bo ats,
apply an epoxy barrier coating . The barri er coating should be covered with sev eral coats of
anti-fouling pain t.
• Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your l ocal deal er about recommended bottom paints, and about the
laws in effect in your area.
• Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.
• This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.
• Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
3
Page 10
Chapter 1: Welcome Aboard! 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Carbon Monoxide (CO)
DANGER!
!
• Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
• All engines, generato rs, and f uel b u rning appliances produce CO
as exhaust.
• Prolonged exposure to lo w conce ntrat ions or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
• Teak surfing, dragging, or water skiing within 20 feet of a mo ving watercraft can be fatal.
Facts about CO
• CO poisoning causes a significant number of boating deaths each year.
• Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
• CO can harm or even kill you inside or outside your boat.
• CO can affect you whether you’re underway, moored, or anchored.
• CO symptoms are similar to seasickness or alcohol intoxication.
• CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
• Breathing CO blocks the ability of your blood to carry oxygen.
• The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
• Age
• Smokers or people exposed to high concentrations of cigarette smoke
• Consumption of alcohol
• Lung disorders
• Heart problems
• Pregnancy
4
Page 11
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 1: Welcome Aboard!

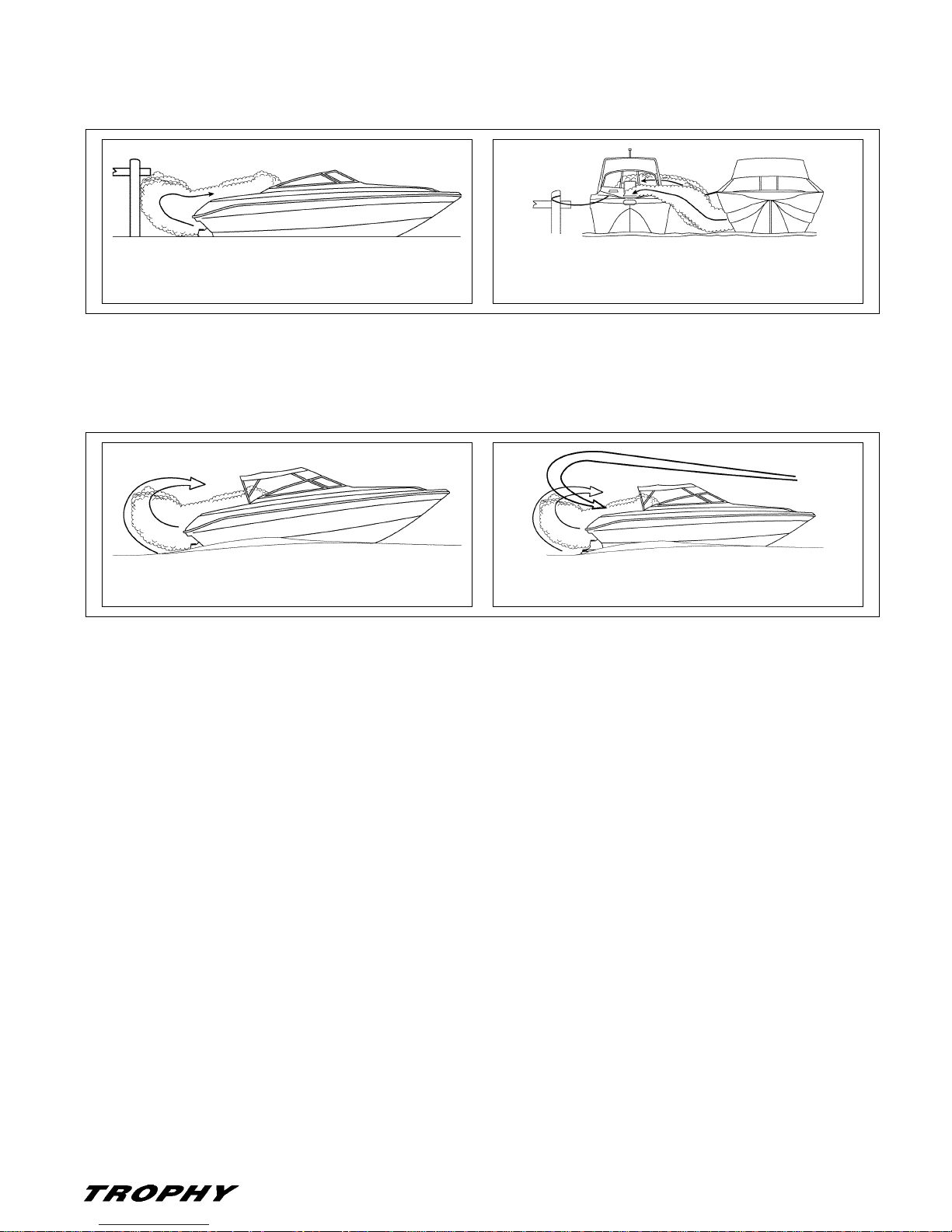

Where and How CO Can Accu mulate
Stationary Conditions That Increase CO Accumulations Include:
A. Using engine, generator, or other fuel burn-
ing device when boat is moored in a confined space.
B. Mooring too close to another boat that is
using its engine, generator, or other fuel
burning device.
To correct stationary situations A and/or B:
• Close all windows, portlights and hatches.
• If possible, move your boat away from source of CO.
Running Conditions That Increase CO Accumulations Include:
C. Running boat with trim angle of bow too high. D. Running boat without through ventilation (sta-
tion wagon effect).
To correct running situations C and/or D:
• Trim bow down.
• Open windows and canvas.
• When possible, run boat so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Ot hers From CO
• Know where and how CO may accumulate in and around your boat (see above).
• Maintain fresh air circulation throughout the boat at all times.
• Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
• Never sit on, or hang onto, the back deck or swim platform while the engine(s) are running.
• Never enter the areas under swim platforms where exhaust outlets are located.
• Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the boat, take
immediate action to dissipate these fumes.
• Treat sympt oms of se asick ness as possib le CO pois oning. Get the pe rson into f resh a ir immediat ely. Seek medical
attention—unless you’re sure it’s not CO.
• Install and maintain CO a larms ins ide your boat. Do not ignore any alarm. Replace alarms as recomme nded by the
alarm manufacturer.
• Follow the checklists provided on the next page.
• Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
• U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
• U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
5
Page 12
Chapter 1: Welcome Aboard! 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Trip Checklist
❏ Make sure you know where the exhaust outlets are located on your boat.
❏ Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏ When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏ Confirm that water flows from the exh aust outlet when the engines and generator are starte d.
❏ Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏ Test the operation of each CO alarm by pressi ng the test button.
Monthly Checklist
❏ Make sure all exhaust clamps are in place and secure.
❏ Look for exhaust leaking from exhaust system components. Signs include rust and/or black st reaking, water
leaks, or corroded or cracked fittings.
❏ Inspect rubber exhaust hose s for burned, cra cked, or deter iorated se ctions. All rubber hoses should be pli able and
free of kinks.
Annual Checklis t
Have a Qualified Marine Technician:
❏ Replace exhaust hoses if cracking, charring, or deterioration is found.
❏ Ensure that your engines and generators are properly tuned, and well maintained.
❏ Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏ Inspect all meta llic exhaust components for cracking, rusting, leakin g, or loosenin g. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple betwee n the manifold and the elbow.
❏ Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
More Information
For more informati on about h ow you can p revent ca rbon monoxid e pois oning on r ecreati onal boat s and oth er ways t o
boat more sa fely, contact:
United States Coast Guard
Office of Boatin g Safety (G-O PB-3)
2100 Second Street SW
Washington, DC 20593
www.uscgboating.org
1-800-368-5647
National Marine Manufacture rs
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
American Boat & Yacht Council,
Inc. (ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037- 1416
www.abycinc.org
410-956-1050
312-946-6200
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
• U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
• U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
6
Page 13
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement

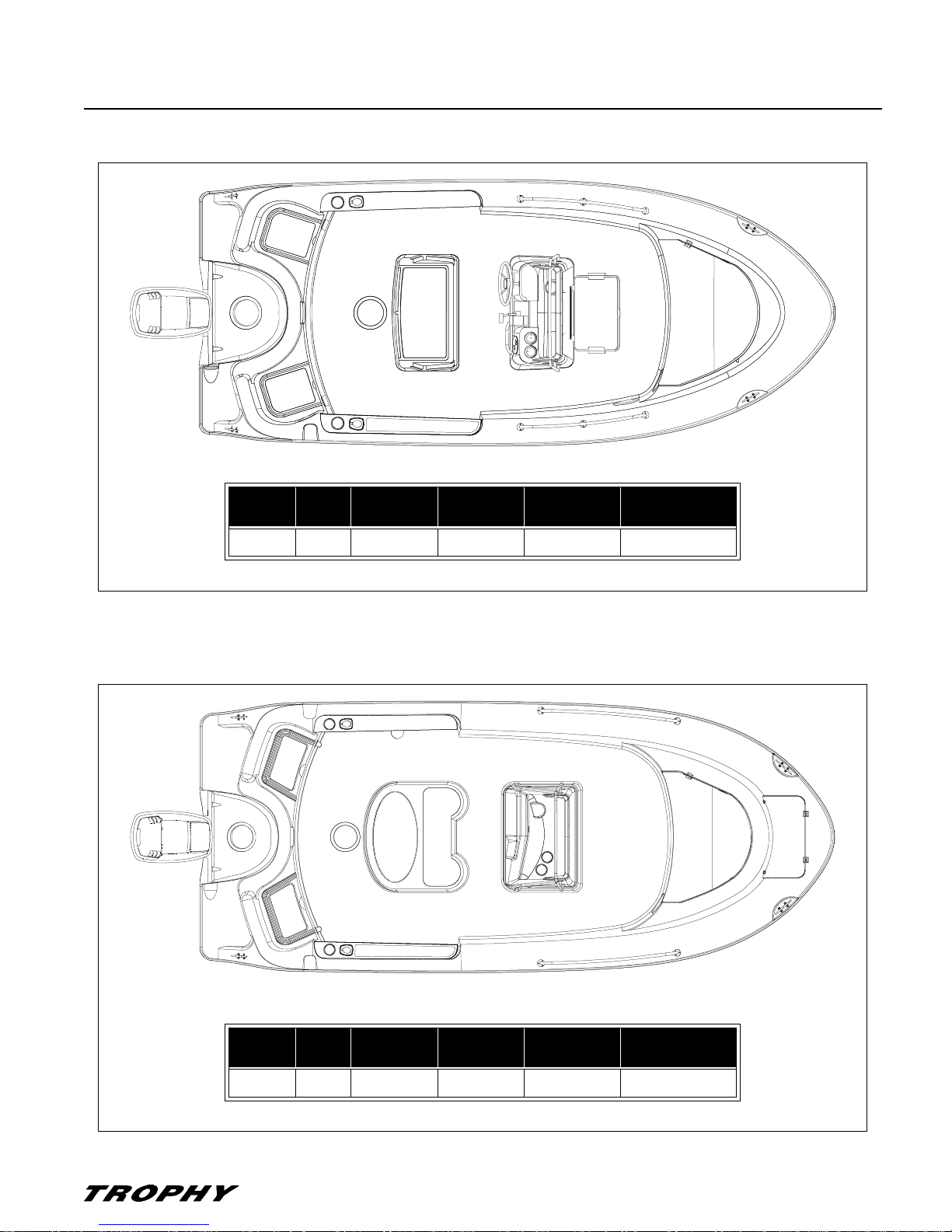

Chapter 2: Product Specifications
1703
1903
Overall
Length
17' 0" 7' 2" 4' 9" 1' 1" 2' 5" 37
Beam
Bridge
Clearance
Draft
(Drive Up)
Draft (Drive
Down)
Fuel Capacity
(gallons)
Overall
Length
19' 0" 8' 2" 7' 9" 1' 3" 2' 8" 55
Beam
Bridge
Clearance
Draft
(Drive Up)
Draft (Drive
Down)
Fuel Capacity
(gallons)
7
Page 14

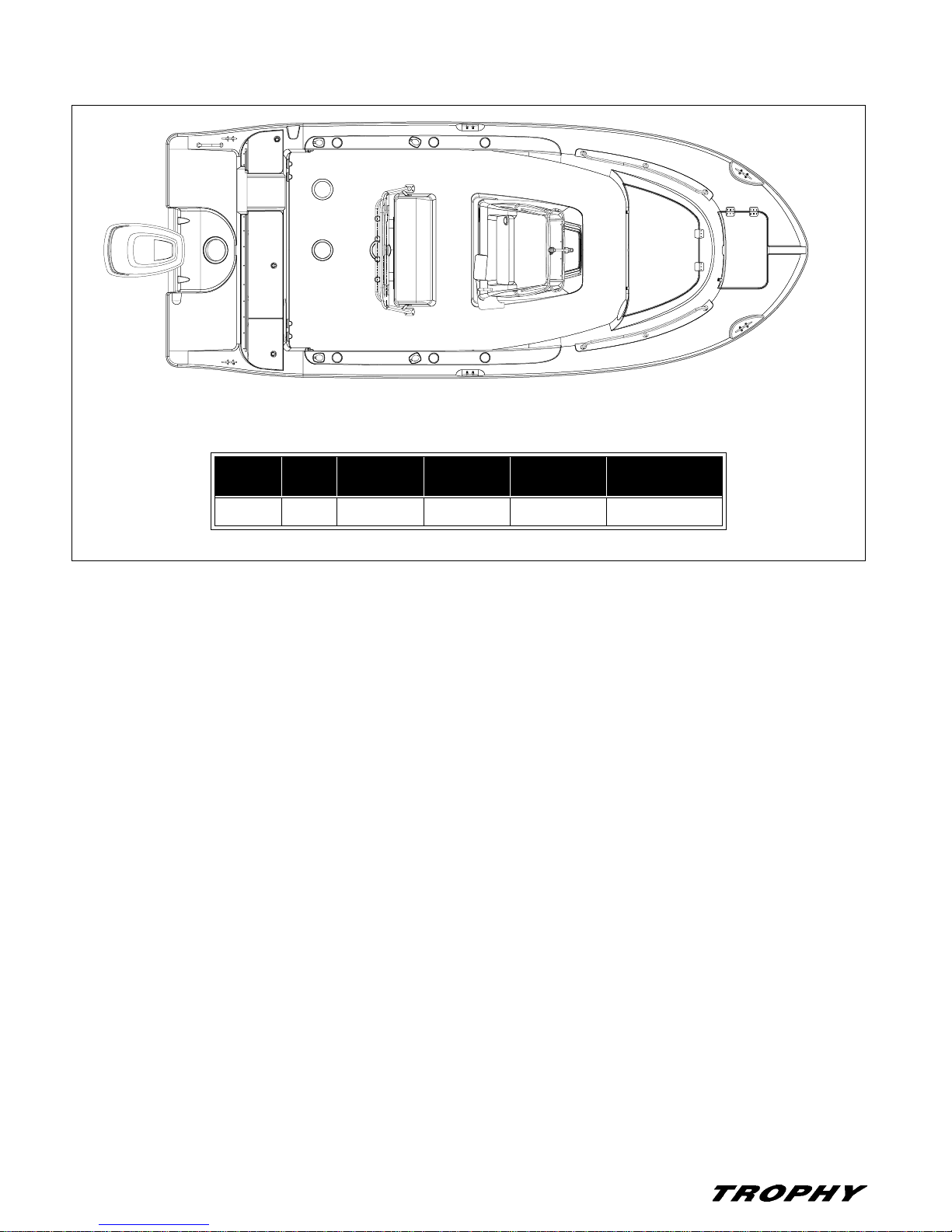

Chapter 2: Product Specifications 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
2103
Overall
Length
21' 3" 8' 6" 8' 0" 1' 6" 2' 11" 101
Beam
Bridge
Clearance
Draft
(Drive Up)
Draft (Drive
Down)
Fuel Capacity
(gallons)
8
Page 15
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 3: Locations
Exterior Views

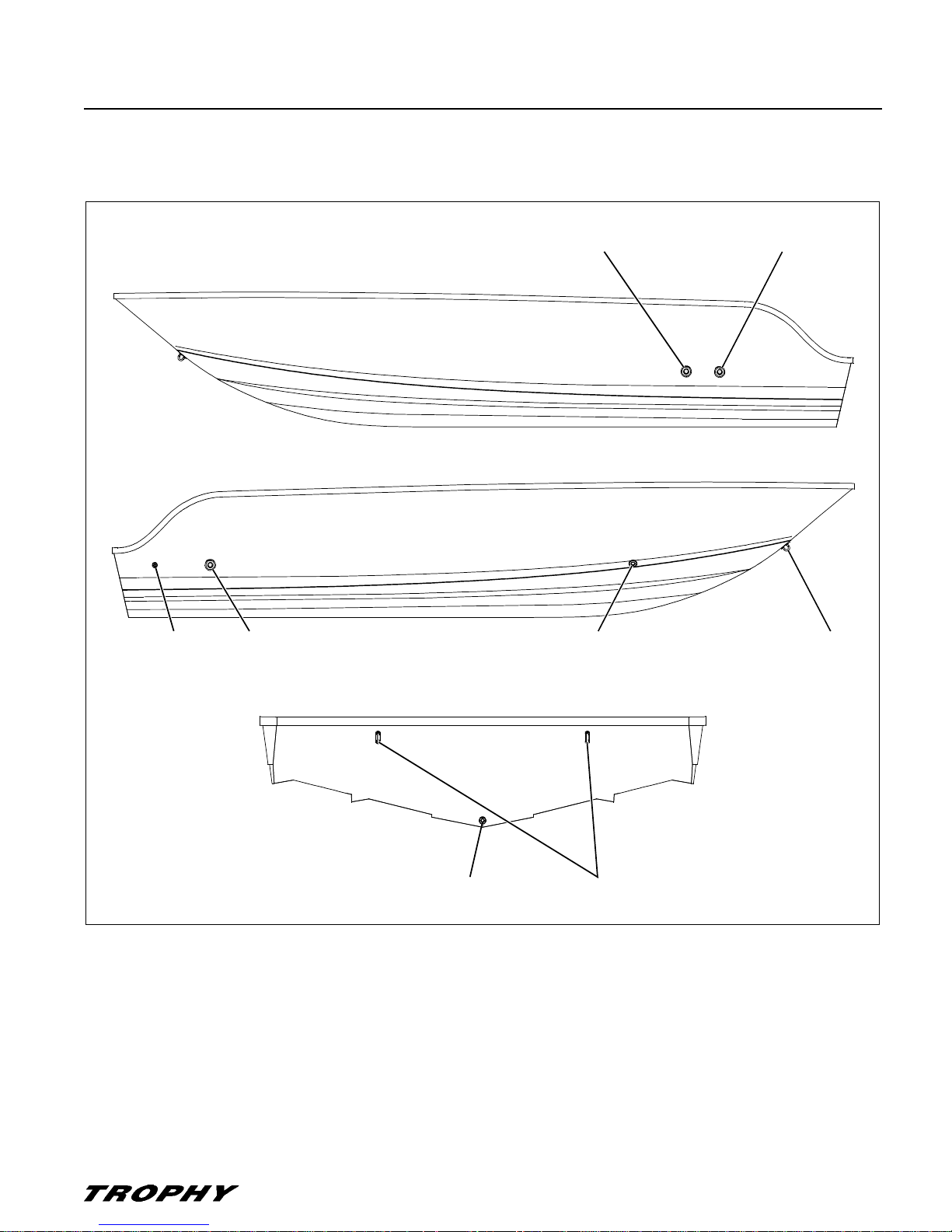

1703 Exterior Hu ll Views
BILGE PUMP
OVERBOARD
DECK
DRAIN
PORT HULLSIDE
STARBOARD HULLSIDE
BAITWELL
DRAIN
STORAGE
DRAIN
DECK
DRAIN
BOW EYE
TRANSOM
GARBOARD DRAIN STERN EYES
9
Page 16
Chapter 3: Locations 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
1903 Exterior Hu ll Views
BILGE PUMP
OVERBOARD
DECK
DRAIN
PORT HULLSIDE
STARBOARD HULLSIDE
BAITWELL
DRAIN
FISH BOX
DRAIN
DECK
DRAIN
BAITWELL HIGH
SPEED PICKUP
BOW EYE
TRANSOM
GARBOARD DRAIN STERN EYES
10
Page 17
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 3: Locations
2103 Exterior Hu ll Views
BOW EYE
WASTE TANK VENT
WATER TANK
VENT (IF EQUIPPED)
(IF EQUIPPED)
BILGE PUMP
OVERBOARD
PORT HULLSIDE
STARBOARD HULLSIDE
FUEL TANK
VENT
BILGE PUM P
OVERBOARD
DECK DRAINS
BAITWELL FISH BOX
DRAIN
BOARDING LADDER
(IF EQUIPPED) DRAIN
DECK
DRAINS
DRAIN
STERN EYES
TRANSOM
TRIM TAB TRIM TAB
GARBOARD
11
Page 18
Chapter 3: Locations 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement

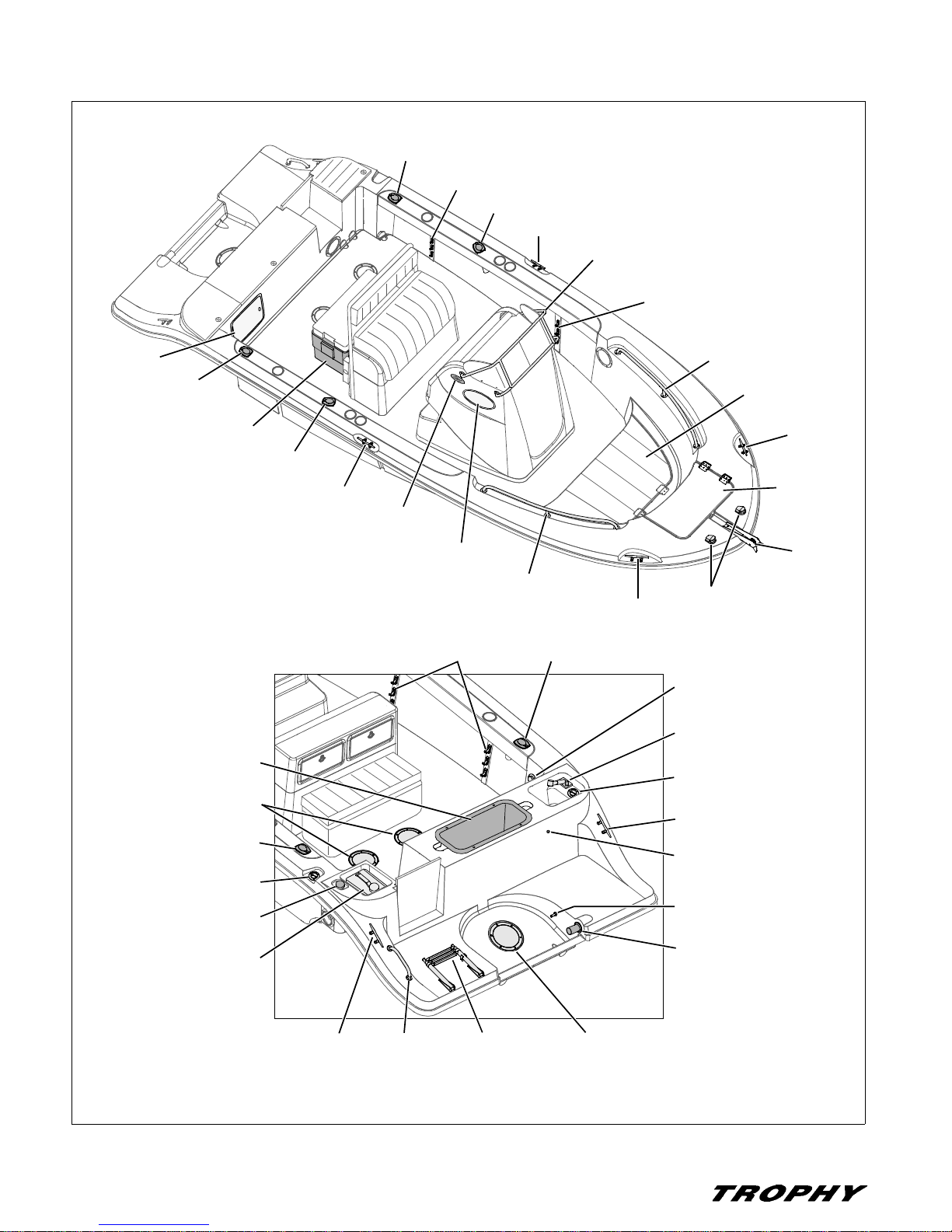

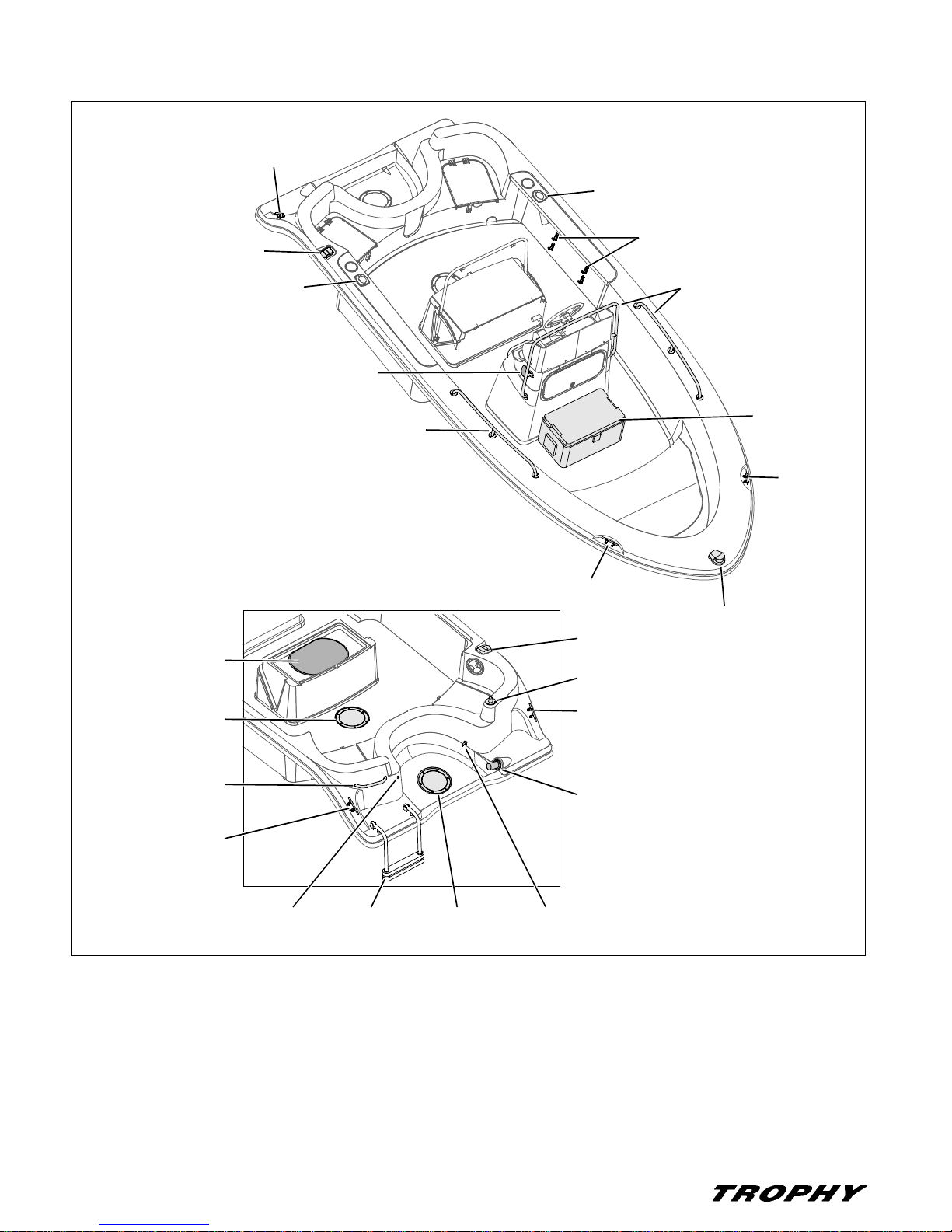

1703 Deck View
CLEAT
ROD HOLDER
FISHING ROD
FUEL FILL/VENT
DECK FITTING
ROD
HOLDER
HORN
STOWAGE
GRAB
RAILS
BAITWELL
FUEL TANK
DECK PLATE
GRAB
RAIL
CLEAT
GRAB
RAIL
CLEAT
FUEL FILL/VENT
DECK FITTING
ALL AROUND
LIGHT SOCKET
CLEAT
MOTOR WELL
BOOT
NAVIGATION
LIGHT
COOLER
CLEAT
AERATOR
VENT
12
BOARDING
LADDER
MOTOR WELL
DECK PLATE
FUEL LINE
TO ENGINE
Page 19
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 3: Locations

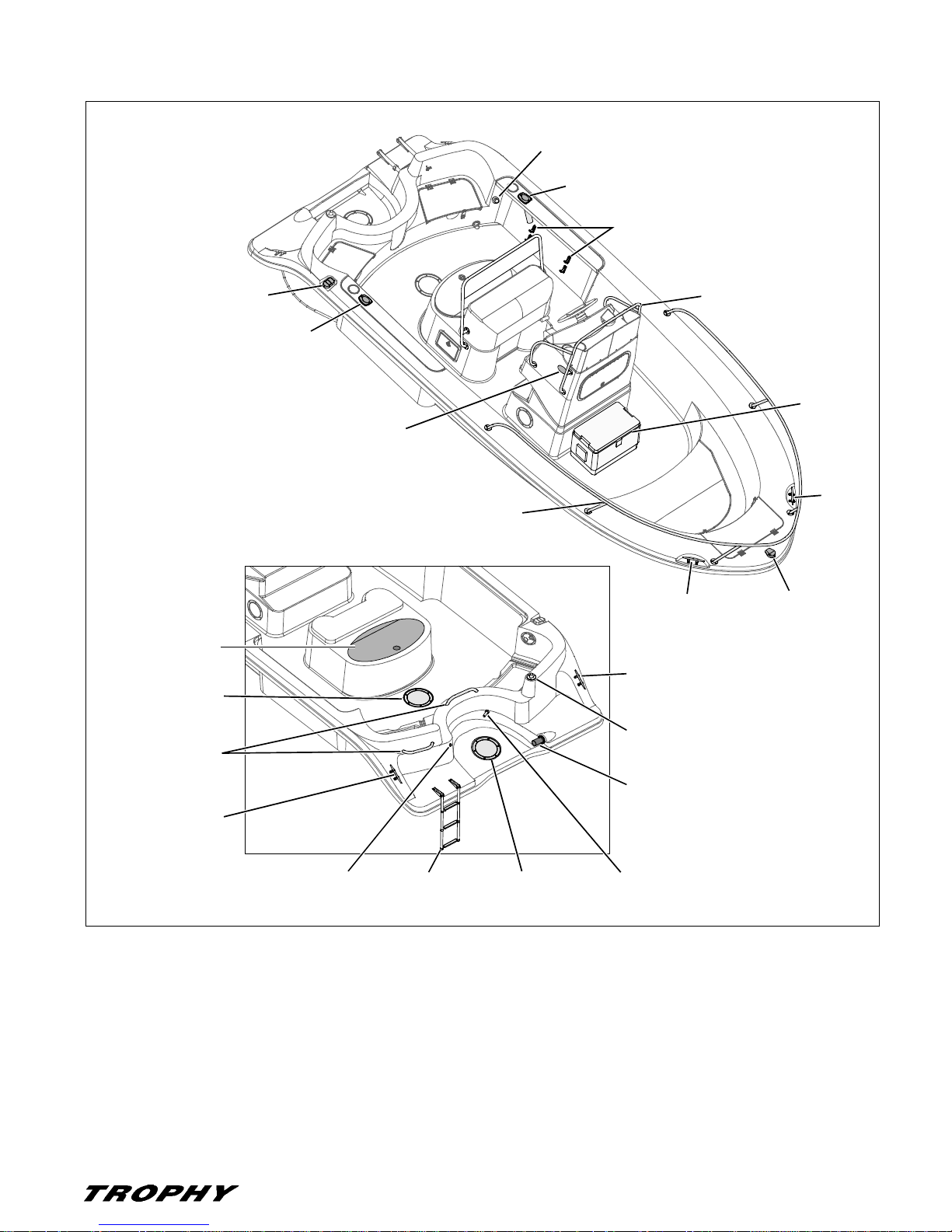

1903 Deck View
SEAWATER
WASHDOWN
(IF EQUIPPED)
ROD
HOLDER
FISHING ROD
STOWAGE
FUEL FILL/VENT
DECK FITTING
BAITWELL
FUEL TANK
DECK PLATE
GRAB
RAILS
ROD
HOLDER
HORN
GRAB
RAIL
CLEAT
CLEAT
ALL AROUND
LIGHT SOCKET
MOTOR WELL
BOOT
GRAB
RAIL
COOLER
NAVIGATION
LIGHT
CLEAT
CLEAT
AERATOR
VENT
BOARDING
LADDER
MOTOR WELL
DECK PLATE
FUEL LINE
TO ENGINE
13
Page 20
Chapter 3: Locations 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
2103 Deck View
ROD
HOLDER
FISHING ROD
STOWAGE
ROD
HOLDER
CLEAT
GRAB
RAIL
FISHING ROD
STOWAGE
ACCESS
HATCH
ROD
HOLDER
DECK PLATES
DECK FITTING
DECK FITTING
COOLER
BAITWELL
FUEL TANK
ROD
HOLDER
FUEL FILL
OIL FILL
OIL
CONTAINER
ROD
HOLDER
CLEAT
HORN
PORTLIGHT
FISHING ROD
STOWAGE
GRAB
RAIL
HOLDER
ROD
CLEAT
GRAB
RAIL
FISH
LOCKER
CLEAT
ANCHOR
LOCKER
ANCHOR
ROLLER
NAVIGATION
LIGHTS
SEAWATER WASHDOWN
(IF EQUIPPED)
FAUCET/SHOWER
(IF EQUIPPED)
WATER FILL DECK FITTING
(IF EQUIPPED)
CLEAT
AERATOR
VENT
FUEL LINE
TO ENGINE
MOTOR WELL
BOOT
14
CLEAT
GRAB
RAIL
BOARDING
LADDER
MOTOR WELL
DECK PLATE
Page 21
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 3: Locations

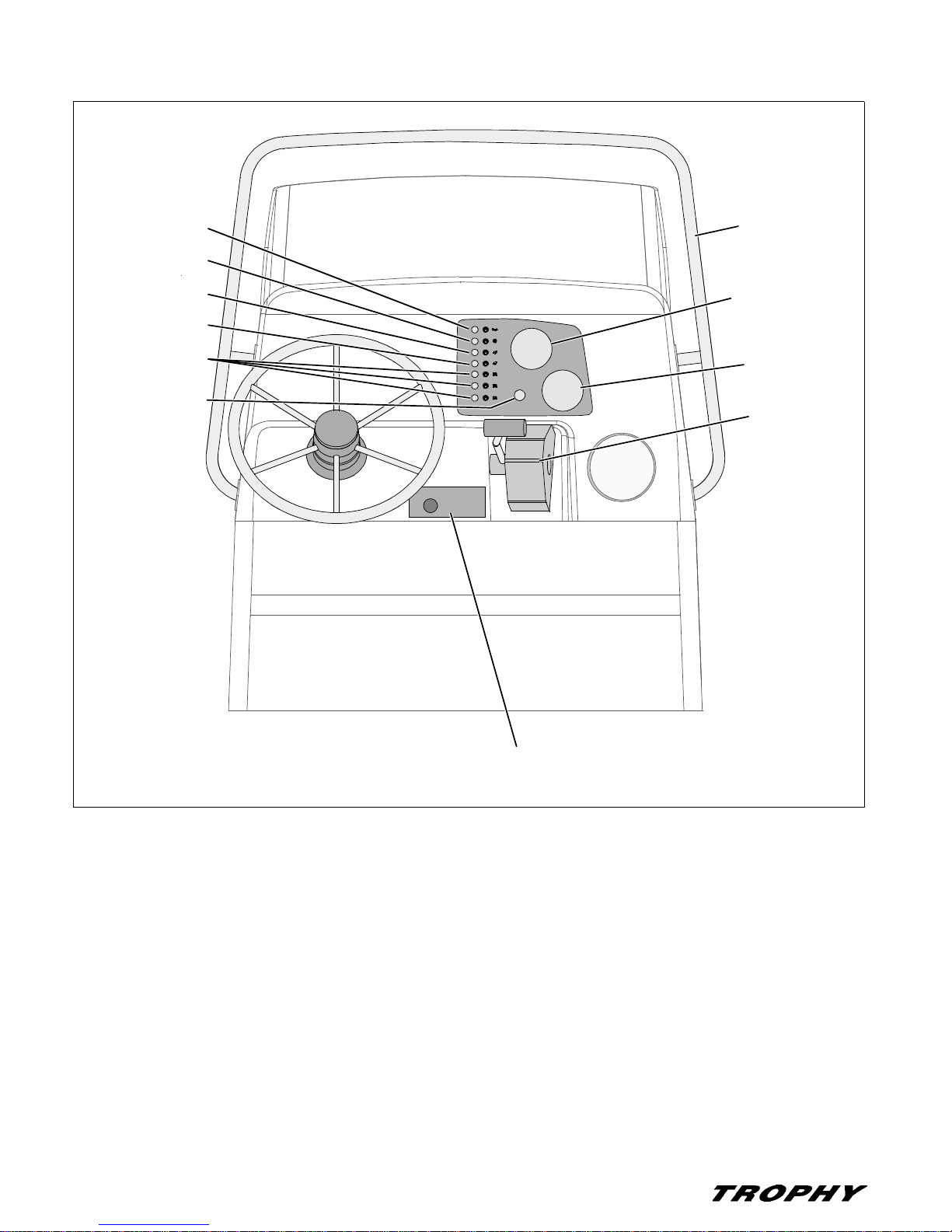

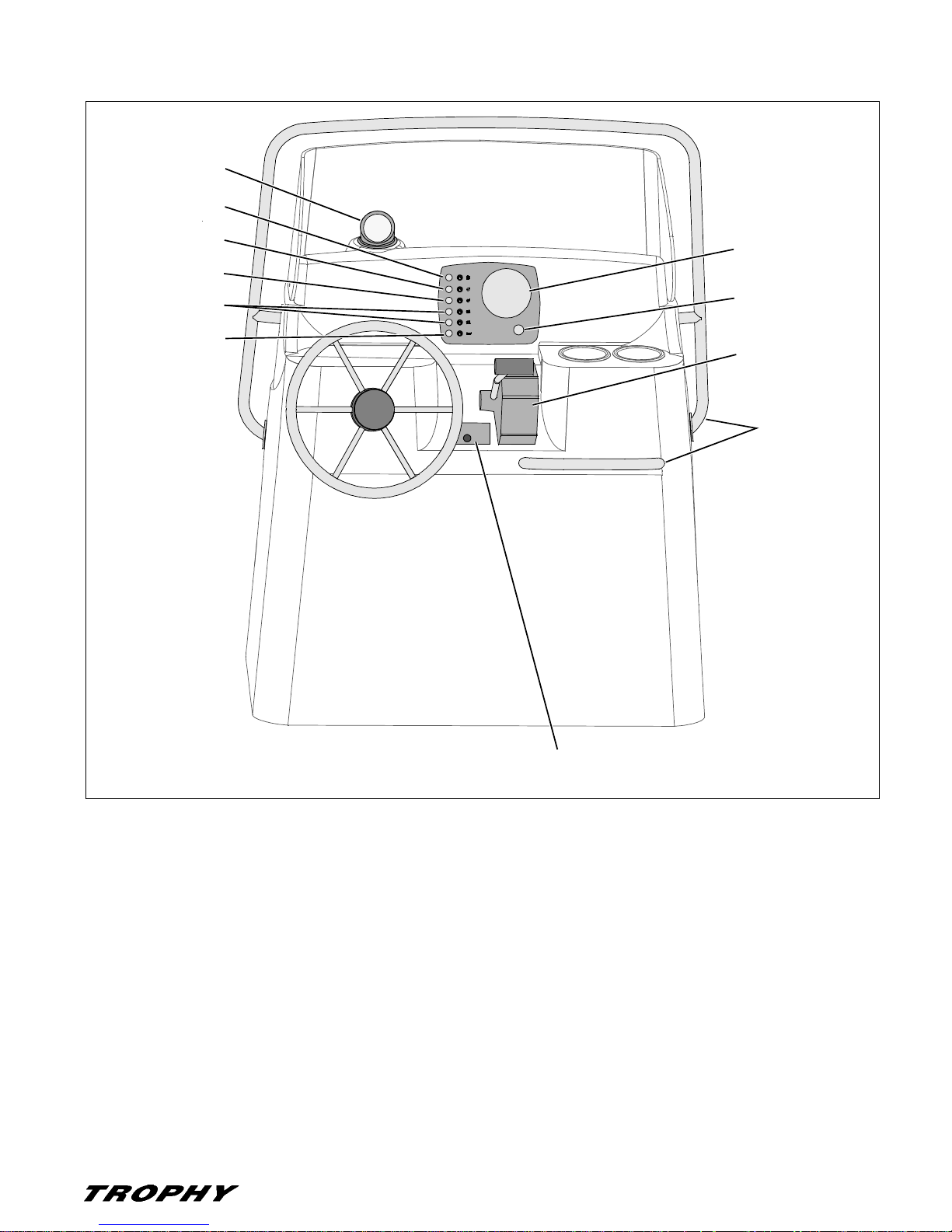

1703 Helm View
COMPASS
NAVIGATION
LIGHTS
BILGE
PUMP
BAITWELL
PUMP
ACCESSORY
SWITCHES
TACHOMETER, FUEL,
& VOLTAGE GAUGE
12 VOLT
RECEPTACLE
HORN
IGNITION
PANEL
SHIFT/THROTTLE
LEVER
GRAB RAILS
15
Page 22
Chapter 3: Locations 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
1903 Helm View
HORN
NAVIGATION
LIGHTS
BILGE
PUMP
BAITWELL
PUMP
ACCESSORY
SWITCHES
12 VOLT
RECEPTACLE
GRAB RAIL
TACHOMETER, FUEL,
& VOLTAGE GAUG E
SPEEDOMETER,
TEMPERATURE,
& TRIM GAUGE
SHIFT/THROTTLE
LEVER
16
IGNITION
PANEL
Page 23
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 3: Locations
2103 Helm View
ALL AROUND
LIGHT
GRAB RAIL
COMPASS
TACHOMETER, VOLTAGE,
& FUEL GAUGE
SPEEDOMETER,
TEMPERATURE,
& TRIM GAUGE
IGNITION
PANEL
SHIFT/THROTTLE
LEVER
HORN
FORWARD BILGE PUMP
AFT BILGE PUMP
BAITWELL PUMP
FRESH WATER PUMP
(IF EQUIPPED)
NAVIGATION LIGHTS
INSTRUMENT LIGHTS
COURTESY LIGHTS
ACCESSORY SWITCHES
12 VOLT RECEPTACLE
GRAB RAIL
17
Page 24
Chapter 3: Locations 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Component Locations
12-Vo lt Accessory Outlet:
• 1703: At the helm on the gauge/switch panel (refer to page 13 for location view).
• 1903: At the helm on the gauge/switch panel (refer to page 14 for location view).
• 2103: At the helm on the gauge/switch panel (refer to page 15 for location view).
All Around Light Socket:
• 1703-1903: On the aft starboard deck (refer to deck views on pages 10 & 11).
• 2103: On the upper grab rail at the helm (refer to page 15 for location view).

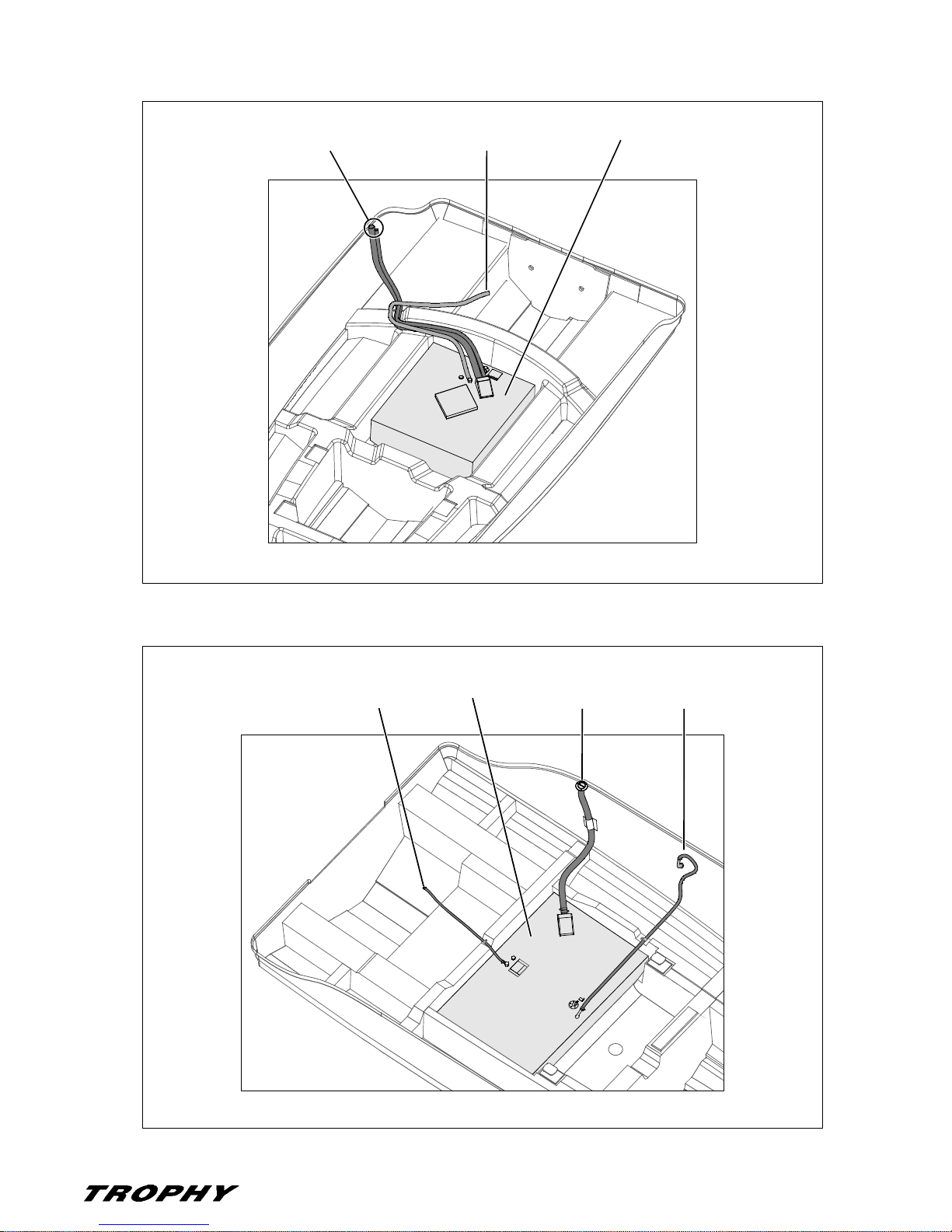

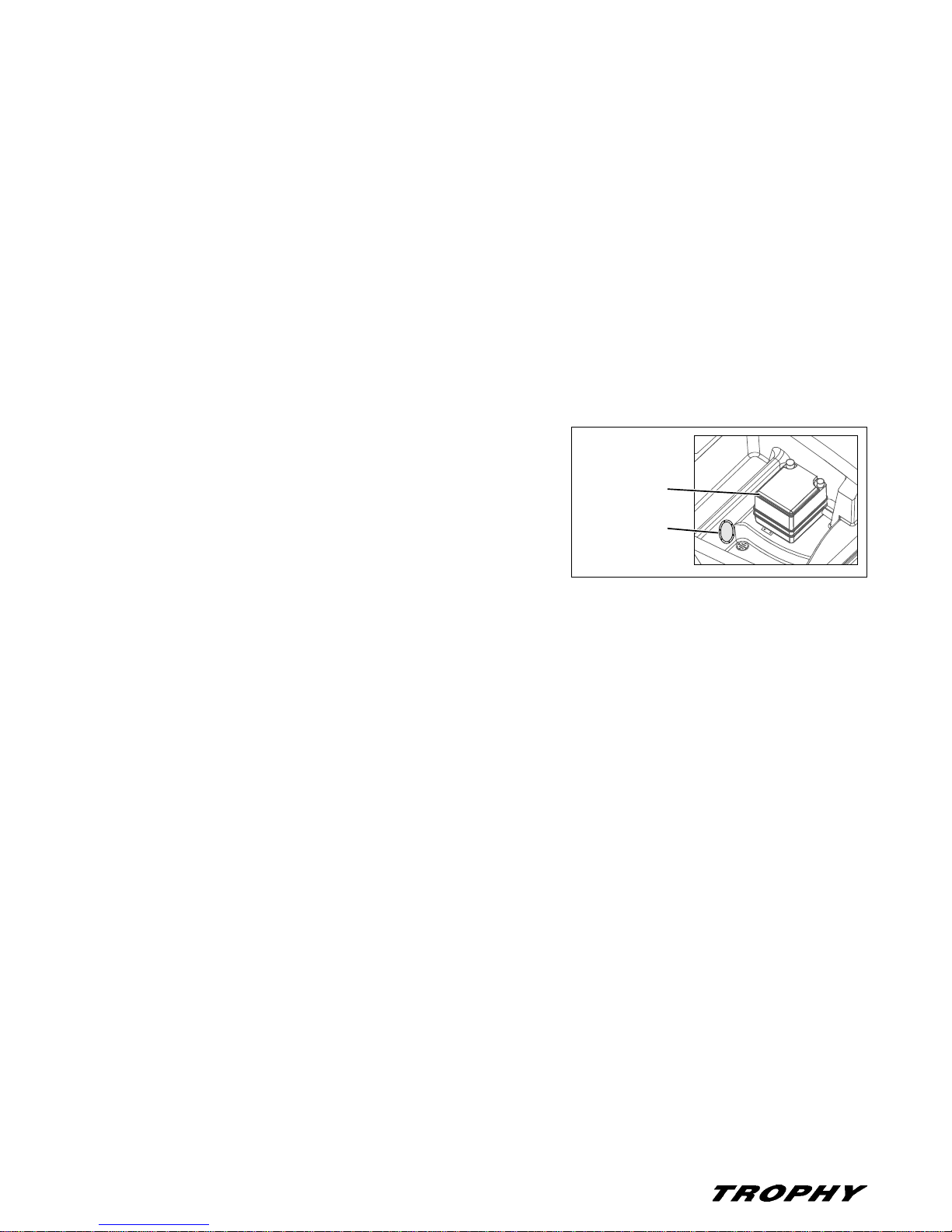

Battery and Battery Switch:

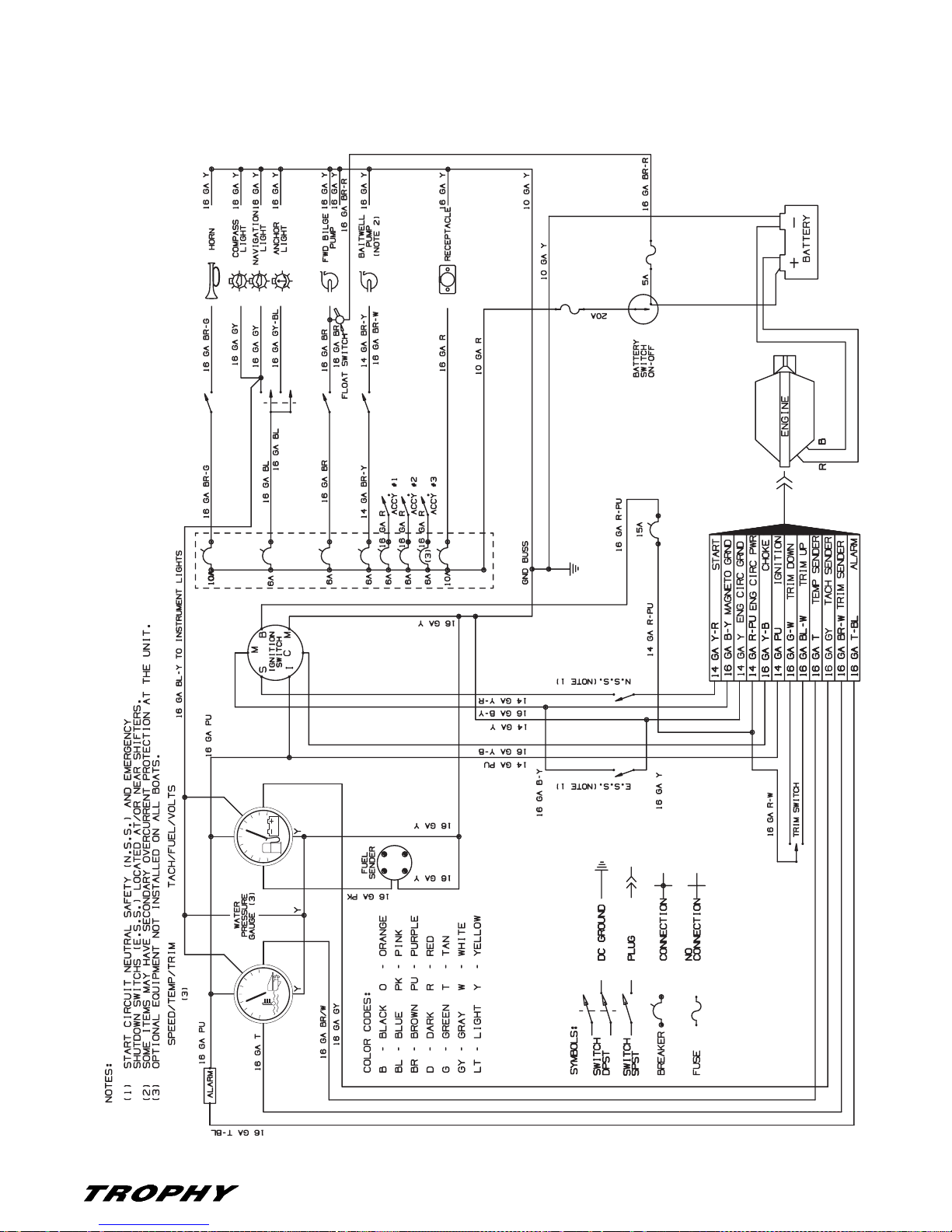

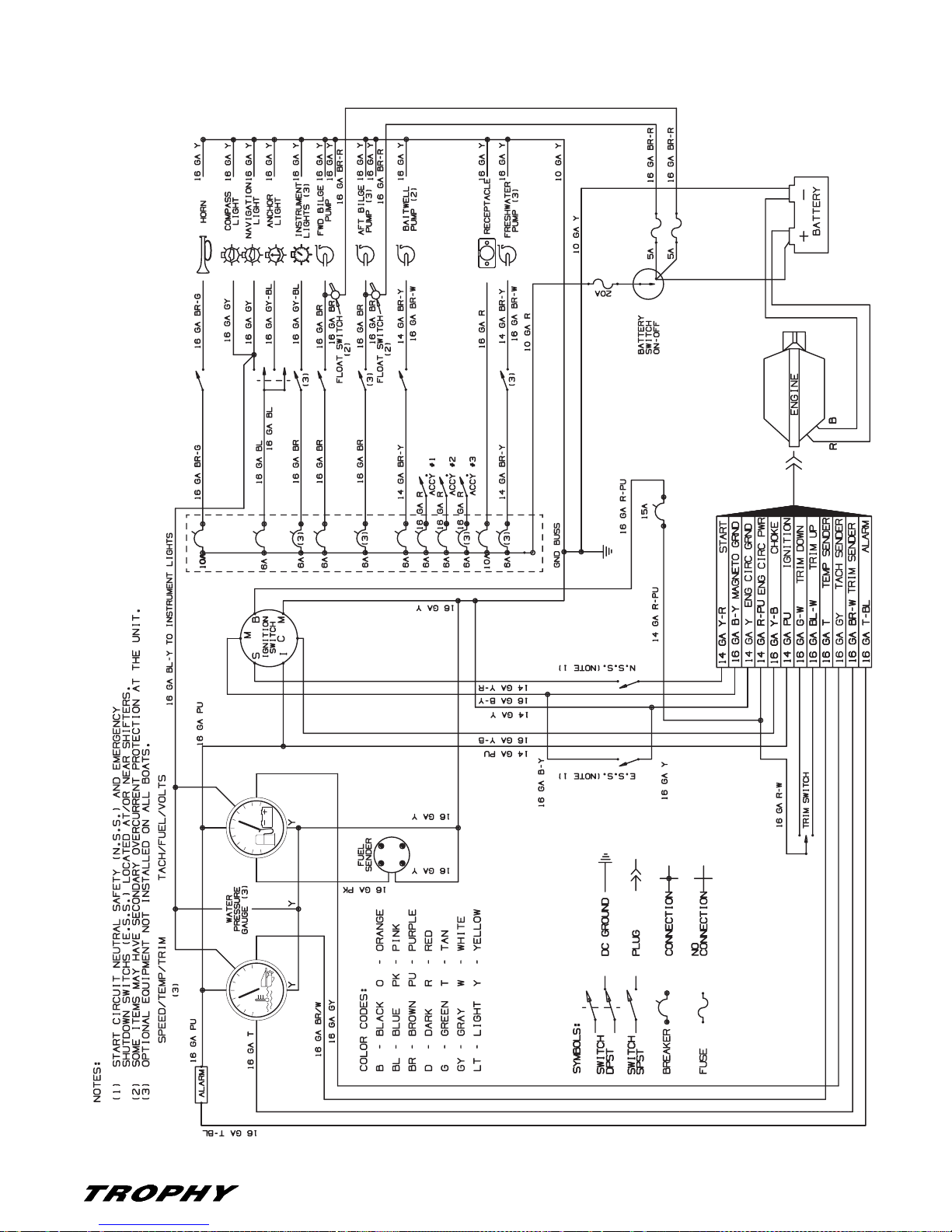

• 1703 & 1903: Access is under the aft starboard seat (refer to the Battery System views in C hapter 10:
Electrica l System).

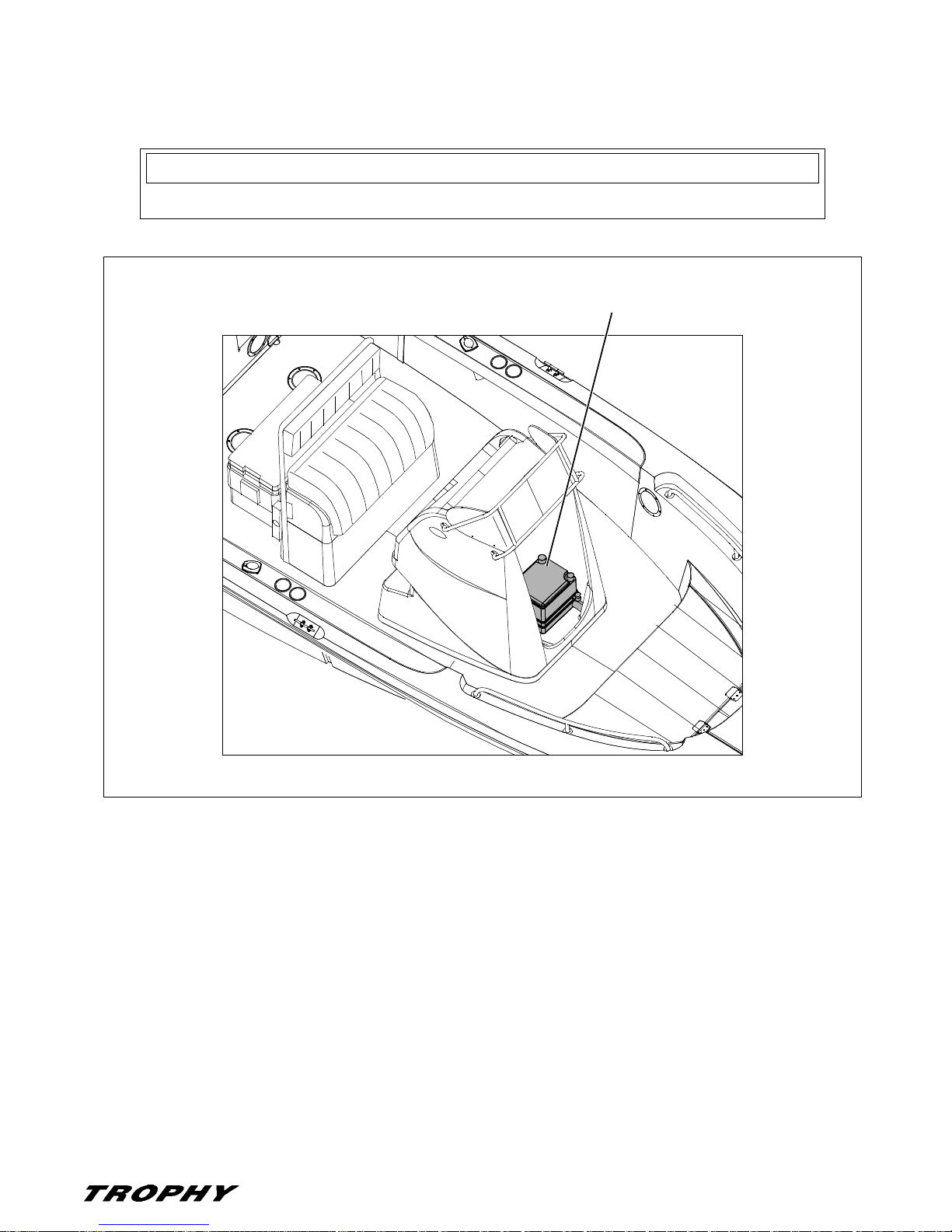

• 2103: Access is under the helm seat (refer to the Battery System view in Chapter 10: Electrical System).
Bilge Pump(s):
• 1703: Bilge pump access is through the motorwell deck plate (refer to page 10 for location view).
• 1903: Bilge pump access is through the motorw ell deck plate (refer to page 11 for location view) .
• 2103: Aft bilge pump access is through the motorwell deck plate
(refer to page 12 for location view). Forward bi lge pump access is
through the deck plate in the portable head compartment.
FORWARD BILGE
PUMP ACCESS
PORTABLE
HEAD
DECK PLATE
Engine Circuit Break er : On the engine (refer to the Engine Owner’s manual).
18
Page 25
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 3: Locations
Fuel Fill/Vent:
• 1703: On the aft starboard deck (refer to page 10 for location view).
• 1903: On the aft starboard deck (refer to page 11 for location view).
• 2103: On the aft port deck (refer to page 12 for location view).
Fuel Tank:
• 1703: Fuel tank access is through the deck plate aft of the bait well (refer to page 10 for location view).
• 1903: Fuel tank access is through the deck plate aft of the bait well (refer to page 11 for location view).
• 2103: Fuel tank access is through the deck plates aft of the cooler (refer to page 12 for location view).
Baitwell Seawater Intake Seacock:

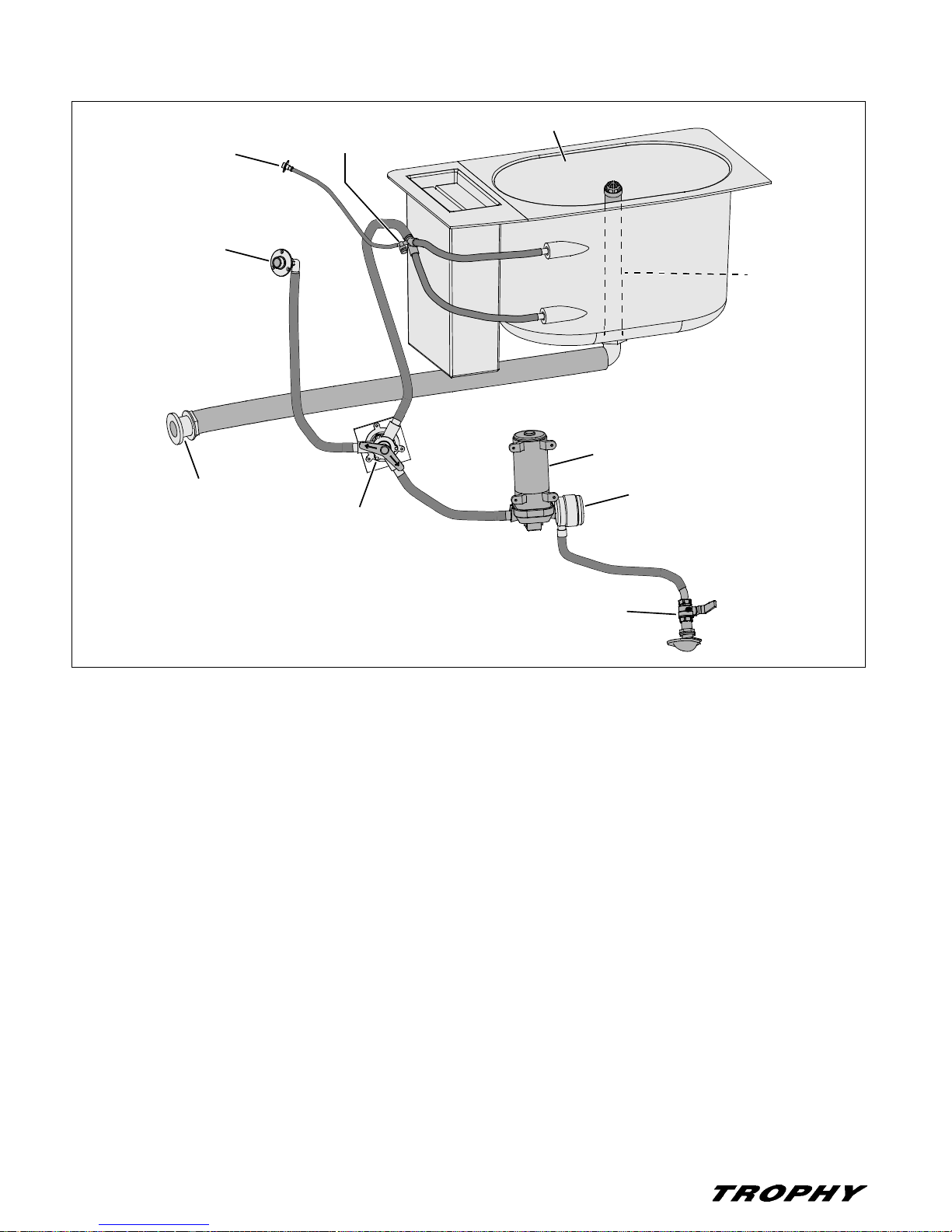

• 1703: Access is under the aft port seat (refer to the Baitwell Systems view in Chapter 6: Plumbing).
• 1903: Access is under the aft port seat (refer to the Baitwell Systems view in Chapter 6: Plumbing).

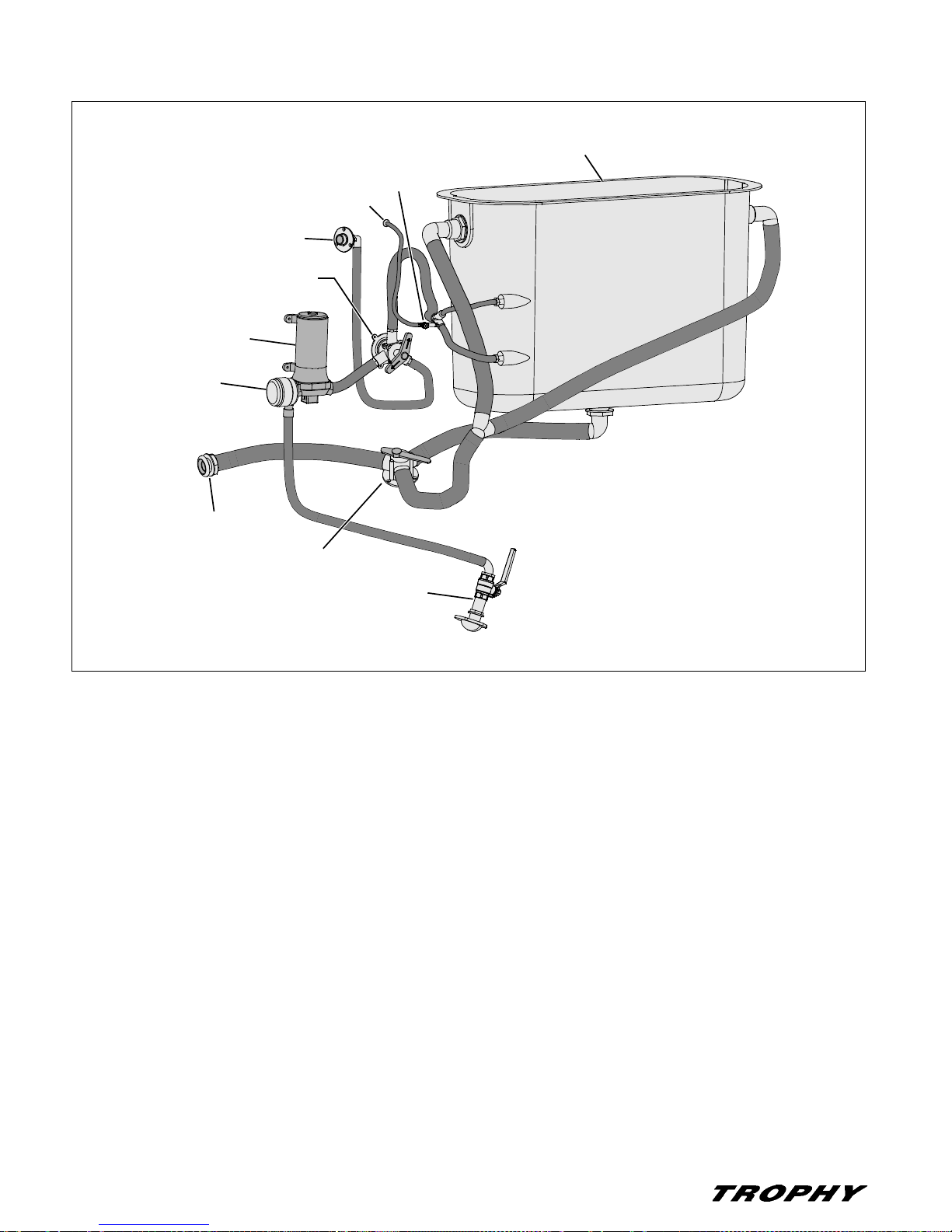

• 2103: Access is throug h the aft starbo ard ac cess hat ch below t he faucet /sink ( refer to the Bait well Syst ems view i n
Chapter 6: Plumbing) .
Baitwell Y-Valve:
• 1903: Access is under the aft port seat (refer to the Baitwell Systems view in Chapter 6: Plumbing).
• 2103: Access is throug h the aft starbo ard ac cess hat ch below t he faucet /sink ( refer to the Bait well Syst ems view i n
Chapter 6: Plumbing) .
Baitwell Drain Control Y-Valve:
• 2103: Acces s is thr ough the aft sta rboard access h atch bel ow the fau cet/sink (refer to the Baitwell Systems vie w in
Chapter 6: Plumbing) .
Washdown Faucet (If Equipped):
• 1903: On the aft port deck (refer to page 11 for location view).
• 2103: On the aft starboard deck (refer to page 12 for location view).
Water Fill Deck Fitting (If Equipped):
• 2103: On the aft starboard deck (refer to page 12 for location view).

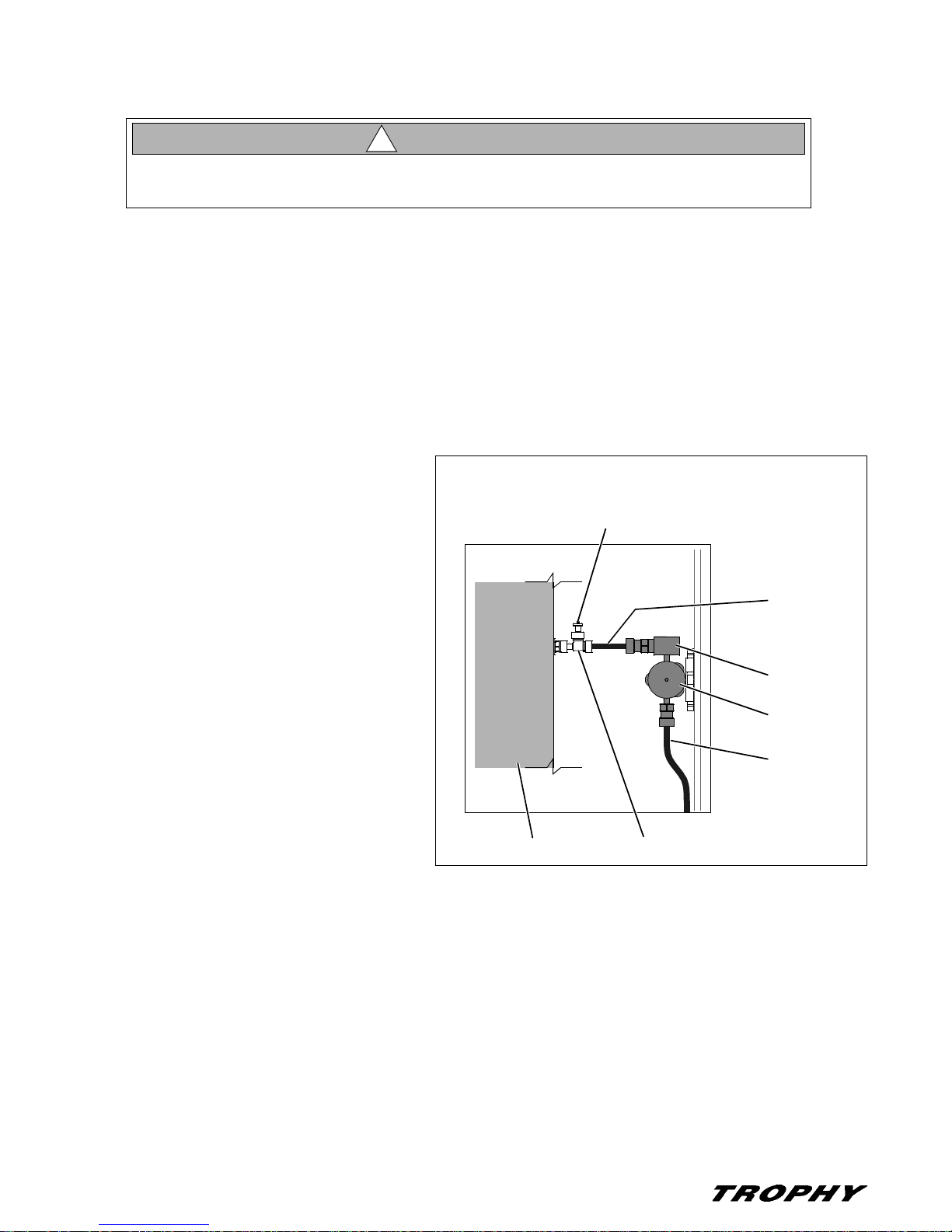

Water Pump and Filter (If Equipped):
• 2103: Access is through the aft starboard access hatch below the faucet/sink (refer to the Fresh Water Systems
view in Chapter 6: Plumbing).
Water Pump Switch (If Equipped):
• 2103: At the helm on the gauge/switch panel (refer to page 15 for location view).
Water Tank (If Equipped):
• 2103: Access is through the aft starboard access hatch below the faucet/sink (refer to the Fresh Water Systems
view in Chapter 6: Plumbing).
19
Page 26
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 4: Propulsion & Related Systems
Engine
Read the manufacturer’s operating instructions before starting or doing any maintenance on the engine.
Fuel System
WARNING!
!
FIRE, EXPLOSION AND OPEN FLAME HAZARD!
• It is very important t hat the fuel system be inspect ed thoroughly the first time it is filled and
at each subsequent filling.
• The fueling instructions in the Sport Boat Owner’s Manual and the fuel recommendations i n
the engine operation manual must be followed.
Avoid the storage or handling of gear near the fuel li nes, fittings and tank.

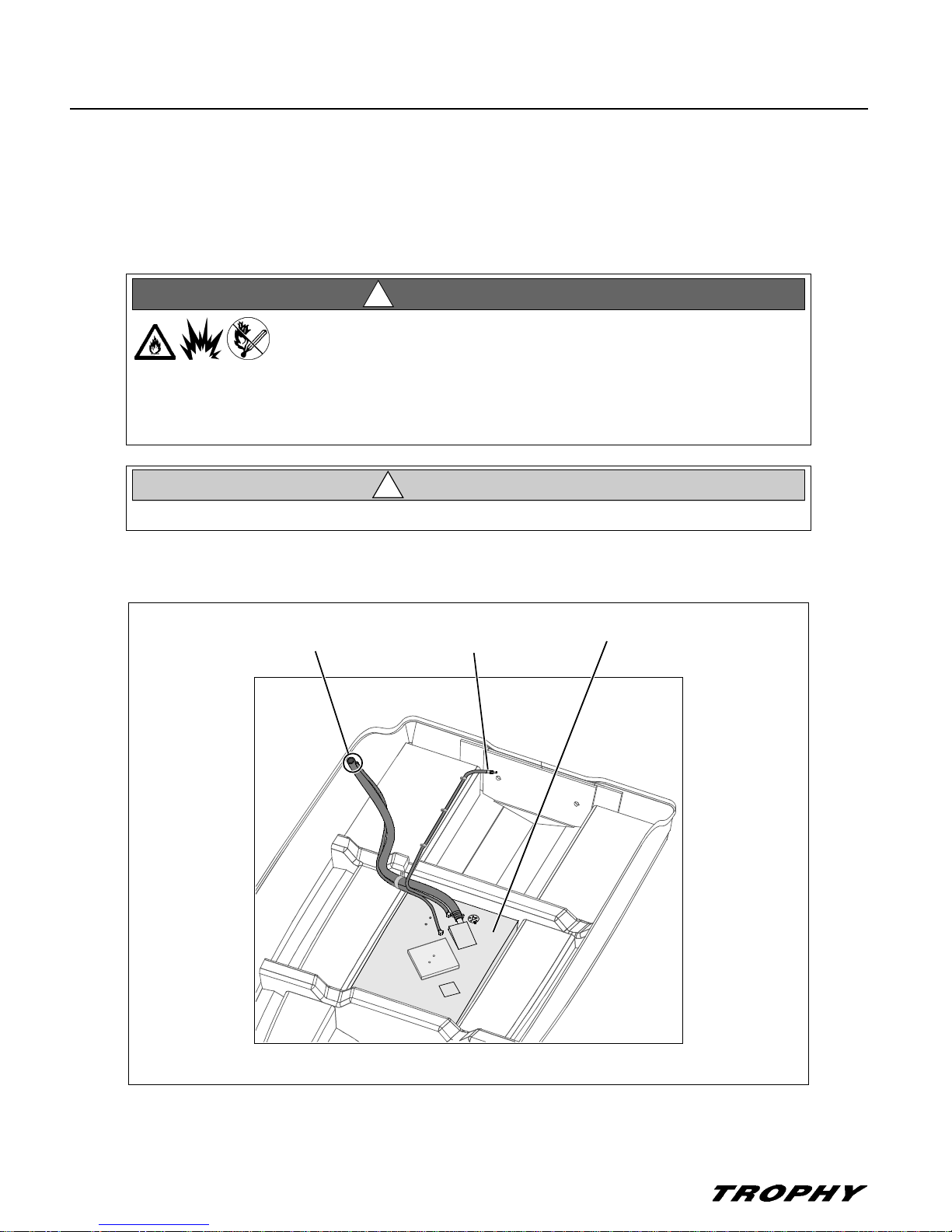

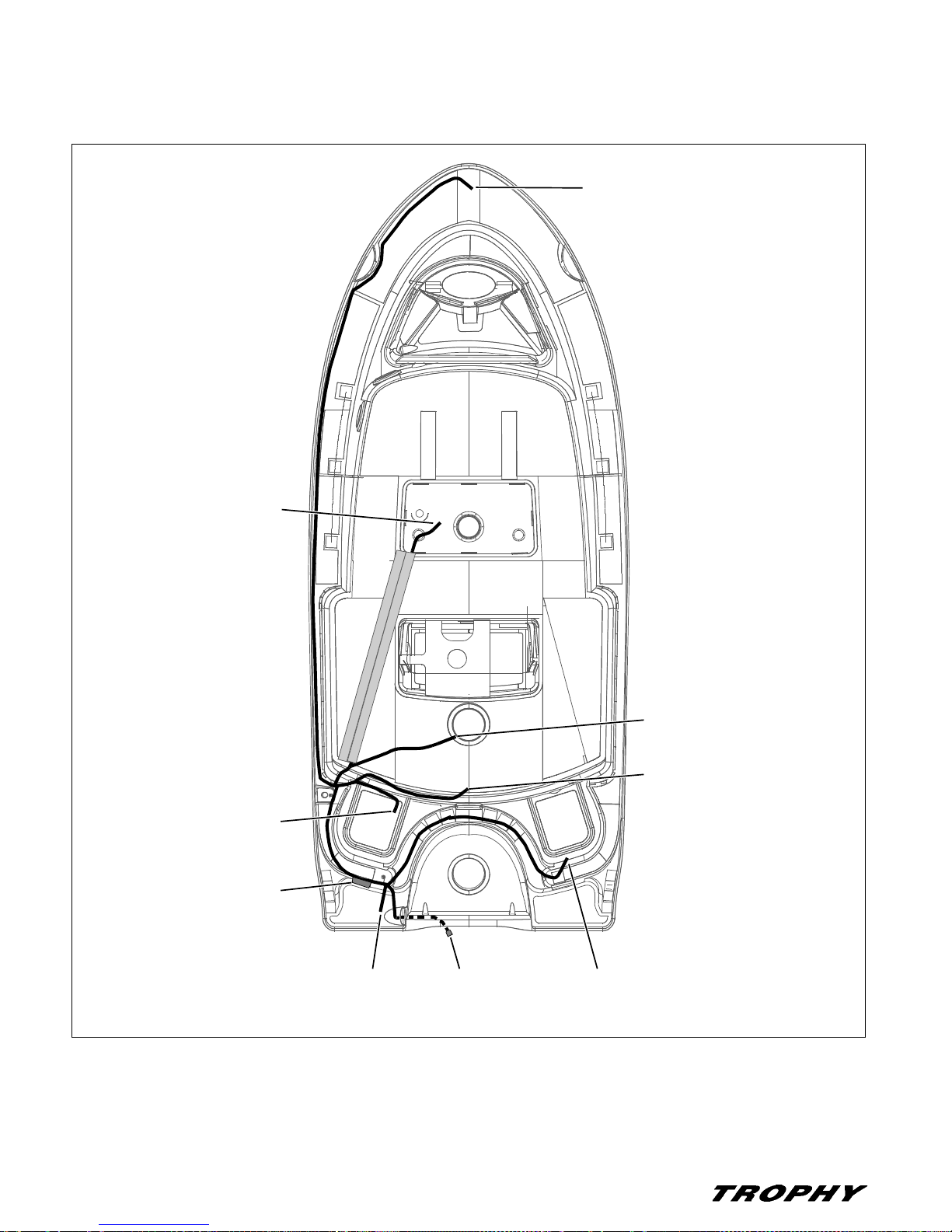

1703 Fuel System
FUEL FILL & VENT
DECK FITTING
CAUTION
!
HOSE
FUEL TANKFUEL FEED
20
Page 27
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 4: Propulsion & Related Systems

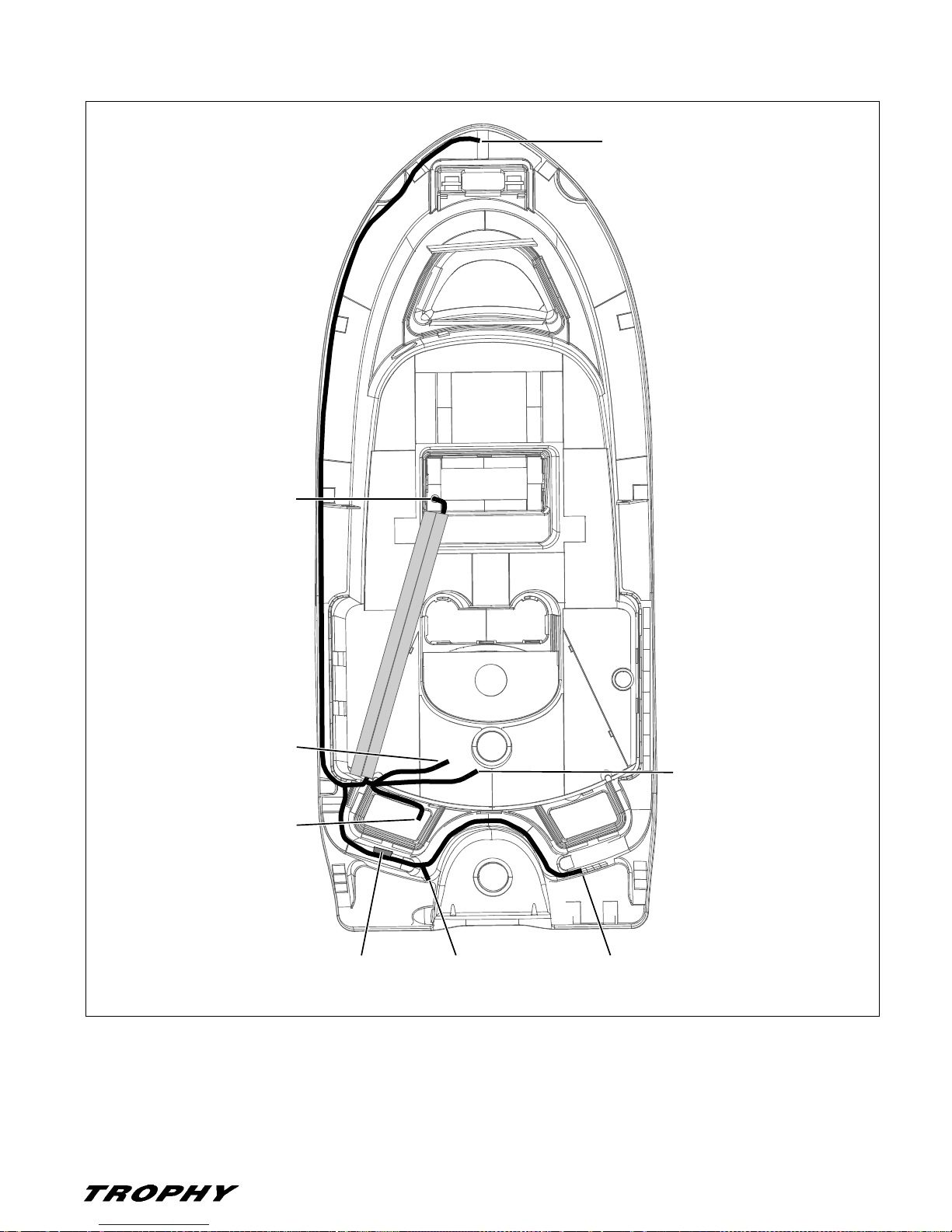

1903 Fuel System
FUEL FILL & VENT
DECK FITTING
HOSE
FUEL TANKFUEL FEED
2103 Fuel System
FUEL FEED
HOSE
FUEL TANK FUEL TANK
FUEL FILL
DECK FITTING
VENT HOSE
21
Page 28
Chapter 4: Propulsion & Related Systems 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Fuel Fill and Vent
• The fuel fill/vent deck fitting is marked “GAS”.
• If you experience diff icult y fillin g the fuel tank, che ck to see if the fue l fill hose is kinked or colla psed. If ther e are
no visible signs of a problem, contact your local dealer.
Fuel Filters
• The fuel pickup tube (located inside the fuel tank) has a fine mesh screen filter.
• Also, when supplied by the engine manufacturer, a fuel filter is installed on the engine.
• Periodically replace the fuel filters to make sure the y remain clean and free of debris.
• Ask your dealer or local marina about fuel additives that help prevent fungus growth or other buildup in your
fuel tank.
22
Page 29
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 5: Controls
Steering Systems
Rotary Steering or Rack and Pinion Steering
If your boat has either rotary or rack-and-pinion steering refer to the engine manual for steering system details.
Manual Hydraulic Steering
If your boat has a manual hydraulic steering system refer to the engine manual for steering system details and also
note the following:
• Manual hydraulic steering operates differently from rotary or rack-and-pinion steering.
• A rhythmic pulsing when turning the wheel is caused by the pump and is not a malfunction.
• Also, when coming off a hard turn, resistances may be felt, followed by a distinct sound. This is normal and is
caused by the release of the system’s check valve.
• The fluid reservoir for the hydraulic steering system is located at the helm. Check the fluid level regularly.
Shift/Throttle
WARNI NG!
!
LOSS OF CONTROL HAZARD!
Improper maintenance of shift /throttle hardware may cause a sudden loss of contr o l!
Read all of the information about the shift/throttle lever in the shifter/throttle manual, the engine operation manual,
and the Sport Boat Owner’s Manual.
Power Trim and Tilt
• The outboard on your boat is equipped with power trim and tilt.
• Read the trim and tilt instructions provided in the engine operation manual.
23
Page 30
Chapter 5: Controls 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Trim Tabs (If Equipped)
WARNI NG!
!
LOSS OF CONTROL HAZARD!
Improper use of trim tabs will cause l oss o f cont rol !
• DO NOT allow anyone unfamiliar with trim tabs to use them.
• DO NOT use trim tabs in a following sea as they will cause broaching or other unsafe
handling characteristics.
• DO NOT use trim tabs to compensate f or ex cessive unequal weight distribution.
• Your boat may be equipped with trim tabs.
• The trim tabs may be used to help keep your boat level at cruising speeds.
• The trim tabs are controlled by two rocker switches at the helm.
• Before using the tri m tabs read and understand the trim tab operation manual.
Observe the following:
• Once cruising speed is reached, the port or starboard trim switch may be used (one at a time) to level the boat.
• Perform trim tab adjustm ent with several short touches to the switch rather than one long on e.
• After each short touch allow several seconds for the hull to react.
24
Page 31
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 6: Plumbing

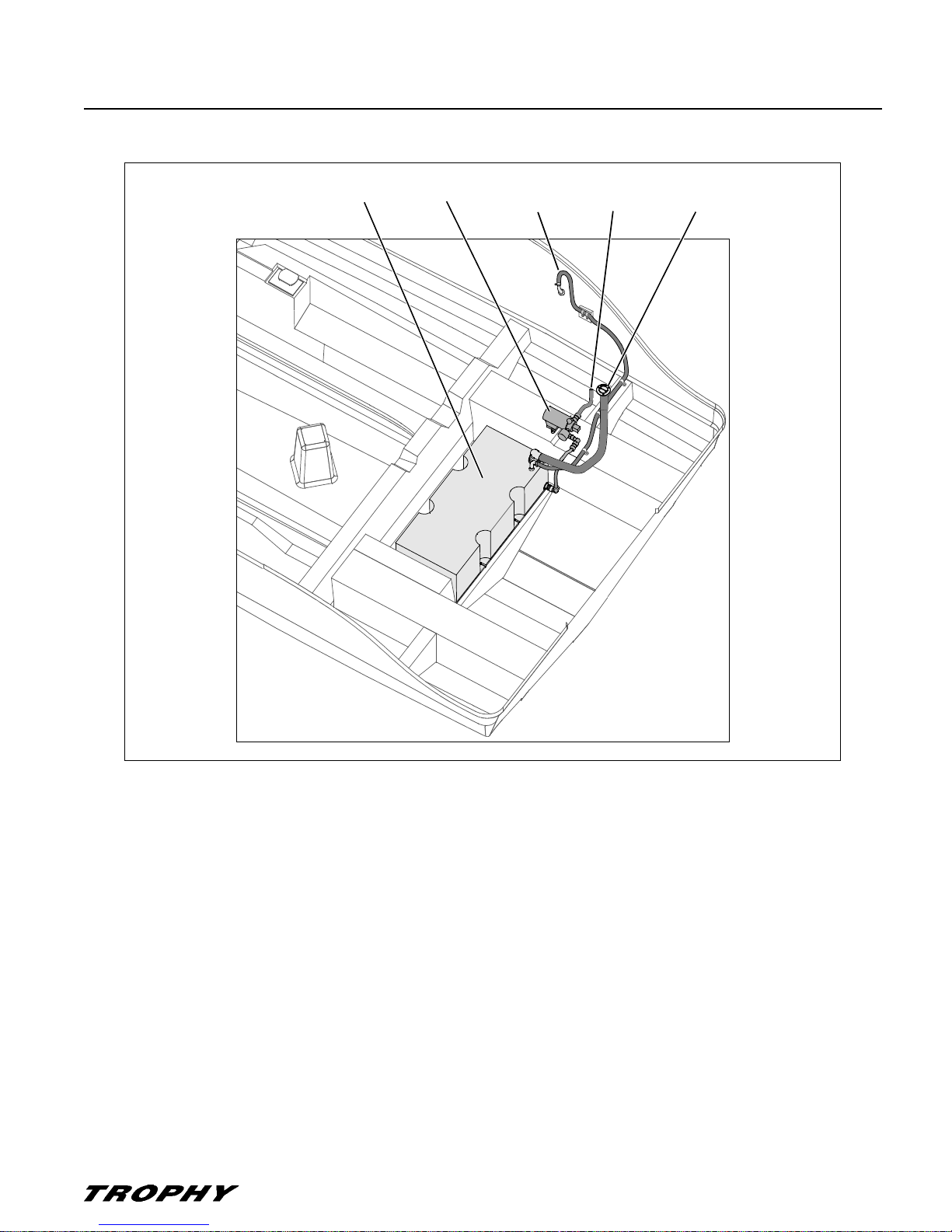

2103 Freshwater System (If Equipped)
WATER TANK FAUCET/ WATER FILL
WATER PUMP WATER TANK
VENT HOSE
SHOWER
DECK FITTING
• Your boat may be equipped with a pressure type (demand) freshwater (potable) system.
• This system can be pressurized by turning On the water p ump (See the Component Locations section of this Sup-
plement for the location of the water pump switch).
• Turn Off the water pump when the water tank is empty o r when the boat is not in use.
• Inspect and clean the water filter often (located on the water pump).
• When your boat is to be left unattended for long periods of time, pump the water tank dry to prevent stored water
from becoming stagnant and distasteful.
• If the freshwater s ystem nee ds to be di sinf ected , ask y our deal er abou t trea tmen ts avai labl e for yo ur boat’s system.
25
Page 32
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Freshwater System Winterization
!
CAUTION!
WATER SYSTEM DAMAGE HAZARD!
Never blow compress ed air through the water system when all of the faucets are Closed.
1. Turn On the water system switch.
2. Open all of the faucets and showers and let the water system drain completely.
3. Turn Off the water system switch.
Any remaining water must be removed from the water lines. There are two ways to remove the remaining water from
the lines:
• Compressed Air
• Gravity Draining
Compressed Air
You must have an air compressor with an air hose
and an air nozzle.
1. Remove the water line from the outlet side of
the water pump (opposite side from filter).
TEE FITTING & DRAIN
PLUG MAY VARY
TYPICAL VIEWNOTE: LOCATION OF
DRAIN PLUG
2. Open the faucet that is furthest away from the
water pump.
3. Place the air nozzle against the end of the just
removed water line and blow air through
the system.
INLET SIDE
WATER LINE
4. When water stops coming out of the Open faucet, stop the air and Close the faucet.
5. One at a time, repeat this process on all faucets
and showers.
FILTER
Gravity Draining
1. Open all faucets and showers.
2. Remove the drain plug from the tee fitting on
the freshwater tank.
3. When the water has stopped draining from the
freshwater tank, replace the dra in plu g.
FRESHWATER TANK
TEE FITTING
WATER PUMP
OUTLET SIDE
WATER LINE
26
Page 33
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing
Bilge Pump Systems
NOTICE
Discharge of oil, oil waste o r fue l i nto navigable waters is prohibited by law. Violators are subject to legal action by the lo cal authorities.

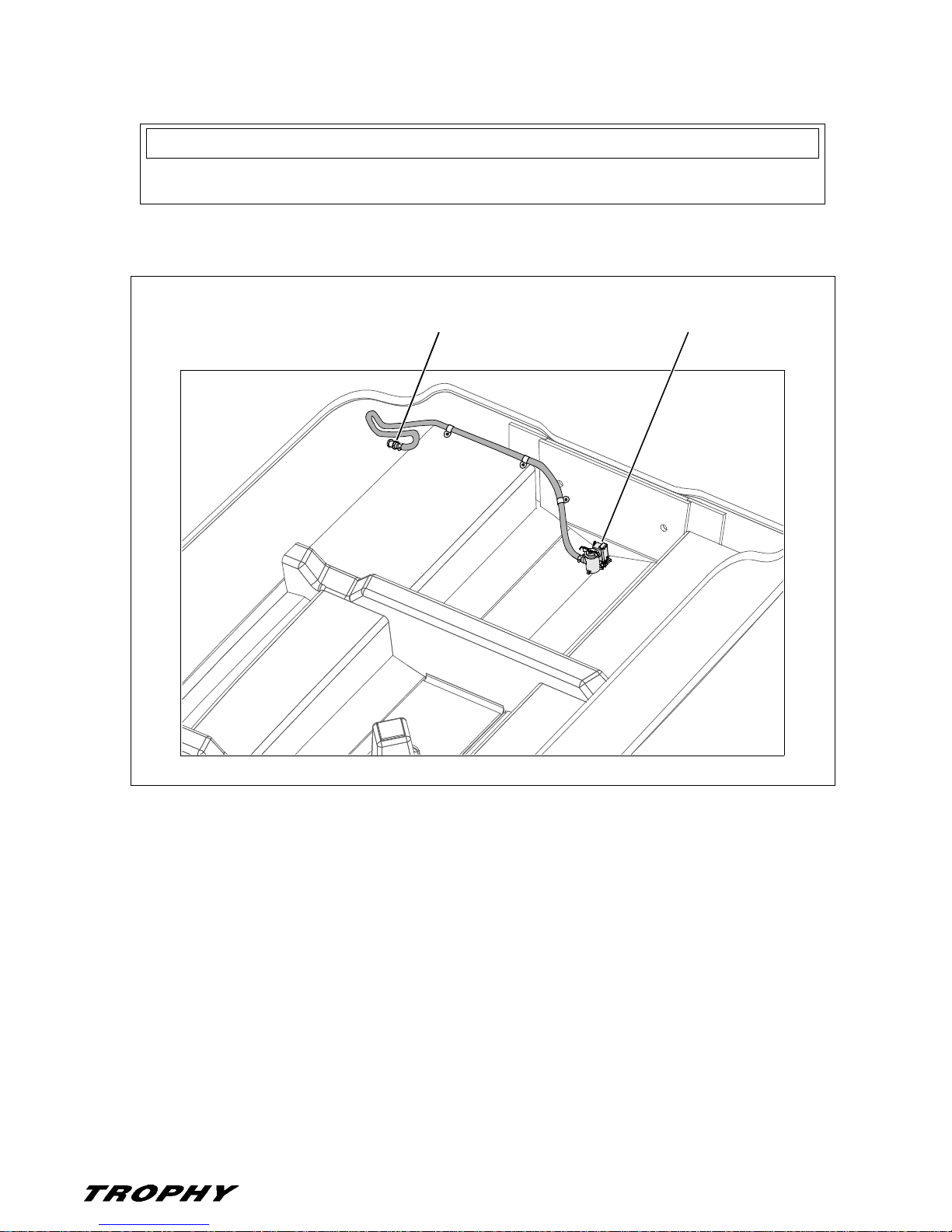

1703 Bilge Pum p System
BILGE DRAIN
THRU-HULL
BILGE PUM P &
FLOAT SWITCH
27
Page 34
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement

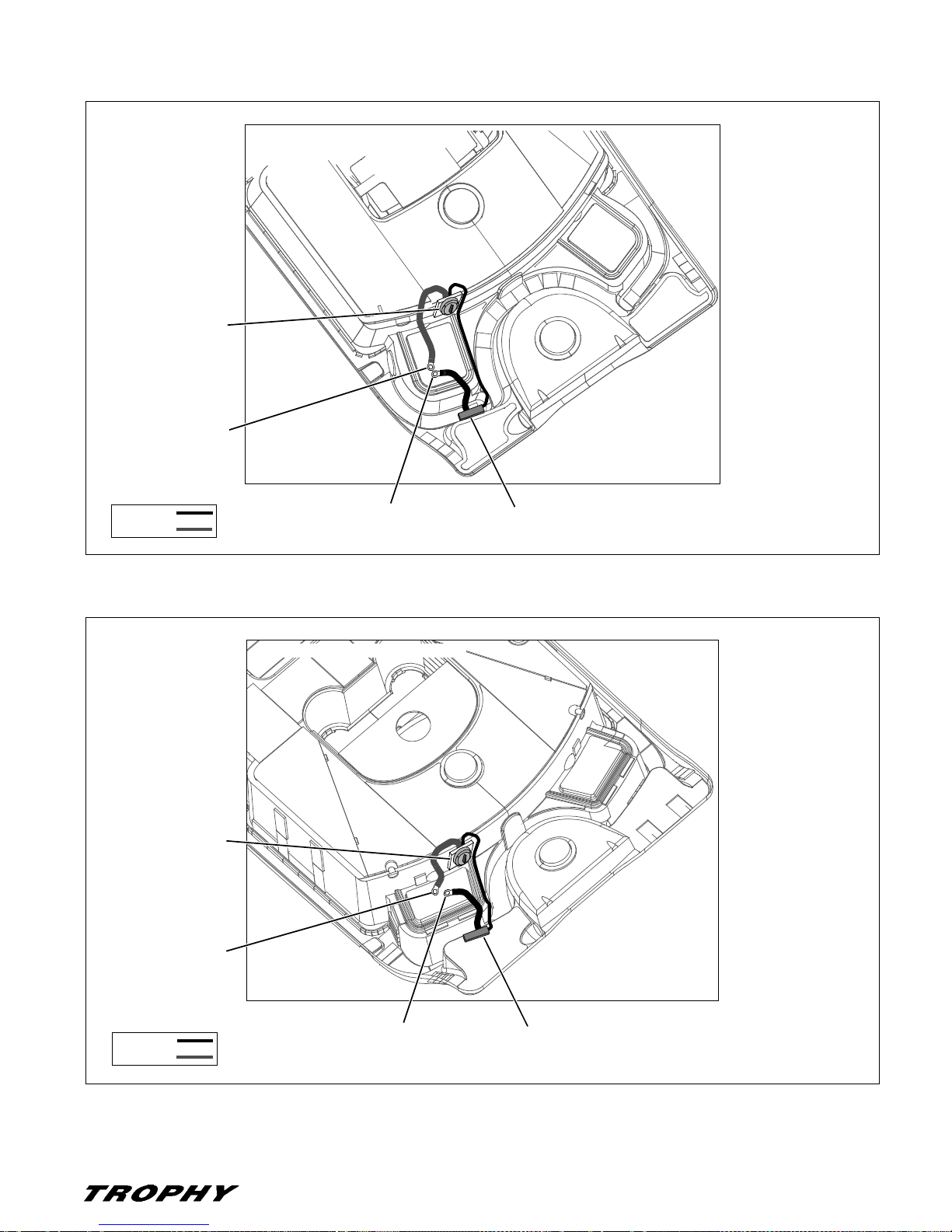

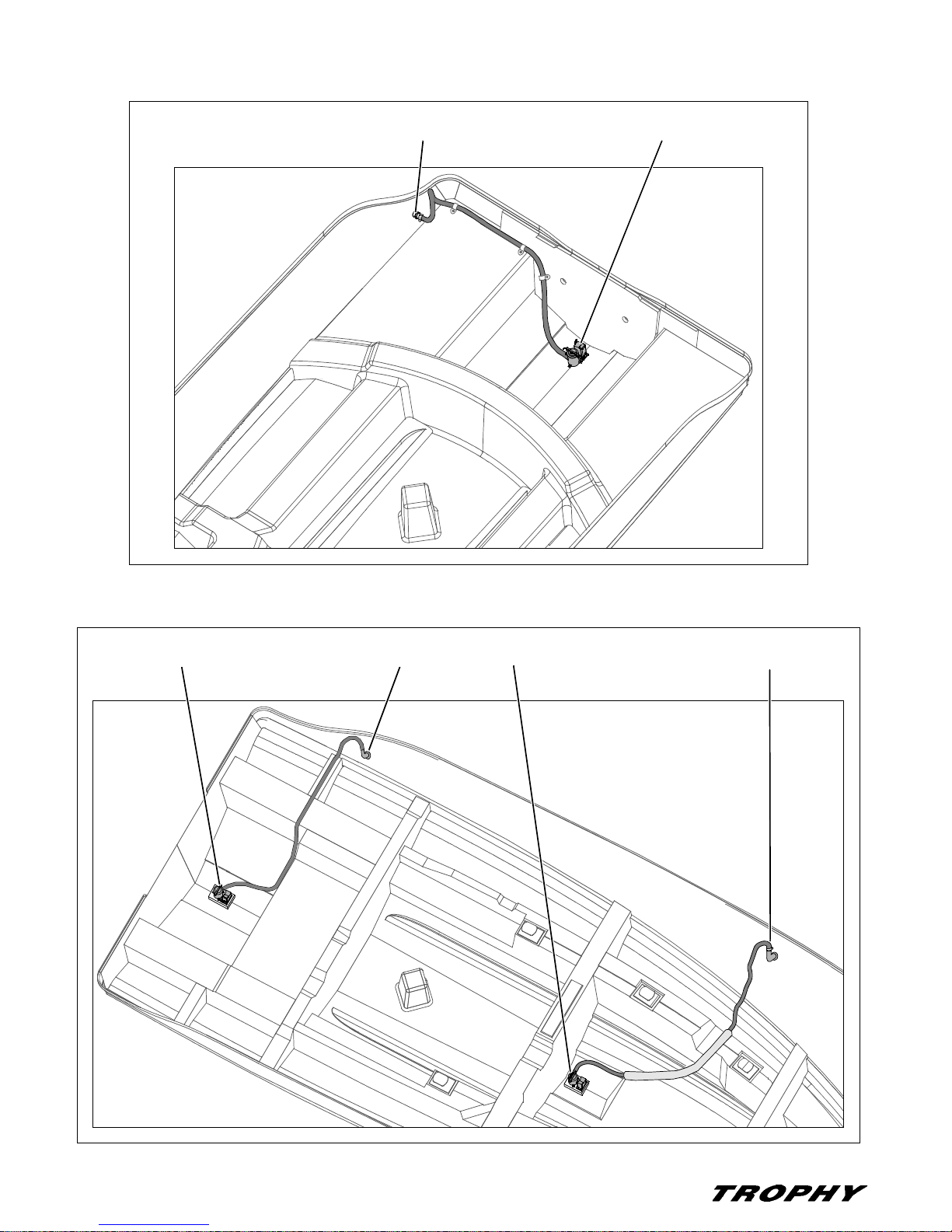

1903 Bilge Pum p System
BILGE DRAIN
THRU-HULL
BILGE PUMP &
FLOAT SWITCH
2103 Bilge Pum p System
BILGE PUMP &
FLOAT SWITCH
BILGE DRAIN
THRU-HULL
BILGE PUMP &
FLOAT SWITCH
BILGE DRAIN
THRU-HULL
28
Page 35
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing
• Your boat is equipped with either one or two automatic bi lge pumps for pumping water out of the bilge.
• The bilge pumps are controlled by automatic float switches (autofloat switches) and/or switches at the helm.
• Bilge pumps are wired directly to the battery and will normally function even when the boat is completely shut
down and left unattended.
Bilge Pump Testing
• The bilge pump is critical to the safety of your boat.
• Check the bilge pump often to make sure it is working.
Test the pump often as follows:
1. Turn On the bilge pump switch at the helm.
2. Any water in the bilge should pump overboard.
• If the pump motor is running, but not pumping, inspect the discharge hose for a kink or collapsed area.
• If no problems are found, check the bilge pump housing for clogging debris as follows:
1. Remove the power cartridge:
a. Lift the tab while rotating
the fins counter-clockwise.

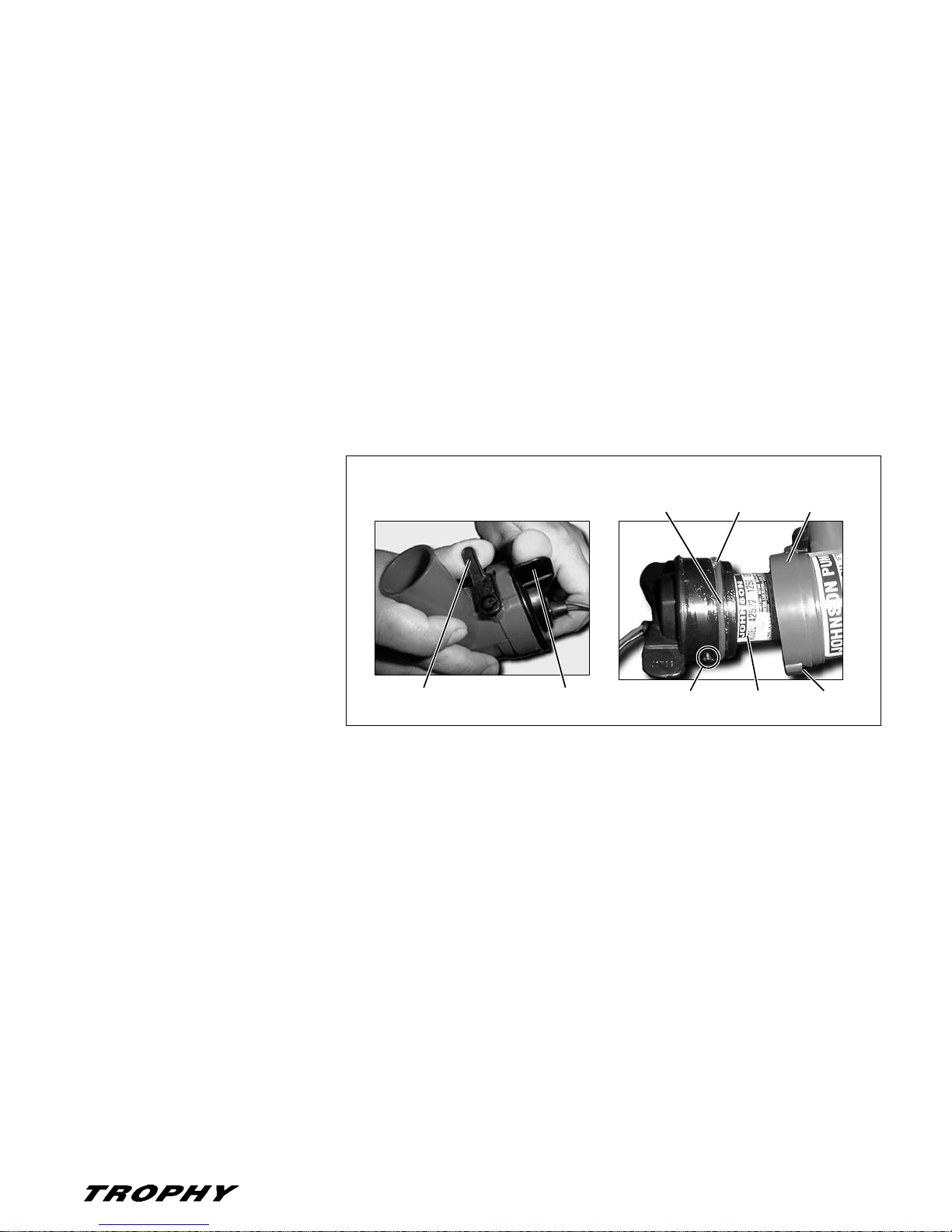

BILGE PUM P COM P O N E N TS
LIGHT FILM
OF OIL “O” RING
OUTER
HOUSING
b. Lift out the power cartridge.
c. Clear the outer housing
of debris.
2. Reinstall the power cartridge:
a. Make sure the “O” ring is
properly seated.
b. Coat the “O” ring with a
light film of vegetable or
mineral oil.
c. Align the cams on either
side of the power cartridge
TAB FIN
(TYPICAL)
POWER
CARTRIDGE
SLOTCAM
(TYPICAL)
with the two slots on the
outer housing
d. P ress the power cartridge into the housing while twisting clockwise.
3. Check the reinstallation by trying to twist the fins counter-clockwise without lifting the tab; the cartridge should
stay in place.
29
Page 36
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Autofloat Switch
• Automatic bilge pumps use ele ct romagnetic float switches (autofloat) to tur n On the pumps whenever water rise s
above a preset level in the bilge.
• An autofloat switch is mounted next to each automatic bilge pump.
• Autofloat switches are wired direct ly to the batte ry and will normally function even when the boat is completely
shut down and left unattended.
Test the autof loat switches often
as follows:
1. Lift the float switch test button
up to turn on the bilge pump.

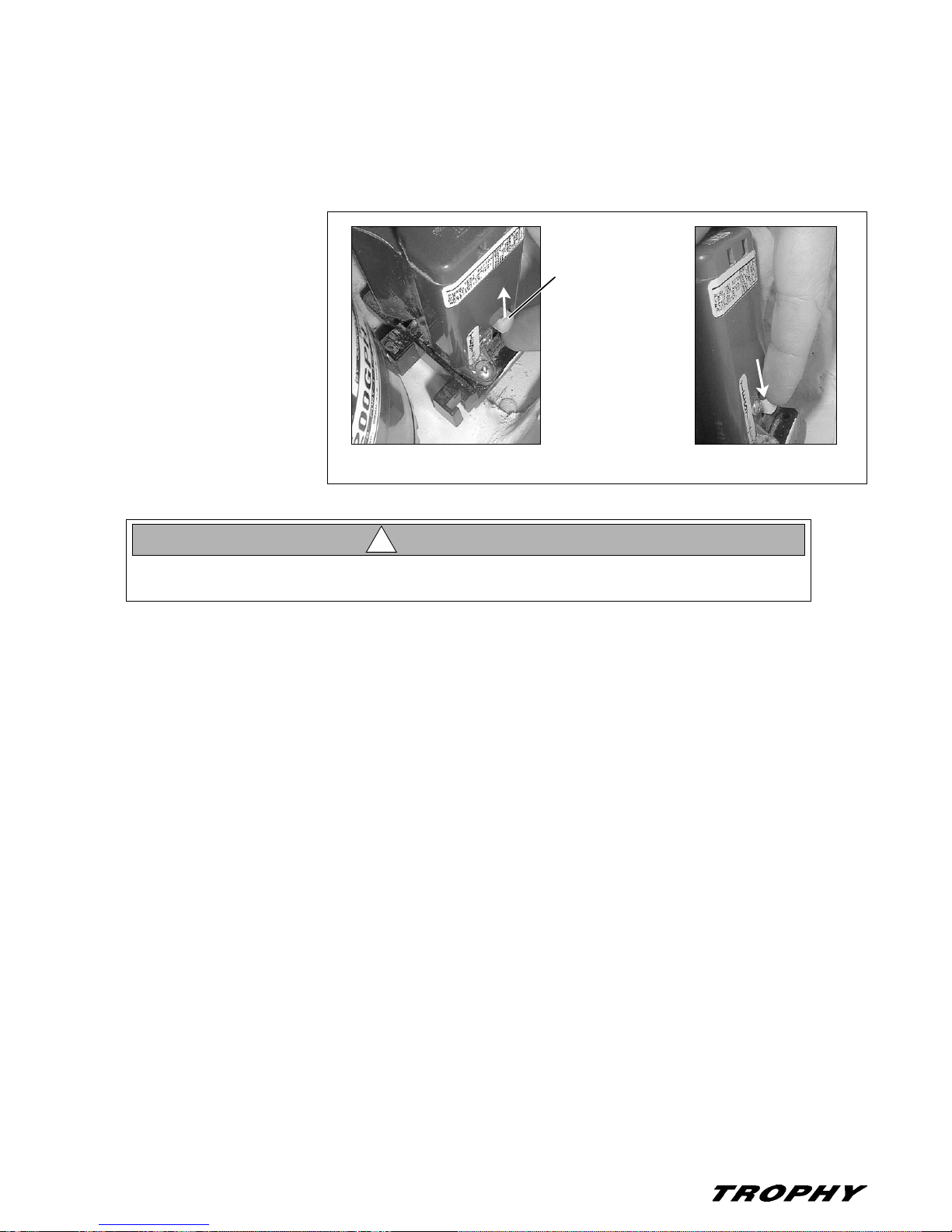

FLOAT SWITCH
TESTING
FLOAT SWITCH
TEST BUTTON
• If the pump does not turn On,
check the fuse on the fuss block.
• If the fuse is good but the switch
still doesn’t work, it may mean
the switch is bad or possibly the
battery is low.
2. Push test button all the way
down to return the float switch
to auto mod e.
LIFT SWITCH UP
BILGE PUMP SHOULD TURN ON BILGE PUMP SHOULD TURN OFF
PUSH SWITCH DOWN
!
CAUTION!
When the test is completed on the fl oat switch, y ou MUST push the test button all the way down
to the auto position to return the switch to auto mode!
30
Page 37
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing
Portable Toilet (If Equipped)
Read the manufacturer’s operating instructions before using the portable toilet.
NOTICE
Check with local authorities for regulations regarding the legal use of marine head systems.
PORTABLE
TOILET
31
Page 38
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Drain Systems
Deck Drains
• Water on the deck is drained overboard through the deck drains.
• Keep the deck drains free of debris.
Seawater System (If Equipped)
Seacock
!
CAUTION!
SYSTEM DAMAGE HAZARD!
• Before using a seawater intake system, make sure that the sy ste m’s seacock is in the Open
position befor e the system is started and keep the seacock Open until the system is shut Off.
• Close the seacock whenever the system will not be used for long peri ods of ti me .

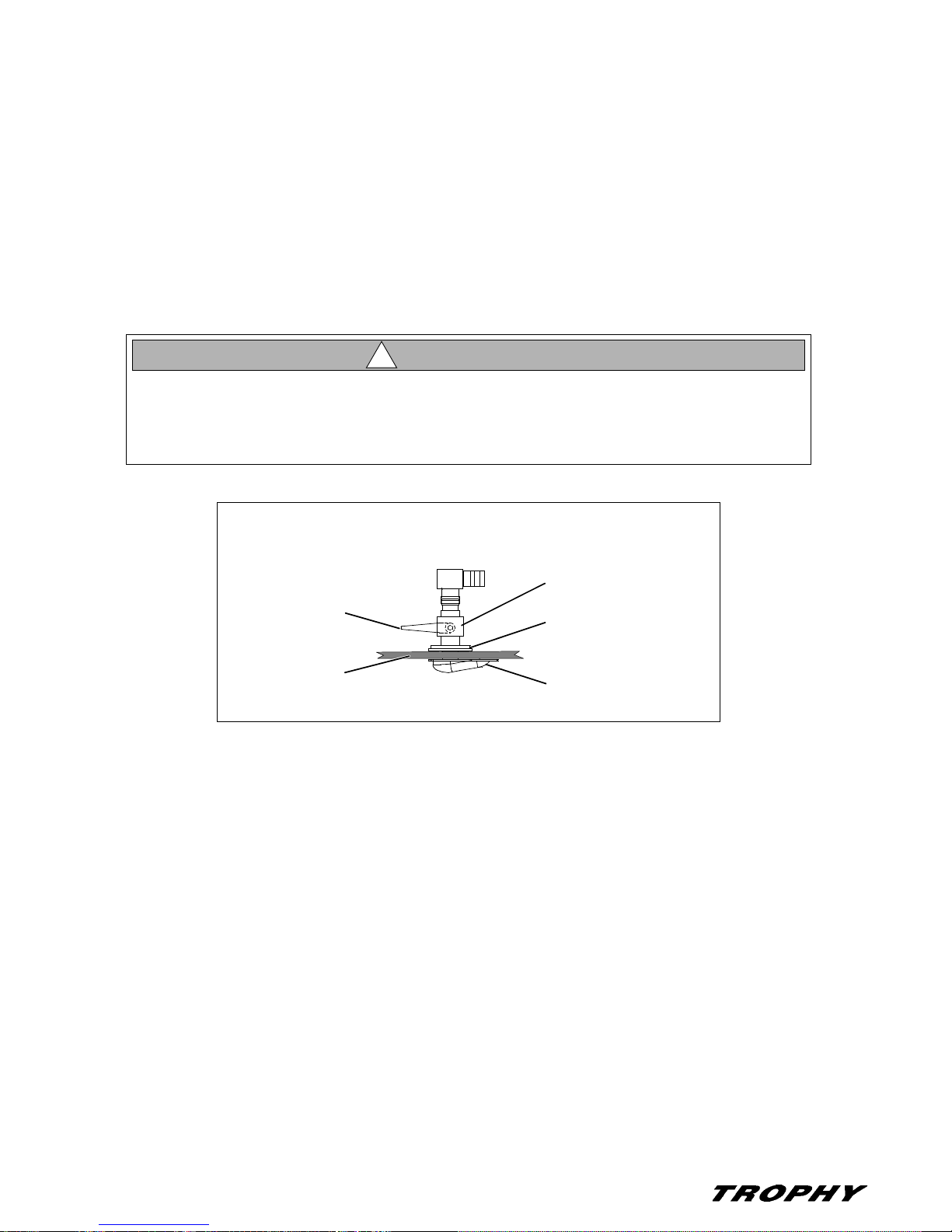

SEAWATER INTAKE VALVE (SEACOCK)
COMPONENTS (TYPICAL)
SEACOCK (TYPICAL)
90 DEGREE
SEACOCK
LEVER
HULL
SECTION
SEACOCK GASKET
INTAKE STRAINER
• A seacock is a valve, controlled by a 90º lever, used to manage the intake of seawater through the hull and below
the water line.
• The seawater intake system used on your boat is for the Baitwell System (if equipped).
32
Page 39
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing
Baitwell & Seawater Washdown Systems
WARNING!
!
FLOODING & SWAMPING HAZARD!
• While the seawater washdown system or baitwell s yste m i s running, NEVER leave the boat
unattended for any length of time.
• Any leak or break in the system could a llow large amounts of water to pu mp into t he bilge,
swamping the batteries and engine, and possibl y si nking t he boat.
• Close the seacock whenever the seawater system or baitwell system is not in use.
CAUTION
!
SYSTEM DAMAGE HAZARD!
• Before using the seawater washdown system or baitwell system, make sure that the system’s
seacock is in the Open position and k e ep the seac ock Open unti l t he sy ste m is shut Off .

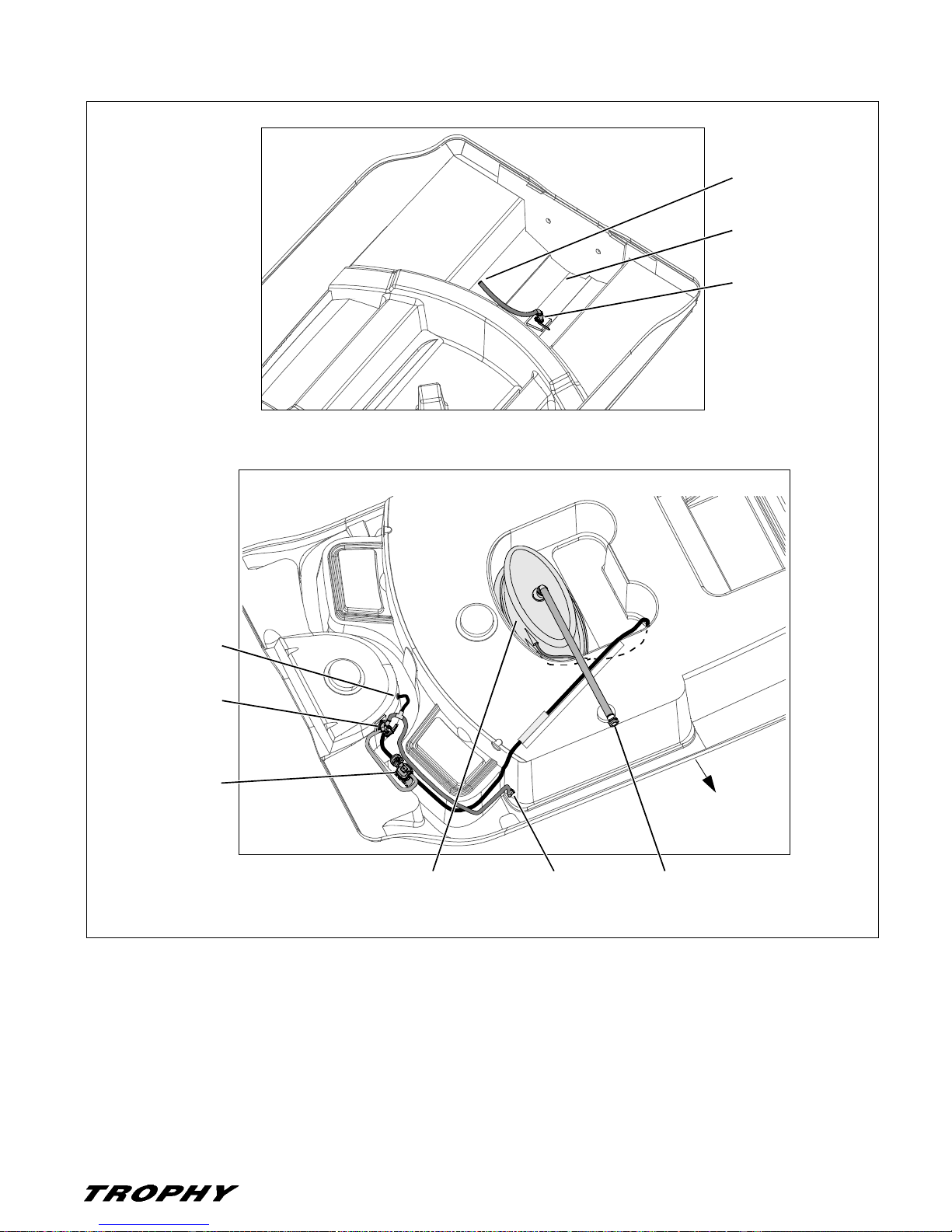

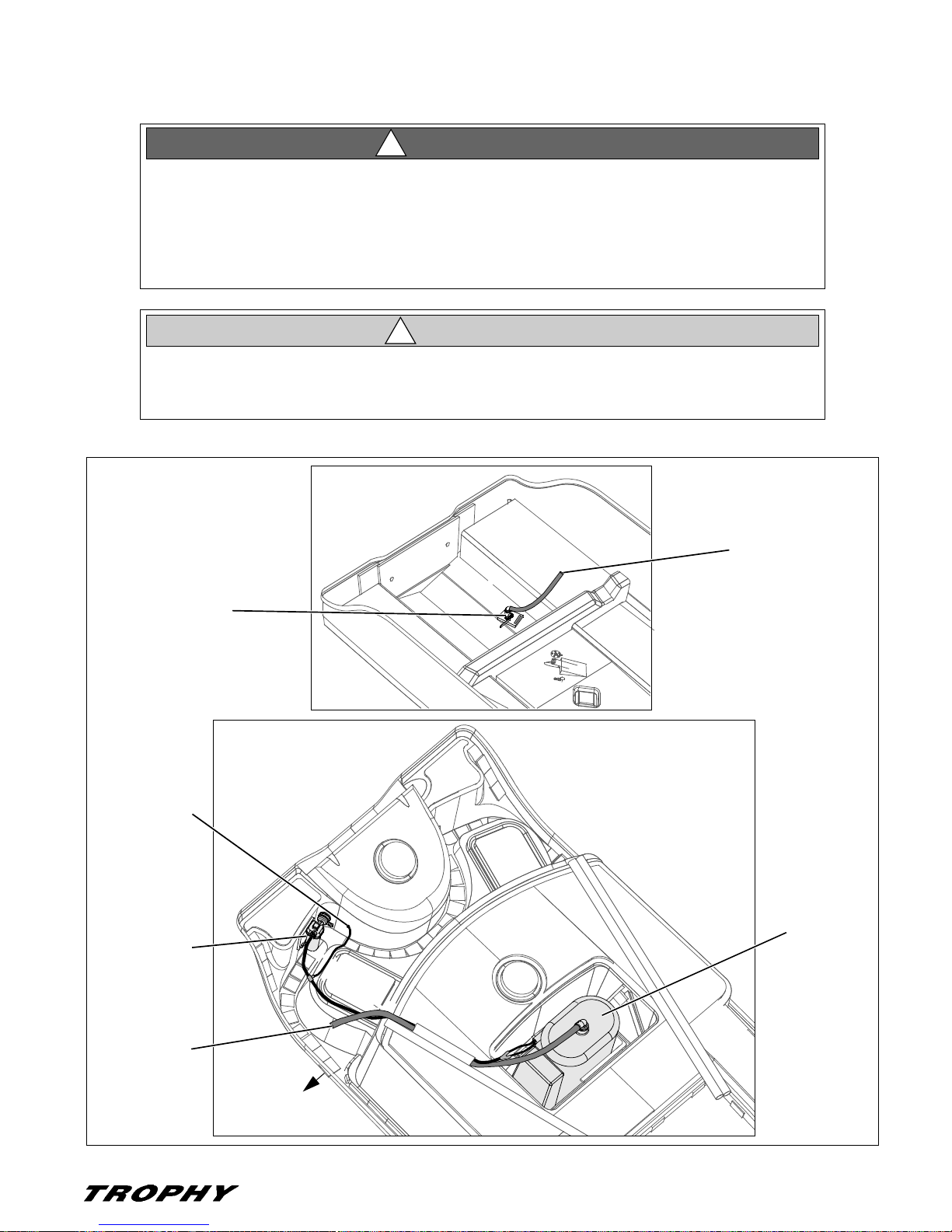

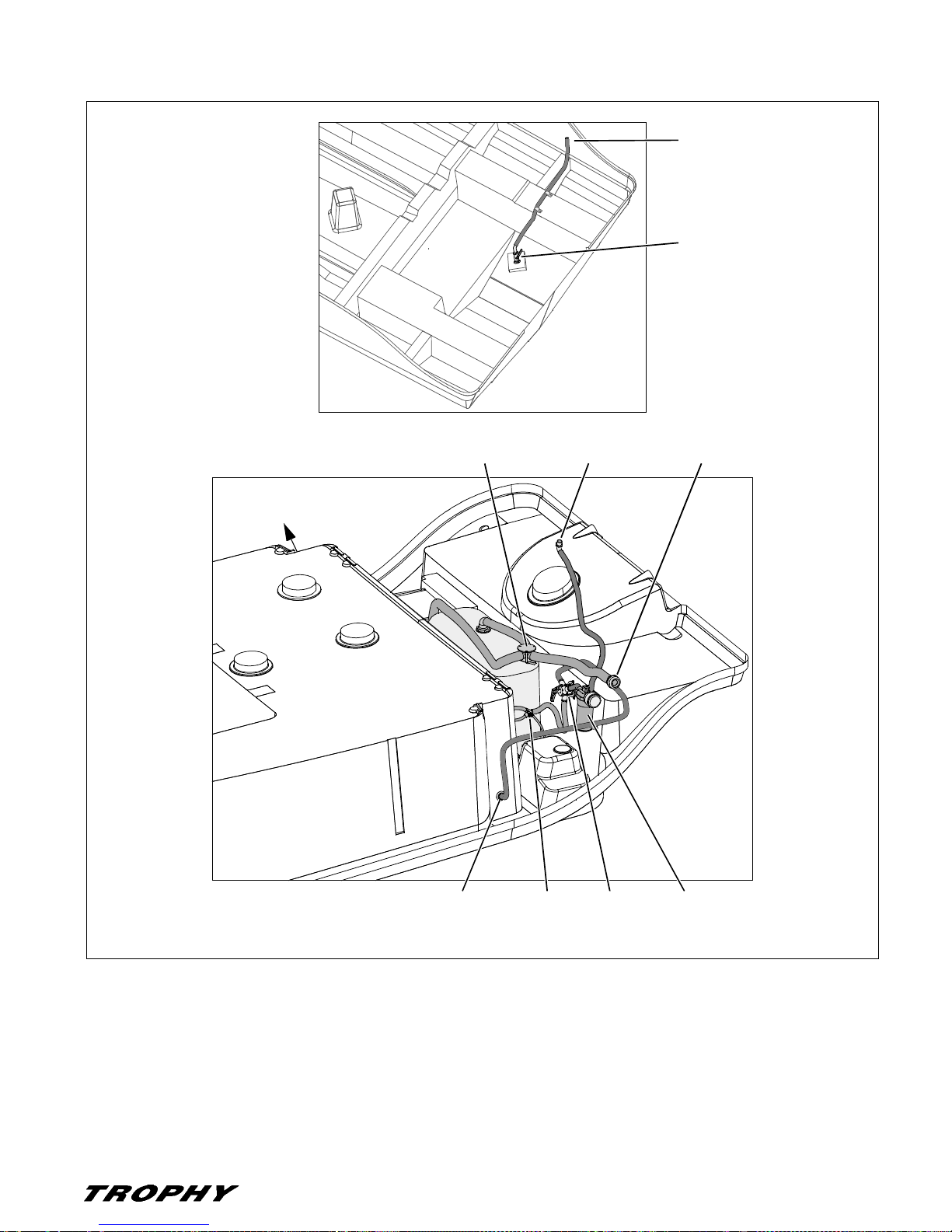

1703 Baitwell Syste m
SEAWATER PICKUP
& SEACOCK
AERATOR VENT
DECK FITTING
PICKUP PUMP
TO PICKUP PUMP
NOTE: VIEW IS UNDERSIDE OF DECK
BAITWELL
BAITWELL
DRAIN
PORT
33
Page 40
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
AERATOR VENT
DECK FITTING
WASHDOWN
DECK FITTING
DRAIN
THRU-HULL
AERATOR
CONTROL
VALVE
BAITWELL &
WASHDOWN
Y-VALVE
TANK
SEAWATER
PICKUP PUMP
SEAWATER
FILTER
STAND-PIPE
SEAWATER
SEACOCK
Filling & Using the 1703 Baitwell
1. Insert the rubber end of the drain standpipe into the drain fitting at the bottom of the tank.
2. If equipped, turn the y-valve clockwise to the baitwell position.
3. Open the seawater intake seacock.
4. On the main switch panel, turn On th e baitwell sw itch.
• To completely drain the baitwell remove the stand-pipe.
The tank should now be filling with water. If water is not pumping into the tank, possible causes are:
• A collapsed hose or clogging debris in the system.
• The y-valve is turned to the wrong position.
• The seaco ck is Closed.
• The baitwell fuse is blown.
Aeration Tips
The level of aeration is controlled by the aerator control valve.
• In clean ocean water little or no aeration is needed.
• In brackish back waters a higher level of aeration is needed.
34
Page 41
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing
1903 Baitwell Syste m
TO PICKU P PU M P
BILGE
SEAWATER PICKUP
& SEACOCK
NOTE: VIEW IS UNDERSIDE OF DECK
AERATOR VENT
Y-VALVE
(IF EQUIPPED)
PICKUP PUMP
BAITWELL
SEAWATER
WASHDOWN
(IF EQUIPPED)
BAITWELL
DRAIN
PORT
35
Page 42
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
TANK
AERATOR VENT
DECK FITTING
AERATOR
CONTROL
VALVE
WASHDOWN
DECK FITTING
STAND-PIPE
SEAWATER
PICKUP PUMP
SEAWATER
DRAIN
THRU-HULL
BAITWELL &
WASHDOWN
Y-VALVE
SEAWATER
SEACOCK
FILTER
Filling & Using the 1903 Baitwell
1. Insert the rubber end of the drain stand-pipe into the drain fitting at the bottom of the tank.
2. If equipped, turn the y-valve clockwise to the baitwell position.
3. Open the seawater intake seacock.
4. On the main switch panel, turn On th e baitwell sw itch.
• To completely drain the baitwell remove the stand-pipe.
The tank should now be filling with water. If water is not pumping into the tank, possible causes are:
• A collapsed hose or clogging debris in the system.
• The y-valve is turned to the wrong position.
• The seaco ck is Closed.
• The baitwell fuse is blown.
Aeration Tips
The level of aeration is controlled by the aerator control valve.
• In clean ocean water little or no aeration is needed.
• In brackish back waters a higher level of aeration is needed.
36
Page 43
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 6: Plumbing
2103 Baitwell Syste m
TO PICKUP PUMP
SEAWATER PICKUP
& SEACOCK
NOTE: VIEW IS UNDERSIDE OF DECK
PORT
DRAIN CONTROL
Y-VALVE
FROM SEAWATER
SEACOCK
BAITWELL
DRAIN
SEAWATER
WASHDOWN
(IF EQUIPPED)
AERATOR
CONTROL
VALVE
Y-VALVE
PICKUP PUMP
37
Page 44
Chapter 6: Plumbing 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
TANK
AERATOR
CONTROL
AERATOR VENT
WASHDOWN
DECK FITTING
DECK FITTING
VALVE
WASHDOWN Y-VALVE
SEAWATER
PICKUP PUMP
SEAWATER
FILTER
DRAIN
THRU-HULL
BAITWELL &
DRAIN CONTROL
Y-VALVE
Filling & Using the 2103 Baitwell
SEAWATER
SEACOCK
1. Turn the baitwell & washdown y-valve clockwise to the baitwell position.
2. Open the seawater intake seacock.
3. Turn the drain control y-valve to the fill position
4. On the main switch panel, turn On th e baitwell sw itch.
• To completely drain the baitwell turn the drain control y-valve to the drain position.
The tank should now be filling with water. If water is not pumping into the tank, possible causes are:
• A collapsed hose or clogging debris in the system.
• The y-valve is turned to the wrong position.
• The seaco ck is Closed.
• The baitwell fuse is blown.
Aeration Tips
The level of aeration is controlled by the aerator control valve.
• In clean ocean water little or no aeration is needed.
• In brackish back waters a higher level of aeration is needed.
38
Page 45
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 7: Deck Equipment
Cleats and Tow Eyes
WARNI NG!
!
PERSONAL INJURY and /or PRODUCT or PROPERTY DAMAGE HAZARD!
• NEVER lift the boat using the bow and ster n eyes or the cleats.
Carefully read the section on towing in the Sport Boat Owner’s Manual before:
• Towing anything behind the boat.
• Being towed by another vessel.
39
Page 46
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 8: Entertainment Systems
Audio System (If Equipped)
NOTICE
AM radio reception may be impaired anytime the engine is running.
Read the manufacturer’s operating instructions before using the audio system.
40
Page 47
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Chapter 9: Lights
Care and Maintenance
All of the lights installed on your boat are of top quality, but you should be aware that failure may periodically occur
for a variety of reasons:
1. There may be a blown fuse - replace the fuse.
2. The bulb may be burned out - carry spare bulbs for replacement.
3. A wire may be damaged or may have come loose - repair as required.
4. The bulb base may be corroded - clean the base and coat it with non-conductive electrical lubricant.
Navigation Lights
!
CAUTION!
Avoid the storage of gear where it would block navigation lights from view.
Read and understand the navigation light section of Sport Boat Owner’s Manual.
Lights
!
CAUTION!
• Be conservative in the us e of batt ery po wer.
• Prolonged use of the lights (overnight) will result in a drained battery.
• The lights are powered by the boat’s 12-volt DC system.
41
Page 48
Chapter 10: Electrical System
!
DANGER!
EXTREME FIRE, SHOCK & EXPLOSION HAZARD!
• To minimize the risks of fire and explosion, NEVER inst al l knif e s witche s or other arcing
devices in the fuel compartments .
• NEVER substitute automotive parts for marine parts. Electrical, ignition and fuel system
parts were designed and manufactured to comply with rules and regulations that minimize
risks of fire and explosion.
• DO NOT modify the electrical systems or relevant dra wings.
• Have qualif ie d perso nnel i nst all batteries and/or perform electrical system maintenance.
WARNI NG!
!
FIRE & EXPLOSION HAZARD!
• Fuel fumes are hea vie r than a ir a nd will collect i n the bi lge areas where they can be acci-
dently ignited.
• Visually and by s mell (sniff test), che ck the engine and fuel compart ments f or fumes or accumulation of fuel.
• ALWAYS run the bilge blow ers f or at le ast f o ur minutes bef ore turning on electrical devices,
starting the engine, or electr ica l sy ste m maint enanc e.
• Minimize the danger of fire and explosion by not exposing the batteries to open flame or
sparks. NEVER smoke anywhere near the batteri es.
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
!
CAUTION!
SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD!
NEVER disconnect the battery cables while th e eng ine i s runni ng si nce i t c an cause
damage to your boat’s electrical system components.
NOTICE
Electrical connections ar e prone to corrosion. To reduce corrosion caused elect ri cal problems,
keep all electrical connections clean and apply a spray -on prote ctant that is designe d to protec t
connections from corr osion.
42
Page 49
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 10: Electrical System
12-Volt DC System
Batteries
The batteries supply electricity for lights, accessories, and engine starting.
The Electrical section of Chapter 8, in the Sport Boat Owner’s Manual, provides battery, care and
maintenanc e instruction s.
Fuses and Circu it Breakers
• Fuses for the engine and main accessory power are on the fuse block behind the dash.
• Some equipment may have secondary fuse protection at the unit, or at the batteries.
Alternator
The engine alternator will keep the battery properly charged when running at cruising speeds.
12-Volt Accessory Outlet
!
CAUTION!
DO NOT use the 12-volt accessory outl et wi th a c igar ett e or cigar lighter. High temperatures
may melt the outlet.
• Your boat is equipped with a 12-volt accessory outlet at the helm.
• The outlet can be used with any 12-volt device which draws 15 amps or less.
• The 12-volt accessory outlet is protected by 15 amp fuse on the main fuse block.
43
Page 50
Chapter 10: Electrical System 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Electrical Routings
1703 Deck Elec trical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
NAVIGATION
LIGHT
DASH
BATTERY
SWITCH
GROUNDING
BLOCK
FUEL
TANK
BILGE
PUMP
44
ALL AROUND
LIGHT
ENGINE
PLUG
BAITWELL
PUMP
Page 51
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 10: Electrical System
1903 Deck Elec trical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
DASH
NAVIGATION
LIGHT
BILGE
PUMP
BATTERY
SWITCH
GROUNDING
BLOCK
ALL AROUND
LIGHT
BAITWELL
PUMP
FUEL
TANK
45
Page 52
Chapter 10: Electrical System 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
2103 Deck Elec trical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
NAVIGATION
LIGHTS
TO DASH
CONSOLE
SPEAKER
(IF EQUIPPED)
(IF EQUIPPED)
COURTESY
LIGHTS
SPEAKER
FORWARD
BILGE PUM P
COURTESY
LIGHT
FUEL
TANK
COURTESY
BUSS
BAR
LIGHTS
COURTESY
LIGHT
SPEAKER
(IF EQUIPPED)
BILGE PUMP
SPEAKER
(IF EQUIPPED)
BAITWELL
AFT
PUMP
FUEL FILL
DECK FITTING
GROUND
ENGINE
FRESH WATER PUMP
(IF EQUIPPED)
PLUG
46
Page 53
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 10: Electrical System
1703 Battery System
NOTE: VIEW IS UNDERSIDE OF DECK
BATTERY
SWITCH
BATTERY
NEGATIVE
POSITIVE
1903 Battery System
BATTERY
SWITCH
BATTERY
ENGINE
GROUND
NOTE: VIEW IS UNDERSIDE OF DECK
GROUNDING
BLOCK
NEGATIVE
POSITIVE
ENGINE
GROUND
GROUNDING
BLOCK
47
Page 54
Chapter 10: Electrical System 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
2103 Battery System
ENGINE
GROUNDING
BLOCKS
BATTERY
SWITCH
BATTERIES
NEGATIVE
POSITIVE
48
Page 55
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 10: Electrical System
Wiring Diagrams
1703 Electrical Sy stem
49
Page 56
Chapter 10: Electrical System 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
1903 Electrical Sy stem
50
Page 57
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement Chapter 10: Electrical System
2103 Electrical Sy stem
51
Page 58
Important Records
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Selling Dealer
Name Of Dealership
Address
Phone/FAX/E-mail
Sales Manager
Service Manager
Engine
Manufacturer Model Name/Number
Engine Serial Number
Oil Type/SAE Quarts per Engine Filter Type
Key Numbers
Ignition Other
Electronics
Manufacturer Model Name/Number
Serial Number
Manufacturer Model Name/Number
Serial Number
Manufacturer Model Name/Number
Serial Number
Propeller
Manufacturer Pitch
Manufacturer Model Name/Number
Serial Number
Model Number
52
Page 59
1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Float Plan
Before going boating, fi ll out a copy of this float plan (or similar) and leave it with a reliable person whom you can
depend on to contact the Coast Guard or other rescue organization, if you do not return as scheduled.
Description of Boat
Registration/Documentation Number
Length Make Type
Hull Color Trim Color
Fuel Capacity Engine Type Number of Engines
Distinguishing Features
Distinguishing Features
Operator of Boat
Full Name
Male or Female Age Health
Persons on Board
Full Name
Age Health Phone Number
Full Name
Age Health Phone Number
Full Name
Age Health Phone Number
Full Name
Age Health Phone Number
Address
Address
Phone/FAX/E-mail
Operator’s Experience
Full Name
Age Health Phone Number
Full Name
Age Health Phone Number
53
Page 60
Float Plan 1703CC, 1903CC, 2103CC • Owner’s Manual Supplement
Survival Equipment
Marine Radio (Yes/No) Type Frequencies
Number of PFDs Flares (Yes/No) Mirror (yes or no)
Smoke Signals (Yes/No) Flashlight (Yes/No) Food (Yes/No)
Water (Yes/No) Anchor (Yes/No) Raft/Dinghy (Yes/No)
Paddles (Yes/No) EPIRB (Yes/No) Other
Other Other Other
Vehicle Description
Make Model
Color License Number
Trip Expectations
Departing From
Departure Date Departure Time
Stopover 1
Arrive No Later Than: Date Arrive No Later Than: Time
Stopover 2
Arrive No Later Than: Date Arrive No Later Than: Time
Stopover 3
Arrive No Later Than: Date Arrive No Later Than: Time
Where is the Vehicle Parked?
Stopover 4
Arrive No Later Than: Date Arrive No Later Than: Time
Stopover 5
Arrive No Later Than: Date Arrive No Later Than: Time
Stopover 6
Arrive No Later Than: Date Arrive No Later Than: Time
Final Destination Port (If Different Than Home Port)
Arrive No Later Than: Date Arrive No Later Than: Time
If not returned by the date and time list ed abov e, call
the Coast Guard or other local authority.
54
Coast Guard Phone Number
Local Authority Phone Number
Page 61
Owner’s Notes
Page 62
Owner’s Notes
Page 63
Page 64
Trophy • P.O. Box 9029 • Everett, WA 98206 • 360-435-5571
Part Number 1738145
Loading...
