Tronzik Technology 16 User Manual

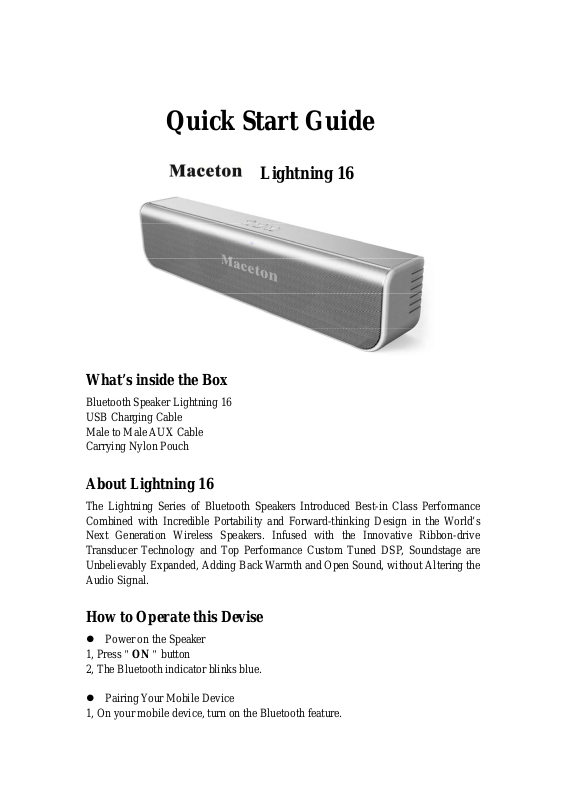

Quick Start Guide

Lightning 16

What’s inside the Box

Bluetooth Speaker Lightning 16
USB Charging Cable
Male to Male AUX Cable
Carrying Nylon Pouch

About Lightning 16

The Lightning Series of Bluetooth Speakers Introduced Best-in Class Performance
Combined with Incredible Portability and Forward-thinking Design in the World’s
Next Generation Wireless Speakers. Infused with the Innovative Ribbon-drive
Transducer Technology and Top Performance Custom Tuned DSP, Soundstage are
Unbelievably Expanded, Adding Back Warmth and Open Sound, without Altering the
Audio Signal.

How to Operate this Devise

z Power on the Speaker
1, Press＂ON＂button
2, The Bluetooth indicator blinks blue.

z Pairing Your Mobile Device
1, On your mobile device, turn on the Bluetooth feature.

2, Search and select Lightning 16 from your device list
3, Press Lightning 16 icon on your mobile device to pair the speaker
4, When your mobile device has successful connected to the Bluetooth speaker, you
will hear ＂beep＂, meanwhile the flashing blue indicator turns to solid blue.

z Play Music
Once your mobile device is connected, start a music source. You can use the
play/pause/skip/volume control on the speaker as well as your mobile device.

z Power off the speaker
Long press( 3 seconds) ＂OFF＂button to turn the speaker off.

Button Feature Procedure

Turn ON/OFF Long press the center button
Play/Pause Press the center button

Press the (+) button to increase volume

Volume Control

Press the (-) button to decrease volume
Press the >>button to skip to next song

Skip to next/previous song

Press the << button to skip to previous song

Answer or end call in BT mode Press the center button

Note:

1, Skip to next/previous song buttons support only to Bluetooth mode.
2, Answer or end call button supports only when the phone connects with this
devise via Bluetooth.

Specifications

Dimension： 11.8＂(W) X 1.9＂(D) X 2.6＂(H)
Net Weight: 1.46 lbs
Casing Materials: Aluminum and Plastic
Finish: Black/ Silver/ Gray/ Gold/ Rose Gold
Max Output: 10W X 2 (4 ohm, THD < 0.05%)
Transducers: 2＂full range driver X 2 units + 2＂ radiators X 2 units
Channels: 2.0
Bluetooth Version: 4.0
Microphone: Built-In / Hands Free
Frequency Response: 60Hz- 20 kHz
Battery Capacity: 1300mAH/ 7.4V
Battery charge time: 3 Hours
Play time (full charged): 10 Hours
USB charge input: 5V/ 2A
Best Operation temperature: 14℉ (-10℃) to 104℉ (40℃)

Maceton shall not be held liable for any Technical or user interface discrepancies in this
manual. The Maceton Lightning16 owner’s manual may be subject to change without
prior notice. Check out www.maceton.com/support
Lightning16 owner’s manual.

for the latest version of the Maceton

NOTES ON ENVIROMENTAL PROTECTION

At the end of its useful life, this product must not be disposed of with regular
household waste but must be returned to a collection point for the recycling of
electrical and electronic equipment. The symbol on the product, user’s manual and
packaging point this out.

The materials can be used in accordance with their markings. Through re-use,
recycling of raw materials, or other forms of recycling of old products, you are
making an important contribution to the protection of our environment.

Your local administrative office can advise you of the responsible waste disposal
point.

Warning:

z Do not expose this product to water or moisture in case of the risk of fire on

electric shock.

z Do not attempt to modify this product as it could result in personal injury or/and

product failure.

z Do not place naked flame sources, such as lighted candles, on or near the product.
z Do not attempt to clean this device with any corrosive liquid.
z If water or other foreign substances permeate inside the device, product failure

may result.

Note:

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

z Consult the dealer or an experienced radio/ TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subjected to the following two conditions: (1) this device may not cause
Interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

z No naked flame sources such as lighted candles should be placed on the

apparatus

z The use of apparatus in tropical climate

This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that

may cause undesired operation.

Maceton hereby declares that this product is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC and all
other applicable EU directive requirements. The complete declaration of conformity
and certificate can be found at www.maceton.com/support

If you require service or any technical support, please visit our website at

www.maceton.com/

support for assistance or contact us via [phone]

www.maceton.com

A Division of Tronzik Technology Co., Limited
All rights reserve. Maceton and the Maceton logo are trademarks of Tronzik Technology Co.,
Limited.
No part of this publication may be reproduced, stored or transmitted in any form without the
permission of Tronzik Technology Co., Limited
While every effort has been made to ensure the contents are accurate at the time of
publication, features and specification may be subject to change without prior notice.

FCC Caution：

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
