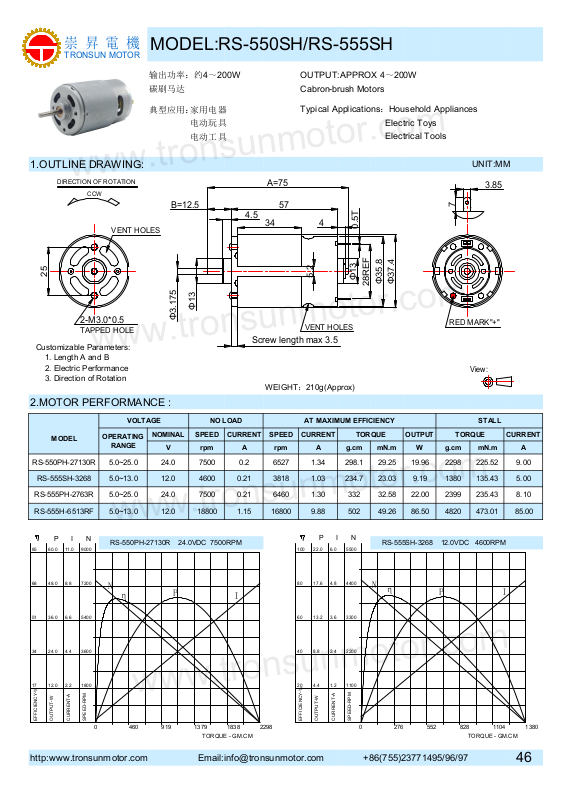

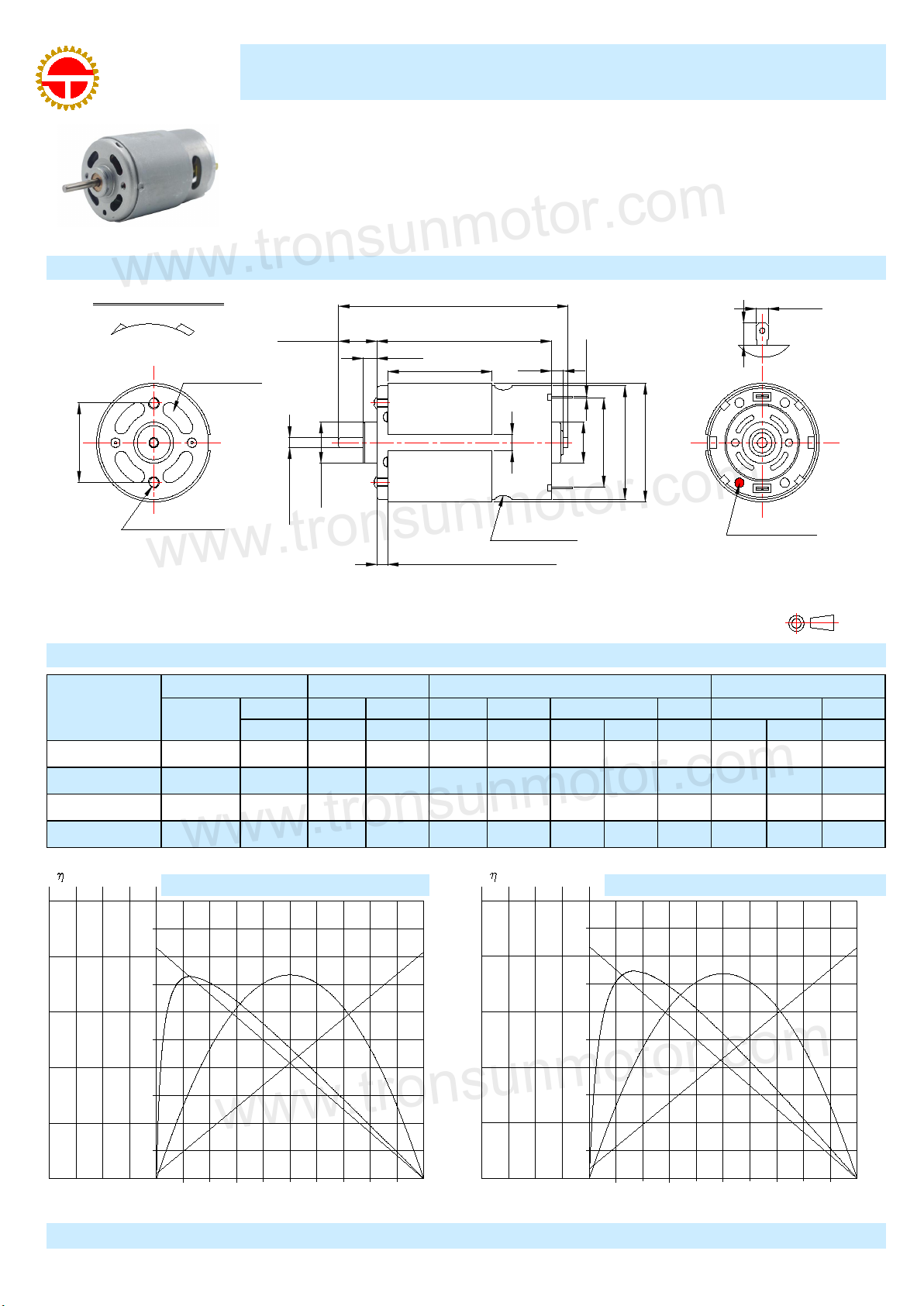

Page 1
MODEL:RS-550SH/RS-555SH
输出功率：约4～
200W OUTPUT:APPROX 4～200W
碳刷马达
Cabron-brush Motors
典型应用：家用电器
Typical Applications：Household Appliances
电动玩具
Electric Toys
电动工具
Electrical Tools
1.OUTLINE DRAWING:
UNIT:MM
WEIGHT：210g(Approx)
2.MOTOR PERFORMANCE :
MODEL
VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
RS-550PH-27130R 5.0~25.0 24.0 7500 0.2 6527 1.34 298.1 29.25 19.96 2298 225.52 9.00
RS-555SH-3268 5.0~13.0 12.0 4600 0.21 3818 1.03 234.7 23.03 9.19 1380 135.43 5.00
RS-555PH-2763R 5.0~25.0 24.0 7500 0.21 6460 1.30 332 32.58 22.00 2399 235.43 8.10
RS-555H-6513RF 5.0~13.0 12.0 18800 1.15 16800 9.88 502 49.26 86.50 4820 473.01 85.00
RS-550PH-27130R 24.0VDC 7500RPM RS-555SH-3268 12.0VDC 4600RPM
http:www.tronsunmotor.com Email:[email protected] +86(755)23771495/96/97
46
Customizable Parameters:
1. Length A and B
2. Electric Performance
3. Direction of Rotation
崇 昇 電 機
TRONSUN MOTOR
View:
229818381379919460
9000
7200
5400
3600
1800
11.0
8.8
6.6
4.4
2.2
60.0
48.0
36.0
24.0
12.0
85
68
51
34
17
N
η
P
I
TORQUE - GM.CM
SPEED-RPM
CURRENT-A
OUTPUT-W
P I N
EFFICIENCY-%
0
TORQUE - GM.CM
SPEED-RPM
CURRENT-A
OUTPUT-W
P I N
EFFICIENCY-%
0
13801104828552276
5500
4400
3300
2200
1100
6.0
4.8
3.6
2.4
1.2
22.0
17.6
13.2
8.8
4.4
100
80
60
40
20
N
η
P
I
DIRECTION OF ROTATION
CCW
VENT HOLES
57
4.5
B=12.5
Φ13
Φ3.175
28REF
Φ13
0.5T
VENT HOLES
4
RED MARK"+"
3.85
7
Screw length max 3.5
Φ35.8
34
Φ37.4
25
2-M3.0*0.5
TAPPED HOLE
A=75
5.2
www.tronsunmotor.com
