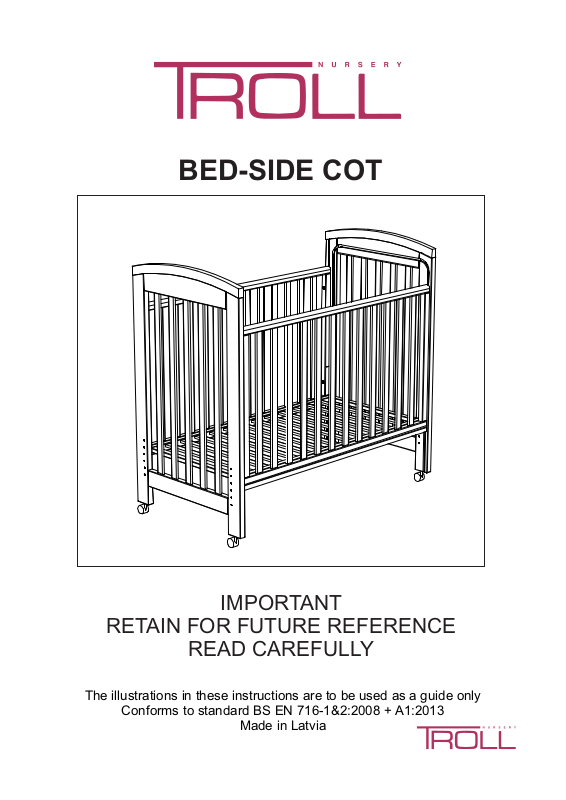

Page 1
BED-SIDE COT
IMPORTANT
RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
The illustrations in these instructions are to be used as a guide only
Conforms to standard BS EN 716-1&2:2008 + A1:2013
Made in Latvia
Page 2
SAFETY INSTRUCTIONS
Your child’s safety is your responsibility.
Remove all parts from packaging and check against the parts list.
Do not discard any packaging until you are sure you have all parts and the pack of fittings.
You will find it easier to assemble the cot if a second adult is available to help you.
WARNING : Be aware of the risk of open fires and other sources of strong heat, such as
electric bar fires, gas fires etc in the near vicinity of the cot
WARNING : Do not use if any part of the cot is broken, torn or missing
approved by the manufacturer.
WARNING : Do not leave anything in the cot , which could
provide a foothold or present a danger of suffocation or strangulation e.g. strings,
blind/curtain cords etc.
WARNING : Do not use more than one mattress in the cot.
One end of the cot has a mark indicating the height of the mattress.
The thickness of the mattress must not reduce the internal depth from mattress surface to
top of the cot side above it to less than 500 mm in the lowest position and 200 mm in the
highest position of the mattress base.
The lowest mattress base positions is the safest and should always be used as soon as the
baby is old enough to sit up.
WARNING: Always ensure the dropside is in the closed fixed position if you are leaving the
child unattended in the cot or sleeping with the cot positioned next to your bed.
.
or place close to another product
maximum
and use only spare parts
Mattress base length and width shall be such that the gap between the mattress and the
sides and ends does not exceed 30mm.
The recommended mattress size for the cot is 1 x 0 cm
Check regularly to ensure that all the components are secure
To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer
be used for that child.
To clean use a damp cloth, avoiding the use of strong detergents or abrasives.
20 6 and maximum thickness 10 cm.
and retighten as necessary.
CUSTOMER ENQUIRIES
If you have a problem with this product or require replacement parts, please contact your
nearest Mothercare store or telephone the Mothercare customer care line on 0844 875 5111
Alternatively write to:
Customer Care
Mothercare
Cherry Tree Road
Watford
Herts. WD24 6SH
Page 3
1
PARTS LIST
3333
4
2
5
FITTINGS LIST
TOOLS REQUIRED
Page 4
1
FIXED
SIDE
2
UP AND
OVER
SIDE
4
3333
ASSEMBLING
Adjust the wheel runners so
that the runners will run freely
in the channel groove - allowing
the up and over movement to
operate without too much force.
Ensure the grooves are clean
and free from any obstruction.
4
1
WARNING! op
surface must not be higher
than this mark!
The t of the mattress
3333
5
Mattress base and fixed
side together move up
and down (check how
level the cot’s mattress
is with your bed). At first
little bit unscrew (Bx4)
and then change the
level (Cx4).
2
1
4
Page 5
SPECIAL FEATURE OF BED-SIDE COT
HOW TO ADJUST COTS MATTRESS HEIGHT TO PARENTS BED
2-3 cm
