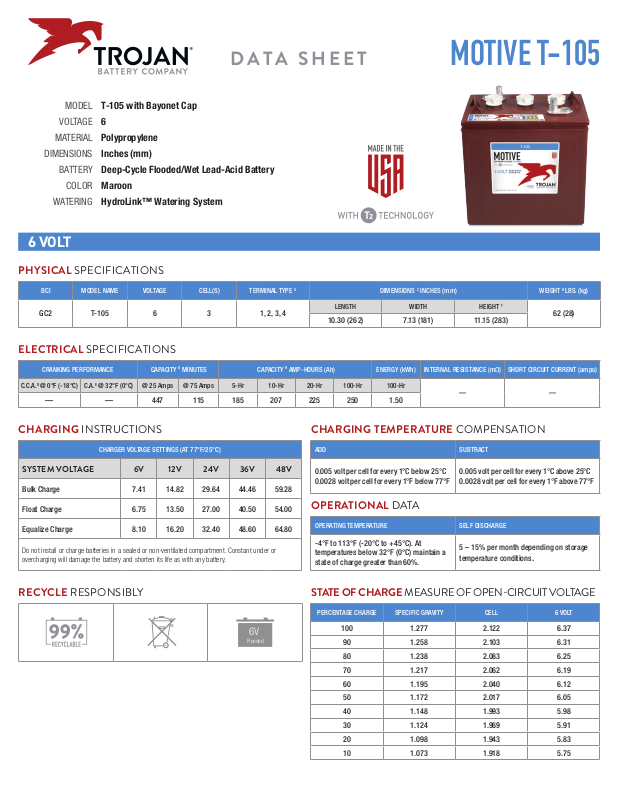

Page 1
DATA SHEET
MODEL T-105 with Bayonet Cap
VOLTAGE 6
MATERIAL Polypropylene
DIMENSIONS Inches (mm)
BATTERY Deep-Cycle Flooded/Wet Lead-Acid Battery
COLOR Maroon
WATERING HydroLink™ Watering System
6 VOLT
PHYSICAL SPECIFICATIONS
BCI MODEL NAME VOLTAGE CELL(S) TERMINAL TYPE
GC2 T-105 6 3 1, 2, 3, 4
ELECTRICAL SPECIFICATIONS
MOTIVE T-105
G
LENGTH WIDTH HEIGHT
10.3 0 (262) 7.13 (1 81) 11.15 (2 83)
DIMENSIONS C INCHES (mm) WEIGHT
F
H
LBS. (kg)
62 (28)
CRANKING PERFORMANCE CAPACITYA MINUTES CAPACITYB AMP-HOURS (Ah) ENERGY (kWh) INTERNAL RESISTANCE (mΩ) SHORT CIRCUIT CURRENT (amps)
C.C.A.D @ 0°F (-18°C) C.A.E @ 32°F (0°C) @ 25 Amps @ 75 Amps 5-Hr 10-Hr 20-Hr 100-Hr 100-Hr
— — 447 115 185 207 225 250 1.50
CHARGING INSTRUCTIONS
CHARGER VOLTAGE SETTINGS (AT 77°F/25°C)
SYSTEM VOLTAGE 6V 12V 24V 36V 48V
Bulk Charge 7.41 14.82 29.64 44.46 59.28
Float Charge 6.75 13.50 27.00 40.50 54.00
Equalize Charge 8.10 16.20 32.40 48.60 64.80
Do not install or charge batteries in a sealed or non-ventilated compartment. Constant under or
overcharging will damage the battery and shorten its life as with any battery.
RECYCLE RESPONSIBLY
6V
Flooded
CHARGING TEMPERATURE COMPENSATION
ADD SUBTRACT
0.005 volt per cell for every 1°C below 25°C
0.0028 volt per cell for every 1°F below 77°F
OPERATIONAL DATA
OPERATING TEMPERATURE SELF DISCHARGE
-4°F to 113°F (-20°C to +45°C). At
temperatures below 32°F (0°C) maintain a
state of charge greater than 60%.
STATE OF CHARGE MEASURE OF OPEN-CIRCUIT VOLTAGE
PERCENTAGE CHARGE SPECIFIC GRAVITY CELL 6 VOLT
100 1.277 2.122 6.37
90 1.258 2.103 6.31
80 1.238 2.083 6.25
70 1.217 2.062 6.19
60 1.195 2.040 6.12
50 1.172 2.017 6.05
40 1.148 1.993 5.98
30 1.124 1.969 5.91
20 1.098 1.943 5.83
10 1.073 1.918 5.75
— —
0.005 volt per cell for every 1°C above 25°C
0.0028 volt per cell for every 1°F above 77°F
5 – 15% per month depending on storage
temperature conditions.
Page 2
1000
100000
9.69 246
10.18 259
10.30 (262)
6.97 (177)
TROJAN BATTERY
COMPANY WITH
QUALITY SYSTEM
CERTIFIED BY DNV
= ISO 9001:2015 =

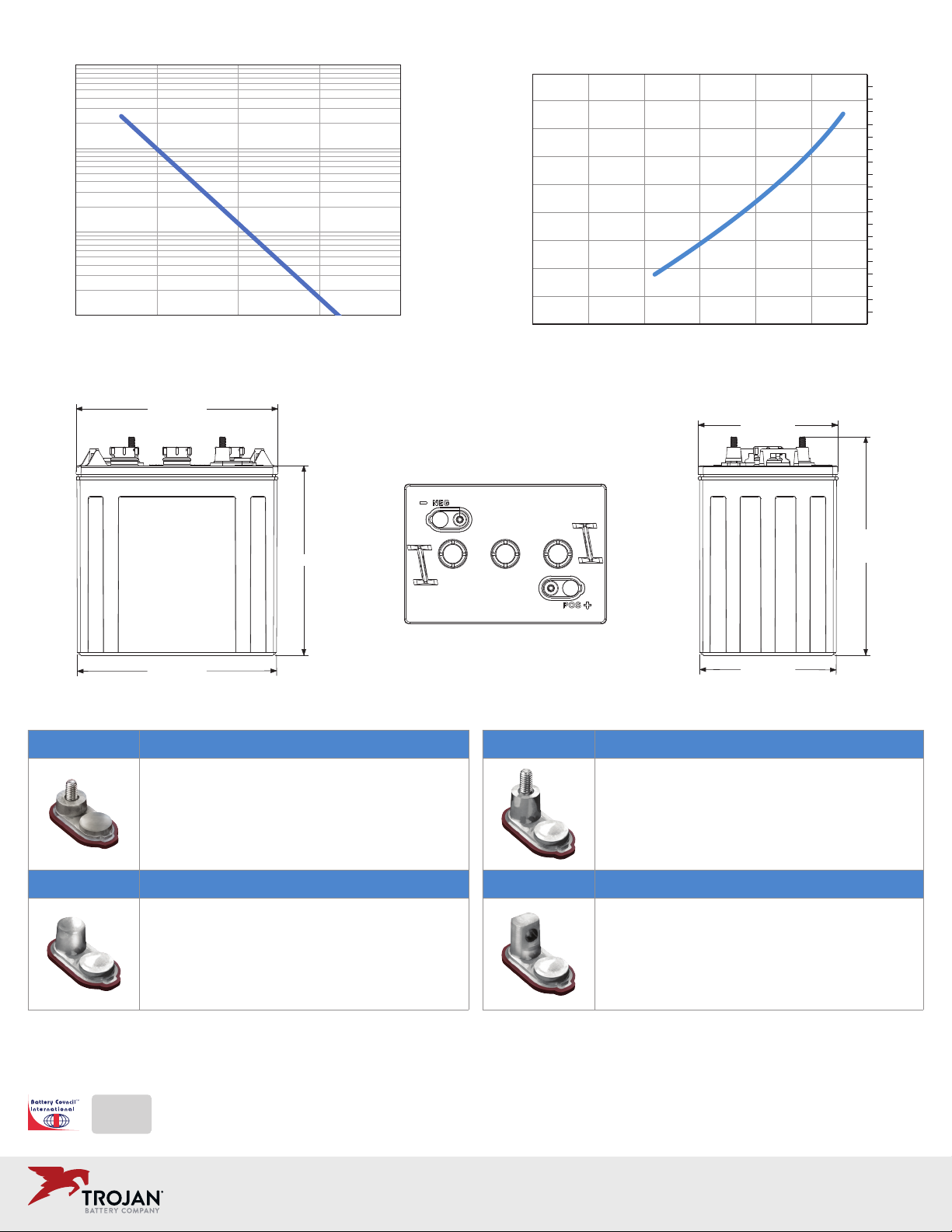

TROJAN T-105 PERFORMANCE
140
60
Temperature (C)
PERCENT CAPACITY VS. TEMPERATURE
100
10
Discharge Current (amps)
1
10 100 1000 10000
Estimation Purposes Only
Time (mins)
BATTERY DIMENSIONS (shown with EHPT)
LENGTH
Temperature (F)
120
100
50
40
80
60
40
20
0
-20
-40
20%0% 40% 60% 80% 100% 120%
30
20
10
Temperature (C)
0
-10
-20
-30
-40
Percent of Available Capacity
7.13 (181)
WIDTH
11.15 (283)
HEIGHT
TERMINAL CONFIGURATIONS
G
1 ELPT EMBEDDED LOW PROFILE TERMINAL 2 EHPT EMBEDDED HIGH PROFILE TERMINAL
Terminal Height Inches (mm)
1.22 (31)
Torque Values in-lb (Nm)
95 – 105 (11 – 12)
Bolt
5/16”
Terminal Height Inches (mm)
1.50 (38)
Torque Values in-lb (Nm)
95 – 105 (11 – 12)
Bolt
5/16”
3 EAPT EMBEDDED AUTOMOTIVE POST TERMINAL 4 EUT EMBEDDED UNIVERSAL TERMINAL
Terminal Height Inches (mm)
Terminal Height Inches (mm)
A. The number of minutes a battery can deliver when discharged at a constant rate at 80°F (27°C) and maintain a voltage above
B. The amount of amp-hours (Ah) a battery can deliver when discharged at a constant rate at 80°F (27°C) and maintain a voltage above 1.75 V/cell.
C. Dimensions may vary depending on type of handle or terminal. Batteries should be mounted with 0.5 inches (12.7 mm) spacing minimum.
D. C.C.A. (Cold Cranking Amps) - the discharge load in amperes which a new, fully charged battery can maintain for 30 seconds at 0°F (-18°C) at a voltage
1.75 V/cell. Capacities are based on peak performance.
Capacities are based on peak performance.
above 1.2 V/cell.
0.95 (24)
Torque Values in-lb (Nm)
50 – 70 (5.6 – 7.9)
Designed in compliance with applicable BCI, DIN, BS and IEC standards.
Tested in compliance to BCI and IEC standards.
E. C.A. (Cranking Amps) - the discharge load in amperes which a new, fully charged battery can maintain for 30 seconds at 32°F (0°C) at a voltage above
1.2 V/cell. This is sometimes referred to as marine cranking amps @ 32°F or M.C.A. @ 32°F.
F. Height taken from bottom of the battery to the highest point on the battery. Heights may vary depending on type of terminal.
G. Terminal images are representative only.
H. Weight may vary.
1.10 (28)
Torque Values in-lb (Nm)
95 – 105 (11 – 12)
Bolt
5/16”
800.423.6569 / +1.562.236.3000 / trojanbattery.com
© 2019 Trojan Battery Company, LLC. All rights reserved. Trojan Battery Company is not liable for damages that may result from any information provided in or omitted
from this publication, under any circumstances. Trojan Battery Company reserves the right to make adjustments to this publication at any time, without notice or obligation.
T-105.DS_020819
