User Manual v 2.3
MULTI Touch LED LCD
55”/ 65”/ 70”/ 84”
July 2015
Page 2
2
Contents
1. Product Description .............................................................................................. 4
2. Technical Specifications ...................................................................................... 5
3. Safety Warning ...................................................................................................... 9
Placement .......................................................................................................................................... 9
Power Supply .................................................................................................................................... 9
Screen ................................................................................................................................................ 9
Range of Visibility ............................................................................................................................. 9
Temperature ...................................................................................................................................... 9
Humidity ............................................................................................................................................. 9
Ventilation ........................................................................................................................................ 10
Headphones .................................................................................................................................... 10
Standby ............................................................................................................................................ 10
Battery .............................................................................................................................................. 10
Caution ............................................................................................................................................. 10
4. Preparing for Installation ................................................................................... 11
Unpacking ........................................................................................................................................ 11

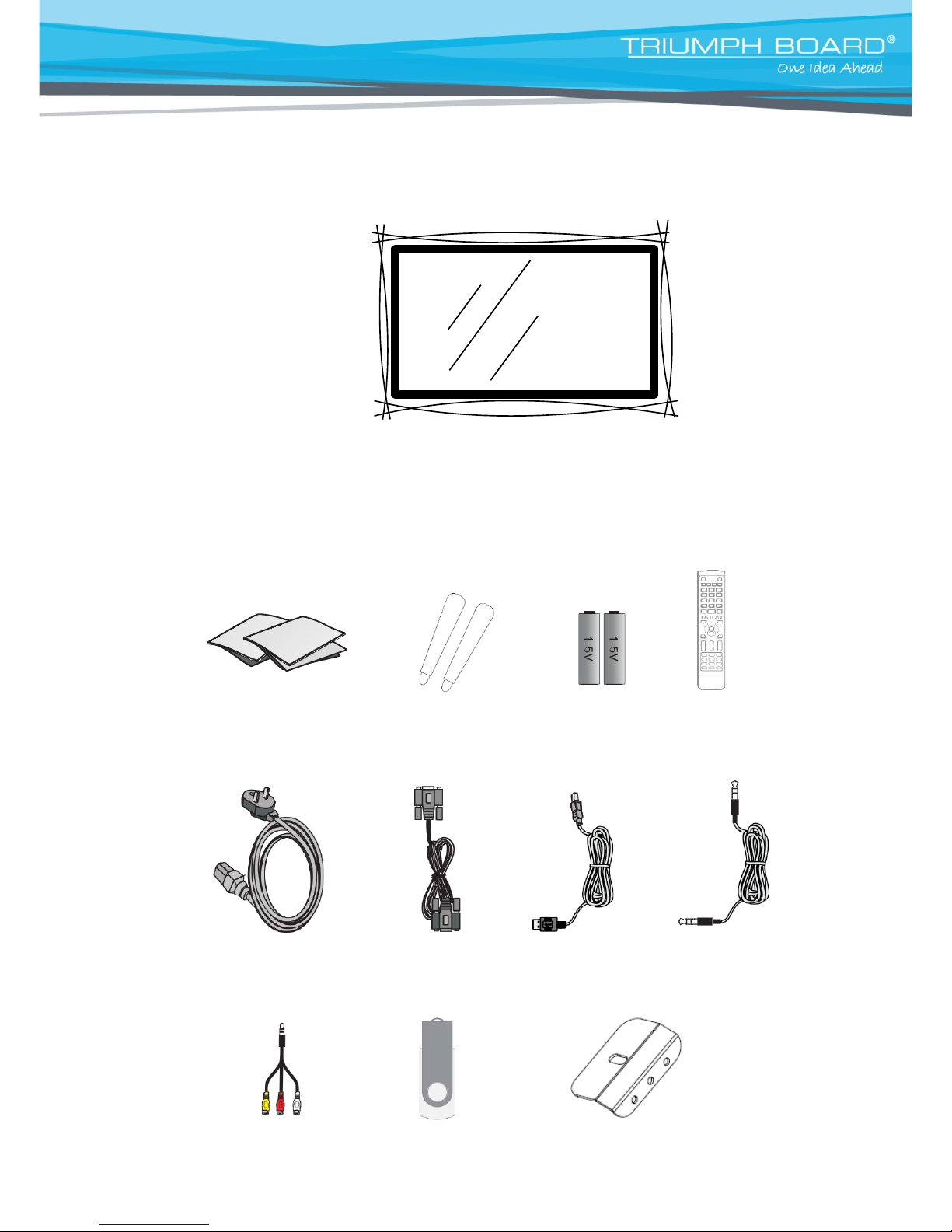

Accessories ..................................................................................................................................... 11

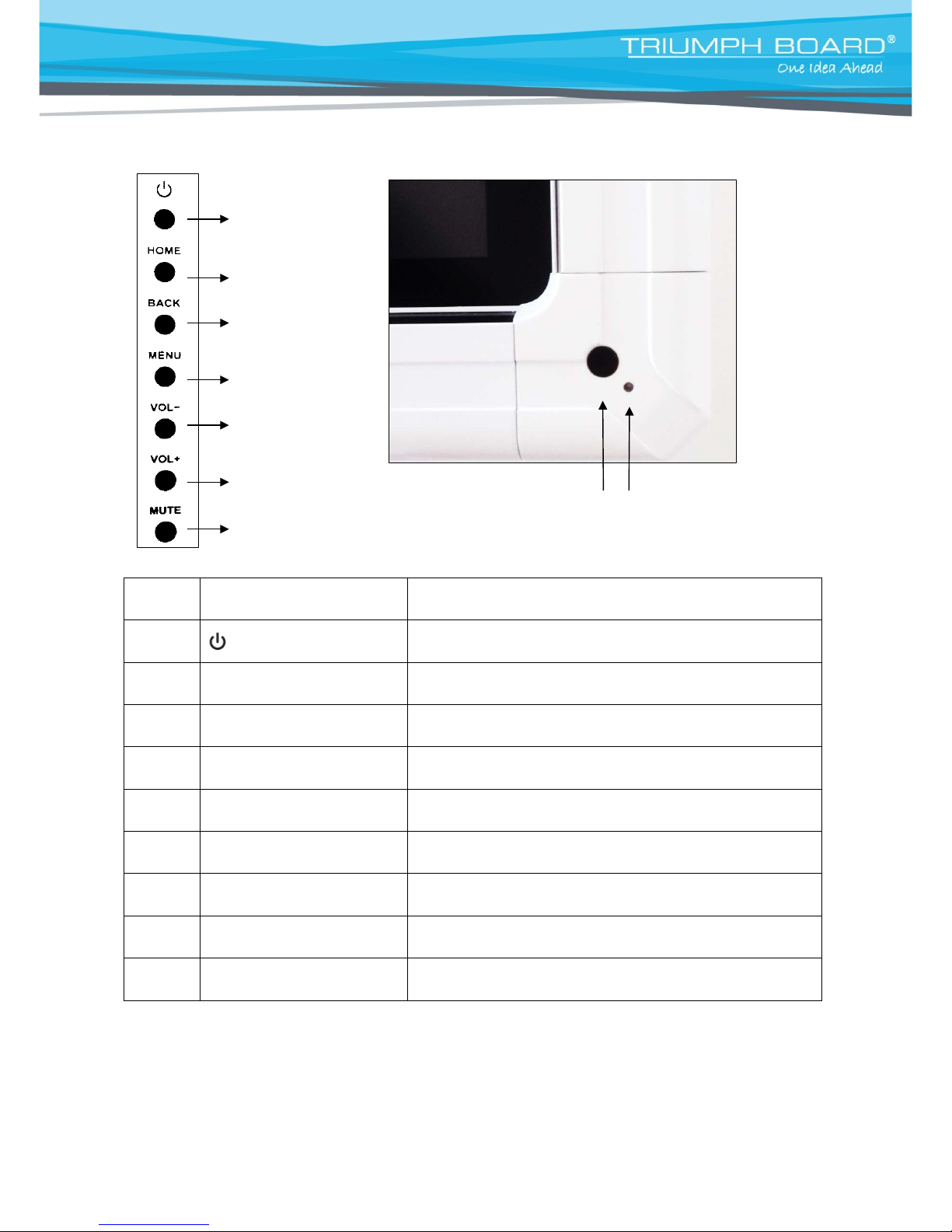

Control Panel ................................................................................................................................... 12

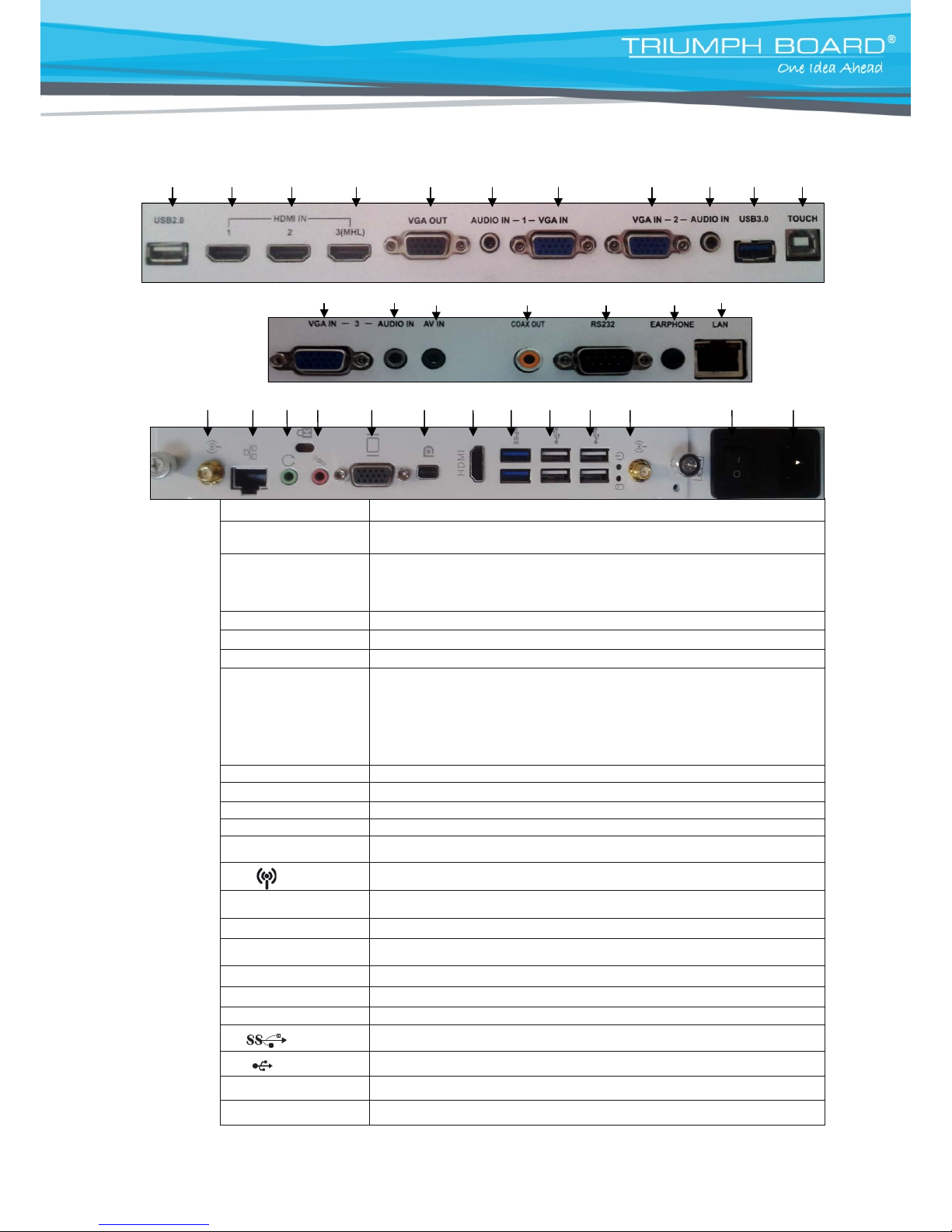

5. Terminal Interface ............................................................................................... 13
6. Remote
control
................................................................................................... 14

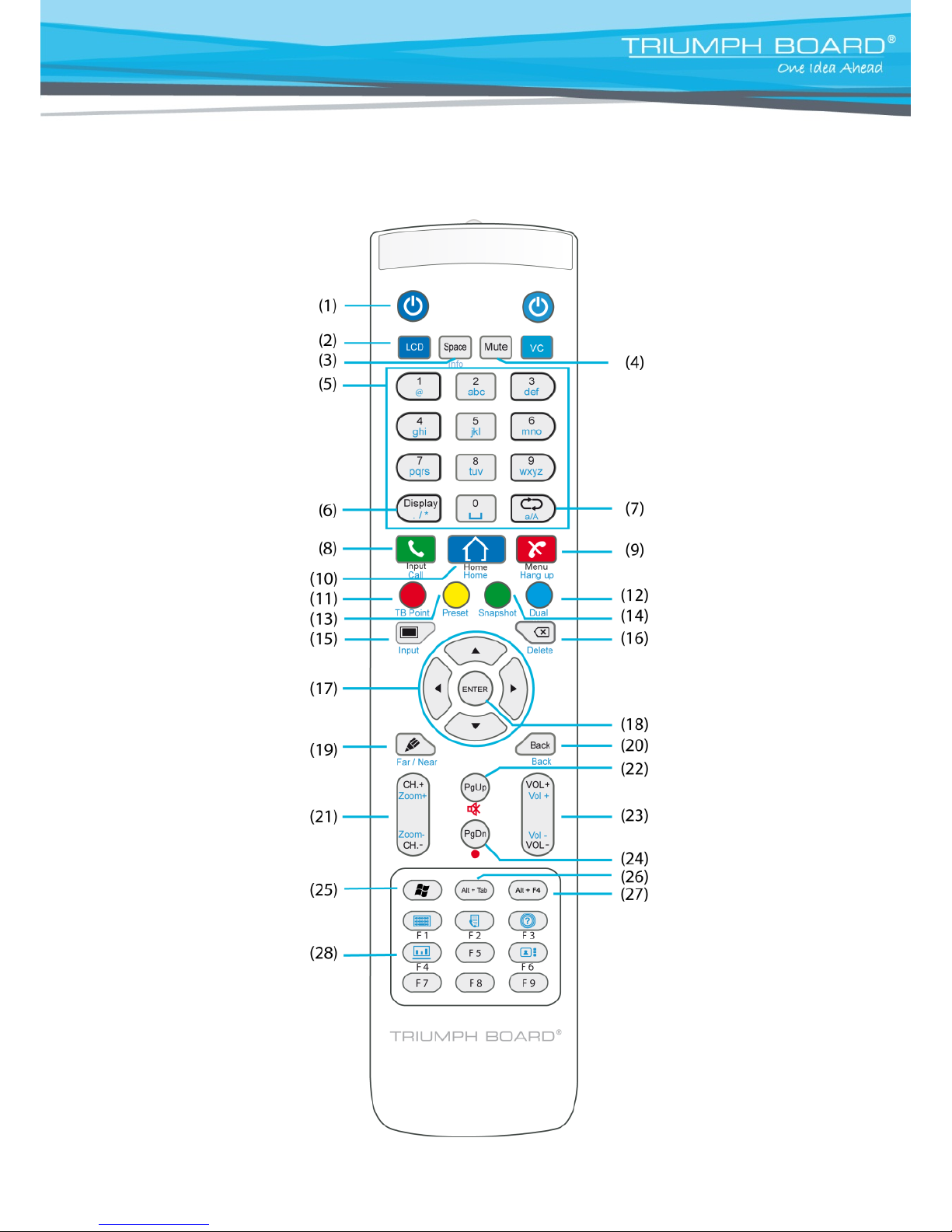

Remote control button
instructions
........................................................................................... 14
Detailed function description of remote control buttons ........................................................... 15
Remote control use instructions ................................................................................................... 16

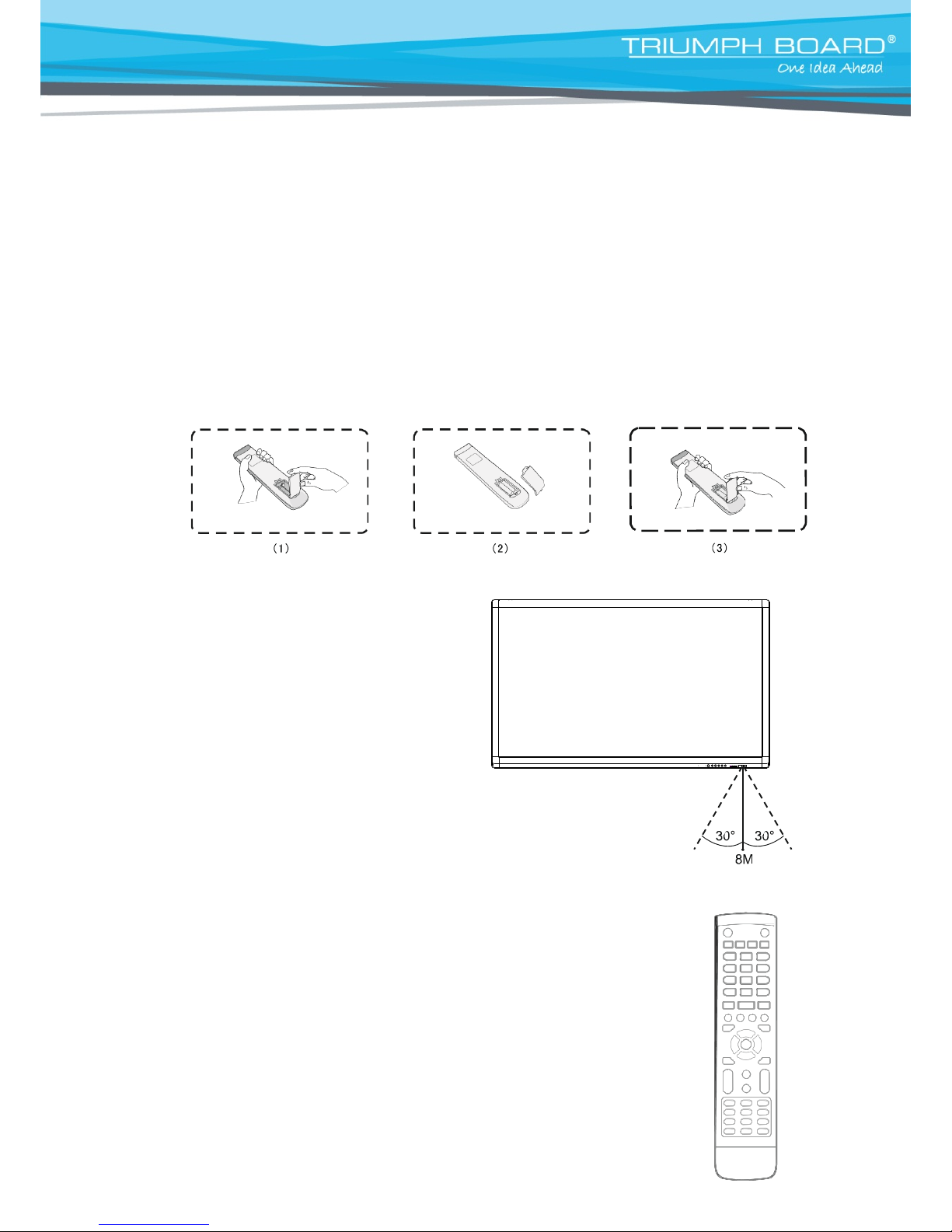

Install Batteries ........................................................................................................................... 16
Range of remote control ............................................................................................................ 16
7. Connection and Settings .................................................................................... 17

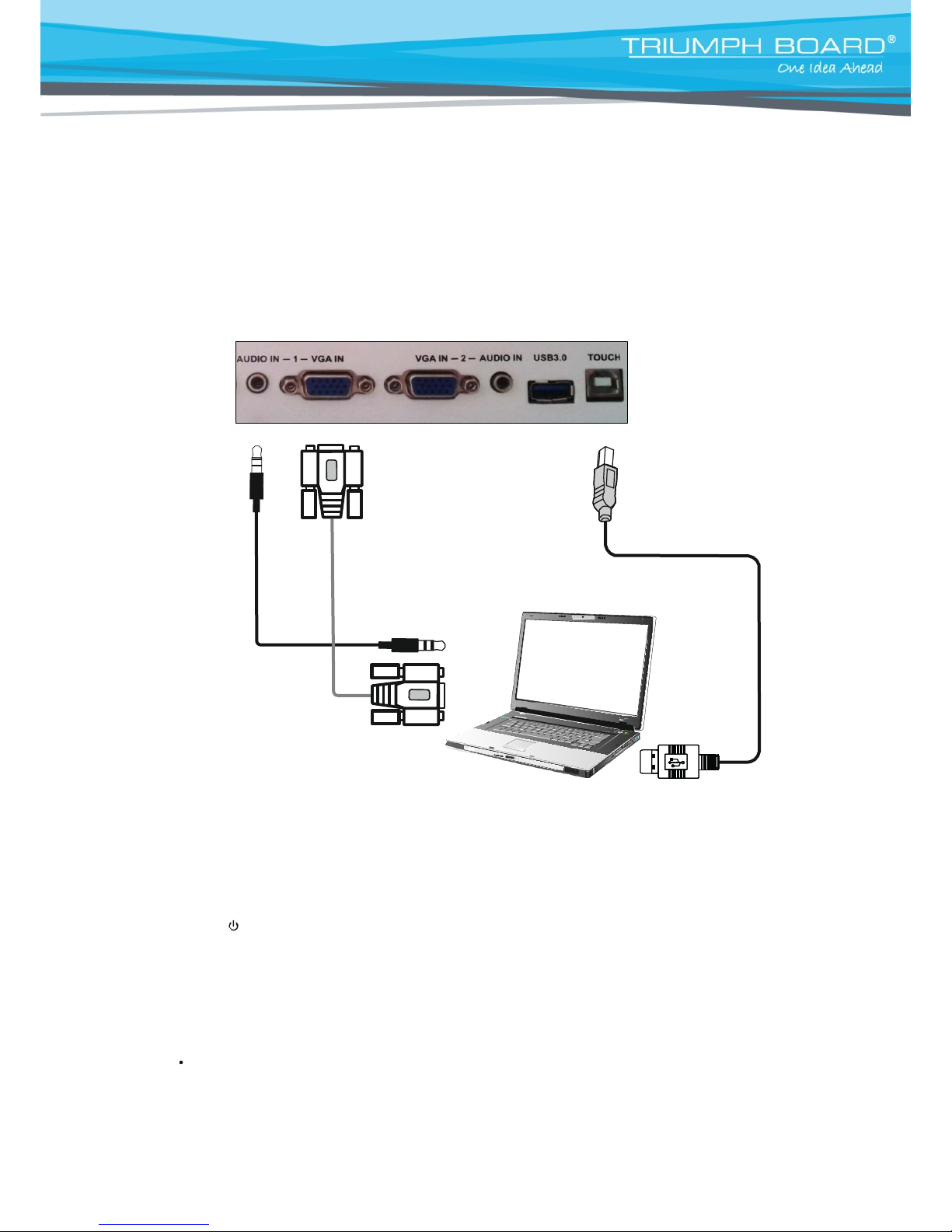

External Computer and Touch Connection .................................................................................. 17
Audio and video equipment ........................................................................................................... 18

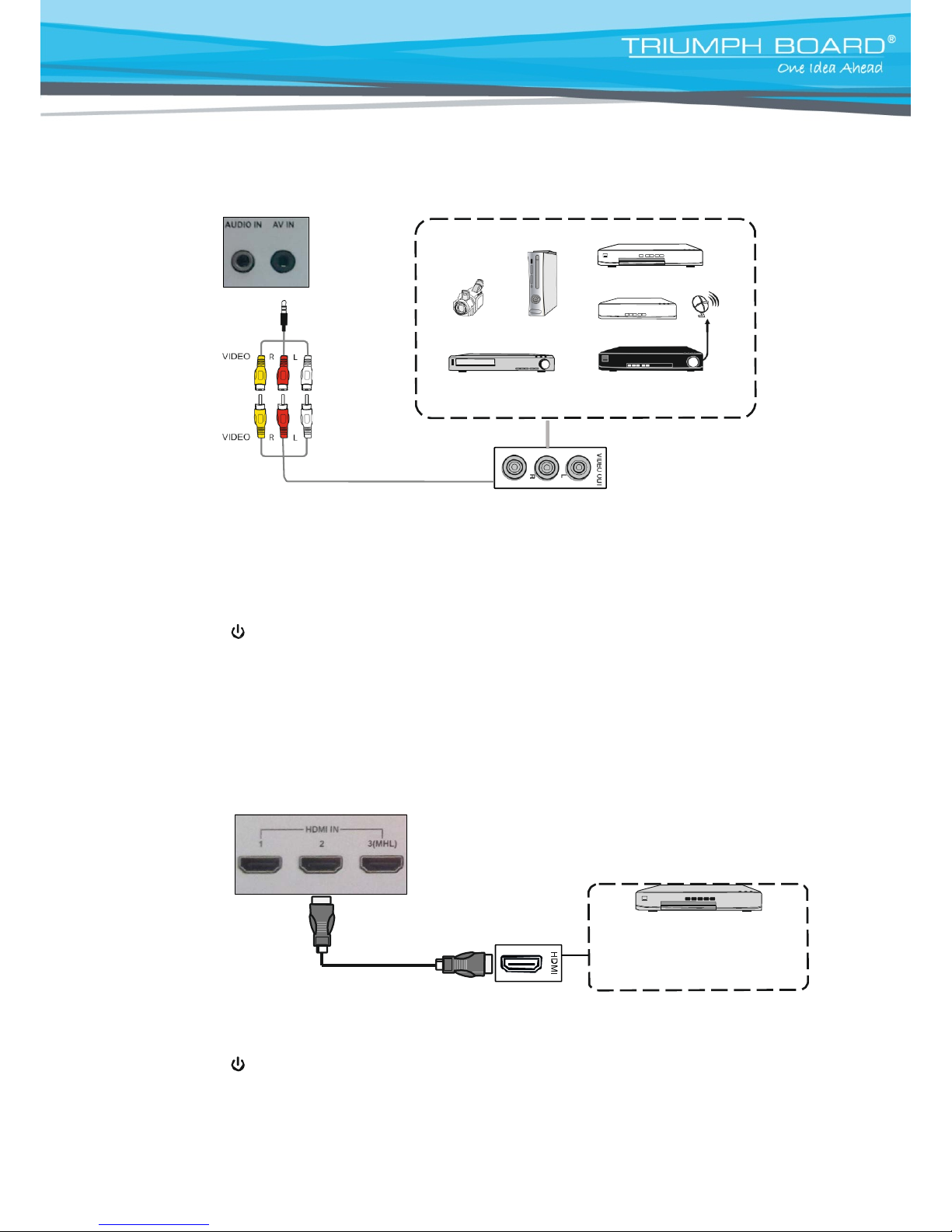

AV ................................................................................................................................................. 18
HDMI1 / HDMI2 / HDMI3 (MHL) / HDMI4 (4K2K)* *TRIUMPH BOARD 84” LED LCD .......... 18

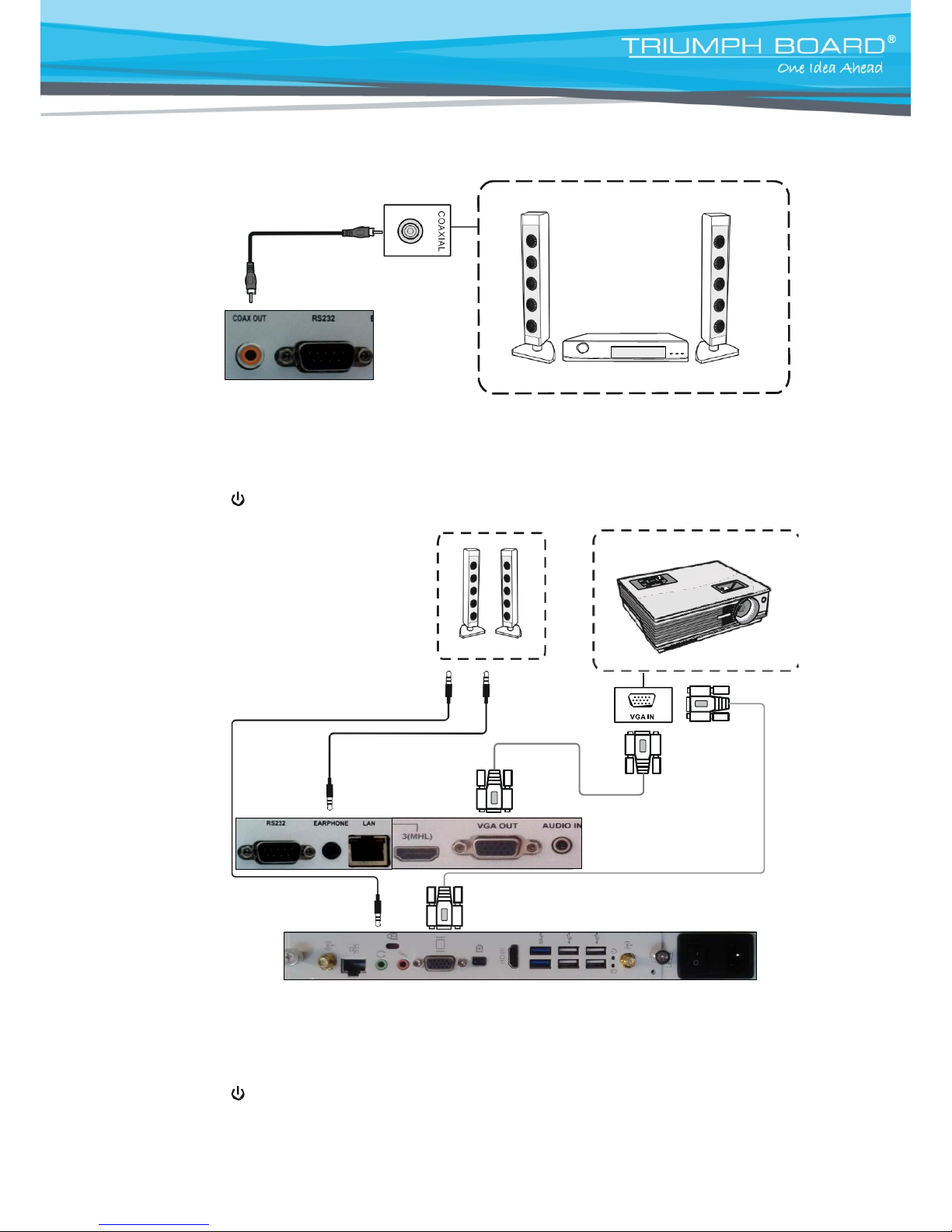

Coaxial connection ......................................................................................................................... 19
Video output connection ................................................................................................................ 19
VGA output connection .............................................................................................................. 19
USB Equipment connection .......................................................................................................... 20

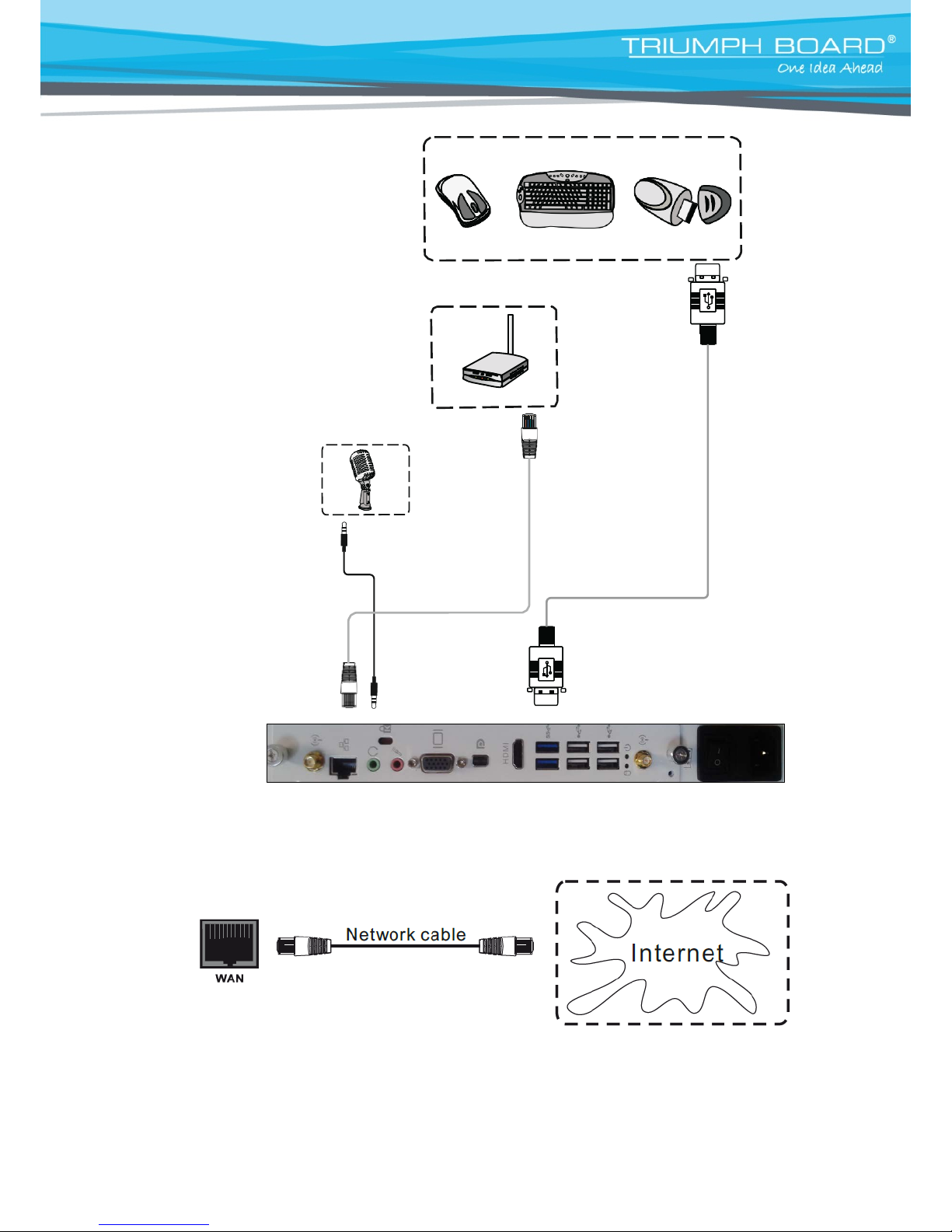

Network cable connection ............................................................................................................. 20
Microphone connecti o n ................................................................................................................. 20
WAN connection ............................................................................................................................. 20
USB equipment connection ........................................................................................................... 21
Page 3
3
8. Menu Operation ................................................................................................... 22

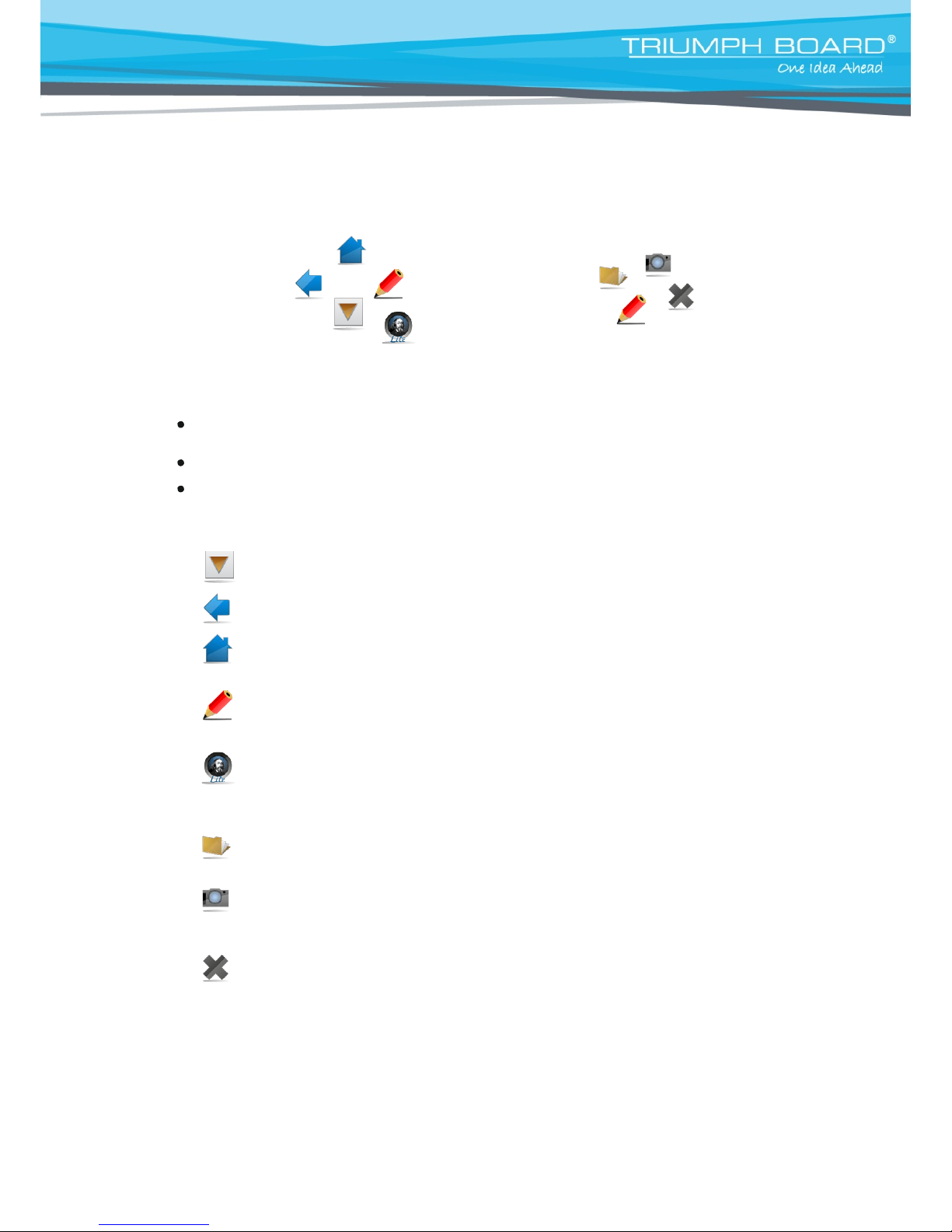

One Touch menu operation ........................................................................................................... 22
Settings menu ................................................................................................................................. 22

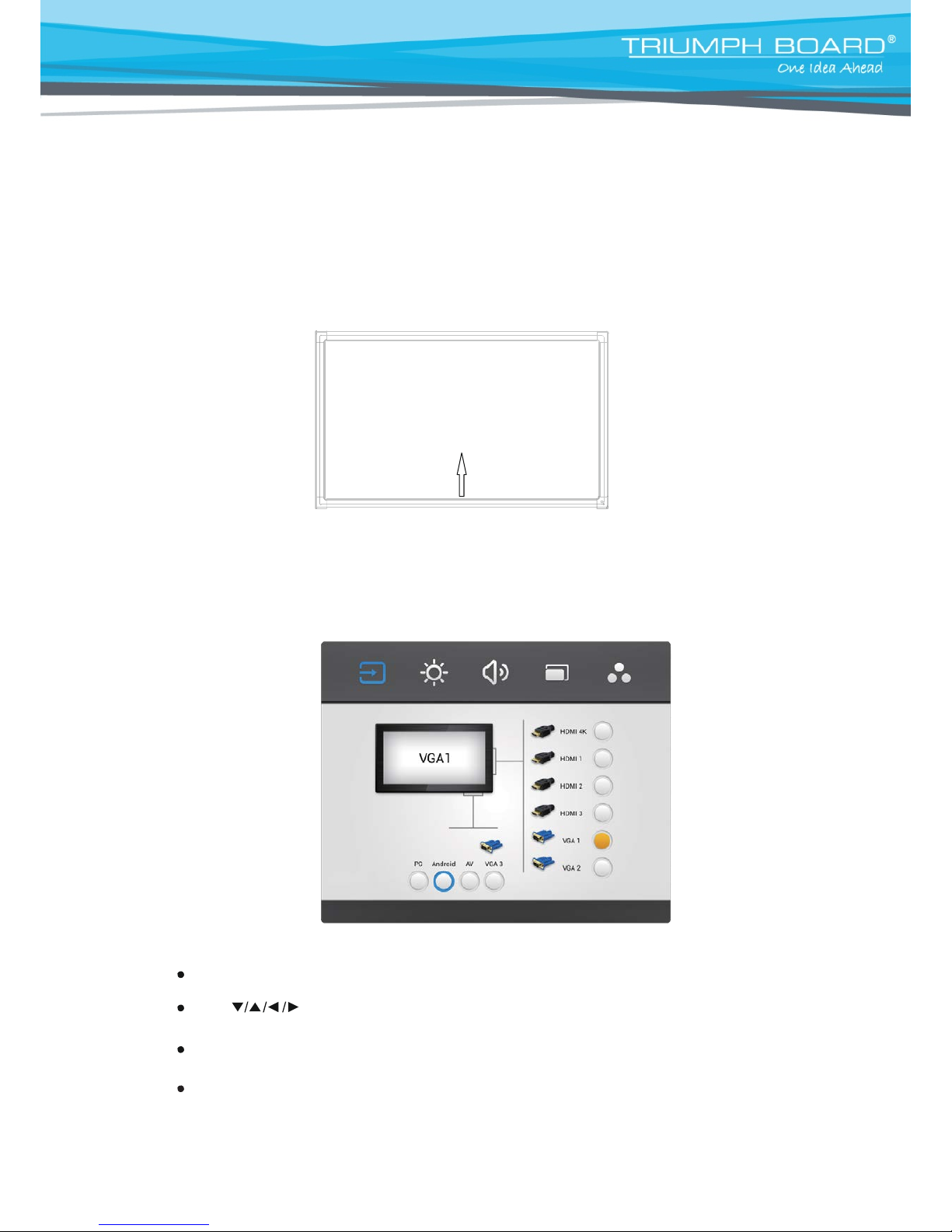

Input setting ................................................................................................................................ 22

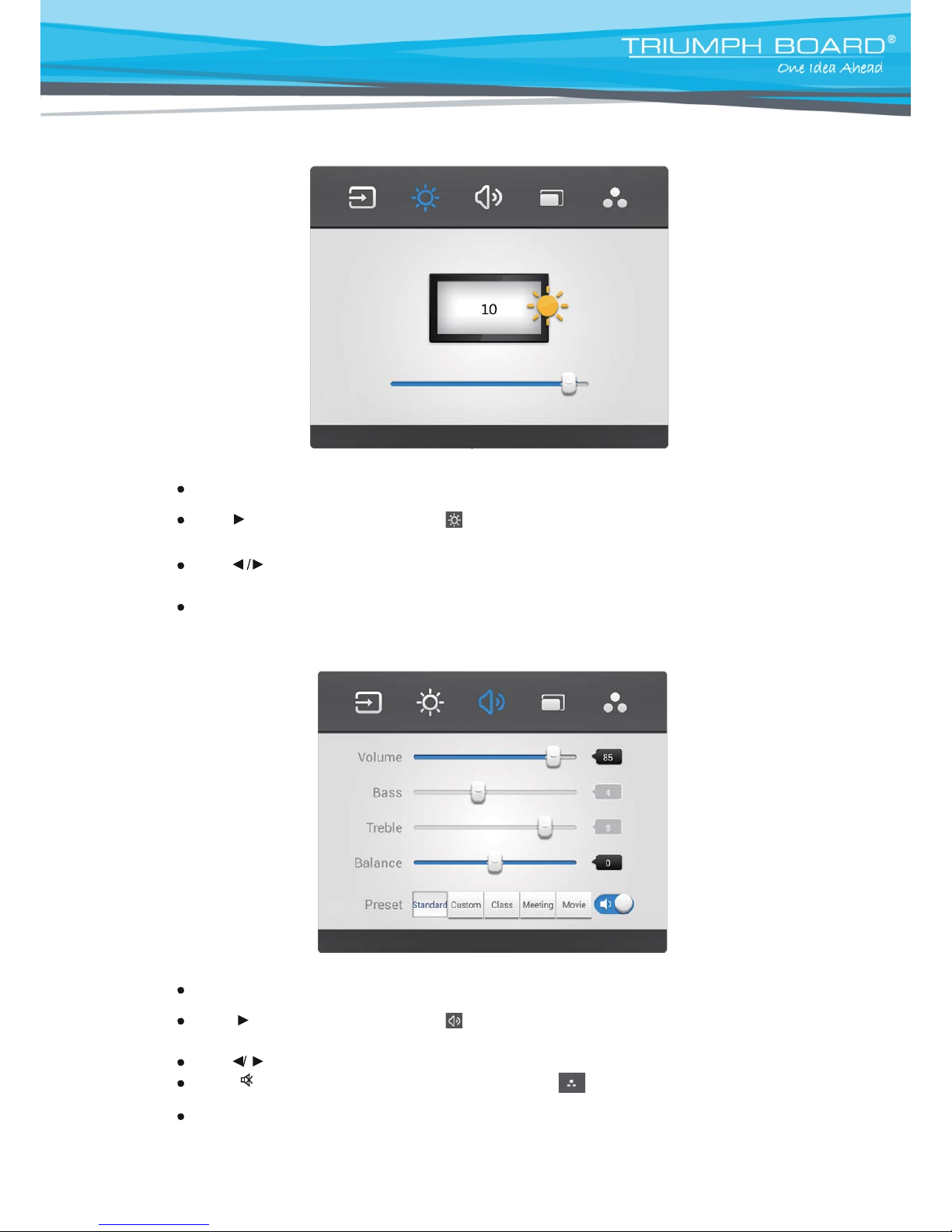

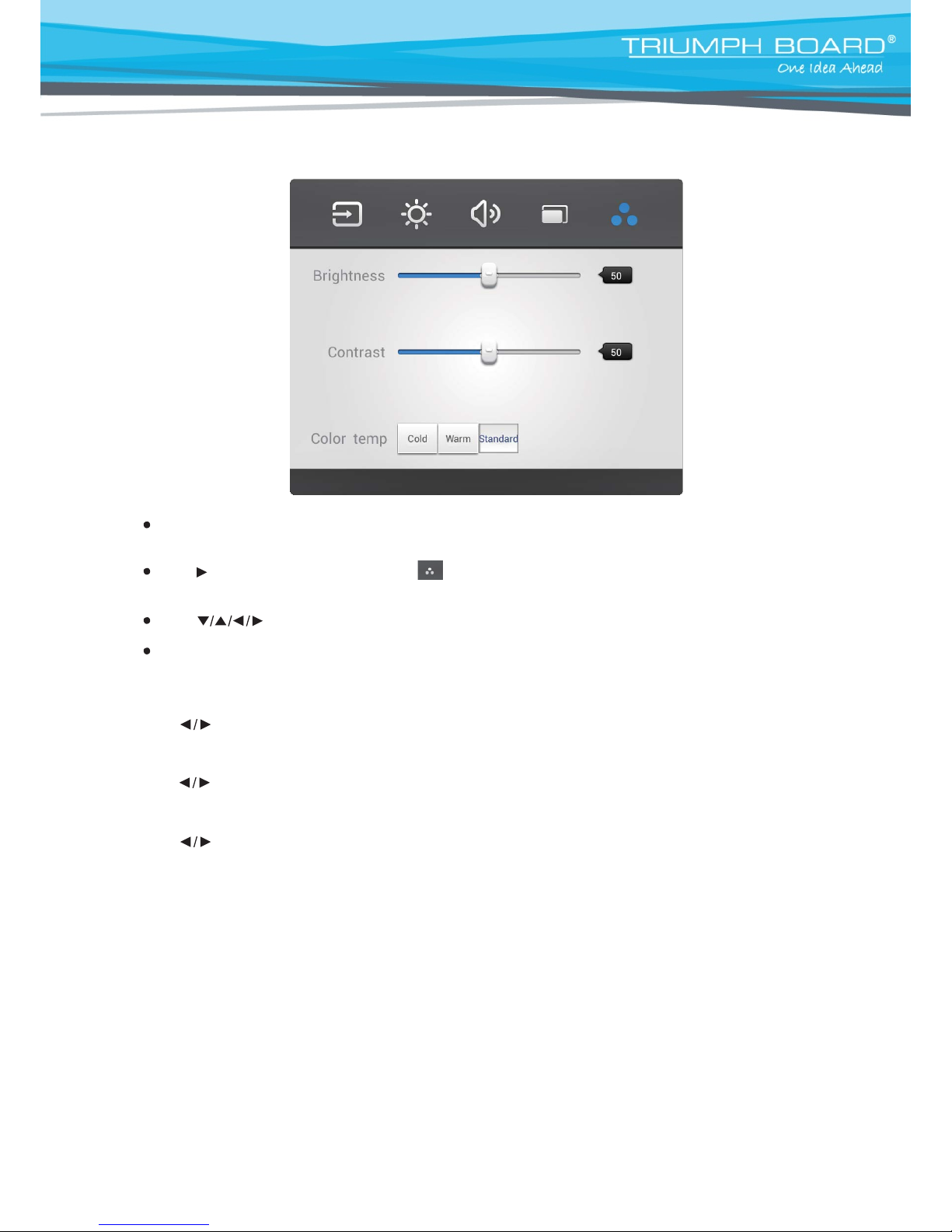

Brightness setting ...................................................................................................................... 23
Volume setting ............................................................................................................................ 23
Zoom setting ............................................................................................................................... 24

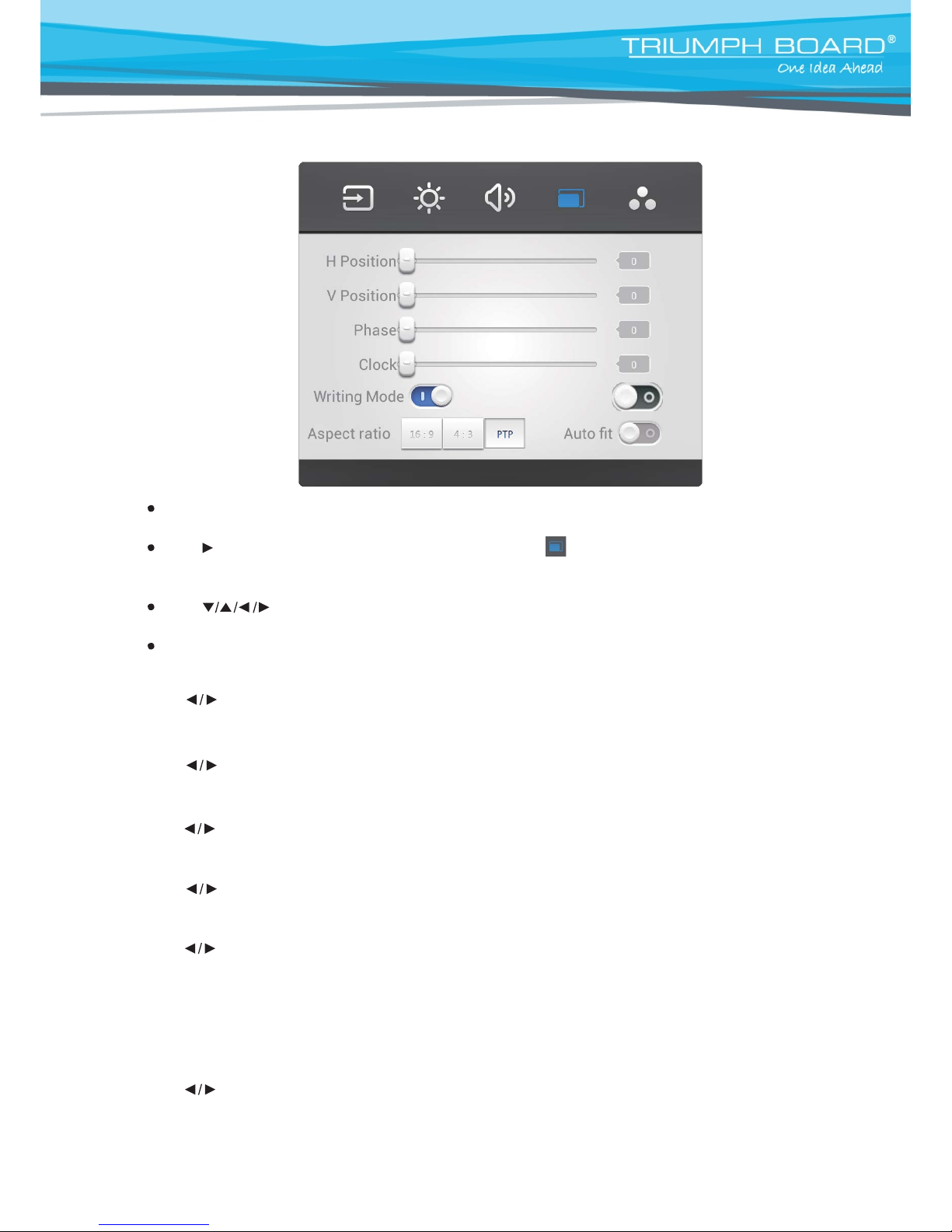

Screen setting ............................................................................................................................. 25
9. More Settings (advanced settings) .................................................................... 26
Advanced settings menu ............................................................................................................... 26

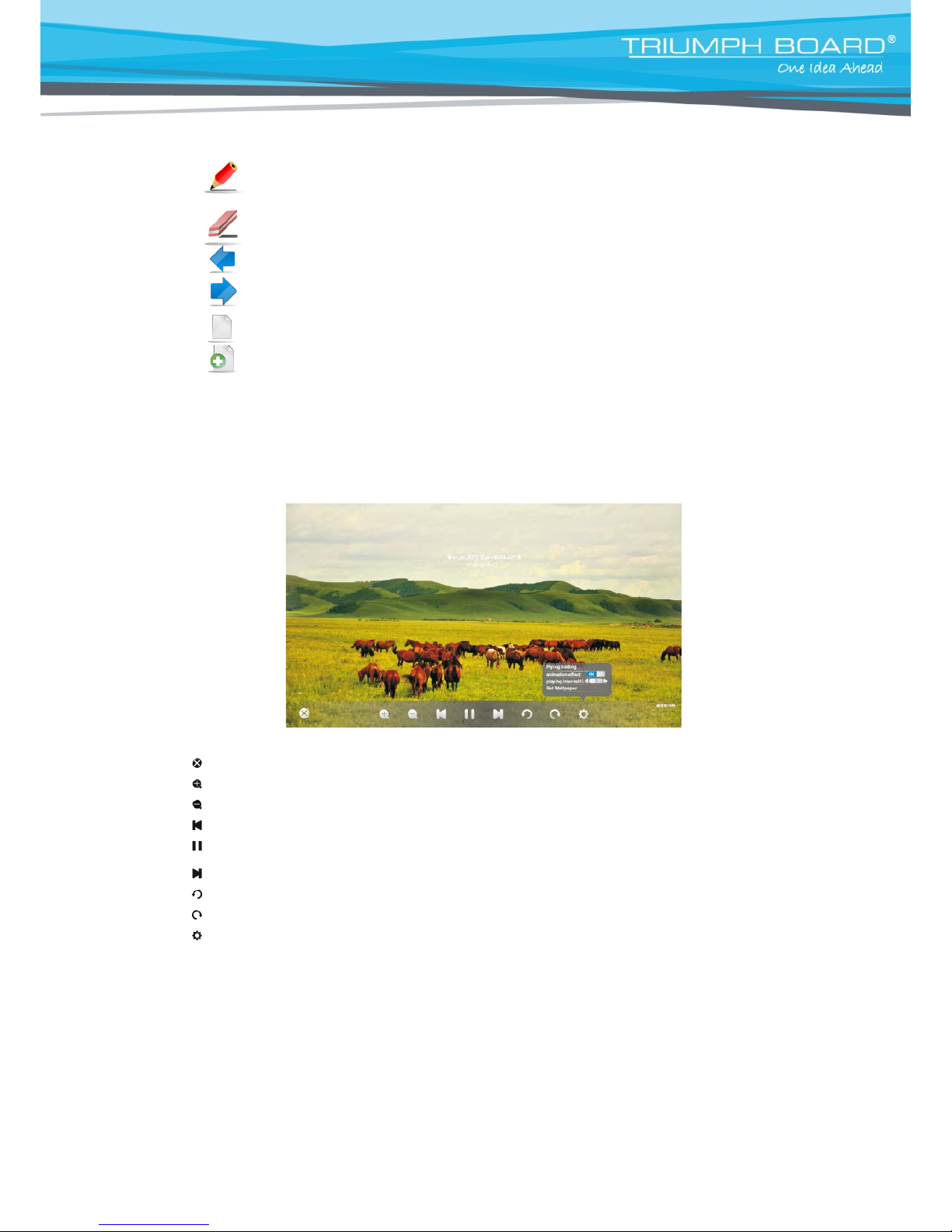

Annotation menu ............................................................................................................................ 27

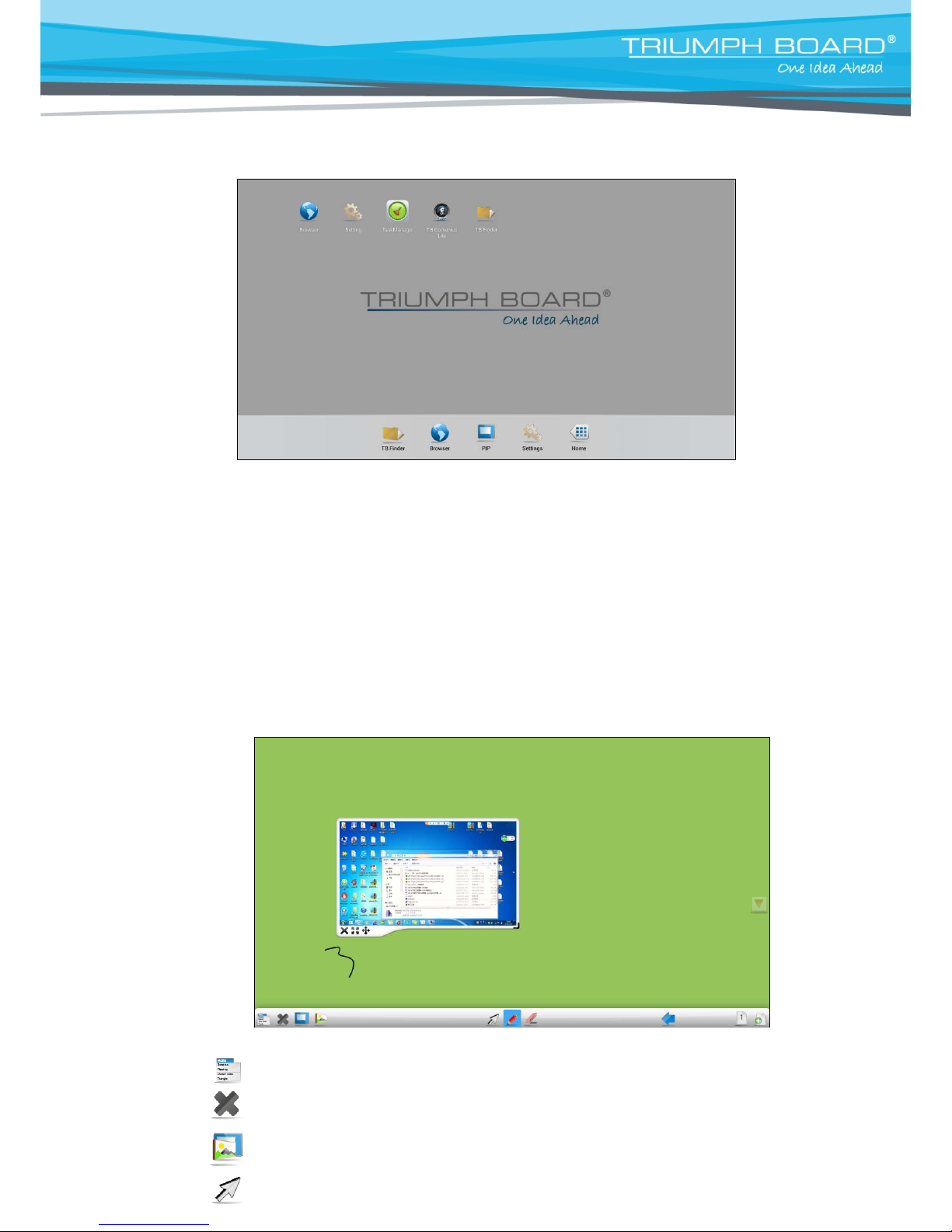

10. Android System Interface ................................................................................ 28

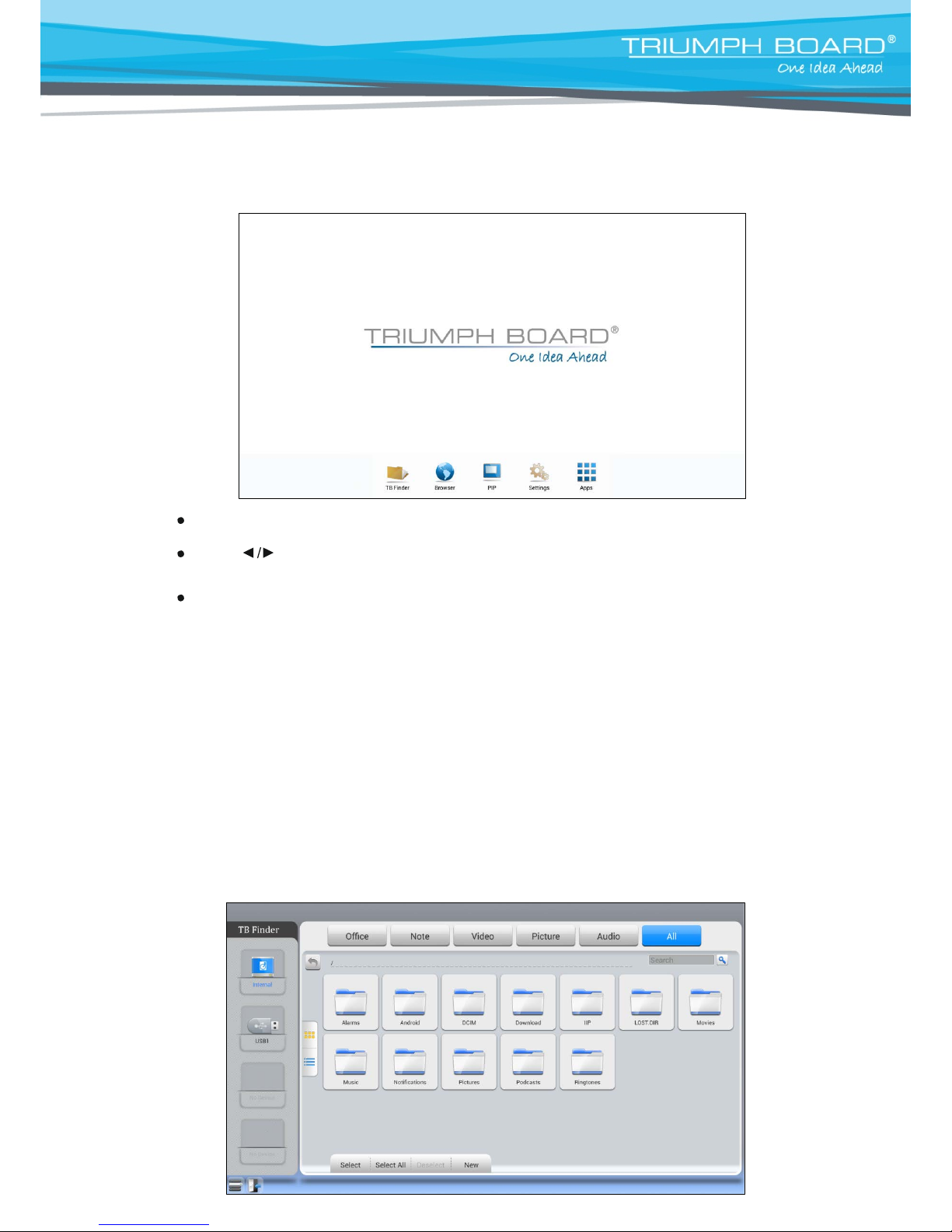

Main Interface .................................................................................................................................. 28
TB Finder ......................................................................................................................................... 28
Browser ............................................................................................................................................ 29

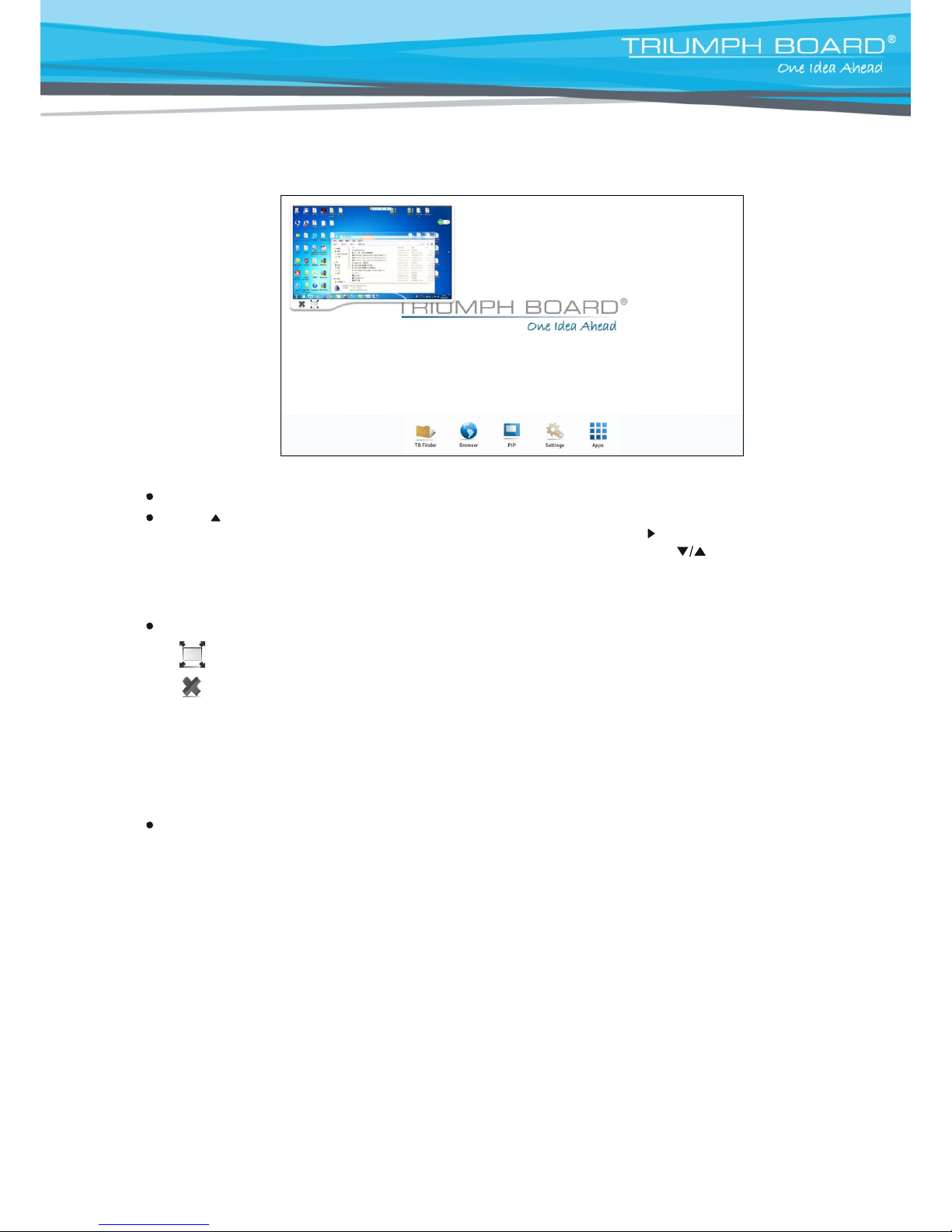

PIP .................................................................................................................................................... 30

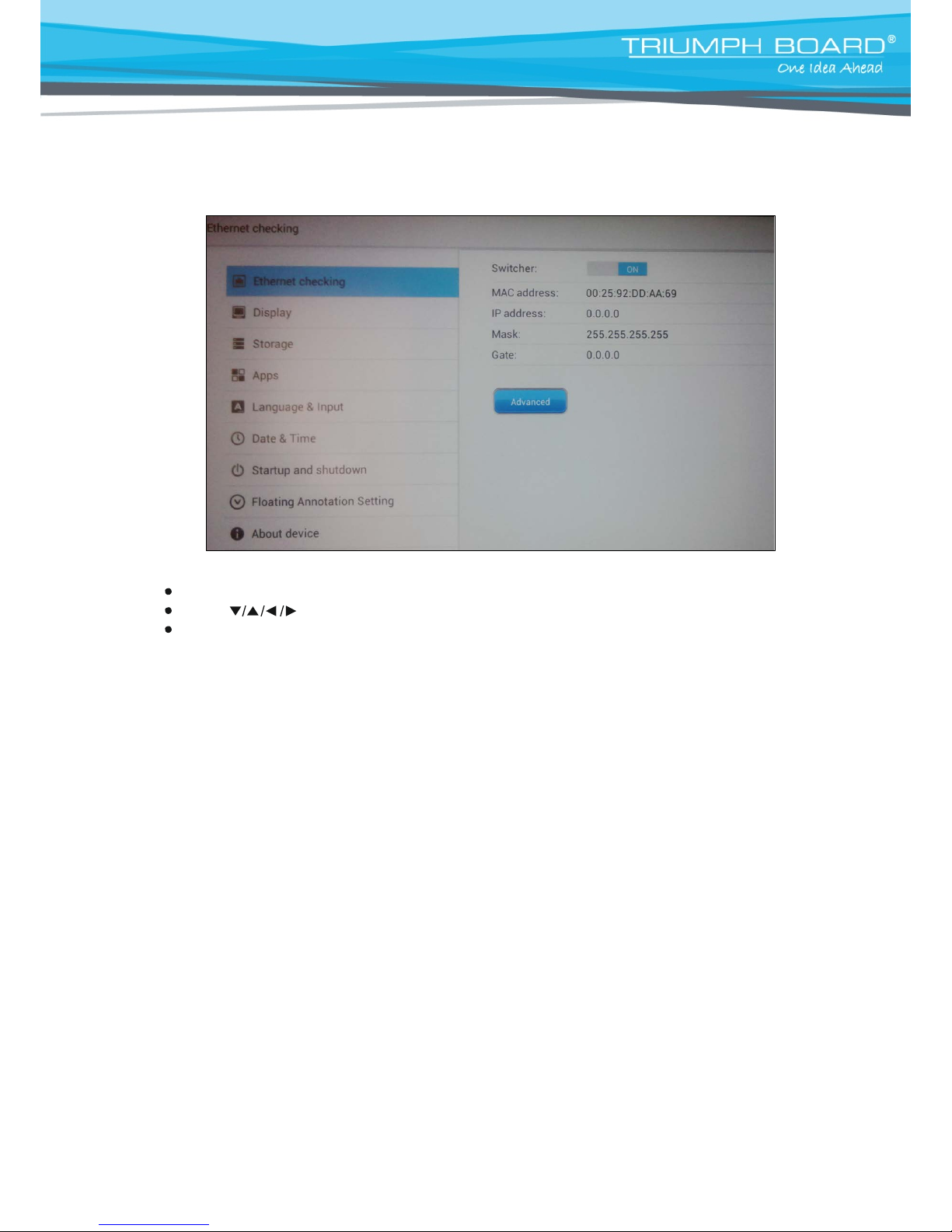

Settings ............................................................................................................................................ 31
Apps ................................................................................................................................................. 31
TB Comenius Lite ........................................................................................................................... 32
11. Multimedia File Playback Interface .................................................................. 32

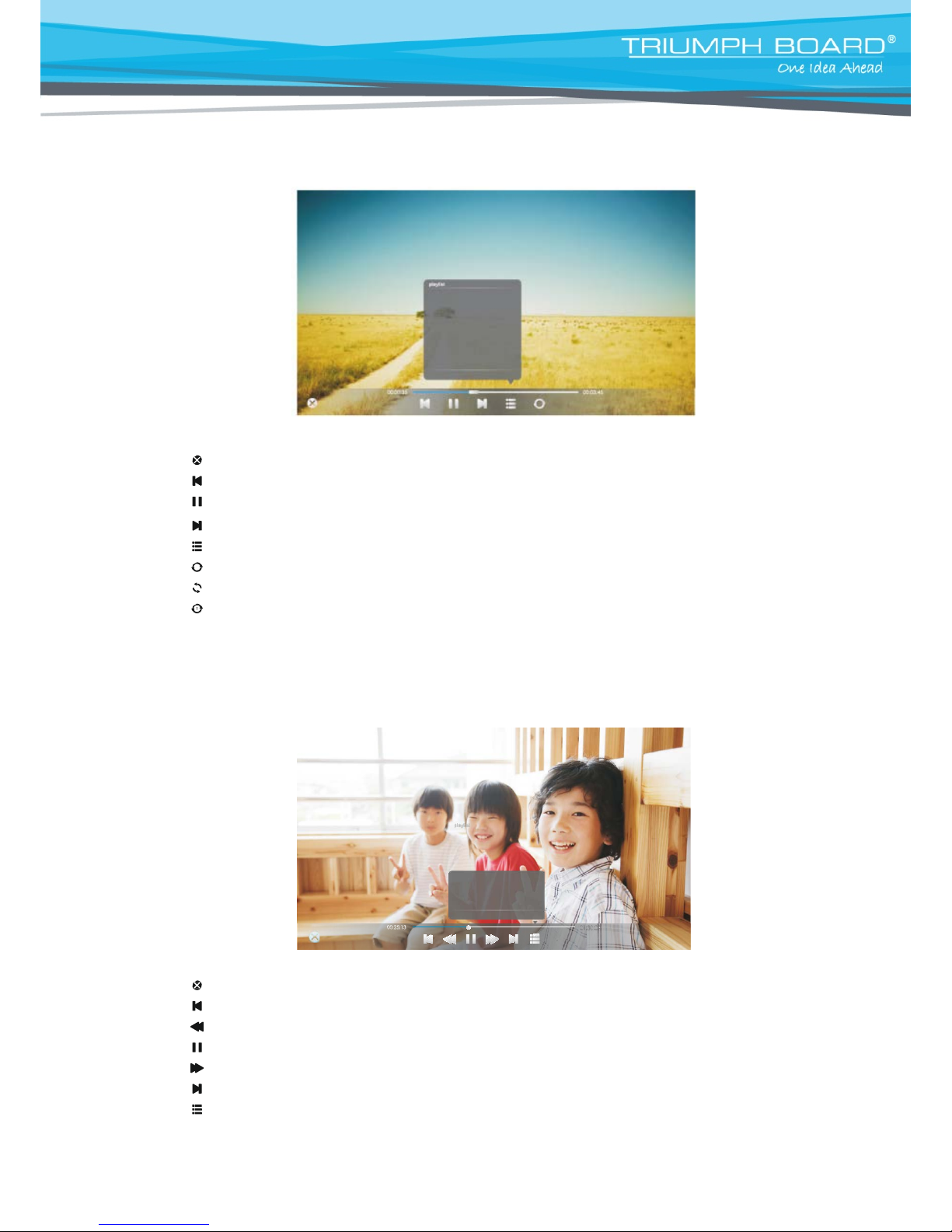

Image play....................................................................................................................................... 32
Audio play ..................................................................................................................................... 33
Single play ...................................................................................................................................... 33
Video play ...................................................................................................................................... 33

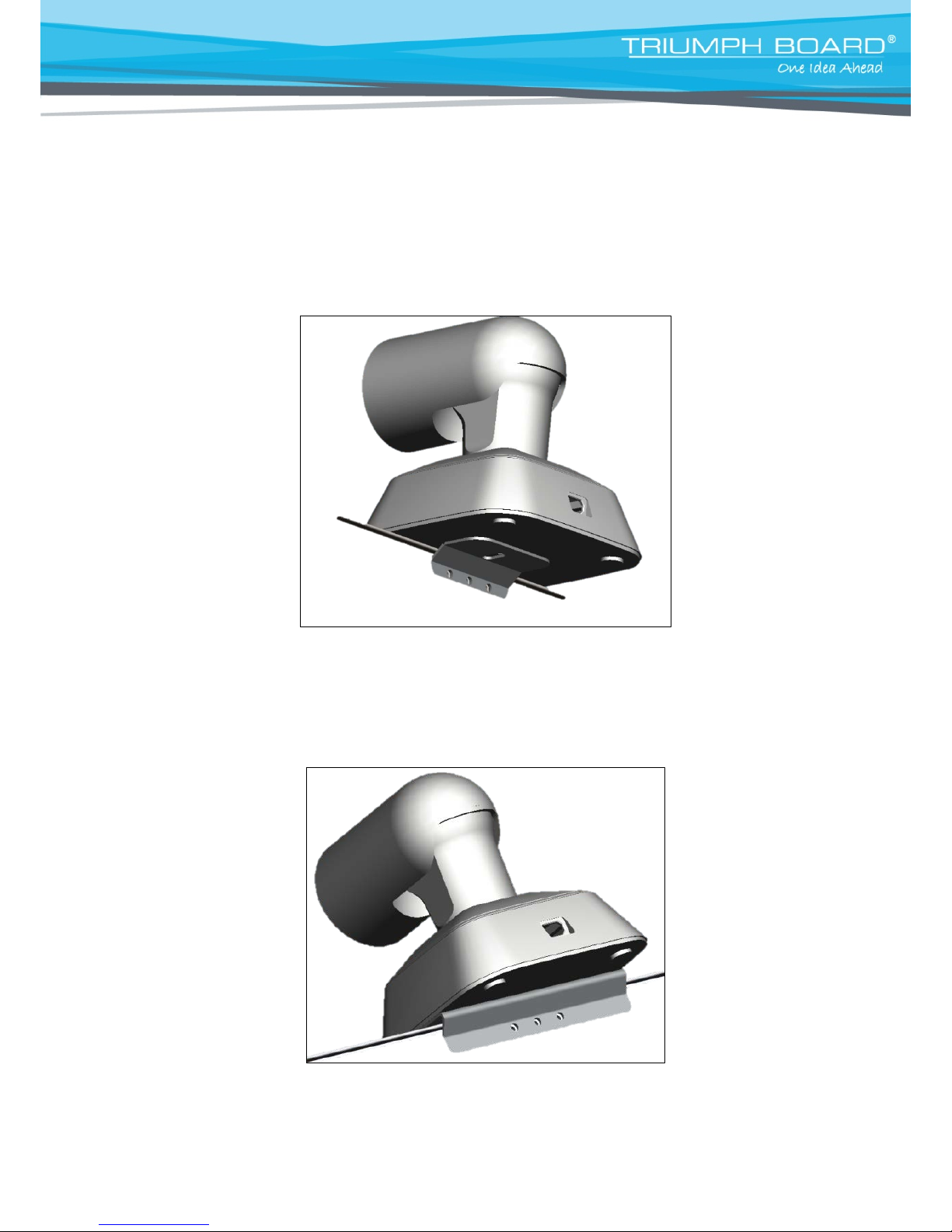

12. VC Camera Bracket installation ....................................................................... 34
13. Troubleshooting ................................................................................................ 35

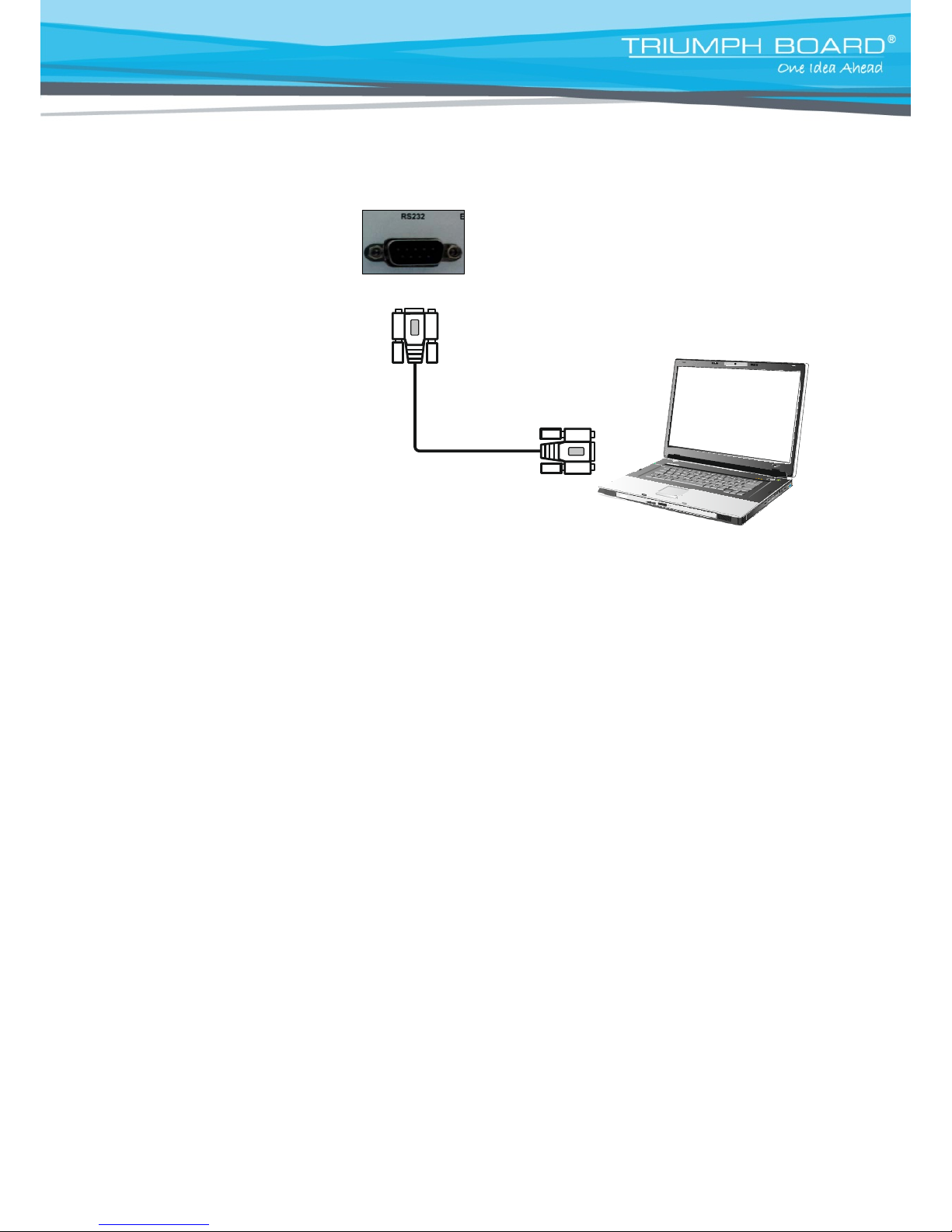

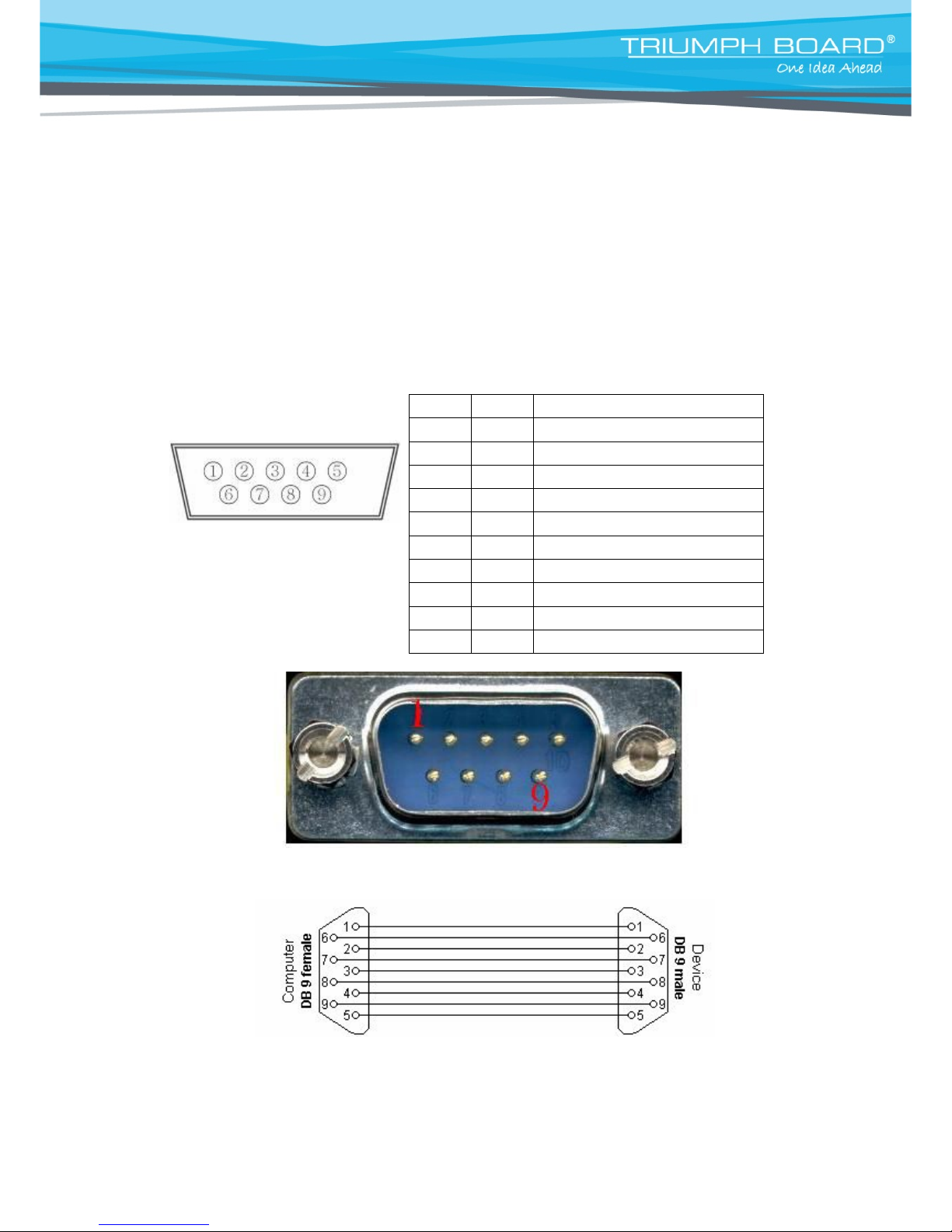

14. Software protocols ........................................................................................... 36

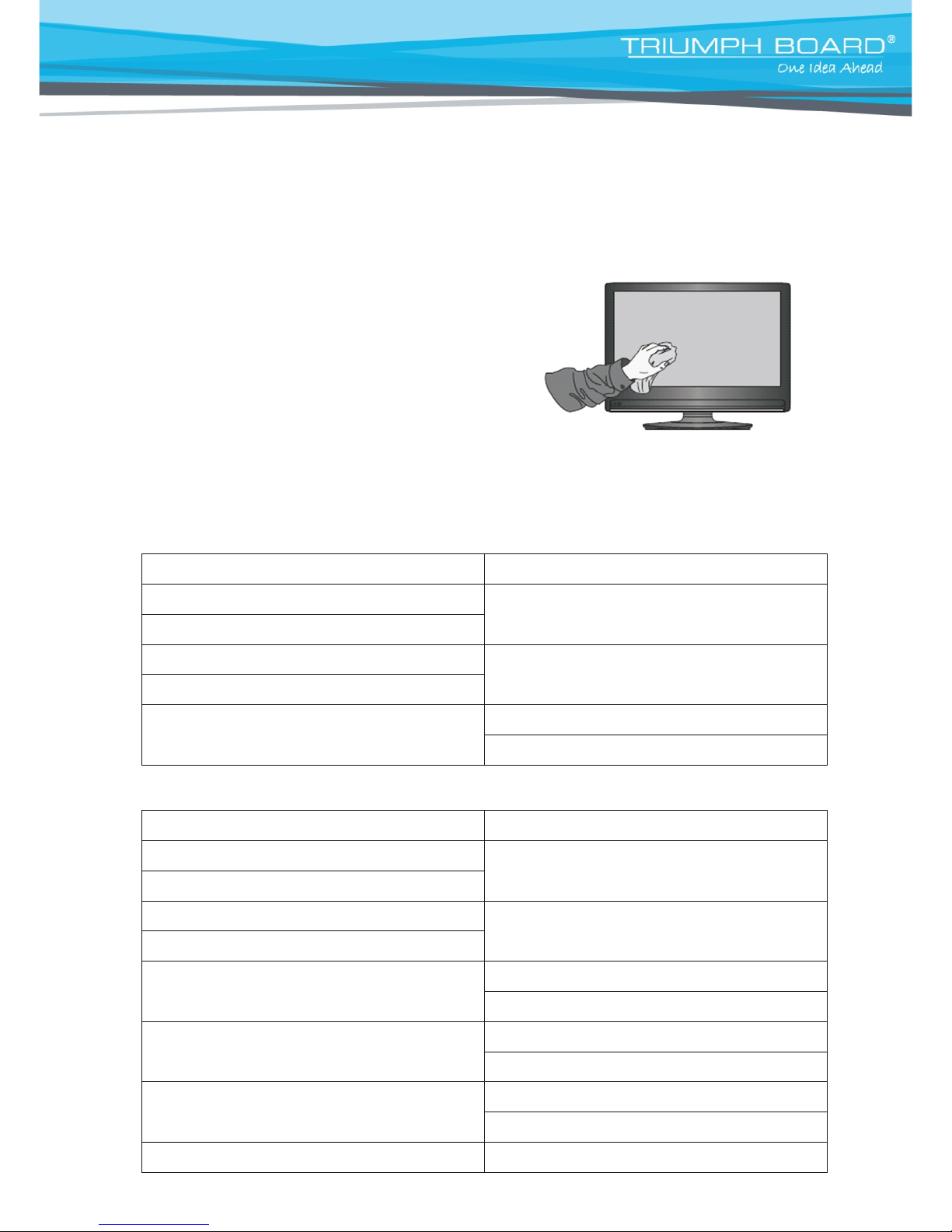

15. Maintenance ...................................................................................................... 41
16. Display mode..................................................................................................... 42
17. Repair Service and Contacts ........................................................................... 42
Page 4
4
1. Product Description
TRIUMPH BOARD MULTI Touch LED LCD Series
TRIUMPH BOARD MULTI Touch LED LCD is a fully integrated, professional, multi touch FULL HD /
4K
*
LED LCD. The IR LED optical technology enables ten finger touches simultaneously using fingers,
stylus or even a pointer.
TRIUMPH BOARD MULTI Touch LED LCDs are an effective presentation tool to show pictures, data,
presentations, thoughts, ideas and business forecasts interactively. Engage the audience with the
presentation with direct control of the computer through the LED LCD MULTI Touch.
TRIUMPH BOARD MULTI Touch LED LCD – no need for a projector! Easy installation! No limitations
caused by light conditions! Elegant and stylish appearance!
TRIUMPH BOARD MINI PC6A / PC 7A for MULTI Touch LED LCD Series (optional)
TRIUMPH BOARD MINI PC6A / 7A is a powerful, fully integrated personal computer for TRIUMPH
BOARD LED LCD MULTI Touch Series.
TRIUMPH BOARD MINI PC6A / 7A is equipped with Intel i5 / 7 processor, integrated / independent
graphics and 4 / 8 GB RAM, which ensures high power for running current software. 500 / 1000 GB
hard disk provides sufficient capacity for saving and storing user data.
TRIUMPH BOARD MINI PC6A / 7A is an ideal addition to TRIUMPH CLOUD, MyScript Stylus,
RM Easiteach Next generation and Display Note software bundle which are delivered together with
the TRIUMPH BOARD LED LCD.
* only TRIUMPH BOARD 65”, 4K and 84”, 4K LED L CD
Page 5
5
2. Technical Specifications
TRIUMPH BOARD 55” MULTI Touch LED LCD
EAN:
8592580111891
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refresh rate:
6 ms, 60 Hz, 1400:1
Display Area:
1209.6(H) × 680.4(V)
Outline Dimensions:
1369 x 828 x 102 mm
Package Dimensions:
1485 x 980 x 220 mm
Net / Gross weight:
48/64 kg
TRIUMPH BOARD 65” MULTI Touch LED LCD
EAN:
8592580111907
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refresh rate:
8 ms, 60 Hz, 4000:1
Display Area:
1428.48 (H) x 803.52 (V)
Outline Dimensions:
1591 x 961 x 111 mm
Package Dimensions:
1710 x 1140 x 240 mm
Net / Gross weight:
72/92 kg
TRIUMPH BOARD 65” MULTI Touch LED LCD
EAN:
8592580112027
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
3840 x 2160
Refresh rate:
5 ms, 120 Hz,1400:1
Display Area:
1428.48 (H) x 803.52 (V)
Outline Dimensions:
1591 x 961 x 106 mm
Package Dimensions:
1710 x 1140 x 240 mm
Net / Gross weight:
67/86 kg
TRIUMPH BOARD 70” MULTI Touch LED LCD
EAN:
8592580111914
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refresh rate:
4 ms, 120 Hz, 4000:1
Display Area:
1538.880 (H) x 865.620 (V)
Outline Dimensions:
1713 x 1035 x 100 mm
Package Dimensions:
1830 x 1195 x 245 mm
Net / Gross weight:
73/96 kg
Page 6
6
TRIUMPH BOARD 84” MULTI Touch LED LCD
EAN:
8592580111853
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
3840 x 2160
Refresh rate:
8 ms, 120 Hz, 1600:1
Display Area:
1860.48 (H) x 1046.52 (V)
Outline Dimensions:
2006 x 1192 x 107 mm
Package Dimensions:
2170 x 1460 x 320 mm
Net / Gross weight:
118/156 kg
TRIUMPH BOARD 84” MULTI Touch LED LCD
EAN:
8592580112140
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
3840 x 2160
Refresh rate:
8 ms, 120 Hz, 1600:1
Display Area:
1860.48 (H) x 1046.52 (V)
Outline Dimensions:
2006*1192*107mm
Package Dimensions:
2170*1370*320mm
Net / Gross weight:
118/156 kg
Touch System
Sensing Type:
Infrared Transmission (multi-touch)
Response Time:
< 15ms
Response Area:
Single point, opaque object s of any diameter
≥5mm
Multi-point, opaque objects of any diameter ≥8mm
Scan Frequency:
200Hz
Output Coordinates:
32767×32767
Communication Mode:
Full-speed USB
Writing Screen:
Mohs hardness of 7
PC System:
Optional mini PC6A / 7A
Inputs and Outputs
HDMI:
3 / 4* (1xHDMI 4K,
1xHDMI MHL, 2xHDMI)
CVBS:
1
R/L(CVBS):
1
Coaxial Digital Audio Output:
1
Audio IN:
3
VGA OUT:
1
VGA IN:
3
RS232
1
Touch OUT:
1
Audio Output Earphone Port
1
USB 2.0:
1
Page 7
7
USB 3.0:
1
LAN (RJ45)
1
AC IN:
1
Power:
1
* only TRIUMPH BOARD 65”, 4K and 84”, 4K LED LCD
Sound System
Power Amplification:
2x10W
Sound:
Surround
Power
Power Requirements:
100 – 240 V AC 50/60 Hz
Overall Power Consumption:
< 200 - 500 W *
Standby Power Consumption:
< 0,5 W
* depends on the size
Ambient Conditions
Operation Temperature
0 – 40 °C
Operation Humidity:
10 – 90% RH
Storage Temperature:
- 20 C to 60 °C
Storage Humidity:
10 – 95% RH
TRIUMPH BOARD MINI PC6A for MULTI Touch LED LCD Series
EAN:
8592580111877
Processor:
Intel i5
Graphics:
Integrated Intel® HD Graphics
Sound Card:
Integrated High Definition Audio Stereo
Networking:
Integrated 10/100/1000 Mbps adapted
Memory:
4 GB DDRIII
Hard Drive:
500 GB SATA
WIFI:
802.11 a/b/g/n, 2x2, dual-band WiFi 2,4/5 GHz
+ Bluetooth 4.0
USB:
4x USB 2.0 and 2x USB 3.0
Lan Port (RJ45):
1
VGA Out:
1
Mini Display Port
1
HDMI Output
1
Audio:
Side Headphone and Mic Ports
Net / Gross Weight:
1,8 / 2 kg
Page 8
8
TRIUMPH BOARD MINI PC7A for MULTI Touch LED LCD Series
EAN:
8592580111860
Processor:
Intel i7
Graphics:
Independent Graphics GT745M
Sound Card:
Integrated High Definition Audio Stereo
Networking:
Integrated 10/100/1000 Mbps adapted
Memory:
8 GB DDRIII
Hard Drive:
1000 GB SATA
WIFI:
802.11 a/b/g/n, 2x2, dual-band WiFi 2,4/5 GHz
+ Bluetooth 4.0
USB:
4x USB 2.0 and 2x USB 3.0
Lan Port (RJ45):
1
VGA Out:
1
Mini Display Port
1
HDMI Output
1
Audio:
Side Headphone and Mic Ports
Net / Gross Weight:
1,8 / 2 kg
Android System
System Version
Android 4.2.1
CPU
ARM Cortex A9 dual-core CPU
GPU
Quad-Core
RAM
1.5G
ROM
8GB
Page 9
9
3. Safety Warning
Before using the device, please read the instructions carefully.
Placement
Do not put the device on surfaces that are unstable, easy to tilt or which can fall.
Do not put the device in places with direct sunlight, or near sources of heat, such as electric
heaters or strong light sources.
Do not use the device next to radiation em itting equipment.
Do not put the device in damp places or places where it might be exposed to moisture or liquids.
Do not insert any items inside of the device.
Do not place heavy objects on the device.
Power Supply
Please verify compatibility between the voltage value on back shell nameplate and the main power
supply voltage value.
In case of thunderstorm and lightning weather, please unplug power cord and antenna plug.
When no one is indoors or the device will not be in use for a long time, please unplug the power
cord.
Please prevent power cord from physical or mechanical damage.
Please use the special power cord, and do not modify or extend the power cord.
Please check and make sure the AC power ground wire is connected.
Screen
When writing on screen, please do not use hard or sharp objects instead of styluses.
When it needs cleaning, please unplug the power cord first.
Please use a soft, dust-free, dry cloth to wipe the screen.
Do not use water and spray cleaner to clean the device.
Please contact the service center for internal cleaning of the device.
Do not display image with high brightness on the screen for a long time
.
Range of Visibility
The best distance between eyes of viewer and screen is 5 to 7 times of screen diagonal.
The best viewing angle between eyes of viewer and listener and screen is within 176 degr ees up
and down, left and right.
Temperature
Do not place the device near an electric radiator or heating unit.
When moving the device from a low temperature area to a high temperature area, before
connecting the device to power, please leave the device idle in the new environment for some time
to allow for temperature adjustment, in order to sufficiently diffuse internal condensation prior to
powering on.
The Device's normal working temperature is 0 ~ 40°C, storage temperature is -20~60°C
Humidity
Do not expose the machine to the rain, moisture, or places near water.
Please make sure the indoor environment is dry and cool, the machine’s normal working humidity
is 10~90%, storage hum idit y is 10~95%.
Page 10
10
Ventilation
Please place the machine in ventilated places, and ensure machine's good heat dissipation.
Please ensure ventilation spaces 10 cm on the sides and back, and 20 cm on the top of the
machine.
Headphones
Extended use of headphones at high volumes may damage hearing.. If external
headphones/earbuds is needed, please turn down the machine volume in advance.
Standby
The standby button on the front of device body will not completel y
shut off the device, but only places the device in standby mode
.
Battery
Please dispose of used batteries in the proper manner and recycle.
To avoid danger, please do not let chil dren touc h the b attery, and do
not put battery into water.
Caution
This product is a Leve l 4 produc t, and may cause radio interference in
the living environment. In this case, the user may be required to take
practical measures to mitigate the effects.
Page 11
11
4. Preparing for Installation
Unpacking
Accessories
Quick start guide, styluses, batteries, remote control, power cords (UK, US, EU), VGA cable,
touch OUT USB, headphone cable, AV cable, USB Flash Drive and VC Camera Bracket.
Quick Start Guide
2x Stylus
Batteries Remote control
Power Cord (US, UK, EU)
AV Cable
VGA Cable
USB Flash Drive
USB Cable Headphone Cable
VC Camera Bracket
Page 12
12
Control Panel
1
2
3
4
5
6
8 9
7
Number Item Function Description
1
Power on/off
2 HOME HOME button: back to main interface
3 BACK Return button: return to previous level menu
4 MENU Menu button: call up function menu
5 VOL - Volume down button: turn volume down
6 VOL + Volume up button: turn volume up
7 MUTE Mute button: mute volume
8
Remote control signal
receiver
Receive the remote control signal. After pressing the
button on the remote control LED flashes.
9 Power indicator
Indicator color shows the status of power on/off (on -
green / standby mode - orange / off - off)
Page 13
13
HDMI
5. Terminal Interface
1 2 2 2 3 4 5 5 4 1 6
5 4 7 8 9 10 11
14 15 16 17 18 19 20 21 22 22 14 23 24
4
Items
Description of Function
1. USB
Connect USB devices such as mobile hard disk, USB disk, USB keyboard and
mouse, USB drives, etc.
2. HDMI IN
High-definition multimedia interface signal input, for connecting to PC
(personal computer) with HDMI output, set-top box, or other video
device and can also implement touch function (HDMI3 can implement MHL function,
HDMI4* can implement 4K/2K)
* only TRIUMPH BOARD 65”, 4K and 84”, 4K LED LCD
3. VGA OUT
Connected to display devices with VGA input function
4. AUDIO IN
External computer audio input
5. VGA IN
External computer image input
6. TOUCH
External computer touch signal input. Default touch function is available under
internal computer. When connecting an external computer, in additio n to
connecting external computer VGA and audio signals, the external computer's US
B
port needs to be connected to the equipment. Under
the condition that driver is installed, the external computer can be touch
controlled through the equipment (touch function is effective in PC, VGA and
HDMI channel by default)
7. AV IN
Composite video and audio input
8. COAX OUT
Coaxial output
9. RS232
Serial interface, used for mutual transfer of data between devices
10. EARPHONE
Connected to device with headphone input function
11. LAN
LAN interface, connecting RJ45 terminals.
(This network port is only used for Android system)
14.
WIFI antenna interface
15. LAN (RJ45)
Network interface, connecting RJ45 port to connect to the Internet. (This
network port is only used for PC)
16. EARPHONE
Connected to device with headphone input function
17. MIC
Connect to device with microphone voice collection
(used for recording function)
18. VGA OUT
Connection to display device with VGA input function
19. DISPLAY PORT OUT
Connection to device with Display Port input function
20. HDMI OUT
Connection to devices with HDMI input function
21.
USB 3.0 interface to connect USB devices, such as mobile hard disk, U disk,
USB keyboard and mouse, USB drives, etc.
22.
USB 2.0 interface to connect USB devices, such as mobile hard disk, U disk,
USB keyboard and mouse, USB drives, etc.
23. POWER SWITCH
Power switch, to open and shut down AC power supply
“ I ”is ON, “ O ” is OFF.
24. AC IN
AC power input, connecting AC power supply
NOTE: In case of no built-in computer, interfaces 14, 15, 16, 17, 18, 19, 20, 21 and 22 are not included.
Page 14
14
6. Remote
control
Remote control button
instructions
14
VC
Page 15
15
Detailed function description of remote control buttons
1. : Press this button to enter standby mode when power is on; Click this button to
switch on in standby mode
2. LCD: Press this button to control your LED LCD scr een.
Note: Your Remote control has been set-up automatically for the function of your
LED LCD.
3. SPACE: B uilt-in computer Space key
4. : Mute switch
5. NUMERIC KEYS: TV digital channels input keys
6. DISPLAY: Displa y channel information
7. : TV channel return key
8. INPUT : Input signal source selection key, choose different sources according to need
9. MENU: T V OSD menu button, press this button to pop up TV's OSD menu
10. HOME: Android system main screen button
11. RED: TV channel function button
12. YELLOW: TV channel f unction button
13. GREEN: TV channel function button
14. BLUE: TV channel function button
15. :Single key for blank screen
16. :Backspace key
17. Direction keys
18. ENTER: Confirmation key, press this key to confirm mode selection
19. Quickly start writing software (TBC Lite in Android), s elect writing pen quickly if
software is running
20. BACK: Return key
21. CH. +, CH.-: Channel switch key
22. PG UP: Built-in com puter page (previous page)
23. VOL+,VOL-: Volume switch key
24. PG DN: Built-in computer page (next page)
25. : Bu ilt-in computer Windows key
26. ALT+TAB: Built-in computer spacebar Alt + Tab
27. ALT+F4: Built-in computer program window close button
28. F1-F8: Built -in computer F 1 – F9 function keys
NOTE: In case of no built-in computer, all function keys relating to the computer are regarded as
having no operating functions.
Page 16
16
Remote control use instructions
Install Batteries
1 Open back cover of battery compartment on the back of remote control
2 Install AAA type batteries according to the corresponding electrode, make
sure battery positive and negative poles are correctly placed ("+"t o " + ", "-" to
"-"), please do not mix old and new batteries
3 After batteries are installed, close the back cover of battery compartment, and snap the clip
fastener shut against the bottom of the remote.
Range of remote control
Remote control can function normally within the range of 8 meters distance, 30
degrees left and right from the remote control receiver; in order to protect the
environment, please dispose of waste batteries in a designated recycling box.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED WITH
AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
Page 17
17
7. Connection and Setting
CAUTION
For the safety of you and the device, please do not connect any power cord before the external
device has been prepared.
External Computer and Touch Connection
USB Cable
Audio Cable VGA Cable
Computer
(1) Use VGA line to connect to VGA output port of external computer, and
meanwhile use headphone audio line to connect to external computer
audio output interface.
(2) Use USB line to connect to external computer USB port.
(3) After connection is completed, plug in power cord, and switch POWER
to On.
(4) Start external computer.
(5) Press key, and the equipment is powered on.
(6) Press the INPUT key to switch to VGA channel.
NOTE:
External computer input, equipment's best resolution is 1920x1080.
External computer can also connect to the equipment through the HDMI cable
Recommended computer configuration:
2.0GBHZ Processor, 1GB Memory More than 256 color display card
1GB Available Hard Drive Support Resolution 800*600, 1024*768
VGA-OUT/HDMI-OUT, Audio-OUT, USB Interface
Page 18
18
Audio and video equipment
AV
(1) Use AV audio and video lines to connect audio and video equ ipment with AV output
(yellow for video, red for right sound channel, and white for left sound channel)
(2) After line connection, plug in power cord, and switch power to On
(3)
Press to turn equipment on
(4) Press INPUT key to switch to CVBS
port
HDMI1 / HDMI2 / HDMI3 (MHL) / HDMI4 (4K2K)* * only TRIUMPH BOARD 65”, 4K and 84”, 4K LED LCD
)
(MHL)
DVD Disc Player
HDMI cable
(1).Use HDMI line to connect audio and video equipment with HDMI output
(2).After line connection, plug in power cord, and switch power On
(3) Press to turn equipment on
(4).Press INPUT key to switch to HDMI port (HDMI3 channel can perform the MHL function,
HDMI4 channel can be used for 4K*2K)
Page 19
19
HDMI
Coaxial connection
(1).Use coaxial line to connect audio device with coaxial input
(2). After line connection, plug in power cord, and switch power to On
(3).Press to turn equipment on
Video output connection
VGA output connection
Computer
Computer
(1). Use VGA line to connect display devices with VGA input, and use
headphone line to connect sound output
(2). After line connection, plug in power cord, and switch power to On
(3). Press to turn equipment on
(4). Press INPUT key to switch to PC port
(5). Set internal computer as VGA output or multi-screen display TV
Note: VGA OUT of TV outputs VGA IN graphics and sound
Page 20
20
USB Equipment connection
Network cable connection
Microphone connection
WAN connection
NOTE: If the user wants the built-in computer and android system to connect to the
Internet at the same time, Connect item 6 and item 8 at the same time
.
Page 21
21
USB equipment connection
Serial port line
Computer
After using the serial port line to connect c entral control equ ipment and the device, certa in functions of
the device can be controlled via the centr al control device, such as: device ON/O FF, and adjustment of
sound volume, etc.
PC part basic operations:
1. If the TV is on and the computer is not started, press INPUT key to switch
from channels other than PC to the PC channel, then turn on the computer.
2. When it is on, hold down POWER key for 2 seconds, click to select
"Confirm" in the pop-up reminder menu to shut down the TV and computer
simultaneously.
3. Under the PC channel when it is on, touch to se lect "W IN DOWS" button
on the lower left of the desktop or press "WINDOWS" key on remote control,
and then select "power off" item, to turn off computer without turning off TV.
Page 22
22
8. Menu Operation
One Touch menu operation
Call up method
Take middle point position on the bottom of display screen as the starting point ,
use finger or stylus to dr ag to wards s c reen c enter p os ition to c a ll u p touch menu,
as shown below.
Settings menu
Input setting
Press INPUT button on remote control or via above “A” touc h method to call up Settings Input menu;
Press button on remote control to select the channel you need;
Press the Enter button on remote control, or click directly to confirm selected input channel;
Press return key on remote control, or click blank area outside menu to exit menu.
Note: PC channel will only display when you connect the built-in computer.
HDMI 4K channel will only display in the panels that support the 4K2K function (
only TRIUMPH BOARD 65”, 4K
and 84”, 4K LED LCD
).
Page 23
23
Brightness setting
Press INPUT button on remote control or via touch A metho d to call up Input Setting men u ;
Press button on remote control or click “ ” icon to enter
Brightness setting menu;
Press button on remote control or drag brightness adjustment progress bar to adjust
brightness;
Press return key on remote control, or click blank area outside menu to exit menu.
Volume setting
Press INPUT button on remote control or use touch method A to call up the Input Setting menu;
Press button on remote control or click “ ” icon directly to enter
Volume Setting men u;
Press button on remote control or drag volume adjustment progress bar to adjust volume;
Press <
> button on remote control or click mut e icon below “ “to open or close mute
state;
Press return key on remote control, or click blank area outside menu to exit menu.
Page 24
24
Zoom setting
Press INPUT button on remote control or via touch use method A to call up the
Settings menu;
Press button on remote control under Settings menu or click “ ”icon with touch pen to
enter the Settings menu;
Press button on remote control or click directly to select and
adjust each option;
Press return key on remote control, or click blank
area outside menu with touch pen to exit
menu.
H position
Press button on remote control or directly drag icon with touch pen to adjust horizontal
position of image;
V Position
Press button on remote control or directly drag icon with touch pen to adjust vertical
position of image;
Phase
Press button on remote control or directly drag icon with touch pen to adjust phase
position of image;
Clock
Press button on remote control or directly drag icon with touch pen to adjust image clock;
Writing Mode
Press button to on/off th e w riting mo de. (This icon only display in PC and HDMI4K channels).
3D
Press Enter button on remote control or click directly icon with touch pen to switch on/off 3D
function. (This icon only display in the panels in PC and HDMI4 channels which support 3D
function.)
Aspect ratio
Press button on remote control or press Enter button or click icon directly with touch pen to
switch image
display ratio;
Auto fit
Press Enter button on remote control or click icon directly with touch pen to automatically adjust horizontal,
vertical position/phase and clock of image.
Page 25
25
Screen setting
Under channels other than Android, press Menu button on remote control or via touch A method to call up
settings menu;
Press button on remote control or click “ ” icon directly. Press Menu on remote control to enter
advanced settings menu;
Press button on remote control or click directly with touch pen to select and adj ust each option;
Press return key on remote control, or click blank area outside menu with touch pen to exit
menu.
Brightness
Press button on remote control or drag icon directly with touch pen to adjust brightness of
image.
Contrast
Press button on remote control or drag icon directly with touch pen to adju st contr ast of
image.
Color temp
Press button on remote control or drag icon directly with touch pen to adjust color temperature of image (Cool
color /
Warm color / Automatic).
Note: Different options in different channels can't be adjusted, please select according to actual situation.
Page 26
26
9. More Settings (Advanced settings)
Advanced settings menu
Under Apps menu, click on Settings call up Advanced settings menu;
Press button on remote control or click directly to select each option;
Press return key on remote control or front panel of equipment to exit menu.
Ethernet Checking
View the current network connection status and the network parameters of the device.
Display
Adjust equipment display brightness/system wallpaper and system font size.
Storage
View the system storage information.
Apps
Display each application in Android system memory.
Language & Input
Adjust display language and input method settings of Android system.
Date & Time
Under Android system, set system time and format (time can be automatically
obtained or manually set).
Startup and Shutdown
Adjust Launch setting a nd Timer switch
Floating Annotatio n Setting
Adjust Annotation m enu
About
Device
Display Android system software version information.
Page 27
27
Annotation menu
Fig.1 Fig.2
Place two fingers on the screen (about 20~50mm apart) and keep in position more than
two seconds under any channel to call up annotation menu (Figure 1);
In annotation, menu is shown in Figure 2.
In annotation , input only using your fingers; stylus and remote control cannot perform
annotation.
Annotation menu icon Pop up sub-menu
Return icon Click to return to previous operation interface
Main interface icon Click to return to main interface of Android system
Annotation brush icon Click to make annotation in the picture, click again to
change brush color
TB Comenius Lite Click to enter TB Comenius Lite software.
Screen image will be saved automatic al l y when you
close TB Comenius Lite software.
Storage location: resource bro wse/b lac kboard writing
Resource browse icon Click to open resources browse menu
Screenshot icon Click for screenshot of current annotation image
Screenshot storage location: resource
browse/blackboard writing
Close icon Click to close annotation menu
Page 28
28
10. Android System Interface
Main Interface
Switch to Android channel to display main interface as shown above;
Press key on remote control to select icon below, and press Enter key to enter
corresponding program, or click on the associated icon directly to enter the program;
In any program, press Home button on the remote control or <Home key> on the front
frame of the device to return to the main interface.
TB Finder Enter android system resource browser, see page 28
Browser Enter internet page, see page 29
PIP Enter picture-in-picture im age, see page 30
Settings Enter settings menu page, see page 22
Apps Enter settings menu page, see page 31
TB Finder
Display files in Android system memory and Android system external storage.
1 2 34 5
6
Page 29
29
1. Storage device display Click with touch pen to enter corresponding storage devices
area
2. Menu/exit menu Click menu icon with touch pen to pop up menu options
{order (type/size/time)}
Click exit icon with touch pen to directly exit resource
browse.
3. File type menu Documents: OFFICE type files
Blackboard writing: images stored by TBC Office Lite and
images stored by annotation screenshots
Video: audio and video type files
Image: image type files
Music: audio type files
All: files of all types
4. File operation menu Can perform basic operations towards file such as
select/delete/create/copy/cut
5. File arrangement menu Divided into two arrangement modes by icon and by list
6. Main display area Display files of corresponding to type on memory card
Browser
In the connected network state, enter web browsing for surfing the internet, click on
"x" symbol in the upper left corner to close it.
Page 30
30
PIP
Enter channel browse to pop up picture-in-picture interface in displayed image;
Press button on remote control or click directly picture-in-picture display interface
point, to pop up channel selection list of picture-in-pictu re, pres s button on
remote control to move selection cursor into channel list, then press button
to select corresponding channels. When selection cursor reaches the channel you
need, press Enter key to play image and sound of related channel on interface, or
click directly the c hannel you need to enter;
Picture-in-pictur e interf ace operation key is shown above.
Click picture-in-picture channel for full screen
Click to exit picture-in-picture interface
Settings
Shortcut Settings in settings menu, see page 26.
Page 31
31
Apps
Caution!
Please note that you cannot install your own applications into Apps section!
Each application must be suitable for screen resolution and hardware specifications, as some
apps may have display or performance problems!
Browser See page 29
Settings See page 22
TB Comenius Lite See page 31
TB Comenius Lite
Menu icon Click to pop up sub-menu (change background/save)
Exit icon Click to exit TB Comenius Lite software
Picture in picture Click to pop up picture in picture interface, see page 30
Image import icon Click to import required image from memory card
Select icon Click to select Whiteboard writing symbols,
Page 32
32
can click or check to select
Brush icon Click to write, press long for three seconds to enter setting
screen, to set brush color and thickness
Eraser icon Click to erase writing symbols, can be erased b y box selection
Undo icon Click to cancel previous step
Redo icon Click to restore previous step
Page icon Display writing p age number displayed by current picture
Add page icon Click to add a new page of writing or image
11. Multimedia File Playback Interface
Image play
Close current picture
Magnify current picture
Reduce current picture
Display previous picture
Play/pause
Play next picture
Counterclockwise rotate current picture displayed
Clockwise rotate current picture displayed
Play setting {Animation effect (on/off)/Slide time interval/Set as wallpaper}
Page 33
33
Audio play
Close current audio file
Play previous audio
Play/pause file
Play next audio file
Playlist
Loop play
Random play
Single play
Video play
Close current video file playing
Play previous video
File Fast backward
Play/pause
Fast Forward
Play next audio file
Playlist
Page 34
34
12. VC Camera Bracket installation
Note: You need to have TRIUMPH BOARD Videoconferencing System before you start. VC system is
not included in the accessories
Please install the bracket on LED LCD when you unpack the unit, before wall mounting.
1. Attach the bracket at the bottom part of the camera, using the 1/4-20, 6mm screw you find with the
bracket in the LED LCD unit accessories.
2. Unscrew top three screws in the top center of the back cover of the LED LCD unit
3. Attach the camera with the bracket using three screws in the top center of the back cover of the LED
LCD unit
4. Finally, plug the camera cable from your TRIUMPH BOARD Videoconferencing System.
Page 35
35
13. Troubleshooting
Board fails to work normally
Remote control failure
1. Check whether there are other objects between remote control and television remote control receiving
window, blocking signal transmission and thus leading to failure of remote control.
2. Check whether the battery terminal in the remote control is correctly con nected.
3. Check whether remote control needs battery replacement.
Device automatically
shuts down
1. Check whether the sleep function i s set or not.
2. Check whether there has been a sudden power outage.
3. Check whether there is no signal automatic shutdown.
PC mode
Signal out of range
1. Check whether display is set correctly.
2. Check whether resolution is the best resolution.
3. Adjust line and field synchronization in menu.
Background has
vertical lines or streaks
1. Select automatic correction in menu.
2. Adjust clock and phase position in menu.
Image lack of color,
color is incorrect
1. Check whether VGA is not securely connected or has a quality problem.
2. Adjust color and brightness or contrast in menu.
Display format that is
not supported
1. Select automatic correction in menu.
2. Adjust clock and phase position in menu.
Touch Function
Touch function invalid
1. Check whether touch driver is installed and started.
2. Check whether the size of article touched is comparable with finger.
Touch positioning not
correct
1. Check whether driver is properly installed and make correction.
2. Check whether touch using finger or stylus is facing the screen.
Video Malfunctions
No picture and no sound
1. Check whether the device is in active mode.
2. Check whether the signal wire is plugged in securely, using the corresponding INPUT.
3. If in internal computer mode, check whether internal computer is running.
With horizontal or
vertical stripes or
image distortion
1. Check whether signal wire is securely connected.
2. Check whether other electronic equipment or power tools are placed around the device.
No color, color is weak
or image is weak
1. Adjust color and brightness or contrast in menu.
2. Check whether signal wire is securely connected.
Audio Malfunctions
Image but no sound
1. Check whether mute button is pressed for mute.
2. Press VOL. + / - to adjust volume.
3. Check whether audio line is connected correctly.
Only one speaker has
sound
1. Adjust sound balance in menu.
2. Check whether computer sound control panel only sets up one sound channel.
3. Check whether audio line is connected correctly.
VGA output without
sound
1. Check whether an external device is connected with headphone cable.
Page 36
3
Pin # Signal Remark
1 NC
2 TXD Output to TV
3 RXD Input from TV
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
frame GND
14. Software protocols
This document describes the hardware interface specification and software protocols of RS232
interface communication between LED LCD and PC or other control unit with RS232 protocol.
14.1 Description
Hardware specification
LED LCD communication port is on the rear bottom side
(1) Connector type: DSUB 9 Pin Male
(2) Pin Assignment
Male DSUB 9Pin
(outside view)
Pin2 is TXD，Pin3 is RXD. Pin to Pin connection as below.
Page 37
3
Serial port communication setting:
Baud Rate Select: 9600bps (fixed)
Data bits: 8bits (fixed)
Parity: None (fixed)
Stop Bits: 1(fixed)
Protocols
Command Format
No. Content
Description Remar
1 0xAA
Head
fixed value
2 0xBB
fixed value
3 0xCC
fixed value
4
Main command
5
subcommand
6 0x00 Length
valid data
7 checksum
checksum
Sum from No.4 to No.6.
8 0xDD
End
fixed value
9 0xEE
fixed value
10 0xFF
fixed value
IR Code list
Function
Mode
Code
Note
Power
ON AA BB CC 01 00 00 01 DD EE FF
OFF AA BB CC 01 01 00 02 DD EE FF
Channels
TV
AA BB CC 02 01 00 03 DD EE FF
CVBS
AA BB CC 02 02 00 04 DD EE FF
VGA3
AA BB CC 02 0B 00 0D DD EE FF
VGA1
AA BB CC 02 03 00 05 DD EE FF
VGA2
AA BB CC 02 04 00 06 DD EE FF
HDMI1
AA BB CC 02 06 00 08 DD EE FF
HDMI2
AA BB CC 02 07 00 09 DD EE FF
HDMI3
AA BB CC 02 05 00 07 DD EE FF
PC AA BB CC 02 08 00 0A DD EE FF
Android
AA BB CC 02 0A 00 0C DD EE FF
Volume
000—100
AA BB CC 03 00 xx ** DD EE FF
MUTE
AA BB CC 03 01 00 04 DD EE FF
UNMUTE AA BB CC 03 01 01 05 DD EE FF
Aspect
16:9 AA BB CC 08 00 00 08 DD EE FF
4:3
AA BB CC 08 01 00 09 DD EE FF
Page 38
3
Point to
point
AA BB CC 08 07 00 0F DD EE FF
TV
channels
ATV 00-99 AA BB CC 05 00 XX ** DD EE FF
Power
of PC
ON AA BB CC 09 01 00 0A DD EE FF
OK OFF AA BB CC 09 00 00 09 DD EE FF
OK
Function
Mode
Code
Note
Function of
Remote
Control
WIN AA BB CC 07 0B 00 12 DD EE FF
Space
AA BB CC 07 46 00 4D DD EE FF
Alt+Tab
AA BB CC 07 1D 00 24 DD EE FF
Alt+F4
AA BB CC 07 1F 00 26 DD EE FF
NUM_1
AA BB CC 07 00 00 07 DD EE FF
NUM_2
AA BB CC 07 10 00 17 DD EE FF
NUM_3
AA BB CC 07 11 00 18 DD EE FF
NUM_4
AA BB CC 07 13 00 1A DD EE FF
NUM_5
AA BB CC 07 14 00 1B DD EE FF
NUM_6
AA BB CC 07 15 00 1C DD EE FF
NUM_7
AA BB CC 07 17 00 1E DD EE FF
NUM_8
AA BB CC 07 18 00 1F DD EE FF
NUM_9
AA BB CC 07 19 00 20 DD EE FF
NUM_0
AA BB CC 07 1B 00 22 DD EE FF
Display
AA BB CC 07 1C 00 23 DD EE FF
Page 39
3
Refresh
AA BB CC 07 4C 00 53 DD EE FF
Input
AA BB CC 07 07 00 0E DD EE FF
Home
AA BB CC 07 48 00 4F DD EE FF
Menu
AA BB CC 07 0D 00 14 DD EE FF
Delete
AA BB CC 07 40 00 47 DD EE FF
Energy
AA BB CC 07 4E 00 55 DD EE FF
UP AA BB CC 07 47 00 4E DD EE FF
DOWN
AA BB CC 07 4D 00 54 DD EE FF
LEFT
AA BB CC 07 49 00 50 DD EE FF
RIGHT
AA BB CC 07 4B 00 52 DD EE FF
ENTER
AA BB CC 07 4A 00 51 DD EE FF
Point
AA BB CC 07 06 00 0D DD EE FF
Back
AA BB CC 07 0A 00 11 DD EE FF
CH+
AA BB CC 07 02 00 09 DD EE FF
CH- AA BB CC 07 09 00 10 DD EE FF
VOL+
AA BB CC 07 03 00 0A DD EE FF
VOL-
AA BB CC 07 41 00 48 DD EE FF
PageUp
AA BB CC 07 42 00 49 DD EE FF
PageDown
AA BB CC 07 0F 00 16 DD EE FF
F1
AA BB CC 07 45 00 4C DD EE FF
F2
AA BB CC 07 12 00 19 DD EE FF
F3
AA BB CC 07 51 00 58 DD EE FF
F4 AA BB CC 07 5B 00 62 DD EE FF
F5 AA BB CC 07 44 00 4B DD EE FF
F6 AA BB CC 07 50 00 57 DD EE FF
F7 AA BB CC 07 43 00 4A DD EE FF
F8 AA BB CC 07 1A 00 21 DD EE FF
F9 AA BB CC 07 04 00 0B DD EE FF
F10
AA BB CC 07 59 00 60 DD EE FF
F11
AA BB CC 07 57 00 5E DD EE FF
F12
AA BB CC 07 08 00 0F DD EE FF
RED
AA BB CC 07 5C 00 63 DD EE FF
GREEN
AA BB CC 07 5D 00 64 DD EE FF
\ YELLOW
AA BB CC 07 5E 00 65 DD EE FF
\ BLUE
AA BB CC 07 5F 00 66 DD EE FF
\
Function
Mode
Code
Note
Page 40
4
Status Check Codes：
Function Search Code
Reply
Code
Status
Example
Check
Power
Status
AA BB CC 01 02
00 03 DD EE FF
AA BB CC 80 00 00 80 DD EE FF
ON
AA BB CC 80 01 00 81 DD EE FF
OFF
Check
volume
AA BB CC 03 02
00 05 DD EE FF
AA BB CC 82 00 xx ** DD EE FF
Volume is xx
xx=the amount
of volume. EX.
The volume is
30(decimal)=1E
(Hexadecimal),
xx=1E,**=03+00
+1E(Hexadecim
al)=21
Check
audio
status
AA BB CC 03 03
00 06 DD EE FF
AA BB CC 82 01 00 83 DD EE FF
MUTE
AA BB CC 82 01 01 84 DD EE FF
UNMUTE
Check
input
status
AA BB CC 02 00
00 02 DD EE FF
AA BB CC 81 01 00 82 DD EE FF
TV
AA BB CC 81 02 00 83 DD EE FF AV
AA BB CC 81 03 00 84 DD EE FF VGA1
AA BB CC 81 04 00 85 DD EE FF VGA2
AA BB CC 81 05 00 86 DD EE FF HDMI3
AA BB CC 81 06 00 87 DD EE FF HDMI1
AA BB CC 81 07 00 88 DD EE FF
HDMI2
AA BB CC 81 08 00 89 DD EE FF
PC
AA BB CC 81 0A 00 8B DD EE FF
ANDROID
AA BB CC 81 0D 00 8E DD EE FF
HDMI（4k*2K
AA BB CC 81 0C 00 8D DD EE FF
WHDI
AA BB CC 81 0B 00 8C DD EE FF
VGA3
Check P
C
status
AA BB CC 09 02
00 0B DD EE FF
AA BB CC 83 00 00 83 DD EE FF ON
AA BB CC 83 01 00 84 DD EE FF OFF
AA BB CC 83 02 00 85 DD EE FF SLEEP
AA BB CC 83 03 00 86 DD EE FF Hibernate
Page 41
4
15. Maintenance
Proper maintenance can prevent many early defects; regular, careful cleaning can keep the device
like brand new.
Please unplug power plug before cleaning and maintenance, to prevent electric shock.
Clean screen
Mix a small amount of fabric softener or dishwashing detergent with
warm water. Dip a soft cloth into the mixture, and then wring to
a semi-dry state. Use this to wipe the screen of the device.
Repeat several times, being careful not to squeeze any liquid into
the device when wiping the device.
Clean front frame
Please use dry, soft, lint-free cloth to wipe front frame.
Device to remain unused for extended period
If the device will not be used for an extended period of time, such as vacation, please make sure to
unplug the cord to prevent any possible dangers caused by power surges from lightning.
16. Display mode
1. VGA mode
Resolution / Display mode
Field frequency (Hz)
640x480
60
800x600
1024x768
60
1280x800
1920x1080
50
60
2. HDMI mode
Resolution / Display mode
Field frequency (Hz)
480p
60
480i
576p
50
576i
720p
50
60
1080i
50
60
1080p
50
60
2160p
30
Page 42
4
17. Repair Service and Contacts
Please contact your local supplier regarding warranty and technical service or find all warranty
conditions and service partners on our website www.triumphboard.com
. If you have any questions
please email us at [email protected]
TRIUMPH BOARD a.s.
Neklanova 122/15
128 00 Prague 2
Czech Republic
EU
Phone: +420 224 910 221
Fax: +420 224 910 218
E-mail: [email protected]
www.triumphboard.com
Notices
Every effort has been made to ensure all information contained in this user guide is correct, but the accuracy
or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is
suitable for your intended application. You assume all risks and liability associated with such use. Any
statements related to this product not contained in this manual or any contrary statements appearing on your
purchase order shall have no force of effect unless expressly agreed upon, in writing, with this company.
Reproduction or reprinting this user guide or any part is prohibited without perm ission.
The content of this user manual is subject to change without prior notice.
PLEASE see our website www.triumphboard.com
for updates and fresh product information in the
product and support sections.
Loading...
