TRIUMPH BOARD 55” MULTI Touch LED LCD, 65” MULTI Touch LED LCD, 70” MULTI Touch LED LCD, 84” MULTI Touch LED LCD User Manual
Page 1
User Manual v 2.2
March 2015
MULTI Touch LED LCD Series
TRIUMPH BOARD 55” MULTI Touch LED LCD
TRIUMPH BOARD 65” MULTI Touch LED LCD
TRIUMPH BOARD 70” MULTI Touch LED LCD
TRIUMPH BOARD 84” MULTI Touch LED LCD
TRIUMPH BOARD a.s., Neklanova 122/15, 128 00 Praha 2, Czech Republic, European Union, www.triumphboard.com
Page 2
2
Contents
1. Product Description .............................................................................................. 5
2. Technical specifications ...................................................................................... 6
3. Safety Warning ...................................................................................................... 9
Placement .......................................................................................................................................... 9
Power Supply .................................................................................................................................... 9
Screen ................................................................................................................................................ 9
Range of Visibility ............................................................................................................................. 9
Temperature ...................................................................................................................................... 9
Humidity ............................................................................................................................................. 9
Ventilation ........................................................................................................................................ 10
Headphones .................................................................................................................................... 10
Standby ............................................................................................................................................ 10
Battery .............................................................................................................................................. 10
Caution ............................................................................................................................................. 10
4. Preparing for Installation ................................................................................... 11
Unpacking ........................................................................................................................................ 11

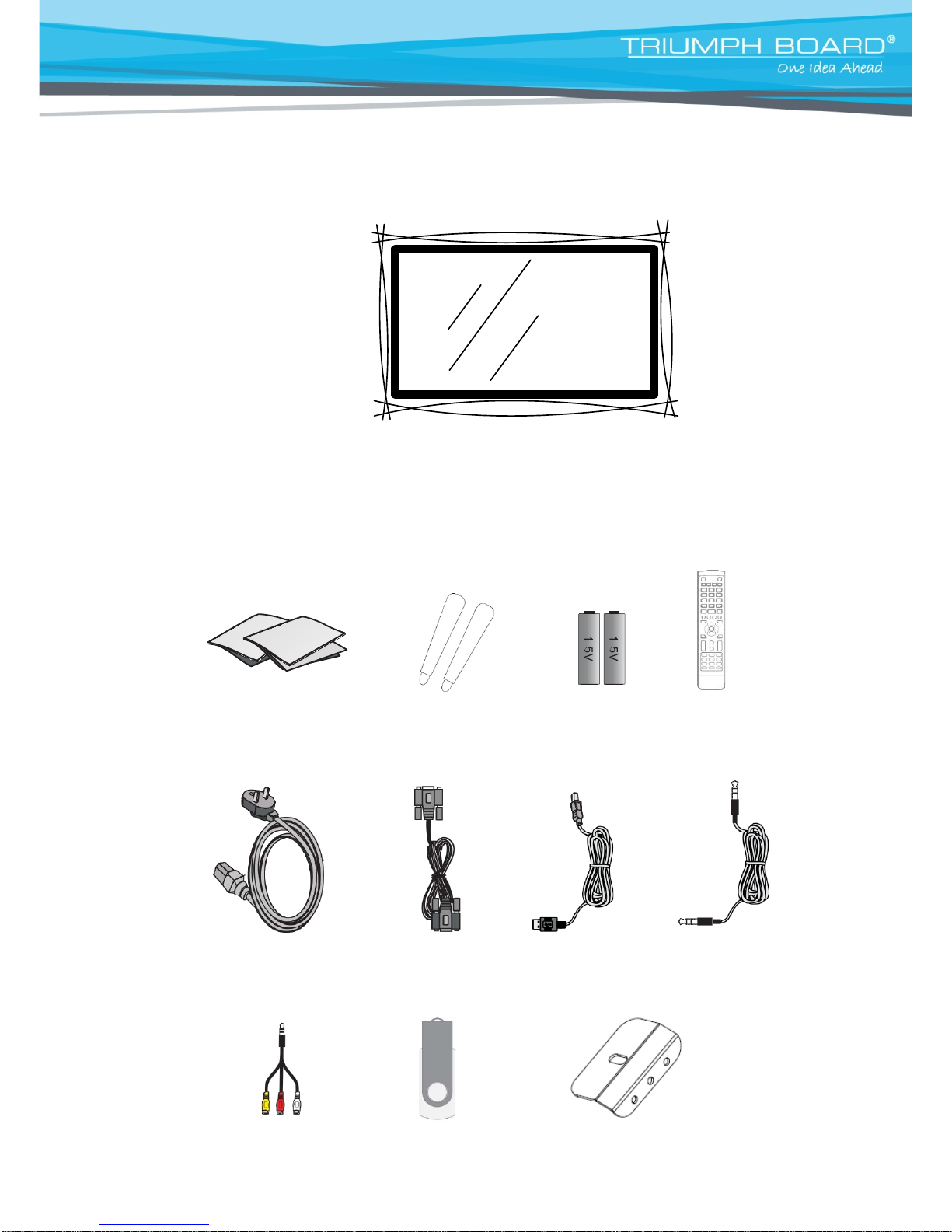

Accessories ..................................................................................................................................... 11

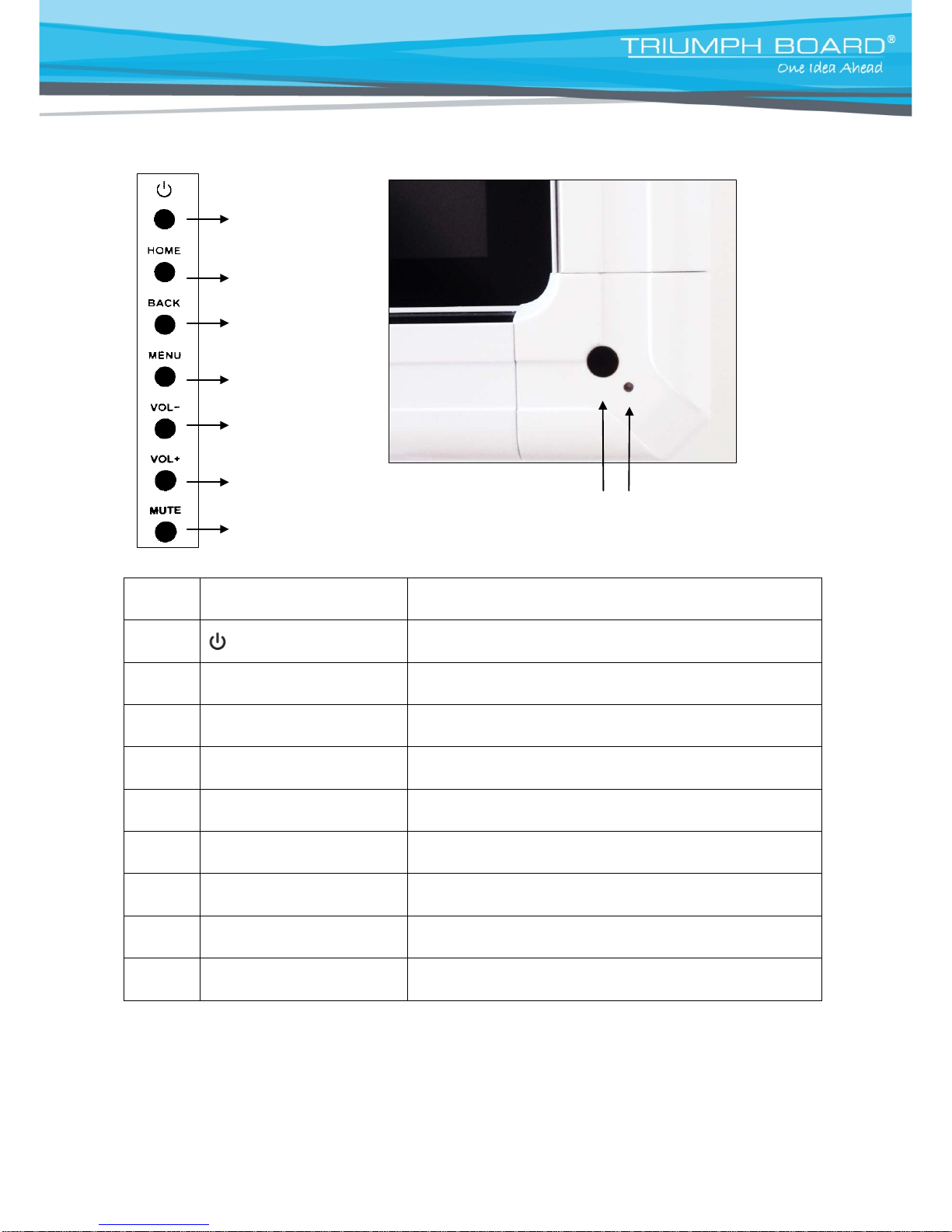

Control Panel ................................................................................................................................... 12

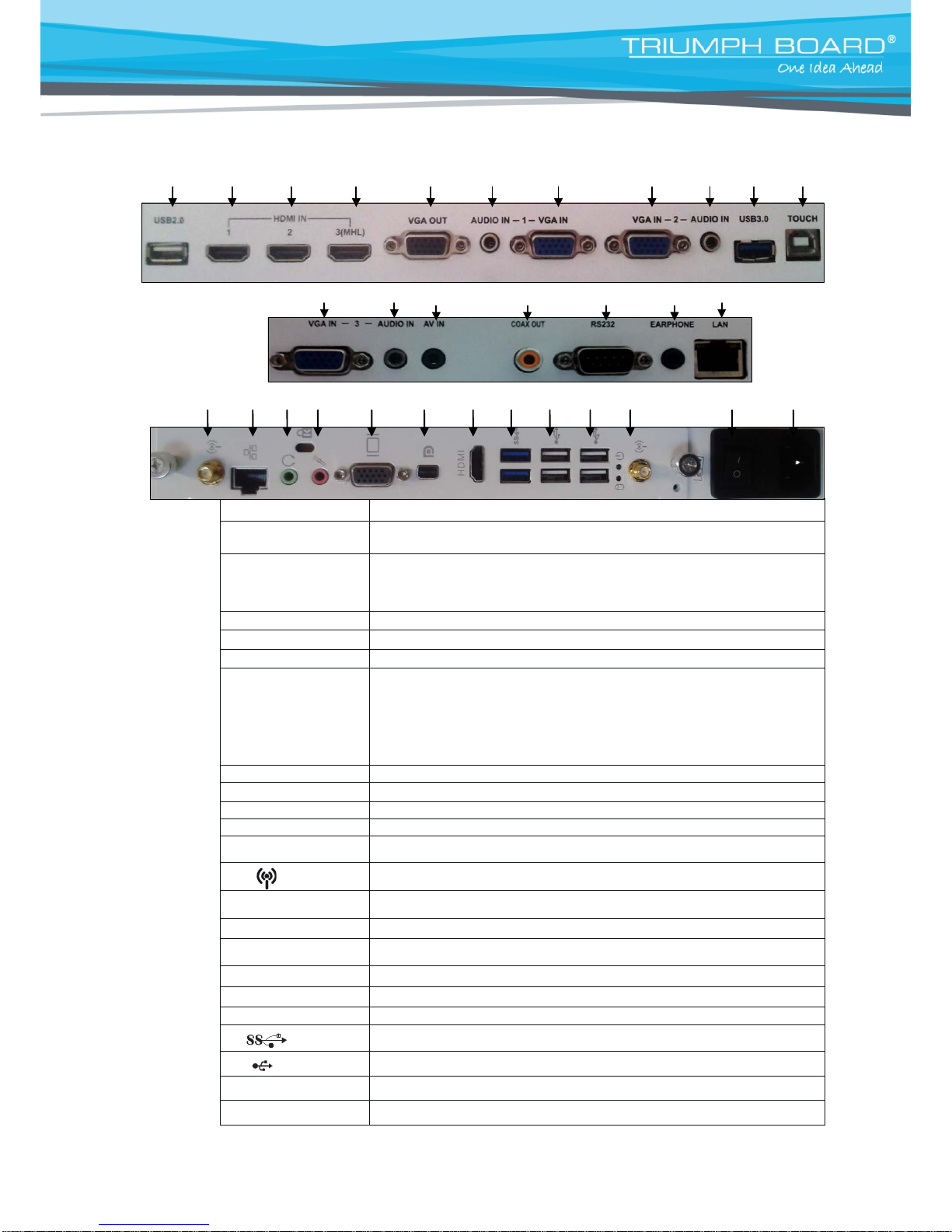

5. Terminal Interface ............................................................................................... 13
6. Remote
control
................................................................................................... 14

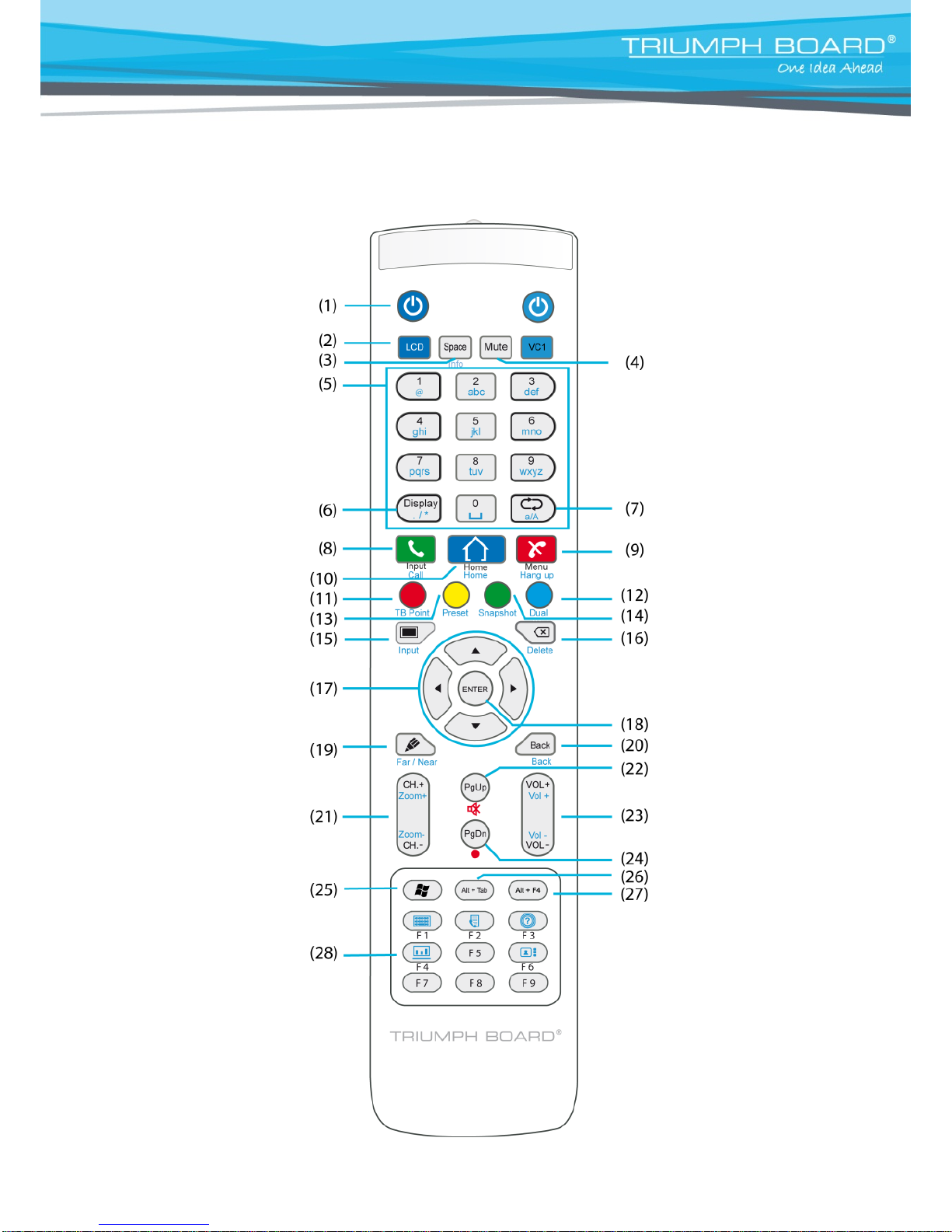

Remote control button
instructions
........................................................................................... 14
Detailed function description of remote control buttons ........................................................... 15
Remote control use instructions ................................................................................................... 16

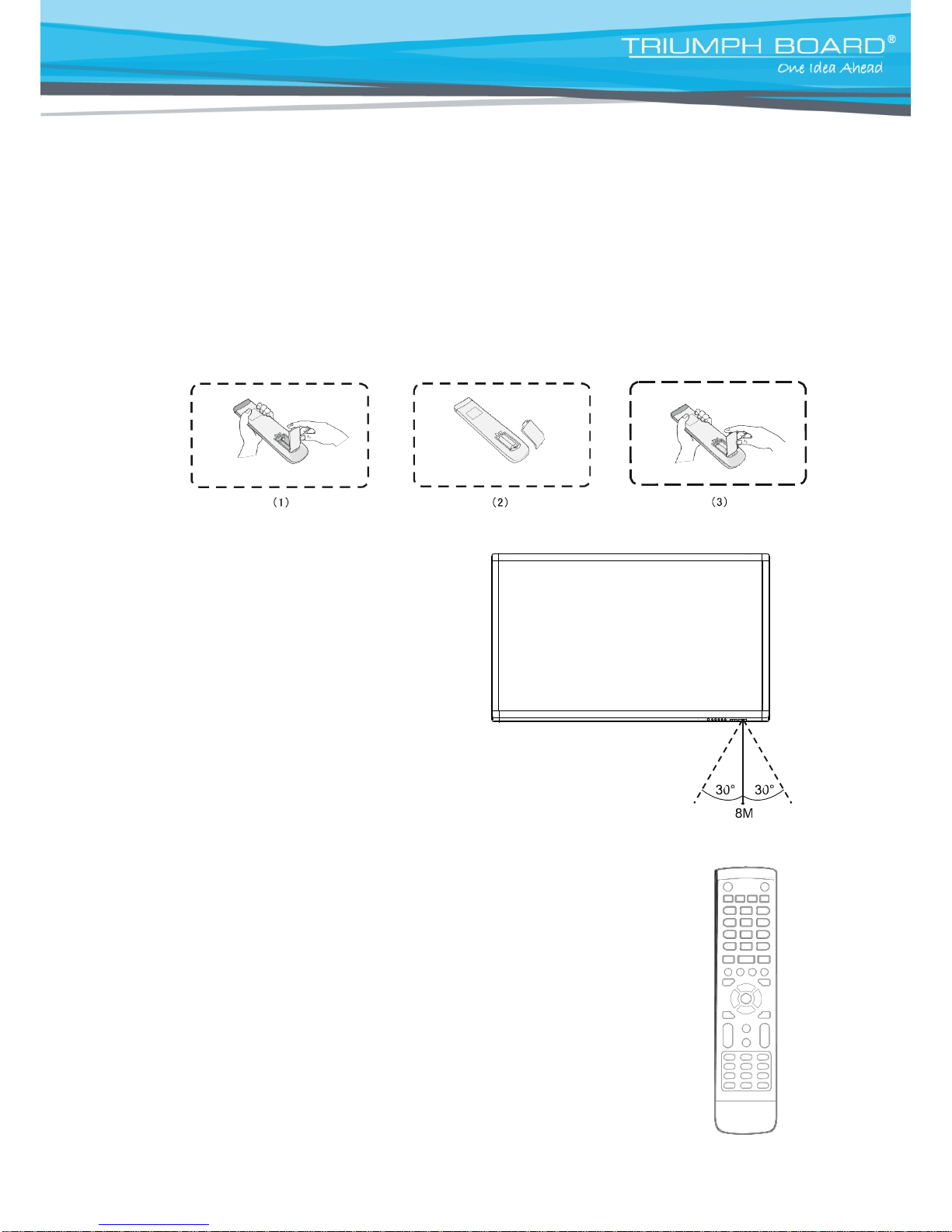

Install Batteries ........................................................................................................................... 16
Range of remote control ............................................................................................................ 16
7. Connection and Setting ...................................................................................... 17

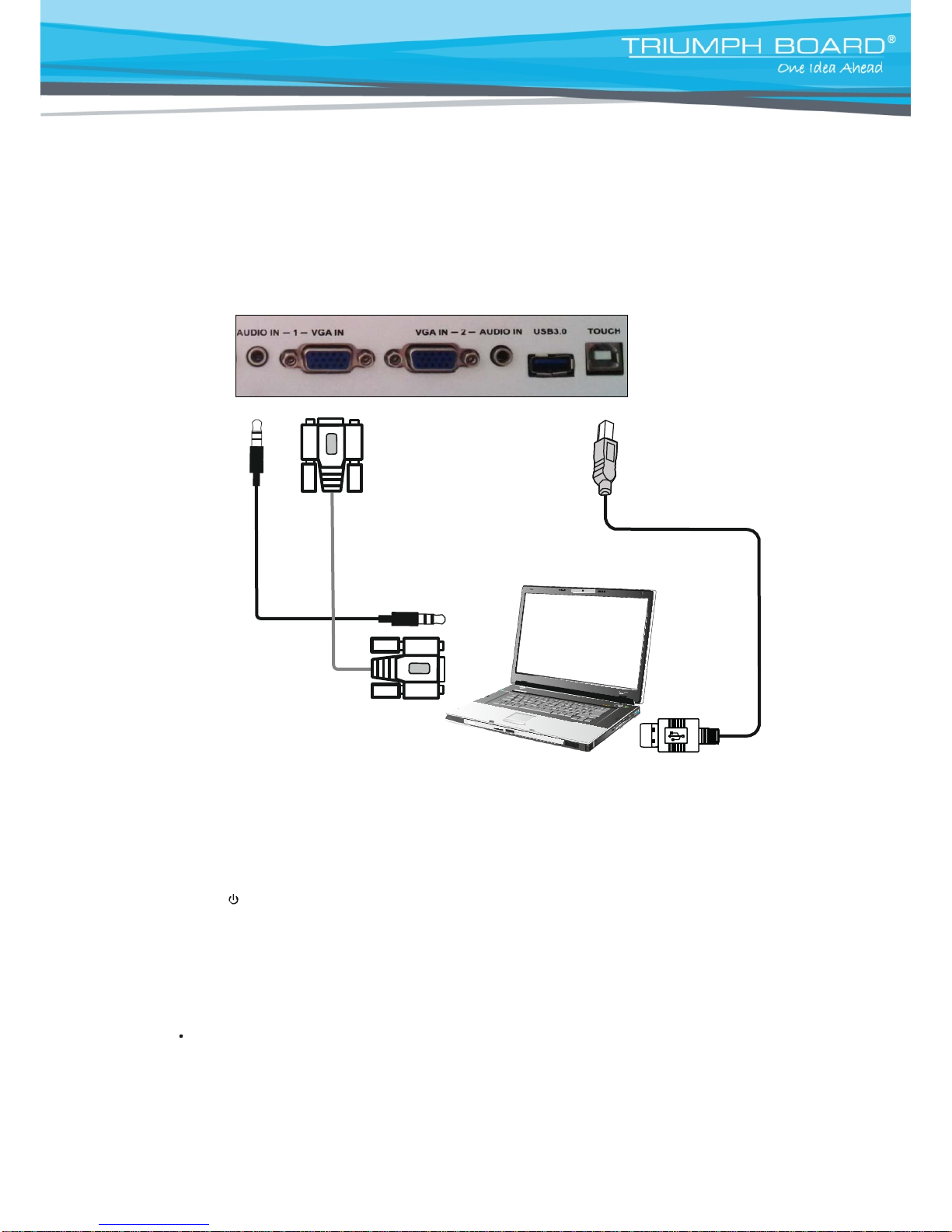

External Computer and Touch Connection .................................................................................. 17

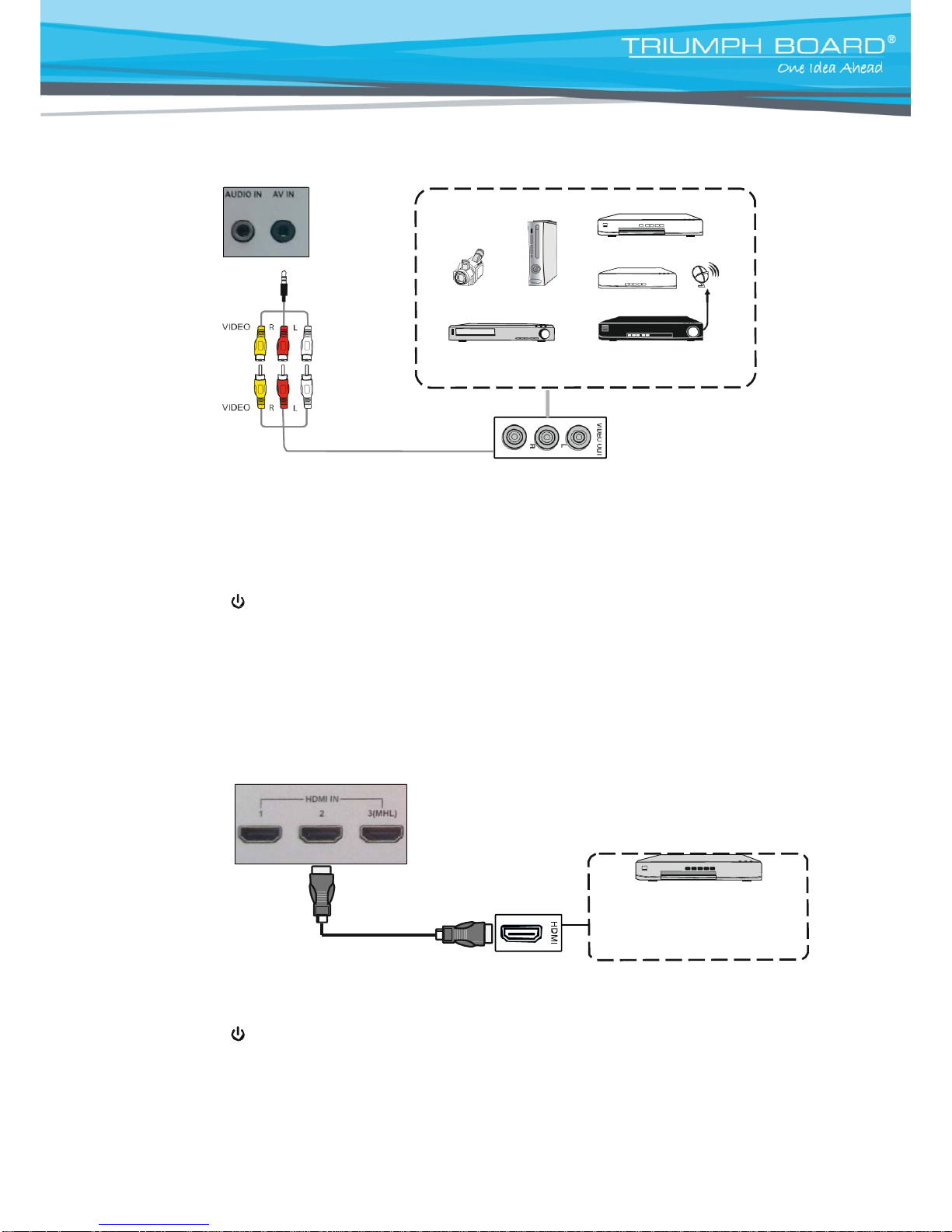

Audio and video equipment ........................................................................................................... 18
AV
................................................................................................................................................. 18
HDMI1 / HDMI2 / HDMI3 (MHL) / HDMI4 (4K2K)* *84 LED LCD ............................................ 18

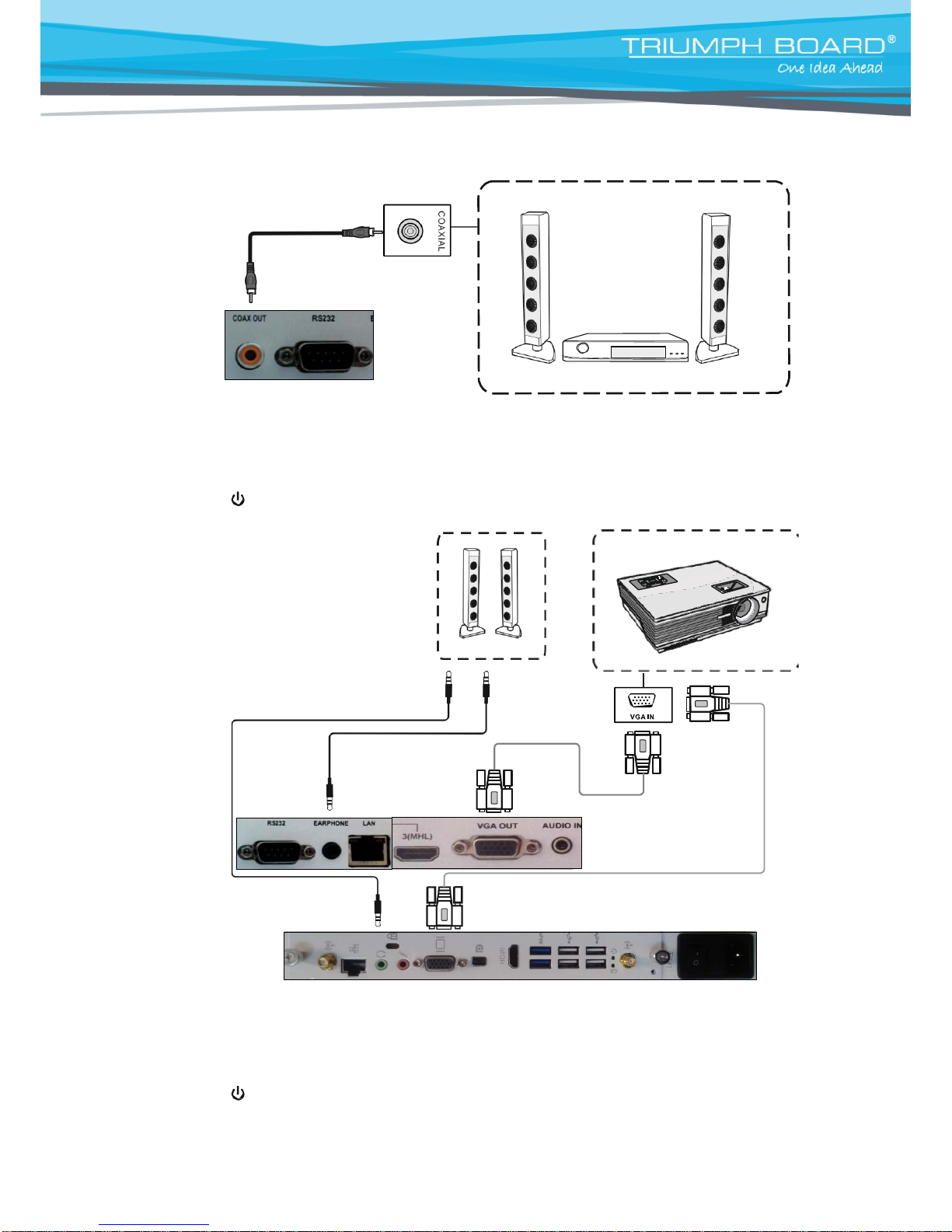

Coaxial connection ......................................................................................................................... 19
Video output connection ................................................................................................................ 19
VGA output connection .............................................................................................................. 19

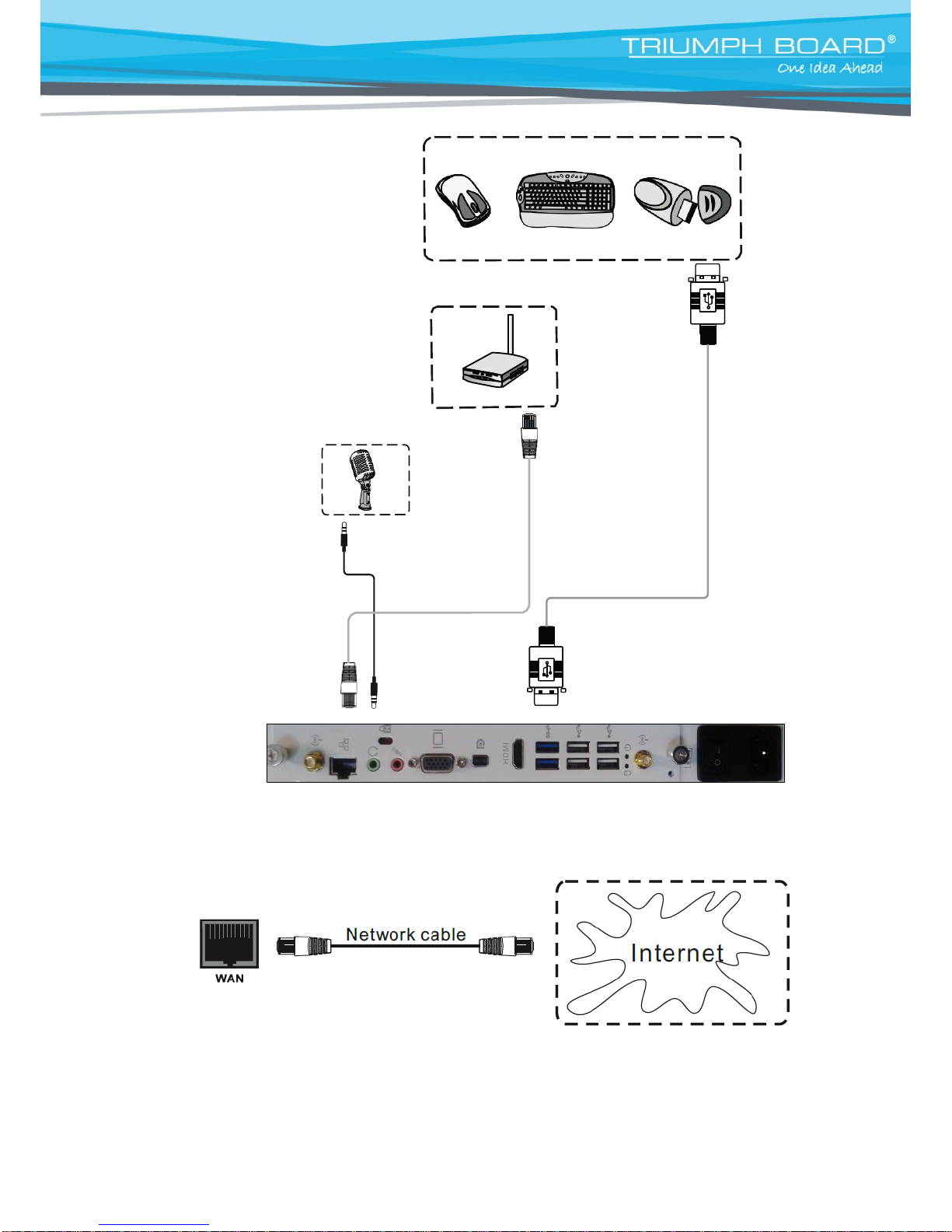

USB Equipment connection .......................................................................................................... 20
Network cable connection ............................................................................................................. 20
Microphone connection ................................................................................................................. 20
WAN connection ............................................................................................................................. 20
USB equipment connection ........................................................................................................... 21
Page 3
3
8. Menu Operation ................................................................................................... 22

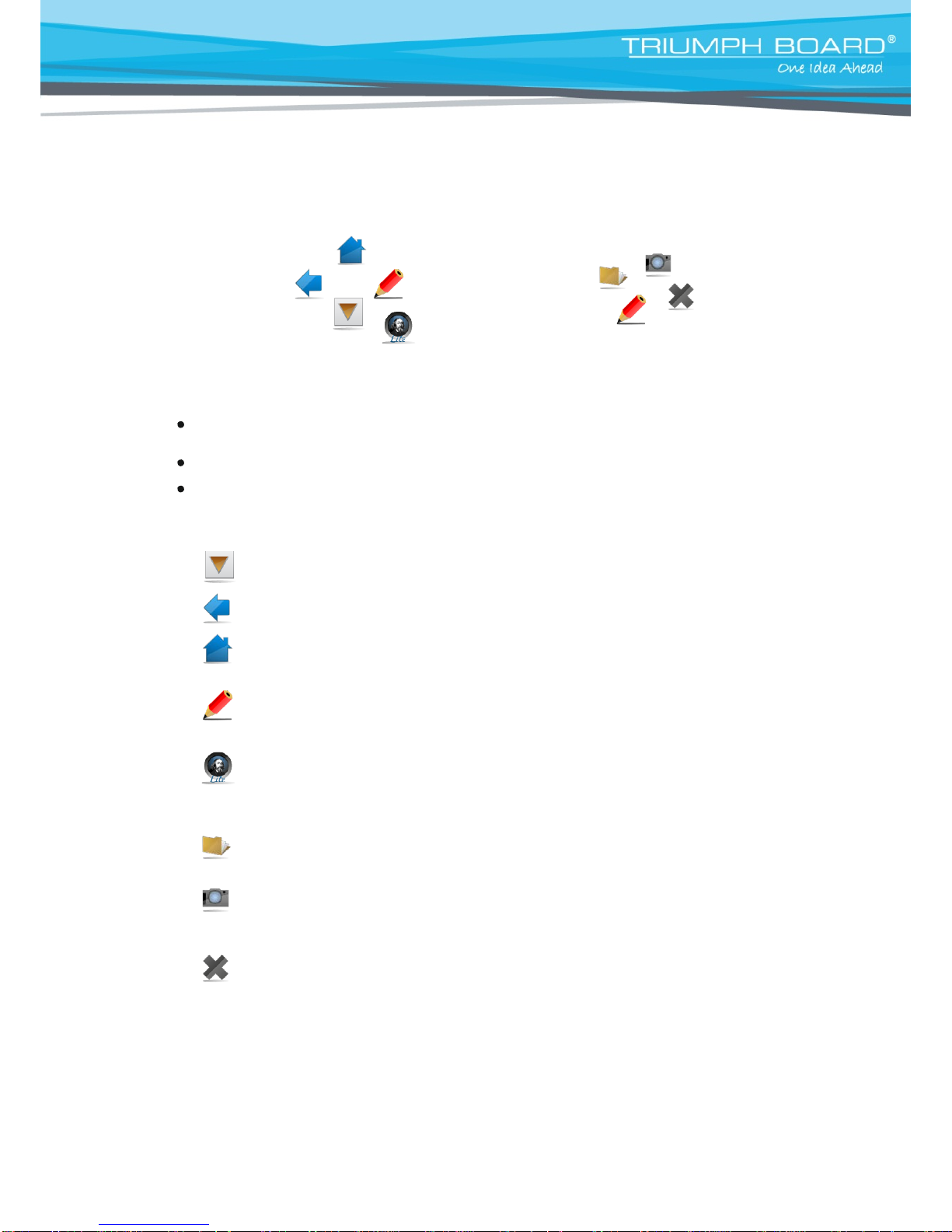

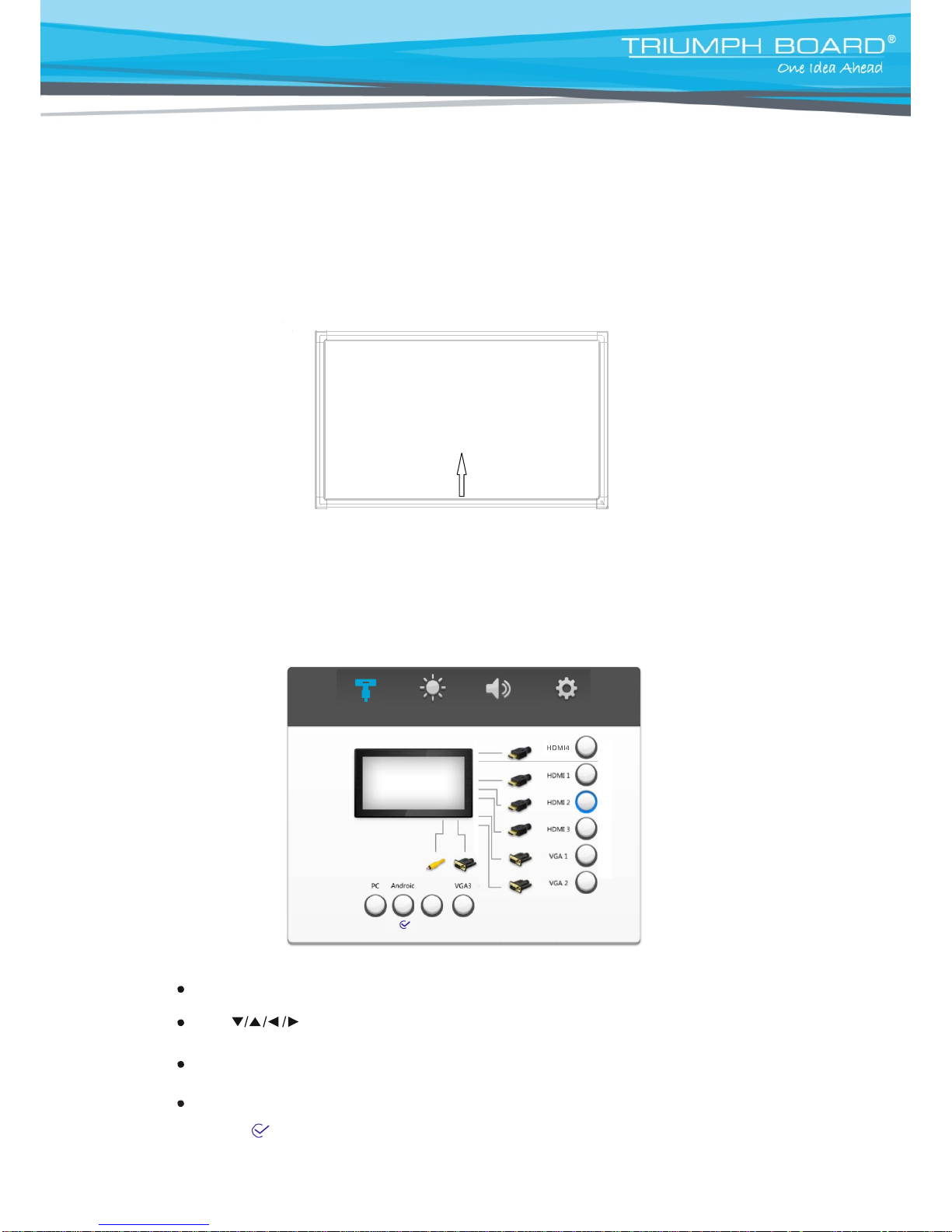

One Touch menu operation ........................................................................................................... 22
Setting menu ................................................................................................................................... 22
Input setting ................................................................................................................................ 22

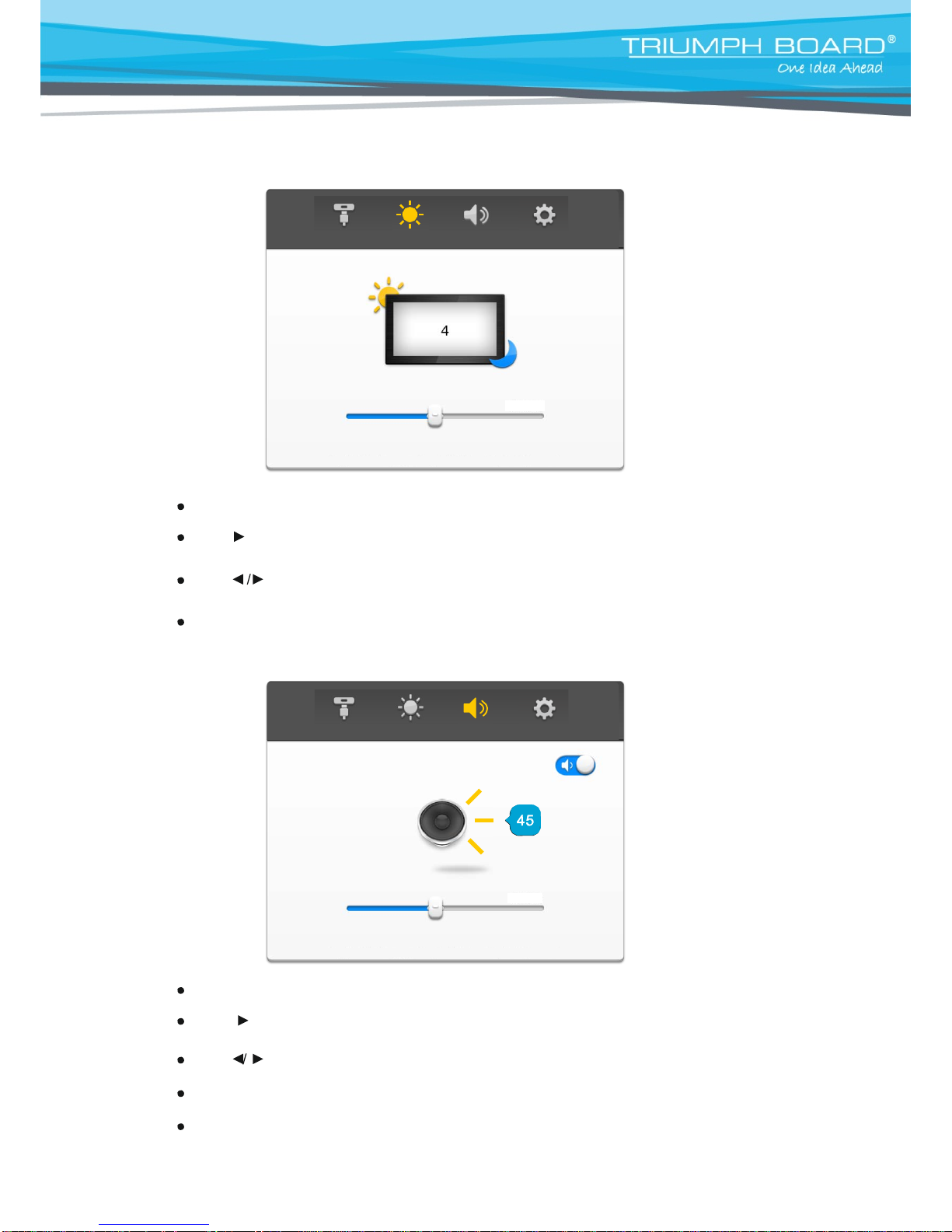

Brightness settings .................................................................................................................... 23
Volume adjustment ..................................................................................................................... 23
9. More Settings (advanced settings) .................................................................... 24
Android channel .............................................................................................................................. 24

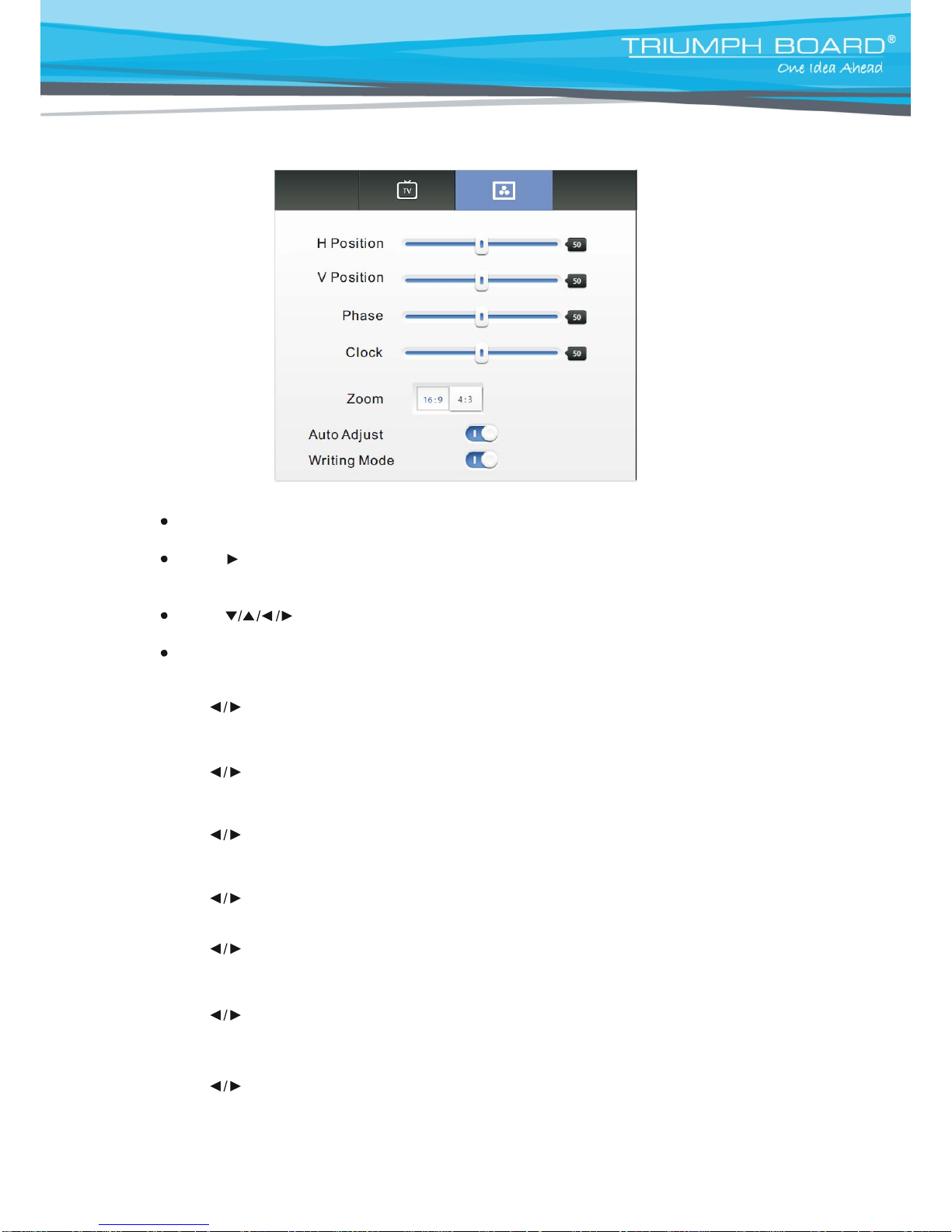

VGA channel .................................................................................................................................... 25

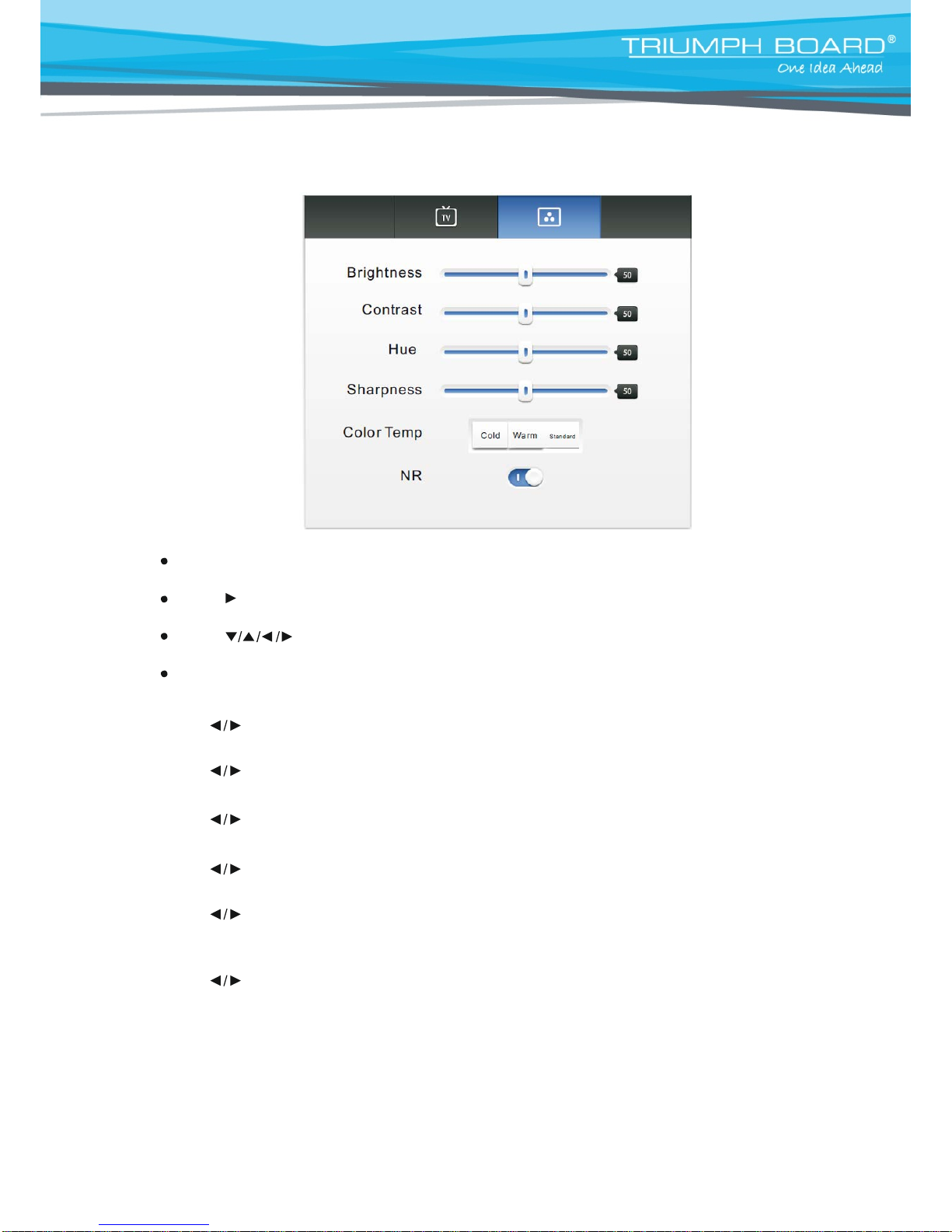

Screen Setting ................................................................................................................................. 26

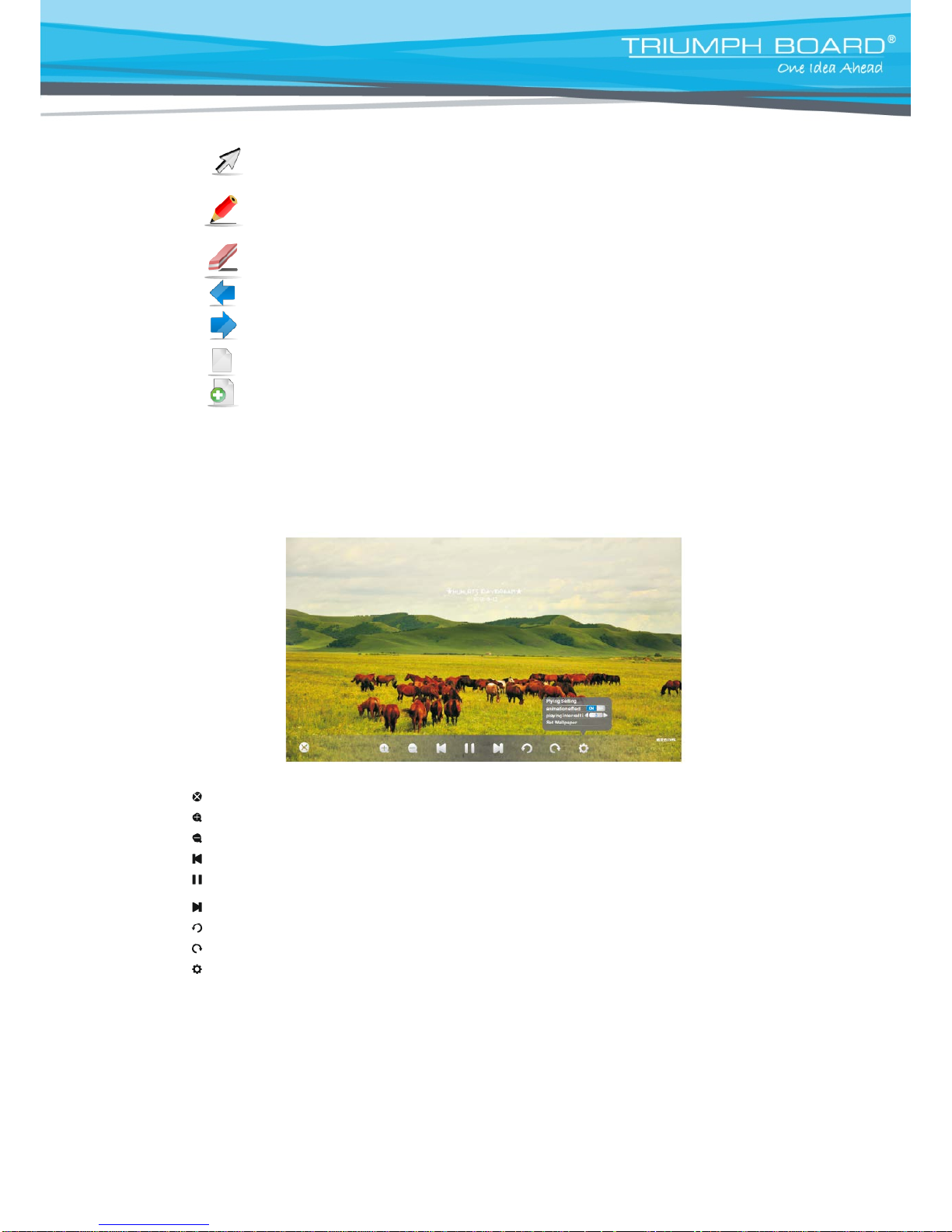

Annotation menu ............................................................................................................................ 27
10. Android System Interface ................................................................................ 28

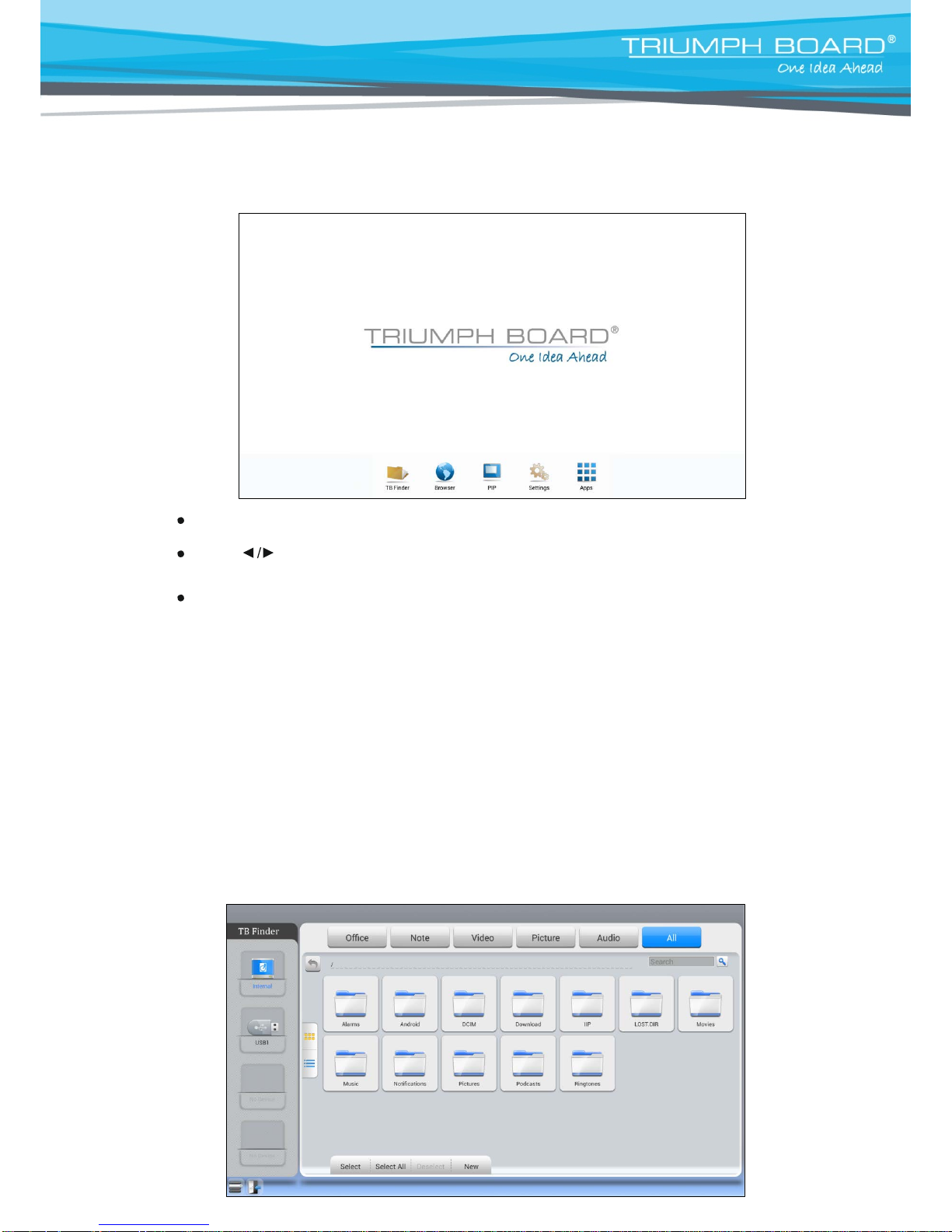

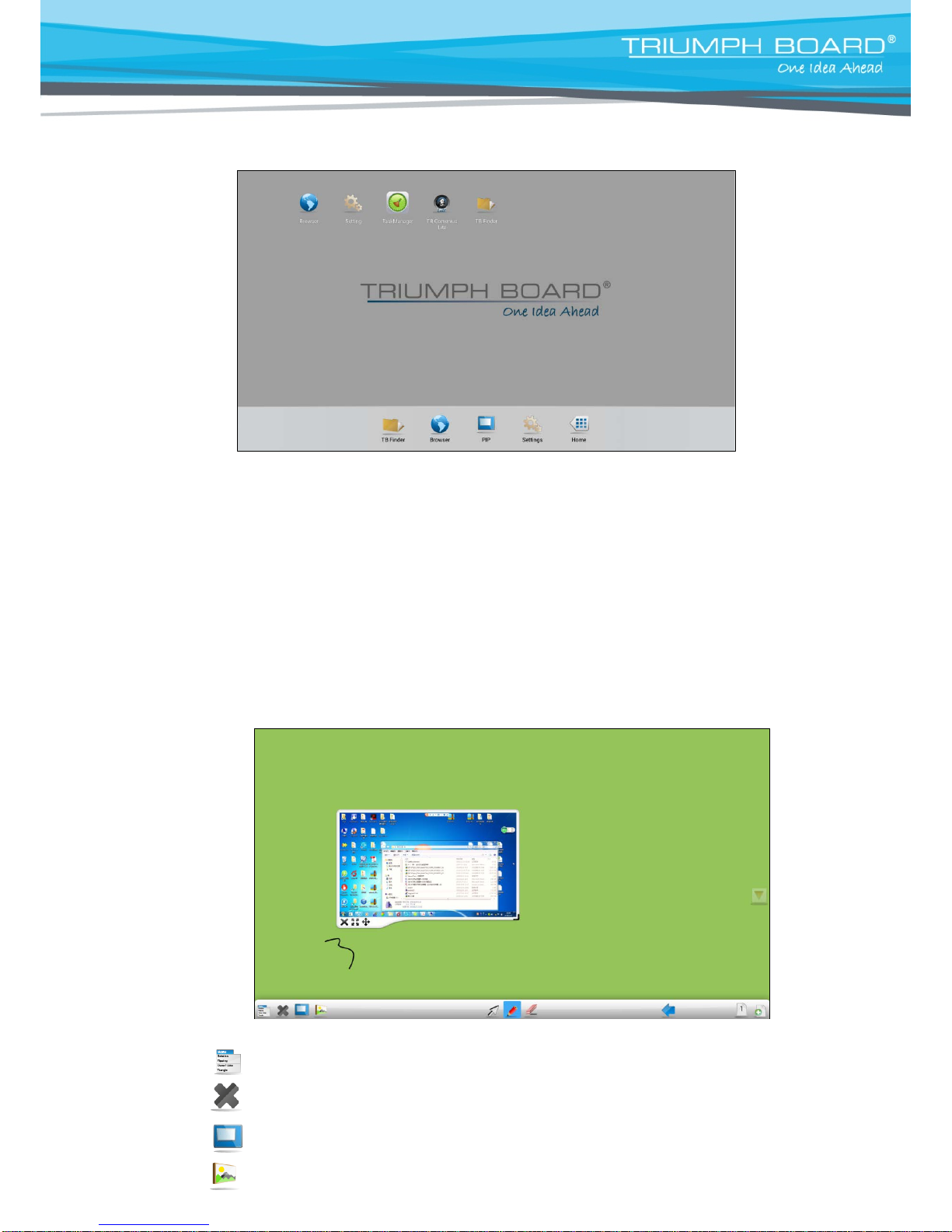

Main Interface .................................................................................................................................. 28
TB Finder ......................................................................................................................................... 28
Browser ............................................................................................................................................ 29

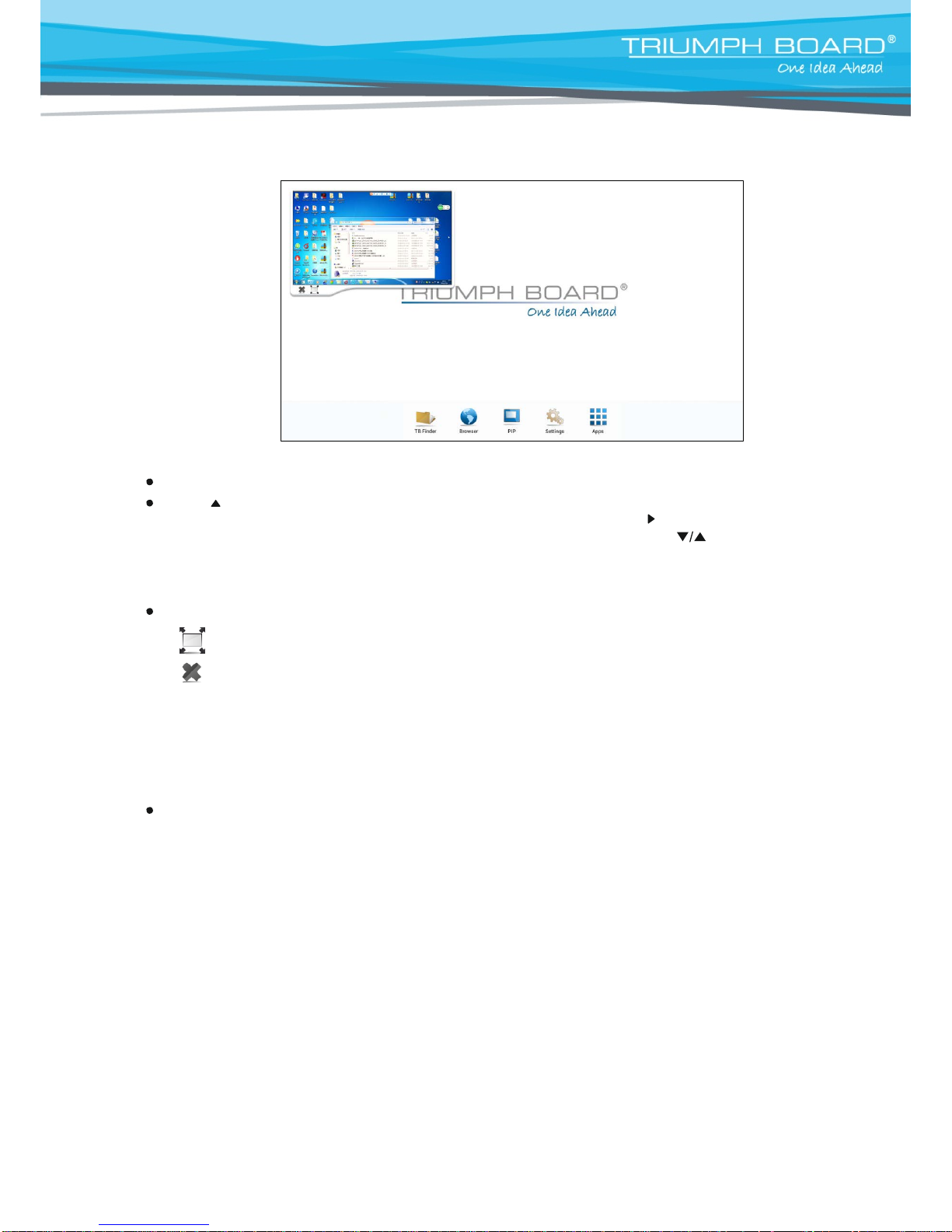

PIP .................................................................................................................................................... 30

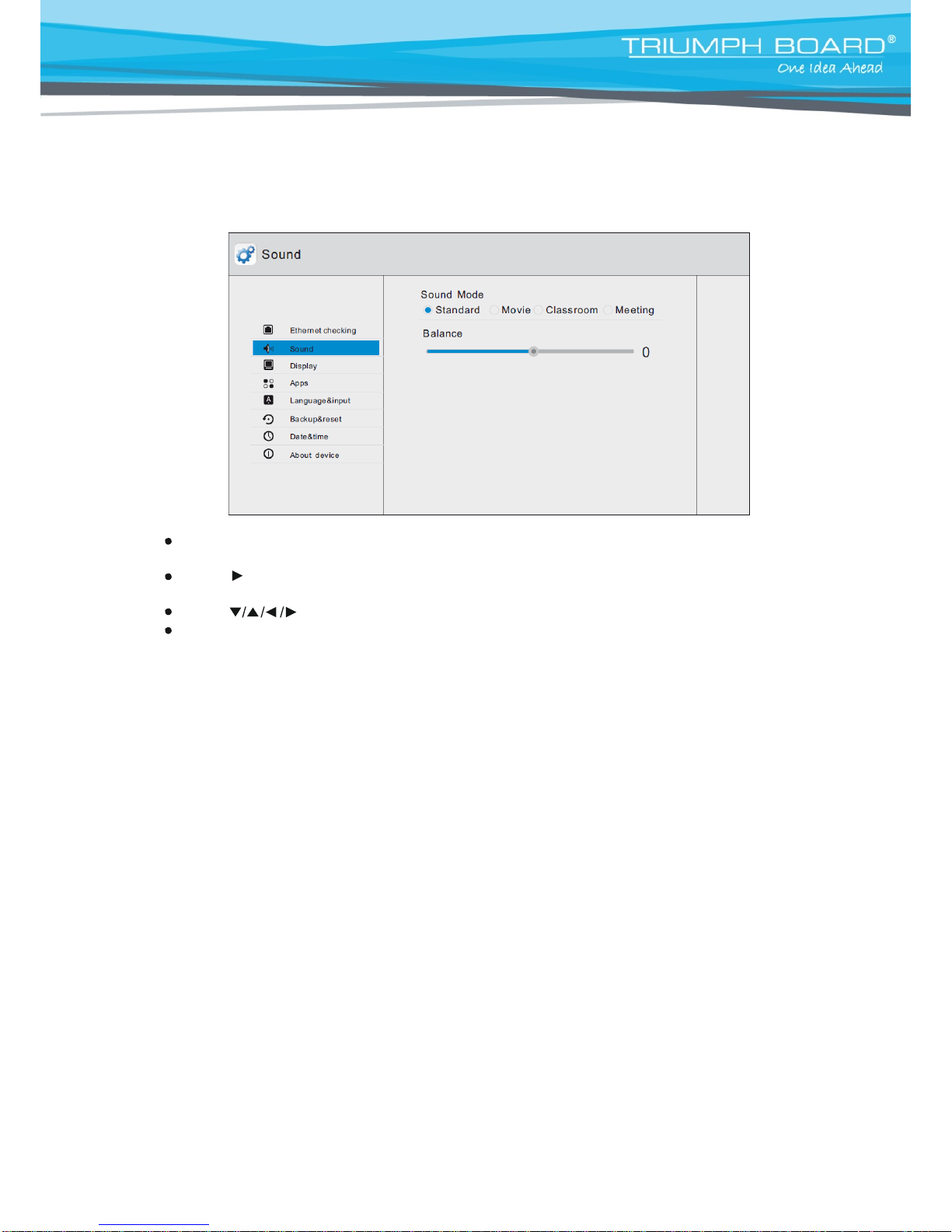

Settings ............................................................................................................................................ 30
Apps ................................................................................................................................................. 31
TB Comenius Lite ........................................................................................................................... 31
11. Multimedia File Playback Interface .................................................................. 32

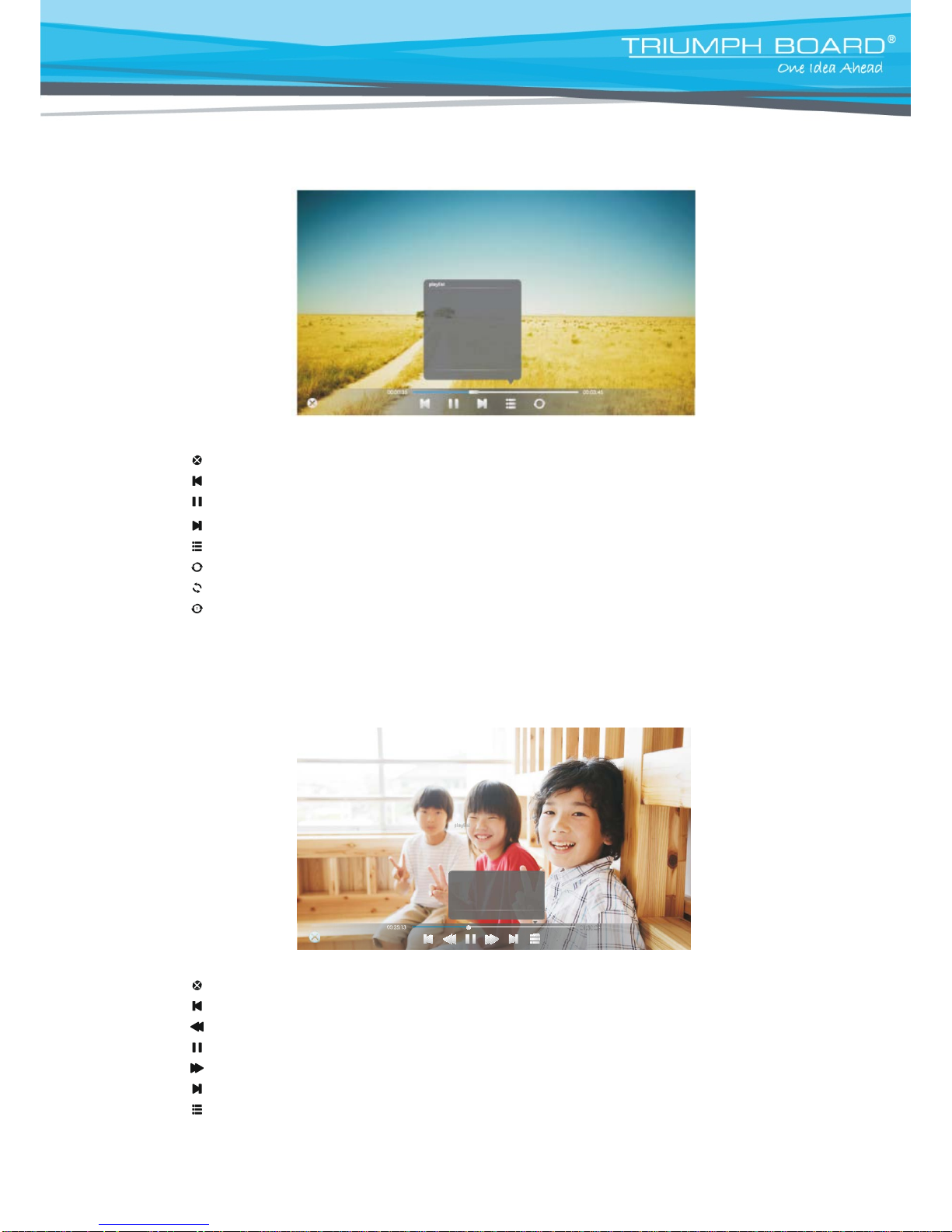

Image play....................................................................................................................................... 32
Audio play ..................................................................................................................................... 33
Single play ...................................................................................................................................... 33
Video play ...................................................................................................................................... 33

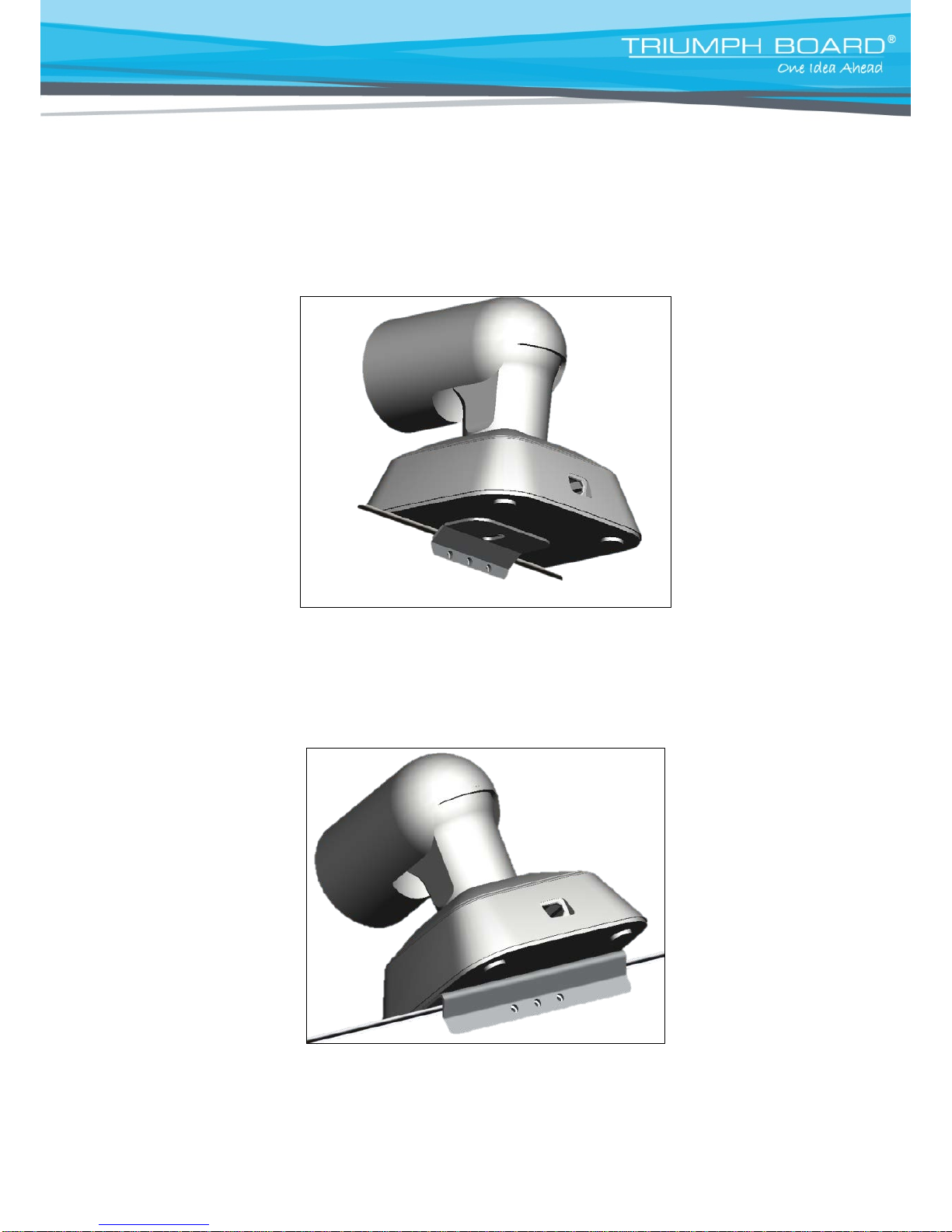

12. VC Camera Bracket installation ...................................................................... 34
13. Troubleshooting ................................................................................................ 35

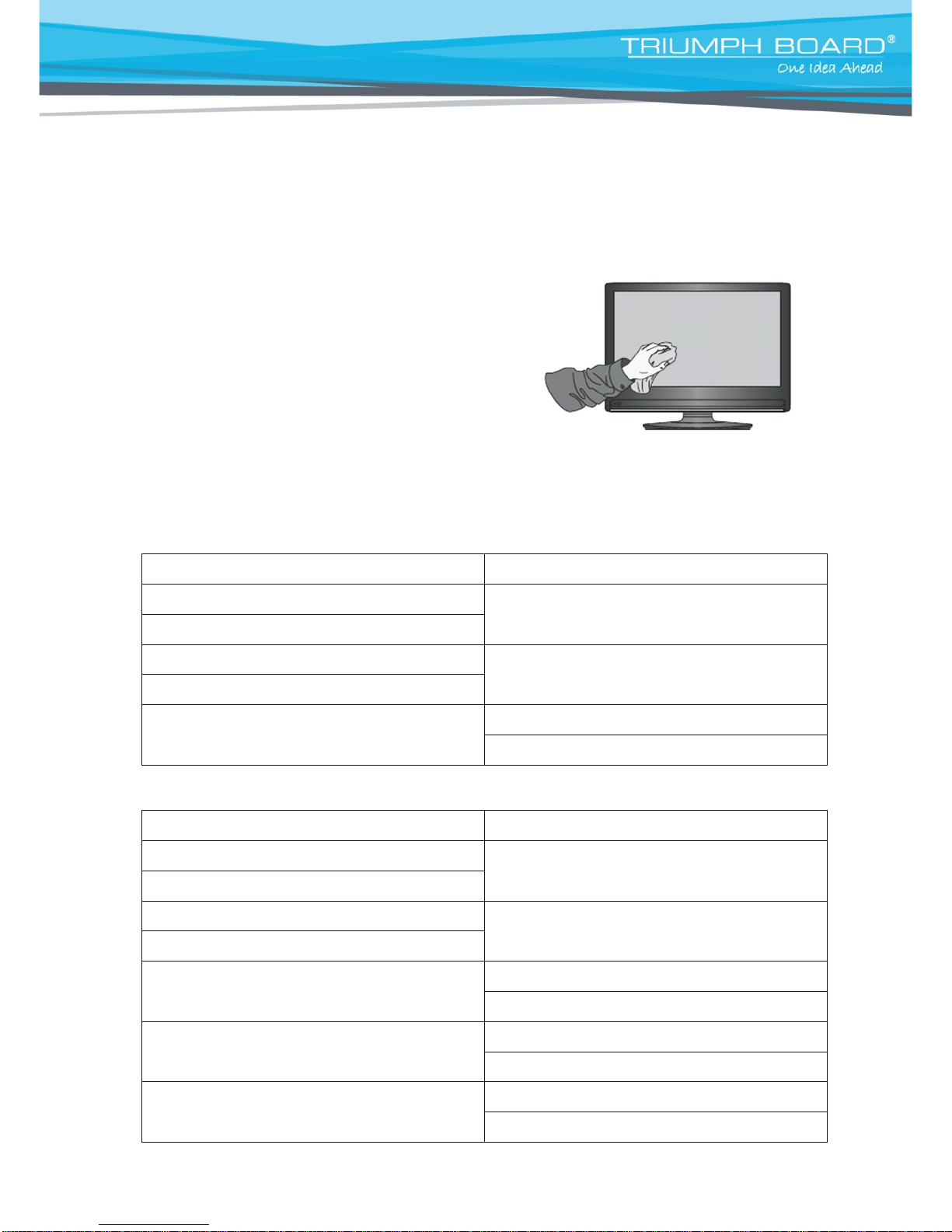

14. Maintenance ...................................................................................................... 36
15. Display mode..................................................................................................... 36
16. Repair Service and Contacts ........................................................................... 37
Page 4
4
DECLARATION OF CONFORMITY
We TRIUMPH BOARD a.s., Neklanova 122/15, 128 00 Praha 2
Declare under sole responsibility that the product:
TRIUMPH BOARD MULTI Touch LED LCD Series
Model: 55” MULTI Touch LED LCD, 65” MULTI Touch LED LCD
70” MULTI Touch LED LCD, 84” MULTI Touch LED LCD
EANs: 8592580111891, 8592580111907, 8592580111914, 8592580111853
are in conformity of essential requirements of EU directives:
EU Standards
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 55013:2013
EN 55020:2007+A11:2011
In the configuration tested, the EUT complied with the standards specified above.
Place of Issue: Prague
Datum of issue: 25
th
November 2014
Ing. Ondřej Kryšpín, Chairman of the Board of Directors
Note: Translation from original CE
Page 5
5

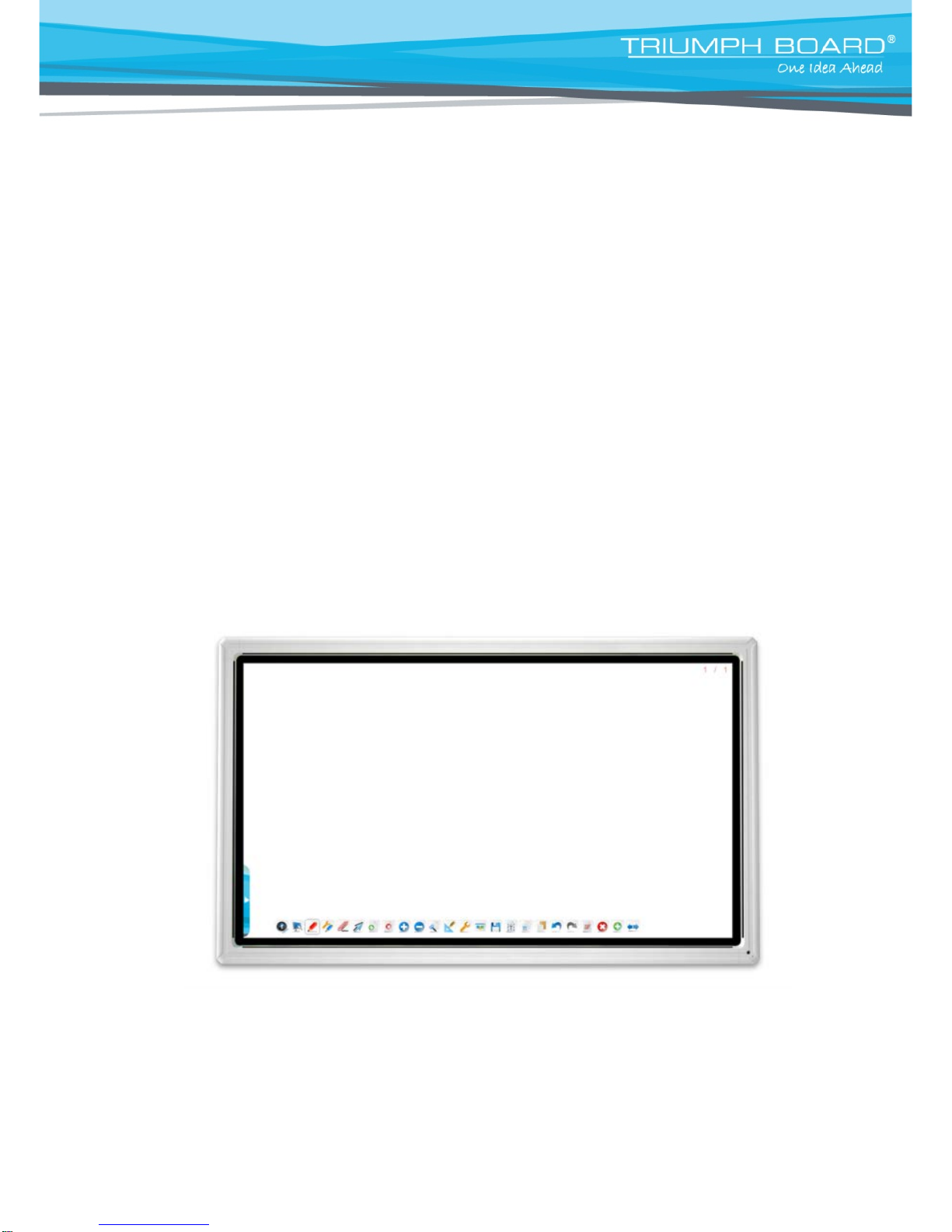

1. Product Description
TRIUMPH BOARD MULTI Touch LED LCD Series
TRIUMPH BOARD MULTI Touch LED LCD is fully integrated, professional, multi touch FULL HD/4K
*
LED LCD. The IR LED optical technology enables six
*
/ten finger touches simultaneously using fingers,
stylus or even a pointer.
TRIUMPH BOARD MULTI Touch LED LCD are an effective presentations tool to show pictures, data,
presentations, thoughts, ideas and business forecasts interactively. Engage the audience with the
presentation with direct control of the computer through the LED LCD MULTI Touch.
TRIUMPH BOARD MULTI Touch LED LCD – no need for a projector! Easy installation! No limitations
caused by light conditions! Elegant and stylish appearance!
TRIUMPH BOARD MINI PC6A / PC7A for MULTI Touch LED LCD Series (optional)
TRIUMPH BOARD MINI PC6A / 7A is a powerful, fully integrated personal computer for TRIUMPH
BOARD LED LCD MULTI Touch Series.
TRIUMPH BOARD MINI PC6A / 7A is equipped with Intel i5/7 processor, integrated/independent
graphics and 4/8 GB RAM, which ensures high power for running current software. 500/1000 GB hard
disk provides sufficient capacity for saving and storing user´s data.
TRIUMPH BOARD MINI PC6A / 7A is an ideal specification for TRIUMPH CLOUD, MyScript Stylus,
RMeasiteach Next generation and Display Note software bundle which are delivered together with the
TRIUMPH BOARD LED LCD.
* 84” LED LCD
Page 6
6
2. Technical specifications
TRIUMPH BOARD 55“ MULTI Touch LED LCD
EAN:
8592580111891
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refreshing Sequence:
6 ms, 60 Hz, 1400:1
Display Area:
1209.6(H) × 680.4(V)
Outline Dimension:
1369 x 828 x 102 mm
Package Dimension:
1485 x 980 x 220 mm
Net / Gross weight:
48/64 kg
TRIUMPH BOARD 65“ MULTI Touch LED LCD
EAN:
8592580111907
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refreshing Sequence:
8 ms, 60 Hz, 4000:1
Display Area:
1428.48 (H) x 803.52 (V)
Outline Dimension:
1591 x 961 x 110 mm
Package Dimension:
1710 x 1140 x 240 mm
Net / Gross weight:
72/92 kg
TRIUMPH BOARD 70“ MULTI Touch LED LCD
EAN:
8592580111914
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refreshing Sequence:
4 ms, 120 Hz, 4000:1
Display Area:
1538.880 (H) x 865.620 (V)
Outline Dimension:
1713 x 1035 x 98 mm
Package Dimension:
1830 x 1195 x 240 mm
Net / Gross weight:
73/96 kg
TRIUMPH BOARD 84“ MULTI Touch LED LCD
EAN:
8592580111853
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
3840 x 2160
Refreshing Sequence:
8 ms, 120 Hz, 1600:1
Display Area:
1860.48 (H) x 1046.52 (V)
Outline Dimension:
2005.3 x 1191.5 x 122.9 mm
Package Dimension:
2168 x 1508 x 318 mm
Net / Gross weight:
118/148 kg
Page 7
7
Touch System
Sensing Type:
Infrared Transmission (multi-touch)
Response Time:
< 15ms
Response Area:
> ø 5mm
Scan Frequency:
100Hz
Output Coordinates:
32767×32767
Communication Mode:
Full-speed USB
Writing Screen:
Mohs hardness of 7
PC System:
Optional
Inputs and Outputs
HDMI:
3 / 4* (1xHDMI 4K,
1xHDMI MHL, 2xHDMI)
CVBS:
1
R/L(CVBS):
1
Coaxial Digital Audio Output:
1
Audio IN:
3
VGA OUT:
1
VGA IN:
3
RS232
1
Touch OUT:
1
Audio Output Earphone Port
1
USB 2.0:
1
USB 3.0:
1
LAN (RJ45)
1
AC IN:
1
Power:
1
* 84” LED LCD
Sound System
Power Amplif y:
2x10W
Sound:
Surround
Power
Power Requirements:
100 – 240 V AC 50/60 Hz
Overall Power Consumption:
< 500 W
Standby Power Consumption:
< 0,5 W
Ambient Condition
Operation Temperature
0 – 40 °C
Operation Humidity:
10 – 90% RH
Storage Temperature:
- 20 C to 60 °C
Storage Humidity:
10 – 90% RH
* 84” LED LCD
Page 8
8
TRIUMPH BOARD MINI PC6A for MULTI Touch LED LCD Series
EAN:
8592580111877
Processor:
Intel i5
Graphics:
Integrated Intel® HD Graphics
Sound Card:
Integrated High Definition Audio Stereo
Networking:
Integrated 10/100/1000 Mbps adapted
Memory:
4 GB DDRIII
Hard Drive:
500 GB SATA
WIFI:
802.11 a/b/g/n, 2x2, dual-band WiFi 2,4/5 GHz
+ Bluetooth 4.0
USB:
4x USB 2.0 and 2x USB 3.0
Lan Port (RJ45):
1
VGA Out:
1
Mini Display Port
1
HDMI Output
1
Audio:
Side Headphone and Mic Ports
Net / Gross Weight:
1,8 / 2 kg
TRIUMPH BOARD MINI PC7A for MULTI Touch LED LCD Series
EAN:
8592580111860
Processor:
Intel i7
Graphics:
Independent Graphics GT745M
Sound Card:
Integrated High Definition Audio Stereo
Networking:
Integrated 10/100/1000 Mbps adapted
Memory:
8 GB DDRIII
Hard Drive:
1000 GB SATA
WIFI:
802.11 a/b/g/n, 2x2, dual-band WiFi 2,4/5 GHz
+ Bluetooth 4.0
USB:
4x USB 2.0 and 2x USB 3.0
Lan Port (RJ45):
1
VGA Out:
1
Mini Display Port
1
HDMI Output
1
Audio:
Side Headphone and Mic Ports
Net / Gross Weight:
1,8 / 2 kg
Android System
System Version
Android 4.2.1
CPU
ARM Cortex A9 dual-core CPU
GPU
Quad-Core
RAM
1.5G
ROM
8GB
Page 9
9
3. Safety Warning
Before using the machine, please read the instructions carefully.
Placement
Do not put the machine on surfaces that are unstable, easy to tilt or which can fall.
Do not put the machine in places with direct sunlight, or near sources of heat, such as electric
heaters or strong light sources.
Do not use the machine next to radiation emitting equipment.
Do not put the machine in damp places or places where it might be exposed to moisture or liquids.
Do not insert any items inside of the machine.
Do not place heavy objects on the machine.
Power Supply
Please verify compatibility between the voltage value on back shell nameplate and the main power
supply voltage value.
In case of thunderstorm and lightning weather, please unplug power cord and antenna plug.
When no one is indoors or the machine will not be in use for a long time, please unplug the power
cord.
Please prevent power cord from physical or mechanical damage.
Please use the special power cord, and do not modify or extend the power cord.
Please check and make sure the AC power ground wire is connected.
Screen
When writing on screen, please do not use hard or sharp objects instead of styluses.
When it needs cleaning, please unplug the power cord first.
Please use a soft, dust-free, dry cloth to wipe the screen.
Do not use water and spray cleaner to clean the machine.
Please contact the service center for internal cleaning of the machine.
Do not display image with high brightness on the screen for a long time
.
Range of Visibility
The best distance between eyes of viewer and screen is 5 to 7 times of screen diagonal.
The best viewing angle between eyes of viewer and listener and screen is within 176 degrees up
and down, left and right.
Temperature
Do not place the machine near an electric radiator or heating unit.
When moving the machine from a low temperature area to a high temperature area, before
connecting the machine to power, pleas e leave the m ac hine idle in the ne w environment for some
time to allow for temperature adjustment, in order to sufficientl y diff use internal condensation prior
to powering on.
The Machine's normal working temperature is 0 ~ 40°C, storage temperature is -20~60°C
Humidity
Do not expose the machine to the rain, moisture, or places near water.
Please make sure the indoor environment is dry and cool, the machine’s normal working humidity
is 10~90%, storage hum idit y is 10~95%.
Page 10
10
Ventilation
Please place the machine in ventilated places, and ensure machine's good heat dissipation.
Please ensure ventilation spaces 10 cm on the sides and back, and 20 cm on the top of the
machine.
Headphones
Extended use of headphones at high volumes may damage hearing.. If external
headphones/earbuds is needed, please turn down the machine volume in advance.
Standby
The standby button on the front of machine body will not completely
shut off the machine, but only places the machine in standby mode
.
Battery
Please dispose of used batteries in the proper manner and recycle.
To avoid danger, please do not let chil dren touc h the b attery, and do
not put battery into water.
Caution
This product is a Leve l 4 produc t, and may cause radio interference in
the living environment. In this case, the user may be required to take
practical measures to mitigate the effects.
Page 11
11
4. Preparing for Installation
Unpacking
Accessories
Quick start guide, remote control, batteries, power cords (UK, US, EU), VGA cable, headphone
line, USB line, styluses, USB Flash Drive, AV line and VC Camera Bracket.
Quick Start Guide
2x Stylus
Batteries Remote control
Power Cord (US, UK, EU)
AV Cable
VGA Cable
USB Flash Drive
USB Cable Headphone Cable
VC Camera Bracket
Page 12
12
Control Panel
1
2
3
4
5
6
8 9
7
Number Item Function Description
1
Power on/off
2 HOME HOME butt on: back to main interface
3 BACK Return button: return to previous level menu
4 MENU Menu button: call up function menu
5 VOL - Volume down button: turn down volume
6 VOL + Volume up button: turn up volume
7 MUTE Mute button: mute volume
8
Remote control signal
receiver
Receive the remote control signal. After pressing the
button on the remote control LED flashes.
9 Power indicator
Indicator color shows the status of power on/off (on -
green / standby mode - orange / off - off)
Page 13
13
HDMI
5. Terminal Interface
1 2 2 2 3 4 5 5 4 1 6
5 4 7 8 9 10 11
14 15 16 17 18 19 20 21 22 22 14 23 24
4
Items
Description of Function
1. USB
Connect USB devices such as mobile hard disk, USB disk, USB keyboard and
mouse, USB drives, etc.
2. HDMI IN
High-definition multimedia interface signal input, for connecting to PC
(personal computer) with HDMI output, set-top box, or other video
device and can also implement touch function (HDMI3 can implement MHL function,
HDMI4* can implement 4K/2K)
*84” LED LCD.
3. VGA OUT
Connected to display devices with VGA input function
4. AUDIO IN
External computer audio input
5. VGA IN
External computer image input
6. TOUCH
External computer touch signal input. Default touch function is available under
internal computer. When connecting an external computer, in a dditio n to
connecting external computer VGA and audio signals, the external computer's US
B
port needs to be connected to the equipment. Under
the condition that driver is installed, the external computer can be touch
controlled through the equipment (touch function is effective in PC, VGA and
HDMI channel by default)
7. AV IN
Composite video and audio input
8. COAX OUT
Coaxial output

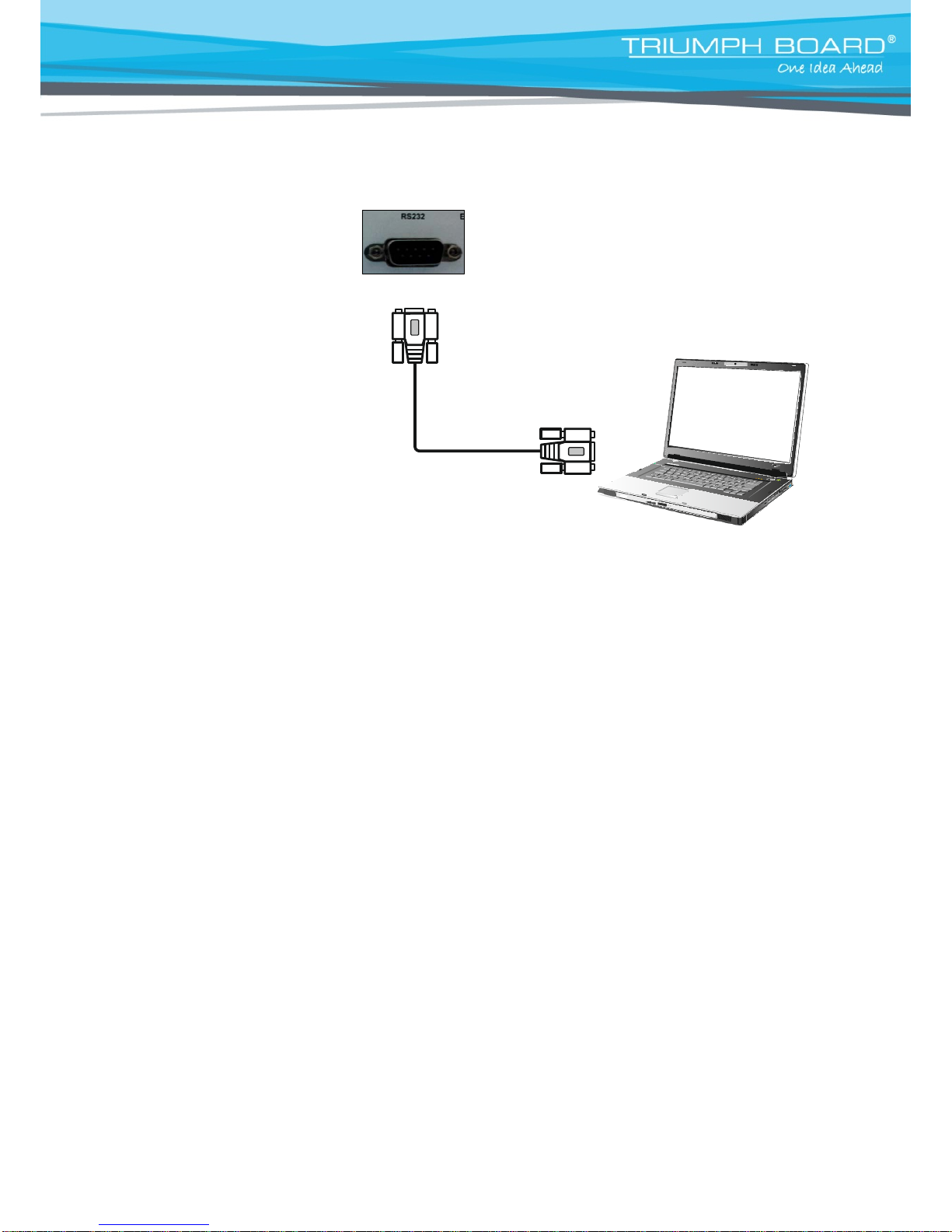

9. RS232
Serial interface, used for mutual transfer of data between devices
10. EARPHONE
Connected to device with headphone input function
11. LAN
LAN interface, connecting RJ45 terminals.
(This network port is only used for Android system)
14.
WIFI antenna interface
15. LAN (RJ45)
Network interface, connecting RJ45 port to connect to the Internet. (This
network port is only used for PC)
16. EARPHONE
Connected to device with headphone input function
17. MIC
Connect to device with microphone voice collection
(used for recording function)
18. VGA OUT
Connection to display device with VGA input function
19. DISPLAY PORT OUT
Connection to device with DisplayPort input function
20. HDMI OUT
Connection to devices with HDMI input function
21.
USB 3.0 interface to connect USB devices, such as mobile hard disk, U disk,
USB keyboard and mouse, USB drives, etc.
22.
USB 2.0 interface to connect USB devices, such as mobile hard disk, U disk,
USB keyboard and mouse, USB drives, etc.
23. POWER SWITCH
Power switch, to open and shut down AC power supply
“ I ”is ON, “ O ” is OFF.
24. AC IN
AC power input, connecting AC power supply
NOTE: In case of no built-in computer, interfaces 14, 15, 16, 17, 18, 19, 20, 21 and 22 are not included.
Page 14
14
6. Remote
control
Remote control button
instructions
14
Page 15
15
Detailed function description of remote control buttons
1.
: Press this button to enter standby mode when power is on; Click this button to
switch on in standby mode
2. LCD: Press this button to control your LED LCD screen.
Note: Your Remote control has been set-up automatically for the function of your
LED LCD.
3. SPACE: B uilt-in computer Space key
4. : Mute switch
5. NUMERIC KEYS: TV digital channels input keys
6. DISPLAY: Displa y channel information
7. : TV channel return key
8. INPUT : Input signal source selection key, choose different sources according to need
9. MENU : TV OSD menu button, press this button to pop up TV's OSD menu
10. HOME: Android system main screen button
11. RED: TV channel function button
12. YELLOW: TV channel f unction button
13. GREEN: TV channel function button
14. BLUE: TV channel function button
15. :Single key for blank screen
16. :Backspace key
17. Direction keys
18. ENTER: Confirmation key, press this key to confirm mode selection
19. Quickly start writing software (TBC Lite in Android), s elect writing pen quickly if
software is running
20. BACK: Return key
21. CH. +, CH.-: Channel switch key
22. PG UP: Built-in computer page (previous page)
23. VOL+,VOL-: Volume switch key
24. PG DN: Built-in computer page (next page)
25. : Built-in com puter Windows key
26. ALT+TAB: Built-in computer spacebar Alt + Tab
27. ALT+F4: Built-in computer program window close button
28. F1-F8: Built -in computer F1 – F9 function k eys
NOTE: In case of no built-in computer, all function keys related with computer are regarded as
having no operating functions.
Page 16
16
Remote control use instructions
Install Batteries
1 Open back cover of battery compartment on the back of remote control
2 Install AAA type batteries according to the corresponding electrode, make
sure battery positive and negative poles are correctly placed ("+"to"+ ", "-" to
"-"), please do not mix old and new batteries
3 After batteries are installed, close the back cover of battery compartment, and snap the clip
fastener shut against the bottom of the remote.
Range of remote control
Remote control can function normally within the range of 8 meters distance, 30
degrees left and right from the remote control receiver; in order to protect the
environment, please dispose waste batteries into a designated recycling box.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
Page 17
17
7. Connection and Setting
CAUTION
For the safety of you and the machine, please do not connect any power cord before the external
device is prepared.
External Computer and Touch Connection
USB Cable
Audio Cable VGA Cable
Computer
(1) Use VGA line to connect to VGA output port of external computer, and
meanwhile use headphone audio line to connect to external computer
audio output interface.
(2) Use USB line to connect to external computer USB port.
(3) After connection is completed, plug in power cord, and switch POWER
to On.
(4) Start external computer.
(5) Press key, and the equipment is powered on.
(6) Press the INPUT key to switch to VGA channel.
NOTE:
External computer input, equipment's best resolution is 1920x1080.
External computer can also connect to the equipment through the HDMI cable
Recommended computer configuration:
2.0GBHZ Processor, 1GB Memory More than 256 color display card
1GB Available Hard Drive Support Resolution 800*600, 1024*768
VGA-OUT/HDMI-OUT, Audio-OUT, USB Interface
Page 18
18
Audio and video equipment
AV
(1) Use AV audio and video lines to connect audio and video equipm ent with AV output
(yellow for video, red for right sound channel, and white for left sound channel)
(2) After line connection, plug in power cord, and switch power on
(3)
Press to turn equipment on
(4) Press INPUT key to switch to CVBS
port
HDMI1 / HDMI2 / HDMI3 (MHL) / HDMI4 (4K2K)* *84 LED LCD
)
(MHL)
DVD Disc Player
HDMI cable
(1).Use HDMI line to connect audio and video equipment with HDMI output
(2).After line connection, plug in power cord, and switch power On
(3) Press to turn equipment on
(4).Press INPUT key to switch to HDMI port (HDMI3 channel can realize MHL function, HDMI4
channel can realize 4K*2K)
Page 19
19
HDMI
Coaxial connection
(1).Use coaxial line to connect audio device with coaxial input
(2). After line connection, plug in power cord, and switch power On
(3).Press to turn equipment on
Video output connection
VGA output connection
Computer
Computer
(1). Use VGA line to connect display devices with VGA input, and use
headphone line to con nec t sound output
(2). After line connection, plug in power cord, and switch power On
(3). Press to turn equipment on
(4). Press INPUT key to switch to PC port
(5). Set internal computer as VGA output or multi-screen display TV
Note: VGA OUT of TV outputs VGA IN graphics and sound
Page 20
20
USB Equipment connection
Network cable connection
Microphone connection
WAN connection
NOTE: If the user wants the built-in computer and android system to connect to the
Internet at the same time, Connect item 6 and item 8 at the same time
.
Page 21
21
USB equipment connection
Serial port line
Computer
After using the seri al port line t o connec t central c ontrol eq uipm ent and the machine, certa in func tions of
the machine can be controlled via the central control equipment, such as: machine ON/OFF, and
adjustment of sound volume, etc.
PC part basic operations:
1. In case that TV is on and the computer is not started, press INPUT key to
switch from channels other than PC to PC channel, then turn on the
computer.
2. When it is on, hold down POWER key for 2 seconds, click to select
"Confirm" in the pop-up reminder menu to shut down the TV and computer
simultaneously.
3. Under PC channel when it is on, touch to select "WINDOWS" button on
the lower left of desktop or press "WINDOWS" key on remote control, and
then select "power off" item, to turn off computer without turning off TV.
Page 22
22
8. Menu Operation
One Touch menu operation
Call up method
Take middle point position on the bottom of displa y screen as star ting point, use
finger or stylus to drag towards sc reen center posit ion to call up touch menu, as
shown below.
Setting menu
Input setting
Press INPUT button on remote control or via above “A” touc h method to call up Input Setti ng menu;
Press button on remote control to select the channel you need;
Press the Enter button on remote control, or direct ly click to confirm selected input channel;
Press return key on remote control, or click blank area outside menu to exit menu.
Note: “ ” symbol represents that this channel has been connected to a signal
Page 23
23
Brightness settings
Press INPUT button on remote control or via touch A method to call up Input Setting menu;
Press button on remote control or directly click “Light” icon to enter
Brightness setting menu;
Press button on remote control or drag brightness adjustment progress bar to adjust
brightness;
Press return key on remote control, or click blank area outside menu to exit menu.
Volume adjustment
Press INPUT button on remote control or use touch method A to call up the Input Setting menu;
Press button on remote control or directly click “Volume” icon to enter
Volume Setting men u;
Press button on remote control or directly drag volume adjustment progress bar to adjust
volume;
Press < Mute > button on remote control or directly click mute icon below "More Settings" to
open or close mute state;
Press return key on remote control, or click blank area outside menu to exit menu.
Page 24
24
9. More Settings (advanced settings)
Android channel
Under Android channel, press INPUT button on remote control or via touch method A to
call up Settings menu;
Press button on remote control or directly click “More” icon to enter
advanced settings menu
Press button on remote control or click directly to select each option;
Press return key on remote control or front panel of equipment to exit menu.
Ethernet checking
View the current network connection status and the network parameters of the device.
Sound
Adjust the volume of equipment (standard model/music mode).
Display
Adjust equipment display brightness/system wallpaper and system font size.
Apps
Display each application in Android system memory.
Language&input
Adjust display language and input method settings of Android system.
Backup&reset
Under Android system, restore factory settings/repair system or restore system.
Date&time
Under Android system, set system time and format (time can be automatically
obtained or manually set).
About
device
Display Android system software version information.
Page 25
25
VGA channel
Under VGA channel, press INPUT button on remote control or via touch method A to
call up settings menu;
Press button on remote control under setting menu or directly click “More” icon or
directly press Menu on remote control under VGA channel to enter advanced settings
menu;
Press button on remote control or click directly to select and adjust
each option;
Press return key on remote control, or click blank area outside menu to exit menu.
H position
Press button on remote control or directly drag icon to adjust horizontal position of
image;
V Position
Press button on remote control or directly drag icon to adjust vertical position of
image;
Phase
Press button on remote control or directly drag icon to adjust phase position of
image;
Clock
Press button on remote control or directly drag icon to adjust clock of image;
Zoom
Press button on remote control or press Enter button or directly click icon to switch
image display ratio;
Auto Adjust
Press button on remote control or directly click icon to automatically adjust horizontal,
vertical position/ phase and clock of image;
Writing Mode
Press button to on/off the writing mode.
Page 26
26
Screen Setting
Under channels other than Android, press Menu button on remote control or via touch
method A to call up settings menu;
Press button on remote control or directly click “More” icon or directly press
Menu on remote control to enter advanced settings menu;
Press button on remote control or click directly to select and adjust each
option;
Press return key on remote control, or click blank area outside menu to exit menu.
Brightness
Press button on remote control or directly drag icon to adjust brightness of image.
Contrast
Press button on remote control or directly drag icon to adjust contrast of image.
Hue
Press button on remote control or directly drag icon to adjust tone of image.
Sharpness
Press button on remote control or directly drag icon to adjust sharpness of image.
Color Temp
Press button on remote control or directly drag icon to adjust color temperature of
image (Cool color/warm color/automatic).
NR
Press button on remote control or directly drag icon to open or turn off noise reduction
function.
Note: different options in different channels can't be adjusted, please select according to
actual situation.
Page 27
27
Annotation menu
Fig.1 Fig.2
Place two fingers on the screen (about 20~50mm spacing) and keep in position more
than two seconds under any channel to call up annotation menu (Figure 1);
In annotation, menu is shown in Figure 2.
In annotation state, input only by fingers, stylus and remote control cannot perform
annotation operation.
Annotation menu icon Pop up sub-menu
Return icon Click to return to previous operation interface
Main interface icon Click to return to main interface of Android system
Annotation brush icon Click to make annotation in the picture, click again to
change brush color
TB Comenius Lite Click to enter TB Comenius Lite software.
Screen image will be saved automatically when you
close TB Comenius Lite software.
Storage location: resource bro wse/b lac kboard writing
Resource browse icon Click to open resources browse menu
Screenshot icon Click for screenshot of current annotation image
Screenshot storage location: resource
browse/blackboard writing
Close icon Click to close annotation menu
Page 28
28
10. Android System Interface
Main Interface
Switch to Android channel to display main interface as show above;
Press key on remote control to select icon below, and press Enter key to enter
corresponding program, or directly click the associated icon to enter program;
In any program, press Home button on remote control or <Home key> on front frame of
equipment to return to the main interface.
TB Finder Enter android system resource browser, see page 28
Browser Enter internet page, see page 29
PIP Enter pictur e-in-picture im age, see page 30
Settings Enter settings menu page, see page 22
Apps Enter settings menu page, see page 31
TB Finder
Display files in Android system memory and Android system external storage.
1 2 34 5
6
Page 29
29
1. Storage device display Click with touch pen to enter corresponding storage devices
area
2. Menu/exit menu Click menu icon with touch pen to pop up menu options
{order (type/size/time)}
Click exit icon with touch pen to directly exit resource browse.
3. File type menu Documents: OFFICE type files
Blackboard writing: images stored by TBC Office Lite and
images stored by annotation screenshots
Video: audio and video type files
Image: image type files
Music: audio type files
All: files of all types
4. File operation menu Can perform basic operations towards file such as
select/delete/create/copy/cut
5. File arrangement menu Divided into two arrangement modes by icon and by list
6. Main display area Display files of corresponding type in memory card
Browser
In connected network state, enter web browsing for surfing the internet, click on "x"
symbol in the upper left corner to close it.
Page 30
30
PIP
Enter channel browse to pop up picture-in-picture interface in displayed image;
Press button on remote control or directly click picture-in-picture display interface
point, to pop up channel selection list of picture-in-picture, pr ess button on
remote control to move selection cursor into channel list, then press button
to select corresponding channels. When selection cursor reaches the channel you
need, press Enter key to play image and sound of related channel on interface, or
directly click the channel you need to enter;
Picture-in-p icture interf ace operation key is shown above.
Click picture-in-picture channel for full screen
Click to exit picture-in-picture interface
Settings
Shortcut Settings in setting menu, see page 26.
Page 31
31
Apps
Caution!
Please note that you cannot install your own applications into A p p s section!
Each application must be suitable for screen resolution and hardware specifications, as some
apps may have display or performance problems!
Browser See page 29
Settings See page 22
TB Comenius Lite See page 31
TB Comenius Lite
Menu icon Click to pop up sub-menu (change background/save)
Exit icon Click to exit TB Comenius Lite software
Picture in picture icon Click to pop up picture in picture interface, see page 30
Image import icon Click to import required image from memory card
Page 32
32
Select icon Click to select Whiteboard writing symbols,
can click or check to select
Brush icon Click to write, press long for three seconds to enter setting
screen, to set brush color and thickness
Eraser icon Click to erase writing symbols, can be erased b y box selection
Undo icon Click to cancel previous step operation
Redo icon Click to restore step operation
Page icon Display writing p age number displayed by current picture
Add page icon Click to add a new page of writing image
11. Multimedia File Playback Interface
Image play
Close current picture
Magnify current picture
Reduce current picture
Display previous picture
Play/pause
Play next picture
Counterclockwise rotate current picture displayed
Clockwise rotate current picture displayed
Play setting {Animation effect (on/off)/Slide time interval/Set as wallpaper}
Page 33
33
Audio play
Close current audio file
Play previous audio
Play/pause file
Play next audio file
Playlist
Loop play
Random play
Single play
Video play
Close current video file played
Play previous video
File Fast backward
Play/pause
Fast Forward
Play next audio file
Playlist
Page 34
34
12. VC Camera Bracket installation (VC system is not included in the accessory)
Note: You need to have TRIUMPH BOARD Videoconferencing System before you start.
Please install the bracket on LED LCD when you unpack the unit, befor e wall m ountin g.
1. Attach the bracket at the bottom part of the camera, using 1/4-20, 6mm screw you find with the
bracket in the accessory of the LED LCD unit
2. Unscrew top three screws in the top center of the back cover of the LED LCD unit
3. Attach the camera with the bracket using three screws in the top center of the back cover of the LED
LCD unit
4. Finally, plug the camera cable from your TRIUMPH BOARD Videoconferencing System.
Page 35
35
13. Troubleshooting
Board fails to work normally
Remote control failure
1. Check whether there are other objects between remote control and television remote control receiving
window, blocking signal transmission and thus leading to failure of remote control.
2. Check whether the battery terminal in the remote control is correctly connected.
3. Check whether remote control needs battery replacement.
Machine automatically
shuts down
1. Check whether the sleep function is set or not.
2. Check whether there has been a sudden power outage.
3. Check whether there is no signal automatic shutdown.
PC mode
Signal out of range
1. Check whether display is set correctly.
2. Check whether resolution is the best resolution.
3. Adjust line and field synchronization in menu.
Background has
vertical lines or streaks
1. Select automatic correction in menu.
2. Adjust clock and phase position in menu.
Image lack of color,
color is incorrect
1. Check whether VGA is not securely connected or has a quality problem.
2. Adjust color and brightness or contrast in menu.
Display format that is
not supported
1. Select automatic correction in menu.
2. Adjust clock and phase position in menu.
Touch Function
Touch function invalid
1. Check whether touch driver is installed and started.
2. Check whether the size of article touched is comparable with finger.
Touch positioning not
correct
1. Check whether driver is properly installed and make correction.
2. Check whether touch using finger or stylus is facing the screen.
Video Malfunctions
No picture and no sound
1. Check whether the machine is in active mode.
2. Check whether the signal wire is plugged in securely, using the corresponding INPUT.
3. If in internal computer mode, check whether internal computer is running.
With horizontal or
vertical stripes or
image distortion
1. Check whether signal wire is securely connected.
2. Check whether other electronic equipment or power tools are placed around the machine.
No color, color is weak
or image is weak
1. Adjust color and brightness or contrast in menu.
2. Check whether signal wire is securely connected.
Audio Malfunctions
Image but no sound
1. Check whether mute button is pressed for mute.
2. Press VOL. + / - to adjust volume.
3. Check whether audio line is connected correctly.
Only one speaker has
sound
1. Adjust sound balance in menu.
2. Check whether computer sound control panel only sets up one sound channel.
3. Check whether audio line is connected correctly.
VGA output without
sound
1. Check whether an external device is connected with headphone cable.
Page 36
36
14. Maintenance
Proper maintenance can prevent many early defects; regular, careful cleaning can keep the machine
like brand new.
Please unplug power plug before cleaning and maintenance, to prevent electric shock.
Clean screen
Mix a small amount of fabric softener or dishwashing detergent with
warm water. Dip a soft cloth into the mixture, and then wring to
a semi-dry state. Use this to wipe the screen of the machine.
Repeat several times, being careful not to squeeze and liquid into
the machine when wiping the machine.
Clean front frame
Please use dry, soft, lint-free cloth to wipe front frame.
Machine to remain unused for extended period if the machine
will not be used for an extended period of time, such as vacation, please make sure to unplug the
cord to prevent any possible dangers caused by power surges from lightning.
15. Display mode
1. VGA mode
Resolution / Display mode
Field frequency (Hz)
640x480
60
800x600
1024x768
60
1280x800
1920x1080
50
60
2. HDMI mode
Resolution / Display mode
Field frequency (Hz)
480p
60
480i
576p
50
576i
720p
50
60
1080i
50
60
1080p
50
60
Page 37
37
16. Repair Service and Contacts
Please contact your loc al supplier for the warr anty and technical ser vice or find all warrant y conditions
and service partners on our webs ite www.triumphboard.com
. For any quest ions please email us to
TRIUMPH BOARD a.s.
Neklanova 122/15
128 00 Praha 2
Czech Republic
EU
Phone: +420 224 910 221
Fax: +420 224 910 218
E-mail: [email protected]
www.triumphboard.com
Notices
Every effort has been made to ensure all information contained in this user guide is correct, but the accuracy
or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is
suitable for your intended application. You assume all risks and liability associated with such use. Any
statements related to this product which is not contained in this manual or any contrary statements contained
on your purchase order shall have no force of effect unless expressly agreed upon, in writing, by this
company.
Without this company permission, reproduction or reprinting this user guide or any part is prohibited.
The content of this user manual subject to change without prior notice.
Loading...
