Triumph 5260 20-3/8"
Automatic Programmable Cutter
with VRCut Software
Product Spec Sheet
Page 2
TRIUMPH® 5260 with
Programmable cutter with automatic clamp,
power back gauge, digital touchpad, and IR safety
light beams on front table.
Specifications
Cutting width, inches
Cutting height, inches
Narrow cut, inches
Length behind blade, inches
Electrical requirements
Motor output, horsepower
Dimensions (D x W x H), inches
Shipping weight, pounds
1
20 amp dedicated line required
2
width with side tables is 56 1/2 inches
3
shipping weight with side tables is 677 pounds
20 3/8
3
1 3/8
20 3/8
115 V, 60 Hz
2
44 x 33 7/82 x 51
657
1
3
VRCut is a groundbreaking software solution designed to automate the cutting
workow by promoting an ecient and error-free cutting process from start to
nish. VRCut intelligently bridges the gap between pre-press and the nishing
process, allowing operators of any experience level the ability to cut with
condence on select Triumph cutters.
Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam
safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented
IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device
covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without
removing covers.
Ergonomic, 37 inch working height. Electric blade and clamp drive. Electric back gauge drive with touchpad for easy programming.
Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99
programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper
sizes. Memory key for repeat cuts. Automatic SET function for reference measurement and EJECT function for pushing out paper.
Self-diagnostic system with error indication on display. Electronic hand wheel with variable speed control for manual back gauge
setting. Bright, LED optical cutting line. 3-step, LED front table illumination. Adjustable, spindle guided back gauge with narrow
separations and plastic gliders. Dual side guides on front and rear tables. High quality, German steel blade. Solid steel blade carrier
and adjustable blade guides. All-metal construction. Includes stand with storage shelf, easy-access tool holder, and paper blocking
tool. Optional side tables increase work surface.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
Page 3
HOW IT WORKS:
The operator selects the current job from a drop-down
list, or scans the document barcode that has been
placed on the PDF by VRCut Impose.

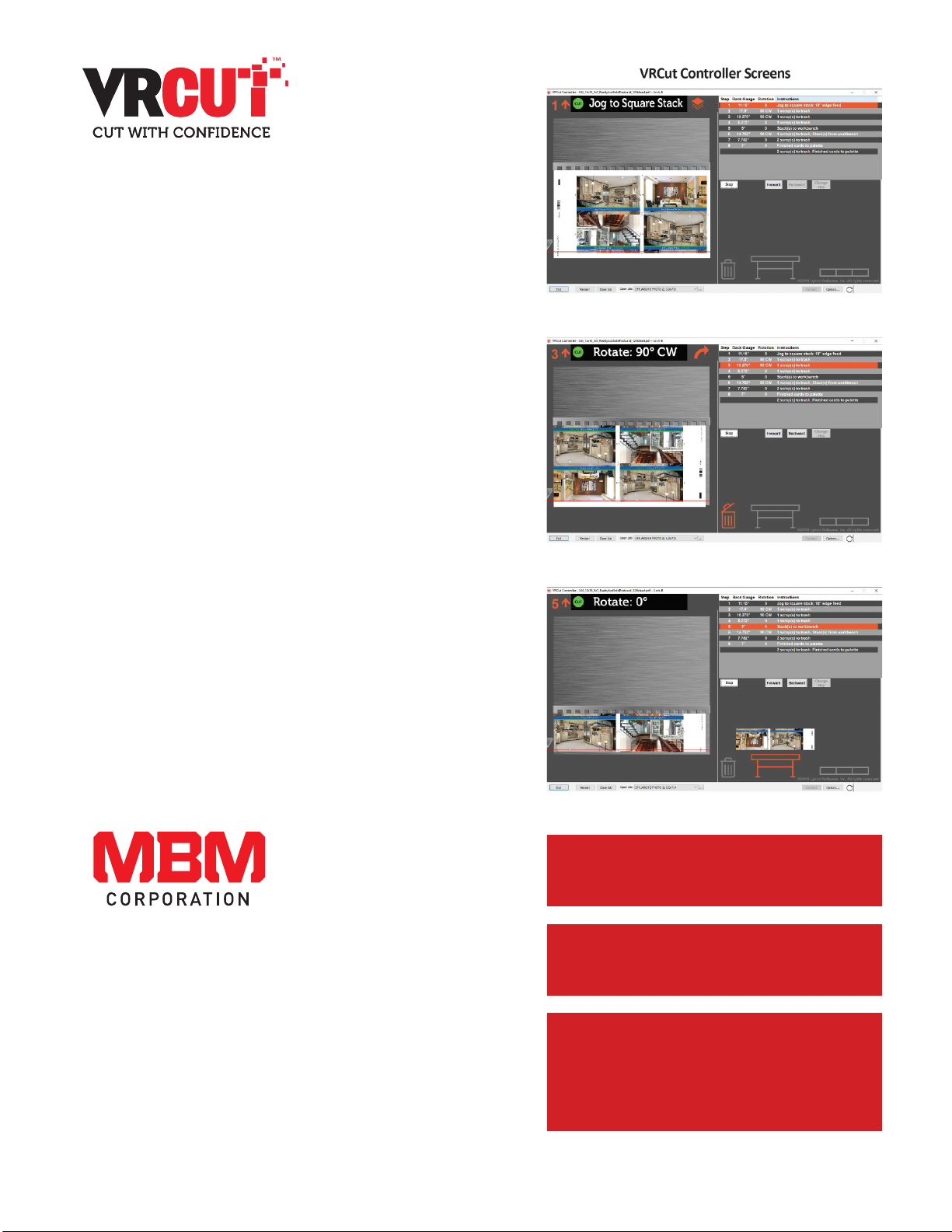

The cut sequence instructions display on the right side
of the screen with the current step highlighted. Visual
cues found on the top left side of the screen assist the
operator in error-free cutting. A graphic representation
of the job is shown in the center of the screen,
displaying the current paper orientation in relation to
the cutter’s back gauge and LED cut line.
Once the operator performs a cut, the software
automatically advances to the next step and moves
the cutter back gauge. The software then visually and/
or audibly prompts the operator to discard the scrap
paper, to rotate the job for the next cut, and/or to place
portions on the workbench or palette.
Operators have the option to retrace the cutting steps
at any time. VRCut will keep the cutter back gauge in
sync with the operator cutting instructions.
Bundled with select Triumph cutters
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
Annual Licensing
1st year bundled with select
Triumph cutters
Internet Access
Activation, licensing, and updates
require internet access.
Hardware:
Operating System: Windows 7, Windows 10
Minimum Screen Resolution: 1440x900
Cutter Connectivity: USB Port 2.0 or higher
Optional: Barcode reader
Page 4
TRIUMPH® 5260 with
Features

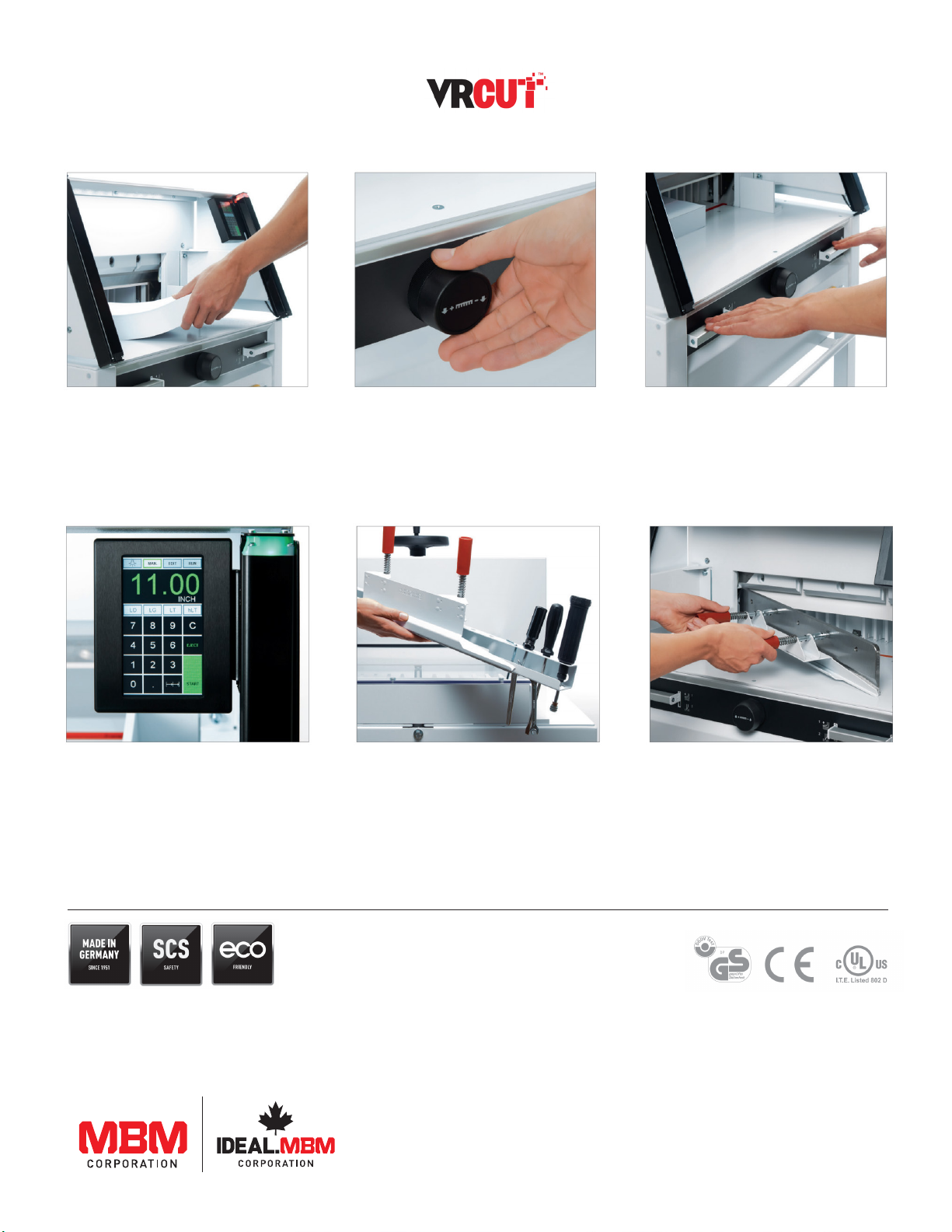

IR SAFETY CURTAIN
