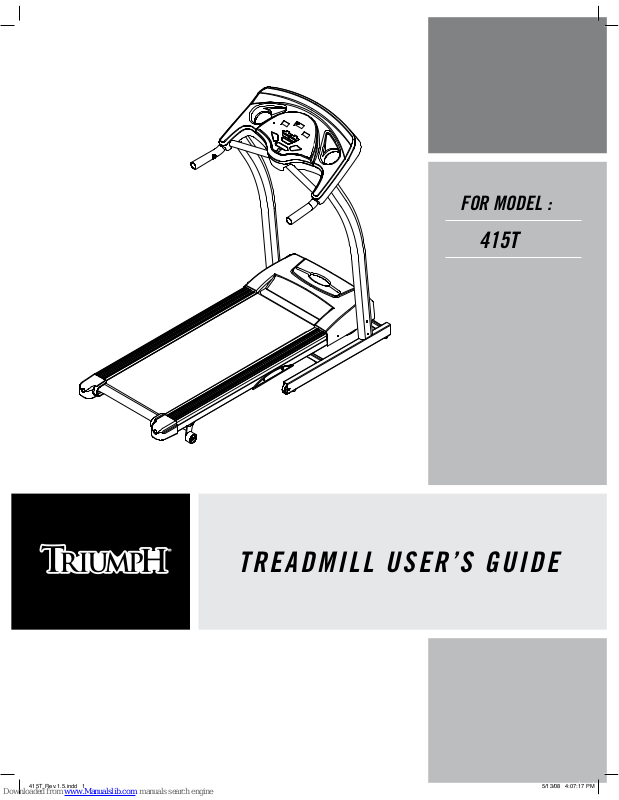

Triumph 415T User Manual
TREADMILL U S E R ’ S GUIDE
FOR MODEL :
415T
415T_Rev.1.5.indd 1 5/13/08 4:07:17 PM
3
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Congratulations on choosing your treadmill. You’ve taken an important step in developing and sustaining an exercise
program! Your treadmill is a tremendously effective tool for achieving your personal fitness goals. Regular use
of your treadmill can improve the quality of your life in so many ways.
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Triumph™ treadmill can
help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
Triumph™ delivers.
IN T RO D UC T IO N
Importan t Pr ecautio ns
Assembly
Before You Begi n
Trea dmill Ope ration
Conditio ning Guid elines
Trou bleshoo ting & Main tenance
Limited Warr anty
CONTAC T IN FORMATIO N
4
6
12
15
19
23
26
Back Panel
TABLE OF C O N T E N T S
415T_Rev.1.5.indd 2-3 5/13/08 4:07:18 PM
4
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmills should not be used by persons weighing more than 250 pounds. Failure to comply will
void the warranty.
• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: It is the responsibility of the owner to ensure that all
users of this treadmill are adequately informed of all warnings and precautions. If you have any questions
after reading this manual, contact Customer Tech Support at the number listed on the back panel of this
manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 110-volt circuit and has a grounding plug that looks like the illustration
below. This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut
off the power to that circuit and observe if any other devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
IM P OR T ANT P R EC A UT I ON S
WARNI NG
WARNI NG
WARNI NG
WARNI NG
3-P ole Groun ded Outle t
GROUNDED
TREADMILL
POWER CORD
415T_Rev.1.5.indd 4-5 5/13/08 4:07:18 PM
6
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
AS S EM B LY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER :
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
WARNI NG
TOOLS INCLUDED
5 mm Allen Wrench
6 mm T-Wrench
Screwdriver
PARTS INCLUDED
1 Safety Key
1 Console Assembly
1 Water Bottle Pocket
1 Silicon Oil Bottle
3 Hardware Bags
2 Roller End Caps
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
SAFTEY KEY
PLACEMENT
CONSOLE MAST
MOTOR COVER
RUNNING BELT
/RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
ADJUSTMENT BOLTS
CONTROL PANEL
CONSOLE
TRANSPORT
WHEEL
ON/OFF SWITCH
CIRCUIT
BREAKER
POWER CORD
WATER BOTTLE
POCKET
415T_Rev.1.5.indd 6-7 5/13/08 4:07:19 PM
8
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike
grease is recommended.
PRE-ASSEMBLY ASSEMBLY ST E P 2
ARC WASHER (C)
17 mm
Qty: 4
SPRING WASHER (B)
15.4 mm
Qty: 4
BOLT (E)
25 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
* NOTE: Be careful not to pinch any wires while assembling the masts.
BOLT (E)
SPRING WASHER (B)
ARC WASHER (C)
CONSOLE
CONSOLE MAST
ASSEMBLY ST E P 1
WASHER (C)
15.5 mm
Qty: 4
ARC WASHER (D)
17 mm
Qty: 4
SPRING WASHER (B)
15.4 mm
Qty: 8
BOLT (A)
15 mm
Qty: 8
HARDWARE BAG 1 CONTENTS :
BOLT (A)
SPRING WASHER (B)
CONSOLE MAST
CONSOLE MAST
SUPPORT TUBE
BOLT (A)
CONSOLE WIRE
SPRING WASHER (B)
ARC WASHER (D)
FLAT WASHER (C)

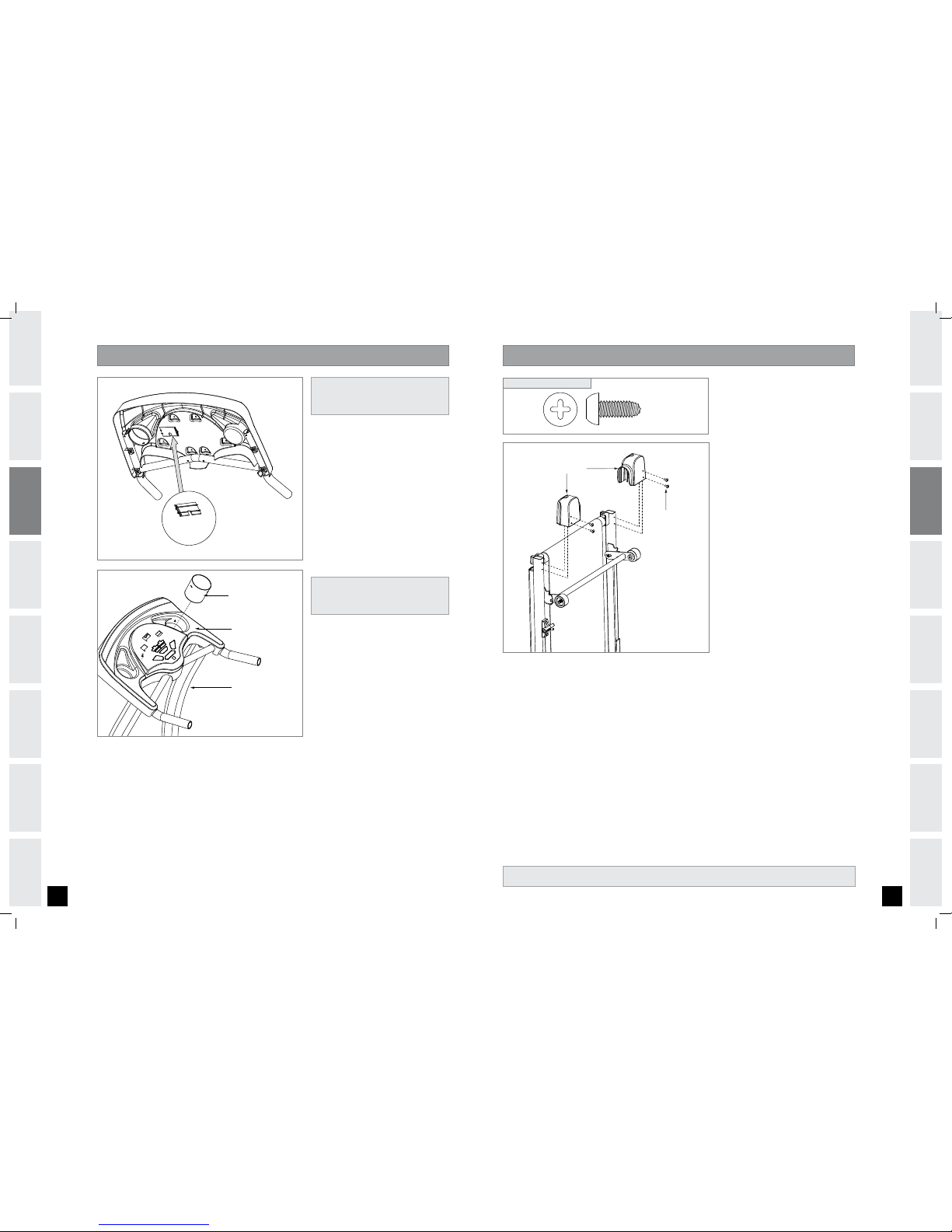

Open HARDWARE BAG 1.
Slide the right CONSOLE MAST down
on to the CONSOLE MAST SUPPORT
TUBE. On the front of the CONSOLE
MAST, bolt in place using 2 BOLTS
(A), 2 SPRING WASHERS (B), and 2
ARC WASHERS (D). On the side of the
CONSOLE MAST, bolt in place using 2
BOLTS (A), 2 SPRING WASHERS (B),
and 2 FLAT WASHERS (C).
Repeat on other side.
On right side thread CONSOLE MAST
WIRE through CONSOLE MAST.
A
B
C
D
Open HARDWARE BAG 2.
Attach the CONSOLE to the CONSOLE
MAST using 2 BOLTS (E), 2 SPRING
WASHERS (B), and 2 ARC WASHERS
(C).
Repeat on other side.
After all bolts are inserted for
ASSEMBLY STEP 1 and ASSEMBLY
STEP 2, all bolts can be completely
tightened.
A
B
C
D
* NOTE: While assembling the masts, do not completely tighten any bolts until the end of ASSEMBLY STEP 2.
Ensure that ALL bolts are in place and partially threaded in before completely tightening any ONE bolt.
415T_Rev.1.5.indd 8-9 5/13/08 4:07:21 PM
