Trium Trim 110, 110 User Manual

This guide describes the operation of the dual band GSM telephones

Trium 110.

Edition 1, 2002. © Mitsubishi Electric Telecom Europe, 2002

Whilst every effort has been made to ensure the accuracy of the instructions contained in this

guide, Mitsubishi Electric reserves the right to make improvements and changes to the product

described in this guide and/or to the guide itself, without prior notice.

english

Table of contents

2

1. Introduction ................. 3

SAR ...................................... 3

General safety ...................... 4

Vehicle safety ....................... 4

Emergency calls ................... 5

Care and maintenance ......... 5

AC/DC adaptor chargers ...... 6

Battery use ........................... 6

Your responsibility ............... 6

Security codes ...................... 6

Disposing of waste

packaging ......................... 7

The phone at a glance ......... 8

Graphic display .................... 9

Understanding the icons ...... 9

2. Getting started .......... 10

Preparing to make your

first call ........................... 10

Making your first call ......... 10

Battery ............................... 12

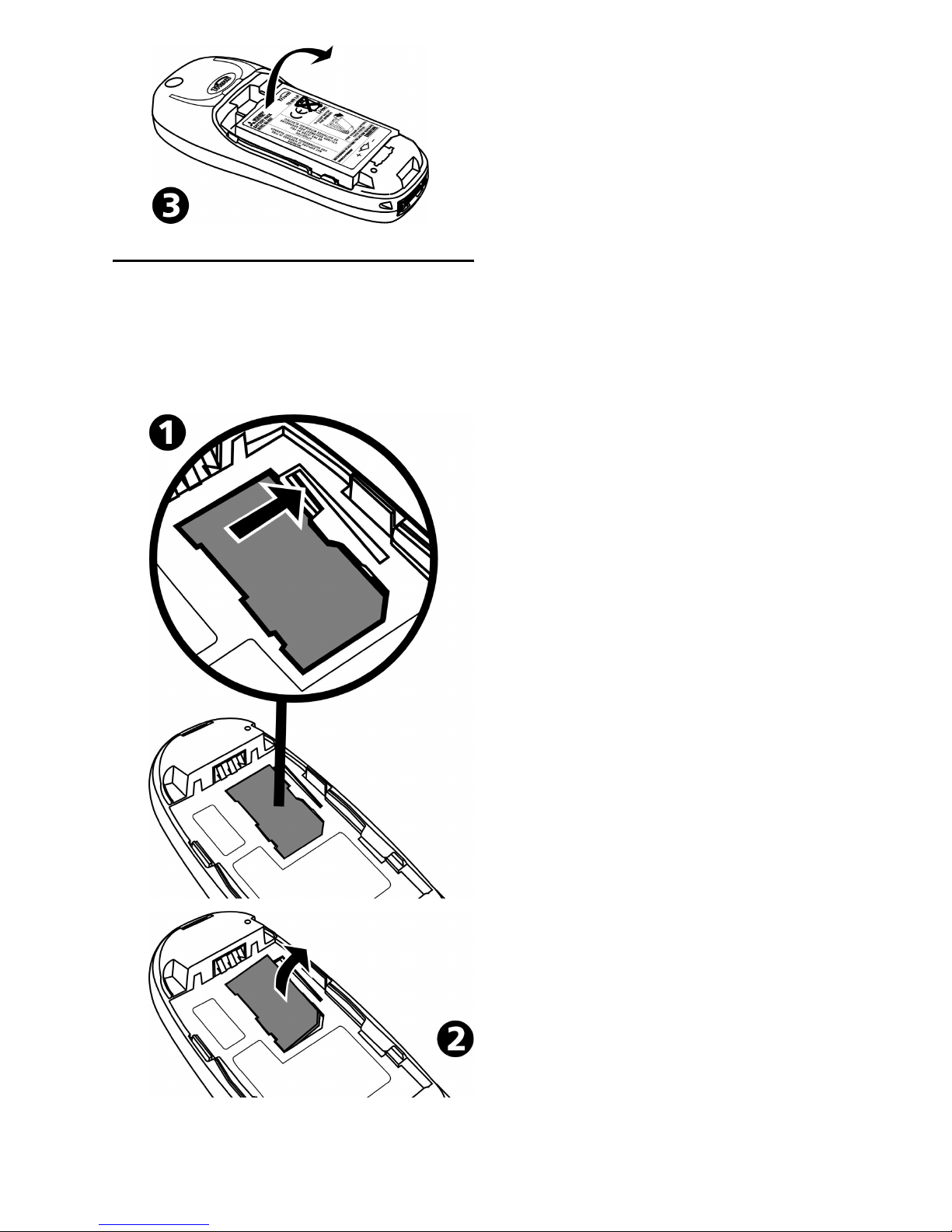

SIM card ............................ 14

3. Using your phone ...... 15

Standby display ................. 15

Important icons ................. 15

Dialling from memory ........ 16

Last dialled numbers .......... 16

Speed dialling .................... 16

Silent and vibrate alert

modes ............................. 17

Hands free features ........... 17

Muting ............................... 17

Volume adjustment ........... 17

Sending DTMF tones .......... 17

Pause feature ..................... 18

Holding and retrieving a

call .................................. 18

4. The menu .................... 20

Access to the menus .......... 20

Menu map ......................... 20

Entering text ...................... 20

Network services ................ 22

Phone book ....................... 22

Messages (SMS) ................. 26

EMS .................................. 29

Calls & Times ..................... 29

Settings - customising

your phone ..................... 32

Using the office tools ........ 44

Games ............................... 46

Currency-converter ............ 47

Internet/Wireless

Application Protocol

(WAP™) ........................... 47

GSM man machine

interface codes ................ 50

5. Accessories ................. 51

Using the headset .............. 51

6. Appendix .................... 52

Glossary ............................. 52

Trouble shooting ............... 53

Error messages .................. 54

7. Declaration of

compliance ................. 58

3

Introduction

Introduction

Thank you for purchasing the Trium 110
dual band mobile telephone. The phone
version you have bought is either the
Trium 110, the Trium 110 m or the Tri­um 110 p. Please check the version on
the box label. The mobile telephone de­scribed in this guide is approved for use
on all GSM 900/1800 networks. Some
services and messages may be different
according to your subscription type
and/or service provider.
As with all types of radio transceivers
this mobile telephone emits electro­magnetic waves and conforms to inter­national regulations when it is used
under normal conditions and in accord­ance with the safety and warning mes­sages given below and on page 4.

SAR

THIS TRIUM 110, TRIUM 110 m OR TRI­UM 110 p PHONE MEETS THE EU RE­QUIREMENTS FOR EXPOSURE TO RADIO
WAVES.
Before a mobile phone is available for
sale to the public, compliance with the
European R&TTE directive (1999/5/CE)
must be shown. This directive includes
as one essential requirement the pro­tection of the health and the safety for
the user and any other person.
Your mobile phone is a radio transmitter
and receiver. It is designed and manufac­tured not to exceed the limits for expo­sure to radiofrequency (RF) energy
recommended by The Council of the Eu­ropean Union1. These limits are part of
comprehensive guidelines and establish
permitted levels of RF energy for the
general population. The guidelines were

developed by independent scientific or­ganisations through periodic and thor­ough evaluation of scientific studies. The
limits include a substantial safety margin
designed to assure the safety of all per­sons, regardless of age and health.
The exposure standard for mobile
phones (CENELEC standard EN 50360:

2000) employs a unit of measurement
known as the Specific Absorption Rate,
or SAR. The SAR limit2 recommended by
The Council of the European Union is

2.0 W/kg. Tests for SAR have been con­ducted using standard operating posi­tions (with reference to CENELEC
standard EN 50361: 2000) with the
phone transmitting at its highest certi­fied power level in all tested frequency
bands3. Although the SAR is determined
at the highest certified power level, the
actual SAR level of the phone while op­erating can be well below the maximum
value. This is because the phone is de­signed to operate at multiple power lev­els so as to use only the power required
to reach the network. In general, the
closer you are to a base station antenna,
the lower the power output.
The highest SAR value for this Trium
110, Trium 110 m or Trium 110 p model
when tested for compliance against the
standard was 0.746 W/kg. While there
may be differences between the SAR
levels of various phones and at various
positions, they all meet the EU require­ments for RF exposure.

1. European recommendation 1999/519/CE

2. The SAR limit for mobile phones used by the

public is 2.0 watts/kilogram (W/kg) averaged
over ten grams of tissue. The limit incorpora­tes a substantial margin of safety to give
additional protection for the public and to
account for any variations in measurements

3. The maximum level of GSM emitted power is

250mW at 900 MHz and 125 mW at
1800MHz according to the GSM standard.

4

There are a number of independent
sources of information available to us­ers including:
Royal Society of Canada: www.rsc.ca
The International Commission on Non­Ionizing Radiation Protection (ICNIRP):
www.icnirp.de
The US Food and Drug Administration:
www.fda.gov/cdrh/ocd/mobil­phone.html
The World Health Organization:
www.who.int/emf
Mitsubishi Electric belongs to the MMF,
an international association of radio
equipment manufacturers.
The MMF produces information such as
this in accordance with its purpose of
developing and presenting industry po­sitions to independent research organi­sations, government and other research
bodies.

Mobile Manufacturers Forum

Diamant Building, 80 Blvd. A. Reyers

B-1030 Brussels Belgium

www.mmfai.org

General safety

It is important to follow any special reg­ulations regarding the use of radio
equipment, due to the possibility of ra­dio frequency, interference.
Please follow the safety advice given be­low.

Vehicle safety

Respect national regulations on the use
of mobile telephones in vehicles.
Road safety always comes first! Always
give your full attention to driving.

• Do not use a hand-held phone while
driving. If you do not have a ‘hands
free’ car kit, stop and park your vehi­cle safely before using your phone.

• If equipped with a correctly installed
vehicle kit allowing ‘hands free’ oper­ation and you need to make or
receive a call, ensure that it is done
sensibly and safely. Use pre-pro­grammed numbers where possible
and keep calls short and routine.

Switch off phone and remove
the battery when in an aircraft.
The use of mobile telephones in
an aircraft may endanger the
operation of the aircraft, disrupt
the cellular mobile phone net­work and is illegal. Failure to ob­serve this instruction may lead
to suspension or denial of mo­bile telephone services to the of­fender, or legal action, or both.

Switch off phone when at any
refuelling point or near inflam­mable material.

Switch off phone in hospitals
and any other place where med­ical equipment may be in use.

Respect restrictions on the use
of radio equipment in fuel de­pots, chemical plants or where
blasting operations are in
progress.

There may be a hazard associat­ed with the operation of phones
close to inadequately protected
personal medical devices such as
hearing aids and pacemakers.
Consult your doctor or the man­ufacturers of the medical device
to determine if it is adequately
protected.

Operation of phone close to oth­er electronic equipment may
also cause interference if the
equipment is inadequately pro­tected. Observe any warning
signs and manufacturers recom­mendations.

5

Introduction

• If incorrectly installed in a vehicle the
operation of mobile telephones can
interfere with the correct operation
of the vehicle electronics, such as
ABS anti-lock brakes or air bags. To
avoid such problems ensure that only
qualified personnel carry out the
installation. Verification of the pro­tection and operation of the vehicle
electronics should form part of the
installation. If in doubt consult the
manufacturer.

• Do not place the phone on the pas­senger seat or where it could break
loose during sudden breaking or a
collision. Always use the holder.

• The use of an alert device to operate
a vehicle's lights or horn on public
roads is not permitted.

Emergency calls

In Europe, provided the phone has GSM
service, emergency calls can be made
using the European standard emergen­cy number, 112, even if you do not
have a SIM in the phone. Emergency
calls can even be made if the phone is
PIN or electronically locked or call
barred. In some countries local emer­gency numbers can still be used for
emergency purposes but the phone
may have to contain a valid SIM card.
When making an emergency call re­member to give all the necessary infor­mation as accurately as possible. The
phone may be the only means of com­munication at the scene of an emergen­cy therefore do not cut off the call until
told to do so.

Care and maintenance

This mobile telephone is the product of
advanced engineering, design and
craftsmanship and should be treated
with care. The suggestions below can
help you to enjoy this product for many
years.

• Do not expose the phone to any
extreme environment where the tem­perature or humidity is high.

• Do not expose or store in cold tem­peratures. When the phone warms up
after switch on, to its normal temper­ature, moisture can form inside which
can damage the electrical parts.

• Do not attempt to disassemble the
phone. There are no user serviceable
parts inside.

• Do not expose the phone to water,
rain or spilt beverages. It is not
waterproof.

• Do not abuse this phone by drop­ping, knocking or violent shaking.
Rough handling can damage it.

• Do not clean the phone with strong
chemicals or solvents. Wipe it only
with a soft, slightly dampened cloth.

• Do not place the telephone alongside
computer discs, credit or travel cards
or other magnetic media. The infor­mation contained on discs or cards
may be affected by the phone.

• Do not connect incompatible prod­ucts. The use of third party equip­ment or accessories, not made or
authorised by Mitsubishi Electric,
invalidates the warranty of your
phone and can be a safety risk.

• Do not remove the labels. The num­bers on it are important for aftersale
service and other related purposes.

• Do contact an authorised service cen­tre in the unlikely event of a fault.

Mobile phones rely on wireless and landline net­works which cannot be guaranteed in all condi­tions. Therefore you should never rely solely on
wireless phones for essential emergency commu­nications.

6

AC/DC adaptor chargers

This apparatus is intended for use only
when supplied with power from AC/DC
adaptor chargers (FZ14130070,
FZ14130060, FZ14130050,
FZ14130080, FZ14130090 or
FZ14130100). Use of any other charger
or adaptors will invalidate any approval
given to this apparatus and may be
dangerous.

Battery use

You can charge a battery hundreds of
times but gradually it wears out. When
the operating time (stand-by and talk
time) is noticeably shorter than normal
it is time to buy a new battery.

• Do not leave batteries connected to a
charger longer than necessary. Over­charging shortens battery life.

• Disconnect battery chargers from the
power source when not in use.

• Do not expose batteries to high tem­peratures or humidity.

• Do not dispose of the batteries in
fire. They can explode.

• Avoid putting the batteries into con­tact with metal objects which can
short circuit the battery terminals
(e.g. keys, paper clips, coins, chains
etc.).

• Do not drop or subject the batteries
to strong physical shocks.

• Do not try to disassemble any of the
battery packs.

• Use only the recommended battery
chargers (see page6).

• If the battery terminals become
soiled, clean them with a soft cloth.

• It is normal for batteries to become
warm during charging.

Battery disposal

Your responsibility

This GSM mobile telephone is your re­sponsibility. Please treat it with care re­specting all local regulations. It is not a
toy; please keep it in a safe place at all
times and out of the reach of children.
Become familiar with and use the secu­rity features to block unauthorised use
if your phone and/or SIM card are lost
or stolen. Call your service provider im­mediately to prevent illegal use.
When not in use lock, turn off the
phone and remove the battery.

Security codes

The phone and SIM card are delivered
to you pre-programmed with codes
that protect the phone and SIM card
against unauthorised use. A short de­scription of each follows. See page 36
to change your PIN and phonelock
codes.

PIN and PIN2 codes (4-8 digits)

All SIM cards have a PIN (Personal
Identity Number). It protects the
card against unauthorised use.
Some SIM cards also have a PIN2
code that protects specific features
such as fixed dialling numbers.
Entering the wrong PIN code three
times in succession disables the SIM
card and the message SIM Blocked.

Enter PUK: appears. To unblock the

SIM you need the PUK (PIN Unblock

In compliance with European environ­mental protection directives, used
batteries must be returned to the
place of sale, where they are collected
free of charge.
Don't throw away your batteries in
your household waste.

7

Introduction

Key) code, obtainable only from
your service provider.

PUK and PUK2 codes (8 digits)

Obtain the PUK code from your
service provider. Use it to unblock a
disabled SIM card (see page 37).
The PUK2 code is required to un­block the PIN2 code (see above).

Call barring password (4 digits)

This password is used to bar various
types of calls, made or received,
from the phone (see page 42).

Phonelock code (4 digits)

This code is set to all zeros on deliv­ery. You can change it. Once
changed it cannot be identified by
the manufacturer over the phone.
Please refer to page 36 for more de-

tails.
You must remember and make yourself
familiar with the purpose and operation
of these codes.

Disposing of waste packaging

The packaging used for this phone is
made of recyclable materials and as
such should be disposed of in accord­ance with your national legislation on
the protection of the environment.
Please take care to separate the card­board and plastic elements and to dis­pose of them in the correct manner.

8

The phone at a glance

Graphic display

Telephone

numbers, menus,

messages, etc. are

displayed here.

On/Off, END key

( ). Hold down to

turn the phone on/off.

Press to end a call or

return to stand-by.

Alphanumeric keys,

- , , .

To enter numbers,

characters and

punctuation marks.

Press and hold to

call the voice mail

number. Press and

hold to keys to

dial preferred

numbers. Press and

hold to enter

international code +

prefix, 'P' symbol or '_'

underscore wildcard. .

Press and hold to

activate the keypad

lock feature.

Battery cover

(at the back of

the phone)

See page 10

for further

details.

Microphone

Programmable

softkeys ( )

The function of
the softkey appears
in the graphic
display above the key.

Cursor key

Navigates
around the
memories and
menus.

on the cursor
key: press to scroll
up menus (while in
the menu). In stand-by,
press to access the
volume control.

on the cursor key.
Press to scroll down
menus (while in the
menu). In stand-by,
press to access the
alert mode (ring, silent,
vibrate, etc.)

on the cursor key.
Press to access the
main menu or select a
menu option.

on the cursor key.
Press to access
the phone book or
return to the
previous display.

Call/SEND key ( ).
Press to make/answer a
call. In stand-by, press
to display the last
dialled numbers list.

Earpiece

Headset, accessories

and AC/DC charger

socket

9

Introduction

Graphic display

The display shows
icons, alphabet
characters, num­bers, menu list
and instructions
to the user. Use
the cursor keys to navigate to the
phone book, Internet/WAP™ and the
menu. The rest of this guide gives you
the procedures to access these func­tions. Icons in the display are described
on page9.

Understanding the icons

Icons in the display have the following
meaning:

SIM memory in use
Phone memory in use.

When you enter a name and ad­dress you can choose the icon you
want to go with them.

Roaming. Displayed when the
phone is logged on to a network
different from its home network.

Short message service (SMS). Dis­played when you have one or
more messages to read. It flashes

when the SMS message bank is
full and cannot store new messag­es. Delete one or more old mes­sages to make space. The
availability of this feature is net­work dependent.
This icon will also be displayed if
you receive an EMS on Trium 110
m.

Unanswered call. Displayed when
an incoming call is unanswered.

Arrow keys. Displayed during
menu operation to indicate that
more items in the menu can be
displayed if or are pressed.

Voice mail. Displayed when you
have a voice mail message to
read.
The availability of this feature is
network dependent.

Battery level indicator. Perma­nently displayed to indicate the
current charge level of the bat­tery. Three levels are shown.
low, medium, full. It flash­es when the battery is almost
empty.

Line 2. Indicates the second line is
in use.
The availability of this feature is
network dependent.

Signal strength level. It indicates
the strength of the received sig­nal. The more bars the stronger
the signal. If no network is availa­ble the display remains blank.

Keypad lock. Indicates whether
keypad lock is on or off.

Alarm clock icon.
Vibrator alert icon.
Ring tone off. All tones are off.
Mute icon.
Predictive text mode icon.
WAP™ 'live' connection icon.
WAP™ 'live' connection in security

mode icon.
Auto-switch function activated

icon.

10

Getting started

In order to become familiar with the
phone quickly, follow these simple
steps.

Preparing to make your first
call

Inserting the SIM card

Unpack the phone and insert the
SIM card into the holder, as shown
below, with the gold contacts fac­ing down.

Fitting the battery

Connect the battery as shown be­low.

Placing the battery cover

Place the battery cover as shown
below.

Making your first call

Turning on the phone

If there is not enough charge in the battery to
power the phone, follow the instructions for battery
charging on page 13.

Press and hold down for
two seconds. If this is the first
time you use the phone or
you remove and

1

Getting started

11

Stand-by display

From the stand-by display:

See page 37 to set the time and
date.

Holding your phone

Making a call

The phone can make and receive
calls only when it is switched on,
unlocked (see page15), has a valid
SIM card inserted and has GSM net­work service coverage. If the phone
cannot find a valid network the dis­play remains blank.

replace the battery, the
phone prompts you for the
date and time.
If you insert the SIM card
incorrectly, the error message

Check SIM! appears. Remove

the cover and battery and
make sure the SIM is inserted
with the gold contacts facing
down.

If the mobile is locked, Code:
appears.
Enter the 4digit phonelock
code and press OK . The
default is 4zeros, e.g. 0000.

If your SIM is PIN protected,

Enter PIN: appears.

Enter the PIN code and press

OK . An animated screen

icon appears, then the stand­by display.

See page 35 to change your PIN and lock codes!

Press... to...

enter phone menu.
directly access to numbers
stored in phone books.
access volume control.
access alert tones.
access the last dialled
numbers list.
stop the dialling or end a
call.

-

enter numbers in the dis­play (see also "Speed dial­ling", page 16).

2

3

Please be warned that you should not, when using
the hands free mode, put the phone to your ear.

Enter the desired telephone
number using the numeric keys
( - ). You can enter a maxi­mum of 46 digits. Correct any
mistakes by pressing Clear .
Hold down this key or press
to clear the whole display.

1

How to hold
the phone

Avoid
covering
the upper
back half of
the phone so as
to allow maxi­mum emission
and reception
quality.

12

The phone rings and the call con­nects like a normal telephone. A call
timer appears.

You can also get the following mes­sages if the call does not connect or
you use the second line:

If the dialled number matches one
stored in the phone book then the
name of the called person appears
in the display.

Receiving a call

The phone rings (or vibrates, see
page 32 to set) when it receives a
call. See page 33 to set the incom­ing ring tone. See page 34 to set the
backlight.

Answering the call

No ring

Pressing No ring stops the
sound of the ring tone, which al­lows you to, for example, go out
of a room before pressing.

Service number presentation

If you have the service number
presentation your phone displays
the following information.

If you have a second line, ap­pears when the call has been re­ceived on your line 2 number (see
page 18 for details).

Rejecting the call

To reject, or return a busy signal
to the caller:

Ending a call

The phone stores the caller's
number, if available, in the received
calls log (see page 29).

Turning off the phone

The mobile turns off.

Battery

Low battery warning

When the battery power falls to its
lowest level the message Low Bat-

tery! appears and a low battery

To dial (send) the number press

.

You can prefix international calls with 00 or +. To
enter the + symbol before a number press and
hold down .

Your phone

displays...

if the...

Busy

called party is en­gaged.

Not allowed

(fixed dial-

ling)

number dialled is
not authorised by
the FDN list (see
page 25).
call is made using
the second line
(see page 32).

Press .

If the ring tone volume is set to zero (off) or if the
phone has been set to 'Vibrate' mode, no sound is
heard.

2

Your phone dis-

plays...

if the

number

is...

Unknown number,

then Call1 when
connected

unavaila­ble.

the caller’s number

available
but not in
phone
books.

Withheld number,

then Call1 when
connected

withheld.

Press .

Press . The call timer stops and

disappears.

Waiting a few seconds or pressing the Exit softkey
returns the phone to the stand-by display.

Press and hold down .

Getting started

13

warning tone sounds.
If you are on a call, terminate the
call and turn off the phone by
pressing and holding down .
Recharge the battery as shown be­low or swap it for a charged one.

Do not turn off the phone by
removing the battery, data can

be lost.

Charging the battery

To ensure a long life for your bat­tery, re-charge it only when the

Low Battery! warning appears and

the 'low battery' tone is heard.
Connect the charger to the phone
as shown.

Plug the charger into the wall sock­et and turn on the mains. The bat­tery starts to charge. The phone can
be used while charging but this in­creases the charging time.

Charging indicators when the mo­bile is off:
During charging Charging... ap­pears. When charging is finished,
Battery full appears.
It is normal for the battery to get
warm during charging.

Charging indicators when the mo­bile is on:
During charging the icon flashes
1-2-3 bars continuously. When
charging completes the battery in­dicator shows three solid bars.

Disconnecting the charger

At the end of charging, disconnect
the charger from the phone (see be­low), switch off and remove the
plug from the mains.

Typical charging times using the
AC/DC adaptors (FZ14130070,
FZ14130060, FZ14130050,
FZ14130080, FZ14130090 or
FZ14130100)

Removing the battery

Remove the battery as shown blow.

While inserting the plug in the phone AC/DC
connector, make sure the Trium logo ()
appears on top.

Battery type

Typical charg-

ing time

Standard
battery
(FZ14240010)

2 hours 10
minutes

14

SIM card

Inserting the SIM card

Please refer to page 10.

Removing the SIM card

Remove the SIM card as shown be­low.

15

Using your phone

Using your phone

For turning on/off the mobile and mak­ing/receiving calls, see pages 10 to 12.
Please note that all setting instructions
described in this user guide are to be
followed from the idle screen.

Standby display

Keypad lock

To prevent accidental operation of
the phone, turn on keypad lock.
You can still answer calls by press­ing . When you end a call, the
keypad lock reactivates automati­cally.
To turn keypad lock on:

To turn keypad lock off:

You can also use the menu:

Internet/Wireless Application Pro­tocol (WAP™)

Press Internet in the stand-by
display to access the internet main
menu and access your home page
or any WAP™ portal. You can con­figure up to 5WAP™ profiles and
10bookmarks. See page 47 for
more information.

Messages (SMS)

Press SMS in the stand-by dis­play to access the short messages
menu. You can also access it from
the main menu. See page 26 for
more details.

Backlight operation

The backlight is normally off. When
a key is pressed the display and key­pad backlight turns on for 10 sec­onds. If an incoming call is received
the backlight turns on and remains
on for 10 seconds after the call is
answered.

Important icons

• is displayed when you do not
answer one or more calls. Press

Read to view the callers' numbers

if available and the date and time the
call was received. Press to call the
number. The phone stores unan­swered call numbers in the unan­swered calls log (see page 29 for
details).

• appears when you receive one or
several voice messages. Press Read

to view the message or press
to speed dial your voice mail mes­sage centre (see pages 9 and 35 for
more details).

• appears when you receive one or
several SMS messages. Press Read
to view the SMS inbox message.
If flashes, your inbox is full. Delete
one or more old messages to make
space for one or more new messages
(see page 26 for more details).

The display shows the number and type
of messages:

Press and hold down .
appears.

Press Unlock plus or press
and hold .

Press . Select Settings.
Select Phone settings. Select

Keypad lock to turn keypad

lock on.
Press Unlock plus to

turn keypad lock off or press
and hold .

1

2

3

Pre-programmed softkeys can be accessed from
the stand-by display. These can be for instance
Internet/Wap or SMS. The softkeys may be pro­grammable according to your servce provider.

16

Press Read to select the type of mes­sage you want to read. Press Select
or to view the message.

Dialling from memory

You can dial any number stored in the
SIM, or the phone memory. To do this:

from the phone book

from the calls log memory list

The phone stores the last 10 num-

bers dialled, the last 10 unanswered
call numbers (if available) and the
last 10 received answered numbers.

Last dialled numbers

Quick access to the last 10 dialled num­bers can also be obtained by
pressing.

Speed dialling

You can assign any key to any tele­phone number stored in the SIM and
phone memory. To dial such a number:

By default, is always allocated to
the voice mail number (see
page38). See page 35 to allocate
numbers to the speed dialling keys.

International Country Codes

Your phone allows quick access to
pre-programmed International
Country Codes

When one indicator is displayed the date is tempo­rarily cleared. When two or three indicators are
displayed both the time and date are temporarily
cleared.

Press to enter the phone
book list.

Use or to scroll to the
required name or type the
first letter of the required
name and use or if nec­essary.

Press .

In case of a SIM memory

contact or of a phone
memory contact with one
number assigned, the

phone dials the number.In
case of a phone memory

contact with many num­bers assigned, use or

to scroll to the number
required and press . The
phone dials the number.

See page 22.

1

2

3

Press . Select Calls & Times.
Select Calls log.
Select Last dial, Unan-

swered or Received.

Use or to scroll to the
number required.

Press to dial the number.

See page 29.

In the stand-by mode press­ing displays a list of the
last dialled numbers.

Use or to scroll to the
number required.

Press to dial the number.

The phone stores the last dialled numbers in the
phone memory, not in the SIM.

Press and hold down the key ( -

). The number appears and

attempts to connect.

Press and hold the '+' key
until the '+' symbol is dis­played.

Select Codes to display the
list of countries.

123

451

2

3

1

2

17

Using your phone

Silent and vibrate alert modes

To avoid disturbing others you can si­lence the incoming ring and alert tones.

Turning on

is displayed when the silent
alert mode feature is activated.
is displayed when the Vibrate or

Vibrate then Ring features are

activated.

Turning off

Hands free features

When you want to share your call with
an audience, or you are in your car, use
the “hands free” feature.

Turning the hands free feature on

When making a call:

When receiving a call:

Turning the hands free feature off

Muting

You can mute the microphone during a
call, e.g. when you want to talk to
someone nearby without the person on
the phone hearing.

Turning the microphone off

Turning the microphone on

Volume adjustment

To adjust the volume:

Sending DTMF tones

Some remote access services require
DTMF tones. These tones are used by
regular telephones when you dial and
when you answer questions from an
automated voice service. If you are in a
conversation and manually entering the
numbers, no extra configuration is nec­essary. If, however, you want to send a
number stored in memory, you must set
DTMF to automatic.

Manually

To send individual DTMF tones di­rectly from the keypad during a
conversation:

The tones are heard in the ear-

Use and and select one
of the countries. The '+' sym­bol and the country code (e.g

+31 for the Netherlands) are

displayed. It is then possible
to enter the phone number
and store it into one of the
phonebooks (Phone names /
SIM names) or delete it.

Press .
Select Silent, Vibrate or

Vibrate then Ring.

Press .
Select Ring or Vibrate &

Ring.

If the ring tone volume is set to 0 a warning mes­sage appears in the display.

Press Speak.on to turn the
hands free feature on during the
calling process.

Press Speak.on to accept the
incoming call.

Press Speak.off .

31212

Press Options .
Select Mute and select Yes. A

warning message appears in
the display. also appears.

Press Options .
Select Unmute. A warning

message appears in the dis­play. disappears.

A new call restores the microphone to on.

Use or to increase or
decrease the volume and
press OK .

Press Exit or wait 2 sec­onds to return to the previous
display.

See also page 33.

Press the required keys.

1

21212

18

piece and sent immediately.

Automatically

To send a consecutive string of
DTMF tones during a conversation:

Pause feature

You can enter and store telephone
numbers and a sequence of DTMF tones
together as long as you separate them
by a 'pause'. To enter a pause between
numbers, press and hold down . The
letter p appears. The phone can store
several pauses together for a maximum
of 20-46 characters (dependent upon
the SIM and the phone memory capaci­ty).

Holding and retrieving a call

To put a call on hold during a con­versation:

To retrieve a call:

To make a second call when one call
is on hold:

Alternatively, use Options to
display a menu of the actions de­scribed above. Scroll to the re­quired option and press Select
or (see also Multi-party or con­ference calls (network depend­ent), page19).Call waiting,
swapping and multi-party confer­ence calls

Call waiting (network dependent)

Use call waiting, a network feature,
to receive a second incoming call
when already engaged in a call. This
puts an existing call 'on hold' while
you answer or make a second call.
To turn the call waiting service on
or off:

Press Options .
Select Auto DTMF.
Enter the DTMF numbers into

the display either directly
using the keypad or from a
number stored in the phone
book (under Names ).

Press OK . The phone sends
the tones and then shows the
normal conversation display.

DTMF tones cannot be sent when a call is on hold.

Press .

Press .

Enter a number in the display.
Press to dial the number.

After the second call has been
established press to swap
between the two calls.

123

4

1

2

To end either the current call
or the held call select End

active or End held in the
Options menu. The remain-

ing call is automatically
retrieved

Press to end the remaining
call.

Both calls can be ended at the same time by press­ing .

Press . Select Settings.
Select GSM Services.

Select Call waiting.
Select Activate or Cancel.

The network confirms your
request. The confirmation can
take several seconds.

Press and hold Exit or
to return to the standby dis­play.

34123

4

19

Using your phone

Action when receiving a second call

You hear a 'double beep' when your
phone receives a second call. An an­imated phone icon and the tele­phone number (if available) also
appear.
To accept the second call

To reject the second call:

To swap between the two connect­ed calls:

Multi-party or conference calls (net­work dependent)

Use this feature to make or receive
between 2 to 5calls at the same
time with all parties being able to
hear and talk with each other.

* These items in the Options menu
appear if more than 2 calls are
joined in the conference call.
Throughout the conference call the
display shows the actions you se­lected from the options menu.

Press . This answers the second
call and puts the first call on hold.

Press Reject . This returns a
busy signal to the second caller.

Press .

Make and establish a call in
the normal way and press .

Enter another number into
the display and press . The
first call is put on hold when
the second call becomes
active.

Press Options for the fol­lowing menu:

123

Option Description

Auto

DTMF

to enter a DTMF string
to the active call only

Swap

Swaps between active
and call on hold

Join

Joins active and call on
hold to make a multi­party or conference call

Mute/

Unmute

Turns on or off the mi­crophone

End held Ends the call on hold

End ac-

tive

Ends the active call and
connects with the call
on hold

End all Ends all the calls

* Private

with

Allows you to select
and have a private con­versation with one of
the conference callers
while putting all the
other calls on hold

Hold/Re-

trieve

Holds or retrieves the
conference call

* End one

Allows you to select
and end one of the
conference call partici­pants

For alternate line service (ALS), you cannot make
subscribers conference calls between Line 1 and
Line 2.

20

The menu

Use the round cursor key to access the
menu system. Your menu options can
vary. Some may not appear. This de­pends on your network operator and
your subscription, plus on the phone
version you have (check on box label).

Access to the menus

Press to view all stored telephone
numbers.
Press to enter the main menu.
Hold down Exit or press to exit
the menus (if no call is in progress).

Menu map

Items in italics depend on your sub­scription and your network operator.
* Available on Trium 110 m only
** Available on Trium 110 p only

Entering text

To add names to the phone books (see
page 22) and write text messages (see
page26) you must enter text. The
phone displays in lower case mode
and in upper case mode when you
can enter text. Use the keypad to enter/
edit text.
You can enter text/numbers using T9

Currency

Games

Office Tools

Settings

Internet

Calls & Times

Network

Server

Phone Book

Messages

Menu Sub-menu

Internet

Home page
Inbox
Bookmarks
Other site
Profile list
Settings
Push parameters

Network

Server

Information
Services

Phone Book

Recall
Store
Remaining
Own numbers

Fixed dialling

Phone Book tones

Messages

SMS*

Inbox
Outbox
Write new
Settings
Draft texts
Alert
Storage

EMS*

Inbox*
My Services*
Settings*
Service Registration*

Calls & Times

Calls log
Call timers

Settings

Phone settings

Voice mail

GSM Services

Broadcast

Office Tools

Scratchpad
Alarm clock
Auto-switch
Calculator

Games

Reshape
Push
Options
Exen Games**

Currency

Settings

The menu

21

text entry or Multitap text entry.Press
to swap between T9 text entry and the
Multitap method.

To enter text with T9:

Tips and operation

Example
To enter Card in the display:

• Press and select Messages.

• Select Write new.

• Press : appears.

• Press . A appears.

• Press . Ca appears.

• Press . Car appears.

• Press . Case appears.
If the displayed word is not the
one you want, press as many
times as necessary to view Card.

• Press to exit from this example
and return to the stand-by display.

Multitap text entry

Press on to swap between T9 text
entry and the Multitap method.
To enter text with multitap:

The following table displays the
available English characters. Other
languages display different charac­ter sets.

Press the key with the re­quired letter only once.
Do not be put off if the char-

acter you want is not immedi­ately displayed.

The ‘active’ word changes as
you type, so type to the end
of the word.

If your word is not displayed,
press for other matching
words.

If your word is not recog­nised, press to swap to the
Multitap method to complete
the word.

Use or to locate the cur­sor in the text to insert char­acters or make corrections.

1. T9 may not be available in all languages.

2. During number and name entry a short press on
Clear deletes the last character. A long press clears
the whole display.

Key Action

Shift - upper/lower

case on next letter.

Caps lock/unlock if

you press and hold it.

Clear Clear or backspace

Press and

hold

Numbers

Space

Special character ta-

ble appears if you

press and hold it.

Another matching

word

Smart punctuation

Swap between T9 and

Multitap method

12345

Press the key with the
required letter. If it is not the
first letter, press key repeat­edly until the letter appears.
See the table that follows for
a key to character corre­spondence.

Enter the next character. If
two characters are on the
same key, wait for the display
at the top of the screen to
clear or press before press­ing the same key again.

To
access
special
charac­ters (23
availa-

ble),
hold down . A table
appears. Press the key that
corresponds to the character.

Press Clear briefly to cor­rect back one letter. Hold
down to clear all text.

Press or to move the cur­sor in the text to insert char­acters or make corrections.

12345

22

Example
To enter Card in the display:

• Press and select Messages.

• Select Write new.

• Press and hold until
appears. Press briefly three
times, C appears.

• Wait for the available characters
to go from the display, press and

hold until appears. Press

briefly once, a appears.

• Press briefly three times, r
appears.

• Press briefly once, d appears.
The word Card appears.

• Press to exit from this example

and return to the stand-by dis­play.

Network services

Your network operator provides value
added services and contact phone num­bers. Depending on your operator’s im­plementation Applications, Services,
and/or Information appears in the dis­play. Press and select Network Serv-
ices to access these menus.

Phone book

The phone book stores data, usually
names and telephone numbers, in the
phone or SIM memory.

• The phone can store up to 100
‘phone book cards’ which can con­tain: family name, first name, icon,
home phone number, work phone
number, cellular phone number and
a note.

• SIMs can store up to 255 ‘SIM phone
book cards’. Actual numbers and
capacity depends on your SIM. SIM
phone book cards only contain the
name and number.

Both the SIM and the phone memories
are searched when you use the phone
book.

Storing names and telephone num­bers

You can enter the names and num­bers in the phone book manually or
copy them from SMS messages,
scratchpad or last dialled number
lists, etc. You can store the charac­ters *, +, P (pause), # and _ togeth­er with numbers. See page 20 to
learn how to enter text.

Store numbers in international
format using the '+' prefix (or

00) before the country code
followed by the telephone

Key Character

Lower case Upper case

1 . , - ' @ : ?

a b c 2 A B C 2
d e f 3 D E F 3
g h i 4 G H I 4

j k l 5 J K L 5
m n o 6 M N O 6
p q r s 7 P Q R S 7
t u v 8 T U V 8
w x y z 9 W X Y Z 9
0 0

Short press swaps next letter

between upper or lower case.

Long press swaps all next let-

ters between upper or lower

case.

Short press

enters space.

Long press gives access to

special characters.

( ) % ! ; " _ @ § + # *

/ & = < > ¥ $ £ ¡ ¿ €

Short press moves the cursor

through the text one place.

Swap between Multitap and

T9.

The menu

23

number. This ensures that the
number can also be dialled
from abroad.

There are several ways to store
numbers into the phone or SIM
memory:

Phone memory

• Directly from the stand-by dis­play:

• Using the menu:

• From last dialled, received and
unanswered lists:

SIM phone book memory

You can enter the SIM memory
from the stand-by display, menu
or other locations.

• Directly from the stand-by display:

Enter the number. Press

Store .

Select Phone names.
A list appears.

Select the item corresponding
to the number you entered:
home, work or cellular.

The following fields appear:

Field Purpose

Family name

Family or last

name

First name First name

Enter the requested data.
Confirm each entry by press­ing OK

.

Select
an icon.
The
icons
corre­spond
to -

keys on the keypad. Press
the key corresponding to the
required icon.
In this example pressing
selects .

The following fields appear:

Field Purpose

Phone number

(Home)

Home phone

number

Phone number

(Work)

Work phone

number

Phone number

(Cellular)

Cellular phone

number

Note

Note or com-

ments for this

card

1

23456

7

Enter the requested data.
Press OK

.
Confirmation and number of
free locations appear.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Phone Book.
Select Store. Select Phone

names.

Follow the steps in the previ­ous procedure (“Directly from
the stand-by display”) start-

ing with step .

Display a number from one of
the above, then press

Options .

Select Store. Select Phone

names.

Follow the steps in the
“Directly from the stand-by
display” procedure starting

with step .

During number and name entry a short press on
Clear clears the last character. A long press clears
the whole display.

Enter the number. Press
Store .
Select SIM names. Press
OK .
Modify or confirm the number
and press OK .
Enter the name. Press OK .
Confirmation and number of
free locations appear.

Press and hold Exit or to
return to the stand-by display.

8

912

341

2

3312345

24

• Using the menu:

• From other stored locations
Numbers stored in the last dialled,
received, unanswered, scratchpad
and SMS message locations can all
be stored in the phone book:

A warning message appears when
selecting the phone book when the
SIM or phone memory is full.

Free space in the phone book

To see the remaining free space in
the SIM or phone:

Viewing and calling numbers in the
phone book

You can edit, delete, copy, move or
access phone book entries stored in

the phone or SIM. There are two
ways to view and call numbers in
the phone book:

• Directly from the stand-by display:

• Using the menu:

Pressing or scrolls through
the phone book. To go directly to
another entry press the corre­sponding alphabet key. For exam­ple to go directly to entries
starting with 'N' press twice.
If you did not enter any initials,
the phone book displays the first
entry.

Pressing Options displays the
following menu choices:

Press . Select Phone Book.
Select Store. Select SIM

names.

Enter the number and press

OK . Enter the name and

press OK . Confirmation
and number of remaining
locations appears.

Press and hold Exit or
to return to the stand-by dis­play.

Display a number from one of
the above then press

Options .

Follow the steps from the
previous procedure “Using
the menu” starting with step

.

During number and name entry a short press on
Clear clears the last character. A long press clears
the whole display.

Press . Select Phone Book.
Select Remaining and use

or to display the remaining
memory spaces in the phone
or SIM.

Press and hold Exit or
to return to the stand-by dis­play.

If available, the free memories in the FDN list also
appears.

12341

2

212

3

Press to display the phone book
list.

Press and select Phone

Book.

Select Recall.
Either press OK or enter up

to the first 3 initials of the
name required and then press

OK .

Press to dial the number. If
there is a choice of numbers
for the phone book entry,
these appear. Select the one
that corresponds and press

.

Item Function

Edit

Edits the name and

number entry

Delete

Deletes the entry

Send SMS

Sends SMS message

Copy

Copies the entry to the

SIM or the phone or

vice versa. You can

edit before copying

Move

Moves the entry to an-

other position. You

can edit before mov-

ing

Call

Calls the number dis-

played

1

2

3

4

The menu

25

Own number

You can store your main 'Line 1'
voice mobile number, your voice
mobile number for Line 2 (Alternate
Line Service) and your data and fax
numbers into the SIM card. You can
enter them manually and name
them (e.g: Line 1 'Office'.
To view, name and edit your own
display number(s):

Fixed dialling numbers (FDN)

Fixed dialling only allows you to call
a group of numbers. All other num­bers are rejected. FDN also prevents
call diverting and sending SMS mes­sages to numbers not in the FDN
list. You can use wildcards to define
the groups. As this is a SIM depend­ent feature, some SIM cards might
not support it. SIM capacity deter­mines the maximum number of
FDN numbers you can store. To ac­tivate/deactivate FDN you must
have the PIN2 code.
To turn on or off FDN operation:

To view the numbers in the list:

To enter, edit or delete numbers in
the FDN list:

Phone book tones

30 pre-set ring tones are available,
10 with polyphonic (tri-tones) and
20 with mono-tones. Storage of up
to 40 ring tones is possible. That is,
you can add one self-composed
ring tone and 9 other ring tones
you download in addition to the ex­isting 30 ring tones. If you want,
you can replace any of these ring
tones except the Trium ring tone.
To have different tones for incom­ing calls where the identities are
known in the SIM or phone memo­ry:

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Phone Book.
Select Own numbers. The

mobile number for Line 1
appears.

Use or to view line 2,
data and fax numbers.

To add or edit a name or
number press Edit .

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Phone Book.
Select Fixed Dialling. Select

Status.

Select On or Off. Enter the
PIN2 number.

512345123

Press OK to confirm the
setting.

Press . Select Phone Book.
Select Fixed Dialling.
Select View and use or

to scroll through the entries.
Press Options to edit,
delete and copy numbers to
the phone or SIM.

Press . Select Phone Book.
Select Fixed Dialling.
Select Add new. Enter the

PIN2 number if asked. Add,
edit, delete or copy new
numbers to the phone or
SIM.

You can use wild card spaces with numbers stored
in the FDN list. For example the number
[phone]_ _ 9 allows you to call all num­bers between 278009 to 278999.

Press . Select Phone Book.
Select Phone Book Tones.
Select Phone names or SIM

names. Press Select .

Select the tone you want and
press Select . The phone
stores your selection.

412312312

3

4

26

Messages (SMS)

You can exchange short text messages
of up to 160 characters with other mo­bile phones with SMS. You can also
store, edit and forward messages and
save any of the numbers they contain.

Reading a received SMS message

When the phone receives an SMS
message a new SMS alert tone
sounds and appears. The SIM
stores the message. If flashes
there is no more space in the SIM to
store new messages. Delete previ­ous messages to make space for
new ones.

Reading stored SMS messages

You can now read all stored mes­sages. For a given message,
shows the message is new.
shows you have already read the
message.

Managing received and stored SMS
messages

After reading the SMS message
press Options for the following
menu:

Turning on or off the message alert
tone

Each time a message is received the
SMS alert tone sounds. To turn on
or off this tone:

Preparing the phone to send SMS
messages

You can write and send text mes­sages. To use SMS, check that the
number for the message centre is
configured:

If a number appears do nothing.
If empty, enter the number man­ually (in international format) or
from a stored memory. If you do

Press Read to read all received
messages (Inbox).

Press . Select Messages
(then SMS on Trium 110 m).

Select Inbox to display the
first message header.

Use and to select the
message.

Press or select Options /

Read text to read the mes-

sage text.

123

4

Item Function

Read text

Displays the remain-

der of the text

Delete Deletes the message

Reply

Replies to the sender

of the message

Reply

(+ text)

Replies to the sender

of the message with

the initial text

Forward

Forwards the mes-

sage to another user

Forward

to n

Forwards a set of sev-

eral (5 maximum)

messages to 5 differ-

ent addressees

Numbers

Stores or calls the

number(s) contained

in the SMS header or

text

The items of this menu depend on the type of mes­sage received.

Press . Select Messages.
Select Alert. Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Messages.
Select Settings.
Select Message centre.

12312

3

The menu

27

not have this number, ask your
service provider for it.

If required you can also choose the
validity period, format, paid reply
request and request a delivery re­port. Default settings are assumed
if not set.

Creating a draft text

Parts of a message are often the
same, such as the greeting or signa­ture. To save time, you can create a
draft text for these parts. Then
when you want to write a message,
you access the draft text and only
write the specific part of the mes­sage. You can set up to 10 message
drafts, which can hold up to 48
characters each. The mobile memo­ry stores the drafts.
To create a draft text:

Editing a draft text

Sending a new SMS message to
one addressee

Sending a new SMS message to
many addressees

Press and hold Exit or
to return to the stand-by dis­play.

Option Description Default

Validity

Period

Time held at
message
centre.
12hours,
1day, 2
days or
Maximum
(defined by
operator)

Maxi-

mum

Format

Selects for­mat of mes­sage, text,
voice, fax or
pager

Text

Paid

Reply to

Reply re­quested

Off

Status

report to

Delivery re­port

Off

Press . Select Messages.
Select Draft texts.
Choose any blank template

([...]) and press Edit .

412

3

Enter the draft text and press

OK .

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Messages.
Select Draft texts.
Select the draft text to modify

and press Edit .
Edit the text and press OK .
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Messages.
Select Write new.
You can either choose a draft

text (if you set one up) or
enter the message text and
press OK .

Select Send.
Choose a message template

(if you have stored 2 or more
templates) and then enter the
destination number or select

Names to choose a

number from a phone book
entry. Press to validate your
choice. Press OK . Sending
and sent confirmation
appears for each addressee.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Messages.
Select Write new.
You can either choose a draft

text (if you set one up) or
enter the message text and
press OK .

Select Multicast.

45123451234561234

28

Storing a new SMS message

Modifying and re-sending messag­es in the outbox

The outbox contains unsent draft
messages, stored sent messages
and sent but undelivered messages.
You can modify and re-send these
as new messages.
To select an outbox message:

Status request on sent messages

If you request the status of a deliv­ered message the delivery date and

time appears. If you request the sta­tus of a sent message the network
sends a status report (if this feature
is supported). Press OK to ac­knowledge the report.
To act upon a received status report
and its related message:

Re-usable message templates

The Msg templates menu option
appears in the Messages - Settings
menu if your SIM supports this fea­ture. Message templates are sets of
message parameters and are stored
in SIM memory. You can name and
select the templates when needed.
To create a message template:

Default settings for pay reply and
status are assumed 'off' unless set
and are common to all templates. If
you set one template only the

Choose a message template
(if you have stored 2 or more
templates).
Enter up to 5 destination
numbers or select Names
to choose up to 5 numbers in
the phone book.
Press to validate your
choice. Press OK .
Sent confirmation appears.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Messages.
Select Write new.
You can either choose a draft

text or enter the message text
and press OK .

Select Store.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Messages.
Select Outbox and use or

to scroll to the desired
message. Messages are either
“transmitted” ( ) or “to be
sent” ( ).

Press Options to read,
delete, request a status
report, send (or re-send) to
one addressee, edit a sent
message and send (or re­send) to many addressees.

Follow the instructions dis­played on the screen.

5

612345123

4

Press Options . The follow­ing menu appears:

Item Action

Delete

message

Deletes the corre-

sponding sent SMS

message and the sta-

tus report

Clear

To acknowledge the

status report and

clear the display

Associ-

ated

message

Displays the corre-

sponding sent SMS

message

Send

again

Sends the same mes-

sage again

Select the action required and
press OK .

Press . Select Messages.
Select Settings.

Select Msg templates.
Choose any blank template
([...]).

Enter the template Name,

Message centre number,
Validity period and Format.

12123

The menu

29

phone uses it by default. Otherwise
select the template you want when
sending a message.

Storage consumption

To consult the memory used by
SMS:

EMS

1

EMS stands for Enhanced Message Se­vice. This feature allows to receive mes­sages with text, melodies, images and
animated icons. These messages are
sent via the Internet; they may bear pro­motional information or commercial of­fers.
The use of this feature is registration de­pendent and may not be available in all
areas.

EMS Menu

Inbox

To read or delete stored messages

My services

To reach the list of registered services

Settings

To reset or delete the EMS contents

Service Registration

To enter the address of the service sites.

Reading a received EMS message

When the phone receives an EMS
message a new alert tone sounds
and appears. The phone stores
the message. If flashes there is no
more space in the phone to store
new messages. Delete previous
messages to make space for new
ones.

Reading stored EMS messages

You can now read all stored mes­sages. For a given message,

shows the message is new.
shows you have already read the

message.

Calls & Times

Access the Calls & Times menu to check
the details of individual incoming and
outgoing calls, the duration of the last
call or the total time for all previous
calls.

Calls log

Calls log stores the identity, time,
date and call duration of the last
10numbers dialled, the last 10 re­ceived unanswered calls and the
last 10received calls. The call logs
are common for both Line 1 and
Line 2.

Press . Select Messages.
Select Storage.
Use or to view all the

SMS storage information
(SMS storage, SMS outbox
and SMS inbox).

Press and hold Exit or
to return to the stand-by dis­play.

1. Available on Trium 110 m only

Press . Select Messages
Select EMS.
Select the menu item you

want to access.
Press Cancel or to

return to the stand-by display.

1234123

4

Press Read to read all received
messages (Inbox).

Press . Select Messages.
Select EMS.
Select Inbox.
Use and to select the

message.
Press or select OK to read

the message text or delete
the message.

Press . Select Calls & Times.
Select Calls Log.
Select Last dial, Unan-

swered or Received.

1234512

3

30

If the caller’s number is not availa­ble, Unknown number appears
(unanswered and received lists).
Pressing while on a displayed
number calls that number.
Pressing Options accesses the
following menu:

Use or to select the required
option and follow the display
prompts.
Press and hold Exit or to re­turn to the stand-by display.

Call times

Call times stores the duration of the
last call, total accumulated time of
all calls and total time for Line 1 and
Line 2. The Details sub-menu
stores times for calls made and re­ceived through the subscription
network and through other (nation­al and international) networks.

The call type and the accumulat­ed times of outgoing and incom­ing calls appears.

Balance information (subscription
service only)

Some networks provide your call
time balance. You have to call a
specific number (given by your net­work operator) in order to get this
information.
Contact your service provider for
availability and details.

Use or to scroll through
the list.

Item Action

Store

Stores the number in

the phone book

Delete

Deletes the entry

Delete

all

Deletes all the entries

Edit

Edits the displayed

number

Details

Views the details -

name, number, time

and date and call dura-

tion of the highlighted

number

Call

Makes a call to the

number

Send

SMS

Sends SMS message

Press when in stand-by display to access the
last 10 dialled calls.

Press . Select Calls & Times.
Select Call timers.

412

Select Show.
Use or to view all the

timer information.

Press Details to display
details on My network,

National roaming and
Int’nal roaming calls.

Press or Exit to return to
the previous display.
Press and hold Exit or
to return to the stand-by dis­play.

If Line 2 is subscribed to 'All Calls' for Line 1 and
Line 2 appear separately.

Press . Select Calls & Times.
Select Call timers.
Select Balance information.
Select Set number (only nec-

essary the first time you use
this service) to check that the
balance information centre
number is set. If not, enter
the number provided by your
service provider and press

OK .

Select Call. The phone calls the

centre. Press when you

want to end the call.

345612345

The menu

31

Reminder - Call duration

You can set a call duration reminder
in multiples of 1 minute (1 - 59
min.) intervals. It beeps at the set
intervals.

Call timer - reset

To reset all the call timers, you need
the 4 digit phone lock code.

Call costs management (subscrip­tion service only)

An Advice of Charge (AoC) subscrip­tion service shows the cost of the
last call made, the accumulated to­tal cost of all calls and the remain­ing balance in units or currency of
any 'cost limit' you set. Check with
your service provider to see if they
offer this feature.Select the curren­cy and cost per unit; otherwise call
costs display in generic units.
To set currency and cost per unit:

To set call cost type to units:

Setting the credit limit - in units or
currency

You can set a credit limit in units or
currency. The phone prevents mak­ing and receiving all chargeable
calls when the phones reaches the
credit limit. You can still make
emergency calls.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Calls & Times.
Select Call timers.
Select Reminder.
Select On (or Off).
Select the period (between 1

and 59 mins).
Press OK .
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Calls & Times.
Select Call timers.
Select Reset.
Select Yes or No.
Enter the phone lock code

and press OK .
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Calls & Times.

612345671234561

Select Call costs.
Select Display cost type.
Select Currency. The present

currency settings appears.
Press Edit . Enter the PIN 2

code and press OK .
Enter the abbreviated letters

of the currency. Press OK .
Enter the cost per unit in the

selected currency. Press

OK .

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Calls & Times.
Select Call costs.
Select Display cost type.
Select Units.
Press and hold Exit or to

return to the stand-by display.

When you set the cost type to units the credit limit
and the remaining credit appear in units.

Press . Select Calls & Times.
Select Call costs.
Select Credit Limit. The

present credit limit setting
appears.

Press Edit . Enter the PIN 2
code and press OK .

Enter the credit limit (use
to enter a decimal point).
Press OK to validate.

Press and hold Exit or
to return to the stand-by dis­play.

When you enter a credit limit the selection from the
'Credit Limit' displays Edit or Set No Limit.

23456781234512345

6

32

Show costs

Call costs - resetting all costs to
zero

To reset all the call costs to zero you
need the PIN 2 code.

Alternate line service - selecting
Line 2 (subscription service)

Some GSM 1800 operators support
the use of a second line for users.
You can have two mobile phone
numbers, e.g. a business and per­sonal line. To select the line for out­going calls:

Settings - customising
your phone

Phone settings

Keypad lock

See page 15 for more informa­tion.

Language selection

To select the language of your
choice:

Tones - Alert mode

To turn on or off the audible in­coming ring tone, alert and alarm
tones:

• Using the menu:

Press . Select Calls & Times.
Select Call costs.
Select Show.
Use or to display the

cost of the Last Call, All Calls
and the Remaining credits.

Press and hold Exit or
to return to the stand-by dis­play.

The Cost Type menu units or currency setting deter­mines whether the remaining credit displays units
or currency.

Press . Select Calls & Times.
Select Call costs.
Select Reset.
Select Yes to reset the costs

or No to exit.
If you select Yes, enter the
PIN 2 number and press

OK . All Costs Reset

appears briefly.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Calls & Times.
Select Line selection.

The current line selection
appears.

Use or to scroll to the
line required and press

Select or to validate

your choice.

12345

1234512

3

Press and hold Exit or
to return to the stand-by dis­play.

You can assign names to Line 1 and Line 2, e.g.
Office and Home. See page 25 for details. You
must select the line to make outgoing calls. You
can receive calls from either line.

Press . Select Settings.
Select Phone settings. Select

Language.

Use or to select a lan­guage from the displayed list.
Press Select to validate.

Press and hold Exit or
to return to the stand-by dis­play.

To reset the phone to the language of the SIM
enter *#0000#.
To reset the phone language to English enter
*#0044#.

Press . Select Settings.
Select Phone settings. Select

Tones.

Select Alert tones.
Select Ring, Vibrate, Vibrate

& ring or Vibrate then ring.

Press and hold Exit or
to return to the stand-by dis­play.

412341234

5

The menu

33

• Directly from the stand-by dis­play:

Ring tone selection

To choose an incoming ring tone:

Volume adjustments

To individually adjust the volume
level of the ring tone, key tones,
alarm tones and incoming audio
from the stand-by display, press .
Alternatively, access Volume con­trol from the

Settings

menu:

The display confirms the selec­tion, naming the volume to be
adjusted.

During a call, you can adjust the
conversation volume by using
or .

Automatic ramping

Your phone was designed with an
automatic ramping feature.
When your phone rings, the vol­ume level is lower than the vol­ume level you have set.
Adjustment is made from low or
medium volume level to the vol­ume level you have set (see “Vol­ume adjustments”, page33).
This feature is a default setting
and cannot be deactivated. Ram­ping and Automatic Ramping are
compatible; both will work if
Ramping is activated.

Ramping

Ramping causes the incoming
ring tone to increase step by step
to the maximum volume level.

Press displays Ring, Silent,

Vibrate, Vibrate & ring or
Vibrate then ring.

Scroll to the desired setting.
Press Select to validate your

choice. (If any of the vibrate
options are selected the
phone briefly vibrates).
appears.

1. If you select Ring but the ring tone volume is off

the icon appears.

2. appears if you select Vibrate, Vibrate & ring or

Vibrate then ring. It takes precedence over .

3. When the phone is connected to either the Desk

Top Charger, HF kit, CLA or AC adaptor the phone
rings instead of vibrates.

4. If you choose the 'Vibrate' or 'Vibrate then ring'

option, the vibrating action replaces all the alert
and alarm tones.

Press . Select Settings.
Select Phone settings. Select

Tones.

Select Melodies.
To help you identify incoming

calls you can give the Stand-

ard/Line 1, Phone names,
SIM names and Line 2 calls

and Alarm different ring
tones.
Use or to highlight the
required call type and press
to select it.

Use or to listen to the
different ring tones. Press
to select the current tone.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.

121234561

Select Phone settings. Select

Tones.

Select Volume.
Select Ring, Keys, Conversa-

tion or Alarm.

Use or to adjust the set­ting.

Press OK to validate the
setting.

Press and hold Exit or
to return to the stand-by dis­play.

If the ring tone volume level is set to 0 displays.

23456

7

34

Backlight - setting

To set the backlight during key
entry or incoming ring tone, you
have two options:

• On for 10 sec.: the display and
key backlight stays on for
10seconds after the last key
press or incoming call.

• Off: the backlight stays off
except on incoming call.

Display contrast

To modify the display contrast be­cause of bad light conditions:

Menu graphics

Choose from a set of graphics to
personalise your main menu im­ages and icons. There are 3 menu
themes.

To change the menu graphics:

Any key answer

To enable any key (except and

No ring ) to be pressed to an-

swer an incoming call:

Softkeys - programming the
softkeys

You can change the function of
the softkeys. There are two ways:

• Directly from the stand-by dis­play:

• Using the menu:

Press . Select Settings.
Select Phone settings. Select

Tones.

Select Volume.
Select Ramping.
Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

When turned on the volume of the incoming ring
tone starts from the selected ringer volume (just
after the automatic ramping) and rises to the max­imum volume.

Press Select. Select Settings.
Select Phone settings. Select

Display.

Select Backlight.
Select one of the two set-

tings. Press to validate.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Settings.
Select Phone settings. Select

Display.

Select Contrast.
Adjust the contrast using

or .
Press OK to validate the

setting.
Press and hold Exit or

to return to the stand-by dis­play.

123

4561234512345

6

Press . Select Settings.
Select Phone settings. Select

Menu graphics.

Use or to scroll the sets of
menu graphics and press

Select to validate your

choice.
Press and hold Exit or to

return to the stand-by display.

Press . Select Settings.
Select Phone settings. Select

Keys.

Select Any key answer.
Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

Press and hold down the left

or right .

Use or to scroll through
the choice of softkey options.

Press Select to validate
your choice.

The screen confirms your
selection and returns to the
stand-by display showing
your new softkey function.

Press . Select Settings.

1234123451234

1

The menu

35

Speed dialling

You can assign phone book num­bers to keys - . Hold down
the key to dial the number. The
phone reserves exclusively for
the voice mail number. The phone
automatically assigns this key to
the voice mail number if stored
(see “Voice mail”, page38).
You can select any stored
number.
To assign phone book numbers to
the speed dialling keys:

Auto answer

This feature only works when you
connect the phone to a hands
free car kit or headset. The phone

automatically answers an incom­ing call after approximately 5 sec­onds.

Auto-retry

To automatically retry the
number of a failed call (up to
10times):

When activated, Auto-retry and a
countdown timer to the next call
attempt appears. An auto-retry
warning tone sounds each time
the phone attempts a new retry.
If successful, proceed with the
call as normal. Press Exit or
any key during the retrying proc­ess to cancel auto-retry and end
the dialling process for that call.

Security features

The security features described in
this section protects your phone
from unauthorised use.
For all codes
When requested, enter the code,
which appears as asterisks (*) and
press OK .
If you make a mistake press

Clear and enter the correct

digit(s) before pressing OK .

Select Phone settings. Select

Keys.

Select Softkeys functions.
Select Left softkey or Right

softkey.

Press Select on the softkey
option of your choice.

Press and hold Exit or
to return to the stand-by dis­play.

(......) in the display means that a previously SIM

dependent or subscription service assigned to that
softkey is no longer available. For example Line 2
selection.

Press . Select Settings.
Select Phone settings. Select

Keys.

Select Speed Dial.
Use or to scroll to the

next key.
Select Names to choose

the phone book entry and
press Select to validate
your choice.

Press and hold Exit or
to return to the stand-by dis­play.

If you delete the number from the phone book this
also deletes it from the associated key.

23456123456

Press . Select Settings.
Select Phone settings. Select

Auto features.

Select Auto-answer.
Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Settings.
Select Phone settings. Select

Auto features.

Select Auto-retry.
Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

123451234

5

36

KEEP A RECORD OF YOUR CODES
AND KEEP THEM IN A SAFE
PLACE. FAILURE TO DO SO CAN
CAUSE YOU CONSIDERABLE IN­CONVENIENCE.
Phone lock code
A phone lock code prevents unau­thorised access to the phone and
WAP™ settings. You also need it
to reset the call timers. The facto­ry setting is 0000. Reset this code
and keep it in a safe place, sepa­rate from the phone. When ena­bled the phone asks for the code
each time the phone is turned on.
To change the phone lock code:

To turn on or off the phone lock
code:

PIN code
The 4-8 digit PIN code for the SIM
protects it from unauthorised
use. When enabled the phone re­quests the PIN code each time the
phone is turned on. If you enter
the wrong PIN code three times in
succession your SIM card is
blocked and you need the 8 digit
PUK code from your service pro­vider (see page 37). To turn on
and off the PIN:

To change the PIN code (PIN must
first be enabled):

PIN2 code
The PIN2 code prevents unau­thorised access to FDN opera­tions, modifying the FDN phone
book, setting calls costs to zero,
modifying the costs display fea­tures. You can change it but you

Avoid using codes similar to emergency numbers
such as 999 or 112 to prevent accidental dialling
of these numbers.

Press . Select Settings.
Select Phone settings. Select

Security.

Select Phone lock.
Select Change code and fol-

low the display prompts.
Press OK to validate the

new code.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Settings.
Select Phone settings. Select

Security.

Select Phone lock.
Select On or Off.
The phone requests the

phone lock code to authorise
your selection.

Press and hold Exit or
to return to the stand-by dis­play.

Phone lock still enables you to make emergency
calls.

12345612345

6

Press . Select Settings.
Select Phone settings. Select

Security.

If already off, PIN enable
appears.
If already on, PIN disable
and PIN change appear.

Press Select and follow
the displayed prompts.

Press OK to validate your
entry. PIN enabled or PIN

disabled appear briefly to

confirm your action.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Settings.
Select Phone settings. Select

Security.

Select PIN change and follow
the displayed prompts.

Press OK to validate your
new PIN.

Press and hold Exit or
to return to the stand-by dis­play.

1234512

345

The menu

37

can not turn it on or off.
To change the PIN2 code:

PUK code
Only your service provider can
give you the 8 digit PUK (PIN un­block key). Use it to 'unblock' a
PIN whose code has been entered
incorrectly three times. A PUK
code cannot be changed.
Enter the PUK code and press

OK . Enter a new PIN code by

following the displayed prompts.

PUK2 code
Only your service provider can
give you the 8 digit PUK2. Use it
to unblock a PIN2 whose code has
been entered incorrectly three
times. You cannot change the
PUK2 code.
Enter the PUK2 code. Enter a new
PIN2 code by following the dis­played prompts.

Time & date setting

To set the current time and/or
date:

Default (factory) settings

Use the Settings menu to return
to the factory settings. This does
not affect the phone book en­tries, phone lock code or SIM.

The following are the factory de­fault settings:

Press . Select Settings.
Select Phone settings. Select

Security.

Select PIN2 change and fol­low the display prompts.

Press OK to validate your
new PIN2 code.

Press and hold Exit or
to return to the stand-by dis­play.

If you enter the wrong PUK code 10 times in suc­cession your SIM card cannot be used again. Con­tact your service provider for a new card.

If you enter the wrong PUK2 code 10 times in suc­cession you are unable to use the features requir­ing the PIN2 code. Contact your service provider for
a new card.

Press . Select Settings.
Select Phone settings. Select

Time & date.

1234512

Select Set time or Set date.
Enter the time (in 24 hour

format) or date in the format
shown. (If required use
and )

Press OK to validate your
entry.

Press and hold Exit or
to return to the stand-by dis­play.

1. An error message appears if you make a wrong
entry.

2. The time/date are displayed when the phone is
on. It does not show the year.

3. You may have to re-enter the time and date if
the battery was taken out.

Press . Select Settings.
Select Phone settings. Select

Default settings.

Select Yes or No.
Press and hold Exit or

to return to the stand-by dis­play.

Feature Factory setting

Alert Tones Ring
Ring Tones

Trium

Volumes,

Ring, Key,

Speech and

Alarm.

Mid values

Backlight and

Contrast

On for 10 sec. and

mid value

Any Key,

Auto-Retry

and Auto An-

swer fea-

tures.

Off

Ramping

Off

Menu graph-

ics

Trium

3456123

4

38

Melody download

You can also download melodies
from the Trium web site
(www.mitsubishi-telecom.com).
This site downloads the melodies
to your phone using SMS. When
the download completes,

Voice mail

Voice mail operates like an answer­ing machine. Contact your service
provider for details.

Storing a voice mail centre number

If your SIM does not automatical­ly include the voice mail centre
number, you must manually set
it:

Turning on/off the voice mail alert
tone

To turn on/off the voice mail alert
tone:

Calling the voice mail centre to
check for messages

There are two ways:

• To dial the voice mail centre
directly after the receipt of a

message:

• Or from the menu:

Dialling proceeds as for a normal
call.

GSM services

The services described hereafter
are a non-exhaustive list of GSM
services. Please contact your op­erator/service provider for more
information.

Press Options and then select
Play to play the melody.
Press Options and then select
Install to store the melody.

Press . Select Settings.
Select Voice Mail.
Select Number. When

prompted enter the number
manually or from a stored
memory.

Press OK to validate your
entry.

Press and hold Exit or
to return to the stand-by dis­play.

If you subscribe to the 'Line 2' service, store the
voice mail centre number separately for that line.
The phone automatically assigns the voice mail
number to speed dial location number 1 (see
Speed dialling on page 35).

Press . Select Settings.
Select Voice Mail.
Select Alert. Select On or Off.

1234512

3

Press and hold Exit or
to return to the stand-by dis­play.

Press and hold down .

Press . Select Settings.
Select Voice Mail.
Select Call.

If a voice mail number is not stored when you
select Call, the phone asks you to enter the voice
mail number. Proceed as described in Storing a
voice mail centre number, page 38.

412

3

The menu

39

Diverting incoming calls (network
service)

Call diverting diverts incoming
calls, whether voice, fax or data,
to another number.
To turn on call divert:

To turn off or check the status of
call divert:

To cancel all (multiple) diverts:

Caller Line Identity - showing/hiding
your mobile number

Most networks allow the Caller
Line Identity feature (CLI) i.e.
showing the incoming number
(ID) while receiving a call. Select-

Press . Select Settings.
Select GSM Services.

Select Call diverting to access
the following menu:

Divert op-

tions

Action

Always

Diverts all incom-

ing voice calls un-

conditionally

When not
reachable

Diverts all voice

calls when the

phone cannot be

reached, i.e. out

of service

On no reply

Diverts all voice

calls when the

phone does not

answer

When busy

Diverts all voice

calls when the

phone is busy

All conditions

Diverts all voice

calls when Not

Reachable, No Re-

ply and When

Busy

Cancel all

Cancels all diverts

All FAX calls

Diverts uncondi-

tionally all incom-

ing fax calls

All DATA calls

Diverts uncondi-

tionally all incom-

ing data calls

Use or to select the
divert condition and validate
by pressing Select or .

Select Activate.
Use or to choose

between Voice Mail, Names
or Number.

12345

Press Select or to vali­date your selection.
The display confirms your
request.

Press and hold Exit or
to return to the stand-by dis­play.

1. If you select 'On no reply' option you must also
enter a delay period of 5, 15 or 30 seconds.

2. Call diverts for both Line 1 and Line 2 must be
set individually. Select the out-going line before
following the above procedure. To carry out a call
divert on the other line you must select this other
line first (menu Calls & Times - Line selection).

Press . Select Settings.
Select GSM Services. Select

Call diverting.

Select from the divert options
and press .

Select Cancel or Status.
The phone confirms your
selection.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Call diverting.

Select Cancel all. The phone
confirms your selection.

Press and hold Exit or
to return to the stand-by dis­play.

This action cancels all voice diverts (for voice, faxes
and data calls) for the line currently in use. To can­cel call diverts for the other line you must select this
other line first (menu Calls & Times - Line selec­tion).

67123451234

40

ing Receiving caller ID allows
you to check its availability from
the network.
Receiving caller ID
To find out whether a network
presents the ID of incoming calls:

To hide your number, on a call by
call basis, add #31# before the
number you are calling. Alterna­tively you can ask your service op­erator to always disable the
sending of your mobile number.
In this case to reveal your
number, on a call by call basis,
add *31# before the number you
wish to call.
Standard network setting
To reset the standard network
setting for sending your mobile
ID:

Hiding or showing your number

Finding out your current ID set­ting

Network

When turned on, the phone auto­matically searches for the last net­work it was registered on. If this is
not available, the phone auto­matically searches and, if able
and allowed, selects a network.
Editing the preferred list
You can change the order and
names in the preferred networks
list stored in your SIM by choos­ing from the list in your phone.
This is useful while roaming if you
know a network provider that is
more economical than another.

Press . Select Settings.
Select GSM Services. Select

Receiving caller ID.

The network returns either

Presentation available or
Presentation unavailable.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Sending my ID.

Select My settings.
Select Preset. The phone

resets to the network setting
agreed with your service pro­vider.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Sending my ID.

Select My settings.

12312345123

Select Hide my ID or Show

my ID.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Sending my ID.

Select Status.
The phone displays your cur­rent setting, taking into
account both network and
phone settings.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Network.

Select Preferred list. A list of
networks appears.

Use or to view the list.
Press Options to change it.

The following items appear:

451234123

4

5

The menu

41

Your SIM may contain a forbid­den list of networks which cannot
be used. To view the forbidden
list or show the home network:

Selecting manual search
To select a specific network, e.g.
one which provides better cover­age in your current location:

Selecting automatic search (normal
default setting)

To perform an automatic search
from the preferred list:

Option Description

Modify by list

Displays the gener-

al list of all known

networks con-

tained in the

phone in alphabet-

ical order

Modify by

code

Edits or enters a

network number

(MCC MNC) if you

know this informa-

tion.

Delete Deletes an entry

Press Select to confirm the
selection.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Network.

Select either Forbidden or

Home network.

A list of the forbidden net­works or the home network
appears.

Press to return to the
stand-by display.

Press . Select Settings.
Select GSM Services. Select

Network.

Select Search.
Select Manual. A confirma-

tion screen and Scanning for

networks... appears.

Use or to select a net­work from the list shown.

67123412345

Press Select to confirm the
selection.

Requesting... followed by

the name of the network
appears. The phone then
returns to the stand-by dis­play.

You cannot delete a network from the forbidden
list. This list is automatically updated when you
perform the manual network selection.

Press . Select Settings.
Select GSM Services. Select

Network.

Select Search.
Select Automatic.
Press and hold Exit or

to return to the stand-by dis­play.

61234

5

42

Call barring (network service)

To stop different types of calls be­ing made and received on the
phone, you need a call barring
password available only from
your service provider.

Call barring password
Use the call barring password to
select the call barring levels out­lined in the GSM Services - Call

barring menu (see page 42). Your

service provider gives you the ini-

tial password. To change the
password:

Summary of code/password entry
chart

To cancel or check the status of a
call bar:

Press . Select Settings.
Select GSM Services. Select

Call barring.

Select Outgoing calls or

Incoming calls. Choose:

Select Meaning

Outgoing

- All outgoing

Bars all outgo-

ing calls

Outgoing

- Int'nal calls

Bars only all

outgoing in-

ternational

calls

Outgoing

- Int'nal excl.
home

Bars all outgo-

ing interna-

tional calls

except for oth-

er subscribers
within the us­ers home net-

work

Incoming

- All incoming

Bars all incom-

ing calls

Incoming

- Roaming only

Bars all incom-

ing calls when

not on the

home network

Select the option using or

. Press Select .

Select Activate. Enter the
password and press OK .
The network confirms the
selection.

Press and hold Exit or
to return to the stand-by dis­play.

12345

6

Press . Select Settings.
Select GSM Services. Select

Call barring.

Select Change password and
follow the displayed prompts.

Press OK to validate.
Press and hold Exit or

to return to the stand-by dis­play.

Pass-

word

Length

Number
of trials
allowed

If

blocked

or

forgot-

ten

Phone
unlock
code

4 digits Unlimited

Return
phone to
manufac­turer

PIN

4-8
digits

3 tries

Un­blocked
by use of
PUK code

PIN2

4-8
digits

3 tries

Un­blocked
by use of
PUK2
code

PUK 8 digits 10 tries

Contact
your serv­ice pro­vider

PUK2 8 digits 10 tries

Contact
your serv­ice pro­vider

Call
bar­ring
pass­word

4 digits

Network
deter­mined

Contact
your serv­ice pro­vider

Press . Select Settings.
Select GSM Services. Select

Call barring.

Use or to select the bar

1234512

3

The menu

43

To change the password:

Broadcast - cell broadcast messag­es (Network Service)

Networks can broadcast messages
to all GSM users that can give infor­mation about local area dialling
codes, weather reports, traffic news
etc. You can decide what type of in­formation to receive by choosing
the corresponding number. You
can program to receive up to 5 dif­ferent types of messages.
You can select from a list of 16
standard message types. New mes­sage types can be programmed into
the selection list using the 3 digit
cell broadcast type number. Con­tact your service provider for more
details.
Enter at least one message type into
the selection list or you cannot acti­vate the service.
To enter a message type in the se­lection list

You can enter up to 5 different
message types.

To turn on or off the broadcast
service

Reading broadcast messages

Broadcast messages appear in the
stand-by display only. The phone
suppresses them during conver­sation or menu operation. A mes­sage can be up to 93 characters in
length and cover several pages.
Pages scroll automatically about
every five seconds. To scroll
down, press.
Options during message display
Press on Exit to clear the mes­sage currently displayed. Press
to dial the number displayed in
the message.
Pressing Options displays the
following menu:

to cancel or check the status
and press .
You must have the password
to cancel a call bar.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select GSM Services. Select

Call barring.

Select Change password.
Enter the old password once
and the new password twice
when prompted. The phone
confirms the change.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.

41234

1

Select Broadcast.
Select Message types. Press

Options .

Select Modify by list (or Mod-

ify by code if type number is

known).
Scroll to the message type

required. Press Select to
validate your selection. The
display confirms your choice.

Press Options again to
select more message types
from the list, enter a message
type number if known, or
delete a message type.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select Broadcast.
Select On/Off.
Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

23456712345

44

Turning the broadcast alert tone on
or off

To turn on or off the alert tone
the phone gives when a broad­cast message arrives:

Deleting or editing a message type
from the list

To delete or edit a message type:

Broadcast language

To select the broadcast language:

Using the office tools

The Office Tools menu contains a
scratchpad, an alarm clock, an auto­switch feature and a calculator.

Scratchpad

You can store up to 5 separate en­tries of 36 characters in the scratch­pad.

Press Options when reading en­tries to access the following menu:

Alarm clock
To set a daily 'Reminder Alarm':

Option Action

Delete

To delete the cur-

rent message

Delete All

To delete all mes-

sages stored in

the queue

Numbers

To display all

phone numbers

found in the mes-

sage text. This al-

lows dialling or
storing them in

the scratchpad if

required

Broadcast

Off

To turns off cell

broadcast

Press . Select Settings.
Select Broadcast.
Select Alert.
Select On or Off.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Settings.
Select Broadcast.
Select Message types. Press

Options .

Select Modify by list or Mod-

ify by code.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Settings.
Select Broadcast.
Select Language.

1234512345123

Use or to select a lan­guage from the displayed list.
Press to validate.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Office Tools.
Select Scratchpad.
Select Read Notes. Use or

to scroll through the
entries.
Select Write Notes to make a
new scratchpad entry.

Item Action

Store

Save a number to

the phone book

Edit Modify an entry

Delete

Delete an entry

Delete all

Delete all entries

Call

Call the number
displayed in the

entry

When 'on' the alarm activates at the same time
every day until turned off.

Press . Select Office Tools.
Select Alarm clock.
Select On and enter the alarm

time (in 24 hour format) or
press OK to accept the dis­played time.
Confirmation appears.

4512312

3

The menu

45

The alarm sounds for up to
1minute. Alarm clock and a vibrat­ing bell symbol appear with the cur­rent time and the softkeys,

Valid. and No ring . During a

call, the alarm also sounds.
To stop the alarm:

To use as a Reminder or Snooze
Alarm:

You can repeat the snooze for up to
15 minutes, after which the phone
returns to its previous state, either
off or on stand-by.
To turn off the alarm:

Auto-switch

You can set your phone to switch
on and off automatically. Turning it
off helps to conserve battery life.
Please note that during auto-switch

on, you must re-enter your PIN
code. The phone does not go into
power saving mode until you enter
your code. To activate the auto­switch:

To turn off the auto-switch:

Calculator

To access and use the calculator:

Press Select or to return to
the stand-by display.

appears.

Press Valid. .

Press No ring , or any other key
(except Valid. ) to stop the
alarm. The alarm icon remain on
the display and the alarm rings
again 3 minutes later.

Press . Select Office Tools.
Select Alarm clock.
Select Off. Confirmation

appears.
Press and hold Exit or

to return to the stand-by dis­play.

Caution - Please remember to
turn off the alarm feature when
boarding an aircraft where the
use of a mobile phone is not
permitted and is illegal. Alterna­tively, you can remove the bat­tery after turning off the phone.
See the General safety warnings
on page 4.

41234

Press . Select Office Tools.
Select Auto-switch.
Select Auto-switch-on.
Select On.
Enter the time you want the

phone to turn on and
press OK . Confirmation
appears.

Select Auto-switch-off.
Select On.
Enter the time you want the

phone to turn off and
press OK .

Press and hold Exit or
to return to the stand-by dis­play. The icon appears in
the stand-by display.

Press . Select Office Tools.
Select Auto-switch.
Select Auto-switch-on.
Select Off. Stored appears.
Select Auto-switch-off.
Select Off. Stored appears.
Press and hold Exit or

to return to the stand-by dis­play.

Press . Select Office Tools.
Select Calculator.
Enter a number and press

several times to choose +, -,

* or / or to enter a ,.

Enter the second number and
either repeat step or select

= to compute. Select
Clear to correct any mis-

takes or clear the display.
Press to return to the

stand-by display.

1234567891234

567123435

46

Games

The availability and appearance of the
games depend on your network opera­tor and on your mobile phone version
(Reshape and Push games are available
on Trium 110 and Trium 110 m only).

Reshape and Push:

Game instructions appear when
you select the game.
Select sound effects from the menu
item Options.
To select a game:

When in the game,

Reshape and Push have skill levels.

When you win a level, you go to the
next level. After successfully playing
'X' number of levels the game gives
you a code to enable you to re-enter
the game from your previously at­tained skill level. The game can
record player names and scores. If
you receive a call while playing, an­swer in the normal way. To exit
from the games menu press Exit

or press to return to the stand-by
display.

Trium 110 p games

The Trium 110 p Games menu al­lows the downloading of new
games onto your mobile. Up to 2
games can be stored in the phone.
One is a default one. You cannot
delete or replace this game.
The second game may not have
been downloaded in your phone; if
not, you can download it by choos­ing it from the Catalogue menu.
You can replace the second game
by another one from the catalogue
as many times as you want. The
Catalogue allows you to get the list
and description of the games you
can download. If the contents of
the catalogue is not available on the
phone it can also be downloaded.
All information related to games
downloading is available in the In­structions menu.

The Trium 110 p games menu is
made of the following sub-men­us: Catalogue, News, Settings
and Instructions in addition to
the available game(s) name(s).

Press . Select Games.
Choose the game (Push or

Reshape) and press Select
or .

Item Action

Play

Select Play to
start the game
(from the lowest
level).

Help

Select Help for
instructions and
controls.

Code

If you have
already played
the game and
reached a certain
skill level, select

Code to enter the

level code and
play the game
from that level.

1

2

Receiving an incoming call while playing may not
allow you to resume the current game.

This phone version does not bear the Reshape and
Push games.

The menu

47

Currency-converter

To use the converter, set the curren­cies and the exchange rate:

To calculate the conversion be­tween the chosen currencies:

Internet/Wireless Application
Protocol (WAP™)

Your phone has a WAP™ internet
browser to access services, such as
stock buying, news, sports, weather, TV
listings etc., supplied by your operator
and/or your internet provider. The

types of services offered depend
on the internet provider and net­work operator.

You must have a DATA subscription to
access these services.
Either your phone is pre-programmed
with the settings or you must enter
them.
See below to enter the settings. If you
cannot access the settings, they are pre­programmed.

Storing/editing connection settings
(operator provided)

You can enter up to 5 different pro­files.

Item Action

Catalogue

Select Catalogue
to see and/or
download games
available on the
network.

News

Select News to
get information
on new games
availability.

Settings

Select Settings to
access the sound,
backlight... set­tings common to
all games.

Instructions

Select Instruc-

tions for all infor-

mation related to
games download­ing.

Receiving an incoming call while playing may not
allow you to resume the current game.

Press . Select Currency.
Select Settings.
Enter the first currency name

(e.g. Dollar). Press OK .
Enter the second currency
name (e.g. Yen). Press OK .

Enter the exchange rate using

to enter a comma.
Press OK to validate the
entry.

Press and hold Exit or
to return to the stand-by dis­play.

To use your Currency-converter as a Euro converter
for participating currencies in the European Mone­tary Union (“Euroland currencies”), please enter
the complete Euro exchange rate with six signifi­cant figures. For example: 1 Euro = £ 0.61871.

Press . Select Currency.

12345

1

Select one of the two first
options.
In our example: either Dollar-

>Yen or Yen->Dollar.

Enter the amount to be con­verted. Press to insert a
comma, if needed. Press

OK . The converted amount

appears.
Press and hold Exit or

to return to the stand-by dis­play.

Conversion from one Euroland currency to another,
or to non-Euroland currencies, normally follows
"triangulation" rules (i.e. conversion of local cur­rency to Euro and then Euro to other local cur­rency). Your Currency-converter does not provide
this possibility. Accordingly, your result is only a
close approximation.

Access to the connection settings depend upon
whether the settings have been pre-programmed
prior to shipment from the factory. In some cases
and to avoid errors these settings are 'locked' and
are not user programmable.

234

48

To enter and store the profile de­tails:

Personalising your connection set­tings
Optimise the behaviour of your
phone while connected to the inter­net with the following settings:

Going online

To go online:

Once connected, your provider spe­cific menu options appear. The
icon indicates a 'live' circuit connec­tion. By default the connection is
not secure.
To have a secure connection, set
’Security on’. The icon indicates

Press . Select Internet.
Select Profile list.
Select an empty profile ([...])

and press Options .
Select Edit.

Enter the 4 digit phone lock
code (default code 0000) and
press OK .

Enter all settings (the settings
depend on your operator).

To activate the required pro­file, use or to select it
from the displayed list.
Press Options and select
Select to validate.

Press and hold Exit or
to return to the stand-by dis­play.

1. You can also access the Internet menu directly by
pressing the Internet softkey from the stand-by dis­play (provided you have not personalised the left
softkey).

2.If the phone number, login names and pass-

word, Home page http address and IP address are
not predefined, get these from your network opera­tor and/or internet provider.

Press . Select Internet.
Select Settings.
Scroll to the following items

and turn on or off as
required:

123456712

3

Option Action

Clear cache

Clears the memo-

ry used to store

information that

you downloaded.
To clear this mem­ory, select the Yes

option.

Download

pictures

Select the Off op-

tion to reject pic-

ture

downloading.

This decreases the

page download-

ing time.

Scripting

Used to allow or

forbid the execu-

tion of scripts

within a page.

Auto-

disconnect

Disconnects the

mobile from the

internet after a

set period of inac-

tivity. Enter the

period (0 - 60

minutes) and

press OK .

0 deactivates the

auto-disconnect

function.

Press and hold Exit or
to return to the stand-by dis­play.

Press . Select Internet.
Select Home page.

Connecting to followed by

your proxy name appears.
Then the word Loading... (of
the home page) appears.

412

3

The menu

49

a 'live' secure circuit connection.
Using while online
Press while online presents the
following options:

The appearance of these items de­pends on the operator and/or val­ues in the Settings menu.

Ending the online connection

To end the online connection:

Creating bookmarks

To revisit specific cards more quick­ly, use bookmarks to store the card
address. This function depends on
your provider. You can create a
maximum of 10bookmarks. Create
bookmarks from the stand-by dis­play or while viewing a page.

During a live connection while
viewing page:

Using bookmarks

Bookmarks can be used from the
stand-by display or while browsing.

• Directly from the stand-by dis­play:

• While browsing the internet:

Other site

You can enter another internet ad­dress directly by using the Other

Item Action

Back

Returns to the
previous page

Zoom +/-

Increases or de-

creases the dis­played text size

Add book-

marks

Adds a current

card to the list of

bookmarks

Go to

bookmarks

Goes to a book-

mark

Reload

Reloads the cur-

rent page

Home page

Reloads the home

page

Other Site

Enter a different

site

Disconnect

Disconnects the

browser from the

network but

leaves the current

page locally active

Close session

Disconnects the
phone from the

internet

Press .

You can also select Close session item under the
options menu.

Press . Select Internet.
Select Bookmarks.
Press Options , select Mod-

ify and enter the following:

Option Action

Alias

Name you wish to
give to your book-

mark

Address

Home page address

Press OK to validate each
entry.

Press and hold Exit or
to return to the stand-by dis­play.

Press to display the
options menu.

Select Add bookmark, enter
the Alias name and press

OK .

Bookmarks can only be Edited or Deleted from the
Bookmarks item under the Internet menu options
while offline.

Press . Select Internet.
Select Bookmarks.
Select the bookmark name

you require.

To access the Internet directly use the Internet soft­key (if not personalised).

Press to display the
options menu.

Select Go to bookmarks.
Select the bookmark name

you require.

12345

1212312

3

50

site option from the Internet
menu. Addresses are not stored and
must be entered each time.

GSM man machine interface
codes

The phone supports the standard
GSM key sequences using the * and
# characters sent directly from the
keypad to the network. These se­quences are used to activate all the
supplementary services provided by
the network. Consult your service
provider for a complete list.

51

Accessories

Accessories

Using the headset

Connecting the headset

Using the headset

Disconnecting the headset

Insert the headset plug in the
phone headset connector as
shown:

While inserting the headset plug in the phone
headset connector make sure the Trium logo
( ) appears on top. Otherwise the headset
does not work properly.

Place the headset earpiece in your
ear.
The headset microphone is then
at a convenient level for
operation.
You can answer, reject and end
calls using or (see page 11).
Adjust the earpiece volume level
using or .

Tilt the headset plug down as
shown:

Earpiece

Microphone

52

Appendix

Glossary

Expression Meaning

AC/DC charger

Alternating Current/Di­rect Current charger

Active call

The call currently in con­versation

ALS

Alternate Line (Line 2)
Service

AoC

Advise of Charge - sub­scription service

CB Cell Broadcast

CLI

Caller Line Identity - dis­plays callers telephone

number
Conversation
mode

When the phone is mak-

ing or receiving a call

DES

Data Encryption stand-

ard

Diverting

Diverts incoming calls to

the phone to another

number
DTC Desk Top Charger

EMS

Enhanced Message

Service

DTMF

Dual Tone Multifre-

quency Tones
FDN Fixed Dialling Number

GSM

Global System for Mo-

bile communications

http

HyperText Transfer Pro-

tocol

IN

Information Numbers of

your operator
IP Internet Protocol
LCD Liquid Crystal Display
MMI Man machine Interface

Expression Meaning

PIN/PIN2

Personal Identification
Number. Supplied by
your network/service
provider

PPP Point to Point Protocol

PUK/PUK2

PIN Unblocking Key.
Used to unlock PIN and
PIN2. Supplied by your
network/service provid­er

Roaming (Rm)

The ability to use your
telephone at home or
abroad.

SDN

Service Dialling
Number. Of your opera­tor or service provider

SIM

Subscriber Identity
Module. Supplied by
your network/service

provider
SMS Short Message Service
SPN Service Provider Name

SR

Status Report - relates

to SMS messages

Stand-by mode

When the phone is on,

registered onto a net-

work but not making or

receiving a call

URL

Uniform Resource Loca-

tor

WAE

Wireless Application En-

vironment

WAP™

Wireless Application

Protocol

WSP

Wireless Session Proto-

col

WTP

Wireless Transport Pro-

tocol

53

Appendix

Trouble shooting

Problem

Possible cause and solu-

tion

Phone will not
switch on

Check that the battery is
fully charged and correctly
connected to the phone.

No flashing
battery icon
while charg­ing

There may be no mains
supply. Try a different elec­trical socket.
The AC/DC charger may be
faulty. Return to your deal­er and try substitution
with another Mitsubishi
adaptor. If faulty contact
your dealer.

Short stand­by and talk
times

Cell broadcast is perma­nently on, using more bat­tery power.
Phone is in a poor signal
area and therefore always
on full power.
Incorrect charging and dis­charging. Always charge
and discharge your battery
fully.
The battery is wearing out.

Replace the battery.
Numbers can­not be en­tered

Keypad lock is on ( ap-

pears). Press Unlock

and to turn off.

Calls cannot
be made or
received

Check at least one signal

strength bar ( ) is dis-

played. Try a stronger sig-

nal strength area.

If no network name is dis-

played, check registration

and area coverage with

your service/network pro-

vider and check the SIM is

correctly inserted.

Call barring option is on.

Deactivate it (see page42).

Call cost limit is reached

(see page 31).

Problem

Possible cause and so-

lution

Stored tele­phone num­bers cannot
be recalled

Fixed Dialled Number or
Call Barring features are
turned on. Check features
and turn them off (see
pages25 and42).

Phone
switches on
but there is
no display

Display contrast is turned
down too low. Reset con­trast (see page 34).

Battery icon

not flash­ing 1-2-3
during charg­ing

May indicate a charging
or battery problem. Turn
the charger off and dis­connect it. Reconnect and
try again.
May also indicate the bat­tery is full and does not
need more charging.

Flashing

There is not enough mem­ory to store another SMS
message. You must delete
one or more of the exist­ing stored messages (see
page 26).

(......)

softkey

Function no longer availa­ble in the SIM or was sub­scription dependent.
Reprogram the softkey
(see page 34).

54

Error messages

Problem

Possible cause and

solution

Allowed cred­it reached!

You are trying to place
an outgoing call and the
allowed credit is already
reached.
The allowed credit limit
is reached during an
outgoing call (the call is
then aborted).

Busy

You are trying to make a
call and the call fails be­cause the destination
number is already en­gaged in conversation.

Call failed

The user is unreachable.
The outgoing call fails
due to:
the network cannot
take the call due to sys­tem busy or
the number is out of or­der or
the number is unreacha­ble or
the network does not
answer or
the option to hide your
phone number when
calling is not supported
by the network
Control the ability to
hide your ID when mak­ing a call (service availa­bility in network).

Cancelled. No
type selected

Cell broadcast activa­tion has been requested
but no message type
has been selected.

Problem

Possible cause and

solution

Cannot exe­cute com­mand

You have made a re­quest which is impossi­ble to be executed in
the current call situa­tion.

Can't display
message

The short message text
cannot be displayed
(characters not recog­nised, incorrect format
etc.)

Check SIM!

There is no SIM present
or the SIM is incorrectly
inserted. See page 10
for more details.

Check your
password

You changed the call
barring password or
You changed the call
barring service status.
The entered password
seems to be wrong or
incorrect.

Check your
request

You made a request for
a service that seems to
be impossible to fulfil.

Check your
subscription

You tried to activate a
GSM service. You are re­quested to check your
subscription regarding
the related service
rights of use/access.

Error!

The network cannot
perform your request
and generates an error
result.

Failed

An SMS sending process
failed (the short mes­sage cannot be sent).

Incorrect en­try

You entered a character
string with a syntax er­ror.

55

Appendix

Problem

Possible cause and

solution

Invalid
number

You tried to make a call
and the call is rejected
by the network be­cause the network
does not recognise the
phone number struc­ture or
you tried to store a
phone number that is
too long to be stored in
the selected location or
you tried to move a
phone entry to a loca­tion that is unable to
receive the phone
number (phone
number too long)

Keypad locked
"Unlock" # to
unlock

A press on any key is
made with keypad
locked.

Low battery!

This text appears when
the battery becomes
too low and the mobile
soon switches off auto­matically.

Network busy

You tried to make a
call. The call is rejected
by the network due to
congestion problems.

Network not
allowed

When selecting net­work manual search,
you have selected a
network that rejects
the connection.

New PIN in­correct. Try
again

Changing PIN: the new
PIN code values differ
(value control).

New PIN2 in­correct. Try
again

Changing PIN2: the
new PIN2 code values
differ (value control).

Problem

Possible cause and

solution

No action per­formed

When a copy/move op­eration is made on
memories but no con­ditions have been
changed (same memo­ry, number and name).

No response

You made a call to a re­mote user and no re­sponse has been
received.

Not allowed

Your number/charac­ter entry is not allowed.

Not allowed
(fixed dial­ling)

A call is tried, but can­celled due to fixed dial­ling control (the
number dialled does
not match with one of
the fixed dialling num­bers in memory).

Not Available

There is no more SIM
storage.

Number
changed

The called number has
changed.

PIN blocked

A wrong PIN code has
been entered 3 times.

PIN2 blocked

A wrong PIN2 code has
been entered 3 times.

PUK2 blocked

A wrong PUK2 code
has been entered 10
times.
The SIM services pro­tected by the PIN2 code
have now been perma­nently disabled.

Ring volume
Off

The ring volume is set
to 0 (no volume)

Reaching al­lowed credit!

The cost limit is about
to be reached. The con­nected call ends auto­matically when the
limit is reached.

56

Problem

Possible cause and

solution

Service not
available

Activating some GSM
services that are not
available on the net­work

SIM blocked.
Contact pro­vider

A wrong PUK has been
entered 10 times.
The SIM card has been
permanently disabled
and needs to be re­placed by a new one.

SIM blocked.
Enter PUK:

A wrong PIN code has
been entered 3 times.
Enter the PUK code to
unblock the SIM card.

SIM fixed full
SIM names
full
Phone names
full

The corresponding
memory is full.

SMS memory
locations are
full

The storage of new
messages (when writ­ing a new SMS) is im­possible.

Wrong code.
Try again

A wrong phone lock
code has been entered.

Wrong new
code. Try
again

The new phone lock
codes do not match
(value control).

Wrong PIN,
try again
Wrong PIN2,
try again
Wrong PUK,
try again
Wrong PUK2,
try again

The wrong code has
been entered.

Message not
sent

The handset may be
out of the network
range or the network is
temporarily overload­ed.

Problem

Possible cause and

solution

Internal fault

An unrecoverable error
has occurred. Switch
the handset off and
back on again. It may
be necessary to reset
the EMS system (Set­tings menu). Beware:
all services and EMS
messages will then be
erased.

Invalid Serv­ice Menu

An invalid service menu
has been sent to the
handset. The invalid
service menu is ig­nored, no further ac­tion necessary.

Registration
required

You have not regis­tered to any service. Go
to the Service registra­tion menu.

Menu limit
reached

A new service menu
item has been received
but the remaining stor­age space is not suffi­cient to store it. Delete
one or more registered
menu items (My Servic­es menu) and accept
the new menu or dis­card the new menu.

Server limit
reached

A new service has been
received but the re­maining storage space
is not sufficient to store
it. Delete one or more
registered service(s) ­Settings menu - and ac­cept the new service or
discard the new serv­ice.

57

Appendix

Guarantee

Pan European Service

Should you experience any difficulty then
please contact your nearest MITSUBISHI
location listed below for information on
other service centres.

To obtain Warranty Service, you will re­quire your original equipment purchase
invoice or irrefutable proof of purchase.
Please see warranty terms and conditions
for in warranty service.

Pan-european GSM End-user Guar­antee Conditions

1.You can benefit from this guarantee only if
you are the original end-user purchaser.

2.MITSUBISHI guarantees that for a period of
twelve (12) months from the date of pur­chase from your dealer, the Product shall
be free from defects in materials and work­manship. Subject to the conditions below,
Mitsubishi will indemnify you against all
cost of parts and labour for repairs to or re­placement of the product or parts (which
may include equipment of similar type)
where conducted by an authorised MIT­SUBISHI GSM service centre. MITSUBISHI
shall be entitled to retain product which
has been replaced.

3.Any claims must be made to an authorised
MITSUBISHI GSM service centre in the
countries mentioned in the service card en­closed with the product. In case of difficul­ty you can contact the Mitsubishi
companies listed in the service card to ob­tain details of your nearest authorised MIT­SUBISHI GSM service centre. As a condition
of this guarantee, the date of your pur­chase must be confirmed by producing
your original invoice from your supplier or
your sales receipt, showing the serial

number, together with the service card. Fi­nal determination of guarantee claim eligi­bility shall be made by MITSUBISHI.
MITSUBISHI shall not be liable for ship­ment costs to and from an authorised GSM
MITSUBISHI service centre; the product
travels at your risk.

4.This guarantee does not cover:
a)battery defects of any nature;
b)non-compliance with directions for use;
c)installation or removal charges where

the product is installed in a vehicle;

d)defects or failures caused by accident,

misuse, improper installation or improp­er repair by an unauthorized repairer, al­teration or modification, neglect, failure
to use for normal purpose, Acts of God,
water ingress, use in adverse environ­mental conditions (humidity or tempera­ture);

e)cost of or performance of modifications

to product to adapt or adjust to conform
to national or local safety laws, where
such safety laws go beyond harmonised
European Union standards;

f)loss of use of the product or consequen-

tial loss of any nature;

g)loss of use of air-time, loss of use of any

loaned equipment or ancillary equip­ment;

h)provision of incorrect or insufficient sig-

nal on air-time network, upgrading of
product software to changes in network
operating parameters, mains supply
voltage fluctuations, incorrect SIM card
(memory card) parameters for connec­tion to airtime retailer;

i)damage caused by non-MITSUBISHI ac-

cessories.

5.Any guarantee claim or service does not
extend the original guarantee period un­less so required by prevailing national law.

6.This guarantee is valid only if the product
is purchased and used in the European Un­ion, Norway, Iceland or Switzerland.

THIS GUARANTEE DOES NOT AFFECT YOUR

STATUTORY RIGHTS.

UNITED KINGDOM

Tel: [phone]

ESPAÑA

Tel: [phone]

FRANCE

Tel: [phone]

ITALIA

Tel: [phone]

DEUTSCHLAND

Tel: [phone]

IRELAND

Tel: [phone]

BELGIUM

Tel: [phone]

SWITZERLAND

Tel: [phone]

AUSTRIA

Tel: [phone]

FINLAND

Tel: [phone]

PORTUGAL

Tel: [phone]

SWEDEN

Tel: [phone]

THE NETHERLANDS

Tel: [phone]

58

Declaration of compliance

DECLARATION OF COMPLIANCE

9th of January 2002,

Viet Mailam

Managing Director

Name : Mitsubishi Electric Telecom Europe S.A.

RCS Nanterre B 307 593 129
Address : 25, boulevard des Bouvets
Town : Nanterre Cedex
Postal code : 92741

Identification of the product

Nature : Mobile Cell Telephone
Type : Dual band GSM 900/DCS 1800
Sales reference : MT-360

Declares under its entire responsibility that the product described above complies with the
following basic applicable requirements (and in particular those in the 1999/5/CE directive):

Article 3.1a: (health protection and user safety)

73/23/CEE, Cenelec EN 50361

Article 3.1b: (protection requirements concerning electromagnetic compatibility)

89/336/CEE, ETS 300 342-1

Article 3.2: (proper use of the radio-electric spectrum so as to avoid damaging interference)

EN 301 511

To this effect, declares that all the radio test series have been carried out.

59

Index

Index

A

Access to the menus ................. 20

Alarm

Clock .................................. 44

Alert mode ................................ 32

Alert tone

Turning on/off .................... 26

Any key answer ......................... 34

Auto

Answer ............................... 35

Retry .................................. 35

Auto-disconnect ........................ 48

Automatic ramping ................... 33

Automatic search ...................... 41

Auto-switch ............................... 45

B

Backlight ............................. 15, 34

Balance information .................. 30

Barring password

Call ..................................... 42

Basic operations

SMS ................................... 15

Unanswered call ................. 15

Voice mail .......................... 15

Battery ...................................... 10

Alarm volume .................... 33

Charging ............................ 12

Disposal ............................... 6

Fitting ................................ 12

Low battery warning .......... 12

Removing ........................... 12

Safety information ............... 6

Use ....................................... 6

Battery cover

Replacing ........................... 10

Bookmarks

Creating ............................. 49

Deleting ............................. 49

Using ................................. 49

Broadcast .................................. 43

Alert ................................... 44

Language ........................... 44

Message types ............. 43, 44

On/Off ................................ 43

C

Cache memory

Clearing .............................. 48

Calculator .................................. 45

Call

Conference ......................... 19

Duration ............................. 31

Holding .............................. 18

Multi-party ......................... 19

Reminder ........................... 31

Retrieving ........................... 18

Times ................................. 30

Waiting .............................. 18

Call barring ............................... 42

Password .............................. 7

Call costs

Reset .................................. 32

Call timer

Reset .................................. 31

Caller line identity ..................... 39

Calling ....................................... 11

Calls & Times ............................. 29

Call costs ...................... 31, 32

Call timers .................... 30, 31

Calls log ............................. 29

Costs .................................. 31

Line selection ..................... 32

Calls Log .................................... 29

Care and maintenance ................ 5

CB ............................................. 43

CB messages

Deleting ............................. 44

Editing ............................... 44

Reading .............................. 43

Cell broadcast ........................... 43

CLI ............................................. 39

Conference call .......................... 19

Connection profile ..................... 47

Cost management ..................... 31

Country Codes ........................... 16

Creating a draft text .................. 27

Credit limit ................................ 31

Currency-converter .................... 47

D

Date setting ............................... 37

Default settings ......................... 37

Dialling

Calls Log memory ............... 16

Phonebook ......................... 16

Dialling from memory ............... 16

Display contrast ......................... 34

Diverting ................................... 39

Draft text

Creating ............................. 27

Editing ............................... 27

DTMF tones ............................... 17

E

Emergency calls ........................... 5

EMS ........................................... 29

Ending a call .............................. 12

Error messages .......................... 54

F

FDN ........................................... 25

Fixed dialling numbers .............. 25

G

General

Safety ................................... 4

Getting started .......................... 10

Glossary ..................................... 52

GSM man machine

interface codes ...................... 50

GSM Services ............................. 38

Call barring .................. 42, 43

Call diverting ...................... 39

Network ....................... 40, 41

Receiving caller ID .............. 40

Sending my ID .................... 40

H

Handsfree features .................... 17

Headset

Use ..................................... 51

Holding a call ............................ 18

I

Incoming Calls

Diverting ............................ 39

International Country Codes ...... 16

Internet ............................... 15, 47

Bookmarks ......................... 49

Going online ...................... 48

Home page ........................ 48

Other site ........................... 49

Personalising ...................... 48

Profile list ........................... 48

Settings ........................ 47, 48

K

Keypad lock ......................... 15, 32

L

Language selection .................... 32

Last dialled numbers ................. 16

Line 1 ................ 25, 29, 30, 32, 39

Line 2 .......... 25, 29, 30, 32, 38, 39

60

M

Making a call ............................. 11

Managing SMS messages .......... 26

Melodies ................................... 33

Melody download ..................... 38

Menu ........................................ 20

Access ................................ 20

Menu graphics .......................... 34

Menu map ................................ 20

Message templates ................... 28

Messages ............................ 15, 26

Alert ................................... 26

Draft texts .......................... 27

Inbox .................................. 26

Msg. Templates .................. 28

Outbox ............................... 28

Rich Messages .................... 29

Settings .............................. 26

Storage .............................. 29

Write new .................... 27, 28

Mobile number

Hiding ................................ 39

Showing ............................. 39

Multi-party call .......................... 19

Muting ...................................... 17

N

Network .................................... 40

Network services ....................... 22

O

Office Tools

Alarm clock ........................ 45

Scratchpad ......................... 44

Office tools ................................ 44

Online connection ..................... 48

Bookmarks ......................... 49

Ending ............................... 49

Personalising ...................... 48

Outbox ...................................... 28

Own number ............................. 25

P

Pause feature ............................ 18

Phone

Customising ....................... 32

Phone Book

Calling numbers ................. 24

Fixed Dialling ..................... 25

Free space .......................... 24

Own numbers .................... 25

Recall ................................. 24

Remaining .......................... 24

Store ............................ 23, 24

Viewing numbers ............... 24

Phone lock ................................ 36

Code .............................. 7, 36

Phone settings .......................... 32

Phonebook ................................ 22

PIN code .................................... 36

PIN/PIN2 codes ............................ 6

PIN2 code .................................. 36

Problems ....................... 54, 55, 56

Programmable

Softkeys ............................. 34

Speed dialling .................... 16

PUK code ................................... 37

PUK/PUK2 Codes ......................... 7

PUK2 code ................................. 37

R

Ramping .................................... 33

Reading an SMS message .... 26, 29

Receiving a call .......................... 12

Reminder - call time .................. 31

Responsibility .............................. 6

Retrieving a call ......................... 18

Ring ........................................... 33

Ring tone .................................. 33

S

Safety information ...................... 4

Battery ................................. 6

Care and maintenance ......... 4

Emergency calls .................... 4

Responsibility ....................... 4

Security codes ...................... 4

Vehicle safety ....................... 4

Scratchpad ................................ 44

Scripting .................................... 48

Second call ................................ 19

Security ..................................... 35

Codes ................................... 6

Features ............................. 35

Sending an SMS message .......... 27

Settings ..................................... 32

Auto features ..................... 35

Broadcast ..................... 43, 44

Default settings .................. 37

Display ............................... 34

GSM Services 39, 40, 41, 42, 43

Internet .............................. 47

Keypad lock ........................ 15

Keys ............................. 34, 35

Language ........................... 32

Menu graphics ................... 34

Phone settings ....... 15, 32, 33

34, 35, 36, 37

Security ........................ 36, 37

Time & date ........................ 37

Tones ..................... 32, 33, 34

Voice Mail .......................... 38

Show costs ................................ 32

Silent ......................................... 33

Silent alert mode ....................... 17

SIM

Card ................................... 10

SIM card .................................... 14

SMS ..................................... 15, 26

SMS messages

Managing .......................... 26

Preparing your phone ........ 26

Reading ........................ 26, 29

Sending .............................. 27

Storing ............................... 28

Softkey programming ............... 34

Solutions ................. 53, 54, 55, 56

Speed dialling ...................... 16, 35

Standby display ......................... 11

Storage consumption ................ 29

Storing an SMS message ........... 28

Storing names and numbers ..... 22

T

T9 .............................................. 20

T9 text entry .............................. 21

Time & date ............................... 37

Time settings ............................. 37

Trouble shooting ....................... 53

Turning

Off ..................................... 12

On ...................................... 10

V

Vehicle safety .............................. 4

Vibrate ...................................... 33

Vibrate & ring ............................ 33

Vibrate alert modes ................... 17

Vibrate then ring ....................... 33

Voice Mail

Alert ................................... 38

Call ..................................... 38

Number .............................. 38

Voice mail ................................. 38

Volume ...................................... 17

Adjustment ........................ 17

Alert mode ......................... 33

Conversation ...................... 33

Keys tones .......................... 33

Ring tone ........................... 33

W

WAP™ ....................................... 47

www.mitsubishi-telecom.com

Austria

0800 292716

Germany

0800 1808133

Netherlands

0800 0223825

Belgium

0800 75733

Greece

00800 44131247

Portugal

0800 880264

Denmark

8088 1816

Ireland

1800 927012

Spain

9009 34497

Finland

0800 116975

Italy

800 791029

Sweden

0200 214715

France

0800 913080

Luxembourg

800 23 552

UK

0800 9120020

FA9M078910-A
