Tritton Technologies AX360 User Manual
E
F
G
H
B
A
D
C
FRONT
REAR
CEN VIB
FRONT
REAR
CEN VIB
I

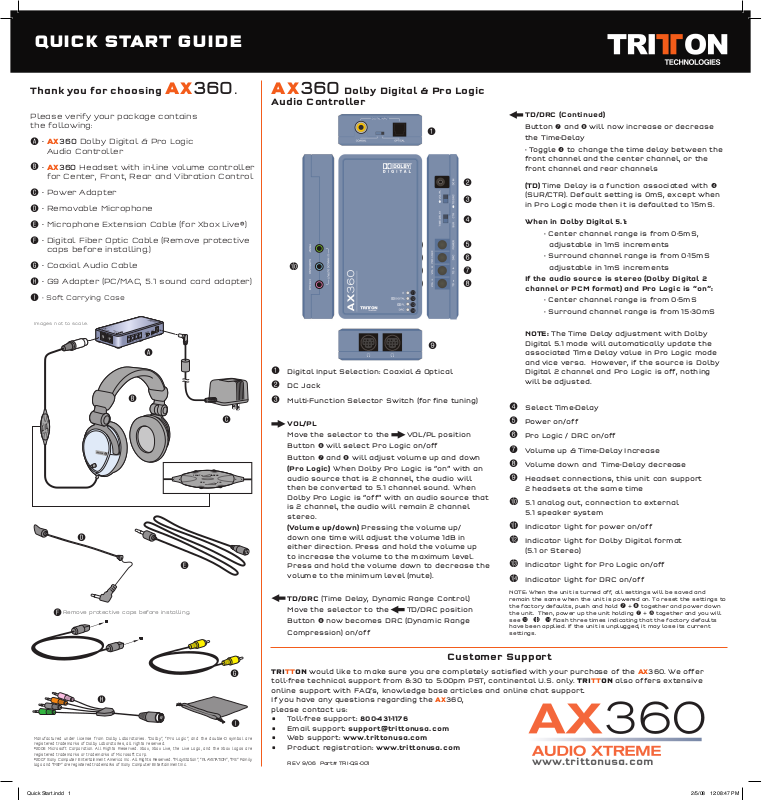

Quick Start Guide
Manuf actur ed under lic ense from Dolby Labor atori es. “Dolb y”, “Pro Log ic”, and the dou ble-D symbol are
registered trademarks of Dolby Laboratories, all rights reserved.
©2006 Mic rosof t Co rpora tion. All Rig hts Reserve d. Xbox, Xb ox Live, the Live Log o, and the Xbo x lo gos are
registered trademarks or trademarks of Microsoft Corp.
©2007 Sony Computer Entertainment America Inc. All Rights Reserved. “PlayStation”, “PLAYSTATION”, “PS” Family
logo and “PSP” are registered trademarks of Sony Computer Entertainment Inc.
Remove protective caps before installing.
Images not to scale.
1 Digital Input Selection: Coaxial & Optical
2 DC Jack
3 Multi-Function Selector Switch (for fine tuning)
VOL/PL
Move the selector to the
VOL/PL position
Button 6 will select Pro Logic on/off
Button 7 and 8 will adjust volume up and down
(Pro Logic) When Dolby Pro Logic is “on” with an
audio source that is 2 channel, the audio will
then be converted to 5.1 channel sound. When
Dolby Pro Logic is “off” with an audio source that
is 2 channel, the audio will remain 2 channel
stereo.
(Volume up/down) Pressing the volume up/
down one time will adjust the volume 1dB in
either direction. Press and hold the volume up
to increase the volume to the maximum level.
Press and hold the volume down to decrease the
volume to the minimum level (mute).
TD/DRC (Time Delay, Dynamic Range Control)
Move the selector to the
TD/DRC position
Button 6 now becomes DRC (Dynamic Range
Compression) on/off
Thank you for choosing AX360 .
Please verify your package contains
the following:
A
- AX360 Dolby Digital & Pro Logic
Audio Controller
B
- AX360 Headset with in-line volume controller
for Center, Front, Rear and Vibration Control
C
- Power Adapter
D
- Removable Microphone
E
- Microphone Extension Cable (for Xbox Live®)
F
- Digital Fiber Optic Cable (Remove protective
caps before installing.)
G
- Coaxial Audio Cable
H
- G9 Adapter (PC/MAC, 5.1 sound card adapter)
I
- Soft Carrying Case
NOTE: When the unit is turned off, all settings will be saved and
remain the same when the unit is powered on. To reset the settings to
the factory defaults, push and hold
7 + 8 together and power down
the unit. Then, power up the unit holding
7 + 8 together and you will
see
bm bn bo flash three times indicating that the factory defaults
have been applied. If the unit is unplugged, it may lose its current
settings.
AX360 Dolby Digital & Pro Logic
Audio Controller
www.trittonusa.com
Customer Support
TRITTON would like to make sure you are completely satisfied with your purchase of the AX360. We offer
toll-free technical support from 8:30 to 5:00pm PST, continental U.S. only. TRITTON also offers extensive
online support with FAQ’s, knowledge base articles and online chat support.
If you have any questions regarding the AX360,
please contact us:
• Toll-freesupport:800-431-1176
• Emailsupport:support@trittonusa.com
• Websupport:www.trittonusa.com
• Productregistration:www.trittonusa.com
REV 9/06 Part# TRI-QS-001
TD/DRC (Continued)
Button 7 and 8 will now increase or decrease
the Time-Delay
- Toggle 4 to change the time delay between the
front channel and the center channel, or the
front channel and rear channels
(TD) Time Delay is a function associated with 4
(SUR/CTR). Default setting is 0mS, except when
in Pro Logic mode then it is defaulted to 15mS.
When in Dolby Digital 5.1:
- Center channel range is from 0-5mS,
adjustable in 1mS increments
- Surround channel range is from 0-15mS
adjustable in 1mS increments
If the audio source is stereo (Dolby Digital 2
channel or PCM format) and Pro Logic is “on”:
- Center channel range is from 0-5mS
- Surround channel range is from 15-30mS
NOTE: The Time Delay adjustment with Dolby
Digital 5.1 mode will automatically update the
associated Time Delay value in Pro Logic mode
and vice versa. However, if the source is Dolby
Digital 2 channel and Pro Logic is off, nothing
will be adjusted.
4 Select Time-Delay
5 Power on/off
6 Pro Logic / DRC on/off
7 Volume up & Time-Delay Increase
8 Volume down and Time-Delay decrease
9 Headset connections, this unit can support
2 headsets at the same time
bk 5.1 analog out, connection to external
5.1 speaker system
bl Indicator light for power on/off
bm Indicator light for Dolby Digital format
(5.1 or Stereo)
bn Indicator light for Pro Logic on/off
bo Indicator light for DRC on/off
1
2
3
4
5
6
7
8
9
bk
bl
bm
bn
bo
Quick Start.indd 1 2/5/08 12:08:47 PM
Connecting the AX360 to a DVD player or audio
receiver is easily achieved through either the digital
optic or coaxial port. Diagram A shows connecting via
the digital coaxial. Diagram B shows connecting via
the digital optic port. The AX360 audio controller has
is a selector switch that must be positioned to either
optic or coaxial depending on which connection you
use.
The AX360 can connect to any game console that
supports a fiber optic or digital coaxial audio port.
For example, connecting with an Xbox 360 you will
need to have the High Definition cable accessory.
This cable connects directly into the back of the
Xbox 360 and has a digital Fiber Optic port located
on the cable housing. This is the same connection
for the original Xbox (See Diagram A). Connecting to a
Playstation II, just plug the fiber optic cable directly
into the Playstation (See Diagram B).
Option 1 - connecting through digital optic/coaxial
port
If your computer has a fiber optic or digital coaxial
port, then the AX360 can be connected directly to
the computer. Both optic and coaxial are digital so it
does not matter which cable you use.
Option 2 - connecting through the G9 adapter
AX360 can be used with 5.1 output sound card. Use
the G9 adapter to connect as shown above in option
2. The G9 adapter plugs into the back of the sound
card. The mini-jacks on the G9 have labels indicating
the following:
Pink: Mic (Microphone Port)•
Green: Front (Front Channels)•
Black: Rear (Rear Channels)•
Orange: C/S (Center channel and Subwoofer)•
The AX360 audio controller includes analog 5.1
outputs. Through these outputs you can connect
to a 5.1 speaker system that is “self-powered”,
meaning that the speaker system has its own
amplification. Connect the speakers accordingly per
the description:
• Front=Frontspeakers
• Surround=RearSurroundspeakers
• CTR/SUB=CenterChannel/Subwoofer
speakers
To hear other players during Xbox Live communica-
tion, you will need to make changes within the Xbox
360 dashboard. While running an Xbox game, press
the Xbox Guide button (the X button is located in the
center of your controller) to access your Xbox Live
Settings. (Half-page screen with profile information
will appear.) Select “Personal Settings” and press
the “A” button on your controller. Then select “Voice”
from the menu and press “A”. On the Voice screen,
select “play through both” for voice output selection.
If you have difficulties hearing the voices of other
players on XBox Live, you can adjust the voice volume
by turning up the “center” channel. If you continue to
have issues, you can adjust the in-game sound
effects and music levels to a desired volume.
Make Sure to remove the protective caps from your optical cable before use.
Failure to do so could result in poor or no sound output, and possibly damage
electronic devices.
*If you use the AX360 blue digital audio controller on a computer and
want to use the microphone, additional hardware will be needed to
plug the microphone into the standard analog jack of your computer.
**Dolby Digital surround sound will only be played back by the
AX360 headset when a “Dolby Digital” signal is received by our audio
controller, indicated by a blue light at location bm.
XBox360
XBox360 Elite/Premium
PS3
Connecting to your
Game Console
Connecting the
microphone to your
Xbox 360™ (for Xbox Live®)
Connecting to your
PC or MAC
Connecting to your
DVD / Audio Receiver
Connecting to your
“self-powered” 5.1
Speaker System
Connecting your AX360
Diagram A
Diagram B
Option 1
Option 2
Diagram A
Diagram B
Quick Start.indd 2 2/5/08 12:08:48 PM
