INSTALLERS P LEASE NO TE THESE INSTRUC TIONS

ARE TO B E LEFT W ITH THE USER

T80Z

thermostatic

electric shower

Installation and

operating

instructions

Please read this book thoroughly and familiarise yourself with all instructions before commencing installation and keep it for future reference.

The shower installation MUST be carried out by a suitably qualified person, in the sequence of this instruction book.

2180841B - October 201110.5kW

INTRODUCTION - PLEASE READ

PLEASE READ THIS IMPORTANT SAFETY INFORMATION

Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations.

WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out before using.

DO NOT operate the unit if the showerhead or spray hose becomes damaged. DO NOT restrict ﬂow out of shower by placing showerhead in direct contact with your body. DO NOT operate the shower if water ceases to ﬂow during use or if water has entered inside

the unit because of an incorrectly ﬁtted cover.

WARNING: If restarting the shower immediately after stopping, be aware that a slug of hot water will be expelled for the ﬁrst few seconds.

This book contains all the necessary fitting and operating instructions for your electric shower.

Care taken during the installation will provide a long, trouble-free life from your shower.

PLEASE READ THE GENERAL GUIDANCE NOTES ON PAGE 22 & 23 BEFORE PROCEEDING.

Triton recommend watching the short online *videos that cover electric shower basics before your installation - *(videos may not show the exact model purchased).

• What is an electric shower?

• Electrical requirements for electric showers

• Plumbing requirements for electric showers

• Kilowatt ratings explained

To view these videos visit: www.tritonshowers.co.uk/triton-products/product-videos.aspx

PLEASE USE THE FOLLOWING CHECK LIST TO AID YOUR INSTALLATION

Tick off as

SECTION

Check that the water supply will satisfy requirements (page 2 & 6) .......................... 1

SECTION

Check that water & cable entry points of the unit meet requirements (page 3) ....... 2

SECTION

Check that the electric supply will satisfy requirements (page 4 - 5) ......................... 3

SECTION

Siting of the shower (page 6 - 7)..............................................................................

SECTION

Plumbing installation (page 8) ................................................................................. 5

SECTION

Electrical installation (page 8) .................................................................................. 6

SECTION

Fit to the wall & connect the shower supplies (page 9 - 11) ..................................... 7

SECTION

Fitting the cover (page 12 - 13) ............................................................................... 8

SECTION

ONLY Commission the shower in the way described (page 14) ........................... 9

SECTION

Familiarise yourself with the user operating instructions (page 15 - 17) .................... 10

you complete

CONTENTS Page

INTRODUCTION ....................................................................Inside cover

IMPORTANT SAFETY INFORMATION (please read) ..................Inside cover

Installation check list (please follow & complete) ....................... Inside cover

SPECIFICATIONS ............................................................................. 2

DIMENSIONS & CABLE/WATER ENTRY POINTS .............................. 3

ELECTRICAL REQUIREMENTS ....................................................... 4 - 5

INSTALLING THE SHOWER ................................................. 6 - 14

Siting of the shower ................................................................ 6 - 7

Plumbing installation .................................................................. 8

Electrical installation ................................................................... 8

Fit to the wall & connect shower supplies ............................... 9 - 11

Fitting the cover .................................................................... 12 - 13

COMMISSIONING PROCEDURE .........................................14

USER OPERATING INSTRUCTIONS ..................................... 15 - 17

Operating functions ................................................................... 16 - 17

Cleaning the filter - installers & service engineers only ................... 17

Fault finding/Troubleshooting .................................................... 18 - 19

Spare parts ................................................................................ 20 - 21

GENERAL GUIDANCE NOTES ......................................................... 22

GENERAL ADVICE TO USERS - CLEANING ADVICE ......................... 23

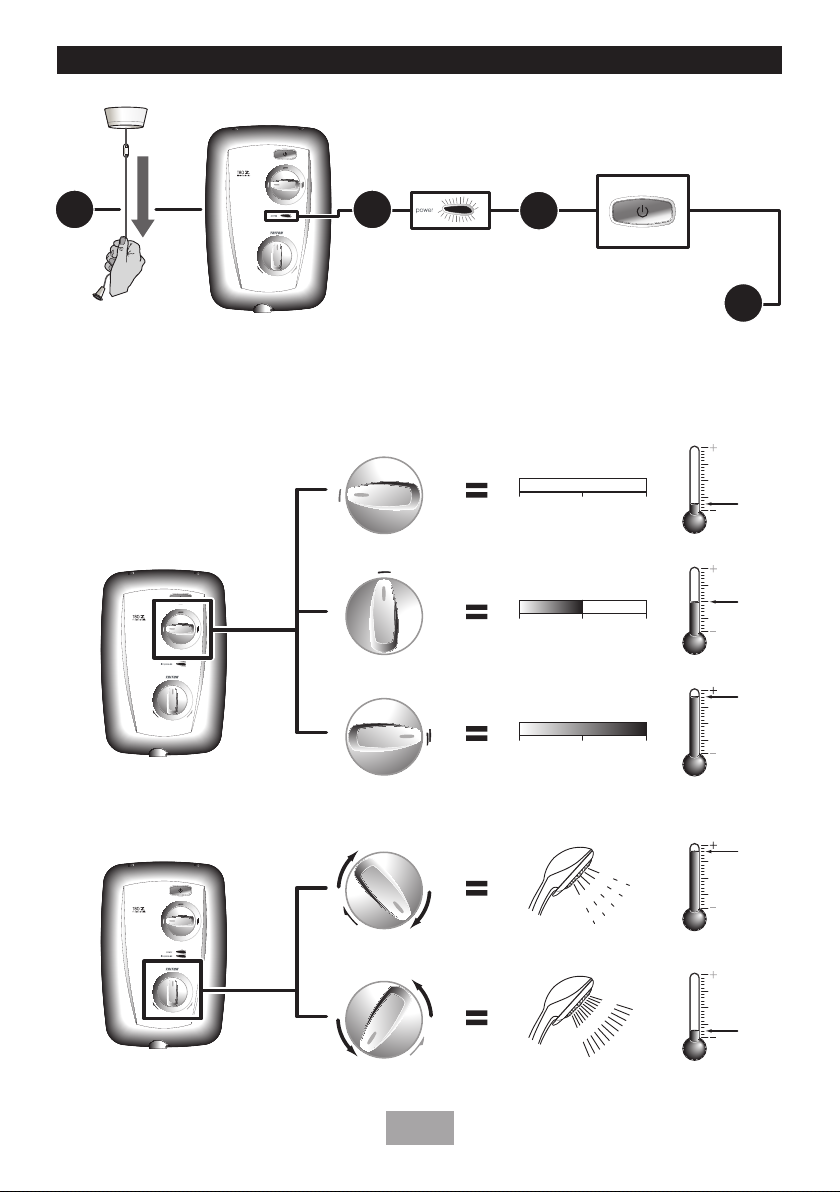

SHOWER CONTROLS - QUICK USER GUIDE ............... Inside rear cover

UK Service Policy/UK Guarantee .............................................. Rear cover

To check the product suitability for commercial and multiple installations, please contact Triton’s speciﬁcation advisory service before installation.

Telephone:

Facsimile:

0844 980 0730

0844 980 0744

E mail:

technical@tritonshowers.co.uk

SECTION

check list

Nominal power - rating at 240V Nominal power - rating at 230V

10.5kW – (45A MCB rating) 9.6kW – (45A MCB rating)

PLUMBING (see page 6 & 7 for water regulations)

Supply Source Mains pressure cold water only

SPECIFICATIONS

ELECTRICAL

Minimum running pressure and flow to the inlet of the shower for full performance

Maximum static pressure 1000 kPa (10 bar)

Maximum inlet temperature 28°C

Minimum inlet temperature 2°C

Inlet connection 15mm diameter

Outlet connection ½” BSP male thread

ABS Backplate, cover, controls, showerhead

Acetal Sprayplate

Minerally insulated corrosion resistant metal sheathing

STANDARDS and APPROVALS

Splashproof rating IPX4

Safety Complies with the requirements of current

BEAB Complies with requirements of the British

150kPa (1.5 bar) at 11 litres per minute for 10.5kW

MATERIALS

Elements

British and European safety standards for household and similar electrical appliances

Electrotechnical Approvals Board (BEAB)

CE Meets with Compliance with European

Community Directives (CE)

DIMENSIONS & ENTRY POINTS

check list

SECTION

Fig.1

Fig.2

214mm 98mm

DIMENSIONS

330mm

ENTRY POINTS

WATER

Left: Bottom, Back, Top & Side.

Right: Bottom, Back & Side.

CABLE

Left: Bottom, Back & Top.

Right: Bottom & Back.

PLEASE NOTE: Deviation from the

approved entry points will invalidate product specifications and warranty.

= Back

= Others

Meter

Incoming

supply

fuse

Meter

tails

Consumer

unit

Pull cord

isolating switch

Shower

unit

Fuse or

MCB

RCD

(can be part of

consumer unit)

80A or 100A

main switch

Shepperton Park,

Triton Road, Nuneaton,

Warwickshire, CV11 4NR

SECTION

check list

ELECTRICAL REQUIREMENTS

WARNING

THIS APPLIANCE MUST BE EARTHED

The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be sufﬁcient for the amperage required. The following notes are for guidance only:

1 The shower must only be connected to a

230-240V ac supply. If you are installing a shower with a kilowatt rating above 9kW, it is advisable to contact the local electricity supply company.

1.1 The electrical rating of the shower is shown on the rating label (Fig.3) within the unit.

2 Before making any sort of electrical

connection within the installation make sure that no terminal is live. If in any doubt, switch off the whole installation at the mains supply and remove the correct fuse.

3 The shower must be connected to its own

independent electrical circuit. IT MUST NOT be connected to a ring main, spur, socket outlet, lighting circuit or cooker circuit.

3.1 The electrical supply must be adequate for the loading of the unit and existing circuits.

4 Check your consumer unit (main fuse box)

has a main switch rating of 80A or above and that it has a spare fuse way which will take the fuse or Miniature Circuit Breaker (MCB) necessary for the shower (Fig.4).

4.1 If your consumer unit has a rating below 80A or if there is no spare fuse way, then the installation will not be straightforward and may require a new consumer unit serving the house or just the shower.

4.2 You will need to contact the local electricity company. They will check the supply and carry out what is necessary.

5 For close circuit protection DO NOT use a

rewireable fuse. Instead use a suitably rated Miniature Circuit Breaker (MCB) or cartridge fuse (see Table A).

5.1 A 30mA residual current device (RCD) must be installed in all UK electric and pumped shower circuits. This may be part of the consumer unit or a separate unit.

ELECTRICAL REQUIREMENTS

Fig.4

Schematic of installation circuit

Fig.3

MCB

30/32A

32A

40A

40/45A

45A

cartridge

fuse

30A

35A

45A

unit

rating

7.0kW

7.5kW

8.0kW

8.5kW

9.0kW

9.5kW

10.5kW

CIRCUIT PROTECTION

80A or if there is no spare fuse way, then the installation will not be straightforward and may require a new consumer unit serving the house or just the shower.

4.2 You will need to contact the local electricity

company. They will check the supply and carry out what is necessary.

5 For close circuit protection DO NOT use a

rewireable fuse. Instead use a suitably rated Miniature Circuit Breaker (MCB) or cartridge fuse (see Table A).

5.1 A 30mA residual current device (RCD) must

be installed in all UK electric and pumped shower circuits. This may be part of the consumer unit or a separate unit.

E-002-A

fuse (see Table A).

5.1 A 30mA residual current device (RCD) must

be installed in all UK electric and pumped shower circuits. This may be part of the consumer unit or a separate unit.

6 A 45 amp double pole isolating switch with

a minimum contact gap of 3 mm in both poles must be incorporated in the circuit.

6.1 It must have a mechanical indicator showing when the switch is in the OFF position, and the wiring must be connected to the switch without the use of a plug or socket outlet.

6.2 The switch must be accessible and clearly identiﬁable, but out of reach of a person using a ﬁxed bath or shower, except for the cord of a cord operated switch, and should be placed so that it is not possible to touch the switch body while standing in a bath or shower cubicle. It should be readily accessible to switch off after using the shower.

7 Where shower cubicles are located in any

rooms other than bathrooms, all socket outlets in those rooms must be protected by a 30mA RCD.

8 The current carrying capacity of the cable

must be at least that of the shower circuit protection (see Table B).

8.1 To obtain full advantage of the power provided by the shower, use the shortest cable route possible from the consumer unit to the shower.

8.2 It is also necessary to satisfy the disconnection time and thermal constraints which means that for any given combination of current demand, voltage drop and cable size, there is a maximum permissible circuit length.

9 The shower circuit should be separated from

other circuits by at least twice the diameter of the cable or conduit.

9.1 The current rating will be reduced if the cabling is bunched with others, surrounded by thermal loft or wall insulation or placed in areas where the ambient temperature is above 30°C. Under these conditions, derating factors apply and it is necessary to select a larger cable size.

Note: Cable selection is dependent on

derating factors

Twin and earth PVC insulated cable

Current carrying capacity

In conduit

trunking

6 mm²

38A

10 mm²

52A

16 mm²

69A

Installed in an insulated wall

6 mm²

35A

10 mm²

47A

16 mm²

63A

Clipped direct

or buried in a

non-insulated

wall

6 mm²

47A

10 mm²

64A

16 mm²

85A

6 A 45 amp double pole isolating switch with

a minimum contact gap of 3 mm in both poles must be incorporated in the circuit.

6.1 It must have a mechanical indicator showing when the switch is in the OFF position, and the wiring must be connected to the switch without the use of a plug or socket outlet.

7 Where shower cubicles are located in any

rooms other than bathrooms, all socket outlets in those rooms must be protected by a 30mA RCD.

8 The current carrying capacity of the cable

must be at least that of the shower circuit protection (see Table B).

8.1 To obtain full advantage of the power provided by the shower, use the shortest cable route possible from the consumer unit to the shower.

9 The shower circuit should be separated from

other circuits by at least twice the diameter of the cable or conduit.

E-002-A

Continued

Table A

Circuit Protection

Table B

9.2 In the majority of installations, the cable

will unavoidably be placed in one or more of the above conditions. This being so, it is strongly recommended to use a minimum of 10mm cabling throughout the shower installation.

9.3 In any event, it is essential that individual

site conditions are assessed by a competent electrician in order to determine the correct cable size and permissible circuit length.

SECTION

Isolating

stopvalve

Mains water supply

Shower unit

Mains electric supply

(via double pole switch)

Double

pole

isolating

switch

Separate permanently

connected supply

from consumer unit

SECTION

check list

Installation - SITING OF THE SHOWER

SITING OF THE SHOWER

The installation must be in accordance with Water Regulations/Bylaws - see page 2 for

water specifications

• If it is intended to operate the shower at

pressures above the maximum or below the minimum stated, contact Customer Service for advice.

• If the stated flow rates are not available,

it may not be possible to achieve optimum performance from the unit throughout the year.

• During periods of high ambient temperatures

it may be necessary to select the economy power setting to achieve your preferred shower temperature.

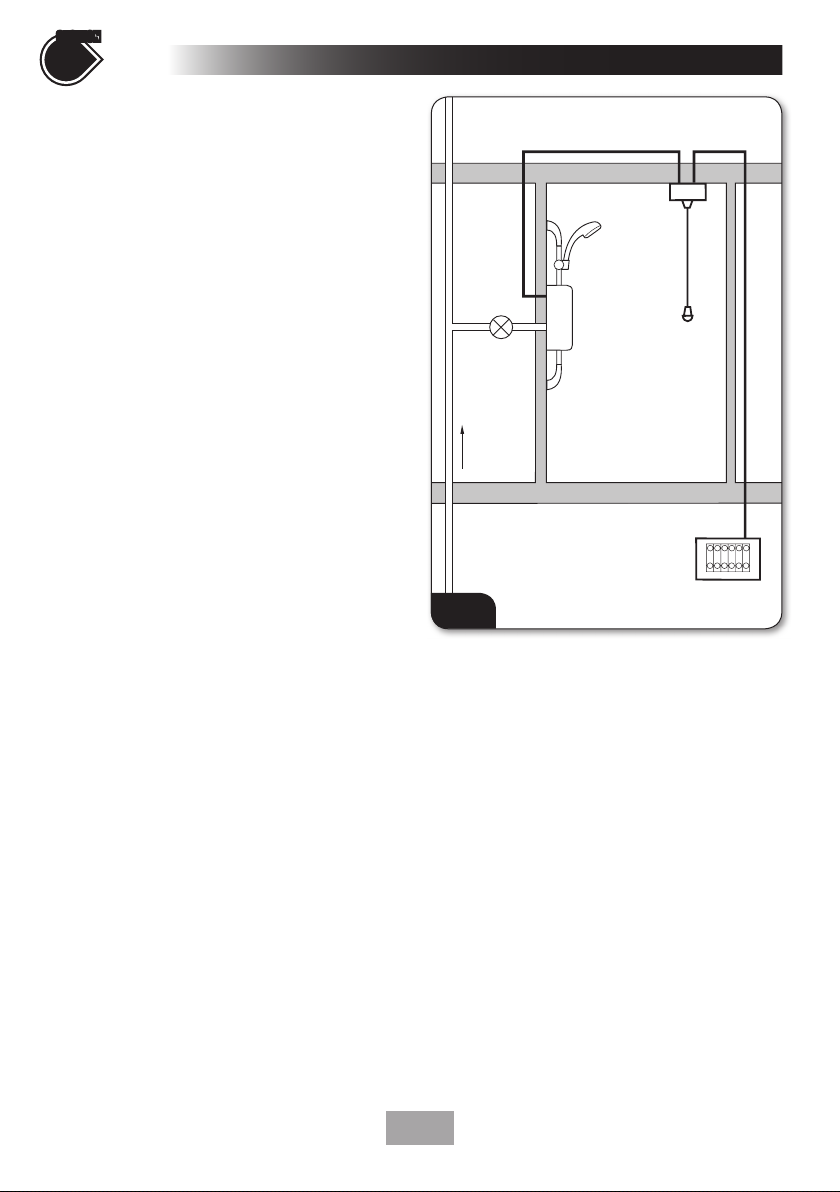

Fig.5 shows a typical system layout.

NOTE: The control knobs are an integral part of

the cover. Do not attempt to remove them.

• Lift the cover from the backplate.

• Refer to (fig.6) for the correct siting of

the shower. Position the unit where it will NOT be in direct contact with water from the showerhead. Position the shower unit vertically.

• Allow enough room between the ceiling and

the shower to access the cover top screws.

• Mark out entry points and routing of the

water and electric supplies into the shower.

Fig.5

Diagrammatic view (not to scale)

Continued

SECTION

IMPORTANT: Water regulations (fig.6)

• It is required that the showerhead be

‘constrained by a fixed or sliding attachment so that it can only discharge water at a point not less than 25mm above the spill-over level of the relevant bath, shower tray or other fixed appliance’.

• If the riser kit is supplied with a ‘soapdish

hose retainer’ or bespoke ‘hose retainer’, it will in most cases meet this requirement. If the showerhead can still be placed within a bath, basin or shower tray within the 25mm limit, then a double check valve, or similar,

MUST be fitted in the supply pipework to prevent back-flow.

Pressure relief safety device

• A pressure relief device (PRD) is designed

into the shower unit which complies with European standards. The PRD provides a level of appliance protection should an excessive build up of pressure occur within the shower.

DO NOT operate the shower with a damaged or kinked shower hose, or a blocked showerhead. This may cause the PRD to operate.

• When commissioning, the showerhead

must be removed from the flexible hose. Failure to follow this procedure may cause the PRD to operate.

• Make sure the shower is positioned over a

bath or shower tray. If the PRD operates, then water will eject from the bottom of the unit. Should this happen, turn off the electricity and water supplies to the shower at the isolating switch and stopvalve. Contact Customer Service for advice on replacing the PRD.

WARNING

The shower MUST NOT be

positioned where it will be

subjected to freezing conditions.

Shower unit can

be mounted either

side of riser rail

Height of showerhead and shower to suit user's requirement

Shower unit

25 mm minimum

Spillover

level

*Fig.6

Outline of bath

or shower tray

*(diagrammatic view – not to scale)

IMPORTANT: If installing onto a tiled wall, ALWAYS mount the unit on the surface of the tiles. NEVER tile up to the unit.

must not

be within

an area 1 metre

from base

IMPORTANT: The unit must be mounted on a flat surface which covers the full width and length of the backplate. It is important that the wall surface is flat otherwise difficulty may be encountered when fitting the cover and subsequent operation of the unit may be impaired.

SECTION

check list

Installation - PLUMBING INSTALLATION

IMPORTANT INFORMATION

The outlet of the shower acts as a vent

and must not be connected to anything

other than the hose and showerhead

supplied.

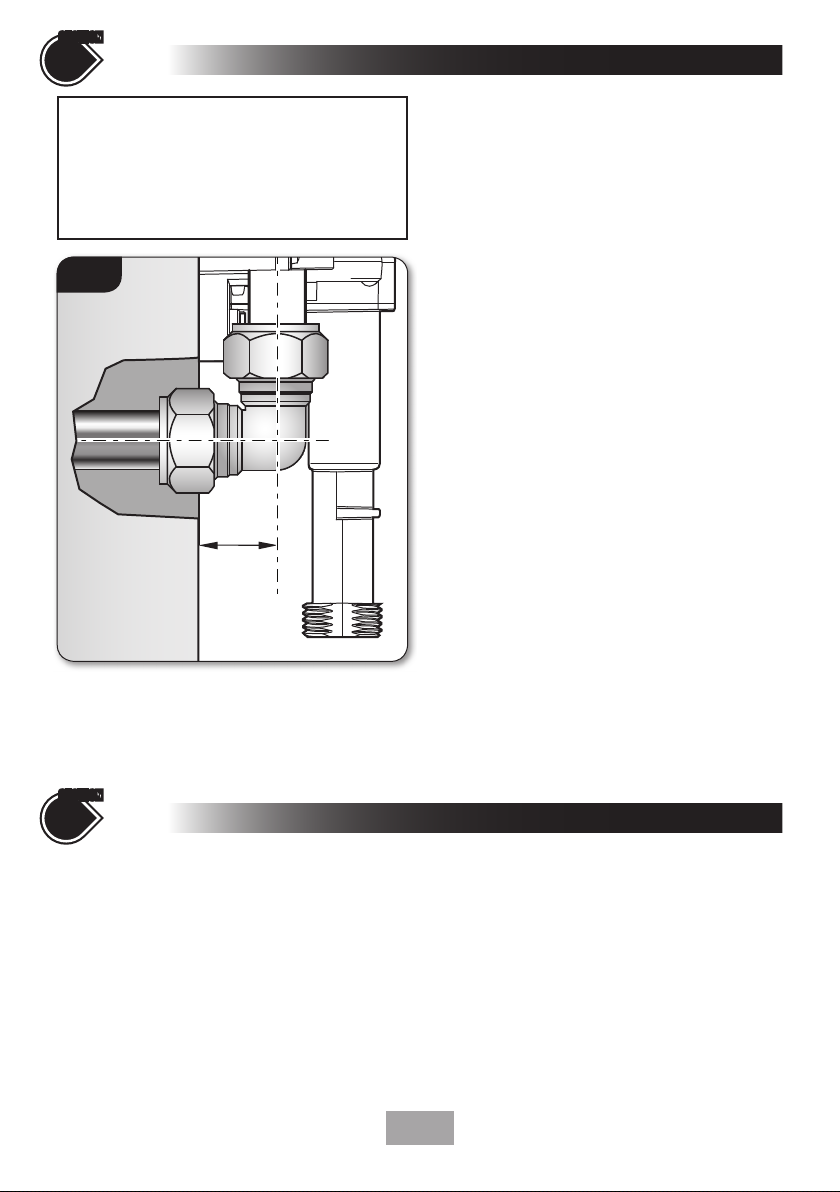

Fig.7

21mm

SECTION

check list

Installation - ELECTRICAL INSTALLATION

PLUMBING INSTALLATION

Plumbing to be carried out before wiring

• DO NOT use jointing compounds on any

pipe fittings for the installation.

• DO NOT solder fittings near the shower unit

as heat can transfer along the pipework and damage components.

• Compression fittings MUST be used to connect to the inlet of the shower (fig.7). (Push-on fittings must NOT be used as full engagement cannot be guaranteed).

• If installing a feed pipe from the back or

bottom, the centre of the inlet valve to the wall surface is 21mm (fig.7).

NOTE: If entry is from the back, the nut of the compression fitting will be partially behind the surface of the wall. This area MUST be left clear when plastering and tiling around the pipework in order to make the nut accessible for future adjustments.

NOTE: An additional stopvalve (complying with Water Regulations) must be fitted in the mains water supply to the shower as an independent means of isolating the water supply should maintenance or servicing be necessary.

IMPORTANT: Before completing the connection of the water supply to the inlet of the shower, flush out the pipework to remove all swarf and system debris. This can be achieved by connecting a hose to the pipework and turning on the mains water supply long enough to clear the debris to waste.

ELECTRICAL INSTALLATION

IMPORTANT: Switch off the electricity supply at the mains before proceeding.

• The supply cable MUST be secured either by

routing through conduit, in trunking, or by embedding in the wall, in accordance with IEE regulations.

NOTE: Conduit entry can only be from rear.

NOTE: Deviations from the designated entry

points will invalidate product approvals. The cable entry points are listed on page 3.

• Seal around rear entry cable to prevent water

ingress into the wall.

Installation -

FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES

check list

SECTION

FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES

Pipe/Electrical access points - (fig.8)

The two shower trimplates have been designed with four ‘cut out’ bottom pipe access points, two of which may be used for electrical cable access.

Only the two labelled as ‘Electrical entry Cut outs’ are approved electrical entry ‘cut out’ sections on either trimplate.

The backplate has a removable top trim that can be used for either electrical or pipe entry.

The cover has two small sections that may be removed if a side pipe entry is required.

• Decide which entry points are to be used for the water pipe entry and electrical cable entry.

• Once chosen, remove either the appropriate trim, or if ‘cut outs’ have been chosen, remove them using a junior hacksaw, file or appropriate knife.

PLEASE NOTE: NONE of the 'cut outs' are

designed to 'snap out'. ONLY a junior hacksaw, file,

or suitable knife should be used. Excessive damage

to the backplate or lower trimplate outside the

prescribed areas marked in (fig.8) may invalidate

product specifications and warranty.

Fig.8

Top pipe/electric entry point trim

Electrical entry "Cut outs"

Fitting Procedure - using the template

NOTE: The fitting template should be used when existing pipework or electrical cable connections are not available - an example of which would be a ‘new build’ house.

• After choosing the site for the shower, use

the fitting template supplied to mark the two fixing holes and establish pipe and electric entry points.

Fitting Procedure - replacing an existing shower

• Turn off water supply either at the mains

stopvalve or the isolating stopvalve.

"Cut out" access points - Water

"Cut out" water access points - cover

SECTION

Continued

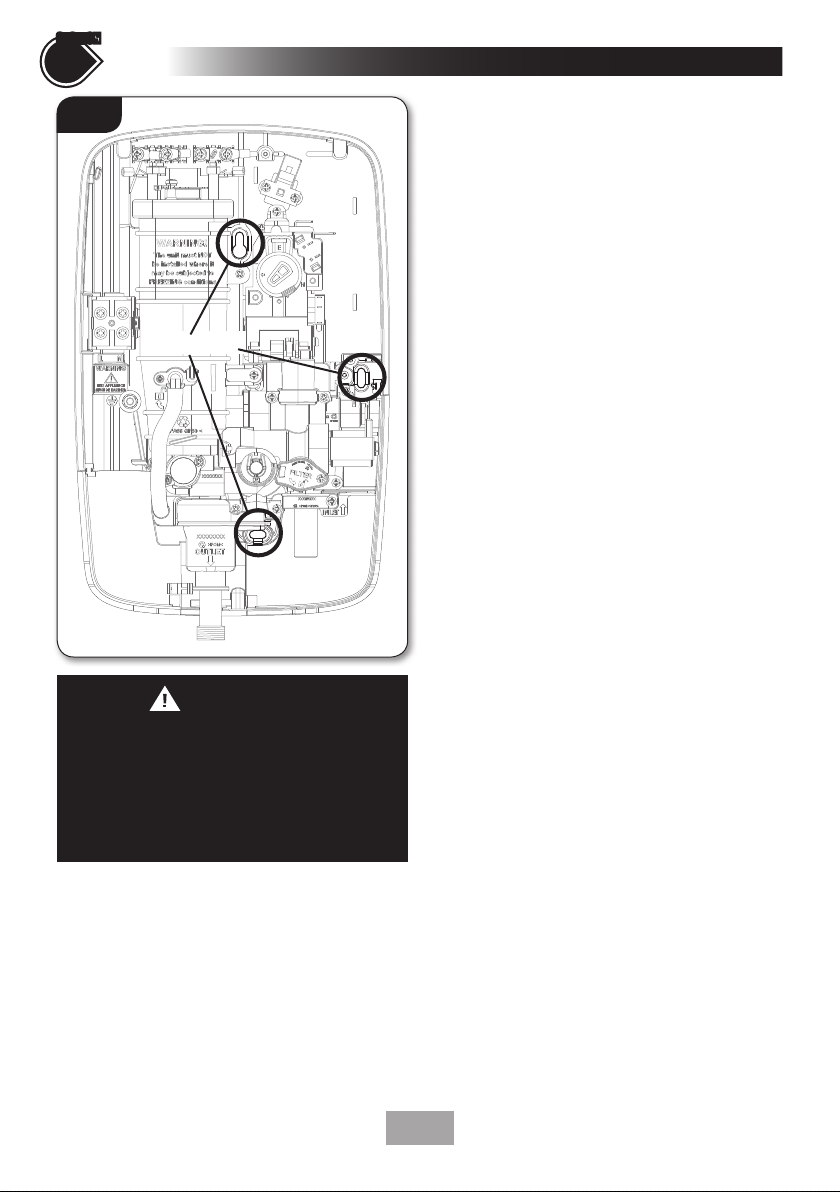

Fig.9

Fixing holes

WARNING

Check there are no hidden cables or

pipes before drilling holes for wall plugs.

Use great care when using power tools near

water. The use of a residual current device

(RCD) is recommended when

using power tools.

• Temporarily connect the mains water supply

to the inlet of the shower using a 15mm x 15mm compression fitting.

• Use the backplate as a template making sure

it is level and mark the fixing holes (fig.9). The top and one of the bottom two fixing holes should be sufficient to hold the shower.

• Remove the unit from the wall. Drill and

plug the wall.

(An appropriate drill bit should be used. If the

wall is plasterboard or a soft building block, appropriate wall plugs should be fitted).

• Screw the top fixing screw into position

leaving the base of the screw head protruding 6mm out from the wall.

• Hook the backplate over the top screw and

fit the bottom fixing screws into position, but DO NOT fully tighten the screws at this stage. The fixing holes are elongated to allow for out of square adjustment after the plumbing connection has been completed.

• Connect the mains water supply to the inlet

DO NOT use excessive force when making the connection.

• Make sure the backplate is square on the

wall and tighten the retaining screws which hold it to the wall.

• Turn on the mains water supply and check

for leaks in the pipework connection to the shower.

NOTE: At this stage no water can flow through the unit.

IMPORTANT: A suitable sealant should always be used to seal around the incoming pipework to prevent water entering the wall.

Continued

SECTION

• Route the cable into the shower unit for

connection to the terminal block (fig.10) as follows:

Earth cable to terminal marked

Neutral cable to terminal marked N

Live cable to terminal marked L

• Once the cables have been installed the two

trimplates will need to be fitted.

• (fig.11) shows a schematic wiring diagram.

IMPORTANT: When connecting the cable fully

tighten the terminal block screws and make sure that no cable insulation is trapped under the screws. Loose connections can result in cable overheating.

NOTE: The supply cable earth conductor must be sleeved. The outer sheath of the supply cable must be stripped back to the minimum.

• The use of connections within the unit or

other points in the shower circuit to supply power to other equipment i.e. extractor fans, pumps etc. will invalidate the guarantee.

• DO NOT switch on the electricity supply

until the shower cover has been fitted.

NOTE: The elements on UK models are to 240V specification and will give a lower kW rating if the voltage supply is below 240V.

Fig.10

Terminal block

Earth post

outlet

Terminal block

Start/Stop switch

Power selector Microswitch

Solenoid valve

Thermal cut-out (main)

Neon - power

T00404

inlet

Element

Earth

Neon - low pressure

10.

Low pressure microswitch

910

Fig.11

SECTION

check list

Installation - FITTING THE COVER

FITTING THE COVER

Figures 12, 13, 14 and 15 show the correct control knob position when replacing the cover.

• Check to ensure that the wiring is not trapped and replace the cover squarely to the backplate

and guide into position so that the knobs locate correctly into the splined spindles.

• Should any difficulty arise, recheck the points above.

• While applying slight pressure to the cover, secure in position with the retaining screws.

• Fit the Riser Rail and Kit (see kit instructions).

A. With the cover off the

shower - turn the POWER

selector spindle until the arrow is at the 9 o’clock position (fig.12).

Arrow pointing

at 9 o’clock

Fig.14

B. With the cover off the

shower - turn the stabiliser valve spindle fully clockwise until resistance is felt (fig.13).

Stabiliser

valve

Fig.15

C. With the cover off the

shower - turn the power selector to the COLD position (fig.14).

Fig.16

D. With the cover off

the shower - turn the temperature control fully clockwise to the 5 o’clock position (fig.15).

Fig.17

Continued

SECTION

• Offer the cover to the unit.

• The neon with the Brown wires should be

clipped into the top part of the holder, and the neon with the Blue wires should be clipped into the bottom part of the holder (fig.16).

• Carefully guide the cover onto the backplate making sure the wires are not trapped.

NOTE: DO NOT remove the cable tie in this unit.

• Guide the cover into position so that the knob spindles locate correctly (minor adjustment may be necessary to align the knobs and spindles).

• Should any difficulty arise, re check the points above.

• While applying slight pressure to the front cover, secure in place using the three retaining screws.

Fig.16

Brown wires - ﬁ t

into top of holder

Neon holder

Blue wires - ﬁ t

into bottom of holder

SECTION

check list

COMMISSIONING

!! IMPORTANT !!

Fig.17

Start/Stop

button

Power selector to COLD

Temperature control - Turn fully clockwise to ‘MINIMUM ﬂ ow

Temperature control - Turn fully anti-clockwise to MAXIMUM

ﬂ o w

Fig.18

WARNING

Before normal operation of the shower, it

is essential the following commissioning

procedure is completed correctly.

COMMISSIONING PROCEDURE

The first operation of the shower is intended to flush out any remaining unit debris, and to make sure the heater unit contains water before the elements are switched on.

This operation MUST be carried out WITH the flexible hose screwed to the outlet but WITHOUT THE SHOWERHEAD ATTACHED. Make sure the outlet of the flexible hose is directed to waste.

IMPORTANT: Failure to turn the control to the minimum flow position MAY cause the PRD to operate.

1. Before turning on the electric and mains

water supplies to the shower, make sure that the power selector is at the ‘COLD‘ position and the temperature control is turned to fully clockwise to ‘MINIMUM’ flow (fig.17).

2. Turn on the mains water supply to the shower

at the isolating stopvalve and then turn on the electric supply to the shower at the isolating switch.

3. Press the Start/Stop button (fig.17) and

wait until water starts to flow from the flexible hose.

4. Slowly rotate the temperature control fully anti-clockwise to the MAXIMUM flow

position (fig.18). It will take about thirty seconds for a smooth flow of water to be obtained while air and any debris is flushed from the shower.

• When a smooth flow of water is obtained,

rotate the temperature control from MINIMUM to MAXIMUM several times to release any trapped air within the unit.

• Once flushing out has been completed, stop

the water flow by pressing the Start/Stop button.

• Fit the showerhead to the flexible hose and

place in the showerhead holder.

The shower is now ready for normal operation.

USER OPERATING INSTRUCTIONS

check list

SECTION

OPERATING THE SHOWER - (fig.19)

Make sure the commissioning procedure has been carried out.

To start the shower

• Press the Start/Stop button and water will flow.

To stop the shower

• Press the Start/Stop button and water will

cease to flow.

• After stopping the unit MUST be isolated via

the 45amp isolating switch.

WARNING

If restarting immediately after stopping,

be aware that a slug of hot water will be

expelled for the first few seconds.

To use the power selector

The power selector has three positions - COLD, ECONOMY and HIGH.

Cold setting - single blue line.

• Cold: the cold setting does not provide any

heat from the heater can to the incoming water.

Economy setting - single red line.

• Economy: uses only one of the elements

within the heater can.

NOTE: If the stated flow rate required for the unit cannot be met due to low water pressure, it will be necessary to operate the unit on this setting during the warmer months because of flow rate limitations entering the unit.

High Setting - double red lines.

• High: uses both of the elements within the

heater can.

IMPORTANT: it will take a few seconds for the temperature to stabilise once changes have been made.

Fig.19

Start/Stop

Power selector

HOTTER

button

Cold

Economy

High

COLDER

Temperature control

SECTION

Continued

Fig.20

Power on indicator

Low pressure indicator

To adjust the shower temperature Economy and High settings only

• The water temperature is altered by increasing

or decreasing the flow rate of the water through the shower via the temperature control (ﬁ g.19).

• After obtaining your showering temperature,

the knob can be left as the normal setting and should only need altering to compensate for seasonal changes in ambient water temperature.

NOTE: The preferred knob position on ECONOMY will give a different temperature to the same position on HIGH.

To decrease the shower temperature

• Turn the temperature control anti-clockwise

- this will increase the flow of water through the shower and make the water colder.

To increase the shower temperature

• Turn the temperature control clockwise - this will decrease the flow of water through the shower and make the water hotter.

NOTE: It is advisable that the showering temperature is satisfactory by testing with your hand before stepping under the showerhead. There will always be a time delay of a few seconds between selecting a flow rate and the water reaching the stable temperature for that flow rate.

NOTE: In normal use, it is in order to leave the water supply permanently on to the shower unit, but as with most electrical appliances, the

unit MUST be switched off at the isolating switch when not in use.

OPERATING FUNCTIONS

Power on indicator (ﬁ g.20)

When the electricity supply to the shower is switched on at the isolating switch, the neon in the START/STOP button will illuminate.

TP – Temperature Protection

During normal operation if the temperature exceeds the showering safety limit the power to the elements will be removed completely, although water will continue to flow. When the temperature has cooled sufficiently, power to the elements will be automatically restored to the settings at the time of interruption.

Abnormal Safety cut-out

The unit is fitted with a non-resettable thermal cut-out safety device. In the event of abnormal operation which could cause unsafe temperatures within the unit, the device will disconnect the heating elements. It will require a visit from a qualified engineer to determine the nature of the fault and replace the safety device, once the unit has been repaired.

Low pressure indicator (ﬁ g.20)

If this indicator is on, this means the water pressure has fallen below the minimum required for correct operation of the shower, resulting in the low pressure cut-out operating. This switches off power to the heating elements preventing any undue temperature rises (water will continue to flow). Power will automatically be restored when adequate water pressure returns.

INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY

Instructions for installers and service engineers only

CLEANING THE FILTER

It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by a competent person.

IMPORTANT: Before servicing, switch off the electricity supply at the mains.

• Switch off the water supply at the isolator valve.

• The inlet filter is situated inside the water inlet

fitting (ﬁ g.21).

• To gain access to the filter remove the cover.

• Remove the retaining screw.

• Turn the filter fitting anti-clockwise and

remove from the housing.

• Inspect the ‘O’ ring for damage when the

filter is removed.

• When cleaning the filter, DO NOT use a sharp

object, as it will cause damage. It is preferable to use an old toothbrush or similar.

• To reassemble, follow the procedure in reverse.

• Make sure that the sealing ‘O’ ring is in place

and DO NOT over tighten the retaining screw on reassembly.

Full commissioning procedure will need to be

performed after cleaning of the filter - see page

14 for information on commissioning procedure.

WARNING

Continued

Retaining screw

SECTION

Fig.21

FAULT FINDING

FAULT FINDING/TROUBLESHOOTING

Important: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault ﬁnding inside the unit.

Problem/Symptom Cause

1 Shower inoperable,

no water flow.

2 Water too hot. 2.1 Not enough water

3 Water temperature

cycling hot/cool at intervals.

4 Water too cool

or cold.

1.1 Interrupted power

supply.

1.2 No mains water

supply to shower.

1.3 Unit malfunction. 1.3.1 Have unit checked. Ring Customer Service.

flowing through the shower.

2.2 Blockage in supply. 2.2.1 Check if stop valves are fully open.

2.3 Increase in ambient

water temperature.

3.1 Heater cycling on

thermal cut-out.

4.1 Too much flow. 4.1.1 Reduce flow rate via temperature control.

4.2 Water pressure below

minimum required

(see rating label).

Action/Cure

1.1.1 Blown fuse or circuit breaker. Check supply

Renew or reset fuse or circuit breaker. If it fails again, consult a qualified electrician.

1.1.2 Power cut? Check other appliances and if

necessary, contact local Electricity Supply Company.

1.2.1 Check if isolating valves are fully open. Check

for a blockage in inlet filter or in pipework.

2.1.1 Increase flow rate via temperature control.

2.1.2 Blocked showerhead — clean or replace

blocked sprayplate in showerhead.

Check if a blockage in the inlet filter.

2.3.1 Readjust flow rate to give increased flow.

2.3.2 Select ‘economy’ power.

3.1.1 See ‘Water too hot’ causes 2.1, 2.2 and 2.3 and

their appropriate action/cures. If it continues, contact Customer Service.

4.2.1 Is water supply mains or tank fed?

4.2.2 If tank fed, replumb to mains water supply or

see 4.2.4.

4.2.3 If mains fed, make sure that mains stopvalve

is fully open and that there are no other restrictions in the supply while shower is in use, or see 4.2.4.

4.2.4 Fit pump to give minimum pressure (see rating

label). Contact Customer Service for advice.

FAULT FINDING/TROUBLESHOOTING

FAULT FINDING

Important: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault ﬁnding inside the unit.

Problem/Symptom Cause

4 Water too cool

or cold - continued

5 Shower varies from

normal temperature to cold during use.

6 Pressure relief device

has operated (water ejected from PRD tube).

7 Shower fails to shut off

flow when Start/Stop button is pressed.

4.3 Reduction in ambient

water temperature.

4.4 Electrical malfunction

or safety cut-out operated.

5.1 Water pressure has

dropped below minimum required.

6.1 Blocked showerhead. 6.1.1 Clean or replace blocked sprayplate in

6.2 Twisted/blocked

flexible shower hose.

6.3 Showerhead not

removed while commissioning.

6.4 Water pressure above

specified maximum for unit (see rating label).

7.1 Faulty Start/Stop

switch.

7.2 Debris in solenoid

valve.

7.3 Unit malfunction. 7.3.1 Have unit checked. Ring Customer Service.

Action/Cure

4.3.1 Readjust flow rate to give reduced flow.

4.3.2 Select ‘high’ power.

4.4.1 Have unit checked by suitably qualified

electrician or contact Customer Service.

5.1.1 Wait until the water pressure resumes to

normal.

showerhead and then fit new PRD.

6.2.1 Check for free passage through hose. Replace

the hose if necessary and fit new PRD.

6.3.1 Fit new PRD. Commission unit with

showerhead removed.

6.3.1 Fit pressure reducing valve to inlet and then fit

new PRD.

7.1.1 Replace switch.

7.2.1 Replace solenoid valve.

NOTE: Identify cause of operation before fitting new PRD unit.

When fitting a new PRD, follow the commissioning procedure.

It is advised all electrical maintenance/repairs to the shower

should be carried out by a suitably qualified person.

In the unlikely event of a fault occurring please contact Triton Customer Service.

DO NOT remove the shower from the installation.

SPARE PARTS

Images are for reference only - due to continual development, supplied spares may have modified appearance

SPARE PARTS

Ref. Description Part No.

1. Top can TCO .............................................22012810

2. Inlet valve assembly

10.5kW ......................................................S82100342

3. * Can & Element Assembly ........................83314600

4. * Solenoid Valve .........................................P26810801

including inlet ﬁlter

5. Selector & pressure Switch ........................83314850

6. * Thermostatic ...........................................S82600832

valve assembly

7. Pressure relief device (PRD) ........................82800450

8. Terminal block & wires ..............................S82201210

inc Start/Stop switch

9. Microswitch X2 ..........................................83314890

10. Water inlet .................................................7054085

11. Water Outlet ..............................................P27510800

12. Top pipe/cable trim (top left)

Black ..........................................................7054197

13. Bottom trimplate (left)

Black ..........................................................7054195

14. Bottom trimplate (right)

Black ..........................................................7054196

15. Front cover assembly

Chrome .....................................................P27510601

SPECIAL TOOL..................................... 83314530

*PLEASE NOTE: Items marked with ‘*’ require special tool 83314530 to install these parts.

Failure to purchase/use this tool MAY result in the breakage of existing installed shower components or purchased spares. Resulting damage MAY invalidate the product warranty and WILL prevent any purchased spares items from being returned for a refund.

Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations.

WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out before using.

the unit because of an incorrectly ﬁtted cover.

WARNING: If restarting the shower immediately after stopping, be aware that a slug of hot water will be expelled for the ﬁrst few seconds.

PLEASE READ THIS IMPORTANT SAFETY INFORMATION

IMPORTANT - GENERAL GUIDANCE NOTES

1 GENERAL

1.1 Isolate the electrical and water supplies before

removing the cover.

1.2 Read all of these instructions and retain them

for later use.

1.3 DO NOT take risks with plumbing or electrical

equipment.

1.4 Isolate electrical and water supplies before

proceeding with the installation.

1.5 The unit must be mounted onto the ﬁnished

wall surface (on top of the tiles). DO NOT tile up to or seal around ANY PART of the unit using silicone sealer after ﬁxing to the wall. Special care must be taken NOT TO BLOCK OR SEAL ANY PRD VENTS ON THE UNIT.

1.6 Contact Customer Service (see back page), if

any of the following occur:

a) If it is intended to operate the shower at

pressures above the maximum or below the minimum stated.

b) If the unit shows a distinct change in

performance.

c) If the shower is frozen.

1.7 If it is intended to operate the shower in areas

of hard water (above 200 ppm temporary hardness), a scale inhibitor may have to be ﬁtted. For advice on the Scale Inhibitor, contact Customer Service.

1.8 The showerhead must be cleaned regularly

with descalent to remove scale and debris, otherwise restrictions to the ﬂow on the outlet of the unit will result in higher temperatures and could also cause the (PRD) Pressure Relief Device in the unit to operate.

1.9 This product is not suitable for mounting into

steam rooms or steam cubicles.

2 PLUMBING

2.1 The plumbing installation must comply with

Water Regulations, Building Regulations or any particular regulations as speciﬁed by Local Water Company or Water Undertakers and should be in accordance with BS 6700.

2.2 The supply pipe must be ﬂushed to clear debris before connecting to the shower unit.

2.3 DO NOT solder pipes or ﬁttings within 300mm of the shower unit, as heat can transfer along the pipework and damage components.

2.4 DO NOT ﬁt any form of outlet ﬂow control as the outlet acts as a vent for the heater can.

2.5 DO NOT use excessive force when making connections to the ﬂexible hose or showerhead, ﬁnger tight is sufﬁcient.

2.6 All plumbing connections must be completed before making the electrical connections.

3 ELECTRICAL

3.1 The installation must comply with BS 7671

‘Requirements for electrical installations’ (IEE wiring regulations), building regulations or any particular regulations as speciﬁed by the local Electrical Supply Company.

3.2 This appliance MUST be earthed.

3.3 In accordance with ‘The Plugs and Sockets etc.

(Safety) Regulations 1994’, this appliance is intended to be permanently connected to the ﬁxed wiring of the electrical mains system.

3.4 Make sure all electrical connections are tight to prevent overheating.

3.5 A 30mA residual current device (RCD) MUST be installed in all UK electric and pumped shower circuits. This may be part of the consumer unit or a separate unit.

3.6 Switch off immediately at isolating switch if water ceases to ﬂow during use.

3.7 Other electrical equipment i.e. extractor fans, pumps must not be connected to the circuits within the unit.

3.8 Switch off at isolating switch when not in use. This is a safety procedure recommended with all electrical appliances.

3.9 As with all electrical appliances it is recommended to have the shower and installation checked at least every two years by a competent electrician to ensure there is no deterioration due to age and usage.

WARNING

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

GENERAL ADVICE TO USERS

The following points will help you understand how the shower operates:

a. The electric heating elements operate at a

constant rate at your chosen power setting. It is the rate of the water passing through the heater can which determines the water temperature. (The slower the flow, the hotter the water becomes; the faster the flow, the cooler the water).

b. During winter, the mains water supply will be

cooler than in the summer. The flow rate will vary between seasons at any one temperature setting. At different times of the year you may have to adjust the position of the temperature control to maintain your desired temperature setting.

c. The stabiliser valve minimises variations in

shower temperature during mains water pressure changes. If changes in shower temperature are experienced during normal use, it will most likely be caused by the water pressure falling near to or below the minimum level. The drop in pressure may be due to water being drawn off at other points in the house whilst the shower is in use. If pressure drops appreciably below the minimum, the heating elements will automatically cut out.

NOTE: If ever the water becomes too hot and you cannot obtain cooler water, first check that the sprayplate in the showerhead has not become blocked.

DO NOT place items such as soap or shampoo bottles on top of the unit. Liquid could seep through the joint between the cover and backplate.

IMPORTANT ADVICE TO USERS

COMISSIONING ADVICE

When first installed the unit will be empty.

It is essential the unit should contain water

before the elements are switched on. It is

vital that the commissioning procedure

is followed. Failure to carry out this

operation will result in damage to the unit

and will invalidate the guarantee.

ADVISORY - CLEANING

It is recommended that all products

are cleaned using warm, soapy water.

DO NOT use abrasive or aggressive

chemical cleaning products as this may

affect the product surface ﬁnish and

invalidate your guarantee.

2425262728

SHOWER CONTROLS - QUICK USER GUIDE

To START or STOP your shower.

To start the shower,

The power light

will illuminate.

press the Start/Stop button.

Turn the

main power

isolator switch ON

Power

Knob setting

To STOP the shower - press the Start/Stop button, then turn the isolator switch OFF.

To alter the Power and Temperature of your shower.

COLD

HEATER ELEMENTS USED

0 1 2

NONE OF THE ELEMENTS USED

ECONOMY

HEATER ELEMENTS USED

0 1 2

1 OF THE ELEMENTS USED

HIGH

HEATER ELEMENTS USED

0 1 2

2 OF THE ELEMENTS USED

HOT

COLD

HOT

COLD

HOT

COLD

Temperature

Knob setting

HOTTER (slower flow)

COLDER (faster flow)

HOT

COLD

HOT

COLD

UK SERVICE POLICY

In the event of a product fault or complaint occurring, the following procedure should be followed:

1. Telephone Customer Service on 0844 980 0750 having

available, your details including post code, the model number and power rating of the product, together with the date of purchase and, where applicable, details of the particular fault.

2. If required, the Customer Service Advisor will arrange

for a qualified engineer to call.

3. All products attended to by a Triton service engineer must

be installed in full accordance with the Triton installation guide applicable to the product. (Every product pack contains

an installation guide, however, they can also be bought via our Customer Service Spares Department).

4. Our engineer will require local parking and if a permit is required

this must be available to the engineer on arrival at the call.

5. It is essential that you or an appointed representative (who must

be over 18 years of age) is present for the duration of the service

engineer's visit. If the product is in guarantee you must produce proof of purchase.

6. Where a call under the terms of guarantee has been booked and

the failure is not product related (i.e. scaling and furring, incorrect

water pressure, pressure relief device operation or electrical/plumbing installation fault) a charge will be made. A charge will also be

issued if nobody is at home when the service engineer calls or adequate parking/permit is not available.

7. If the product is no longer covered by the guarantee an up front

fixed fee will be charged before the site visit.

8. Should proof of purchase not be available on an “in-guarantee”

call, or should the service engineer find that the product is no longer under guarantee, the engineer will charge the same fixed price and the customer will be expected to pay the engineer before he leaves. If payment is not made on the day an administration charge will be added to the fixed charge.

9. If a debt is outstanding from a previous visit, or from any other

Triton purchase. Triton reserves the right to withhold service until the debt has been settled.

10. Triton takes the health, safety and wellbeing of its employees very

seriously and expects customers to treat all staff members with respect. Should any employee feel threatened or receive abuse, either verbally or physically, Triton reserves the right to withhold service and will support the employee with a legal prosecution.

Replacement Parts Policy

Availability: It is the policy of the manufacturer to maintain parts availability for the duration of production and a period of five years thereafter, in accordance with industry standards.

Spare parts are available via our website, www.tritonshowers. co.uk, or by telephoning Triton Customer Service Spares Department. Payment should be made by credit/debit card (excluding American Express or Diners Card).

Payment can also be made by pre-payment of a pro forma invoice by cheque or money order.

Triton Showers Triton Road Nuneaton Warwickshire CV11 4NR

Triton is a division of Norcros Group (Holdings) Limited

TRITON STANDARD GUARANTEE

Triton guarantee this product against all mechanical and electrical defects arising from faulty workmanship or materials for a period of two years for domestic use only, from the date of purchase, provided that it has been installed by a competent person in full accordance with the fitting instructions.

Any part found to be defective during this guarantee period we undertake to repair or replace at our option without charge so long as it has been properly maintained and operated in accordance with the operating instructions, and has not been subject to misuse or damage.

This product must not be taken apart, modified or repaired except by a person authorised by Triton. This guarantee applies only to products installed within the United Kingdom and does not apply to products used commercially. This guarantee does not affect your statutory rights.

What is not covered:

1. Breakdown due to: a) use other than domestic

use by you or your resident family; b) wilful act or neglect; c) any malfunction resulting from the incorrect use or quality of electricity, gas or water or incorrect setting of controls; d) failure to install in accordance with this installation guide.

2. Repair costs for damage caused by foreign

objects or substances.

3. Total loss of the product due to non-availability

of parts.

4. Compensation for loss of use of the product or

consequential loss of any kind.

5. Call out charges where no fault has been found

with the appliance.

6. Call out charges where the water supply cannot

be isolated, this includes consequential losses arising from unserviceable supply valves.

7. The cost of repair or replacement of pressure

relief devices, showerheads, hoses, riser rails and/or wall brackets, isolating switches, electrical cable, fuses and/or circuit breakers or any other accessories installed at the same time.

8. The cost of routine maintenance, adjustments,

overhaul modifications or loss or damage arising therefrom, including the cost of repairing damage, breakdown, malfunction caused by corrosion, furring, pipe scaling, limescale, system debris or frost.

E-mail: serviceenquiries@tritonshowers.co.uk

Customer Service: % 0844 980 0750

Trade Installer Hotline:

www.tritonshowers.co.uk

0844 980 0730

0844 980 0744

Fax:

Extended Warranty AVAILABLE NOW. Call 0844 980 0740 for more details.

11-7-2011

Triton Plc SP8009ZTHM, SP8008ZTHM Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
