Page 1

Betriebsanleitung

BT1D7008

DVD/VCD/CD/MP3/MP4/USB/SD/MMC PLAYER

FM/AM TUNER • Bluetooth-Unterstützung

Page 2

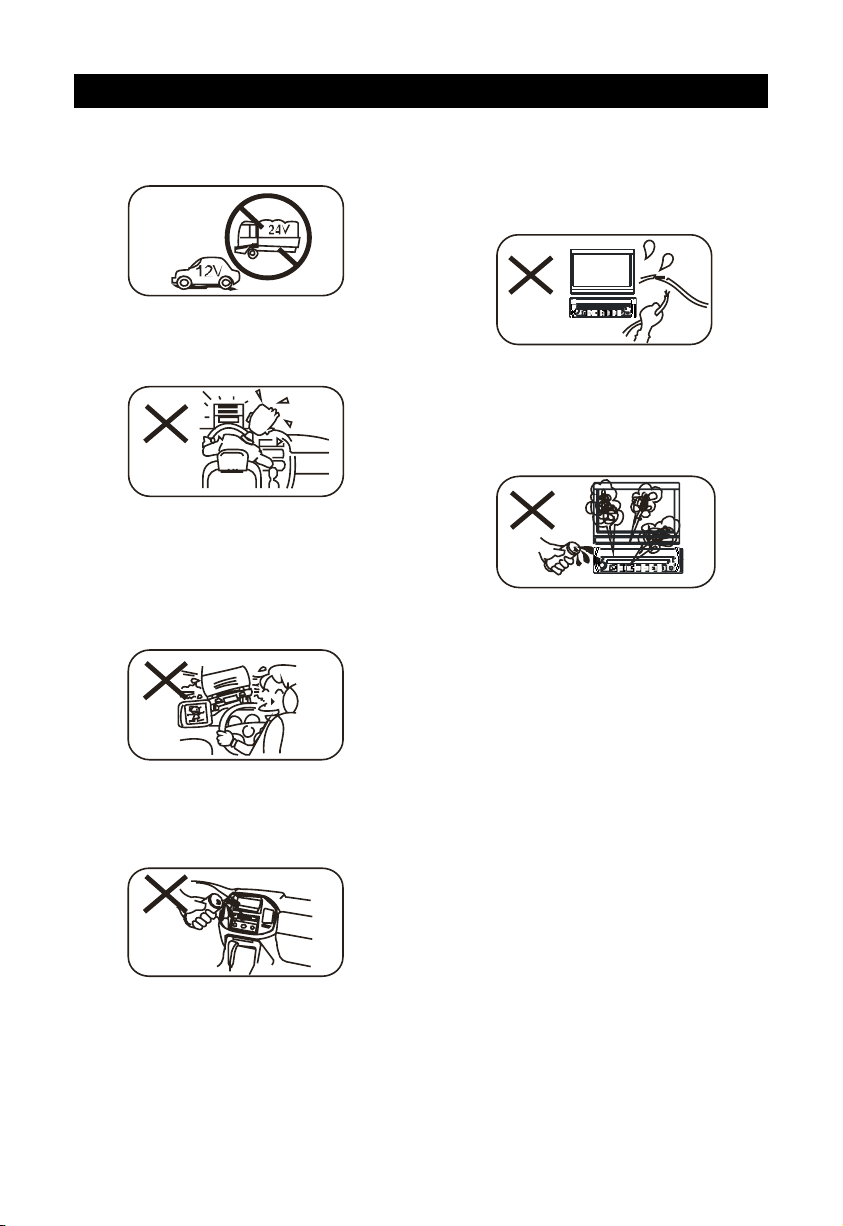

Warnings

1. Only connect this unit to a 12V DC power supply with negative grounding.

2. Never install this unit where the operation for safety driving is restrained.

3. Never use the video display function in the front when driving to prevent the violation of laws & regulations and also to reduce

the risk of trafc accident except using the

rear view video camera.

4. Never expose this unit, amplier, speakers

to moisture or water to prevent electronic

sparks or res.

5. Please don't change the fuse in the power

cord without professional guidance,

improper fuse may cause damage to this

using unit or even cause re.

6. Please power off this unit at once and send it back to the after-sales service center or the dealer / distributor you purchased from if one of the following symptoms is found:

(a) No audio output; (b) No image output; (c) Water or other obstacle enters the unit; (d) Smoking; (e) Peculiar smell.

7. To ensure safe driving, please adjust the

volume to a safe and comfort level in case of emergency situations.

Page 3

Precautions

1. Ne ve r di sa ss em ble or adjus t the uni t

wi tho ut an y pr of ess ion al gui de. F or

details, please consult any professional car

shop / dealer for inquiry.

2. If the front panel or TFT monitor is squalid,

pl ease us e a cl ea n silicone cloth and neutr al deter gent to wipe off the spot. Us ing a rou gh clot h and non- neu tr al detergent such as alcohol for cleaning may result in scratching or decoloration to the applicant.

3. If any abnormal behavior of the unit is

found, please refer to tro ubl e shooting

gui de of this manu a l. If no rel e van t

in fo rm at io n is fou nd ,p le as e pre ss the

[RESET] key on the front panel to resume factory default.

4. If you have parked the car in hot or cold

weather for a long time, please wait until

the temperature in the car becomes normal before operating the unit.

5. Using in-car heater in low temperature environment may result in beads coagulate

inside the unit, Do not use the unit in this situation, eject the disc and wipe off the

bead on the disc. If the unit still doesn't

work after a few hours, please contact with

after-sales service center.

6. No erce impact to the LCD monitor when

it is in open position for preventing the damage to any mechanisms inside.

7. To pr event th e damage to the screen , avoid touching it with sharp objects.

8. Th e mon it or employs au to motorizing

mec han ism, please don't push, pull, or

swi vel the monito r ma nua lly to prevent damage to the core mechanism.

9. To provide a clear demonstration and an alternative for easy understanding to the

operation of this unit, graphic illustrations areused.However, these illustrations are

som e different from the actual ima ges displayed on the screen.

10 .D ur in g operating the unit, '

di sp la y if the curr en t ope ra ti on is n ot available or illegal.

11.Operate the unit correctly according to this manual to prevent unnecessary problem. The guarantee won't be valid if the problem is caused by inappropriate operation.

' wi ll

Declaration

This product incorporates copyright protection technology that is protected by U.S patents and other intellectual property rights. Use of this copyright protection technology must be

authorized by Macrovision, and is intended

for home and other limited viewing uses only unless otherwise authorized by Macrovision. Re ver se e ng ineer ing or dis ass em bly is prohibited.

Page 4

Contents

Before using

Front panel ............................................. 1

Auxiliary LCD ......................................... 2

Remote control ....................................... 2

Basic operations

Power on / off ......................................... 4

Mute ....................................................... 4

Volume adjustment ................................. 4

Open SOURCE MENU .......................... 4

Playing source selection ........................ 4

Using the TFT monitor ........................... 4

Reset the unit ......................................... 4

RDS operations

AF function ............................................. 5

TA function ............................................. 5

PTY function ........................................... 5

PS(Program service ) ............................ 5

CT (Clock time) ...................................... 5

RT (Radio text) ....................................... 5

Radio mode

Select radio as playing source ............... 6

Select one radio band ............................ 6

Auto tuning ............................................. 6

Manual tuning ......................................... 6

Auto save ............................................... 6

Manual save ........................................... 6

Preview scan ......................................... 6

Recall the stored stations ....................... 6

Local seeking ......................................... 6

Disc mode

Insert a disc ............................................ 7

Eject the disc .......................................... 7

Touch screen controls ............................ 7

Suspend playback .................................. 7

Stop playback ..................................... 7

Display le list ........................................ 7

Fast playback ......................................... 7

Previous / next ....................................... 7

Change folder ......................................... 7

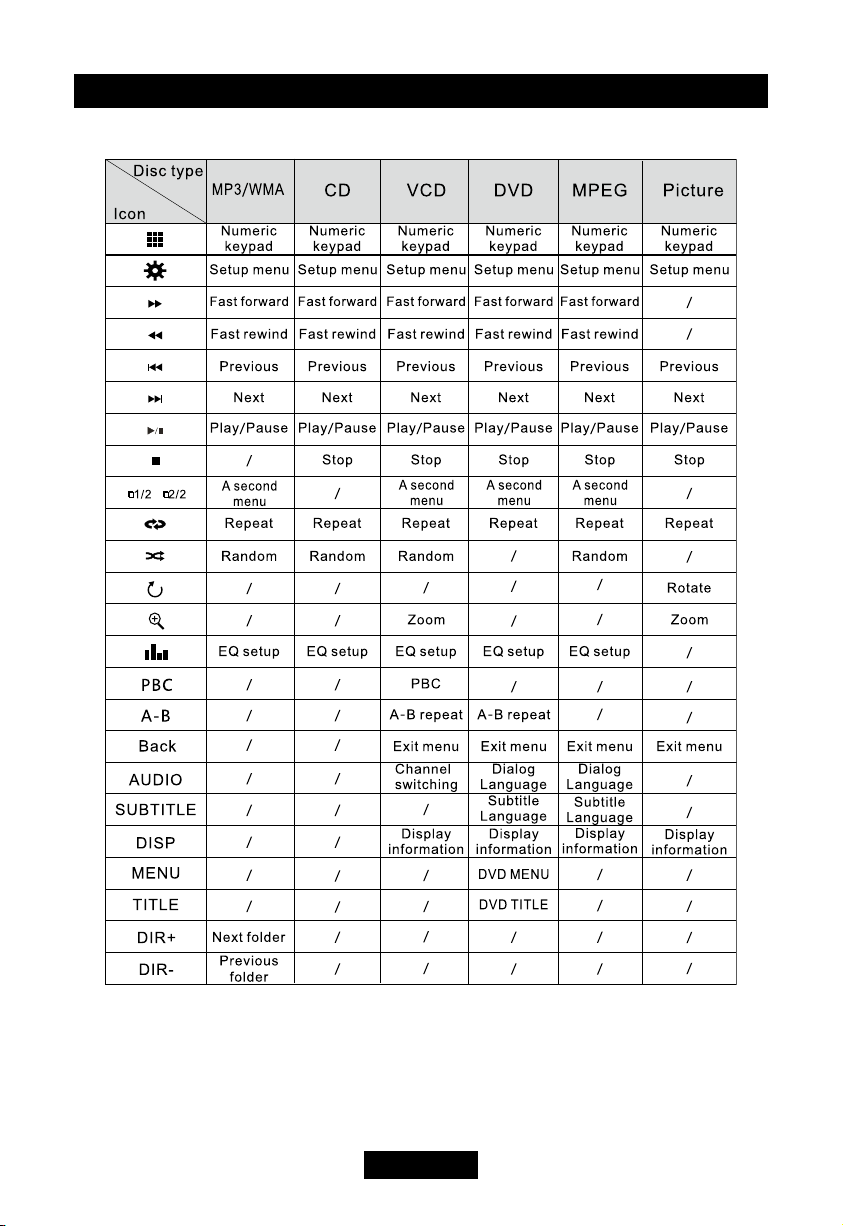

Onscreen control buttons ....................... 8

Repeat playback .................................... 9

Repeat A-B ............................................. 9

Random playback .................................. 9

Intro playback ......................................... 9

Direct search ......................................... 9

GOTO search ......................................... 9

MENU and TITLE ................................... 9

Select subtitle language ....................... 10

Select multi-angle views ...................... 10

Select audio channel ........................... 10

PBC function ....................................... 10

Zoom in/out ......................................... 10

Rotate picture ....................................... 10

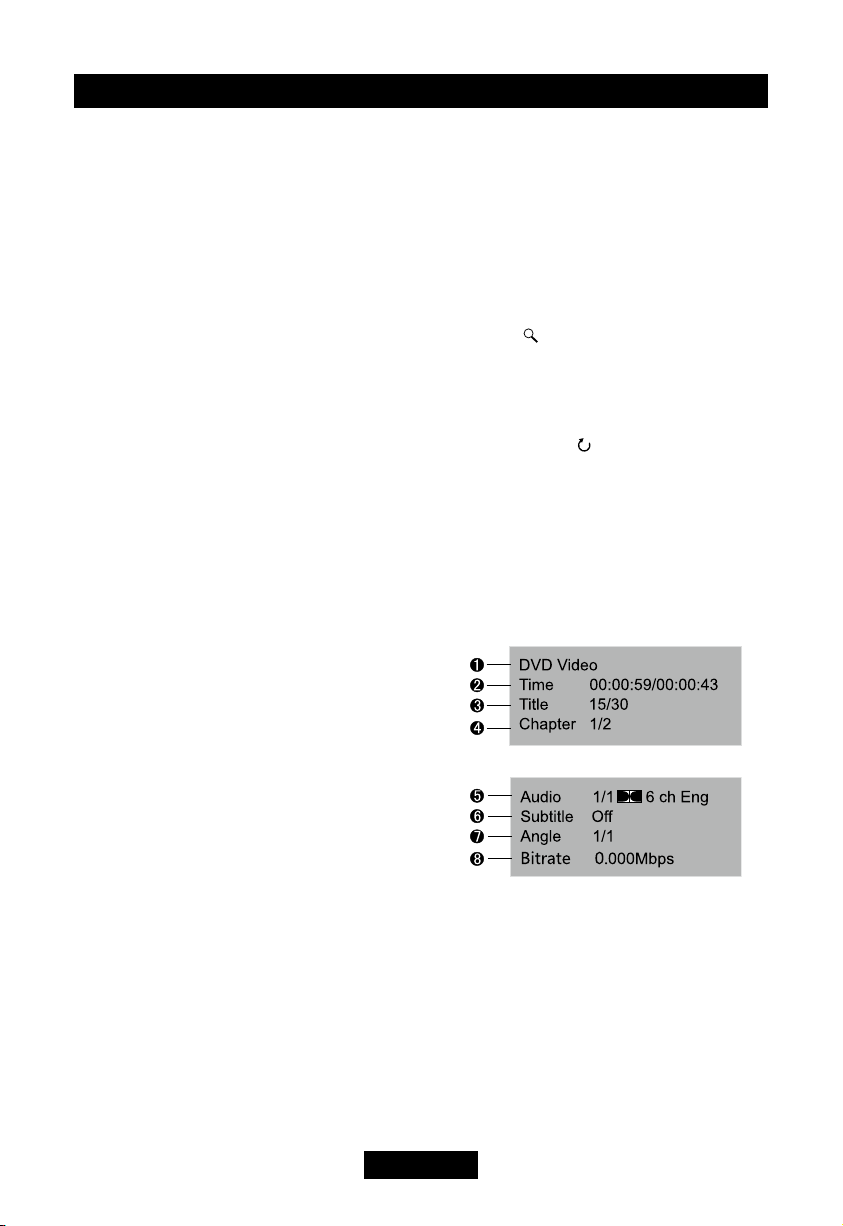

Playback information ............................ 10

Bluetooth mode

Select bluetooth as playing source .......11

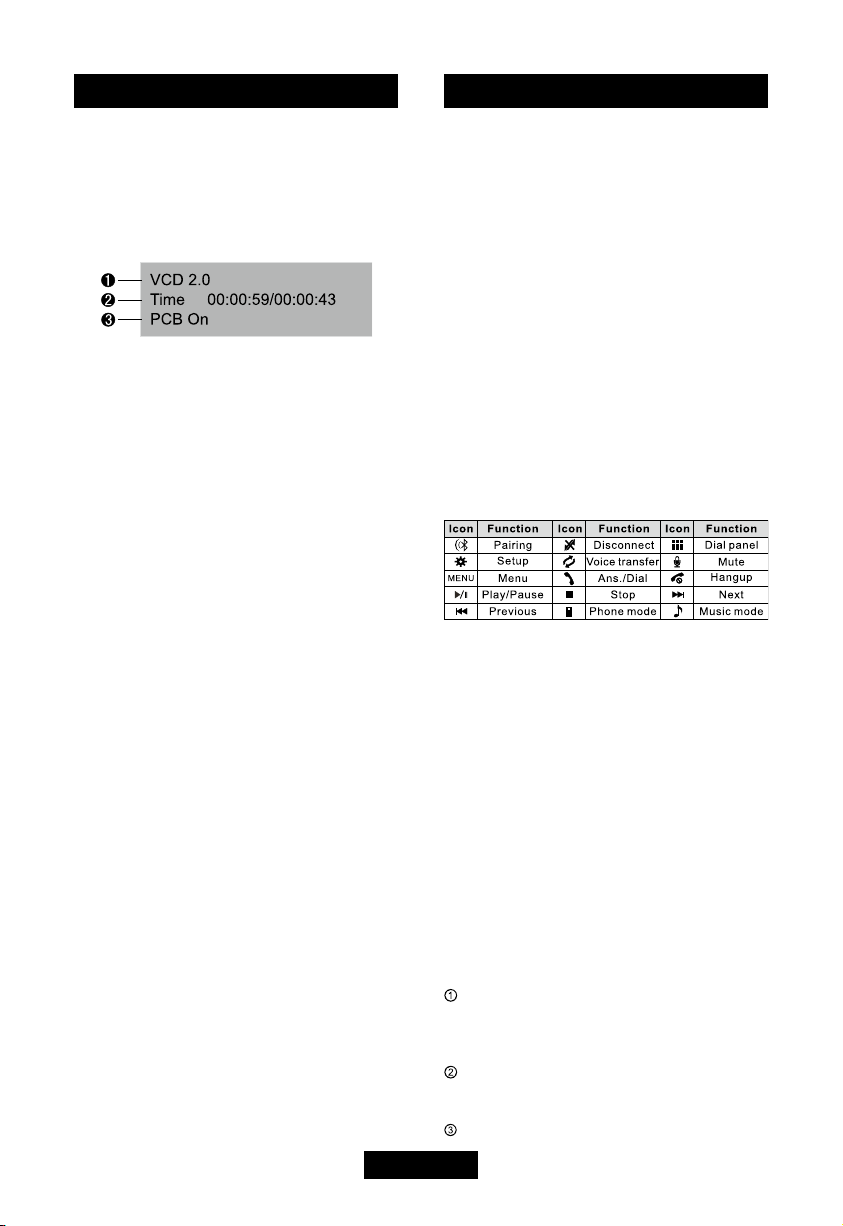

Function icons .......................................11

Work modes of bluetooth module .........11

Phone mode ..........................................11

Music mode .......................................... 12

SD/USB mode ........................................... 13

Other modes

AUX ...................................................... 14

Camera ................................................ 14

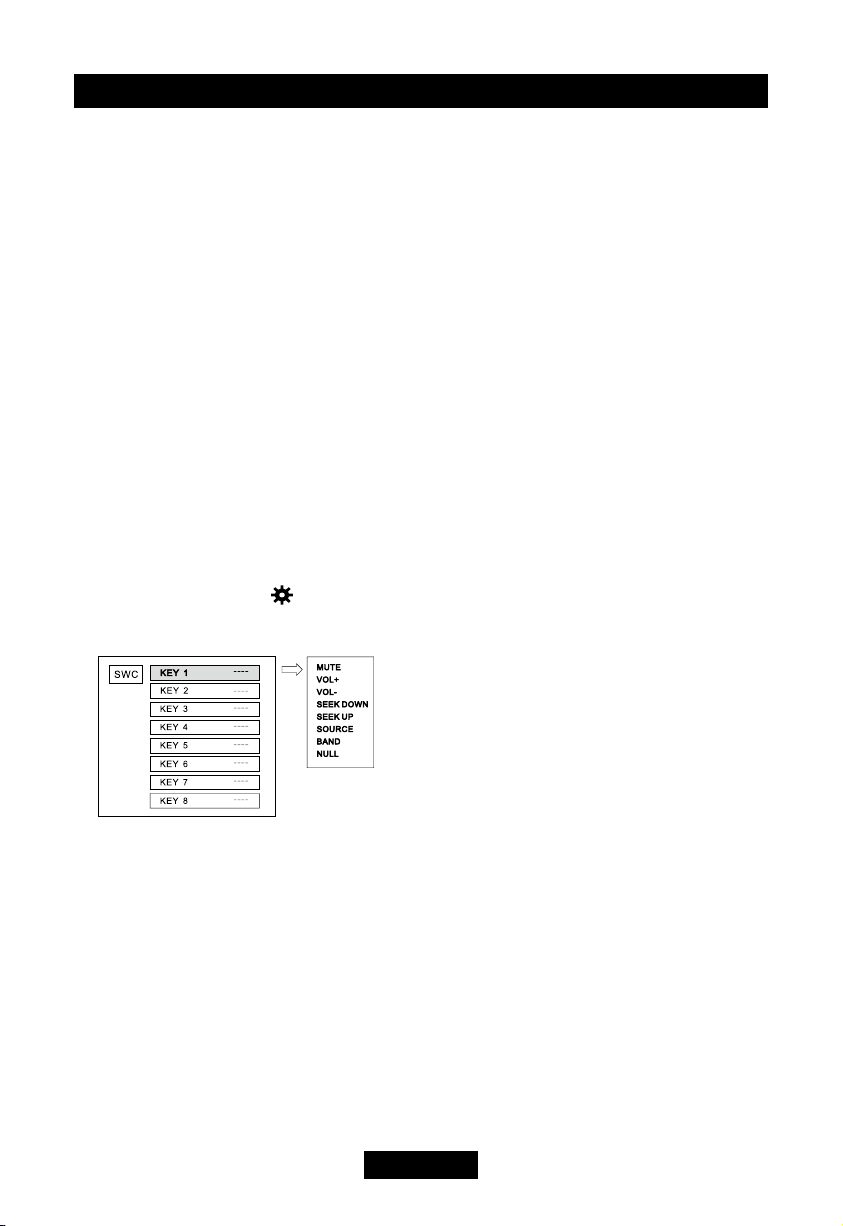

SWC ..................................................... 14

TV(Optional) ......................................... 14

Setup

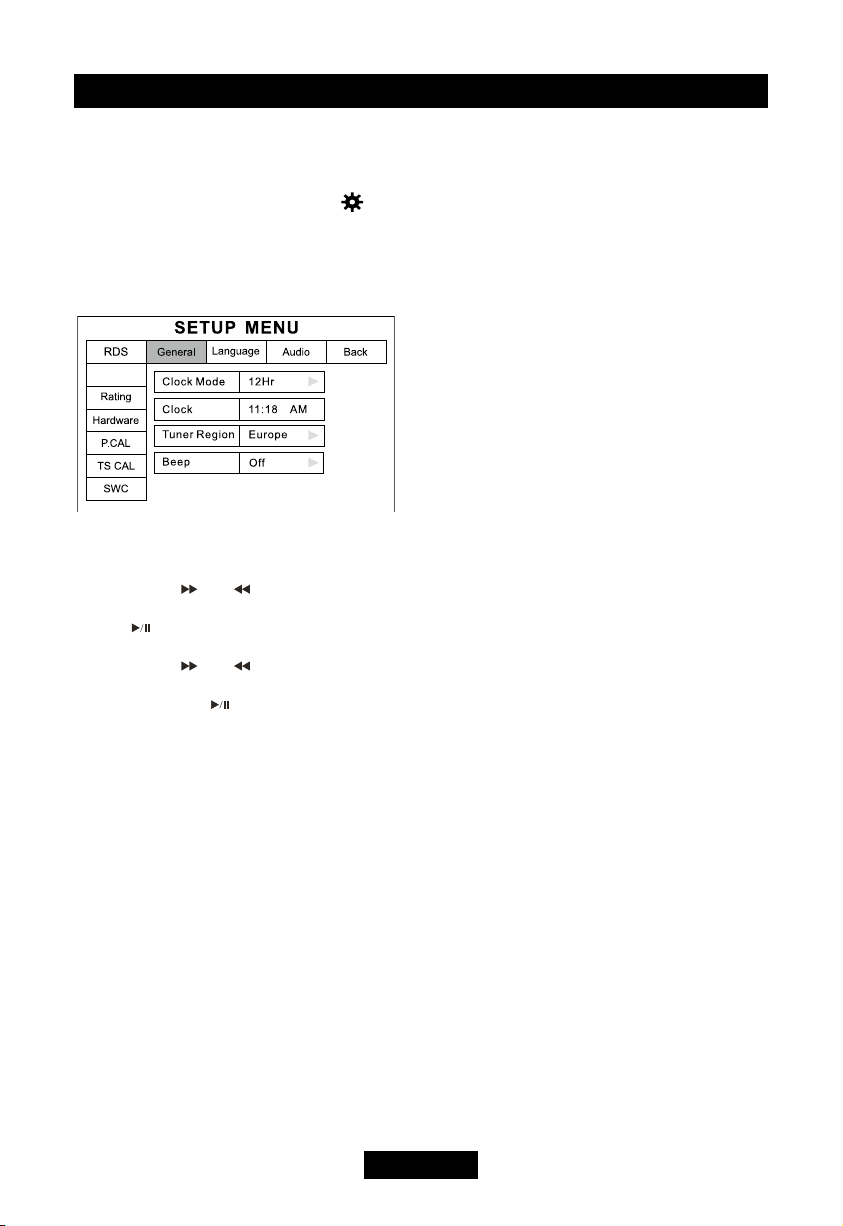

Setup procedures ................................. 15

General ................................................ 15

Language ............................................. 15

Audio .................................................... 15

RDS ...................................................... 15

Bluetooth .............................................. 16

Rating .................................................. 16

Hardware .............................................. 16

P.VOL ................................................... 17

TS CAL ................................................. 17

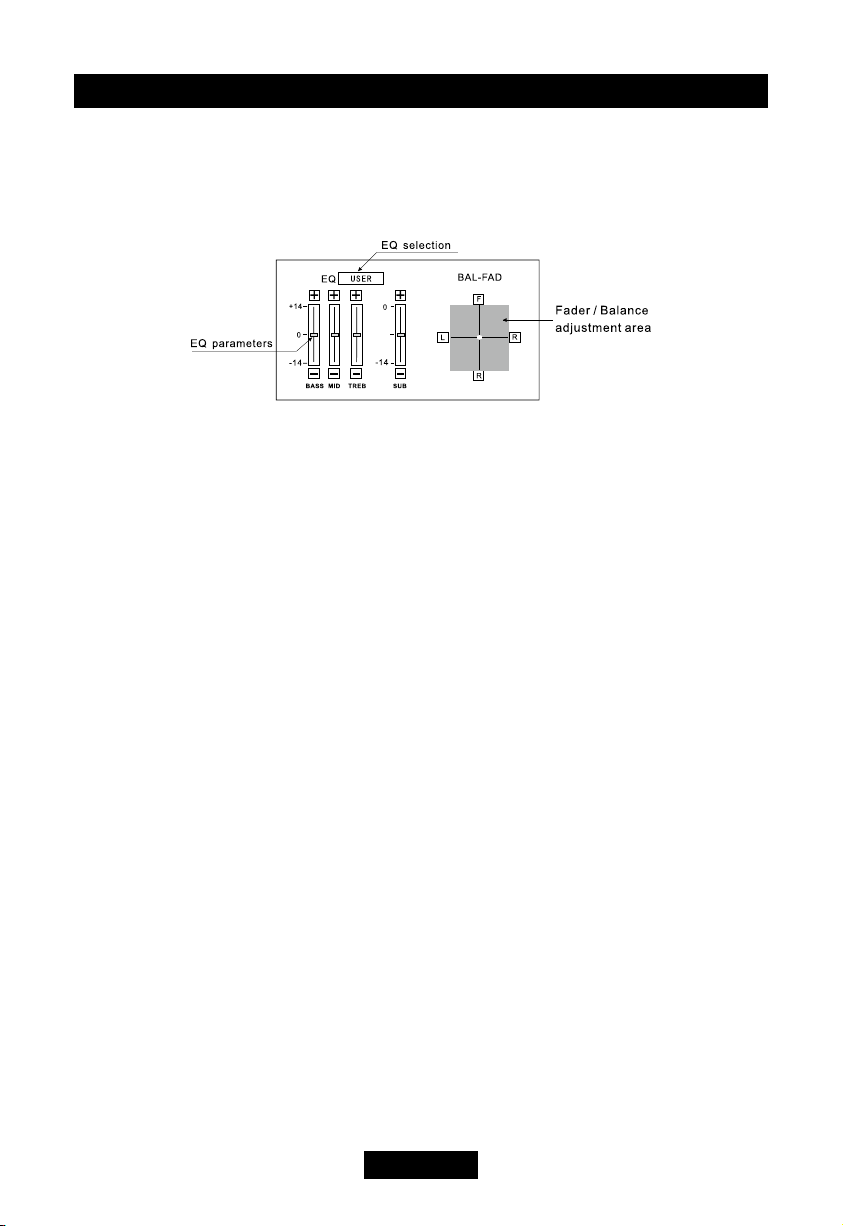

EQ .............................................................. 18

Troubleshooting ....................................... 19

Device connections

Notes of connection ........................... 21

Control cables ...................................... 21

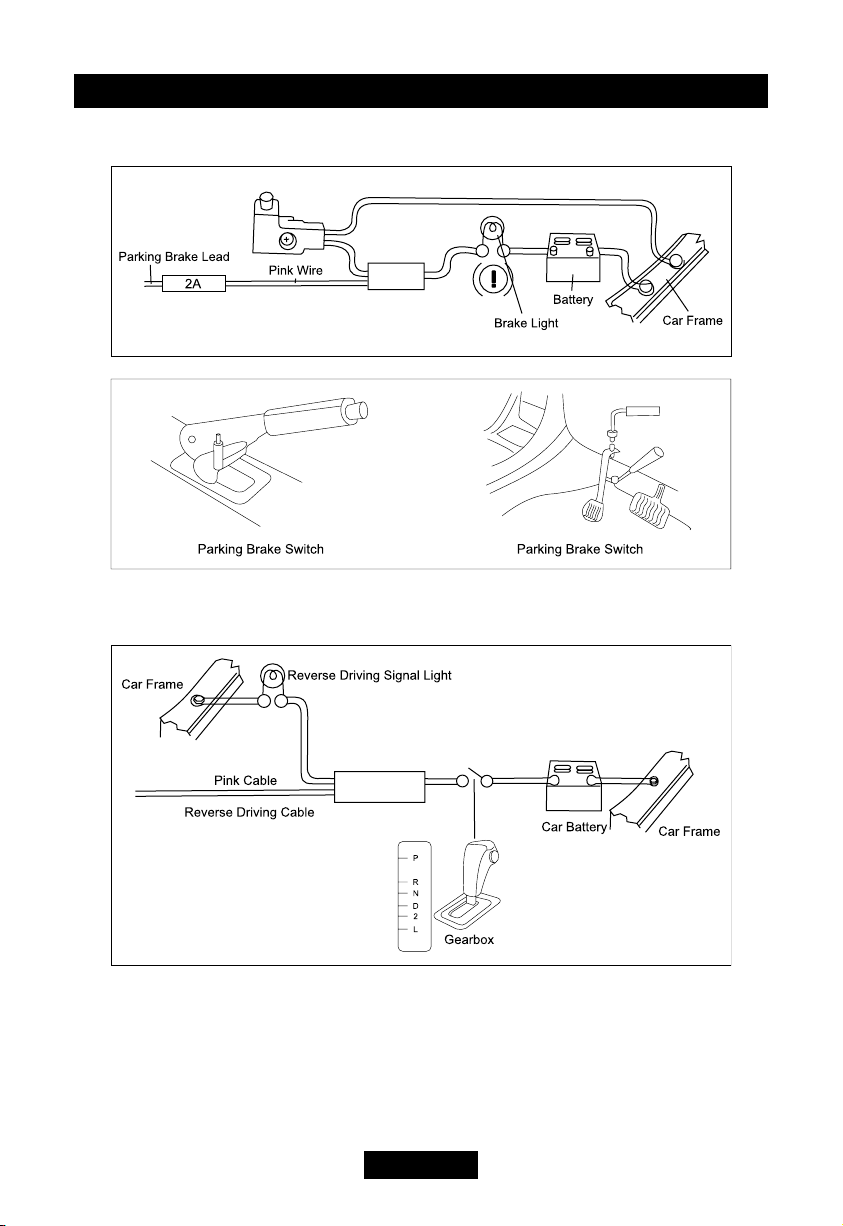

Parking brake cable connections ....... 22

Reverse driving cable connections ...... 22

Installation and uninstall

Notes of installation .............................. 23

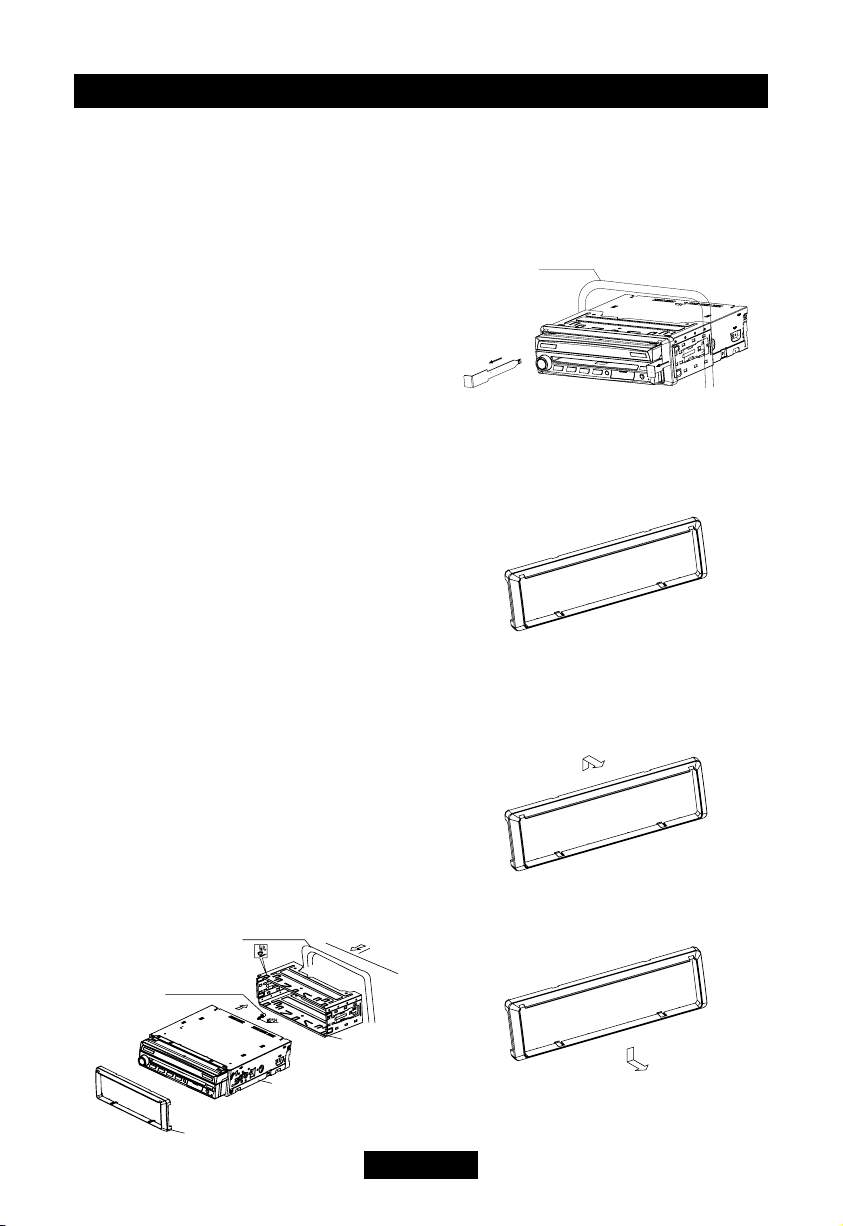

Installation procedures ......................... 23

Remove the unit .................................. 23

Trim ring installation ............................. 23

Trim ring uninstall ................................ 23

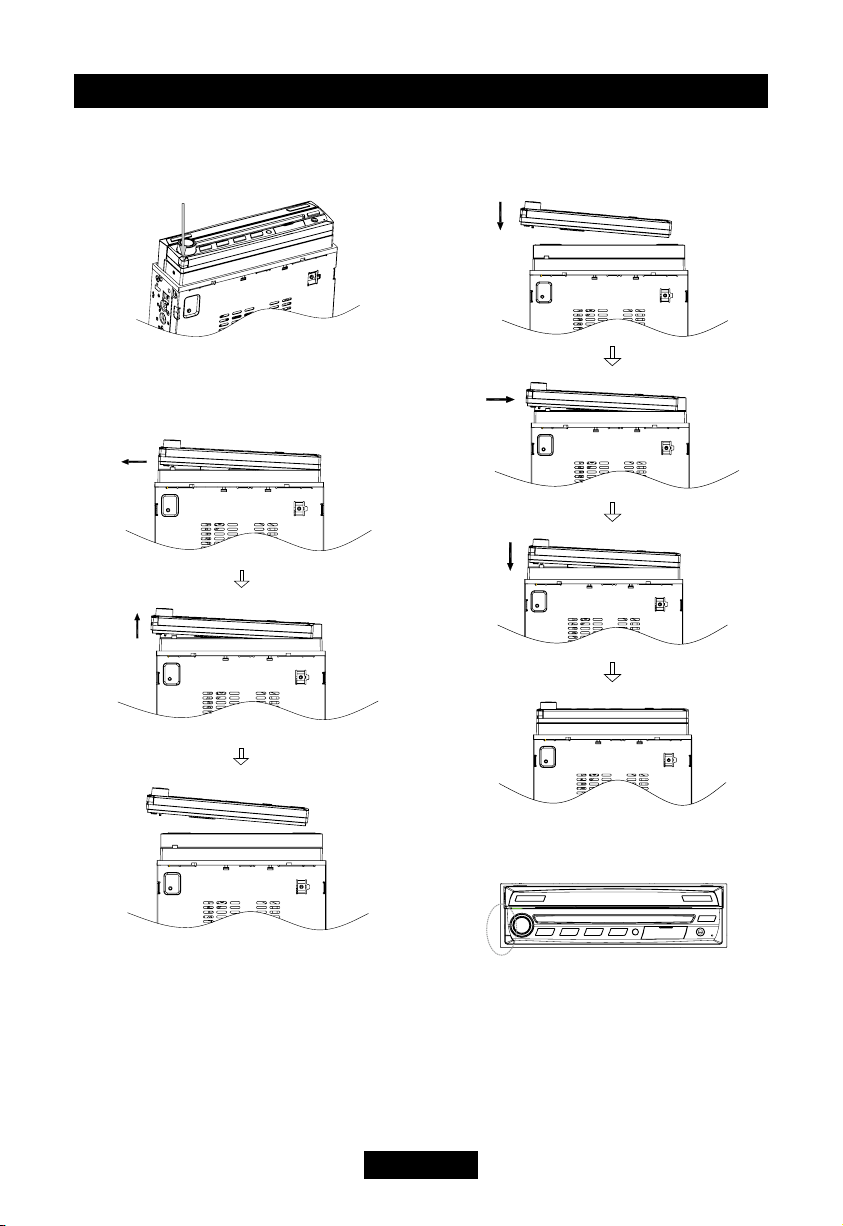

Disassemble the detached panel ......... 24

Assemble the detached panel .............. 24

Specications ........................................... 25

Appendix

Region code ........................................ 26

Cautions of disc using .......................... 26

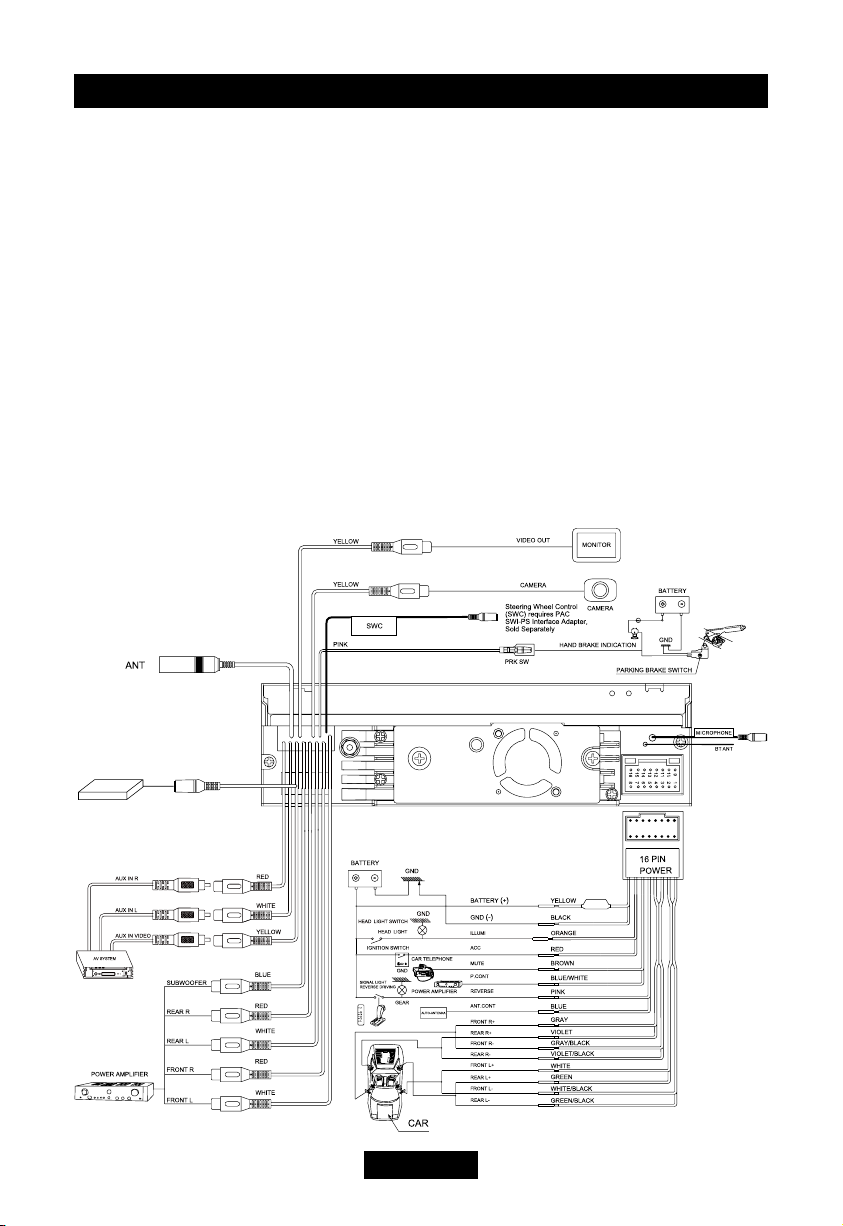

Wiring diagram ..................................... 26

Page 5

Before using

཰ཱ

ོ

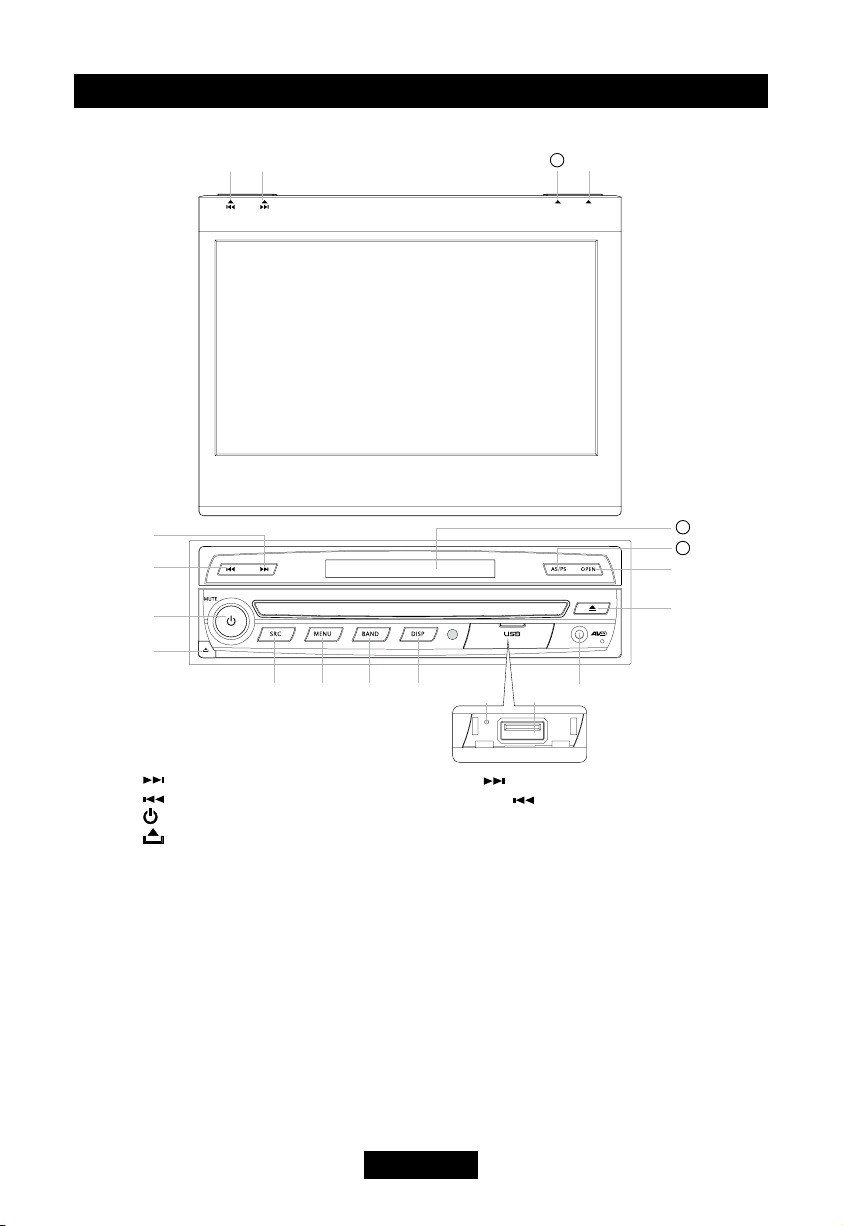

Front panel

TILT CLOSE

཰

ཱ

ི

ོ

ཻ

ཱི

1. [

ུ ཱུ ྲྀ ཷ

] Key: Next / With the monitor closed, press

ླྀ

ཹ

to seek forward

ེ

2. [ ] Key: Previous / With the monitor closed, press to seek backward

3. [ / MUTE / VOL] Knob Key: Unit power / Mute audio outputs / Adjust volume

4. [ ] Key: Flip the front panel

5. [SRC] Key: Press once to the playing mode

6. [MENU] Key: DVD menu / PBC / Switch Radio local and distant(in radio mode)

7. [BAND] Key: Change radio band(short press) / Fast playback / Slow playback(long press)

8. [DISP] Key: Change display mode / Switch the TFT to standby mode(when the TFT open)

9. Reset the unit

10. USB slot

11. AV IN jack

12. Eject disc

13. [OPEN / CLOSE] Key: Open / Close the TFT monitor

14. [AS / PS / TILT] Key: Auto memory store / Preset scan (when the TFT close) /

Press to enter display angle setting mode, and rotate the knob to adjust

(when the TFT open)

15. Disc slot

EN - 1

Page 6

Before using

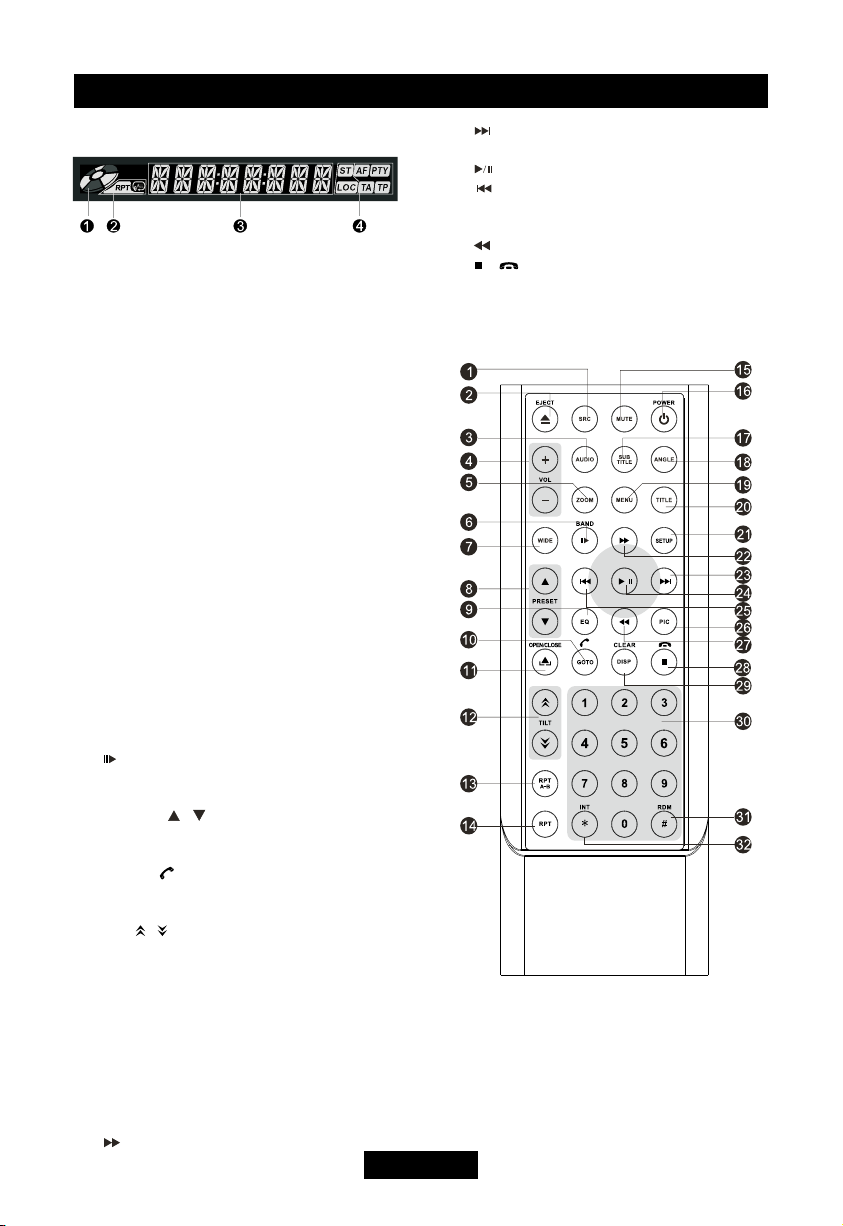

Auxiliary LCD

1. Disc indicator

Light up when one disc is inside; Light off

when no disc is inside.

2. Repeat mode indicator

Light up when repeat mode is on; Light off when

repeat mode is off.

3. Main display area

Display characters, playback time, tuning frequency, clock and other text information.

4. Radio status indicators

St er eo i nd ic ator lig ht s up when the rad io

broadcast is a stereo one; Local indicator lights

up when the local seeking function is activated.

Notes:

1. Most information can be displayed on this LCD only when the TFT monitor is closed.

2. Only English font support on this LCD.

Remote control

1. [SRC]Key:select playing source

2. [EJECT]Key: Eject disc

[

AUDIO

4. [VOL+/-] Key: Adjust volume

5. [ZOOM] Key: Image zoom in/out

6. [

Fast playback / Slow playback

7. [WIDE] Key: Change display mode

8. [PRESET

radio station

9. [EQ] Key: Enter/Exit the EQ setting

10.[GOTO /

11.[OPEN/CLOSE] Key: Open / Close the

TFT monitor

12.

13.[RPT A-B] Key: A-B repeat

14.[RPT] Key: Repeat playback

15.[MUTE] Key: Mute audio outputs

16.[POWER] Key: Unit power

17.[SUBTITLE] Key: Select DVD subtitle

language

18.[ANGLE] Key: Select view angle

19.[MENU] Key: DVD MENU / PBC

20.[TITLE] Key: DVD TITLE

21.[SETUP] Key: Setup menu

22.[

] Key: Select audio channel

/BAND] Key: Select radio band /

/ ] Key: Select preset

] Key: GOTO search / Call

[

TILT

/ ] Key: Adjusting display tilting angle

] Key: Fast Forward / Move cursor up

23.[

] Key:Auto search / Next / Move cursor

to the right

] Key: Play / Pause / Enter

24.[

25.[ ] Key: Auto search / Previous / Move cursor to the left

26.[PIC] Key: Image setting

27.

[ ] Key: Fast Reverse/ Move cursor down

28.[ / ] Key: Stop Playback / Hangup

29.[DISP] Key: Display information

30.[0~9] Key: Numeric keys

31.[RDM] Key: Random playback

32.[INT] Key: Intro playback

Note:

Your remote control may differ slightly from the one pictured here. The above diagram is for illustrative purpose only.

EN - 2

Page 7

Before using

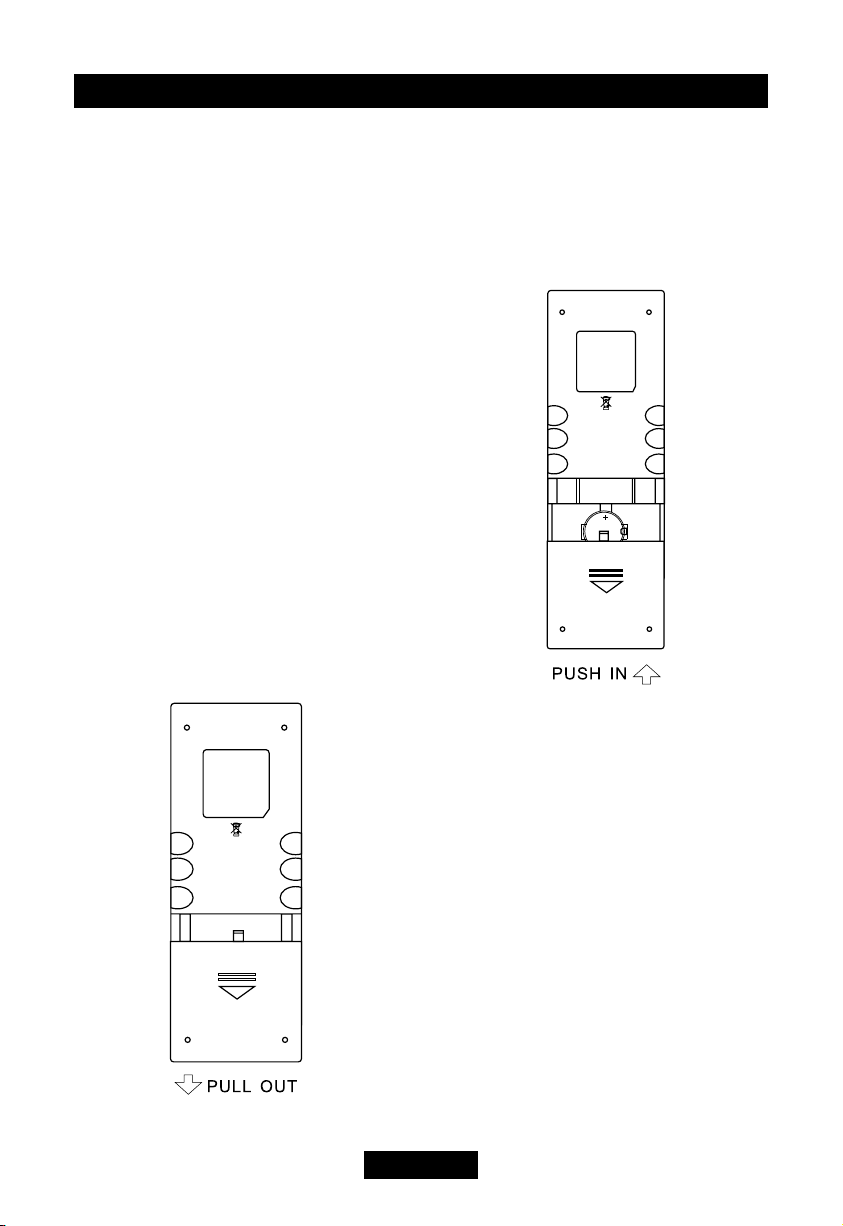

Notes of remote control using

1. Ai m the remote con tr ol at the re mote sensor on the unit.

2. Re mov e th e batt ery fro m the remo te control or insert a battery insulator if the battery has not been used for a month or longer.

3. Do not store the rem ote cont rol unde r di re ct sunlight or in hig h tem pe ra tu re

env i ron m ent , o r i t m ay no t func t ion

properly.

4. The battery can work for 6 months under normal condition. If the remote control can't

work, please change the battery.

5. Use “but t on sh ape d ” lit h ium batt e ry “CR2025” (3V) only.

6. Do not rec harge, disas sem ble, heat or expose the battery in re.

7. In ser t the batt er y in pro per dir ec tio n according to the (+) and (-) poles.

8. Store the battery in a place where children cannot reach to avoid the risk of accident.

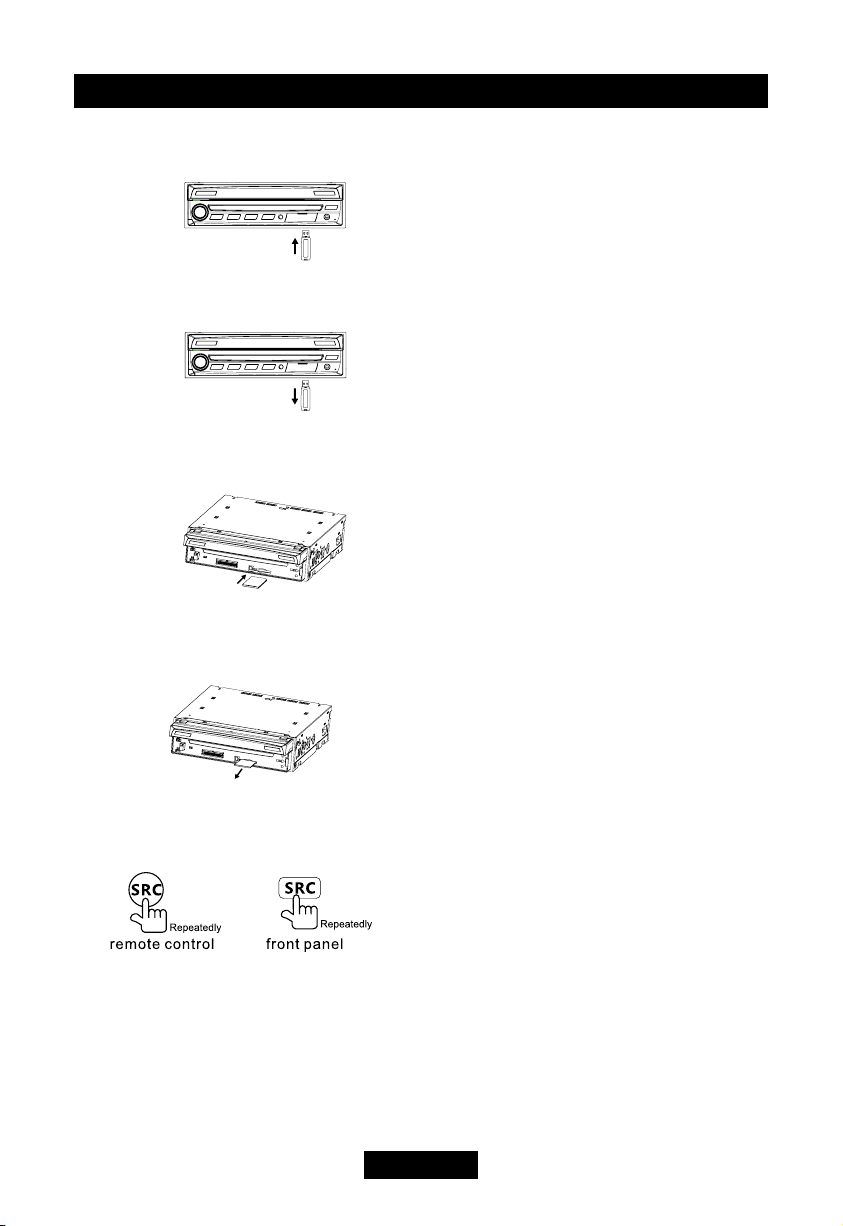

Uninstall battery

Slide out the battery compartment tray at the bottom on the back of the remote control.

Install battery

Use button-shaped lithium battery “CR2 0 2 5 (3V) ” on ly. Inse r t the battery to the battery tray with proper direction according to the (+) and (-) poles.

EN - 3

Page 8

Basic operations

Power on / off

Press and hold the [ ] key on the front panel to turn on the power under standby mode. The unit goes back to the last status after power on. Press and hold the [ pa nel o r press the [ POWER] key o n the remote control to turn off the power under work mode.

] key on the front

Mute

Press the [MUTE] key on the front panel or remote control to mute the volume from the unit.

Notes:

1. Doi ng th e o per ati on ab o ve ag ain or adjusting volume will release muting.

2. Mute icon winks on the TFT during muting.

Volume adjustment

Turn the volume knob on the front panel or press the [VOL] key on the remote control.

The adjustable range of volume is 0 to 40.

Open SOURCE MENU

Press the [SRC] key on the front panel or remote control or touch the top left corner of the screen to open the SOURCE MENU. Do the above operation again to return to the original source.

Playing source selection

Open the SOURCE MENU, and then touch

the source you desired or select one source

by moving the cursor and then conrm.

Notes:

1. Playing source selection means selecting work mode, such as DVD mode, Radio mode, Camera mode, etc.

2. When some devices are not ready, they cannot be selected.

Using the TFT monitor

Open / Close monitor

Press the [OPEN/CLOSE] key on the front panel or remote control to push the display panel out or in.

Change the monitor tilt angle

Due to the inherent character of LCD, you

will get different vision impressions when you watch it from different angles. The display angle of this unit can be changed; hence you can select the best angle where you can get the best vision impression. Press the [TILT] key on the remote control to

adjust the tilt angle one step at a time. When the monitor is open, press the [TILT]

key on the display panel to enter tilt angle

setting mode, and rotate the knob to adjust.

Press and hold the [TILT] key on the remote

control to adjust the tilt angle continuously.

Change aspect ratio Press the [WIDE] key on the remote control

to adjust the aspect ratio.

Image setting

1. Enter image setting mode Press the [PIC] key on the remote control.

2. Select one item to adjust

Press the [ ]/[ ] keys on the remote control.

3. Adjust the value

Press the [ ] / [ ] keys on the remote control.

4. Exit image setting mode To exit image setting mode, repeat the rst

step or stop operation for some seconds.

Reset the unit

If the unit can not work correctly, you should

reset the unit by pressing the [RESET] button on the front panel.

Display system time

Press and hold the [DISP] key on the front panel or remote control to switch the display information between system time and playing source when the TFT monitor is closed.

EN - 4

Page 9

RDS operations

The unit provides basic functions of RDS, including PI (Program Identification), radio station name , RT (Radio Text), CT (Clock Time), AF (Alternative Frequency), TA (Traffic Announcement) and PTY

(Program Type) Selection.

AF function

Al ter nat iv e Fre qu enc ie s Lis ts are used

fo r the same progr am service an d use d

in conjun ction with the PI co de (Program Identication code) to assist automatic tuning. Using this information, a radio can automatically

search out another station that is playing the same material. This is useful when the station you are listening to is fading out. To activate AF function, touch the [AF] button on the user interface.

To cancel this function, do the operation above

again.

Note:

During auto switching radio frequency, some interference co uld be heard. Turning off AF function can settle this problem.

TA function

The TA (Trafc Announcement ag) function

lets the unit receive traffic announcements automatically no matter what media source is pl ay in g bac k. Th e TA function c an be activated by a TP (Traffic Program) station

broadcasting trafc information.

W h e n TA i s a ct iva t e d a n d a t r af fi c

an nou nce men t is r ec eiv ed, t he curr en t playing source will be overridden by the trafc

announcement if the current radio band is FM

and the 'TA' indicator lights up, indicating that the unit is waiting for trafc announcements.

The unit returns to the original source after

the trafc announcement has been received. To activate TA function, touch the [TA] button

on the user interface.

To cancel this func tion, do th e operat ion

above again.

PTY function

PTY is the abbreviation for Program Type

which is a code dening the type of program

being broadcast (e.g. News or Rock).

Six PTY options will display on the screen. To view more PTY options, touch the scroll bar

and arrows on the screen. Wh en on e PT Y opti on is tou ch ed (e .g .

News), auto search for next available PTY

by increasing tuning frequency until the PTY

of the next station matches the current. If no matched PTY has been found, the unit will

return to the original radio frequency.

PS(Program service )

Used for receiver displays of an 8 character alpha numeric Program Service name which

may use Upper or Lower case characters, e.g. {BBC_4_FM}, {Classic_}.

CT (Clock time)

Some stations broadcast the time and date within the encoded RDS signal. The clock

time is automatically adjusted when "CT" is set to "On".

RT (Radio text)

When this function is activated, the unit will

display short message data transmitted from

the provider, such as station information, the

name of the current broadcasting song and the artist name.

EN - 5

Page 10

Radio mode

Select radio as playing source

Ope n t he SO U RCE ME NU an d t hen to uch [RADIO].

Select one radio band

Press the [BAND] key on the display panel or remote control or touch the [BAND] icon on the user interface to select one radio band

among FM1, FM2, FM3, AM1 and AM2.

Auto tuning

When the monitor is closed, press the [

] key on the display panel or remote

] / [ control to seek automatically.

When the monitor is open, touch the [

/ [ ] icon on the user interface to seek a higher / lower station.

To stop searching, repeat the operation above

or press other keys having radio functions.

Note:

When a station is received, searching stops and the station is played. If the unit receives a stereo broadcasting, the indicator light of stereo ‘ST’ on the TFT or LCD display will be lighted.

Manual tuning

During manual tuning, the frequency will be

changed in steps. Press the [ ] / [ ] key on remote control or touch the [ ] / [ ] icon on the user interface to tune in a higher / lower station. Touch the numeric keypad icon( ) and then touch the numeric buttons to input the radio station frequency numbers.

Auto save

Only stations with sufficient signal strength will be detected and stored in the memory.

When the monitor is closed, press and hold

the [AS] key on the display panel. When the monitor is opened, touch the [AS] icon on the user interface.

To stop auto save, press other keys having

radio functions.

Notes:

1. Aft er auto save , the prev iou s sav ed

stations will be overwritten.

2.The unit has 5 bands, such as FM1, FM2,

FM3, AM1, AM2, and each band can store 6 st ations; hence the unit can store 30 stations in all.

Manual save

When one expected radio station has been

detected:

1. Press the [MEM] icon on the user interface and the preset menu will be opened.

2. Press one preset button among P1~P6.

3. If y ou want to abo rt , pre ss the [E xi t] button.

Preview scan

Preview scan searching is such a process

]

that the searching pauses when a station is received and then played for 5 seconds. After

being played, the unit continues the process

until the whole band is detected. When the monitor is closed, press the [AS] key on the display panel. When the monitor is opened, touch the [PS] icon on the user interface.

To stop the process, press other keys having

radio functions.

Recall the stored stations

1. Select a band(if needed).

2. There are three methods to select a preset station.

a. Touch an on-screen preset button to select

the corresponding stored station.

b. You also can press [ ] / [ ] key on the

display panel when the monitor is open.

c. Press one numeric key among 1 to 6 on

the remote control.

Local seeking

When LOCAL seeking is on, only those radio

statio ns with strong radio signal could be received.

To open or close LOCAL function, press and

hold the volume knob on the front panel.

Notes:

1. When the local radio sta tio n searching

is on, the indicator light ‘LOC’ lights up; whereas the light goes off.

2. The number of radio stat ions that can

be received will decrease after the local seeking mode is on.

EN - 6

Page 11

Disc mode

Insert a disc

Upon inserting a disc, the unit will switch to

disc mode automatically.

Notes:

Please confirm whether there is a disc in the unit before you insert another one.

2. Some recorded discs, such as CD-R, CDRW, DVD-R, DVD+R, DVD-RW, DVD+RW cannot be played back because of different recordi ng statu s. Otherwi se, the dis cs without being closed could not be played back.

3. About the cautions of disc using, please refer to the appendix.

Eject the disc

Press the [ ] key on th e front panel or

remote control to eject the disc.

Touch screen controls

The touch key areas for DVD playback are outlined below:

Suspend playback

Press the [ open the onscreen control buttons menu and then touch the [

To resume nor mal pla y, repeat the above

operation.

] key on the remote control or

] icon.

Stop playback

To stop playback, press the [■] key on the

remote control or open the onscreen control buttons menu and then touch the[■] icon.

When the above operation is executed for the rst time, the current playback is paused

and the break point is memorized and the playback will resume when you start playback ag ai n or swi tc h bac k fro m oth er play in g sources. The current playback will cancel if

the above operation is executed twice and

the playback will start over when you start playback again.

Display le list

To display the file list of one recorded disc,

stop current playback.

Fast playback

Press th e [ ]/ [ ] key on the re mote control repe atedly or open the onsc re en control buttons me nu and then touc h the [ ]/[ ] icon repeatedly to change the rate of fast forward/fast reverse.

A - Return the last menu B - Display playback information C - Display onscreen control menu

Previous / next

Press the [ ]/[ ] key on th e display panel or remote control or open the onscreen control buttons me nu and then touc h the [

]/[ ] icon to play the next or previous

le.

Change folder

Press th e [DIR+] /[DIR -] icon on the us er interface (you should stop playback first if a

video or picture le is played back) to change

folder during the playback of one recorded disc containing more than one folder.

EN - 7

Page 12

Disc mode

Onscreen control buttons

EN - 8

Page 13

Rep eat cha pter ė Re peat ti tle ė Rep eat off

DVD

VCD(P BC off)

Repeat s ingle ė Repeat a ll ė Repeat off

MP3/WM A

Discty pe

Repea tmode

Pictu re

MPE G

Repeat s ingle ė Repeat f older ėRepeat a llėRepeat off

Disc mode

Repeat playback

Press the [RPT] key on the remote control repeatedl y or open the onscree n contro l buttons menu and then touch the [ ] icon repeatedly to alter repeat mode according to the following table.

Notes:

When a VCD is played back, this function is prohibited if the PBC is on.

2. Turning off the power or switching playing

so ur ce to oth er mod es and back wil l cancel this function.

Repeat A-B

When a DVD, VCD or CD disc is played back,

you can play back the contents between the time points from A to B repeatedly. Pr es s the [RPT A- B] key on the re mote control or open the onscreen control buttons menu and then touch the [RPT A-B] icon to set the start point (A) of the repeated section. Do the above operation again to set the end point of the repeated section. The selected portion will repeat continuously. Do the above operation for the third time to cancel this function.

Random playback

When this function is on, the contents in the

disc will be played back randomly. Press the [RDM] key on the remote control repeatedl y or open the onscree n contro l buttons menu and then touch the [

] icon

repeatedly to alter random playback mode

among ‘Random on’, ‘Random off’.

Intro playback

When this function is on, the unit will play

back the first 10 seconds of each track of a

VCD or CD disc. You can search the le you

desired using this function.

Press the [INT] key on the remote control to activate this function.

Do the above operation again to cancel this function.

Direct search

When a DVD, VCD or CD disc is played back,

you can search for a particular chapter / track by pressing the numeric keys of the remote

control. For example, if you want to select the 15th track, you should press numerical key [1]

and [5].

GOTO search

(1) Enter GOTO search mode Press the [GOTO] key on the remote

control to open search menu.

For DVD, you can search according to title, chapter and time. For VCD, if PBC function is off, you can

search according to time; if PBC function

is on, you can search according to track,

time and Disc time.

For CD, you can se arch according to

track.

For MPEG les, you can search according

to track and time. For record discs containing MP3 and/or

JPG files, you can search according to track(le number).

(2) Enter search information

Select items by pressing the direction keys on the remote control and enter search

information by pressing the numeric keys, such as title, chapter and time.

(3) Conrm

Press the [

] key on the remote control

to conrm.

(4) Exit GOTO search mode

Re pe at the ab ov e ope ra ti on until the search menu disappeared or touch the [Exit] button on the menu.

MENU and TITLE

This function is only available for the DVD

discs having “MENU / TITLE”.

Press the [MENU] key on the remote control or open the onscreen control buttons menu and then touch the [MENU] icon to open DVD MENU.

You can select audio language, subtitle

language and so on for playback. Press the [TITLE] key on the remote control

EN - 9

Page 14

Disc mode

or open the onscreen control buttons menu and then touch the [TITLE] icon to open DVD

TITLE.

You can select a different title for playback.

Select subtitle language

Pre ss the [SUBTITLE] key on the remote control repe atedly or open the onsc re en control buttons me nu and then touc h the [SUBT ITLE] icon repeat edly to choo se a subtitle language.

Select multi-angle views

Press the [ANGLE] key on the remote control repeatedly to choose a shooting angle during the playba ck of a DVD disc or video file containing multi-angle views.

Select audio channel

For DVD containing multi-language au dio files, press the [AUDIO] key on the remote control repe atedly or open the onsc re en control buttons me nu and then touc h the [AUDIO] icon repeatedly to change dialogue language. For VCD and CD, press the [AUDIO] key on the remote control repeatedly or open the onscr een cont rol butt ons menu and then touch the [AUDIO] icon repeatedly to alter

audio channel modes among Left vocal, Right vocal, Mono left, Mono right, Stereo.

is prohibited.

3. I f yo u do th e op e r a tion of r a ndom playbac k, scan playback or searchi ng playback when PBC is on, PBC will be off automatically.

Zoom in/out

To zoom in/out the image being played, press

the [ZOOM] ke y on the re mot e control or open the onscreen control buttons and then touch the [ ] icon.

Rotate picture

When one picture le is played back, you can

rotate the picture to get proper view angle by pressing the [ control buttons.

] icon on the onscreen

Playback information

Touch the top center area of TFT LCD when

playing back DVD and VCD discs and the playback information will be displayed on the top area of the TFT.

For DVD

Note:

Left channel and right channel cannot work properly if the audio files are not recorded correctly.

PBC function

This function is available for the VCD discs with PBC function (Ver 2.0 or higher). Open the onsc ree n control buttons menu and then touch the [PBC] icon to activate this function. Press again to cancel.

Notes:

1. When PBC is on, playback goes back to

the track list and starts from the rst track.

2. When PBC is on, fast motion playback, sl ow m ot ion pl aybac k or sk ip s ea rch is a va il able but rep ea t pl aybac k and searching for a particular chapter or track

1. Disc type.

2. Elapsed time of the current title.

3. DVD Title information. “5/8” indicates that this DVD has 8 titles and the title playing

back now is the fth title.

4. DVD Chapter information. “2/16” indicates that current title has 16 chapters and the chapter playing back now is the second chapter.

5. Indicates that the subtitle of this DVD has been recorded in 6 languages and the

language displayed now is the second,

EN - 10

Page 15

Disc mode

Bluetooth mode

that is English.

6. Touch the [SUB TITLE] button repeatedly to choose a subtitle language.

7. Multi angle.

8. Bitrate.

For VCD

1. Disc type.

2. Elapsed time of the current track.

3. PBC function indicator. "PBC On" indicates

that PBC function has been activated.

Bluet ooth is a wir eless trans mission way fo r short dis tance operati ng at 2.4 GHz. The bluetooth module can connect with the mobile phone s having blue too th function.

After connecting, you can control your mobile

phone through the unit. As different mobile phones provide different

bluetooth functions, so not all of the functions

undermentioned are ava ilable to different phones. Please read through the operation

manual of the mobile phone in use at rst.

Se lect bluetooth as playing source

Open the SOURCE MENU and then touch BT.

Function icons

The func tion icons of BT are outlined as below.

Wor k mod e s of blue t o oth module

The bluetooth module has two work modes,

which are ph one mode and mu sic mo de. Touch the mode switch icon to switch to its

corresponding mode. Under phone mode, hand-free, call and other phone functions are available. Under music mode, you can enjoy

the music played back by your mobile phone through the speakers in your car and you can control the playback.

Phone mode

Pairing

Use this function to establish a connection be tween the Bl uetooth module and yo ur mobile phone.

Switch the work mode of the Bluetooth

module to phone mode, open the SETUP

menu and select the Bluetooth sub-menu and then set the 'Bluetooth' option to 'On'. Turn on the Bluetooth function of your mobile phone and start to search Bluetooth devices. After the name of the Bluetooth module

EN - 11

Page 16

Bluetooth mode

appears on the pairing list on your mobile

phone, you should select it. At this time,

a pairing code is required. The Bluetooth

module will exit pairing mode if there is no

pairing instruction from your mobile phone during the pairing time (90s) and 'Phone Pairing Fail' is displayed on the screen. Enter the pairing code (1234 by default) to initiate the pairing process. The paired mob ile phone name will dis play on the screen.

Browse call numbers

The Bluetooth module will download phone book and call records from your mobile phone after pairing. Touch the [MENU] icon to display the Menu

list. There are some options on the menu list, including missed calls, received calls, dialed

calls and phone book. When you press one

of them, the Bluetooth module will get its

corresponding information from your mobile phone.

Make an outgoing call

Browse through the Phone book or call

records, touch the number you want to dial

and then touch the dial icon to make an outgoing call. Touch the Dial Pan el icon to open dial panel and then touch the numeric buttons to input phone numbers. Touch the [Clear] ic on to clear the last d ig it . Tou ch the hangup icon to clear the entire numbers or end the conversation. Touch the Ans icon to make an outgoing call.

Answer an incoming call

The Bluetooth module will switch to phone mode automatically when there is an incoming call and the incoming call number will be displayed on the screen. If the 'Auto Answer' option of the 'Bluetooth' sub-

menu under the SETU P MENU is set to 'On', the unit will answer incoming calls automatically,

otherwise you should answer them manually. The call duration will be displayed on the screen after the incoming call has been put through.

Voice transfer

While talking, touch the 'Voice transfer' icon

on the screen to transfer audio from the unit

to your mobile phone, and touch again to

transfer audio from your mobile phone to the unit.

Note: Some mobile phones will transfer audio from the unit to themselves once the incoming call is answered.

Microphone mute

While talking, press the microphone mute icon

on the screen to mute the microphone built in

the unit. Under this condition, the one talking

ove r the telephone with you can not hear what you are saying. Touch the mute icon again to resume microphone functionality.

Music mode

Pairing

Be fore pairing, swi tch the work mode of

the Bluetooth module to music mode. The procedures of pairing under music mode is the same as the phone mode.

A2DP

A2DP is short for Advanced Audio Distribution Profile. The mobile phones supporting this

function can transmit stereo audio, whereas

the ones not support ing this functio n can transmit mono audio only.

After pairing, open the audio player of your

mobile phone and set the transmit mode to

Bluetooth. At this time, the speakers of your

mobile phone will close automatically. To set the transmit mode of mobile phones

to Bluetooth, please refer to the user manual

or help document of the mobile phone in use or the audio player software because the audio players of different mobile phones vary greatly.

AVRCP

AVRCP is sho rt fo r Audio/ Video Remote

Control Prole. The mobile phones supporting

this function can control the playback of a Bluetooth audio player.

After pairing, touch the corresponding icon to contr ol current playback, such as Play, Pause, Stop, Previous, Next.

Hangup

While talking, press the hangup key on your

mobile phone or touch the hangup icon on the screen to end the conversation.

EN - 12

Page 17

SD/USB mode

1. Load USB equipment

Open the cap, in sert the USB into the

connector.

2. Take out USB equipment

Press [SRC] key and switch to non USB

mode, then take off the USB stick, close

the cap.

1. Load SD/MMC card

Disassemble the detached panel, insert the

SD/MMC card into the slot.

2. Take out SD/MMC card

Press [SRC] key and switch to non CARD

mode, slightly press SD/MMC card, take

out the card when it pops out.

Using the touch screen controls

The operation is the same as DVD mode.

Onscreen control buttons

Onscreen control buttons under USB mode are the same as disc mode.

Stop playback temporarily

The operation is the same as disc mode.

Stop playback entirely

The operation is the same as disc mode.

Display le list

The operation is the same as disc mode.

Fast forward/Fast reverse

The operation is the same as disc mode.

Play the next or previous le

The operation is the same as disc mode.

Repeat playback

The operation is the same as disc mode.

Random playback

The operation is the same as disc mode.

Select SD/USB as playing source

Method 1:

Method 2: Open the 'SOURCE MENU' and then select 'SD' or 'USB'.

Notes:

The unit will switch to SD card mode or

USB mode after a SD card or USB device has been inserted.

2. The unit supports hot swap.

EN - 13

Intro playback

he operation is the same as disc mode.

Search for a particular le

The operation is the same as disc mode.

GOTO search

The operation is the same as disc mode.

Zoom in/out

The operation is the same as disc mode.

Rotate picture

The operation is the same as disc mode.

Select picture slide mode

The operation is the same as disc mode.

Playback information display

The operation is the same as disc mode.

Page 18

Other modes

AUX

External peripheral devices with RCA audio

and video outputs can be connected with the unit.

To enter AUX IN mode, open the SOURCE

MENU and then touch AUX IN.

Camera

Thi s p lay e r i s “ca m era re ady ” . Bef o re

accessing any camera features, you must

purchase and install a rear video camera. On ce th e rear camera is c onnected and

op erating p roperly, the CA ME RA source

mode will become active. While the camera

is not installed, the CAMERA option appears gray, indicating the function is not available.

The playing source will change to 'CAMERA' mode automatically when you reverse your car.

SWC

Press the [SETUP] key on the remote control or touch the setup icon [

interface, and touch the desired function key

of the list to the control button of the SWC.

] on the user

SOURCE" /"BAND" /" NULL"

3. Touch the anyone key that you want ,and

the setting is success.

Touch the nether left corner of the screen to

exit, the setting of the other keys as the same

as the above.

TV(Optional)

Touch [TV] in the main menu to switch to TV

mode, and touch the center of the screen to

show control buttons.

By the setting, you can use the button of the steering wheel to control volume,select track

etc.

Setting below:

To connect your steering wheel control device to the unit.

2. Enter the setting menu.

3. Touch the anyone key fr om“KE Y 1" to "KEY 8" ,and the opposit e function key

turns bright.

for example:

Touch“KEY 1”function ;

2. And long-touch the function key from the

car,the screen display: " MUTE"/" VOL+"/" VOL-" /" SEEK DOWN" /"SEEK UP " /"

EN - 14

Page 19

Setup

Setup procedures

1. Enter setup mode

Press the [S ETUP] key on the re mote control or touch the setup icon [ the user interface. The following menu appears after entering the setup mode.

The GENERAL sub-menu is highlighted by

default

Bluetooth

2. Select one sub-menu

Press the direction keys on the remote control.

3. Select one item

Press the [ ] / [ ] key on the remote control to select one item and then press the [ ] key to conrm.

4. Select one value

Press the [ control to select one suitable value and then press the [ ] key to conrm.

Note:

All following settings can be done by touching the option directly.

] / [ ] key on the remote

] on

General

● Clock mode

12Hr: Clock displays 12 hour time using AM and PM. 24Hr: Clock displays 24 hour time up to 23:59.

● Clock

Clock appears in the top right corner of the screen during certain operations.

Note:

The AM/PM indication will change as you continue to adjust the hour past 12.

● Tuner region

The unit provides several radio systems and you can select a correct radio system according to your country.

EN - 15

● Beep On: When turned on, an audible beep tone conrms each function selection.

Off: No beep sounds.

Language

● Language

Select one language of system menu display.

● Subtitle

Select one subtitle language of DVD disc.

Note:

If the DVD dis c doe s not contain the selected language , the subtitl e will be displayed in default language.

● Audio

Select one dialogue language of DVD disc.

Note:

If the DVD dis c doe s not contain the selecte d langua ge , the dialo gues you listening to will be in default language.

● DVD menu

Sel ect one la n gu a ge of DVD ME NU display.

Note:

If the DVD dis c doe s not contain the selected language, the DVD MENU will be displayed in default language.

Audio

● DRC

Employ the Dynamic Range Control for better playback for low volumes.

● Loudness

Select low frequency boost only or high and low frequency boost.

● Subwoofer

Turns the subwoofer output on or off.

● Sub lter

Select a crossover frequency to set a cut-

off frequency for the subwoofer’s LPF (lowpass lter).

RDS

● RDS

Turn On/Off the RDS feature.

● CT

System time is synchronized with current br oad ca st stat io n time (Clo ck Time) . Setting this feature to On will automatically set your system clock.

● TA VOL

You can ad

just

TA volume from 0 to 7.

Page 20

Setup

Bluetooth

● Bluetooth

On: Turn on the power of the Bluetooth module. Off: Turn off the power of the Bluetooth module.

● Connect

Auto: Blue to oth module co nnects with the bluetooth device automatically after disconnecting. Man ual : B lue too t h mo d ule conn ect s with the bluetooth device manually after disconnecting.

● Auto Answer

Manual: Answer manually when one call is coming in. Auto: Answer automatically when one call is coming in.

● Pairing code

You should enter the pairing code when the bluetooth module is pairing with another bluetooth device. The original paring code is 1234 and you can change the paring code when the bluetooth module is on.

Rating

Some DVD discs have built-in parental lock wh ich preve nt s child re n to w at ch som e scenes as force or eroticism especially.

● Set password

The original password of the unit is null. You should set a new password ASAP.

Method of changing password:

1. Open the parental lock Touch the 'Password' option directly to

open the keypad, touch the numeric

butto ns to enter your old pass word

(initial password for the rst time) and

then conf irm by touching the [ENT] button.

2. Change the password Repeat the operation above to enter a 4-digit password (old or new) and then confirm. The new password becomes ef fec tiv e and t he pare nta l lo ck is closed.

● Parental ctrl

Th e unit has so me w at ching level as followings:

1. Kid safe: A movie rating that is condign

to children.

2. G: A movie rating that allows admission to persons of all ages.

3. P G : A mo v i e r a t i n g t h a t a l l o w s admission of persons of all ag es but suggests parental guidance in the case of children.

4. PG - 13 : A m ov ie ra ti ng th at allo ws admission of persons of all ag es but suggests parental guidance in the case of children under the age of 13.

5. PG-R: PG-related.

6. R: A movie rating that allows admission

only to persons of a certain age,usually 17,unless accompanied by a parent or

guardian.

NC-1 7 : A m o v ie r a ting tha t all o w s admission to no one under the age of 17.

8. Adult: A movie rating that is condign to the adult only.

Procedures of changing the rating:

1. Open the parental lock

According to the same method mentioned

in the rst step of changing password.

2. Change the rating

Selec t an appr opria te ratin g from th e 'rating' list.

3. Close the parental lock

Repeat the operation of the first step to enter a 4-digit password (old or new) and

then conrm. The parental lock is closed.

● Load factory

To restore the default settings relating with

DVD playback (e .g.: DVD Audio, DVD Subtitle), press the [RESET] option only.

Hardware

● Camera In

Normal: Actual scenes shot by the camera display on the TFT monitor while reverse

driving (just like what you are looking).

Mirror: The mirror images of actual scenes display on the TFT monitor while

reverse driving (just like looking from the

rearview mirror).

● TFT Auto Open

On: The TFT panel automatically opens when the unit is turned on. Off: The TFT panel opens only by pressing OPEN button when the unit is turned on.

Manual: When the ignition is turned off, the

TFT panel remains open if it was opened previously.

EN - 16

Page 21

Setup

● Video input

NTSC: Set the color system of the TFT screen to NTSC.

PAL: S et th e col or sy st em of the TFT screen to PAL.

AUTO: Set the color system of the TFT screen automatically by the unit according to the input video formats.

P.VOL

P.VOL means Programmable Volume.

You can balance the volume among different audio sources using this function.

● Source

Select one playing source that you want to set relative volume.

● Level

You can set relative volume level from 0 to 6.

TS CAL

When the touch function is not sensitive or

valid, you should calibrate the touch screen

by this function.

Calibrate the touch screen just following the screen introductions after entering the TS CAL mode.

EN - 17

Page 22

Audio control allows you to easily adjust the audio system to get the best possible sound effect.

1. Enter the EQ setup mode

Press the [EQ] key on the remote control or touch the EQ icon in the user interface and the following interface will display on the screen.

2. Select EQ mode

Touch the EQ selection bar repeatedly and the EQ mode will change.

3. Adjust EQ parameters

To adjust EQ parameters, touch and drag the EQ parameters adjustment bar.

4. Adjust Front/Rear/Left/Right fader and balance

You can adjust front/back/left/right balance of the speaker to get larruping listening effect

according to the surroundings and your interest.

To adjust Front/Rear/Left/Right fader and balance, touch and drag the small white point in the Fader/Balance adjustment area.

Notes:

The unit has provided some EQ modes: User, Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic.

2. Different EQ reects in different Bass, Treble and Middle level.

The parameters of the EQ modes has been preset and you can not change them besides ‘User’.

3. The EQ mode will change to ‘User’ automatically when you adjust the value of BASS, TREB or MID under the modes besides ‘User’.

4. The value of SUB is independent of EQ mode and can be adjusted solely.

EN - 18

Page 23

Troubleshooting

What appears to be trouble is not always serious. Please check the following points before calling a service center.

Problem Cause Corrective action

General

Unit fuse blown. Install new fuse with correct rating.

Unit can not power on

Remote control does not work

No/low audio output

Po or so un d qua lity or distortion

Tel-Mute malfunction MUTE wire is grounded. Check the ‘MUTE’ wiring and correct. Unit resets itself when

engine is off

Monitor does not open automatically

Warn ing information is shown at all times

F l a s h in g im a g e o r interference appears on screen

Car battery fuse blown. Install new fuse with correct rating. Illegal operation Reset the unit. Battery depleted. Change the battery. Battery installed incorrectly. Install the battery correctly.

I m p r o p e r a u d i o o u t p u t connection.

Volume set too low. Increase volume level. Speakers damaged. Replace speakers.

Heavily biased volume balance.

Speaker wiring is in contact with metal part of car.

Piratic disc is in use. Use original disc.

Speaker power rating does not match unit.

Wrong connections. Check wiring and correct. Speaker is shorted. Check wiring and correct.

Incorrect connection between ACC and BATT.

Check wiring and correct.

Adjust the channel balance to center

position. I n s u l a t e al l s p e a k e r w i r i n g

connections.

Replace speakers.

Check wiring and correct.

TFT monitor

TFT Auto Open is turned off. Turn TFT Auto Open on.

Parking break wiring is not correct.

The color system of DVD disc does not match the monitor.

Piratic disc is in use. Use original disc. Video cable damaged. Replace cables. I m p r o p e r v i d e o s i g n a l

connections.

Check wiring and correct.

Adjust the color system of the DVD

disc playing back or the monitor in use.

Check wiring and correct.

EN - 19

Page 24

Troubleshooting

Continued

Problem Cause Corrective action

Disc playback

Cannot insert disc A disc inside the unit already. Eject current disc and insert new one.

Disc is warped or scratched. Use disc in good condition. Disc is dirty or wet. Clean disc with soft cloth.

Disc does not play back

PBC cannot be used during VCD playback

Repeat or search function is invalid during VCD playback

No disc

Bad disc

Unknown disc

Region Error

Incompatible disc is used. Use compatible disc. Disc is inserted upside down. Insert disc with label side up. Disc region code is not

compatible with unit. PBC is not available on

the disc.

PBC is on. Turn PBC off.

Use disc with proper region code.

Use disc with PBC available.

Error messages

Disc is dirty. Clean disc with soft cloth. Disc is upside down. Insert disc with label side up. No disc inside. Insert disc. Disc is dirty. Clean disc with soft cloth. Disc is upside down. Insert disc with label side up. Disc format is not compatible

with this unit. DVD region code is not

compatible with this unit.

Use disc with compatible format.

Use disc with compatible region code.

EN - 20

Page 25

Device connections

Notes of connection

● T hi s un it is d es ig ne d to be us ed in a

vehicle with a 12-volt battery and negative grounding. Before installing this unit to a

recreational vehicle, a bus, or a truck, make

sure the battery voltage is appropriate for

this unit to be used, otherwise, install a

transformer by professional to convert the output voltage to 12V.

● To avoid short ci rc ui t in the el ec tr ic al system, ensure that the negative battery

cable is disconnected before installation.

● To prevent short circuit in the wiring and damaging to this unit, secure all wirings

with cable clamp or adhesive tape. Route

the wirings in a secured, out of heating

place without touching any moving parts

such as gear shift, handbrake, and seat

rails to prevent the wiring insulation being melted / wore off.

● Never pass the yellow power cord through

the i nst a ll a tio n hol e i nto the en gin e co mpa rtmen t an d con ne ct to the c ar

battery. Otherwi se, a high possi bility of

serious short circuit to the electrical system may be occurred.

● Replacing a new fuse with 15A rating when the old one is broken, using no fuse or fuse

with improper rating may cause damage

to this unit or even res. If a proper fuse is installed and electrical problems still occur,

please contact with any professional car shops for inquiry.

● D O NO T c onn e c t o the r eq uipm e nts

wi th th e ca r bat te ry to a vo id ba tt ery overheating.

● P l e a s e ma k e s u re a l l t h e wi r i n g

connections & the cables of the speakers

are well-insulated. Otherwise, this unit may

be damaged by short circuit.

● I f the re is no A CC avai la ble , Ple as e

connect ACC lead to the power supply with a switch.

● If an external power amplier is connected,

please don’t connect P.CONT lead to the

power lead of the external power amplier, otherwise, electric spark or other damage

may be resulted.

●

Never ground the speaker output to prevent

the damage to the built-in power amplier.

● T he mini mum r at ing o f the spe ake rs connected to this unit is 50W with 4 to 8Ω

impedance.

Control cables

Auto brightness control

To avoid the display being too bright at night

time, if the headlight cable is connected to ILLUMI, turning on the headlight will dim the backlight of the TFT LCD and vice versa.

Telephone mute

If the MUTE ca ble is connec ted to a car

phone, other audio outputs mute when one

call is received by the car phone.

Reverse driving

If a rear view camera is connected with the

unit, the playing source switches to CAMERA

automatically when you start reverse driving.

As the reverse driving is done, the playing

source switches to the previous.

Parking brake

1) If "PRK SW" cable is connected to hand bra ke switch, video dis play on the TFT

monitor will be controlled by this function. Parking cable function ceases when the playing source is CAMERA.

2) The monitor displays the blue screen with warning information to prevent the driver

watching video contents during driving, but

the passengers at the rear seat can watch video contents normally.

EN - 21

Page 26

Device connections

Parking brake cable connections

Reverse driving cable connections

EN - 22

Page 27

Installation and uninstall

Dash Board

Notes of installation

Before installation, please make sure proper

connections are condu cted and the unit operates normally. Improper connection may result in damage to the unit.

U s e on l y acce s s o r i e s de s i g n ed a n d

man u f act u r ed f or thi s un i t a nd o the r un authorized acc es sories may result in damage to the unit.

Before installation, please fasten all power

cables.

4. Do not install the unit in the place where close to hot ar ea to prevent dam age to electrical components such as the laser head.

Install the unit horizontally. Installing the unit

more than 30 degree vertically may result in worse performance.

To preve nt ele ctr ic spa rk, con nec t the

positive pole rst and then the negative pole.

Do not block the cooling fan exit to ensure sufcient heating dissipation of this unit, or it

may result in damage to this unit.

Installation procedures

1. If relevant, remove any other audio system

from the car.

2. In s e r t th e mount in g sl ee v e in to the

dashboard. Fix it firmly in place by folding

down the metal tabs.

3. Perform the required electrical connections.

4. Then check that everything works before installing the main unit.

5. Remove the two screws on the top of the

unit, otherwise, the unit will not work.

6. Install the car radio in the dashboard using

the supplied screw (M5x24mm) and put a

rubber sheath over the screw.

7. Attach the outer trim frame. If you are not

sure how to install this unit correctly, contact a qualied technician.

Remove the unit

1. Switch off the power of the unit.

2. Remove the trim plate.

3. Insert both L-Keys into the hole on the front

of the set until they lock.

4. Pull out the unit.

Trim ring installation

Attach the trim ring around the front panel wi th two inde nt ion s on one sid e fac in g upwards.

Trim ring uninstall

Disassemble trim ring

1. Push the trim ring upward and pull out the upper part.

2. Push the trim ring downward and pull out the lower part.

Rubber Sheath

Mounting

The rear of the unit

Trim plate

EN - 23

Page 28

Installation and uninstall

Disassemble the detached panel

1. Press this button, it’s ok when heard “KA

KA”.

2. Grasp the panel, you can remove the panel by upward direction, which is like

the following picture.

Assemble the detached panel

1. Put the panel on the fixed panel by

downward direction.

EN - 24

2. Press the left sides of the panel, make

sure it’s locked.

Page 29

Specications

General

Reference Supply Voltage Operating Voltage Range

Max Operating Current

Grounding System

Installation Dimension

(WxHxD)output

Installation Angle Net Weight

Frequency Range Residual Noise Sensitivity (S/N=30dB) Signal Noise Ratio

Station Seeking Level

Distortion Stereo Separation(1KHz) Antenna Impedance

Frequency Range Residual Noise Sensitivity (S/N=20dB) Selectivity (±9KHz)

DVD player

Signal / Noise Ratio Dynamic Range Distortion(line out) Frequency Response(±3dB)

Max Output Power Load Impedance

AUX IN

Distortion Frequency Response(±3dB)

Audio Input Level

12V DC

10.5~15.8V(DC) 10A Car Battery Negative Pole

178x50x(165+25)mm

0 ~30

2.3kg

87.5-108.0MHz 20dB

55dB 20~30dB

1.5

25dB 75 Ω

522-1620KHz 40dB

40dB

90dB 90dB

0.1% 20Hz~20KHz 4×50W

4Ω

0.5% 20Hz~20KHz

0.4Vrms

Audio

Audio Output Impedance

Audio Output Level Audio Input Level

(Under normal audio input level and

maximum volume)

200Ω 2Vrms(Max)

0.4Vrms

Video

Normal Video Input Level

(CVBS) Video Input Impedance Video Output Impedance

Video Output Level

(Under normal video input level)

1.0±0.2V

75Ω 75Ω

1.0±0.2V

TFT monitor

Screen Diagonal Usable Display Area Resolution Brightness

Video Output Level

(Measure the center brightness after 30 minutes) Contrast

Response Time: Rise Fall Viewing Angle: From Top From bottom Horizontally

LCD Life Cycle

7 inches

154.1(W) × 87.0 (H) 1440 (W) × 234 (H) 400cd/m2

1.0±0.2V

300( TYP. )

12ms 18ms

40° 65° ±65° 10000 hours(at 25°C)

Environment

Operating Temperature Storing Temperature Operating Humidity Storing Humidity

-10°C~+60°C

-20°C~+70°C 45%~80%RH 30%~90%RH

Note:

Specications are subject to possible modifciations for improvement without further notice.

EN - 25

Page 30

Appendix

%/$&.

TV BOX

(Optional)

Region code

According to DVD sale region, the whole world is divided into six regions. A DVD disc can be

played back only when its region code is compatible with that of the player in use. Region 1:

Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East; Region 3: Taiwan of China, Hong Kong of China, South Korea, Thailand, Indonesia, South East

Asia;

Region 4: Australia, New Zealand, Mid & south America, South Pacic Ocean Islands/Oceania; Region 5: Russia, Mongolia, India, Middle Asia, East Europe, North Korea, North Africa, North

West Asia; Region 6: Chinese Mainland.

Cautions of disc using

1. DO NOT use irregular shaped disc

2. Disc Cleaning

3. When playing a new disc

Wiring diagram

USA, Canada, East Pacic Ocean Islands;

Use a dry, soft cloth to wipe the disc from center to edge, only neutral detergent can be used.

New disc may have some rough spots around the inner and outer edges. If such a disc is used, remove these rough spots with a pencil or ball-point pen, etc.

EN - 26

Page 31

CLASS 1

LASER PRODUCT

P.N.: 127075005584
