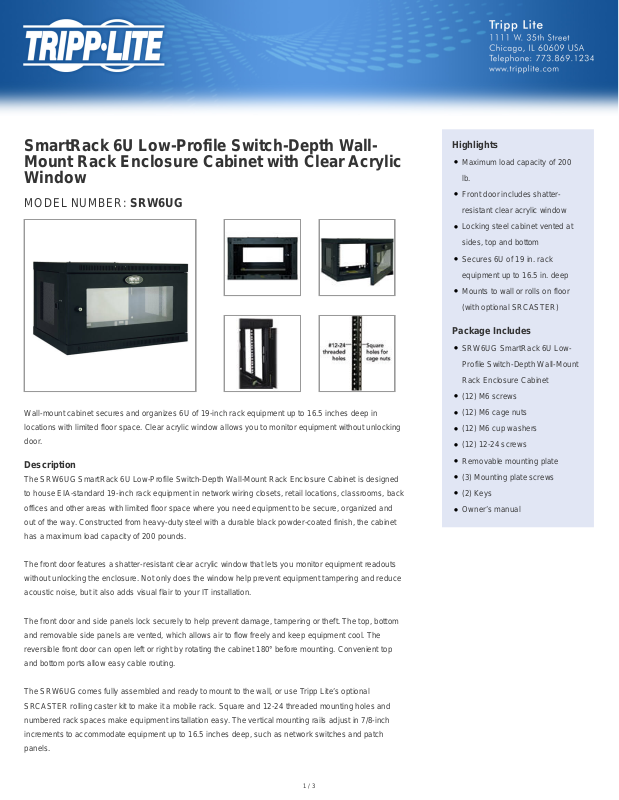

SmartRack 6U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet with Clear Acrylic
Window
MODEL NUMBER: SRW6UG
Wall-mount cabinet secures and organizes 6U of 19-inch rack equipment up to 16.5 inches deep in
locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking
door.
Description
The SRW6UG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed
to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back
offices and other areas with limited floor space where you need equipment to be secure, organized and
out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet
has a maximum load capacity of 200 pounds.
Highlights
●
Maximum load capacity of 200
lb.
●
Front door includes shatterresistant clear acrylic window
●
Locking steel cabinet vented at
sides, top and bottom
●
Secures 6U of 19 in. rack
equipment up to 16.5 in. deep
●
Mounts to wall or rolls on floor
(with optional SRCASTER)
Package Includes
●
SRW6UG SmartRack 6U LowProfile Switch-Depth Wall-Mount
Rack Enclosure Cabinet
●
(12) M6 screws
●
(12) M6 cage nuts
●
(12) M6 cup washers
●
(12) 12-24 screws
●
Removable mounting plate
●
(3) Mounting plate screws
●
(2) Keys
●
Owner’s manual
The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts
without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce
acoustic noise, but it also adds visual flair to your IT installation.
The front door and side panels lock securely to help prevent damage, tampering or theft. The top, bottom
and removable side panels are vented, which allows air to flow freely and keep equipment cool. The
reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top
and bottom ports allow easy cable routing.
The SRW6UG comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional
SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and
numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch
increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch
panels.
1 / 3
Page 2
Features
Saves Valuable Workspace
●
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited
floor space where you need equipment to be secure, organized and out of the way
●
Houses EIA-standard 19 in. rack equipment in 6U of space
●
Maximum load capacity of 200 lb.
Shatter-Resistant Clear Acrylic Front Window
●
Lets you monitor equipment without unlocking the enclosure
●
Prevents equipment tampering
●
Reduces acoustic noise
●
Provides extra visual flair
Keeps Important Equipment Secure
●
Side panels and front door lock securely to help prevent damage, tampering or theft
●
Vented panels allow generous airflow that keeps equipment cool
●
Rotate cabinet 180° before mounting to open reversible front door left or right
●
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
●
Ships fully assembled for quick installation
●
Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit
●
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
●
Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 16.5 in. deep, such
as network switches and patch panels
●
Rails support square-hole or 12-24 threaded-hole mounting
●
Rack spaces numbered for easy reference
Meets Payment Card Industry Standards
●
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data
Security Standard) compliance
Specifications
OVERVIEW
UPC Code 037332187277
PHYSICAL
Rack Height 6U
2 / 3
Page 3
Maximum Device Depth (in.) 16.5
Maximum Device Depth (cm) 41.91
Minimum Device Depth (in.) 3
Minimum Device Depth (cm) 7.62
Shipping Dimensions (hwd / in.) 17.30 x 25.80 x 19.90
Shipping Dimensions (hwd / cm) 43.94 x 65.53 x 50.55
Shipping Weight (lbs.) 33.30
Shipping Weight (kg) 15.10
Unit Dimensions (hwd / in.) 14.5 x 23.5 x 17.5
Unit Dimensions (hwd / cm) 36.83 x 59.7 x 44.45
Unit Weight (lbs.) 29
Unit Weight (kg) 13.15
Color Black
Weight Capacity - Stationary (lbs.) 200
Weight Capacity - Stationary (kg) 91
Cable Access Hole Measurement
(inches)
Maximum Device Depth (mm) 419
Minimum Device Depth (mm) 76
SPECIAL FEATURES
Grounding Lug Front and Back door frames
CERTIFICATIONS
Certifications UL/CSA 60950-1, EIA-310-E; IP20 Protection Rating
Approvals RoHS
WARRANTY
Product Warranty Period
(Worldwide)
9.812 x 2.35 (l x w)
5-year limited warranty
