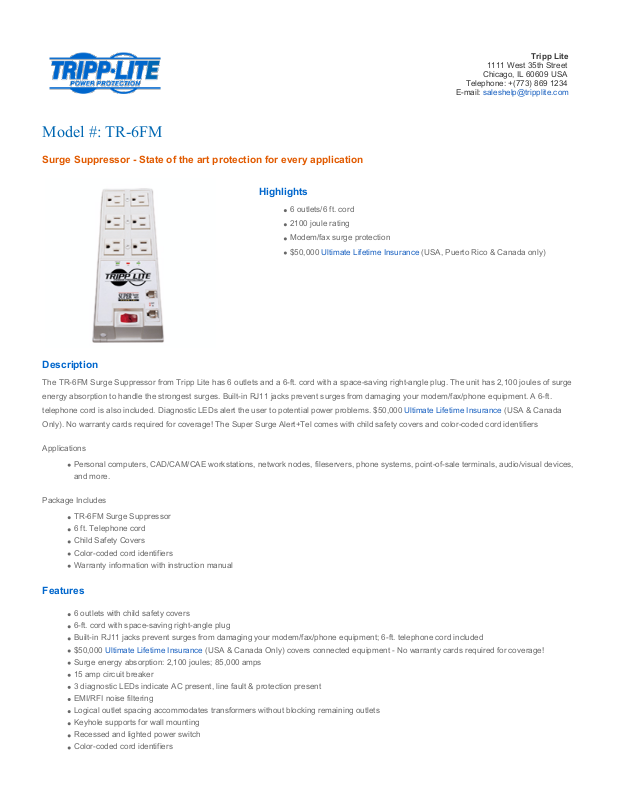

Model #: TR-6FM

Surge Suppressor - State of the art protection for every application

Highlights

6 outlets/6 ft. cord

2100 joule rating

Modem/fax surge protection

$50,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Description

The TR-6FM Surge Suppressor from Tripp Lite has 6 outlets and a 6-ft. cord with a space-saving right-angle plug. The unit has 2,100 joules of surge

energy absorption to handle the strongest surges. Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment. A 6-ft.

telephone cord is also included. Diagnostic LEDs alert the user to potential power problems. $50,000 Ultimate Lifetime Insurance (USA & Canada

Only). No warranty cards required for coverage! The Super Surge Alert+Tel comes with child safety covers and color-coded cord identifiers

Applications

Personal computers, CAD/CAM/CAE workstations, network nodes, fileservers, phone systems, point-of-sale terminals, audio/visual devices,
and more.

Package Includes

TR-6FM Surge Suppressor
6 ft. Telephone cord
Child Safety Covers
Color-coded cord identifiers
Warranty information with instruction manual

Features

6 outlets with child safety covers
6-ft. cord with space-saving right-angle plug
Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment; 6-ft. telephone cord included
$50,000 Ultimate Lifetime Insurance (USA & Canada Only) covers connected equipment - No warranty cards required for coverage!
Surge energy absorption: 2,100 joules; 85,000 amps
15 amp circuit breaker
3 diagnostic LEDs indicate AC present, line fault & protection present
EMI/RFI noise filtering
Logical outlet spacing accommodates transformers without blocking remaining outlets
Keyhole supports for wall mounting
Recessed and lighted power switch
Color-coded cord identifiers

Lifetime product warranty

Specifications

OVERVIEW

Intended Application Home/Office

SYSTEM OVERVIEW

Voltage compatibility 120 VAC

Frequency compatibility 50/60 Hz

OUTPUT

Output volt amp capacity
(amps)

15

Output watts 1800

Outlet quantity / type 6 NEMA 5-15R

Transformer accommodation Holds up to 4 large transformer plugs

INPUT

Input connection type NEMA 5-15P input plug

Input cord length (ft.) 6 ft.

Input cord length (m) 1.8

Recommended Electrical
Service

120V (110-125V)

LEDS ALARMS & SWITCHES

Diagnostic LEDs PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)

Switches Two position red illuminated on/off power switch

SURGE / NOISE SUPPRESSION

Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

AC suppression joule rating 1500 joules

Clamping voltage (RMS) 140V

AC suppression response
time

< 1 ns

AC suppression surge
current rating

78,500 amps

UL1499 let through rating 330V - UL Verified

Immunity Conforms to IEE 587 / ANSI C62.41

DATALINE SURGE SUPPRESSION

Telephone/DSL Protection Yes

Telephone/DSL Protection
Details

1 line

Cable (Coax) Protection No

Network (Ethernet) Protection No

PHYSICAL

Unit Dimensions (HWD/in) 1.5 x 3.5 x 9.5

Unit Dimensions (HWD/cm) 3.8 x 8.9 x 24.1

Material of construction Plastic

Integrated keyhole mounting
tabs

Keyhole mounting tabs enable wall mounting

Receptacle Color Gray
